3M Performance Gravity HVLP Atomizing Head Refill Kit — 1.2 mm Blue, 5-Pack | Quick-Change, PPS 2.0 Compatible

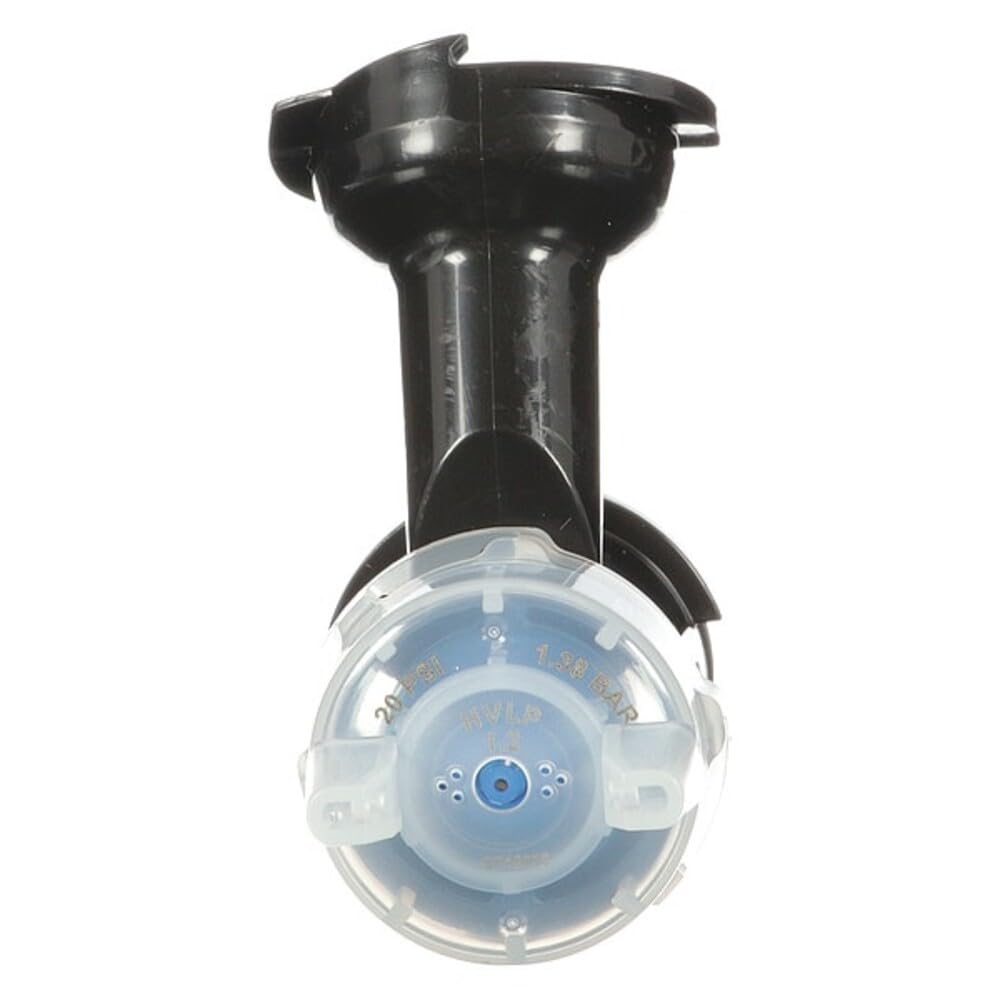

3M Performance Gravity HVLP Atomizing Head Refill Kit (26712) is a five-pack of 1.2 mm quick-change atomizing heads designed for the 3M Performance Spray Gun and PPS 2.0 gravity-feed system, ideal for clearcoats and waterborne base coats.

The 3M refill kit focuses on consistent, repeatable spray performance by isolating coatings to the replaceable atomizing head so material never travels through the gun body. That means each nozzle swap restores factory-like atomization and pattern control without full gun teardown. These blue 1.2 size heads are matched to common clearcoat and many waterborne base coat applications; always verify the paint maker’s fluid tip guidance for optimal results.

How does replacing the atomizing head improve spray consistency?

Because coatings only contact the disposable atomizing head, wear and clogging that degrade finish quality are minimized. Swapping the head effectively resets the critical fluid and air paths to their original tolerances, giving you uniform patterns job after job. This approach reduces the frequency of deep cleaning and preserves the spray gun’s performance over time.

• Paint only flows through the atomizing head, not the gun body
• Quick-change design restores nozzle geometry instantly
• Less downtime from clogging or buildup
• Consistent atomization and transfer efficiency across shifts

Which coatings and projects are 1.2 mm atomizing heads best for?

The 1.2 mm size in this kit is a common starting point for clearcoats and many waterborne base coats where a fine, even finish is needed. It balances fluid flow and air shear to produce controlled droplets for smooth, level films. For highly viscous materials or specialized clearcoats, check manufacturer recommendations to confirm tip sizing.

• Well-suited for clearcoat application and many waterborne base coats
• Good middle-ground for medium-viscosity materials
• Start point—adjust based on paint maker’s specs
• Helps achieve crisp edges and even coverage with proper settings

How do the atomizing heads work with the 3M PPS Series 2.0 cup system?

These atomizing heads were designed for use with the gravity-feed PPS 2.0 spray cup and the 3M Performance Spray Gun so the entire fluid path is modular and contained. PPS 2.0 reduces waste by integrating measuring, filtering and mixing in disposable liners, while the replaceable heads keep the gun body solvent-free. Together they simplify changeovers and reduce cleanup labor and solvent exposure.

• Compatible exclusively with gravity-fed PPS Series 2.0 components
• PPS liners minimize material waste and mess
• No need to disassemble gun body for routine changeovers
• Locking collar secures head to gun for reliable spray patterns

What should I know about installation, cleaning, and safety?

Installation is tool-free: pull the worn head off, press the new atomizing head into place and secure the locking collar. For temporary reuse, perform a proper solvent-clean of the fluid tip per paint manufacturer instructions; replace when wear or buildup impacts spray. These products are intended for industrial/occupational use—follow workplace and coating safety guidelines including ventilation and PPE.

• Tool-free removal and installation via locking collar
• Option to clean and reuse the fluid tip when appropriate
• Follow paint maker and workplace safety instructions for solvents and PPE
• Designed for professional/industrial use only

Who is this for: The 3M Performance Gravity HVLP Atomizing Head Refill Kit (1.2 mm, five-pack) is aimed at professional refinishers, collision repair shops, and industrial spray technicians who want quick nozzle changeouts, predictable atomization and reduced cleanup time. It's an efficient choice when you use the 3M Performance Spray Gun and PPS 2.0 system and need a reliable, serviceable nozzle option that supports consistent finish quality across daily production.
