ABN Spark Plug Thread Repair Kit M14x1.25 — 14mm Rethreading Set with HSS Taps & Inserts, Metal Case

If a spark plug hole in your lawn mower, motorcycle, car or small engine has been cross-threaded, worn or damaged, this ABN rethreading kit supplies the taps, inserts and installers to cut a new, reliable thread and install a durable insert. The 14mm metric size with HSS cutters is built for M14x1.25 spark plugs and handles both tapered-seat and gasket-seat configurations. The metal storage case keeps every component organized so you can repair threads on the bench or at the job site.

How does the kit restore a stripped spark plug hole?

The set guides you through enlarging the existing hole, cutting a precisely matched internal thread and seating a threaded insert that accepts the original spark plug. Using the stepped tap keeps the cutter aligned while the insert provides fresh threads that resist wear and burning. The included expander and installer let you fit the insert securely so the plug threads properly and seals consistently.

• Stepped HSS taps for accurate alignment and cutting
• Threaded metal inserts sized for M14x1.25 spark plugs
• Installer, expander wedge, and tap holder for secure fit
• Works on tapered or gasket-seat spark plug ports

Which engines and spark plug types is this compatible with?

This ABN kit targets engines that use 14mm spark plugs with a 1.25mm thread pitch. That covers many small engines, motorcycles and automotive applications that accept M14x1.25 plugs. It’s designed to repair both shallow and deeper plug recesses thanks to the included extension and stepped tap design.

• M14x1.25 thread size for many cars, motorcycles and lawn equipment
• Tapered-seat and gasket-seal plug compatibility
• Extension tools to reach deep-set plug locations
• High-speed steel (HSS) for durable cutting performance

What tools and parts come in the kit, and how do you use them?

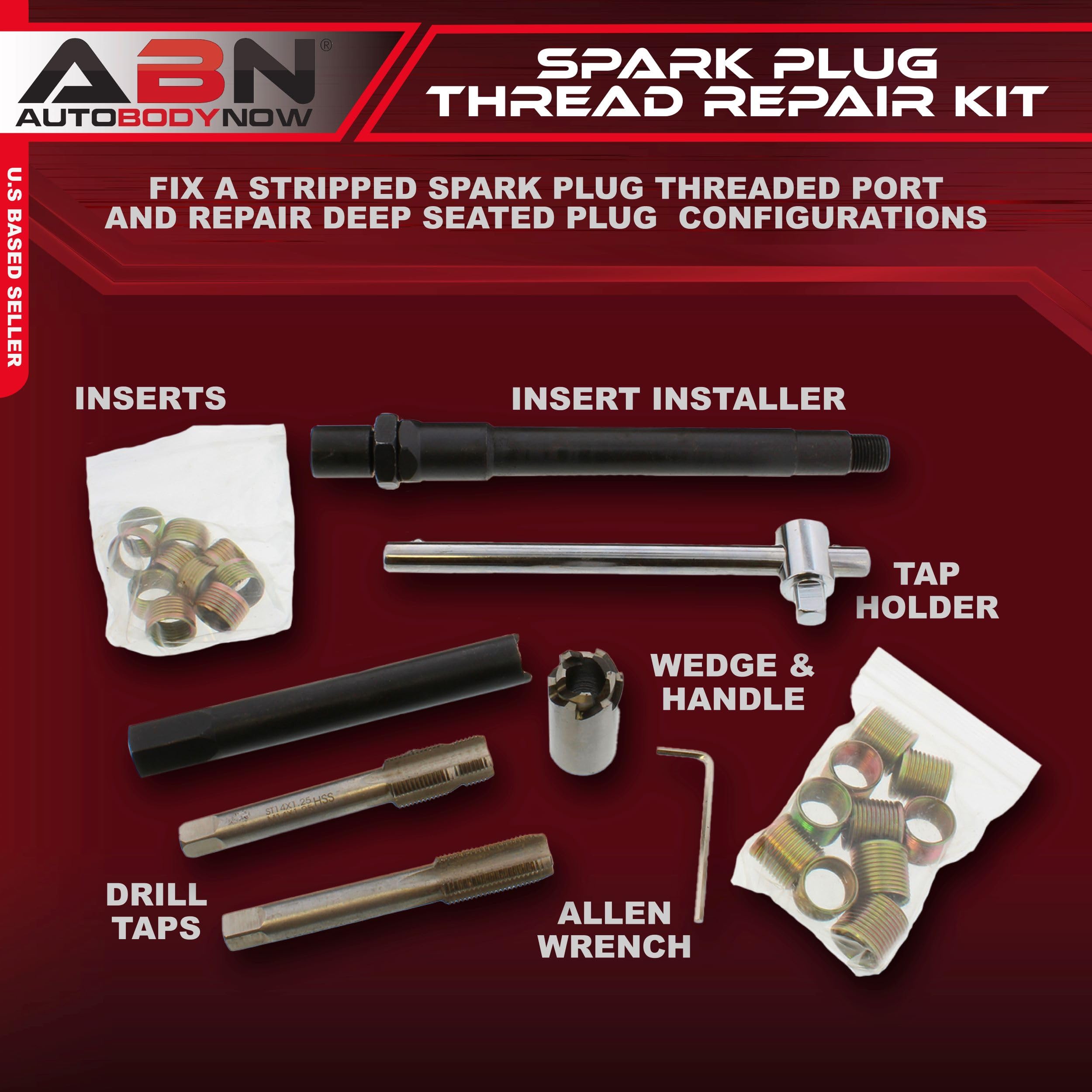

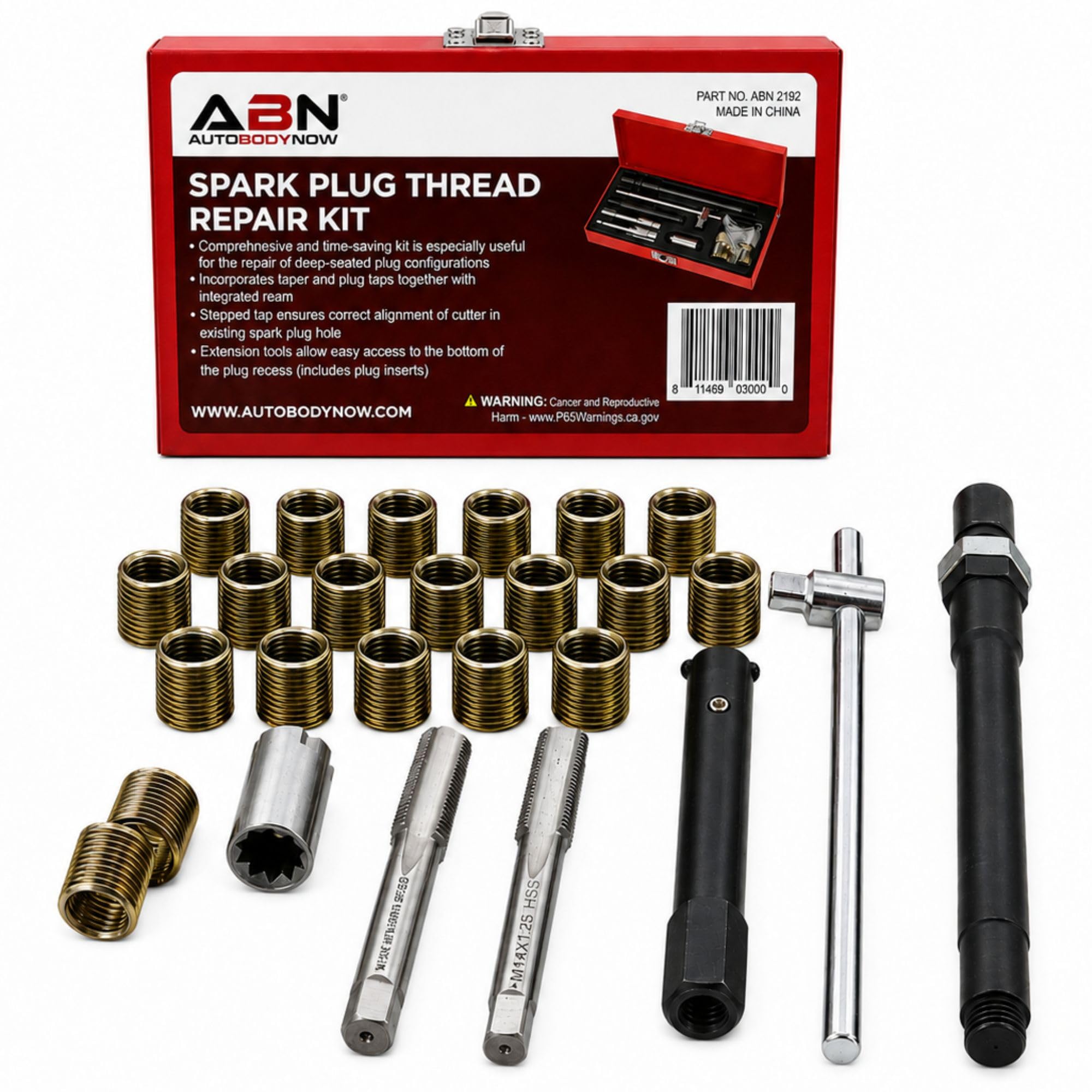

The kit contains drill taps, a tap holder, insert installer, expander wedge with handle, a selection of inserts, an Allen wrench and a fitted metal case. The basic procedure is to clean the hole, use the appropriate tap to cut the larger internal thread, screw in the insert, then expand or seat the insert as directed so the original spark plug threads properly into the new insert.

• Drill taps and tap holder for cutting new threads
• Insert installer and expander for secure seating
• Variety of inserts to match damaged thread length

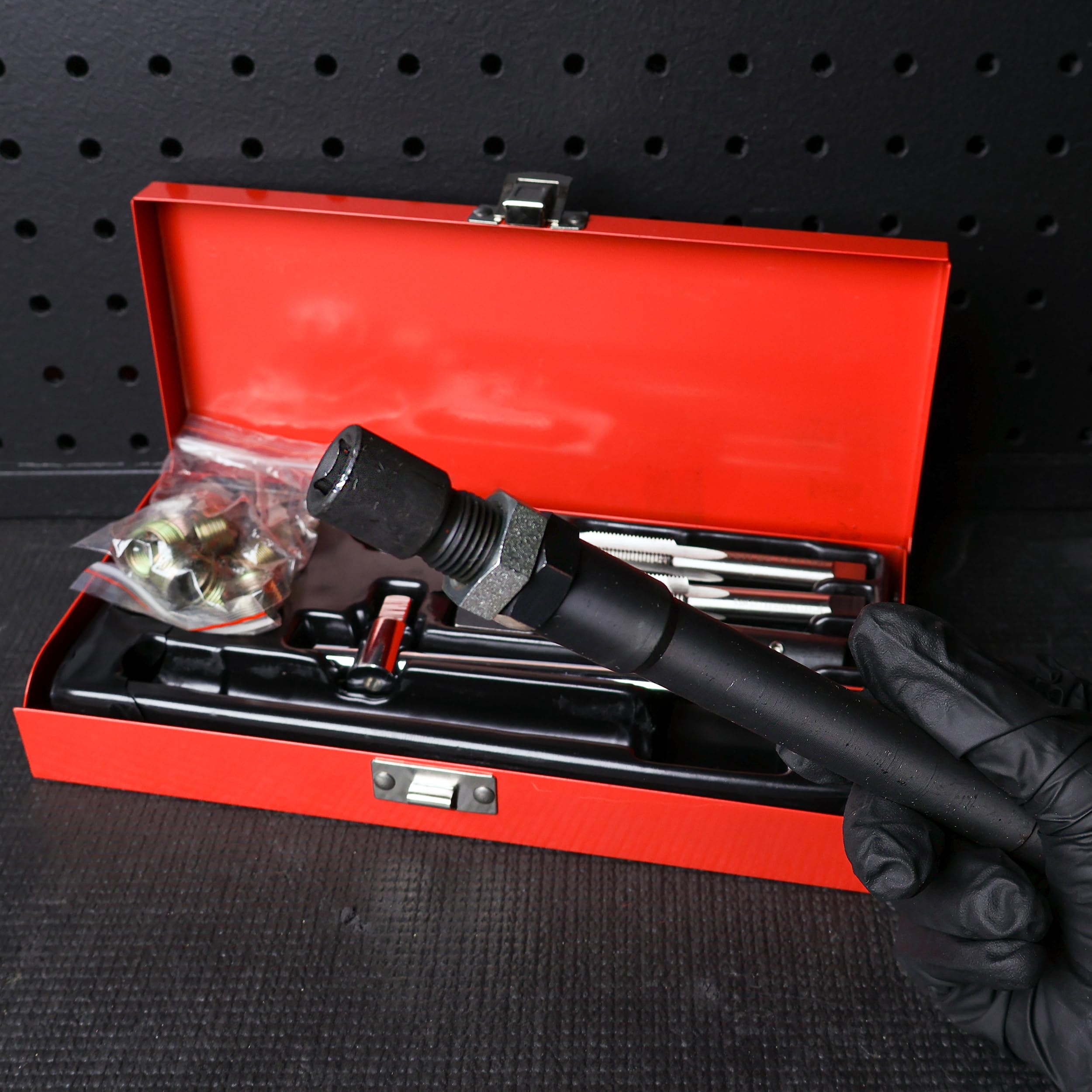

• Allen key and molded metal case for storage and transport

Are there tips to get the cleanest, longest-lasting repair?

Use lubricant or grease on the tap flutes to collect metal shavings and prevent clogging, and vacuum out debris during the process. Choose an insert that covers as much of the original plug thread as possible; shorter coverage can trap carbon and make removal harder. Work slowly, clean frequently, and check alignment to avoid creating a new problem while repairing the hole.

• Apply grease or cutting fluid to capture shavings
• Select inserts that maximize thread coverage
• Tap slowly and vacuum debris frequently from the recess
• Use the expander wedge to seat inserts firmly without overstriking

Who is this for? The ABN 14mm Spark Plug Thread Repair Rethreading Set is aimed at mechanics, DIYers, small-engine technicians and vehicle owners who need a reliable way to restore damaged spark plug ports. If you work on motorcycles, lawn equipment, ATVs or cars that use M14x1.25 plugs and want a portable, organized kit with taps, inserts and installers, this set provides the components and guidance to complete a durable thread repair without replacing the cylinder head.
