AC-DK 12V 2000 lb ATV/UTV Electric Winch — 50 ft Dyneema Rope, Wired Yellow Remote

AC-DK 12V 2000-lb ATV/UTV electric winch is a compact, ready-to-mount recovery winch featuring a 2000 lb rated pull, 50' Dyneema synthetic rope, wired yellow remote, and a planetary gear motor for reliable off-road use.

This winch kit is built for ATV, UTV and light trailer tasks where a lightweight, corrosion-resistant rope and a straightforward wired controller are preferred. The package includes a mounting plate with standard hole spacing, a fairlead-compatible pattern, and a 12V permanent magnet motor with a high-ratio planetary gearbox. Its design balances compact size, easy installation, and the safety advantages of a synthetic rope that floats and resists water damage.

How does the AC-DK winch perform under load?

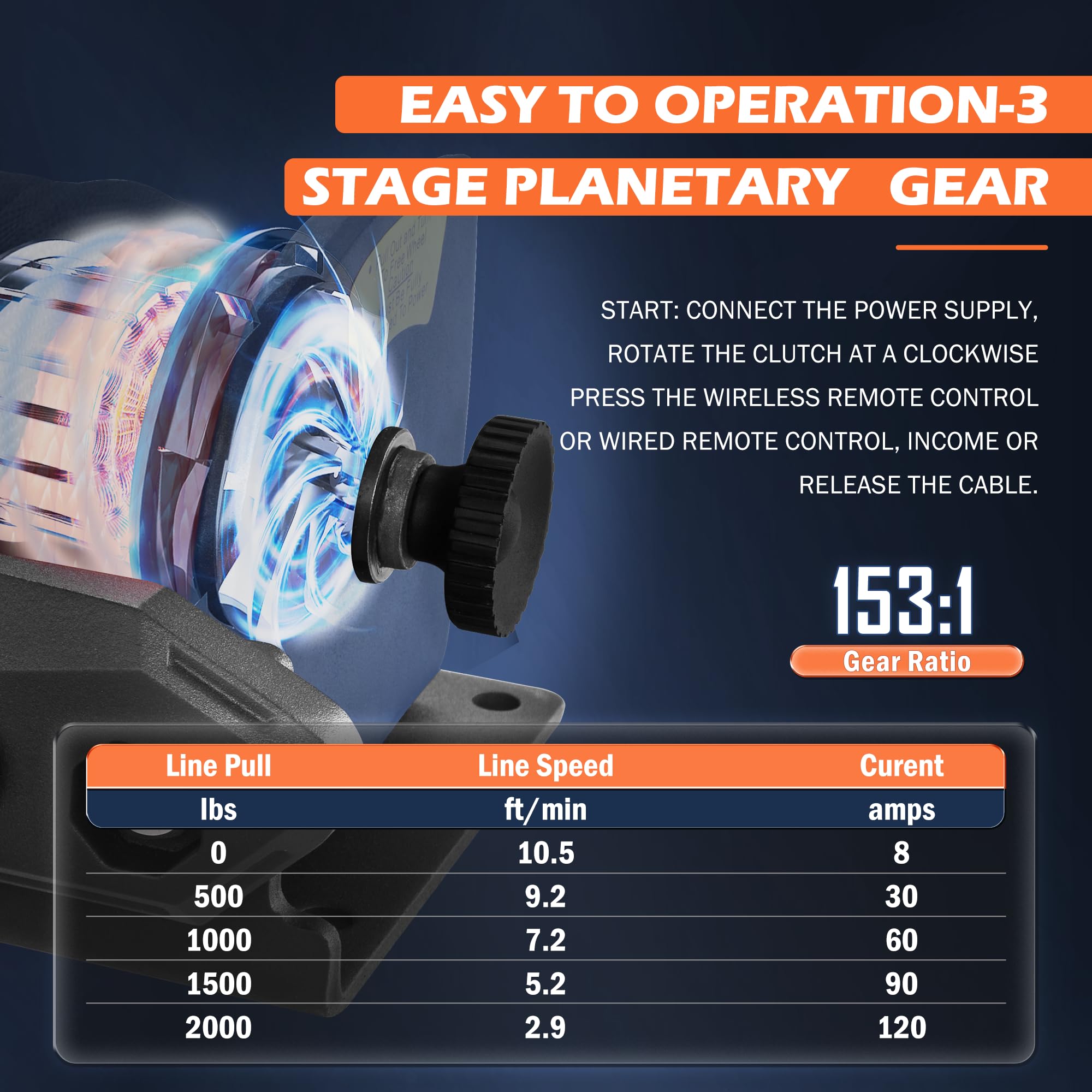

The winch uses a 0.82 kW (1.1 hp) permanent magnet DC motor coupled to a 153:1 planetary gear train, delivering smooth, steady pulling power up to its 2000 lb rating. Line speed varies with load—faster unloaded and slower at full load—so expect efficient, controlled recovery in common off-road scenarios.

• Rated pull: 2000 lb (suitable for most ATVs/UTVs and light trailers)
• Motor output: 0.82 kW / 1.1 hp for steady torque
• Gear ratio: 153:1 planetary system for reliable mechanical advantage
• Speeds: approx. 10.5 ft/min unloaded, 2.9 ft/min fully loaded

What safety and durability features does the synthetic rope provide?

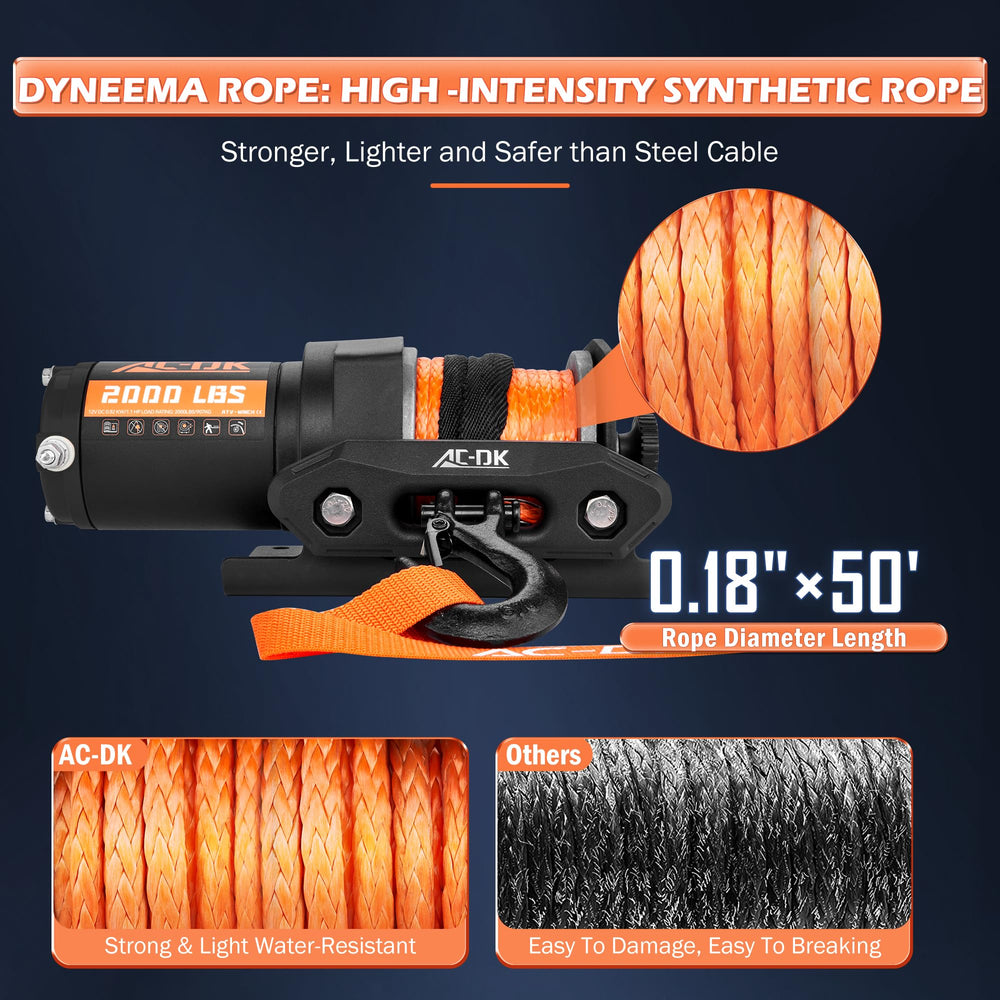

The included 3/16" x 50' Dyneema rope is lightweight, floats on water and resists rot and corrosion, making it safer around spectators compared with steel cable. Because synthetic rope does not store the same kinetic energy as steel cable, it reduces dangerous snapback if the rope breaks, and it remains strong even when wet.

• Material: Dyneema synthetic fiber, water-resistant and rot-proof
• Length/diameter: 50' long, 3/16" diameter for long reach and low weight
• Safety: reduced snapback risk versus steel cable
• Compatibility: floats to avoid underwater snagging and debris

How easy is installation and operation for an ATV/UTV owner?

The kit ships with a mounting plate and standard hole patterns to match common ATV/UTV brackets; confirm your mounting-hole spacing before purchase. Electrical hookup is designed to be simple: the wired yellow remote connects directly to the winch terminals and to the vehicle 12V supply for straightforward on/off and direction control.

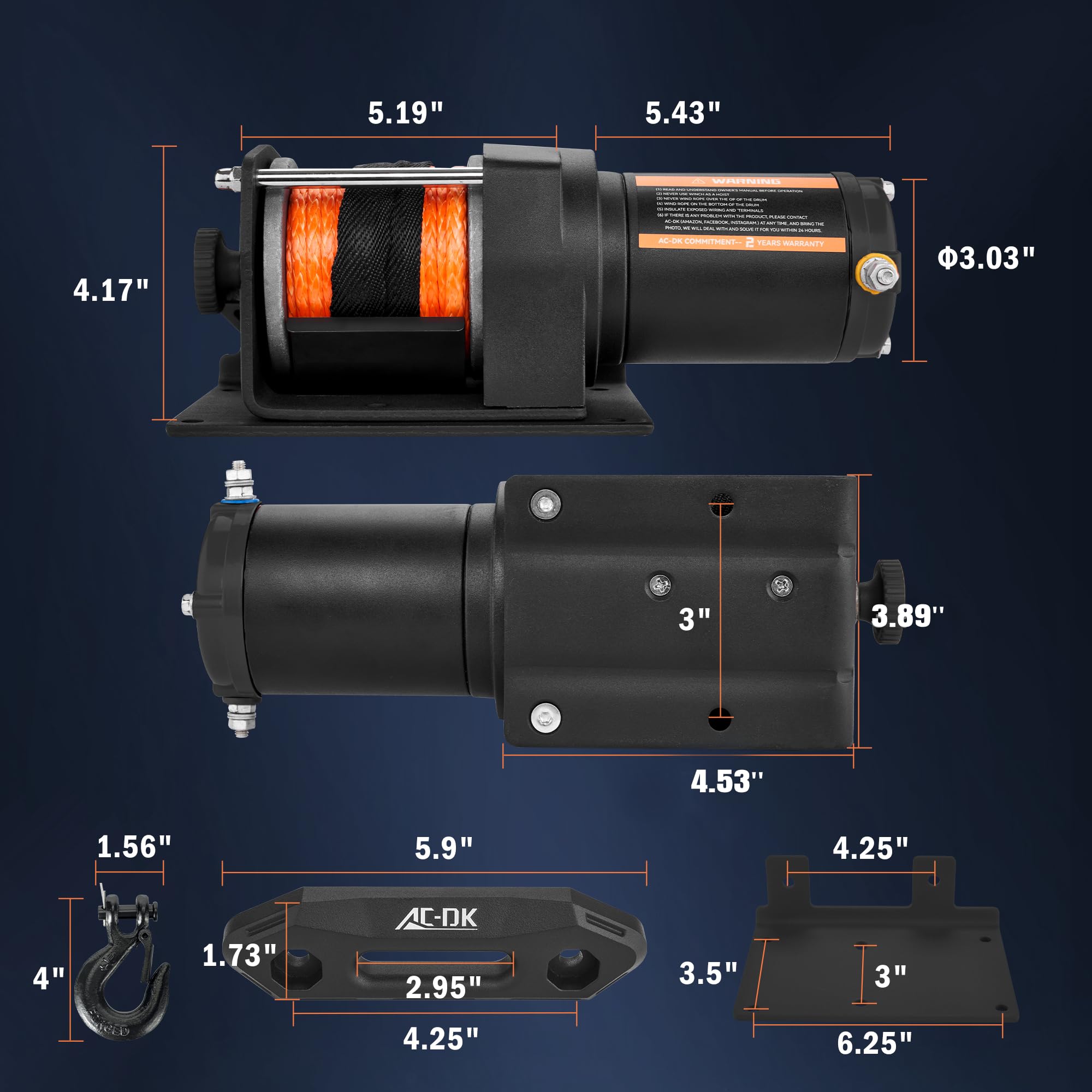

• Mounting pattern: fairlead 4.25" (108 mm); 2-hole plate spacing 3.10"/3.00"
• Electrical: minimum cold-start current 10A, direct wired remote connection
• Controls: large yellow wired remote for clear, reliable handling

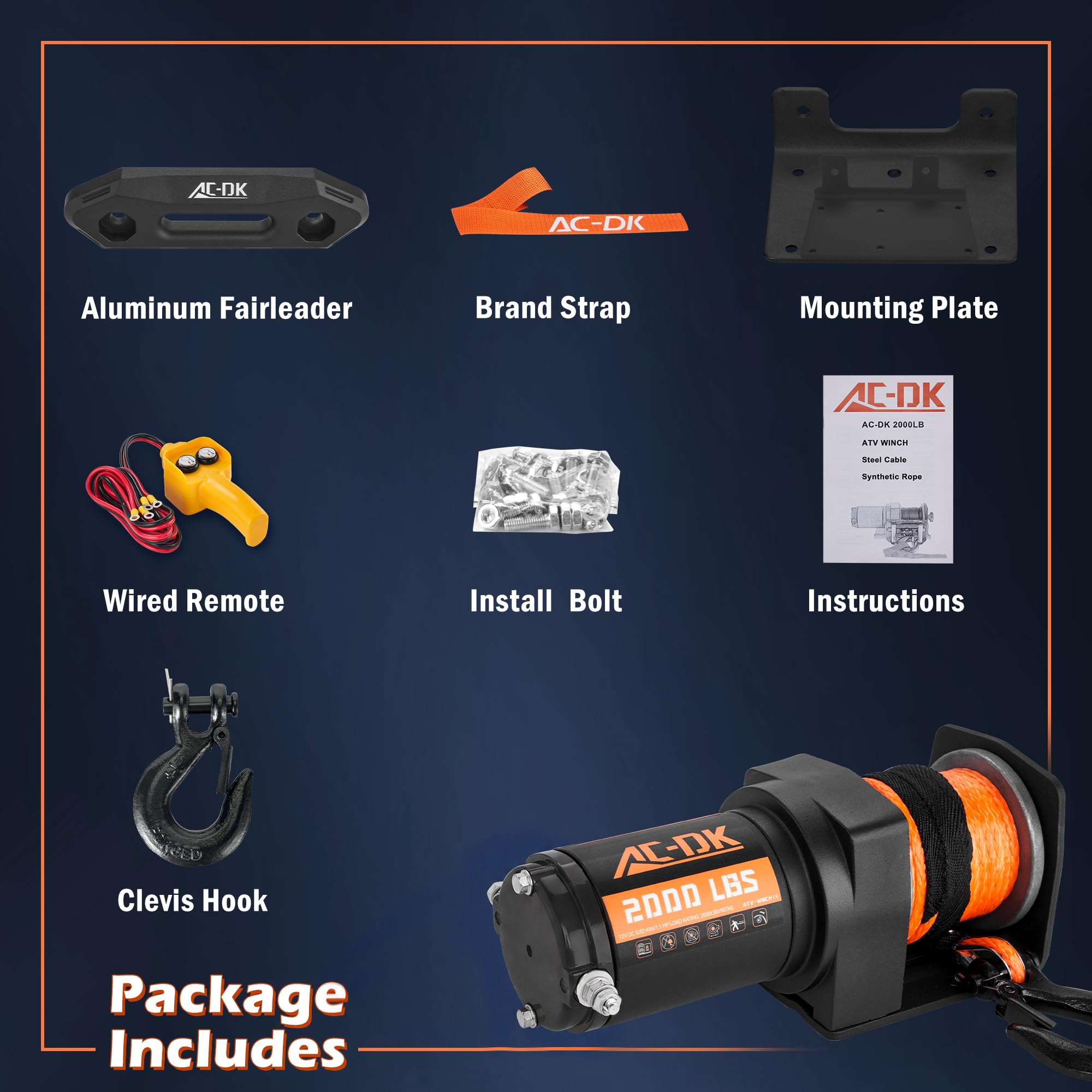

• Included: winch, synthetic rope, wired remote, mounting plate and hardware

What support and warranty does AC-DK provide?

AC-DK includes a one-year quality service plan plus lifetime technical support, with a commitment to respond to customer service inquiries within twelve hours. This helps owners troubleshoot installation, controller issues and basic operation questions quickly.

• Coverage: one-year quality service
• Support: lifetime technical assistance and 12-hour response pledge
• Help scope: installation guidance, operation troubleshooting, parts advice

Who is this for: The AC-DK 2000 lb winch is aimed at ATV and UTV owners, light trailer users and recreational boaters who want a compact, corrosion-resistant rope system with simple wired controls. It’s a good fit for riders who prioritize lightweight recovery gear, easy installation with common mounting patterns, and a safer synthetic rope option for water or mud-prone use.
