ACTECMAX A/C Compressor Manifold Seal Kit — 3 Color-Coded Sealing Washers (Yellow/Green/Red), OEM-Fit Leak-Reducing

ACTECMAX A/C Compressor Manifold Seal Kit is a precision set of three color-coded sealing washers engineered to replace OEM 2724887, 15-20058, and 24342 for reliable, leak-minimizing service on automotive A/C compressor manifolds.

This kit collects the commonly needed sealing washers for compressor manifold ports in one compact kit, saving time during repair or replacement of A/C compressor hoses and fittings. Each washer is color-coded for quick identification: yellow, green and red sizes correspond to specific port dimensions and thicknesses. The parts are molded to tolerances that match documented OEM sizes so they sit flush under the torque of service fittings and help maintain refrigerant and oil containment without bulky adapters.

Which original equipment numbers does this kit replace?

The ACTECMAX kit is manufactured to match the form and fit of several common OEM references used in compressor manifold assemblies. It is intended for use where those part numbers are specified by vehicle service information.

• Replaces OEM numbers: 2724887, 15-20058, 24342.
• Supplies three color-coded washers sized to match OEM dimensions.
• Designed for direct interchange in compatible compressor manifolds and service ports.

How do the three sealing washers differ and where are they used?

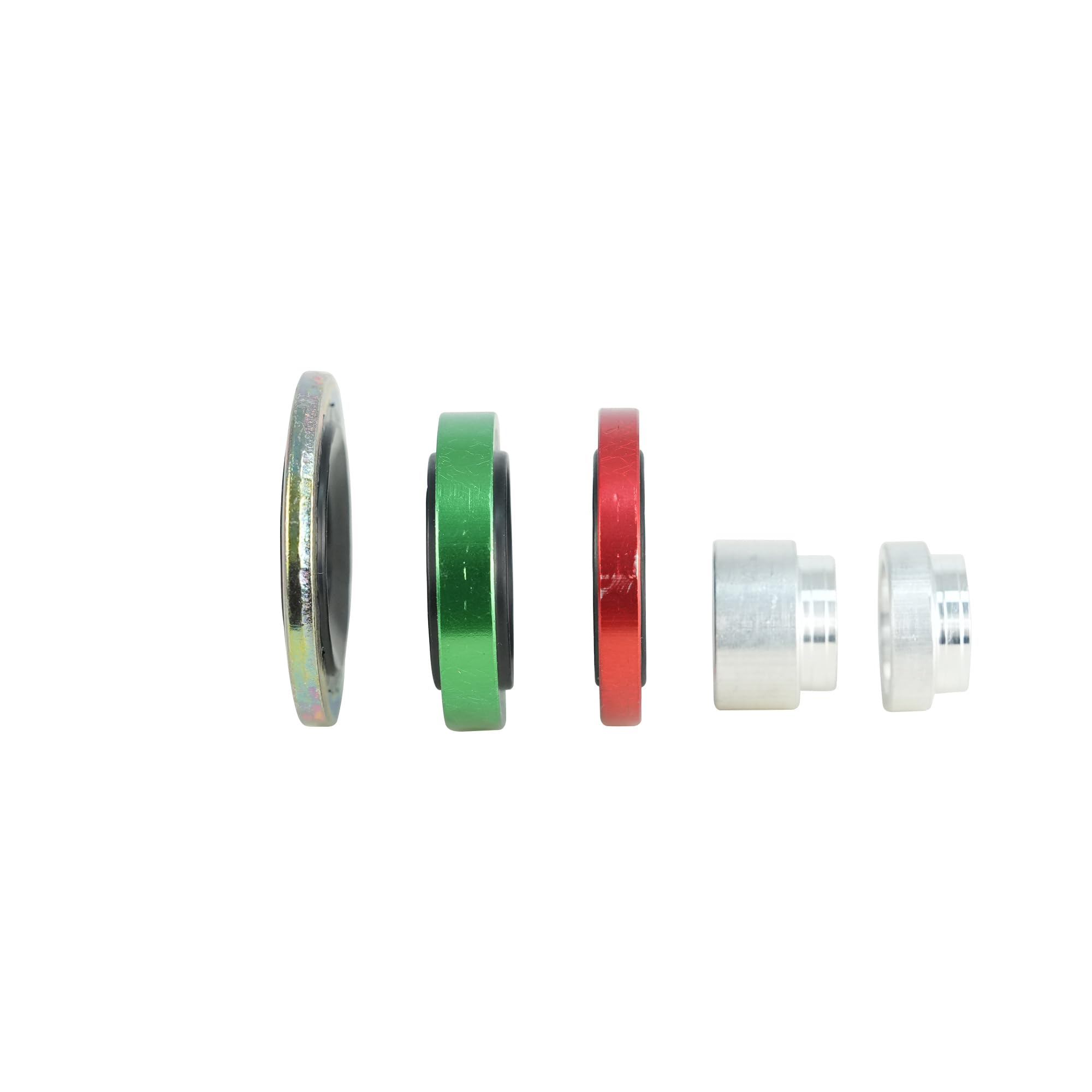

Each washer is a different outer diameter and thickness to suit distinct port designs and mating fittings on the compressor manifold. Color coding simplifies identification during disassembly and reassembly so you reuse the correct washer per port.

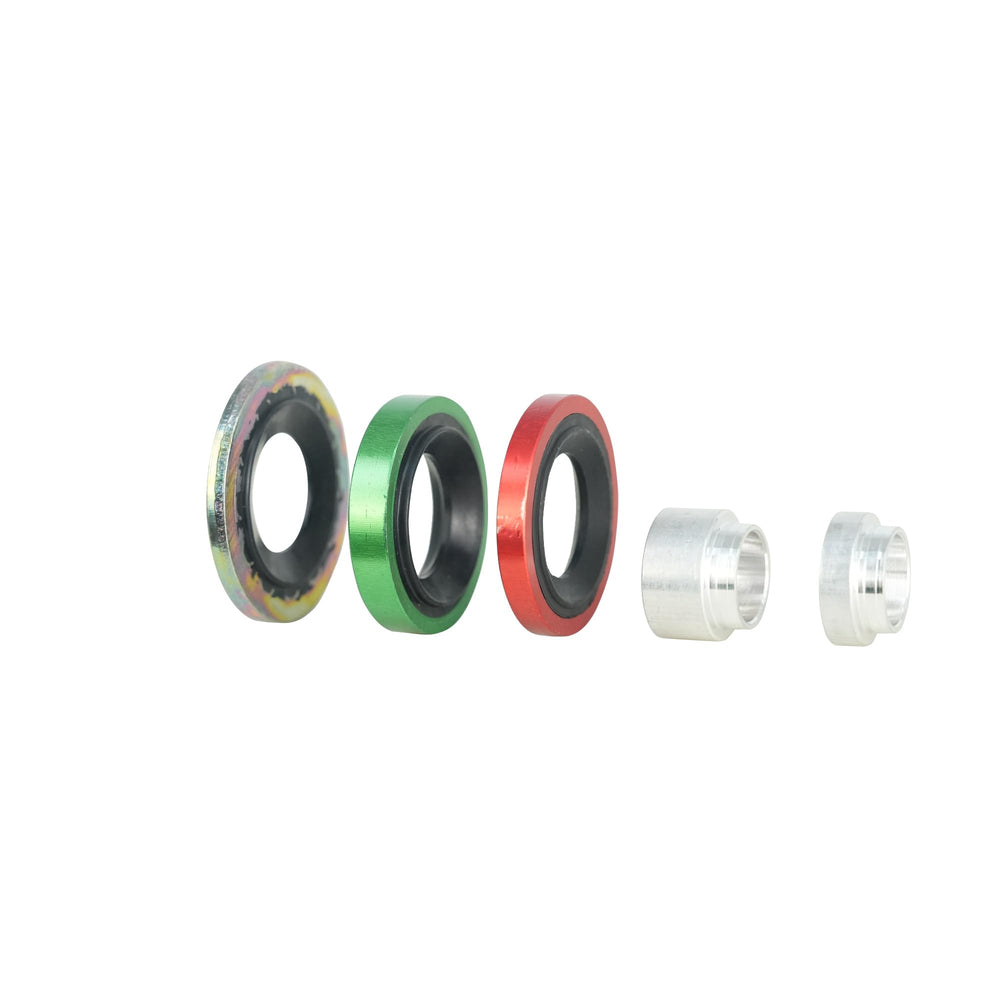

• Yellow washer — O.D. 33.2 mm, I.D. 15.5 mm, thickness 3.0 mm; common for larger port faces.

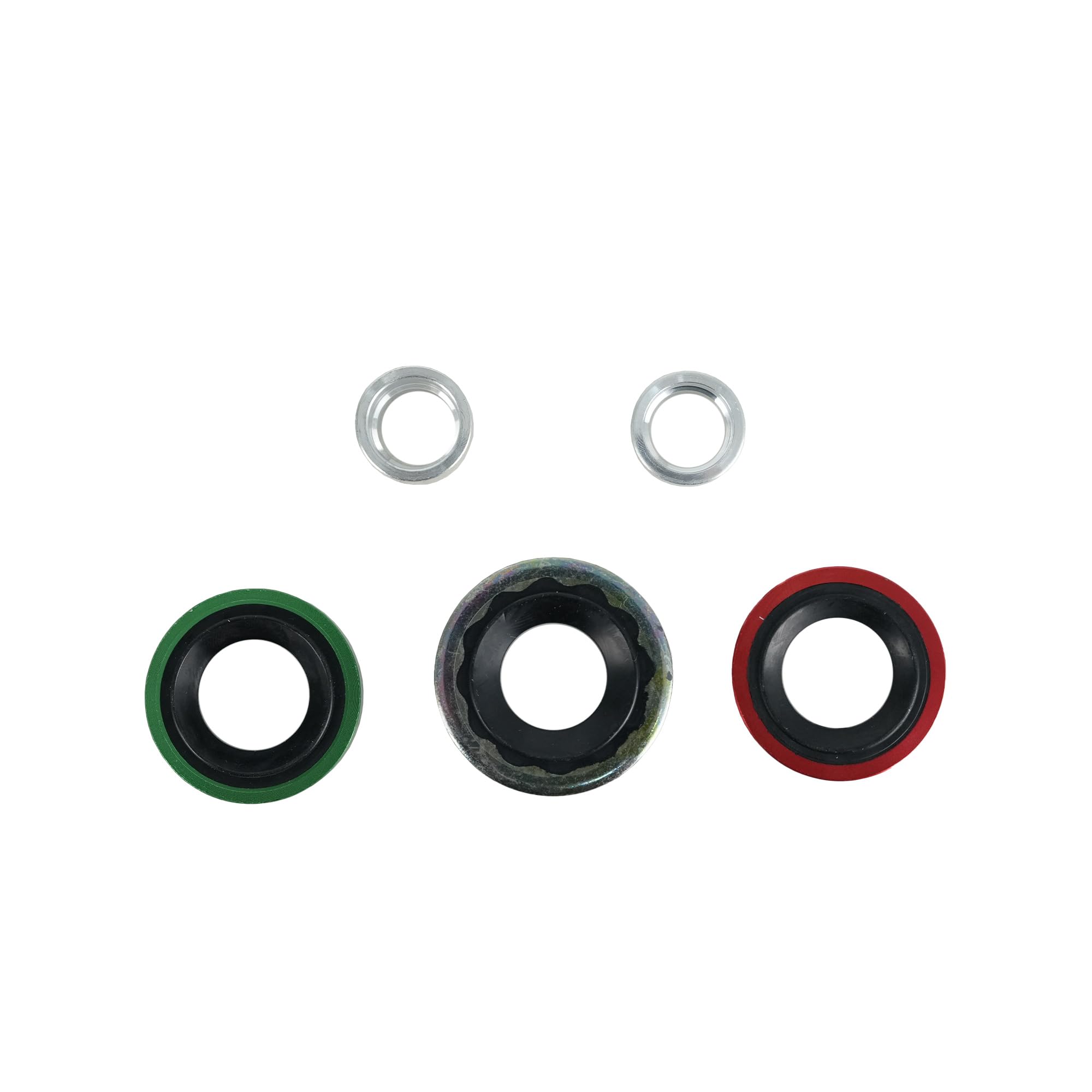

• Green washer — O.D. 29.9 mm, I.D. 15.5 mm, thickness 5.5 mm; used where greater compression is needed.

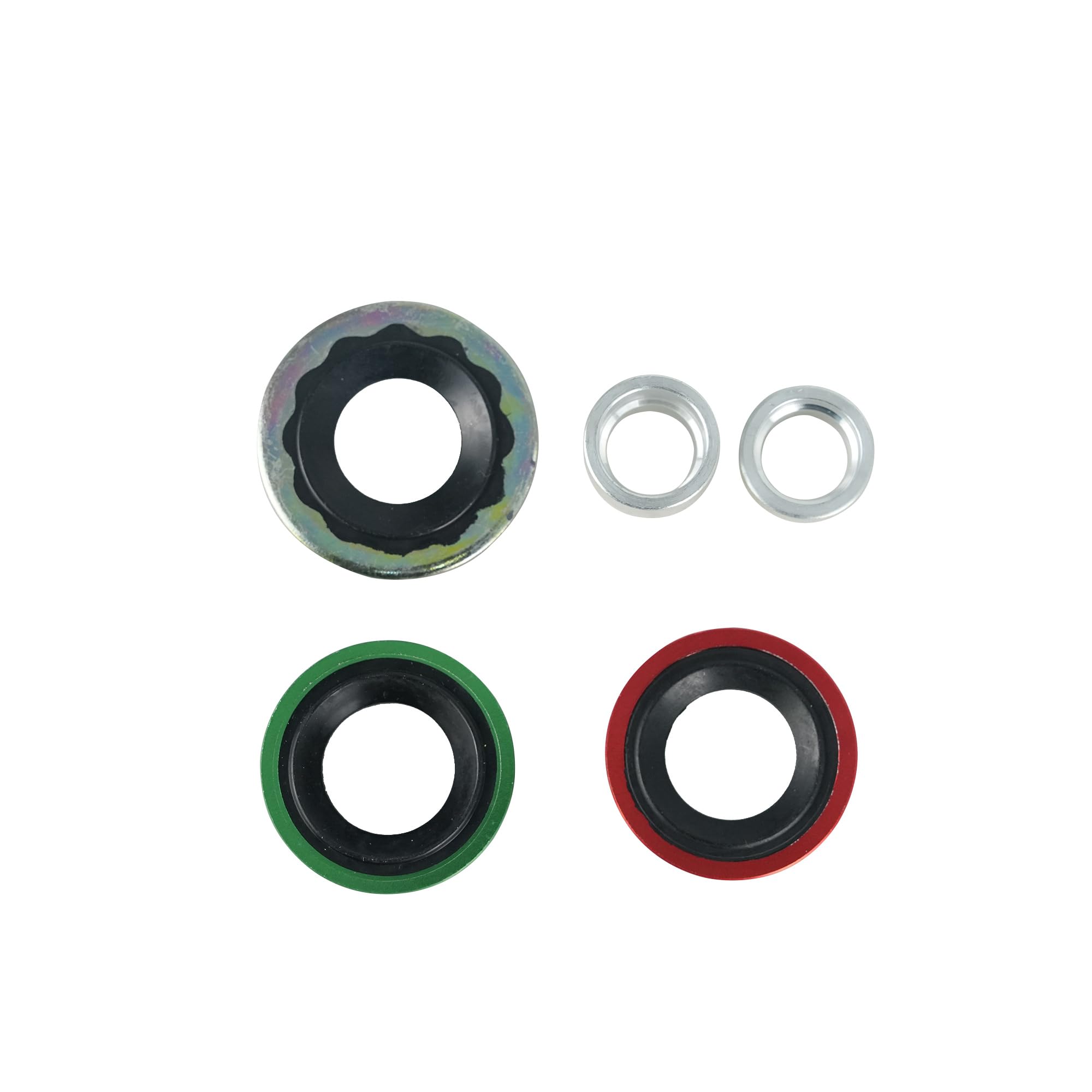

• Red washer — O.D. 33.2 mm, I.D. 15.5 mm, thickness 3.8 mm; fits intermediate sealing faces.

Will these washers prevent leaks after A/C service?

When installed correctly and paired with compatible compression fittings, these washers create a stable sealing surface that reduces the risk of refrigerant or oil weep. Proper torque, clean mating surfaces and using the correct colored washer for each port are essential to successful sealing.

• Molded to match OEM diameters for tight seating under compression.
• Color-coded to prevent mismatched reuse and improper sealing thickness.
• Ideal for routine compressor repairs and hose replacements when original washers are damaged or lost.

How do I choose the right washer during reassembly?

Identify the washer by color and match it to the original part removed, or consult service documentation for port-specific washer thickness. If unclear, compare outer diameter and thickness to ensure the washer fills the mating surface without over-compression.

• Match color and measured dimensions to the removed washer.
• Use calipers to verify O.D., I.D., and thickness if labels are missing.
• Replace any washer showing deformation, cracking, or hardening.

Who is this for: The ACTECMAX A/C Compressor Manifold Seal Kit is suited for professional technicians, independent auto shops and DIY mechanics who perform A/C compressor, hose or manifold maintenance and need an exact-fit replacement for common OEM sealing washers. It’s especially useful when original washers are lost or damaged during service and a correct-size, color-coded set speeds reliable reassembly without guesswork.
