ANCEL AD410 PRO OBD2 Scanner & 12V Battery Tester — 2-in-1 Live Data, EVAP, Cranking & Charging Tests

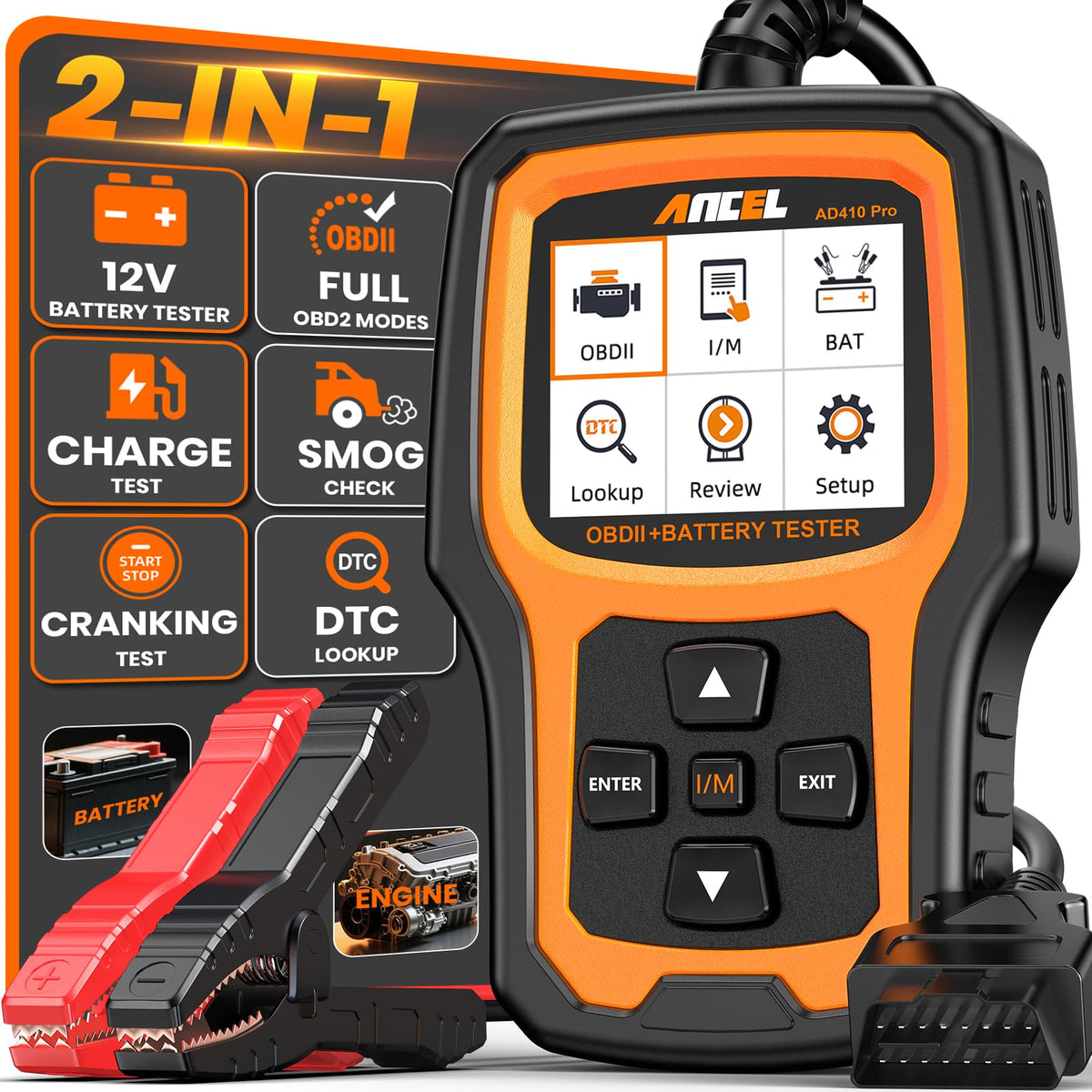

ANCEL AD410 PRO is a compact 2-in-1 diagnostic tool that combines a full OBD2 code reader with a 12V battery, cranking and charging system tester for fast, on-the-spot vehicle troubleshooting.

The AD410 PRO merges engine diagnostics and battery system analysis into one handheld device so you can read trouble codes, monitor live data, check EVAP readiness and test battery health without carrying multiple tools. It decodes over 42,000 SAE DTCs, displays 50+ real-time parameters with waveform graphs and offers dedicated I/M Readiness checks to help avoid failed emissions inspections. Plug-and-play operation and a bright 2.4" screen make it usable by DIYers and professionals alike.

How will the AD410 PRO help when my check engine light comes on?

This scanner reads and explains stored, pending and permanent diagnostic trouble codes so you can identify the subsystem and probable cause quickly. After repairs you can clear codes to confirm the issue is resolved.

• Decodes 42,000+ SAE DTCs with plain-language descriptions
• Displays freeze-frame data showing engine state when the fault occurred
• Clears codes after repair to reset the check engine light
• Supports EVAP and core emissions monitors for targeted troubleshooting

Can it tell if my car’s no-start is the battery, starter or alternator?

Yes — the AD410 PRO runs multi-step battery system tests that separate battery health, cranking performance and charging output so you can pinpoint the failing component. This prevents unnecessary part replacements and saves diagnostic time.

• Battery health assessment beyond simple voltage checks
• Cranking test measures starter performance under load
• Charging system test evaluates alternator output and charging stability
• Helps decide between battery replacement, starter repair or alternator service

What live data and graphs does the scanner show while driving?

Live mode streams more than 50 engine parameters with clear numeric readouts and waveform displays so you can watch sensors, fuel delivery and ignition behavior in real time. Use freeze-frame or replay to analyze the exact conditions present when a fault occurred.

• 50+ PID readings including RPM, fuel trim, temps and sensor voltages
• Waveform graphs for visualizing sensor fluctuations and misfires
• Freeze-frame replay of speed, load and temperature at fault time
• Helpful for intermittent problems and pre-repair diagnostics

Which vehicles and systems are compatible with the AD410 PRO?

The AD410 PRO works with most OBD2-equipped gas and diesel vehicles using the standard 16-pin connector. It supports 1996+ U.S., 2001+ EU and 2005+ Asia models but does not cover vehicle-specific modules like ABS, SRS or some transmissions, nor is it intended for fully electric vehicles without a 12V OBD2 port.

• Compatible with standard OBD2 16-pin gasoline and diesel vehicles
• Coverage: 1996+ (U.S.), 2001+ (EU), 2005+ (Asia) typical model years
• Does not support ABS, SRS, or certain manufacturer-specific systems
• Not designed for EV propulsion system diagnostics (12V accessory use only)

Who is this for: The ANCEL AD410 PRO is ideal for car owners who want reliable, no-fuss diagnostics without a laptop or smartphone, mobile mechanics needing a compact dual-purpose tool, and anyone preparing a vehicle for an emissions test. It’s also a practical choice for motorcycle owners and small repair shops that require quick OBD2 scans plus battery and charging checks in a single, portable unit.
