Antline LED Replacement Bulbs 3056/3057/3156/3157 Pack of 10 — White 54‑SMD 3014, 400LM 12–24V 360° Beam

Antline 54-SMD LED bulbs are compact 12V–24V vehicle replacement lamps engineered to deliver bright, 360° illumination for tail, brake, reverse, turn and interior lighting.

These Antline bulbs swap directly for common 3056/3057/3156/3157-style bulbs and pack fifty-four 3014 LED chips into a 1.7-inch housing to increase visible output while keeping power draw low. Designed for cars, trucks, RVs and trailers, they offer a longer operating life and lower wattage than many incandescent counterparts, making them a practical upgrade for lighting that needs to be visible and reliable.

How much brighter are these compared with original halogen bulbs?

The Antline LEDs produce about 400 lumens per bulb and are engineered to output roughly three times the visible brightness of typical halogen equivalents. Their 360-degree chip arrangement reduces dark spots and improves side visibility in multi-function lamp sockets.

• 400 LM output per bulb for strong visibility

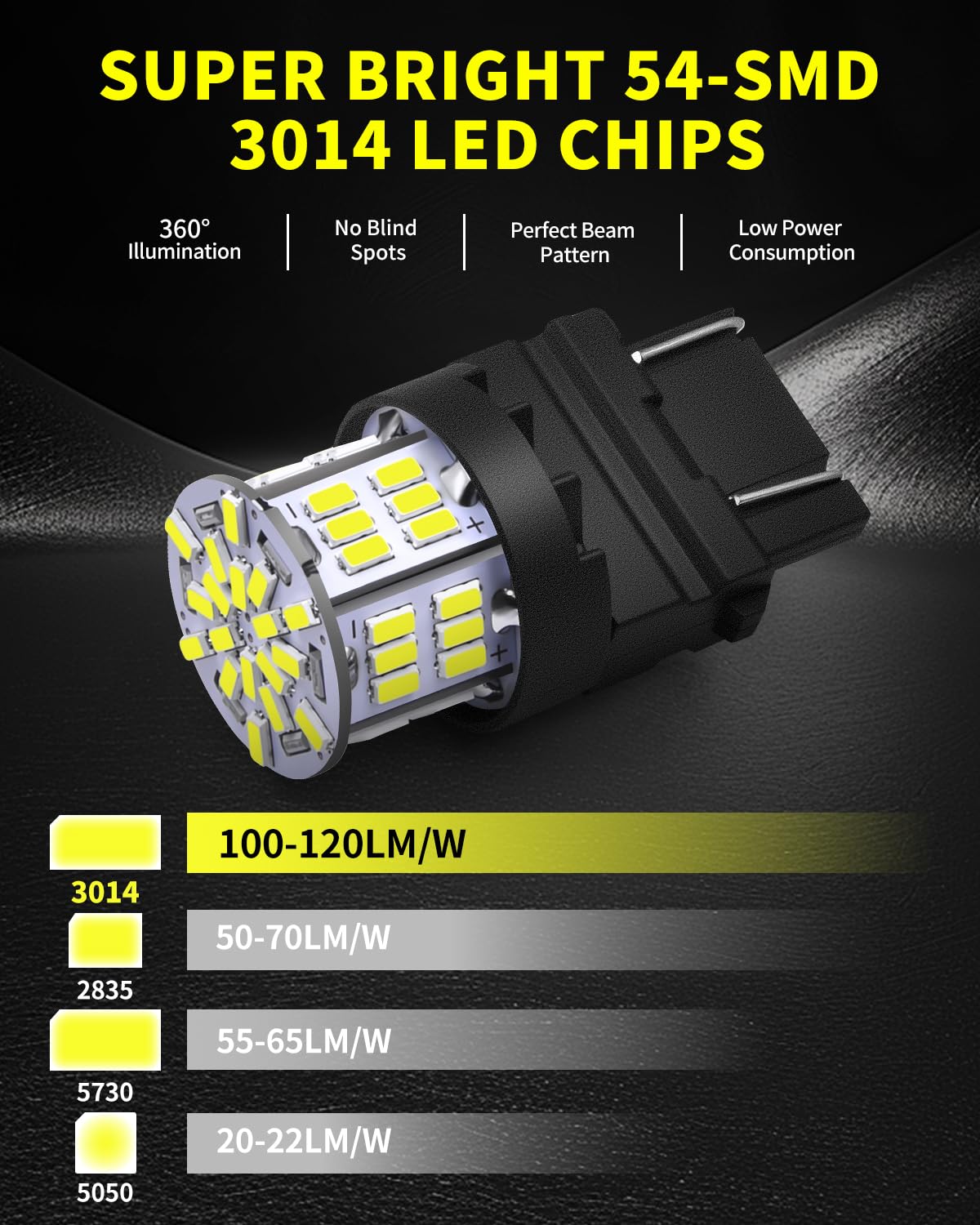

• 54 x 3014 SMD chips arranged for full-angle light
• 3W power draw and approximately 310 mA current at 12–24V DC
• Reduced heat and longer life than incandescent bulbs

Will these fit my vehicle’s sockets and light functions?

Antline bulbs are designed to replace a wide range of wedge-style automotive bases including many 3056/3057/3156/3157 and similar part numbers. They are suitable for tail lights, brake lights, reverse lights, parking lights and interior fixtures when the socket type matches.

• Compatible with many 3056, 3057, 3156, 3157 style sockets
• Works in tail, brake, backup, parking and interior lighting
• May require a load resistor or relay for turn-signal circuits to prevent hyper-flash
• Fits 12V–24V electrical systems (cars, trucks, RVs, trailers)

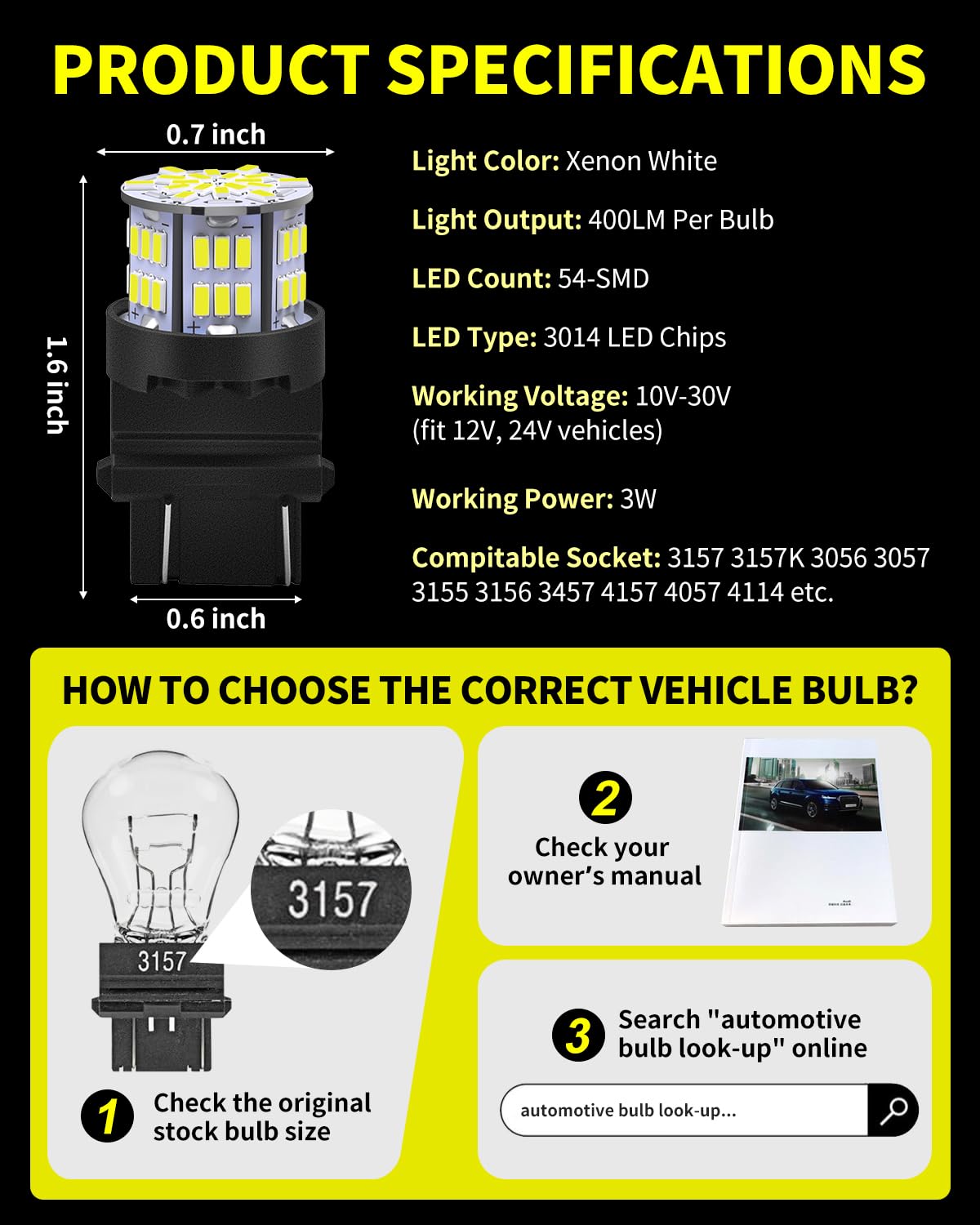

What are the physical and electrical specifications I should know?

Each bulb is compact—about 1.7 inches long and 0.7 inches in diameter—drawing roughly 3 watts. The low-wattage design keeps electrical load small while providing a bright 360° beam pattern suitable for many vehicle lighting locations.

• Length: 1.7 inches; diameter: 0.7 inches
• Voltage range: 12V–24V DC; current ~310 mA
• Power: 3 W per bulb; luminous output ~400 LM

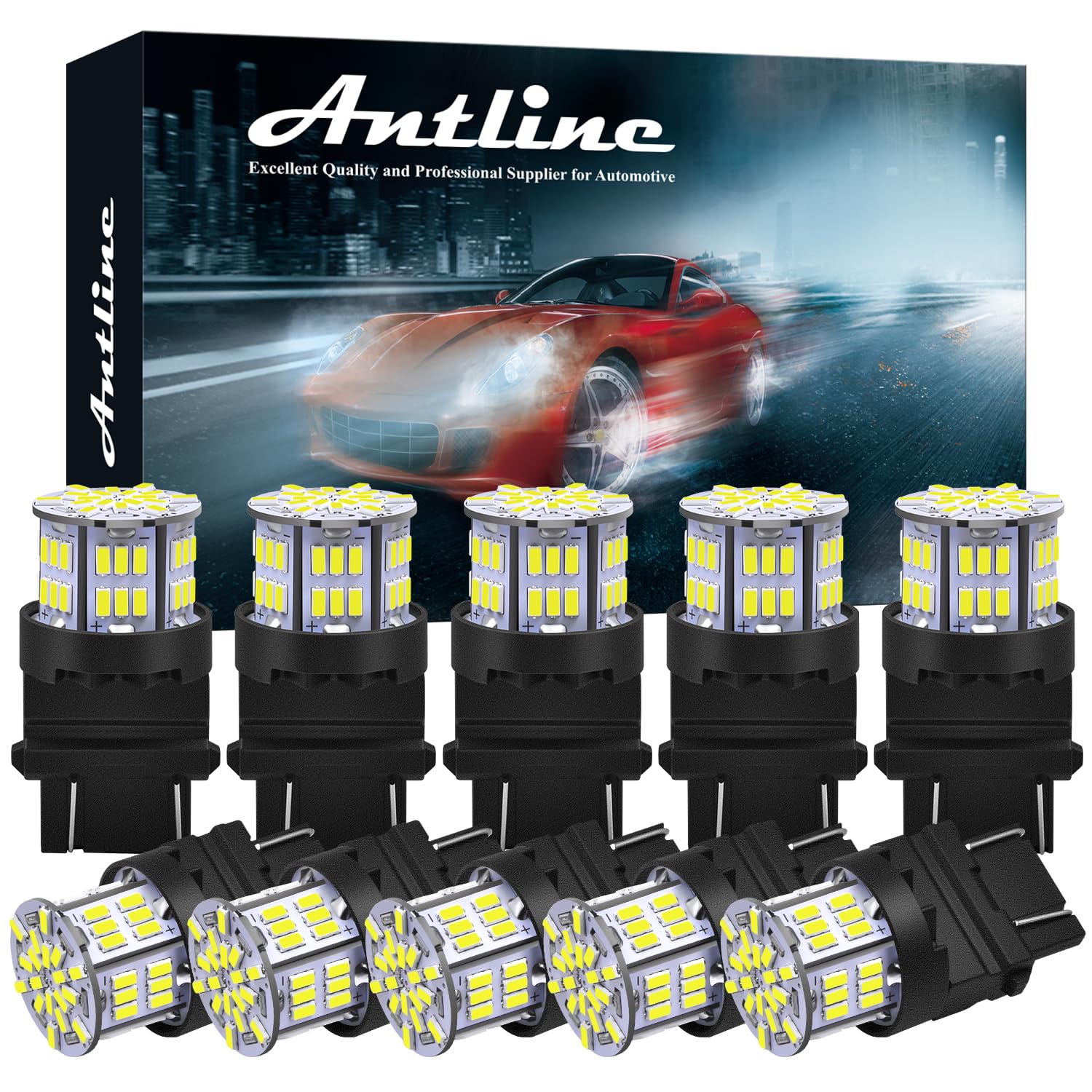

• Pack of 10 bulbs for multiple fixtures or spares

What warranty and quality assurances come with the bulbs?

Antline backs these LED replacements with a one-year warranty covering delivery damage and confirmed manufacturer defects, so you can test fit and function without long-term worry. The construction and chip count are intended to deliver consistent performance under typical vehicle conditions.

• One-year warranty for defective or damaged items
• High-density 3014 SMD chips for stable brightness
• 360° lighting layout for even illumination
• Lower power draw and reduced heat compared to incandescents

Who is this for? Drivers, fleet managers and RV owners who need bright, energy-efficient replacements for wedge-style automotive bulbs will appreciate Antline’s high-SMD design. This pack of 10 is useful for replacing multiple lamps at once or keeping spares on hand for trailers, campers and older vehicles that use 3056/3057/3156/3157-style sockets. If you plan to replace turn-signal bulbs, consider verifying whether a load resistor or hyper-flash relay is required for your vehicle when upgrading to LEDs.
