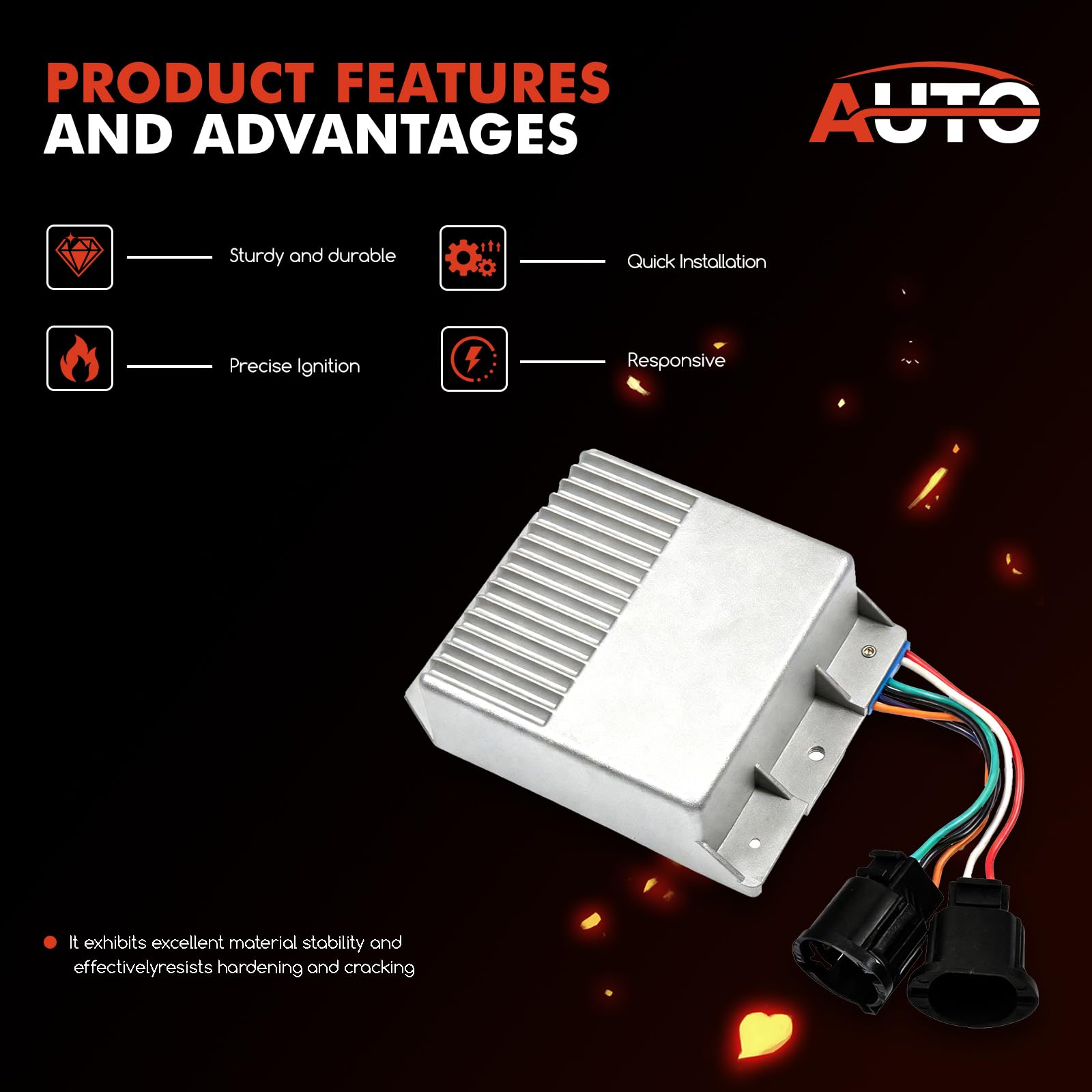

AUTO OCCASION LX203 Ignition Control Module for Ford F-Series, Jeep, Mercury, Lincoln (1977–1987) — Direct-Fit Replacement, ICM/IC

AUTO OCCASION's LX203 ignition control module replaces the factory ICM/ICU/FSU for select Ford, Jeep, Mercury and Lincoln models built between 1977 and 1987.

This replacement ignition control module is designed as a direct-fit aftermarket component for classic vehicles that use the LX203 part number. It provides the electronic switching function between the ignition coil and the vehicle’s distributor, helping the engine fire reliably when matched to the correct year, make and model. Before installing, confirm the part number and compare the unit to your original module to ensure correct pin configuration and mounting points.

How do I know this module fits my vehicle?

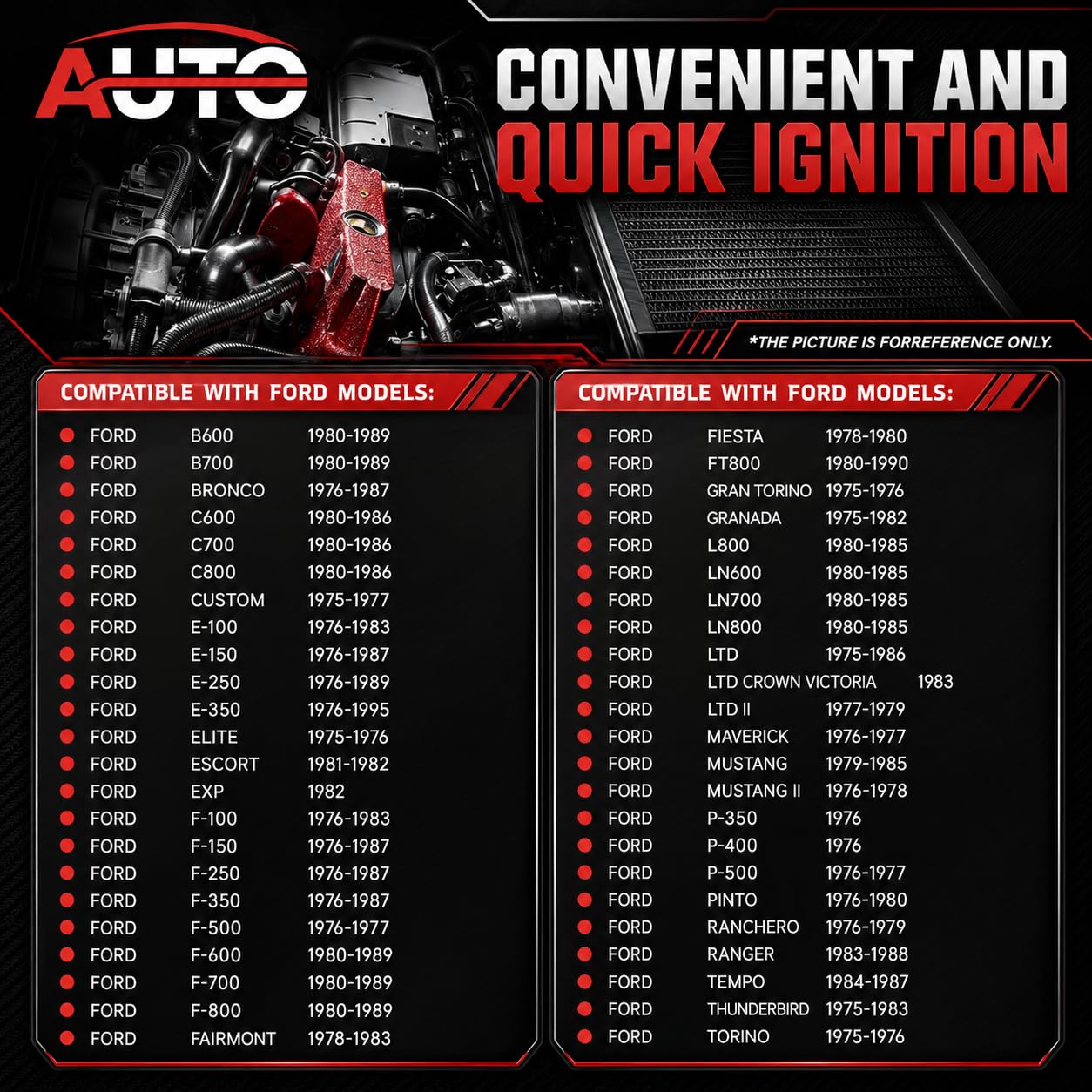

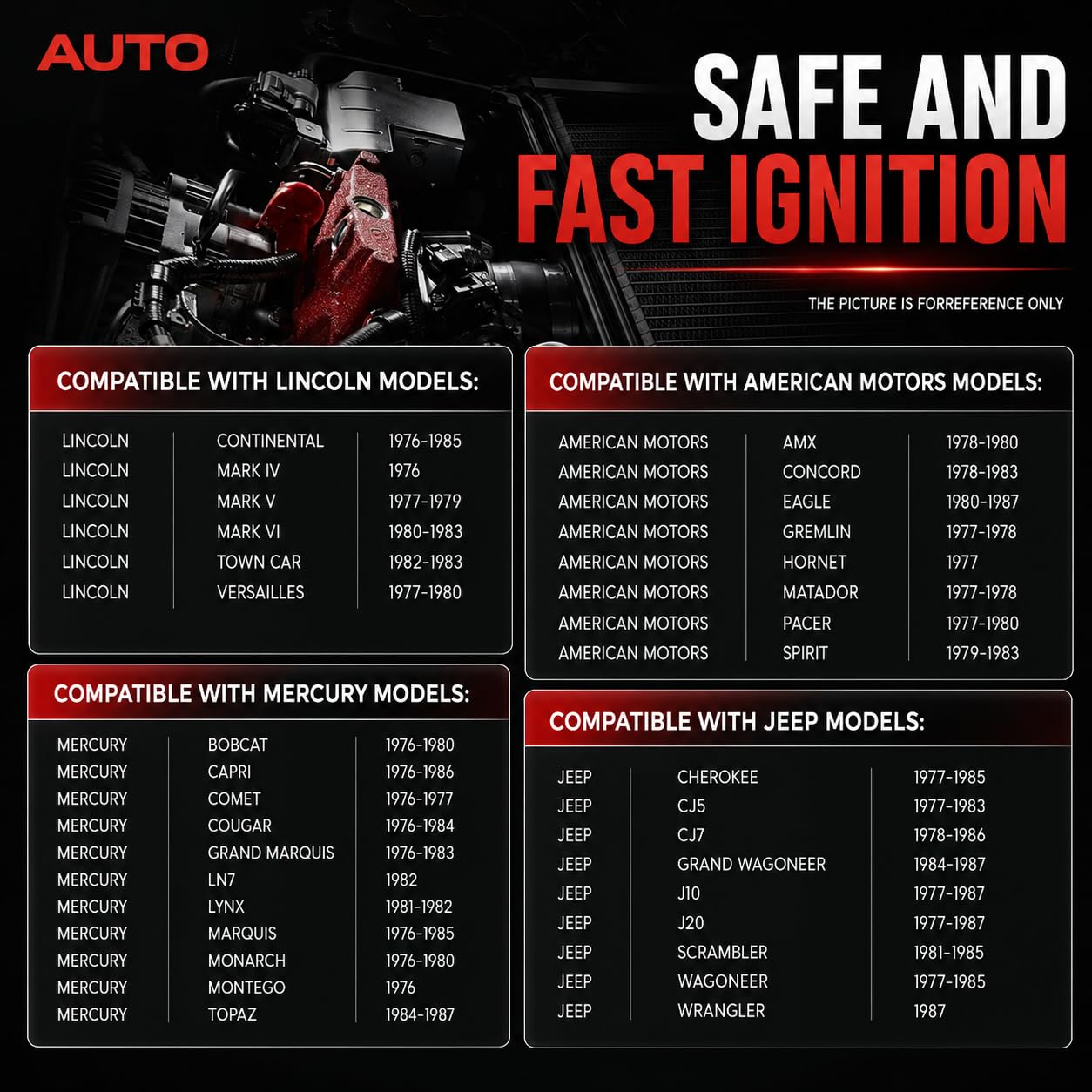

Compatibility is determined by year, make, model and the original part number. The LX203 is intended for many Ford F-Series trucks, Jeep, Mercury and Lincoln vehicles produced from 1977 through 1987, but fitment varies by engine and production options.

• Check your vehicle’s year, make and model against the listed range (1977–1987).

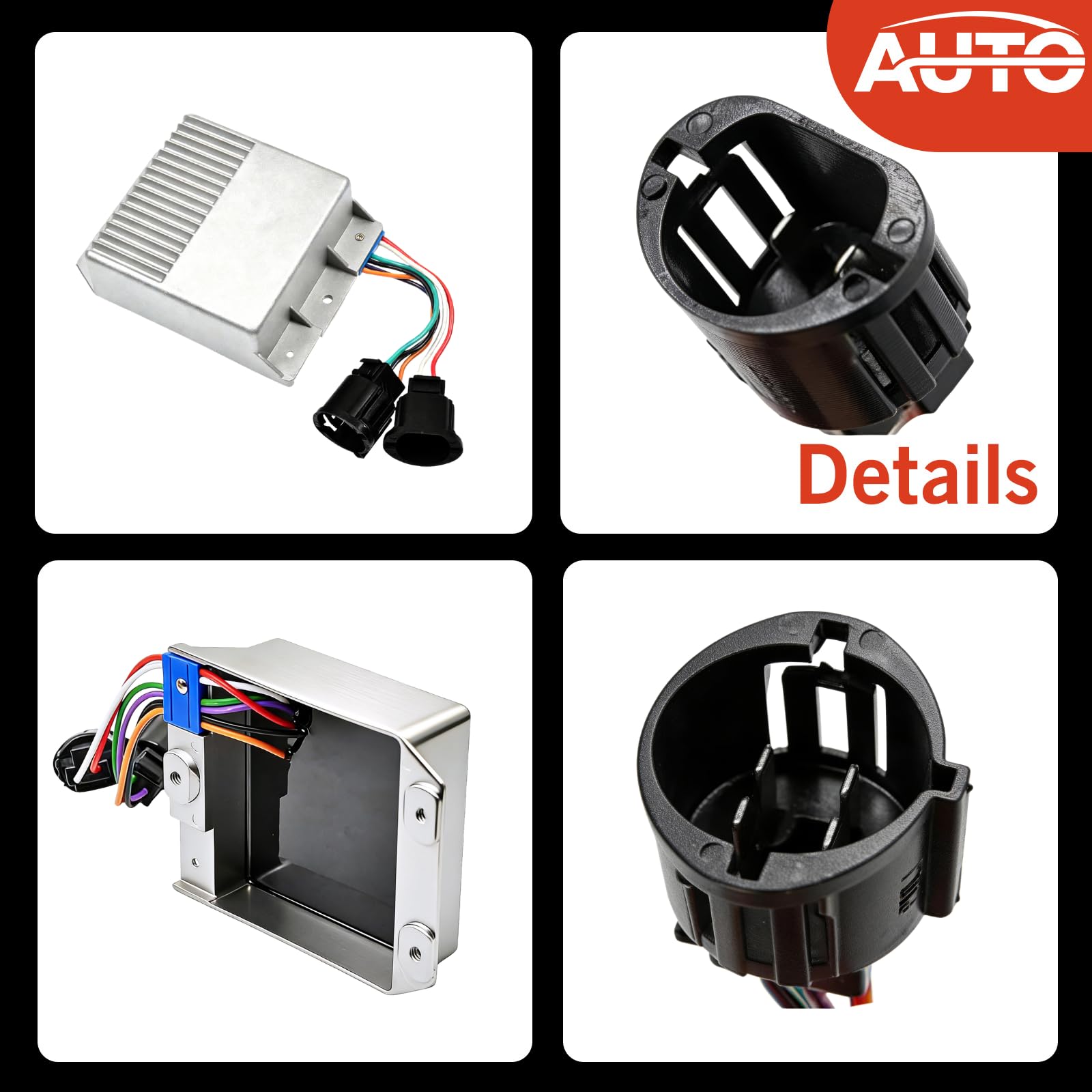

• Compare the LX203 label and connector pins to your current module visually.
• Confirm the original part number on your old unit or service manual.
• Verify mounting hole spacing and plug orientation before purchase.

What does this ignition control module actually do?

The ICM/ICU/FSU controls primary current to the ignition coil and times the spark sent to the spark plugs. It converts distributor pickup signals into switching action for the coil, enabling reliable ignition timing control when the engine is running.

• Switches coil primary current based on distributor or crank sensor signals.
• Works as an electronic intermediary between engine sensors and the ignition coil.
• Helps maintain consistent spark delivery when properly matched to the vehicle.

How should I install and test the LX203 module?

Installation requires basic hand tools and a few checks to ensure safe operation. Disconnect the battery, remove the old module, match connectors and secure the new unit in the same orientation, then reattach the battery and test at idle and driving conditions.

• Disconnect battery negative before removing the old module.
• Match connector pins and mounting holes to the original unit.
• Start engine and monitor idle, acceleration and spark behavior for signs of correct operation.
• If you see misfires or no-start, recheck wiring and compatibility with the LX203 number.

Are there precautions or common troubleshooting steps?

Use caution when replacing ignition modules on older vehicles: heat, corrosion, and incorrect wiring are common failure contributors. If issues persist after installation, inspect grounding points, connector corrosion and coil condition before replacing the part again.

• Ensure good ground at the module mounting point.
• Clean corroded connectors and terminals before installation.
• Test the ignition coil separately if misfires continue.
• Confirm the LX203 part number matches your original part exactly.

Who is this for? This AUTO OCCASION LX203 ignition control module is aimed at owners and restorers of classic Ford F-Series trucks, Jeeps, Mercurys and Lincolns built between 1977 and 1987 who need a like-for-like electronic ignition replacement. It's suitable for DIY mechanics, vintage vehicle shops and anyone maintaining older ignition systems who will verify fitment and follow standard safety practices during installation.
