AutoLine Pro Bladder Adapter 2.0 — Inflatable Plug & Smoke Diffuser for 1.5–6" (38–152mm) Openings, Hand Pump Included

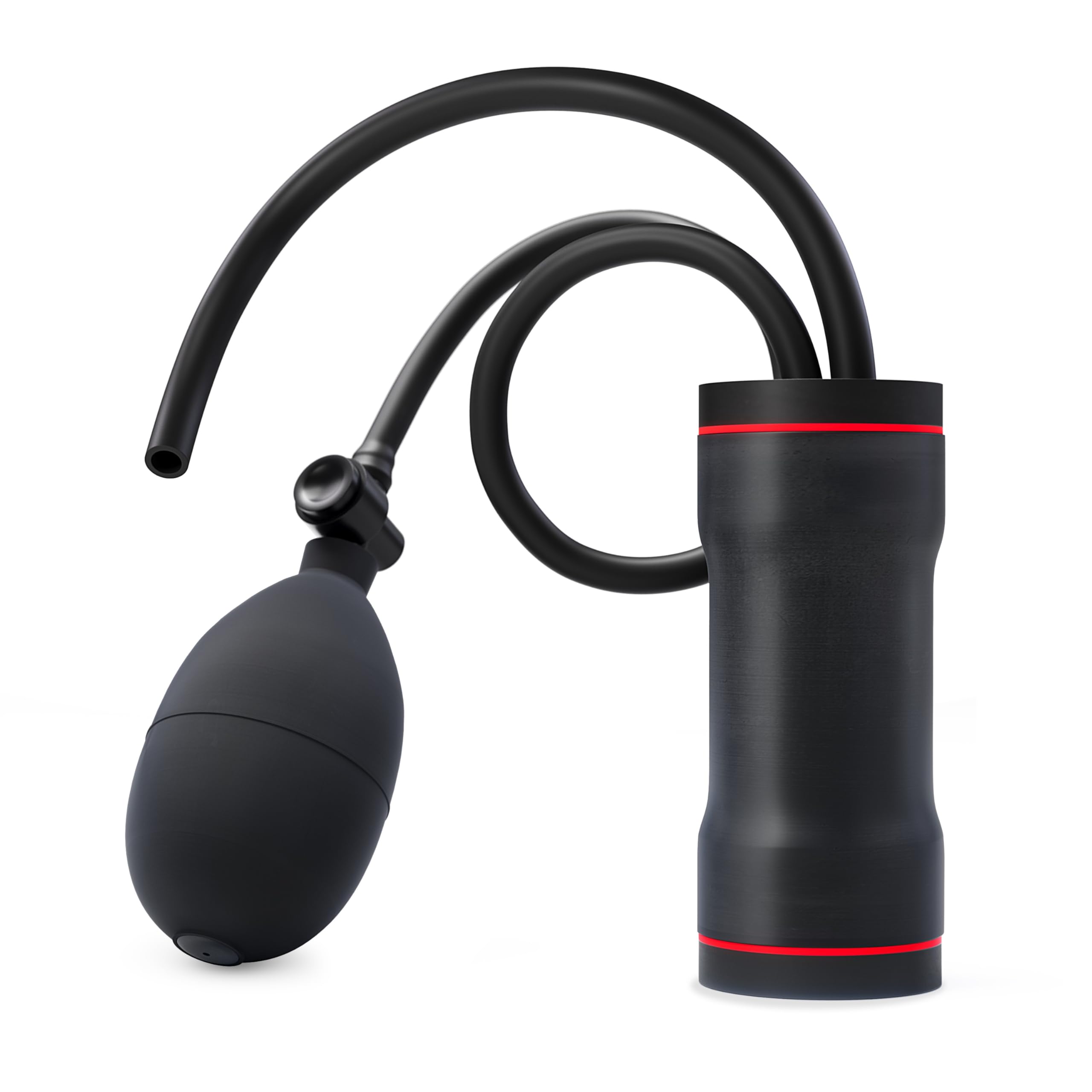

The AutoLine Pro Best Ranked Bladder Adapter 2.0 is a three-in-one automotive testing tool that inflates as a plug, disperses diagnostic smoke, and seals openings from 1.5" to 6" (38–152mm).

Built for technicians and serious DIYers, this upgraded bladder adapter combines a built-in hand pump, durable CarbonNitrile construction, and a spare bladder to simplify smoke testing and pressure-based leak checks. It fits a wide range of openings and converts quickly between bladder, plug, and smoke diffuser functions, saving bench space and extra tools.

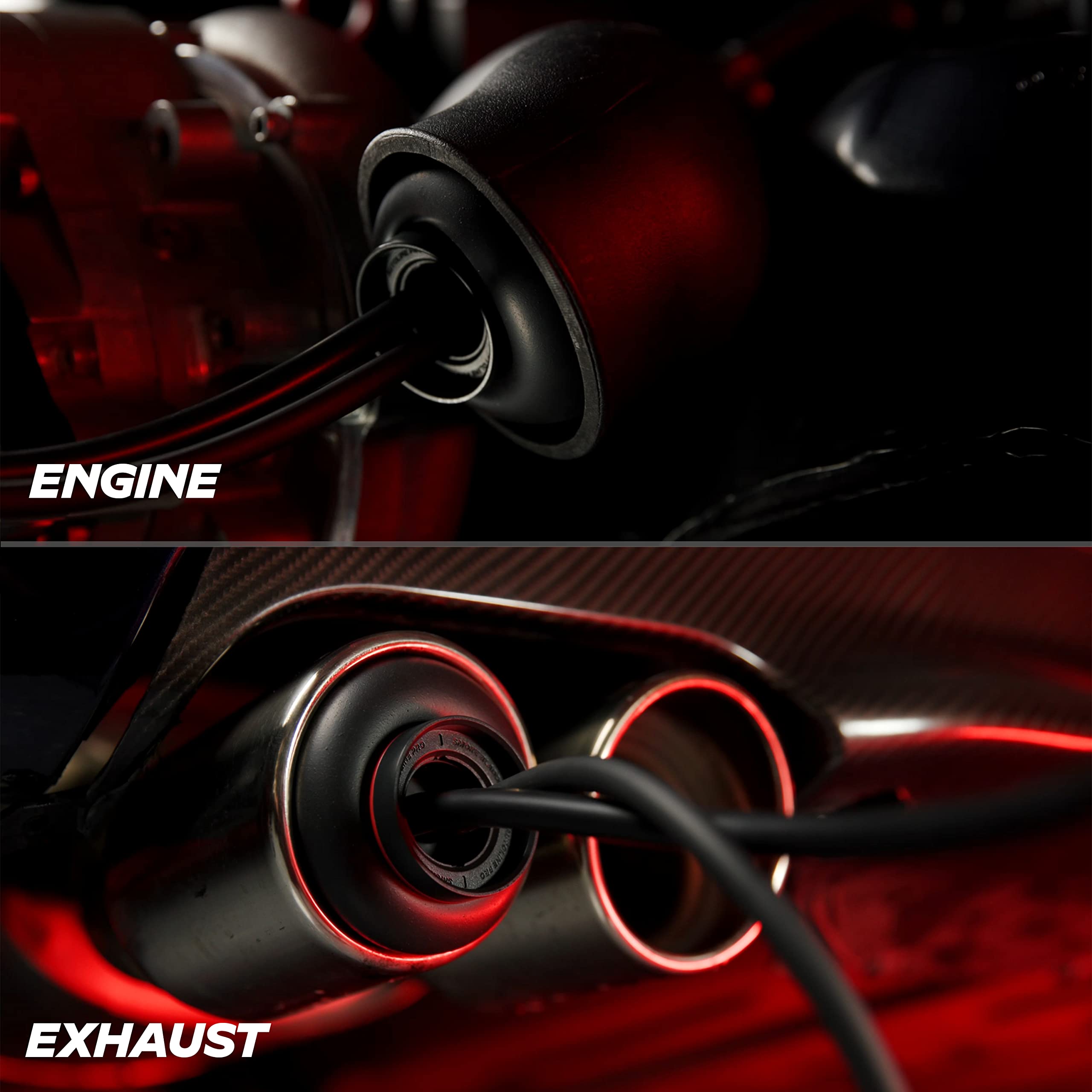

How does the bladder adapter inject smoke into large openings?

In bladder mode you insert the deflated bladder into the target aperture, attach your smoke source, then use the integrated hand pump to seat and inflate the bladder. Once inflated, the adapter forms a controlled seal while delivering a steady stream of thick smoke to reveal leaks and air paths.

• Insert deflated bladder into 38–152mm openings
• Attach smoke machine hose to the adapter input
• Use built-in hand pump to inflate and stabilize placement
• Produce a consistent smoke flow for clear leak visualization

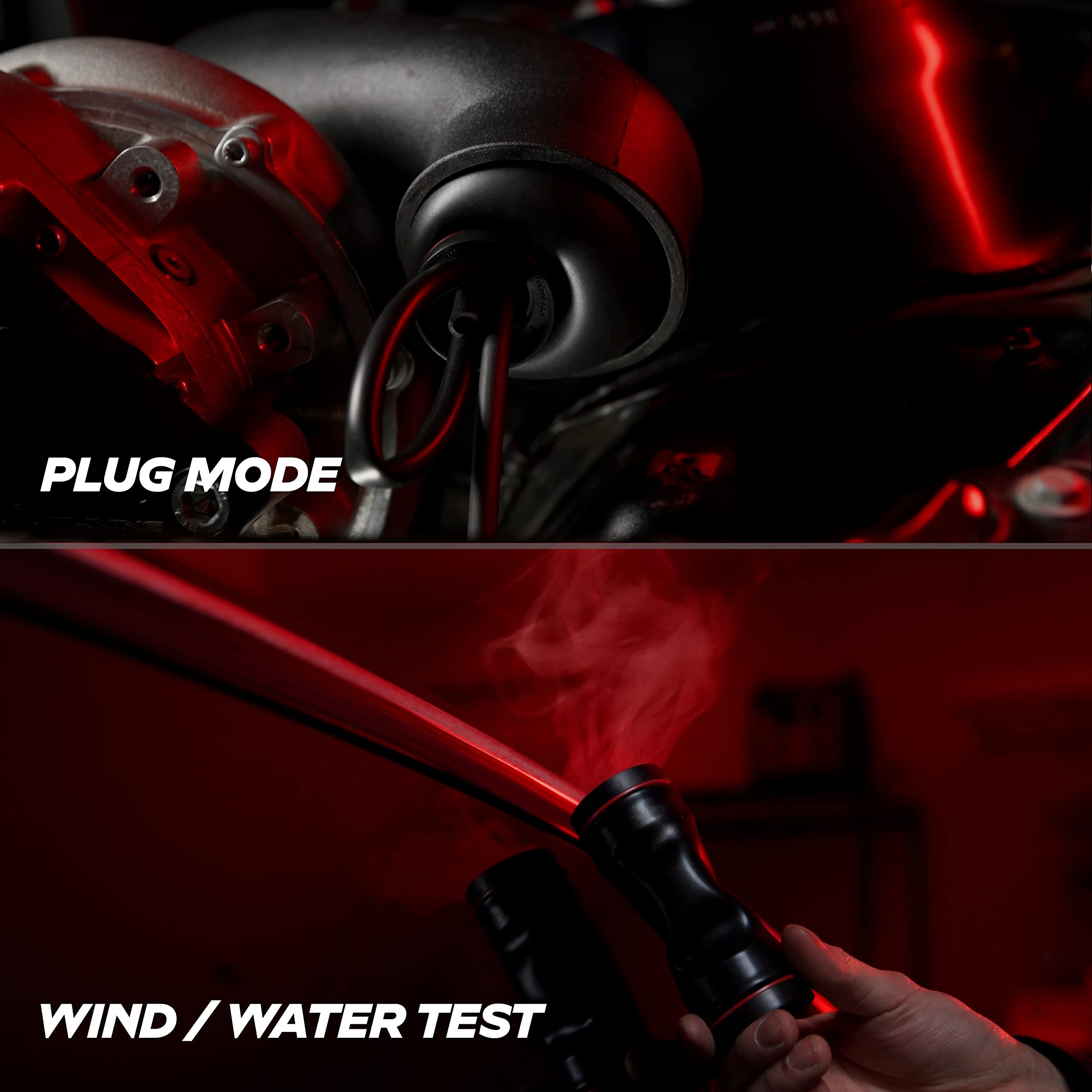

Can it act as an inflatable plug for blocking or isolating passages?

Yes — the adapter switches to plug mode by tucking the input hose into the bladder’s rear, crimping off the smoke inlet and converting the unit into a pressurized inflatable plug. That makes it easy to isolate sections of ducting, vents, or large openings during pressure tests or repairs.

• Crimp the input hose to convert to plug mode
• Create a tight inflatable barrier for test isolation
• Reusable and adjustable inflation with the hand pump
• Industrial-grade CarbonNitrile resists wear and automotive fluids

How does the adapter help identify wind and water leaks in vehicle door jambs?

For wind/water leak checking, build positive cabin pressure with the vehicle’s A/C blower (fan on max, circulation off) and close all doors. Run smoke through the bladder adapter into the cabin so smoke escapes only where seals or gaskets allow airflow — turbulent or blowing smoke pinpoints problem areas.

• Use vehicle blower on MAX, circulation OFF for positive pressure
• Introduce smoke into the cabin via the bladder for slow, visible flow
• Observe door jambs and seals for escaping or turbulent smoke
• Repeat as needed while adjusting weatherstrips or latches

What are the materials, warranty, and extras included?

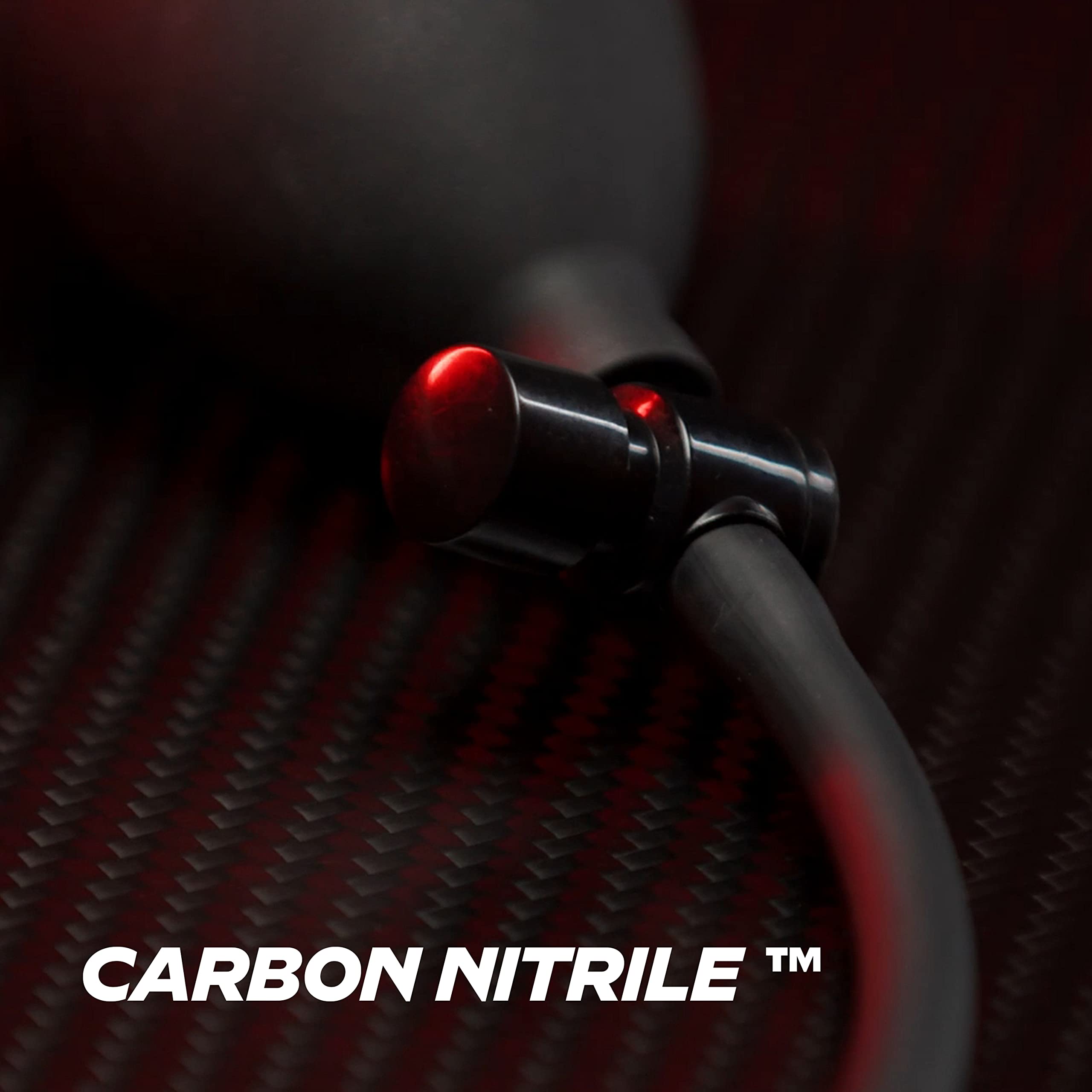

The adapter is molded from CarbonNitrile, an industrial and automotive-grade compound chosen for durability and resistance to oils and common workshop fluids. AutoLine Pro includes a backup bladder and backs the product with a three-year warranty covering manufacturer and operational defects, with U.S.-based replacement support.

• Durable CarbonNitrile construction for long service life

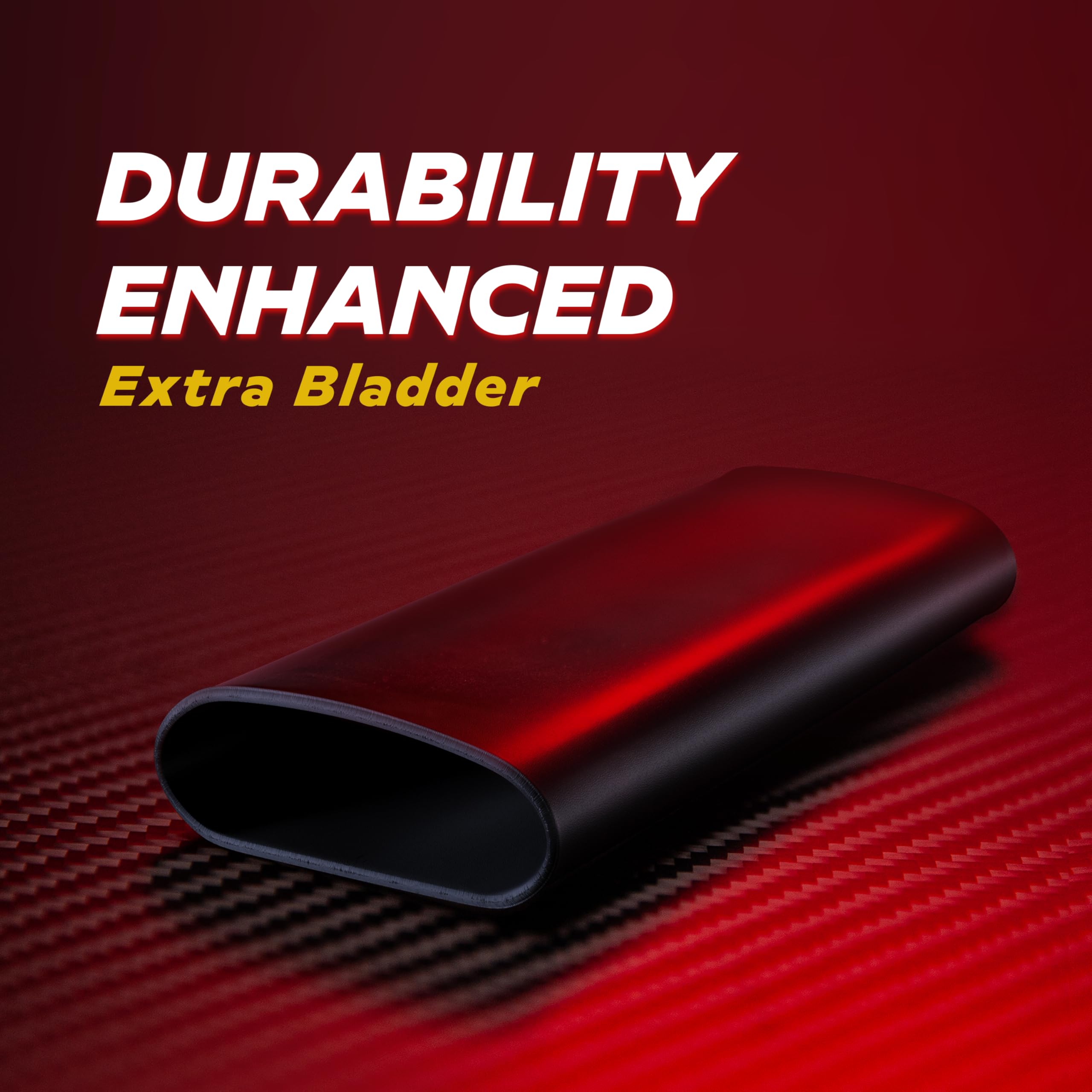

• Backup bladder included in the box for quick swaps
• Three-year warranty with fast U.S. replacement support

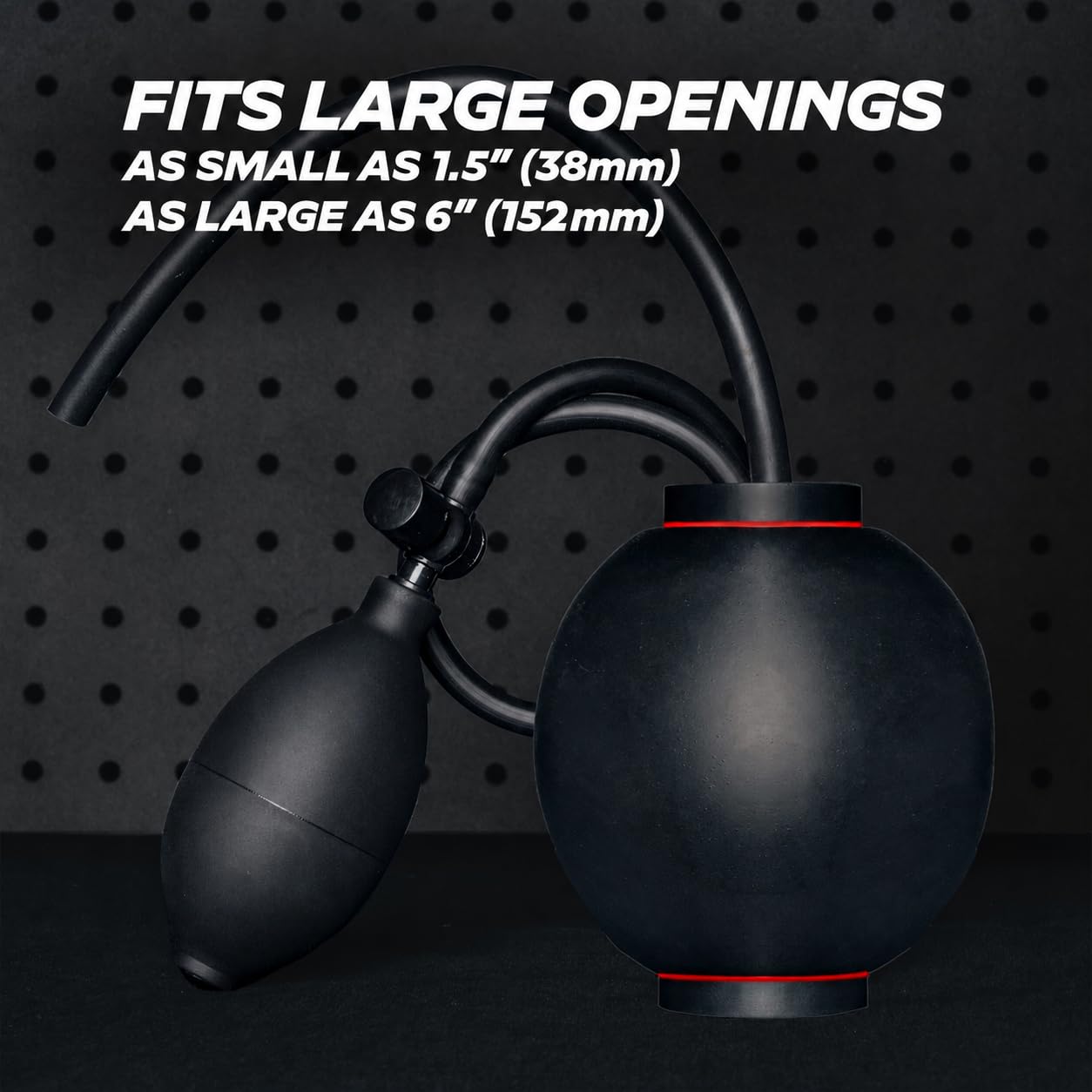

• Broad 38–152mm fit range covers most vehicle openings

Who is this for: The AutoLine Pro Bladder Adapter 2.0 is aimed at automotive technicians, collision repair specialists, HVAC pros, and knowledgeable DIYers who need a reliable, multi-function smoke and pressure testing tool. It’s ideal when you require a compact solution that converts between smoke diffuser, inflatable plug, and bladder functions without sacrificing durability or field-serviceability.
