Auxbeam 4-Gang Slim Switch Panel AS-R40 — RGB Backlight, Auto-Dim, IP65, 12–24V

This slim switch panel is built for drivers who want tidy, reliable control over multiple electrical accessories without a bulky footprint. The Auxbeam AS-R40 combines a patent-protected single-row layout with customizable RGB backlighting, three selectable switch behaviors (toggle, momentary, pulsed), and a memory function that remembers your settings. Designed for 12–24V systems and rated IP65, it arrives with upgraded accessories like a solid-state relay, a 60A resettable breaker, fuses, mounting hardware, and a 10-foot wiring harness.

How does the single-row layout improve in-vehicle usability?

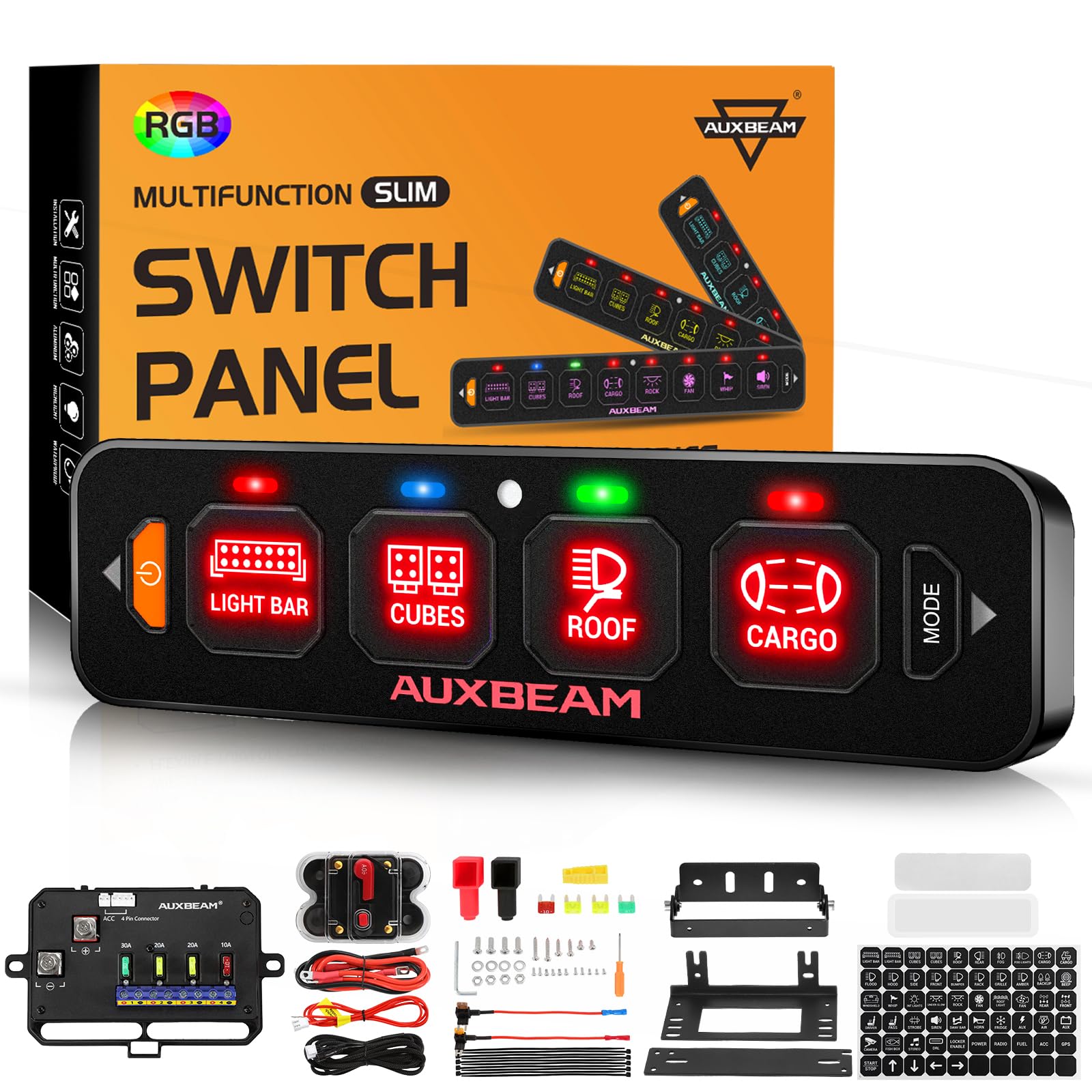

The AS-R40’s U.S. patent-protected single-row arrangement keeps switches aligned horizontally for fast, accurate identification and operation. It’s engineered for vertical mounting to save dash space and allow vertically oriented stickers for clear labeling.

• Patent-protected single-row design (US D1,081,596 S)
• Reduced mispresses due to compact spacing and distinct switch feel

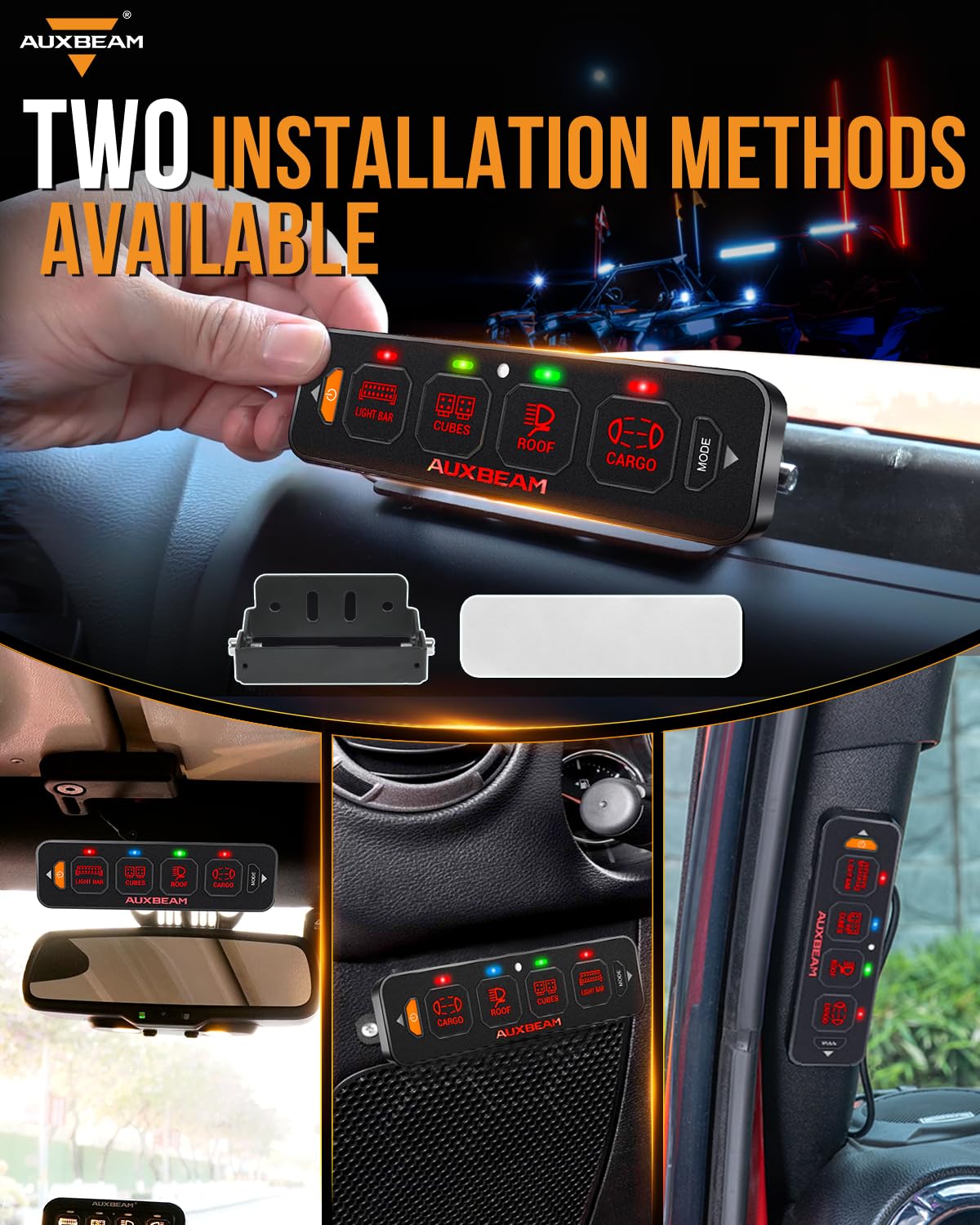

• Vertical mounting option for tight dashboards and custom installs
• Includes 60 stickers for easy, consistent labeling

What lighting and control modes are available and when would I use each?

Each of the four switches supports three operating modes: TOGGLE for steady power, MOMENTARY for temporary activation (like a horn or momentary device), and PULSED to create a strobed output. Color-coded LEDs (red, blue, green) make the active mode visible at a glance and the memory function preserves your last mode choice after power cycles.

• TOGGLE (red) — continuous on/off control for lights or pumps
• MOMENTARY (blue) — activates only while pressed for horns or momentary circuits
• PULSED (green) — adjustable flashing for auxiliary light patterns or alerts
• Memory saves your configured mode and switch settings

How customizable is the RGB backlight and how does auto-dimming work?

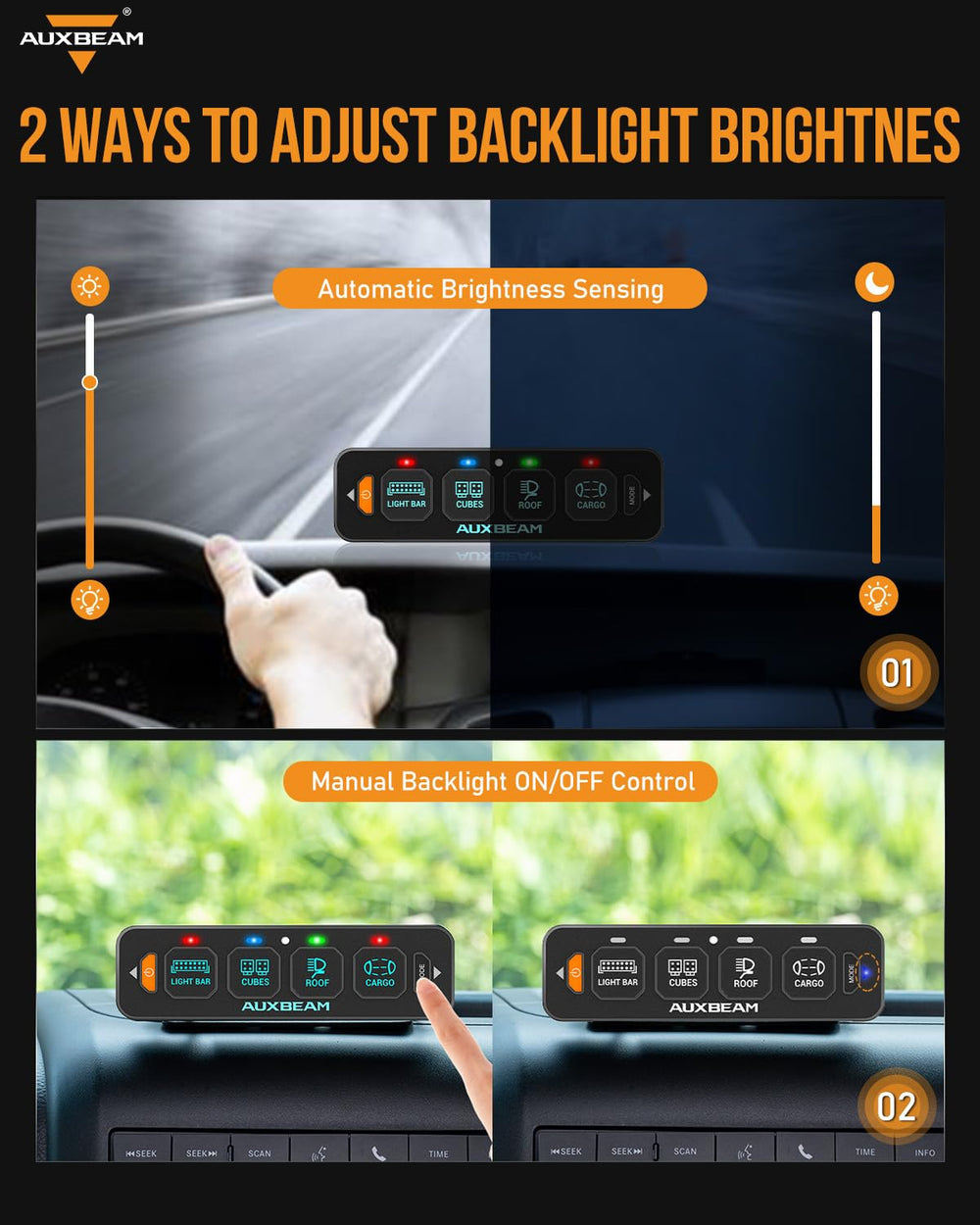

The AS-R40 offers unlimited RGB backlight color choices so you can match interior lighting or set distinct colors by circuit. A MODE button cycles backlight options and an automatic ambient sensor adjusts brightness to reduce glare at night; you can also turn backlighting off entirely if preferred.

• Fully customizable RGB colors to match vehicle interiors
• Auto-dimming reduces distraction in low-light conditions
• Mode button lets you toggle backlight behavior quickly
• Backlight can be disabled for blackout operation

What are the electrical specs, protections, and included accessories?

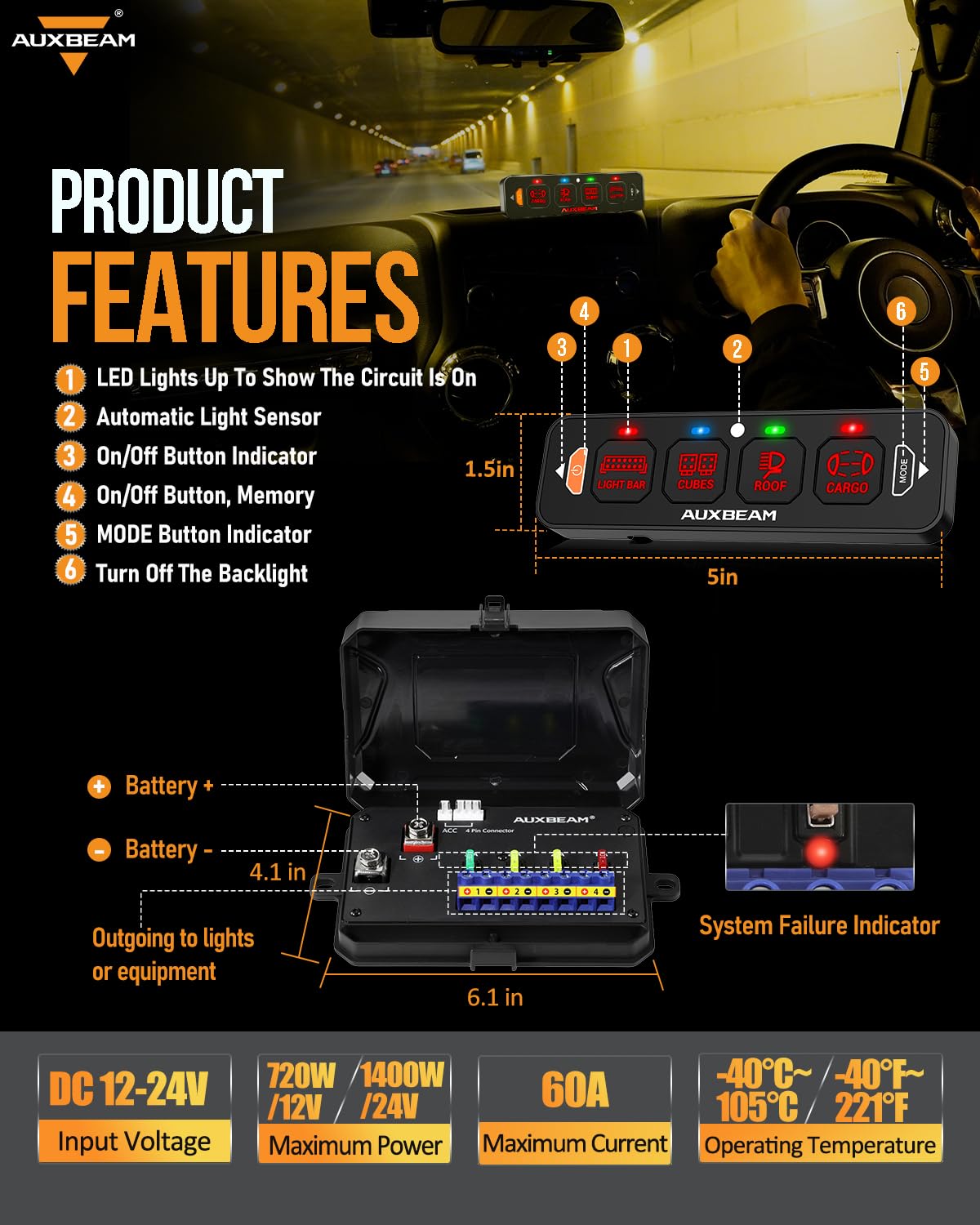

The panel is engineered for vehicle environments with a DC 12–24V operating range and a maximum current rating up to 60A (total max power 720–1400W depending on voltage). It’s IP65-rated for water resistance and ships with an upgraded accessory kit that simplifies safe installation and long-term reliability.

• Operating voltage: DC 12–24V; max current: 60A
• IP65 waterproof rating; temperature range −40° to 221°F

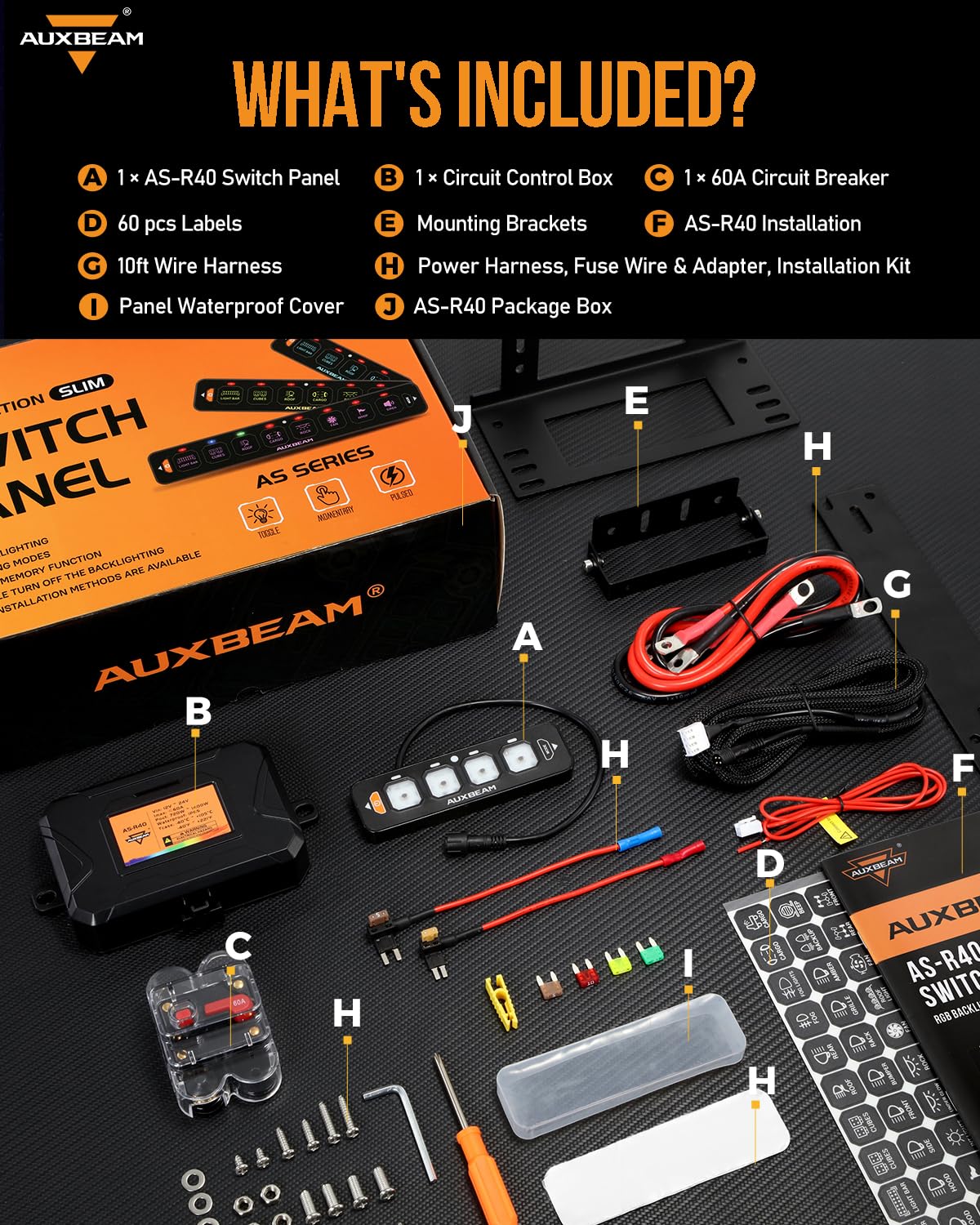

• Accessories: solid-state relay circuit box, 60A resettable breaker, fuses, mounting brackets, dust cover, 10ft wiring harness
• 3-year protection from Auxbeam; note: no Bluetooth app control available

Who is this for? The Auxbeam AS-R40 is aimed at off-roaders, work-vehicle owners, and automotive enthusiasts who need tidy, reliable multi-circuit control without extra bulk. It’s ideal for vehicles with multiple auxiliary lights, air compressors, winches, or otherwise numerous add-ons where clear labeling, quick access, and adjustable lighting matter. Installers and DIYers will appreciate the included wiring harness and protective components, while drivers benefit from the easy-to-read RGB backlighting and auto-dimming feature.
