Auxbeam BC60 6-Gang Switch Panel Blue, 3-Year Warranty — Automatic Dimming, Relay Control for 12V Accessories

The Auxbeam BC60 is a compact 6-gang, automatic-dimming switch panel and relay control box that centralizes power control for 12V vehicle accessories with touch-style switches and a complete wiring harness.

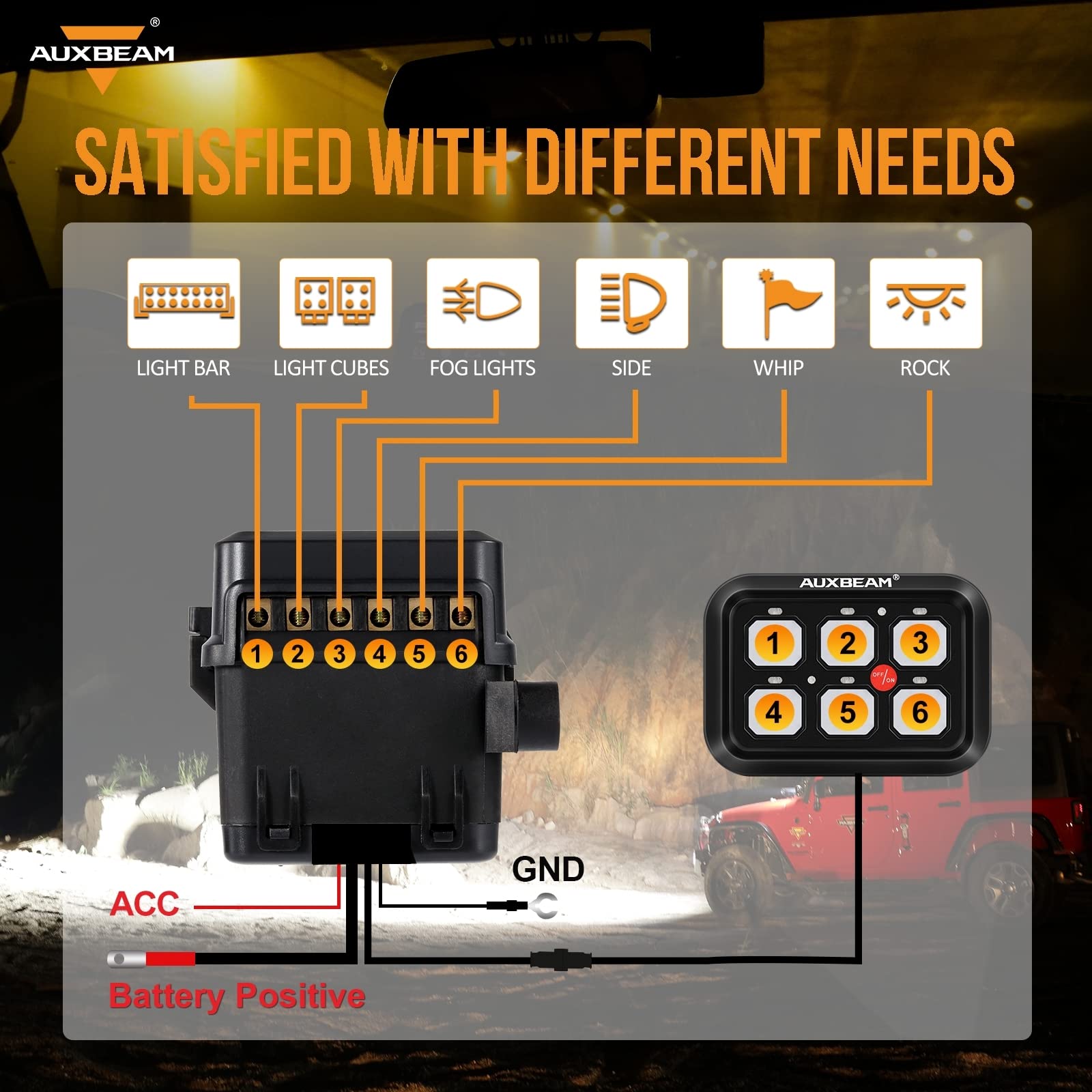

The BC60 combines a slim dashboard switch pod with a separate circuit control relay box to simplify wiring for lights, winches, compressors and other 12V accessories. Designed for a wide range of vehicles—including cars, trucks, SUVs, UTVs and boats—this kit lowers installation clutter while adding automatic backlight dimming so switches remain visible but not blinding at night.

How does the automatic dimming improve night driving?

The BC60 senses ambient light and adjusts the switch backlighting so brightness matches driving conditions, reducing glare and preserving night vision. That automatic response means you don’t need to manually change illumination between day and night.

• Ambient light sensor adjusts intensity in real time
• Prevents overly bright panels during low-light driving
• Enhances visibility of controls without distracting glare

What installation steps and mounting options are included?

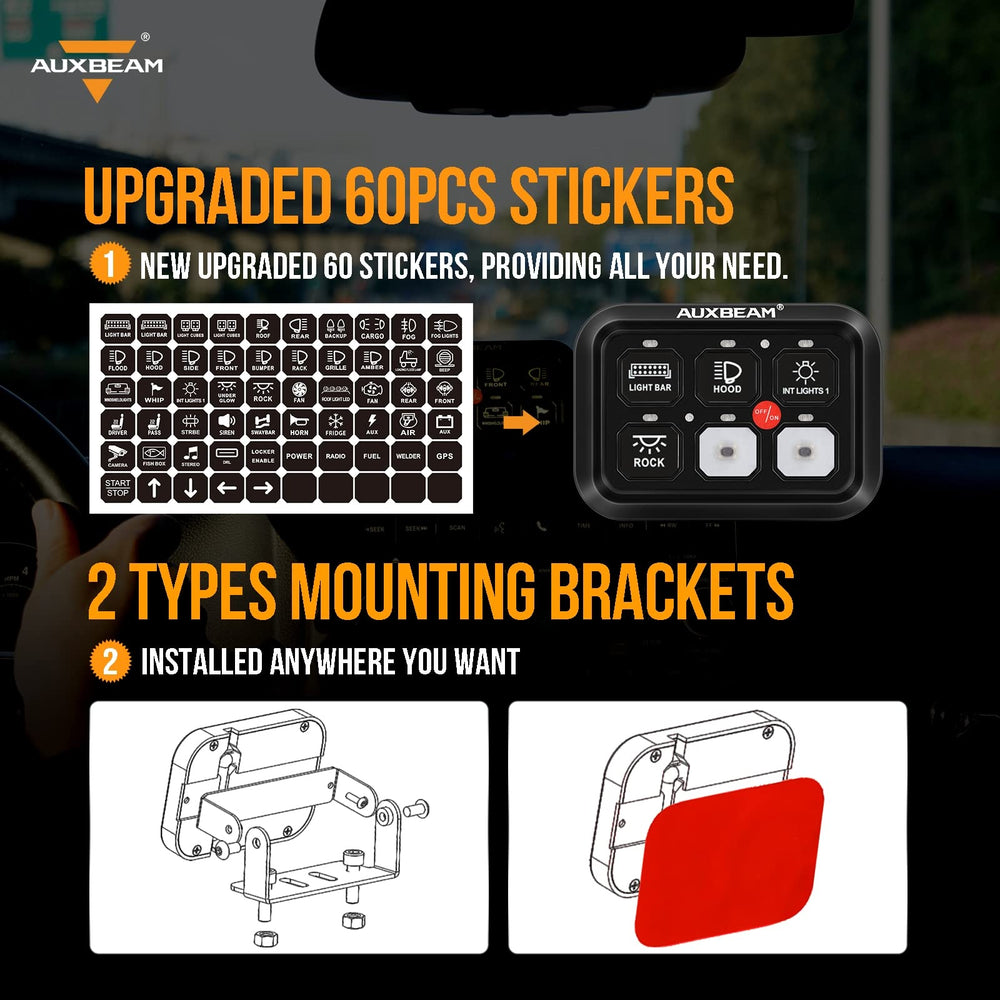

Installation is designed to be straightforward: a plug-and-play wiring harness links the switch pod to the relay control box, minimizing the need for complex cuts or splices. Two mounting brackets plus adhesive tape let you place the panel on dash, console, overhead or other tight spaces.

• Plug-and-play wiring harness for faster setup
• Two bracket styles and double-sided tape for flexible mounting
• Compact footprints: pod 3.7" x 2.6", control box 3.2" x 4.4"

What electrical protection and capacity does the BC60 offer?

The BC60 supports 12V systems with a maximum combined power allowance of 720W and an overall current rating of 60A, routed through the relay control box for safer distribution. Included auto fuses provide basic circuit protection and help isolate faults from the main harness.

• Rated for DC 12V systems only (not compatible with 24V)
• Maximum power 720W; max current 60A
• Includes auto fuses and relay-based distribution for safer loads

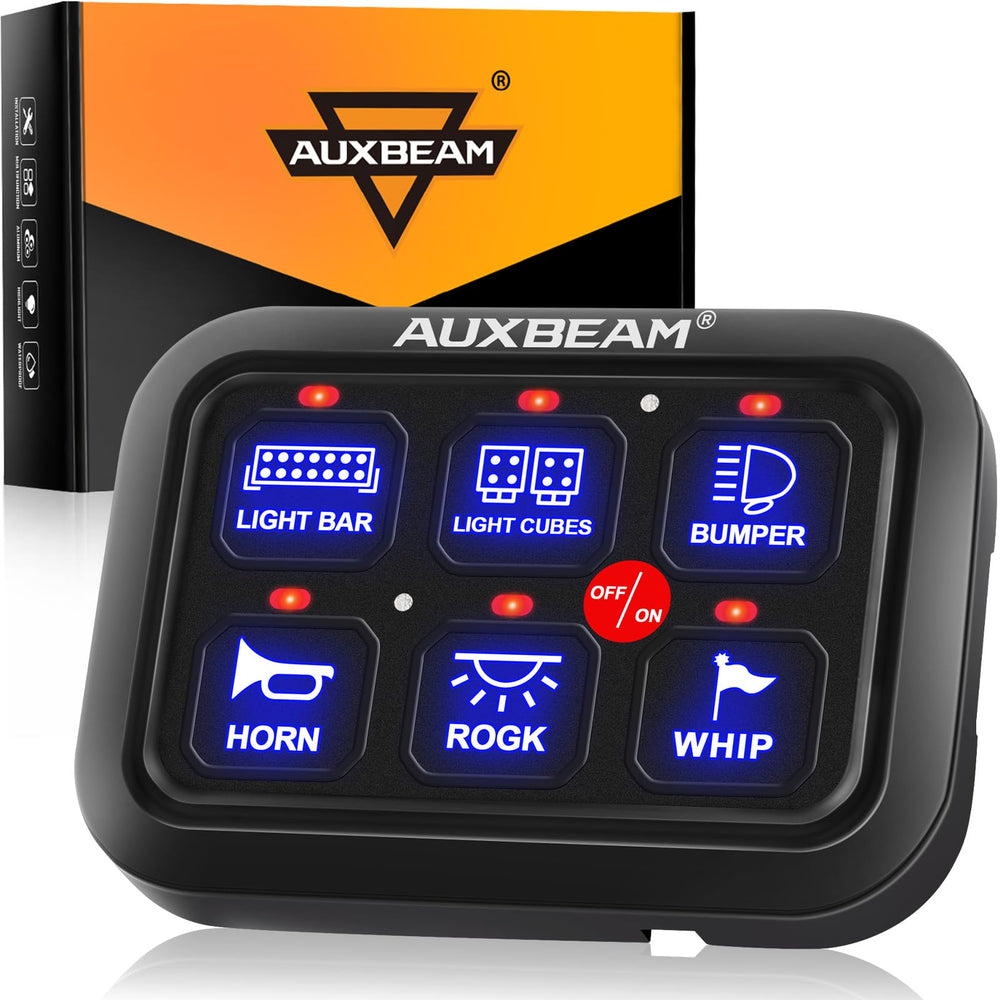

How customizable and easy is it to identify each switch?

The BC60 ships with 60 self-adhesive labels so you can name each switch for quick identification of lights, accessories, or equipment. The touch-style buttons and clear labels make it easier to operate multiple accessories from one tidy location.

• 60 DIY stickers for custom labeling of each gang
• Touch-style switch surface for quick operation
• Helps consolidate multiple accessory wires into a single control point

Who this is for: The Auxbeam BC60 is aimed at vehicle owners who want a cleaner, safer way to manage multiple 12V accessories—off-roaders wiring light bars and rock lights, boat owners adding deck and utility lights, fleet drivers organizing auxiliary equipment, and anyone replacing scattered switches with a compact, labeled control center. It’s ideal when space is limited and a user-friendly, dimming backlight is desired.

Package contents include the 6-gang switch panel, circuit control relay box, mounting brackets, double-sided adhesive, wiring harness, auto fuses, 60 DIY stickers, zip ties and a user manual. Auxbeam backs the product with a three-year manufacturer warranty covering non-human quality issues and offers customer support for installation questions.
