Bailcast CV Joint Split Boot Replacement Kit, Black — Universal Fit 18–34mm Shaft, Includes Grease & Adhesive

The Bailcast CVS18 is a universal split constant velocity (CV) joint boot replacement kit that protects and renews worn CV joints on many front-wheel-drive and light commercial vehicles.

If a torn CV boot lets dirt and grease escape, the joint beneath can wear quickly; the CVS18 kit supplies a stretchable split gaiter plus adhesive, grease and fasteners so you can reseal the joint without removing the axle. The kit’s split design makes it simple to fit in tight spaces where conventional one-piece boots are hard to install, and its rubber compound resists oil, abrasion and temperature extremes.

How does the CVS18 restore a damaged CV joint?

The kit replaces a cracked or split boot to stop contaminants entering and to retain lubricant inside the joint. You install the split gaiter around the CV assembly, bond the seam with the supplied adhesive, pack grease into the joint, and secure both ends with the included ties.

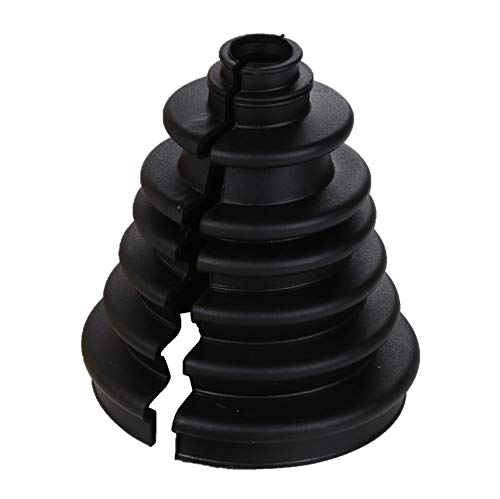

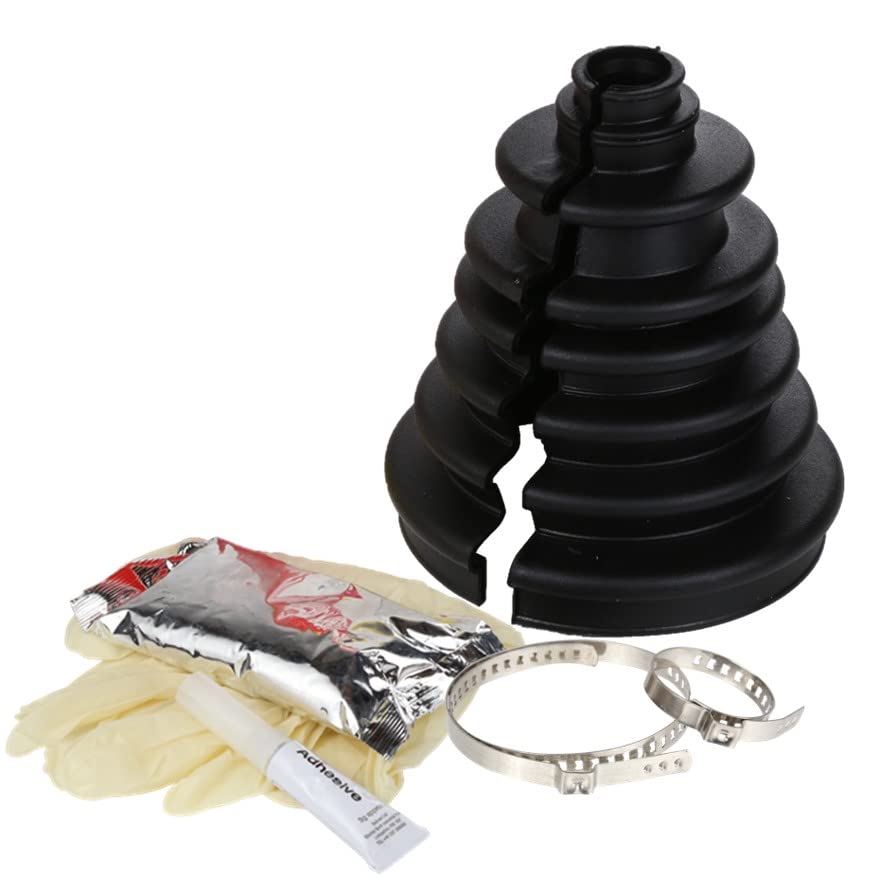

• Split boot design slips around assembled axles without axle removal
• Includes rubber adhesive formulated for a durable seam
• Grease sachet supplies the correct lubricant for joint operation
• Ties and clamps fasten the boot for leak-free protection

Which vehicles and joint sizes does this kit fit?

The CVS18 is made as a universal option to accommodate many cars, some 4x4s and light commercial vehicles. Measure the shaft and joint diameters and the required boot length to confirm compatibility before fitting.

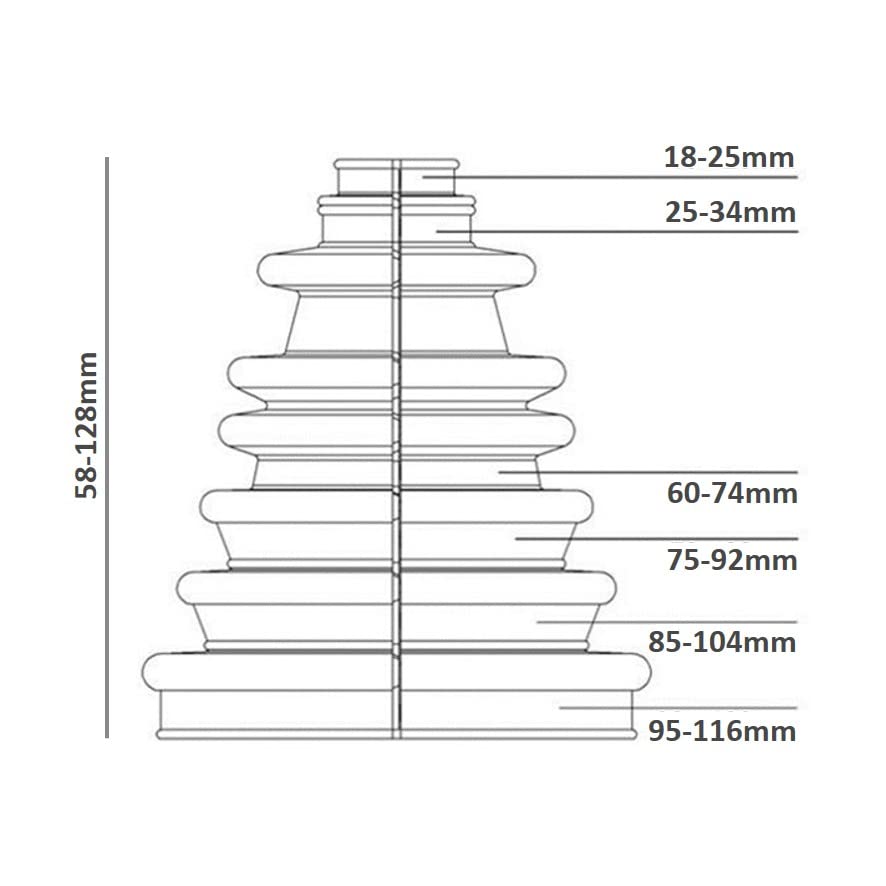

• Shaft diameter range: 18–34 mm
• Joint diameter range: 60–116 mm
• Boot length range: 58–128 mm

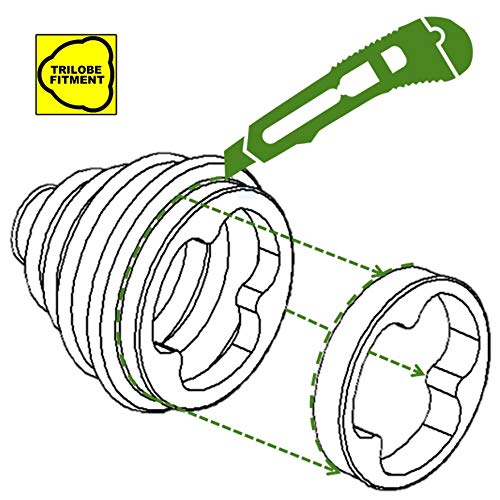

• Suitable for trilobal/tripod style joints as well as many standard CV types

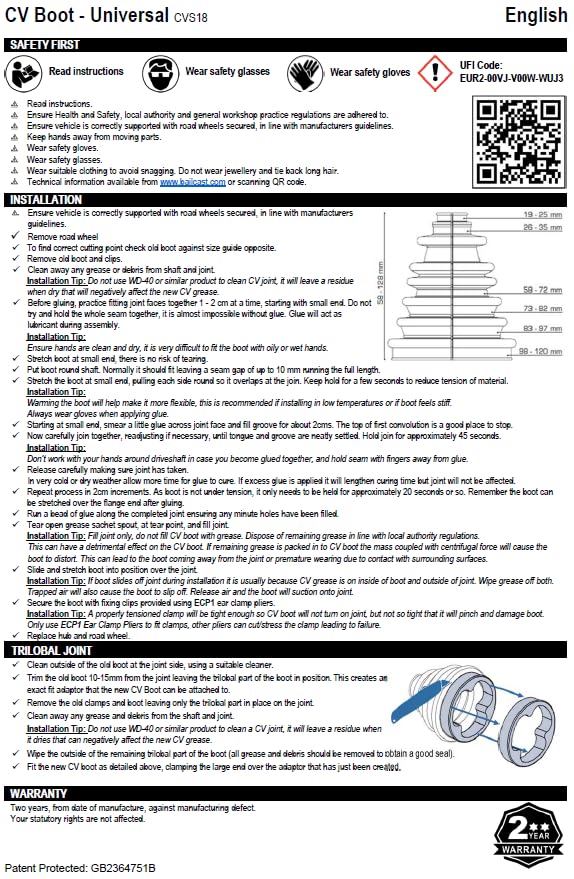

What tools and steps are involved in a DIY fitment?

Fitting the CVS18 is intended for the home mechanic and typically takes under 15 minutes per side once you’re familiar with the steps. The kit provides the specialized items for sealing and securing the boot, though basic hand tools may be required to access the joint and trim the boot to size.

• Trim the boot to match required length if needed
• Position the split boot around the joint and align the tongue-and-groove seam
• Apply the supplied adhesive along the seam and allow it to set for a strong bond
• Pack the joint with included grease and secure ends with the provided ties

How durable and protective is the Bailcast gaiter material?

The gaiter is formulated to withstand typical road stresses: contact with grease and oil, abrasive grit, and temperature changes. While materials provide robust resistance to normal wear, inspect boots periodically and replace if cuts, severe deformation or leaks appear.

• Resistant to oils and common automotive chemicals
• Engineered for abrasion and tear resistance in road environments
• Maintains flexibility across a wide temperature range
• Designed to create a sealed barrier when properly bonded and clamped

Who is this for: The Bailcast CVS18 kit suits DIY mechanics, independent repair shops and fleet keepers who need a fast, cost-effective way to reseal CV joints without axle removal. If you can use basic hand tools and follow step-by-step guidance, this kit gives the parts and consumables to restore protection and extend the life of many CV joints.
