BELEY Universal Master Cylinder Adapter 22–57mm with 4 Quick-Connect Couplings, Aluminium Alloy Seal

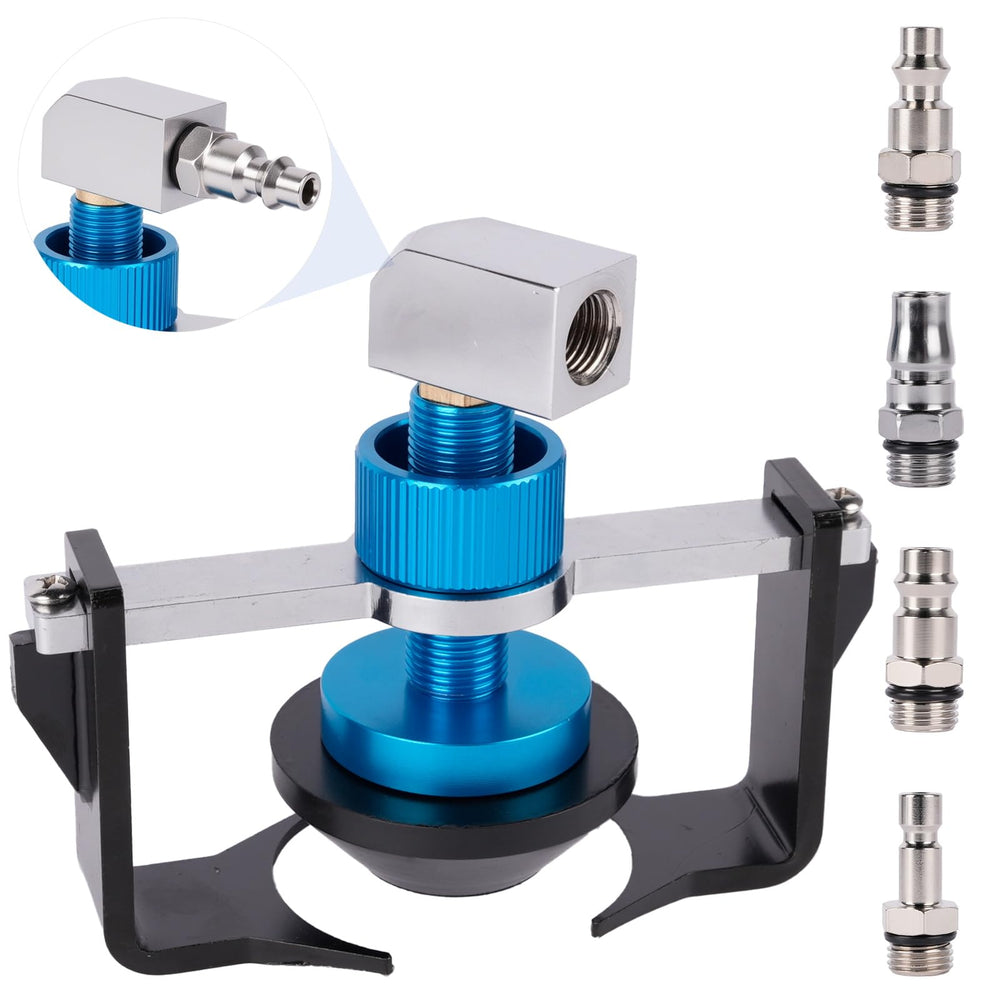

BELEY Universal Master Cylinder Adapter is an adjustable, heavy-duty adapter kit with four quick-connect couplings that creates a leak-resistant seal for one-person brake bleeding and fluid changes.

This compact kit is built to fit most vehicle master cylinder reservoirs and to speed up bleed jobs without spills or extra fittings. Constructed from aluminum alloy with an oil-resistant rubber seal, the adapter adjusts from 22 mm to 57 mm and ships with four different couplings to match European, American, Metric, and Japanese standards. Its size and mounting recommendations are included so you can confirm fit before using.

How does the adapter ensure a secure, leak-free connection?

The adapter uses a molded oil-resistant rubber seal that compresses around the reservoir neck, preventing brake fluid from dripping and keeping contaminants out. The precision-threaded collar locks the adapter in place so you can maintain a vacuum or pressure connection during bleeding.

• Oil-resistant rubber gasket for reliable sealing under pressure
• Adjustable opening from 22 mm to 57 mm to match reservoir neck sizes
• Locking collar prevents movement during one-person operation

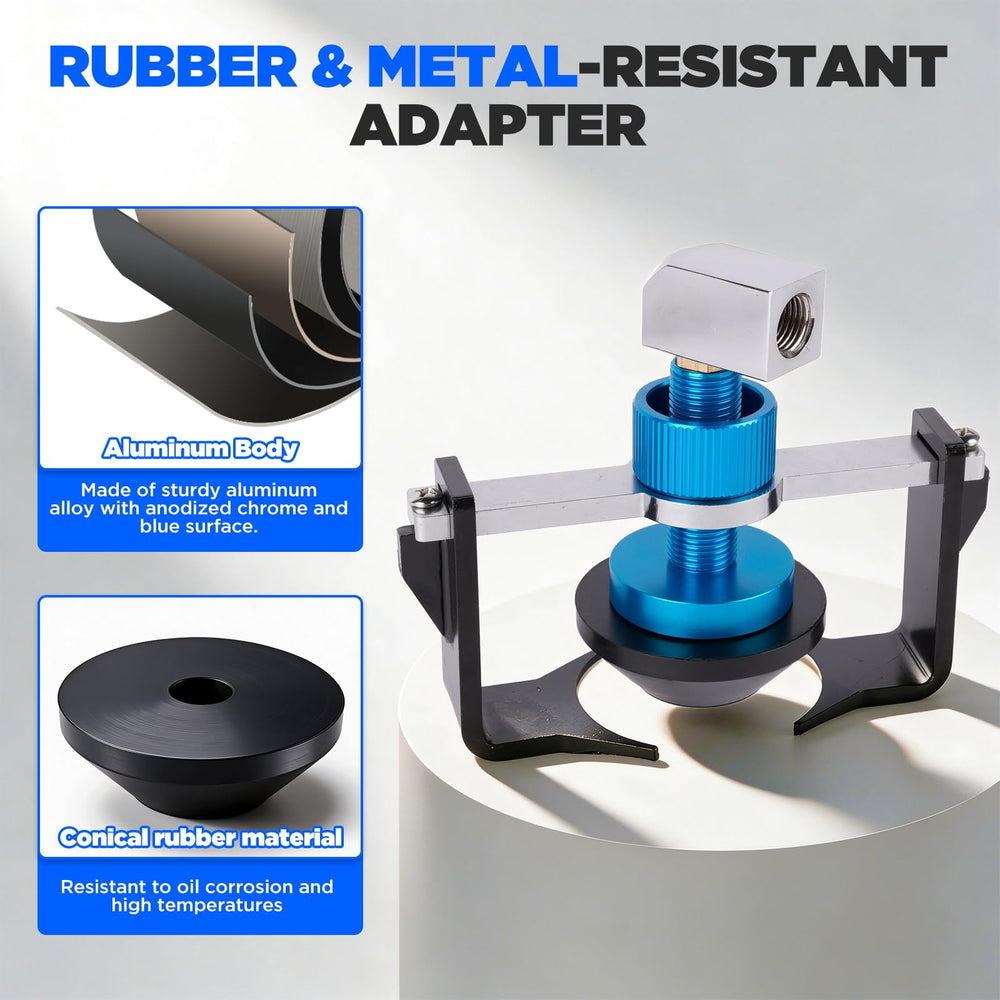

• Aluminum-alloy body resists brake fluid corrosion and wear

Which vehicles and reservoir sizes will this adapter fit?

The BELEY adapter was designed as a universal tool to accommodate many passenger cars and light trucks. It fits reservoir necks within a 22–57 mm diameter range, including common makes like Honda, Toyota, Buick, GMC, and Mazda, but you should check physical clearance in tight engine bays.

• 22–57 mm adjustable opening covers most OEM reservoir necks
• Includes four quick couplings to match international fittings
• Measure at least 120 mm vertical clearance from neck top to hood/cowl
• May not fit vehicles with very limited cowl-to-reservoir space

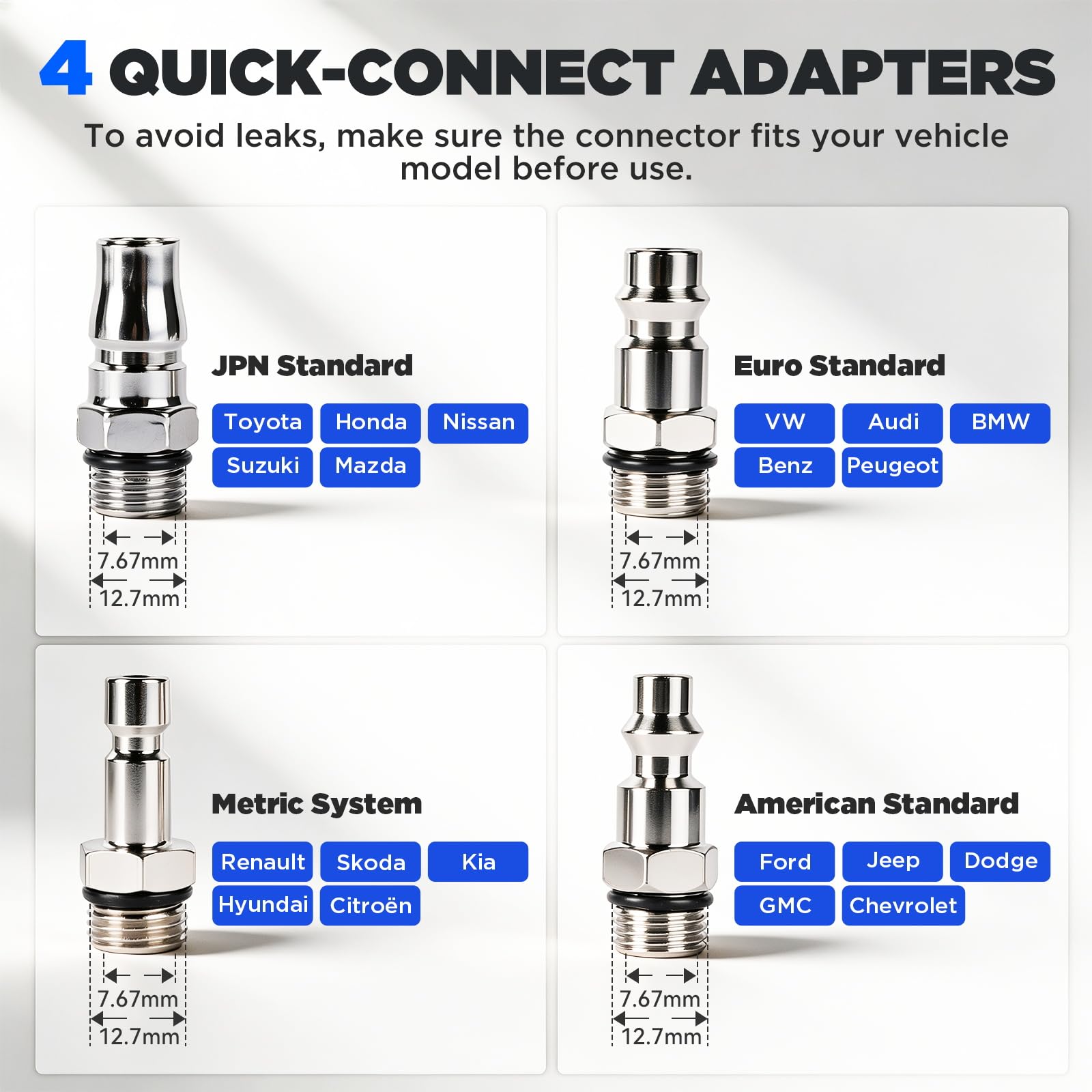

What’s included and how do the four quick couplings help?

The kit contains a universal master cylinder adapter and four quick-connect couplings designed for different standards. Instead of buying separate adapters for each vehicle, you can swap couplings to suit European, American, Metric, or Japanese brake fittings, saving time during multi-vehicle service.

• One universal adapter body with adjustable collar
• Four quick couplings covering major international standards
• Interchangeable connections reduce the need for extra adapters
• Compact kit ideal for mobile techs and home garages

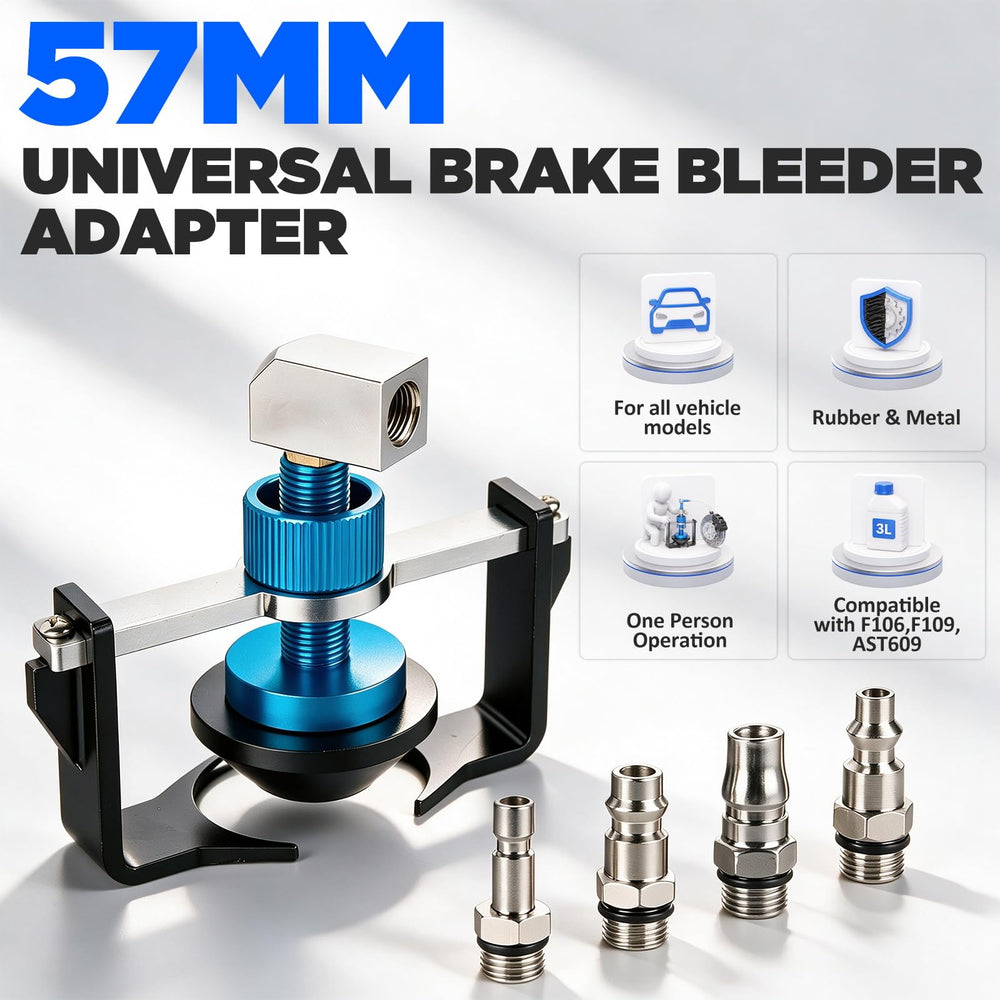

How easy is it to use this adapter for one-person bleeding?

Designed for simple, single-operator use, the adapter locks onto the reservoir and accepts a bleed hose or vacuum line. No specialized tools or advanced skills are required; adjust, lock, attach the correct coupling, and run the bleed system using your vacuum or pressure device.

• Quick-adjust collar for fast sizing and secure seating
• Leak-proof connection reduces cleanup and fluid waste
• Works with standard vacuum/pressure bleed tools and hoses
• Durable construction for repeated garage or shop use

Who is this for? The BELEY Universal Master Cylinder Adapter is made for DIY mechanics, mobile technicians, and professional shop technicians who perform routine brake fluid changes and bleeding across multiple vehicle brands. It’s especially useful when you need a reliable, reusable seal to prevent spills and to work alone without a second person holding the brake pedal.
