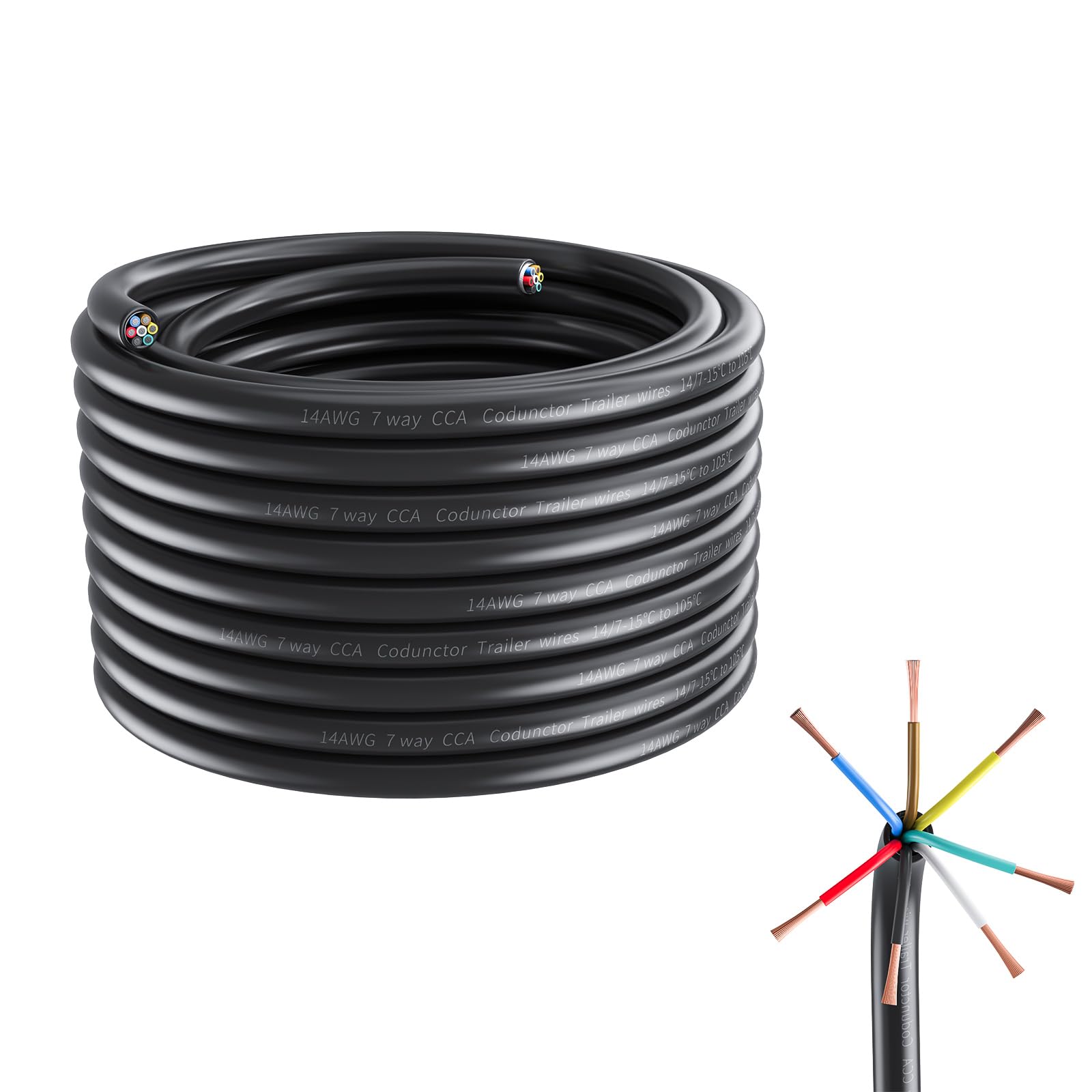

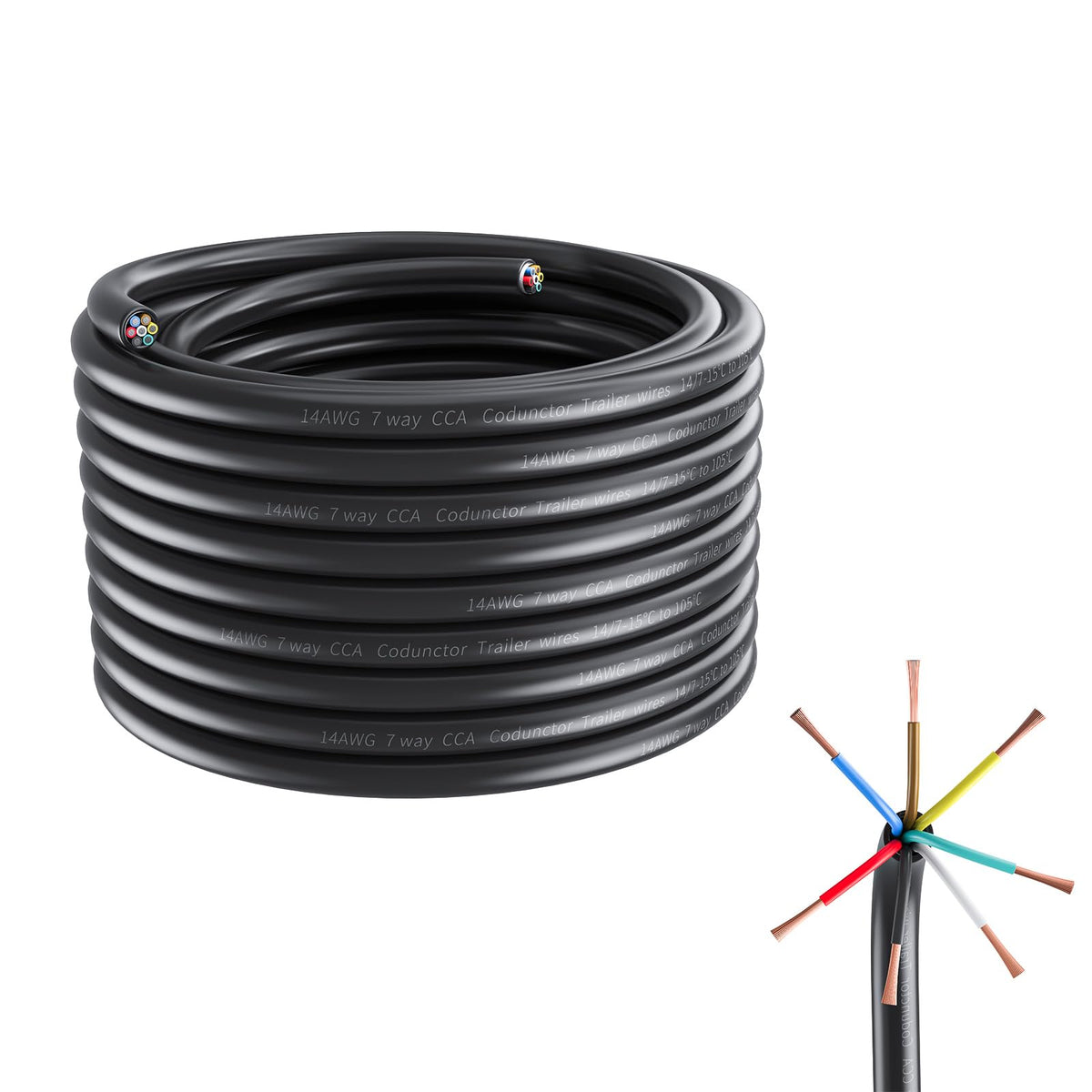

bleuezest 14 AWG 7-Way Trailer Wire Harness — 50 ft CCA Cable with PVC Jacket, Colour‑Coded

bleuezest 14 gauge 50 ft 7-way trailer wire harness is a 7‑conductor, 7‑pin CCA cable kit designed to connect lights, brakes and auxiliary circuits on trailers and RVs with a flexible, weatherproof PVC jacket.

This 7‑way wiring harness from bleuezest provides a full set of color‑coded 14 AWG copper‑clad aluminum conductors in a 50 foot length for longer runs between tow vehicle and trailer. Built for straightforward DIY or professional installs, the cable balances conductivity, flexibility and cost-effectiveness. The PVC jacket protects the stranded CCA conductors from abrasion, UV and weather so the harness stays functional in exposed conditions.

How does this 7‑way harness handle different trailer electrical needs?

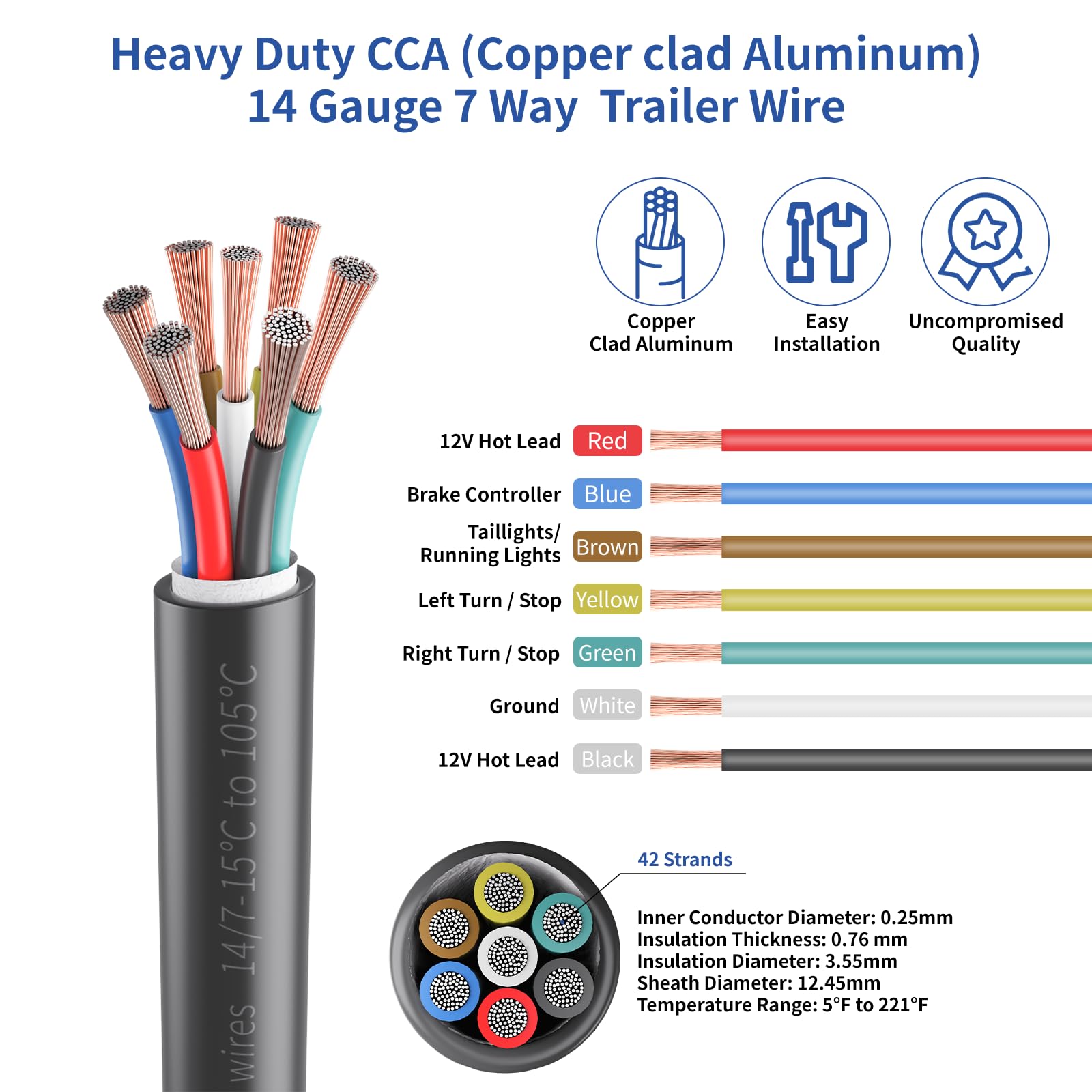

This harness supplies seven separate conductors to carry signals for tail/stop lamps, turn signals, brakes, reverse (if used), and auxiliary power or charge lines. The 14 AWG stranded CCA conductors are sized for typical 12V trailer circuits and are color‑coded for easy identification during wiring.

• Seven conductors: red, blue, white, purple, brown, yellow, green for standard trailer functions.
• 50 ft length gives flexibility for long tow distances and routing around frames.
• 14 AWG stranded CCA balances conductivity with lower cost compared with pure copper.
• PVC jacket resists moisture, UV and abrasion for outdoor durability.

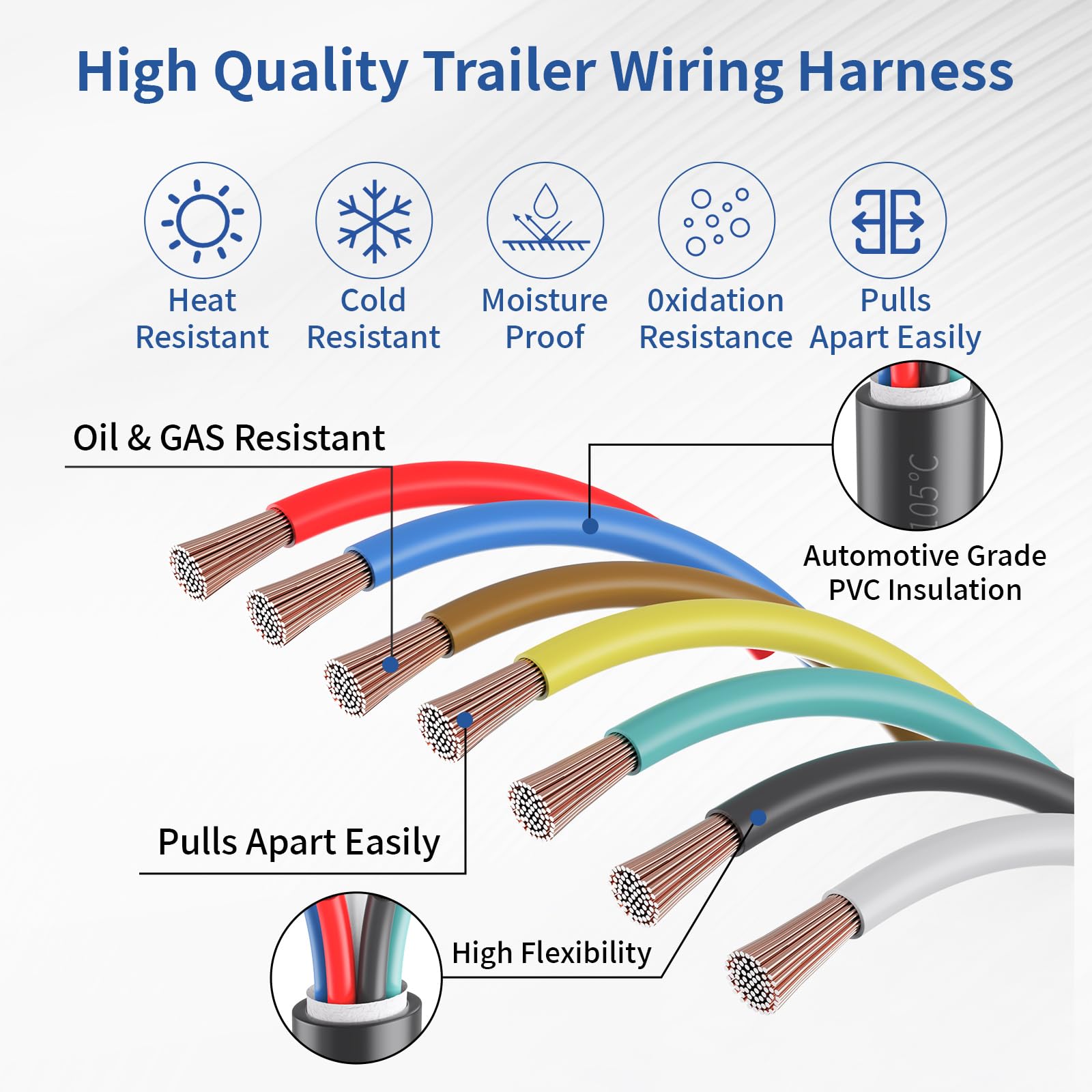

How simple is installation for a DIYer or installer?

Color‑coded conductors follow industry conventions so you can match wires quickly to trailer and vehicle connectors. The stranded design makes the cable easier to route and terminate with common crimp or solder methods.

• Standard color scheme reduces wiring mistakes during hookups or replacements.
• Stranded wires are flexible for routing through channels and around corners.
• Works with common 7‑pin connectors, butt splices, ring terminals and shrink tubing.
• 50 ft spool minimizes the need for splices in longer installations.

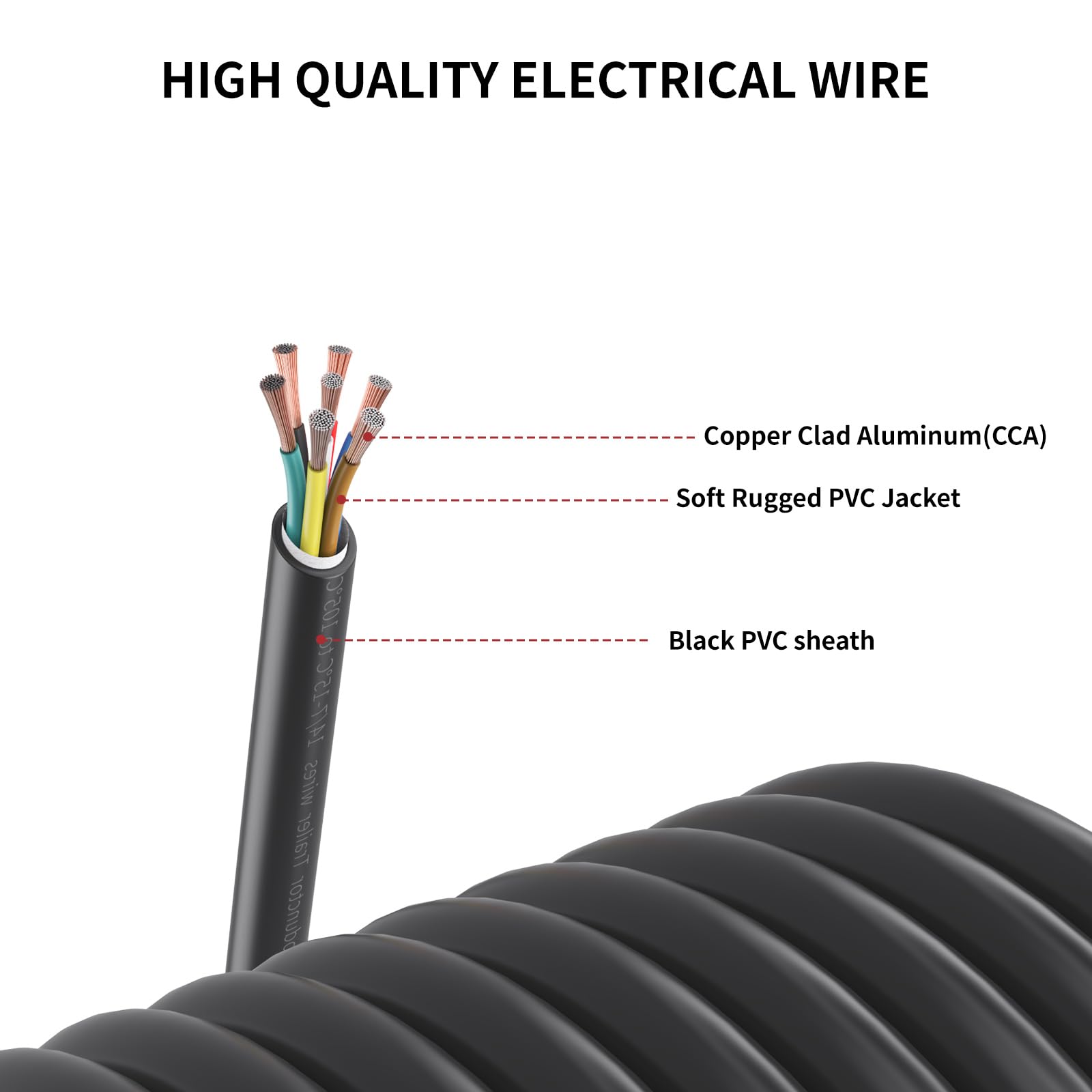

Is copper‑clad aluminum (CCA) adequate for trailer wiring?

CCA offers a cost‑effective conductor with a copper coating over an aluminum core, providing acceptable conductivity for most 12V trailer circuits such as lights and small auxiliary loads. For high‑current applications (heavy-duty brakes, large inverter/charger feeds) pure OFC copper is recommended instead.

• CCA provides lower cost and lighter weight than solid copper wire.
• Suitable for lighting, turn signals, brake signal lines and accessory feeds.
• Avoid CCA for sustained high‑current circuits; choose OFC for heavy loads.
• Ensure proper terminals and corrosion protection at all connections.

What environmental conditions can this harness withstand?

The bleuezest harness uses a durable PVC outer jacket that guards the stranded conductors against UV exposure, temperature swings and physical abrasion common on trailers and RV frames. That makes it suitable for outdoor routing where the cable may be exposed under the chassis or alongside bodywork.

• UV‑resistant PVC jacket helps prevent sun‑damage during long-term exposure.
• Flexible across a wide temperature range to reduce cracking or stiffness.
• Abrasion resistance for routing near brackets and edges under trailers.
• Stranded conductors reduce breakage risk when bent repeatedly during installation.

Who is this for: bleuezest's 14 AWG 50 ft 7‑way trailer wire harness is aimed at RV owners, boat trailers, utility trailer users, and installers who need a full seven‑conductor run for lighting, brakes and auxiliary circuits without the price of pure copper cable. Choose this kit for long runs, straightforward color‑coded wiring, and a flexible jacket suited to outdoor trailer applications; opt for OFC copper when planning sustained high‑current loads.
