Blue Sea Systems MRBF Terminal Fuse 125A — Marine DC main protection, 10,000 AIC compact design

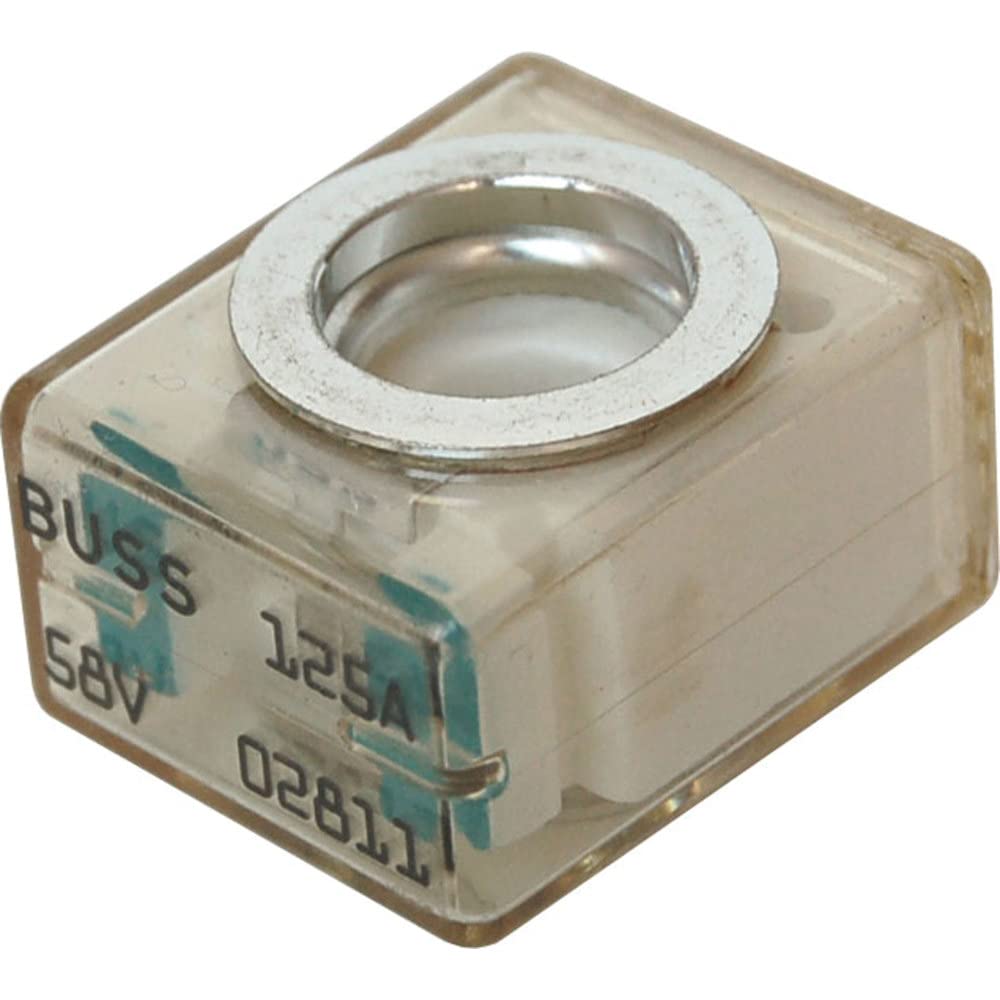

Blue Sea Systems MRBF Terminal Fuse, 125A, is a high-interrupt-capacity terminal fuse designed to protect large DC battery banks when installed in the correct terminal fuse blocks.

This compact marine-grade fuse provides reliable overcurrent protection for main DC circuits on boats and large battery systems. Engineered for high fault-clearing performance, the MRBF 125A meets rigorous electrical interruption standards and must be mounted in the compatible Blue Sea terminal fuse blocks (PN 5191 or PN 2151). The unit’s small footprint and robust rating make it a suitable option for hobbyist and professional marine electrical setups where safe, efficient circuit protection is required.

How does the MRBF 125A protect my boat’s electrical system?

The MRBF 125A interrupts high short-circuit currents quickly to prevent wiring and equipment damage. With a high AIC rating, it handles severe fault currents that can occur on large battery banks, reducing the risk of sustained arcing and component failure.

• 125 amps nominal fuse rating for main DC circuits
• 10,000 AIC at 14V DC for robust short-circuit interruption
• Designed to be used in purpose-built terminal fuse blocks only

Where should I install this terminal fuse and what do I need?

Never mount the MRBF directly to a battery terminal; it requires a compatible terminal fuse block to ensure proper mechanical and electrical connection. Blue Sea Systems recommends using PN 5191 or PN 2151 fuse blocks for safe installation and optimized performance.

• Use only PN 5191 or PN 2151 terminal fuse blocks
• Follow torque and wiring guidelines in block and boat documentation
• Keep fuse accessible for inspection and replacement

What are the key electrical and physical specifications?

The MRBF 125A combines a high interrupting capacity with a compact package size for easy integration into existing panels. Its physical dimensions make it straightforward to fit inside terminal blocks and enclosed compartments where space is limited.

• Rated current: 125 A
• Interrupting rating: 10,000 AIC at 14V DC
• Package dimensions: approximately 3.555 cm L × 8.128 cm W × 0.508 cm H

How does this fuse meet safety and regulatory expectations?

The MRBF’s high AIC value helps satisfy typical marine electrical protection standards for main DC circuits on large battery banks, supporting compliance with industry guidance when installed properly. Using the recommended terminal fuse block ensures the fuse performs as intended under fault conditions.

• 10,000 AIC supports ABYC-style interruption expectations for DC mains
• Install in approved fuse blocks to meet recommended installation practices
• Regular inspection helps maintain safe operation over time

Who is this for: The Blue Sea Systems MRBF Terminal Fuse, 125A, is aimed at boat owners, marine electricians, and anyone managing larger 12–14V battery banks who need a compact, high-interrupt-capacity terminal fuse. It is especially useful where space is limited but high fault-clearing ability is required—provided the installer uses the correct Blue Sea terminal fuse block and follows marine electrical best practices.
