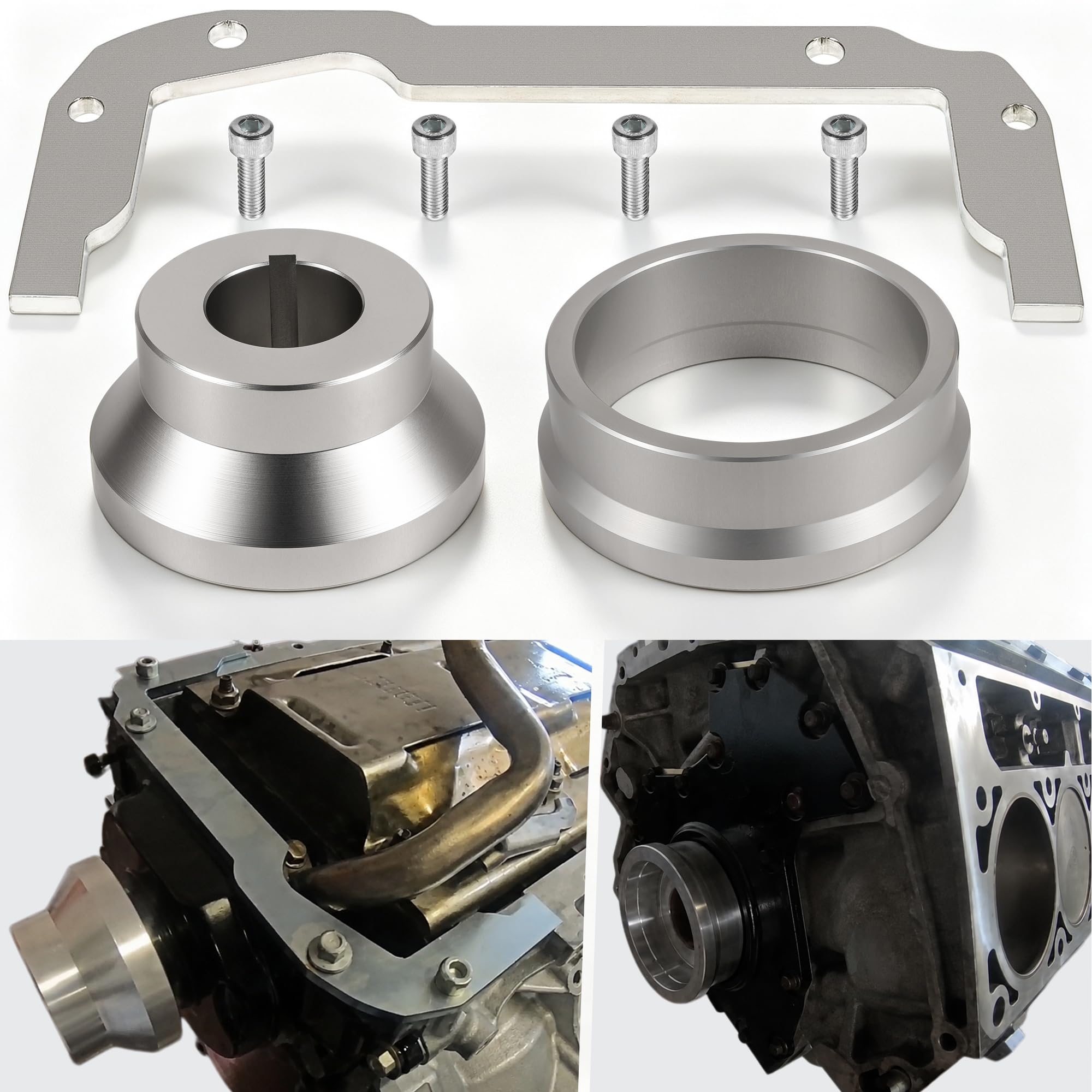

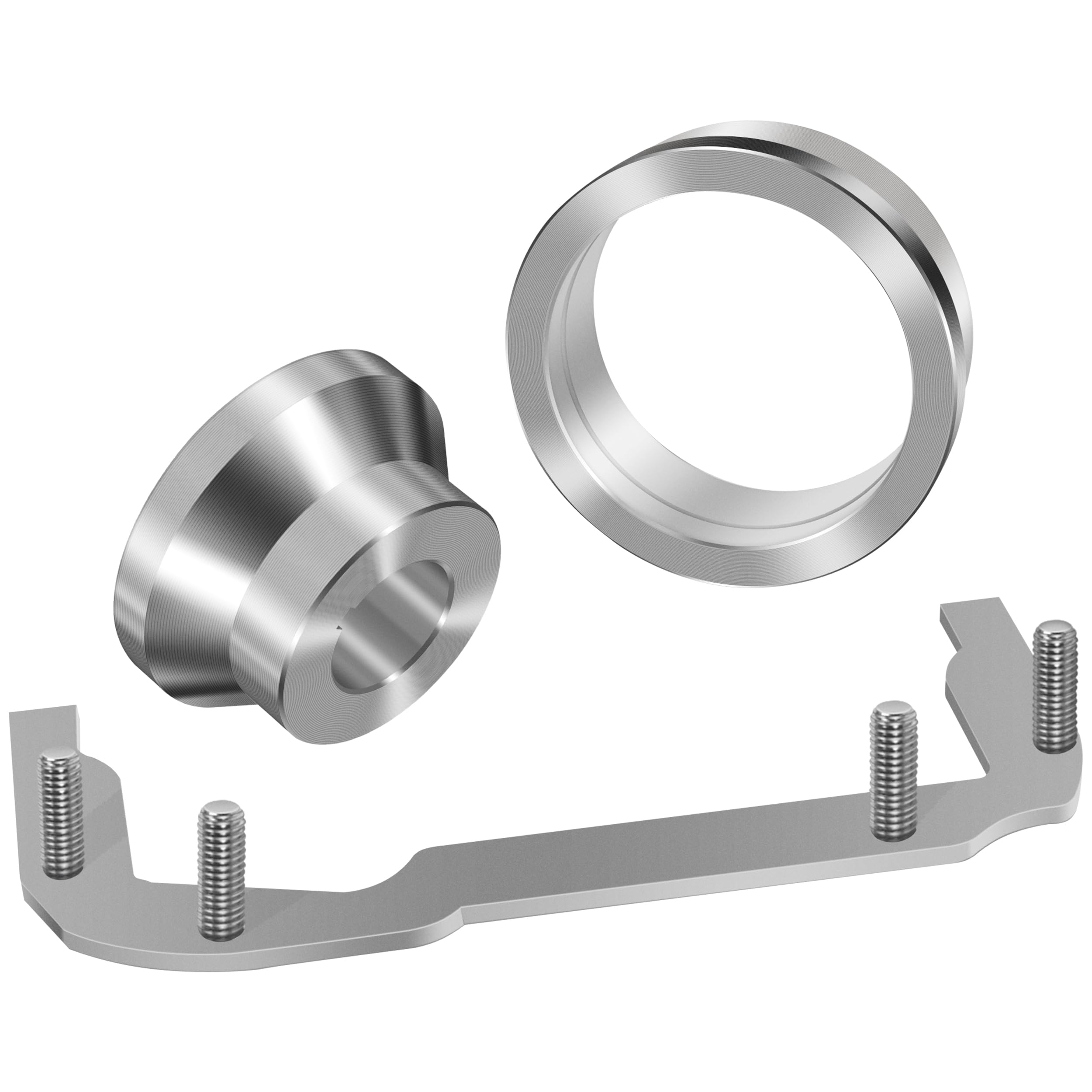

Bonbo LS-Series Billet Front & Rear Cover and Oil Pan Alignment Tool Kit — Aluminium, Fits 4.8–6.0L (LS1/LS2/LS3/LQ4)

Bonbo's billet alignment tool set positions the front and rear covers and oil pan precisely on GM LS-series engines to ensure centered seals and simplified installation.

When rebuilding or servicing an LS-series small-block (4.8, 5.3, 5.7, 6.0) you need repeatable alignment between the harmonic balancer area, front/rear covers and the oil pan. This Bonbo kit is machined from aluminum to tight tolerances to mimic the balancer and pan locations, making it easier to install covers without stress or misalignment that can lead to leaks or fitment problems.

How does the tool help prevent seal leaks and misaligned covers?

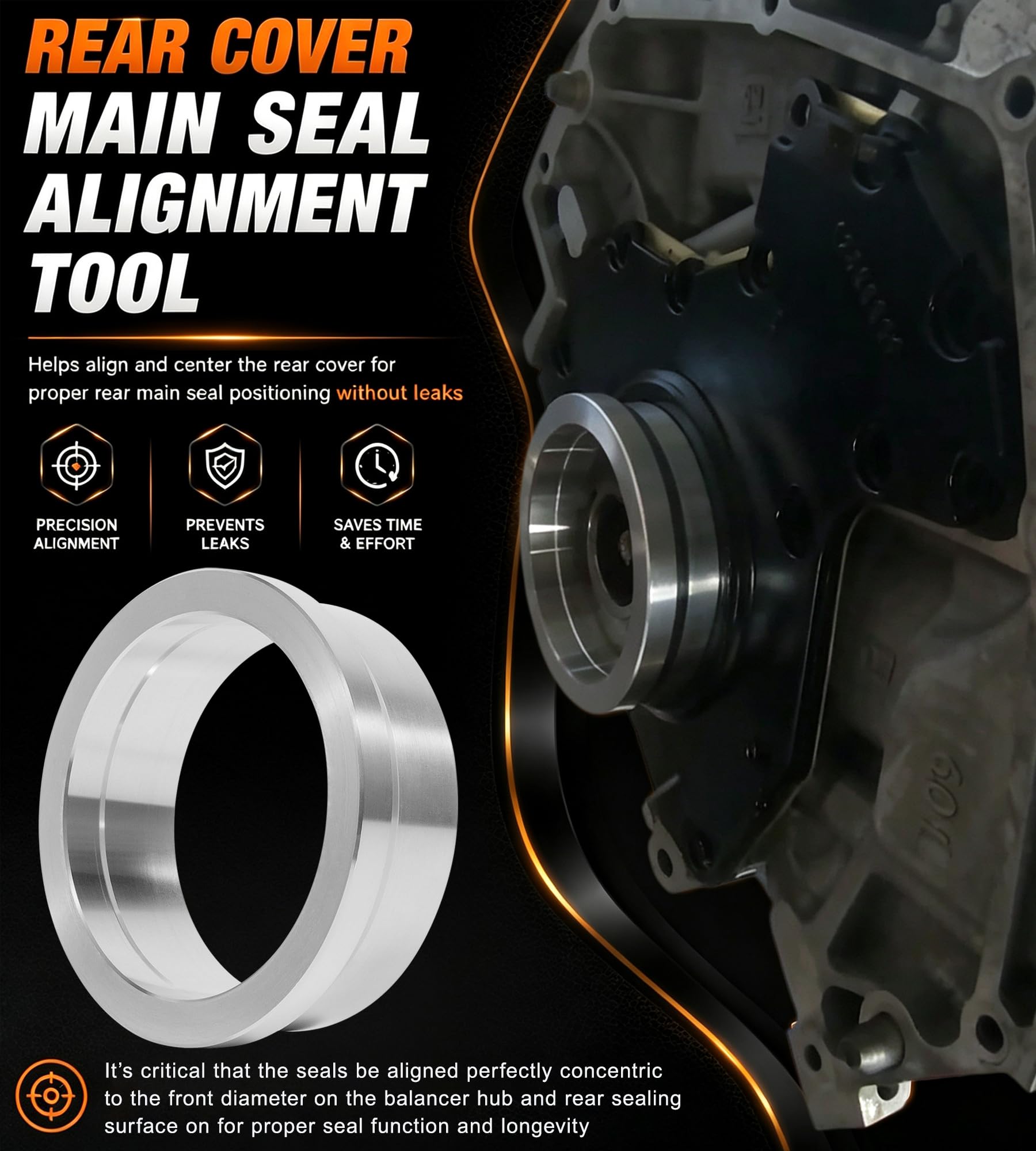

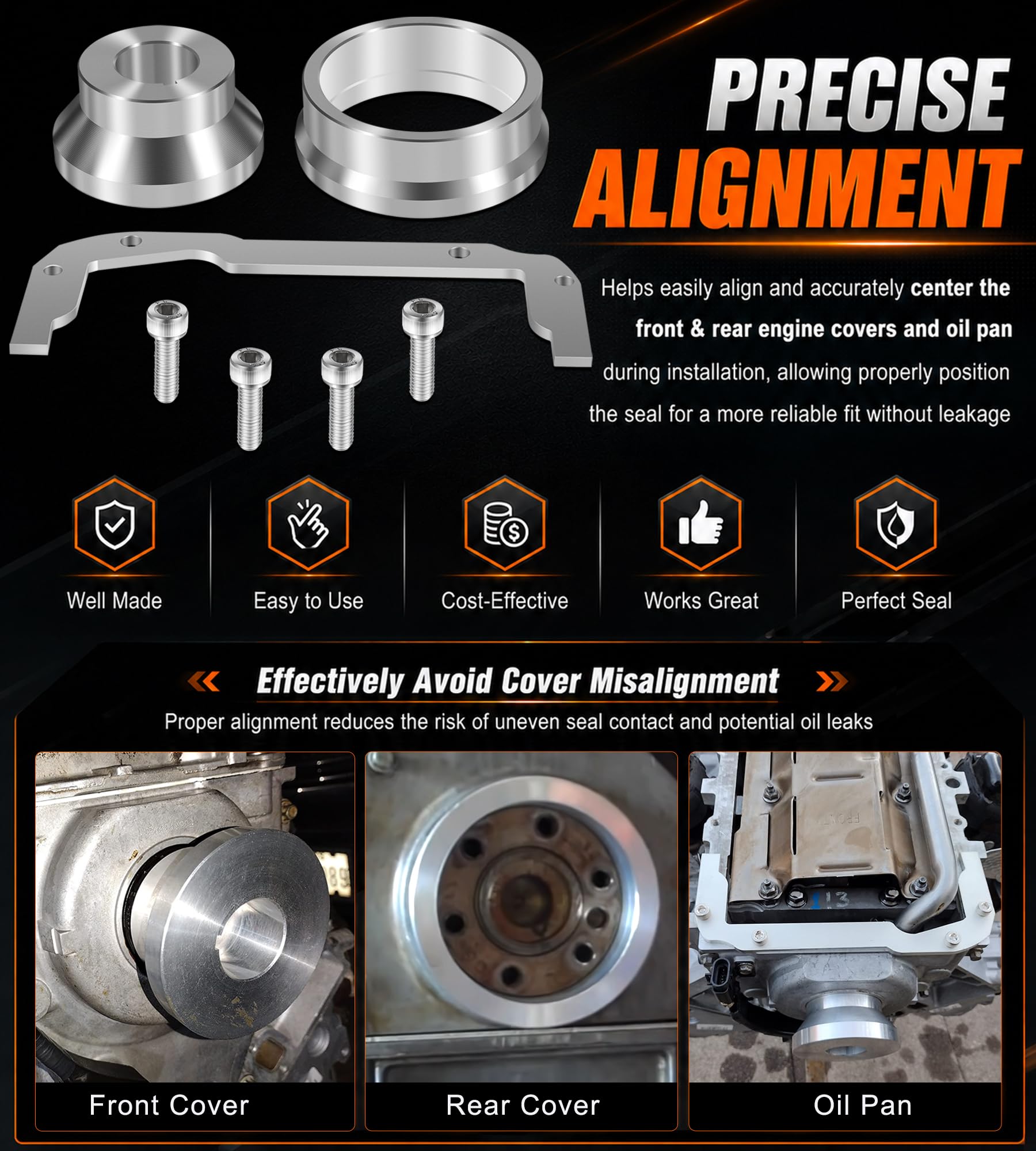

The alignment pieces center the cover bores relative to the crank flange and oil pan so the seal lip seats evenly. By locating the cover from the inside diameter and simulating the balancer/pan position, you avoid cocked covers and uneven seal compression.

• Centers cover bores for consistent seal contact
• Simulates balancer and pan locations during assembly
• Reduces chance of seal distortion and post-install leaks

Which LS engines will this Bonbo kit fit and how is compatibility achieved?

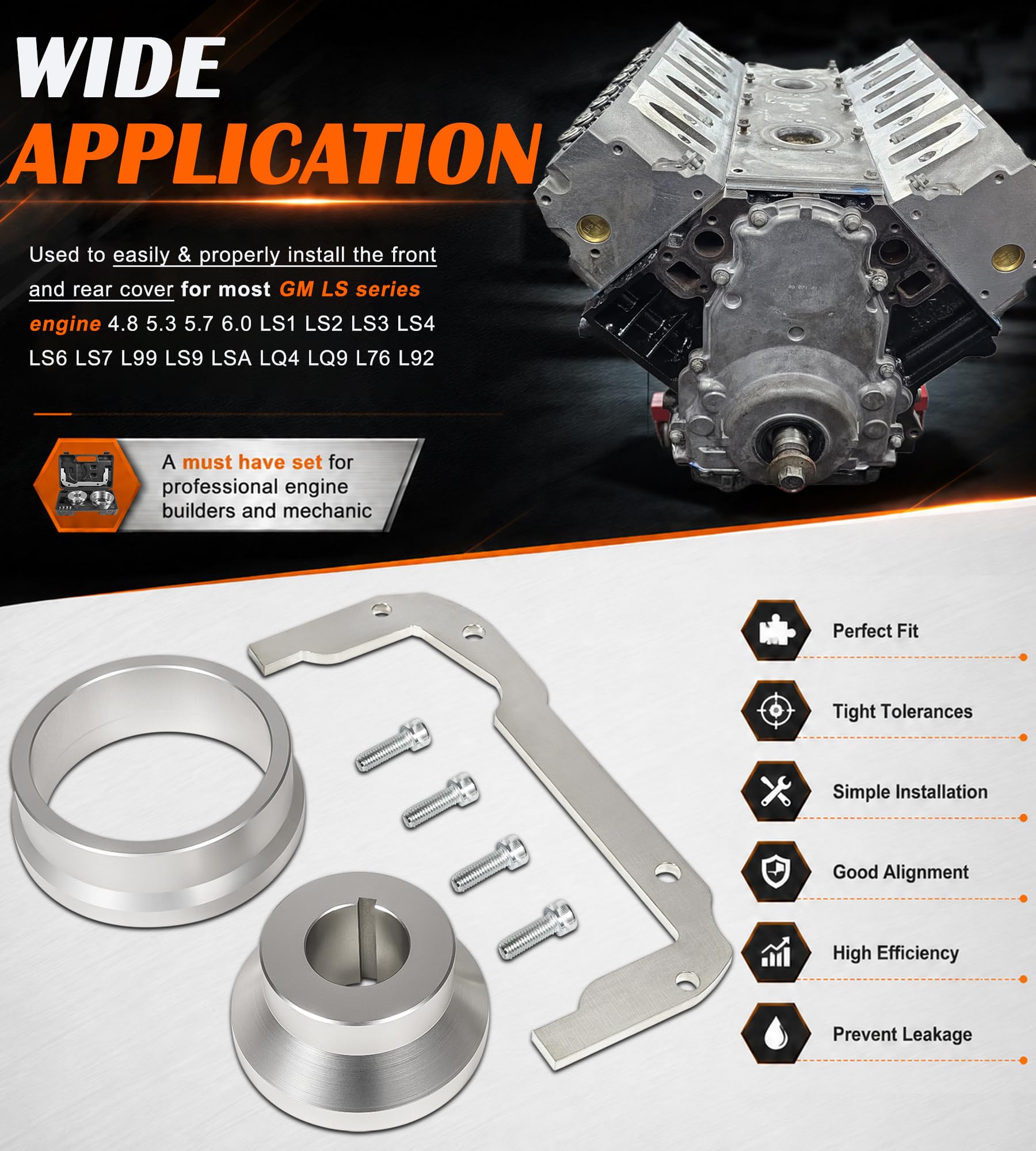

The set is designed for a broad range of GM LS small-blocks including LS1, LS2, LS3, LS6, LQ4/LQ9 and related 4.8–6.0L variants. Machined locating diameters and studs match common LS front and rear cover attachment features so the tools index precisely where the covers and pan meet the block.

• Covers LS1, LS2, LS3, LS4, LS6, LS7, LQ4/LQ9, LSA, LS9 and more
• Works with standard LS front/rear cover and oil pan interfaces
• Designed for aftermarket and OEM-style cover locations

What materials and tolerances are used, and why do they matter?

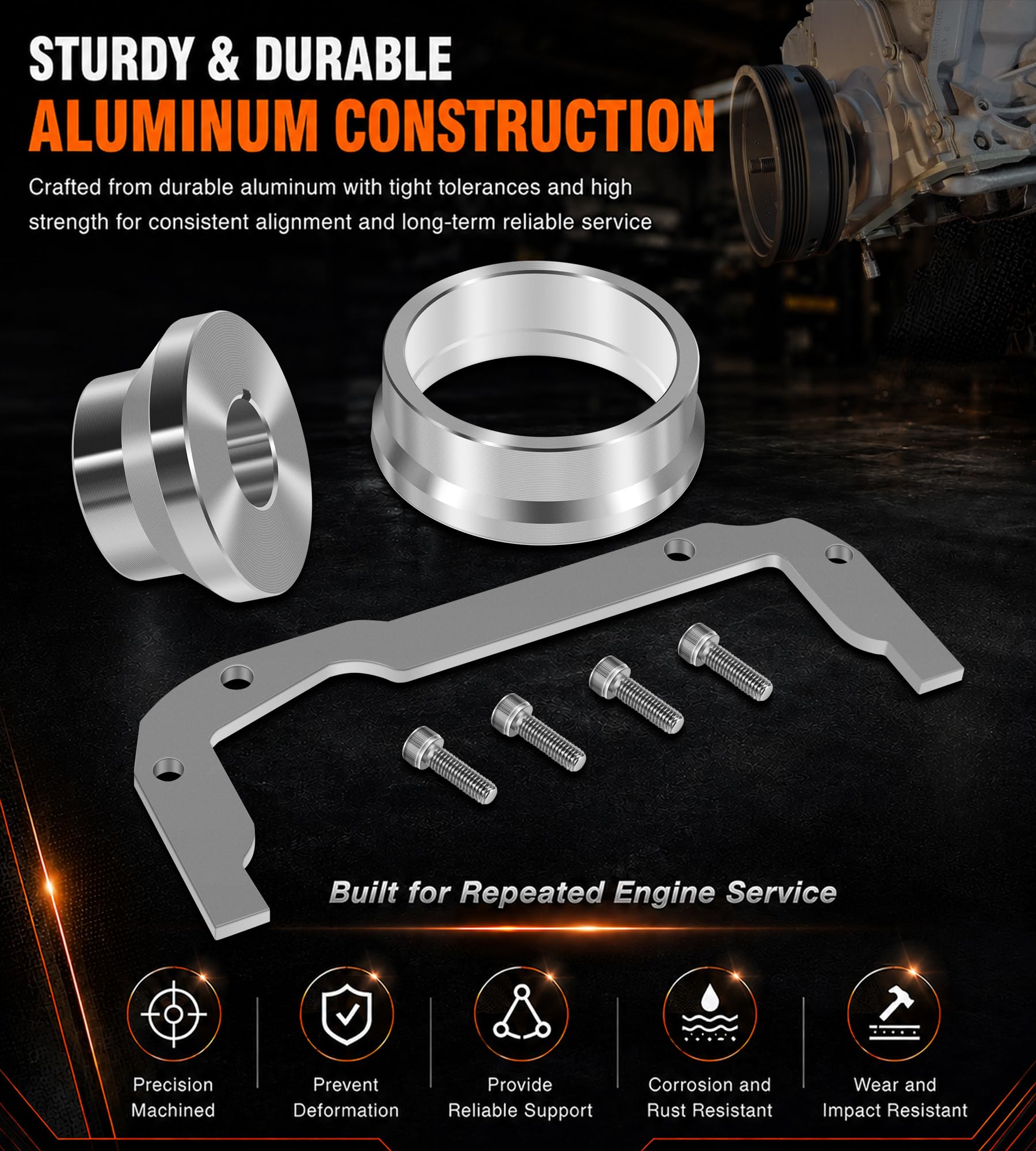

Bonbo machines the alignment pieces from high-grade aluminum for stiffness, corrosion resistance and accurate dimensional control. Tight tolerances ensure the tools act like the real balancer and pan when locating covers, so alignment is repeatable across builds and long-term use.

• Durable aluminum construction for strength and rust resistance
• Precision machining for reliable centering and reuse
• Lightweight design that’s easy to handle in the shop

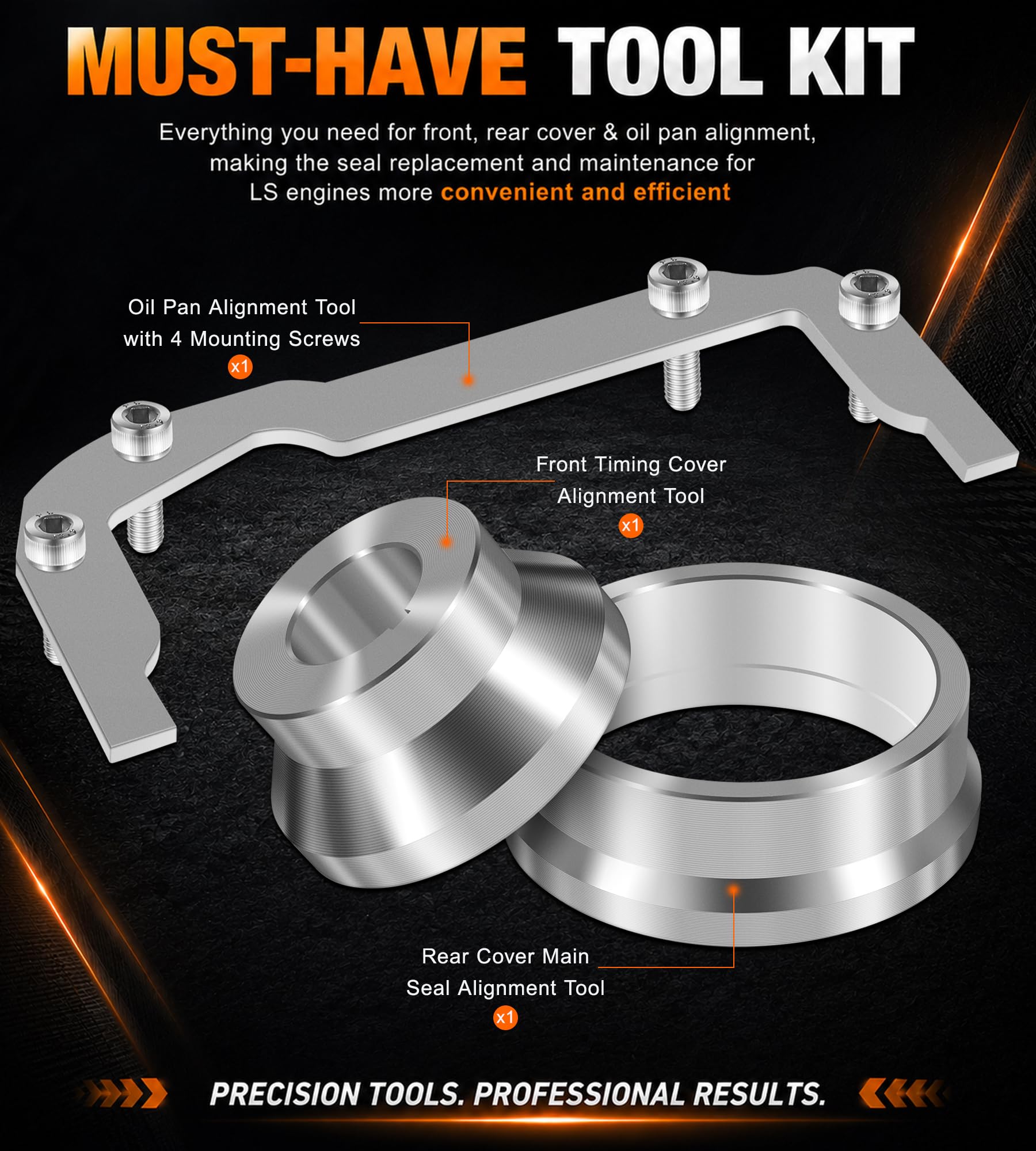

How do I use the kit during an engine service or rebuild?

Install the billet alignment pieces to mimic the crank flange and oil pan position, then fit the front and rear covers over the tools so the cover bores seat evenly. Torque the cover fasteners to spec with the tools in place, then remove them and fit the actual balancer and pan; it’s a simple sequence that saves trial-and-error fitment.

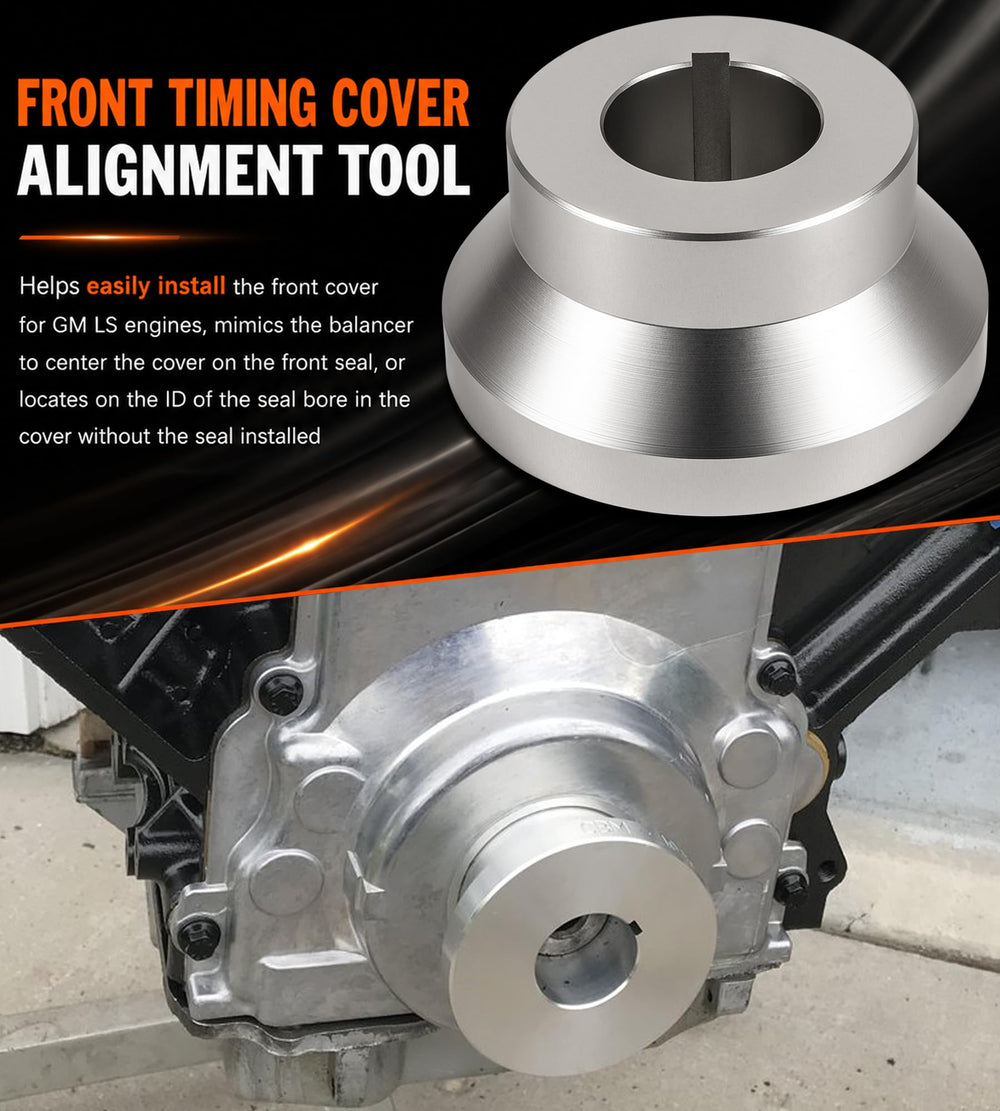

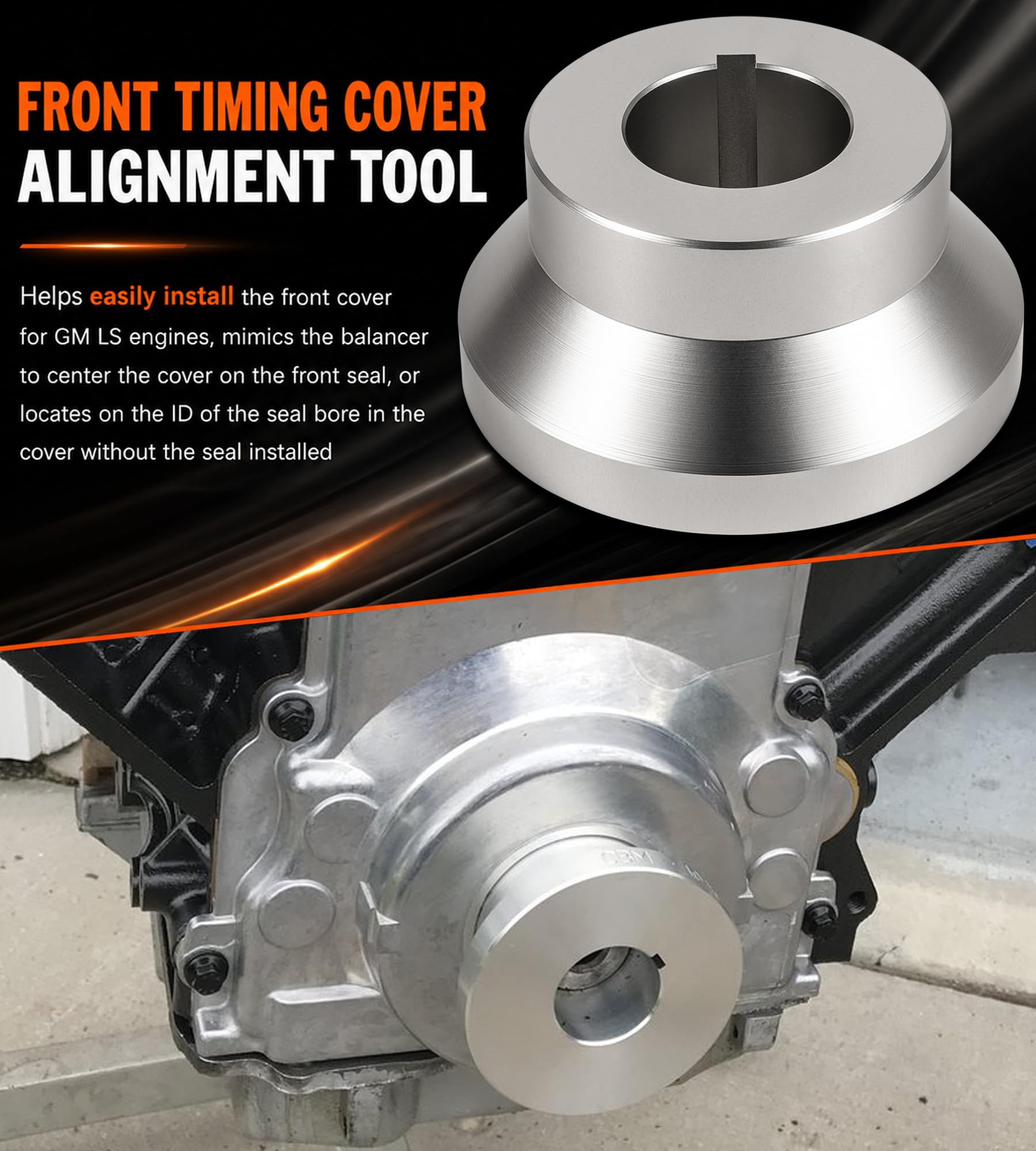

• Slide the front/rear locating tool into the cover bore before installation

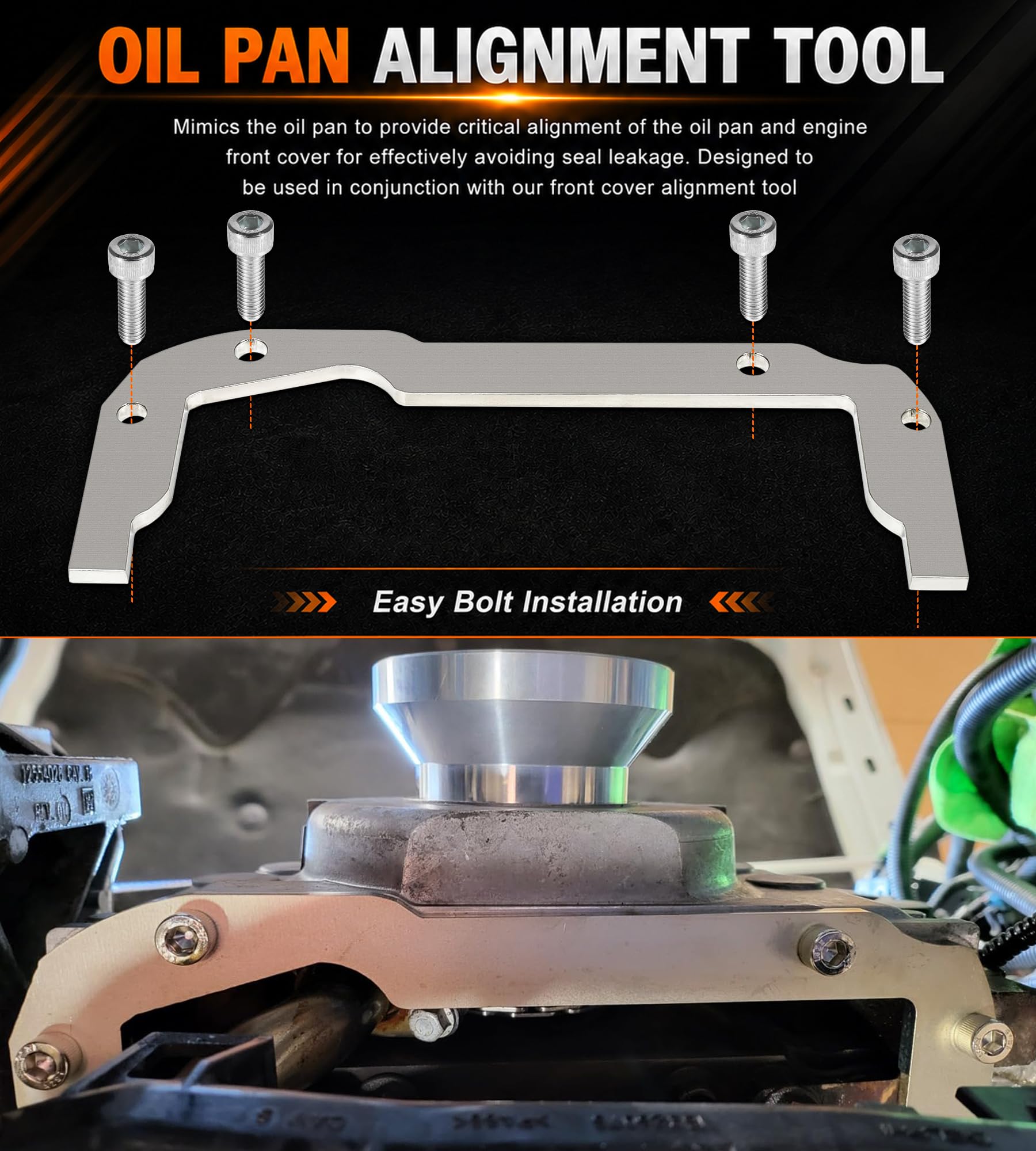

• Use the oil pan-aligning piece in tandem to establish proper pan position
• Tighten covers with tools installed, then remove and proceed with seals

Who this is for: Engine builders, professional mechanics and DIY LS owners who want a straightforward way to align front and rear covers and the oil pan during seal replacement, rebuilds or pan swaps. If you work on GM LS-series small-blocks and value long-lasting, precision-fit assemblies that minimize reseal jobs, this Bonbo aluminum alignment set streamlines the process and reduces installation guesswork.
