CarBole HVLP Suction Paint Spray Gun with 1.3/1.7/2.0mm Tips — 1000cc Cup, Stainless-Steel Body

The CarBole Suction Paint Spray-Gun is an HVLP siphon-feed sprayer equipped with 1.3mm, 1.7mm, and 2.0mm fluid tips for controlled, professional-style finishes on furniture, cabinets, automotive parts, and home projects.

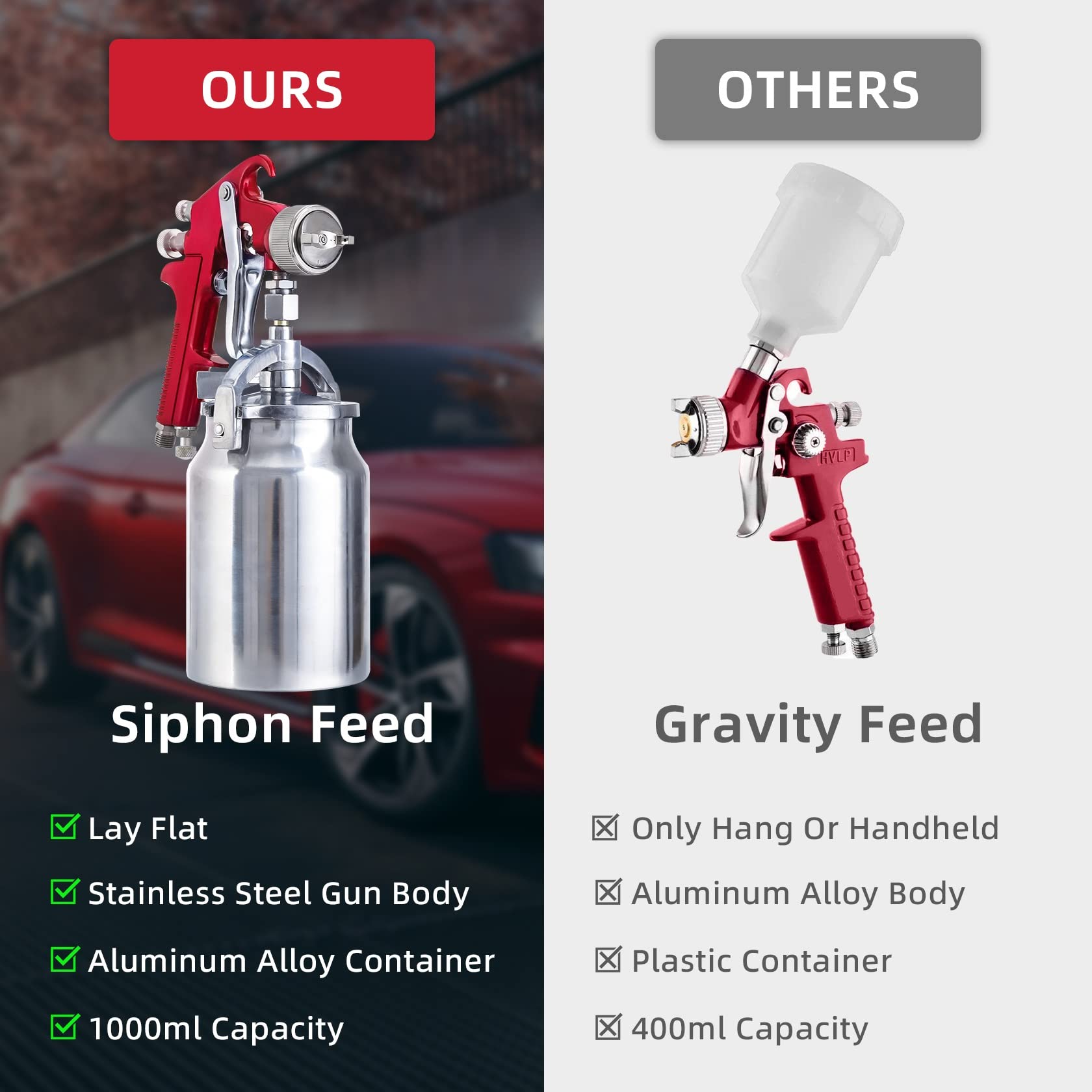

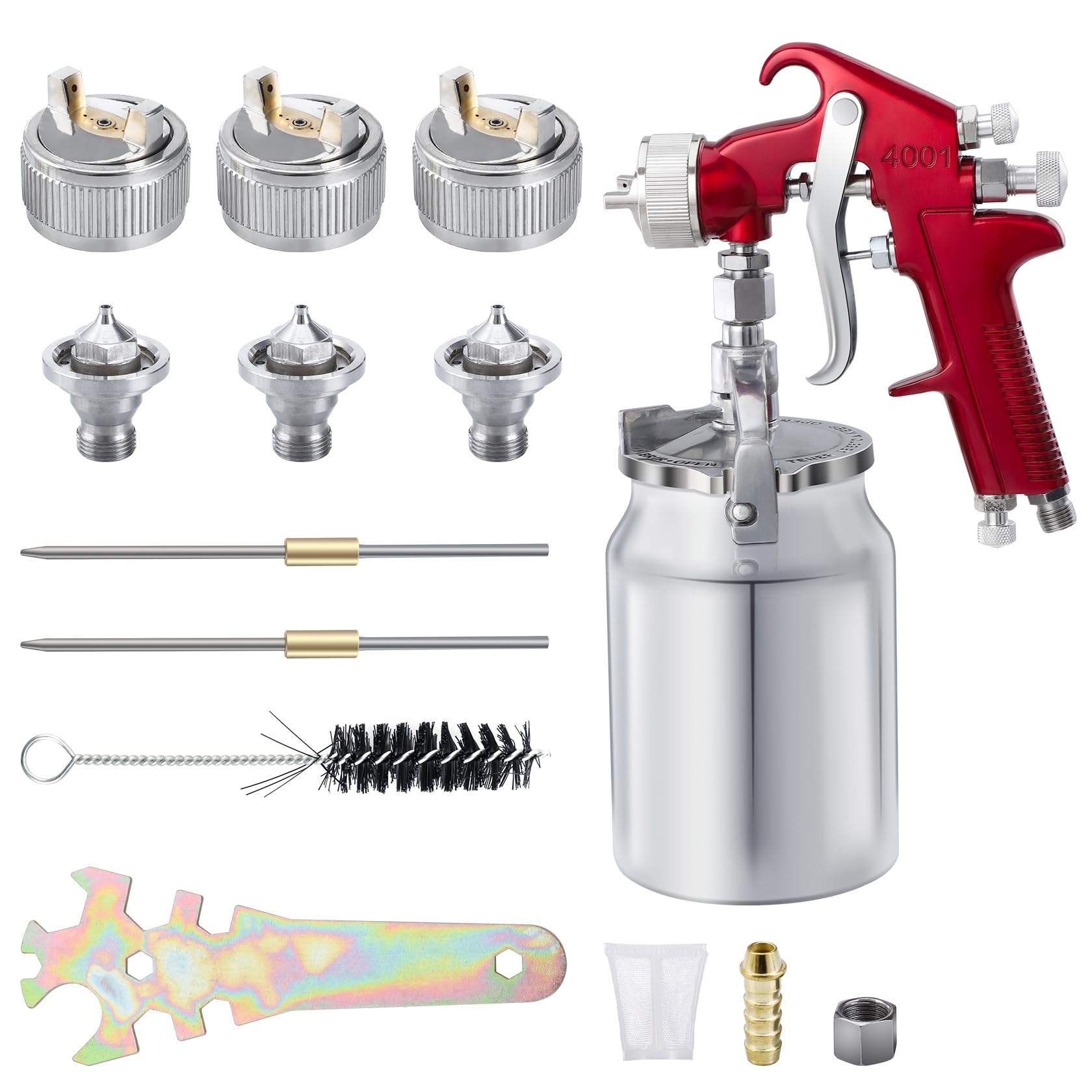

This compact spray gun combines a stainless-steel body, brass nozzle, and a 1000cc cup to give hobbyists and pros a reliable tool for applying paints, stains, primers, and clear coats. It requires a compressor delivering 7–12 CFM (approximately a 3 HP motor) and offers adjustable air caps for three spray patterns plus an easy material flow control knob for fine-tuning coverage. The kit ships with three nozzle sizes, a multifunction spanner, cleaning brush, and an English manual to get you spraying quickly.

How does the CarBole spray gun adapt to different surfaces and paints?

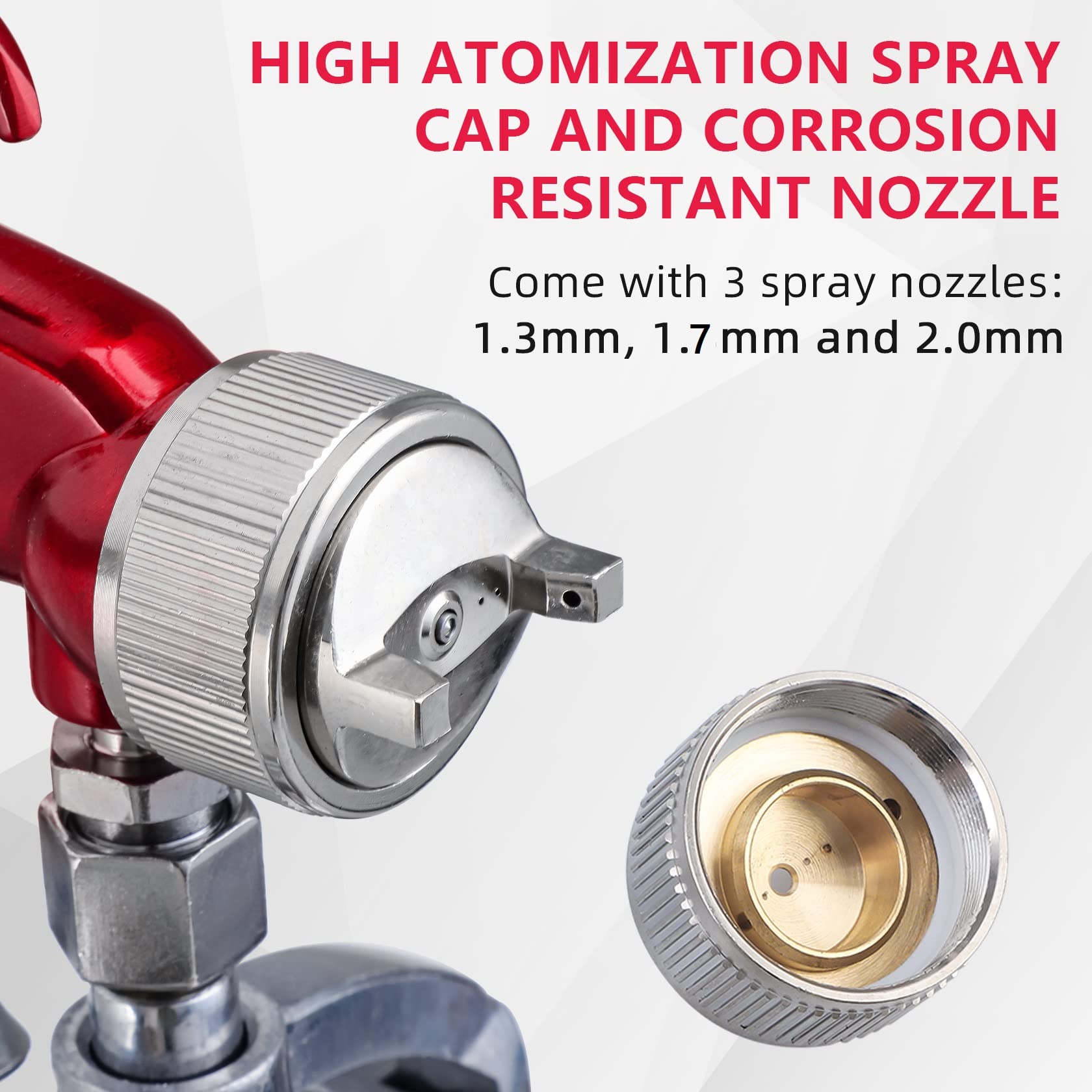

The gun accepts three fluid tip sizes (1.3mm, 1.7mm, 2.0mm), so you can match tip diameter to coating viscosity and desired finish. Use smaller tips for thin paints and detailed work, and larger tips for thicker primers or varnishes to maintain even flow without overworking the surface.

• 1.3mm: thin paints, lacquers, and light stains for smooth atomization
• 1.7mm: general-purpose tip for latex, enamels, and primers
• 2.0mm: thicker coatings, varnishes, and heavy-bodied finishes

What spray patterns and adjustments can I make for precise coverage?

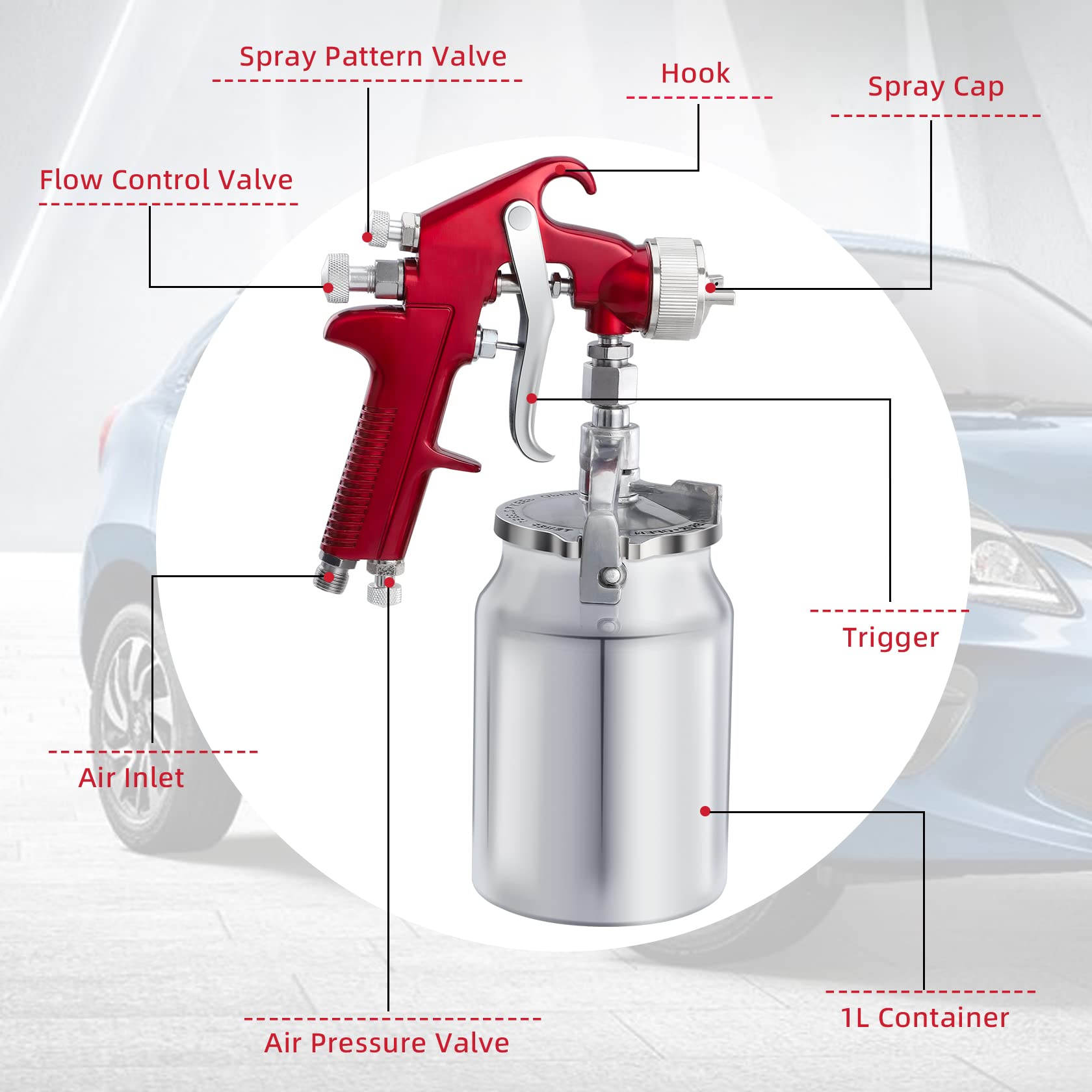

Change the air cap to switch between horizontal, vertical, and round spray patterns, so you can tailor the fan to the job. The material flow control knob gives quick, incremental control over paint output, while a recommended spray distance (17–25 cm) and spray area guidance (about 35 cm) help maintain even coats.

• Three air-cap positions for horizontal, vertical, and circular patterns
• Material flow knob for rapid output adjustments on the fly

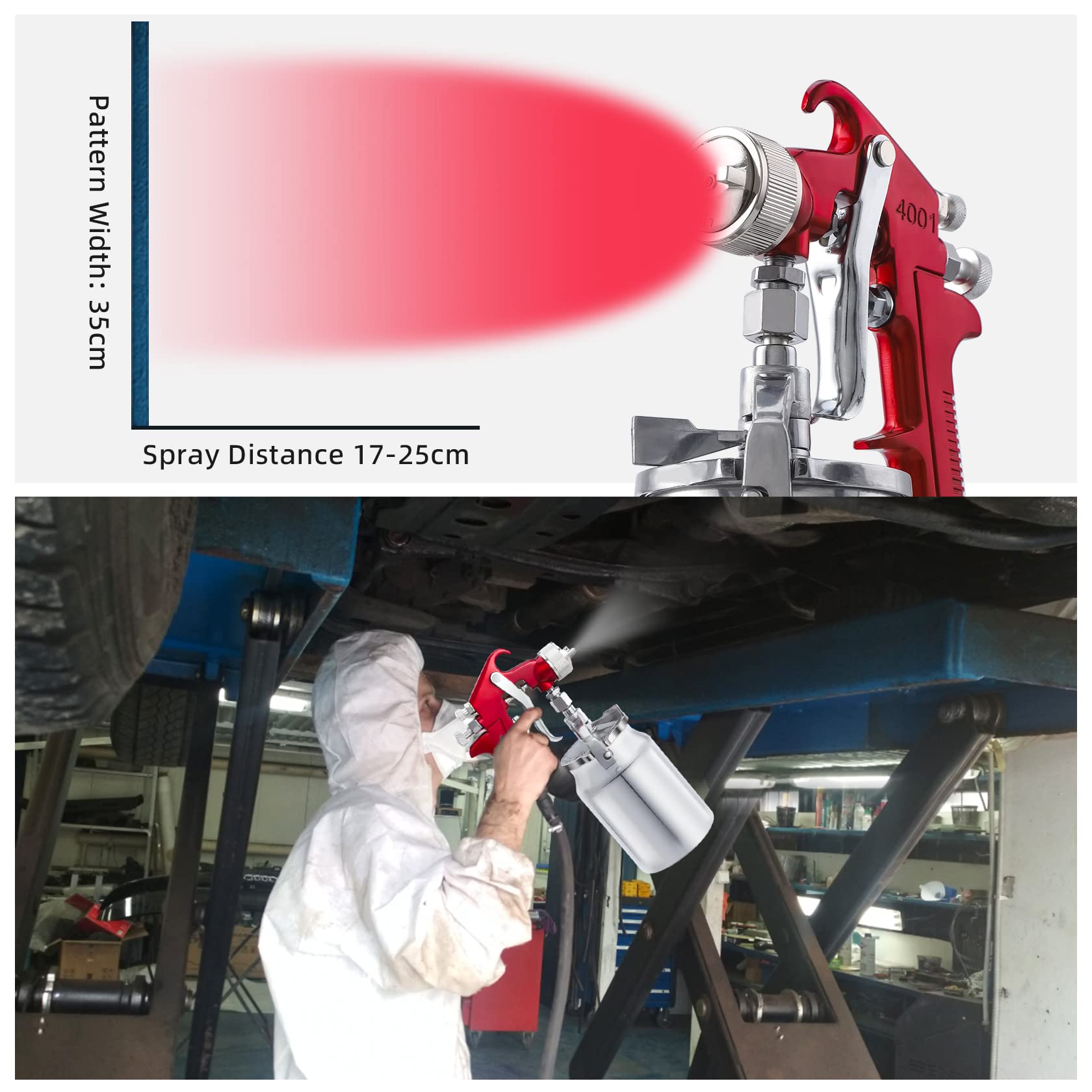

• 17–25 cm optimal spraying distance for consistent coverage

What build and maintenance features improve durability and ease of use?

The CarBole gun uses a stainless-steel body and brass nozzle for greater wear resistance compared with plastic components, and its detachable design simplifies cleaning and maintenance. The included cleaning brush and spanner let you disassemble, flush, and reassemble the gun so it stays reliable through repeated projects.

• Stainless-steel construction resists corrosion and wear
• Brass nozzle for consistent spray performance and longevity
• Detachable parts plus cleaning brush for fast maintenance

Which compressors and project types work best with this HVLP sprayer?

The gun performs well with compressors rated at 7–12 CFM (roughly 3 HP) to sustain the HVLP airflow requirements. It’s suited to a wide range of DIY and light-professional applications where controlled atomization and minimal overspray matter more than raw production speed.

• Recommended compressor: 7–12 CFM output (≈3 HP)
• Ideal projects: furniture, cabinets, doors, trim, small auto parts, decks and fences
• Works with: latex, enamels, primers, clear sealer, polyurethane, stains

Who is this for:

The CarBole Suction Paint Spray-Gun is tailored for serious DIYers, small-shop craftsmen, and hobbyist automotive restorers who need a durable, adjustable HVLP tool without the bulk of professional production systems. If you want better atomization than a brush or roller, prefer selectable nozzle sizes, and have access to a 7–12 CFM compressor, this kit provides the components and control to produce smooth, repeatable finishes on a wide range of projects.
