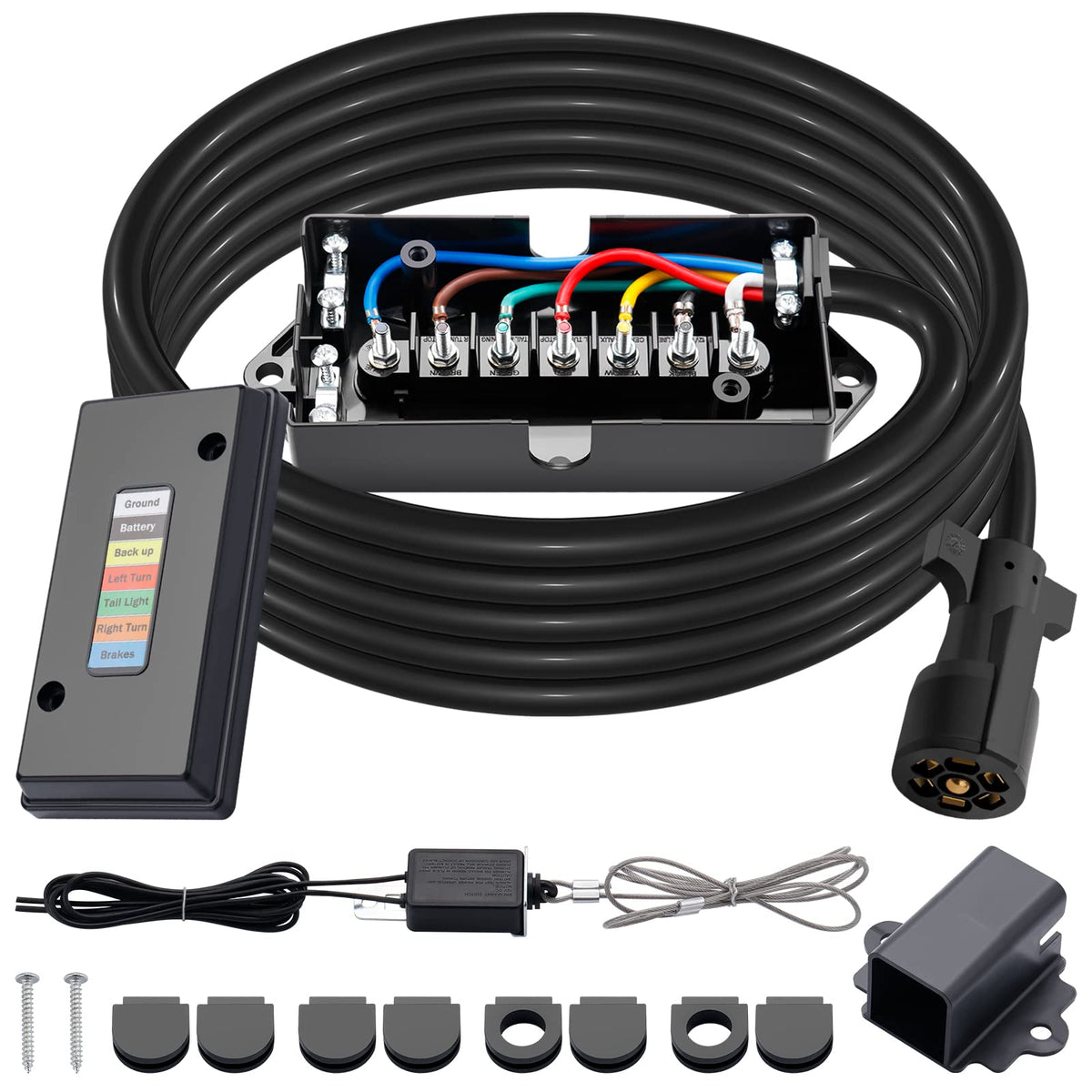

CheeMuii 15FT 7-Way Trailer Wiring Harness Kit with Waterproof Junction Box and Breakaway Switch

The CheeMuii 15FT 7-way trailer wiring harness kit is a complete plug-and-play trailer cord set with a waterproof junction box and breakaway switch designed to keep trailer lights and auxiliary power working reliably.

When connecting a trailer, camper, or food van to a tow vehicle, clear, durable wiring prevents failures and roadside hassles. This CheeMuii kit bundles a 15-foot, 7-way power cord, a rugged junction box with color-coded terminals, and a 12 V breakaway switch so you can wire lighting, signals, and auxiliary circuits faster and with fewer mistakes. Materials and connectors are chosen for corrosion resistance and heat tolerance to withstand road vibration, weather, and frequent use.

How does the junction box simplify trailer wiring?

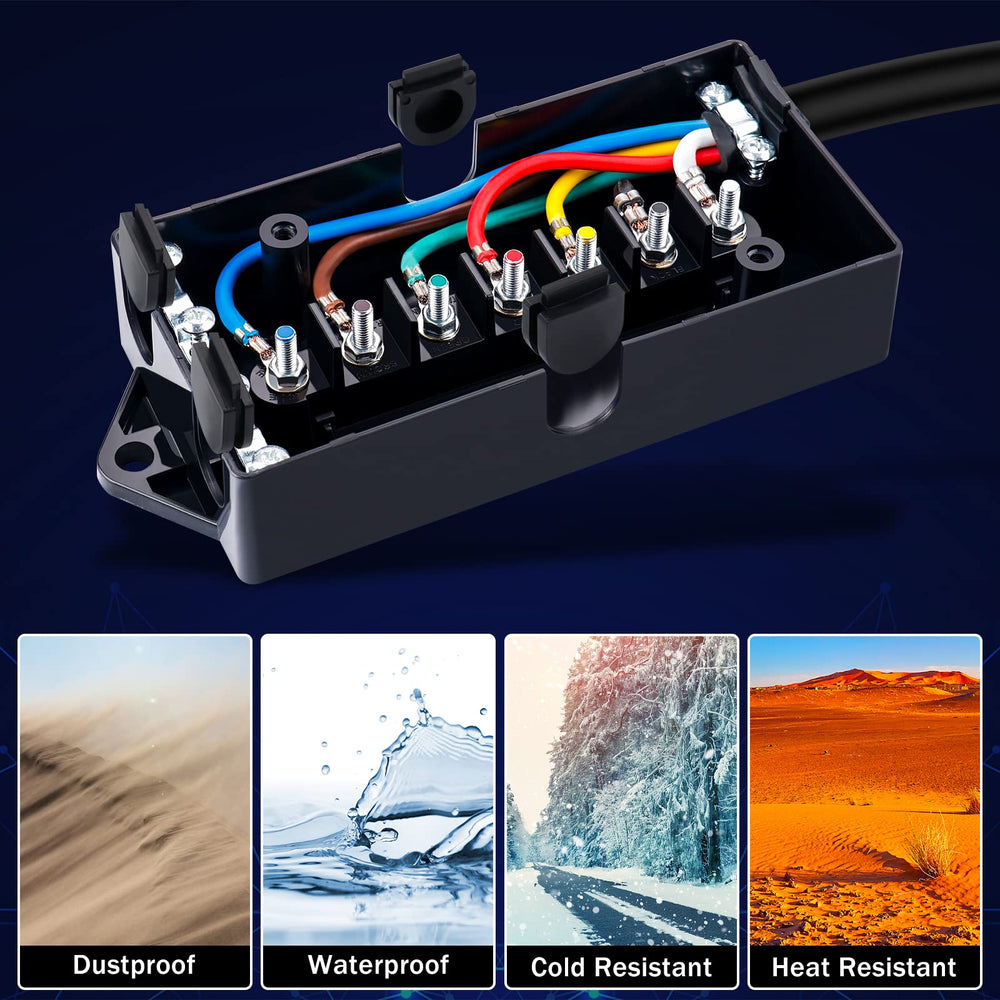

The included junction box centralizes all seven circuits in a waterproof, dust-resistant enclosure, reducing exposed splices and improving longevity. Color-coded terminals match common trailer wiring standards to speed identification and connection during installation or repairs.

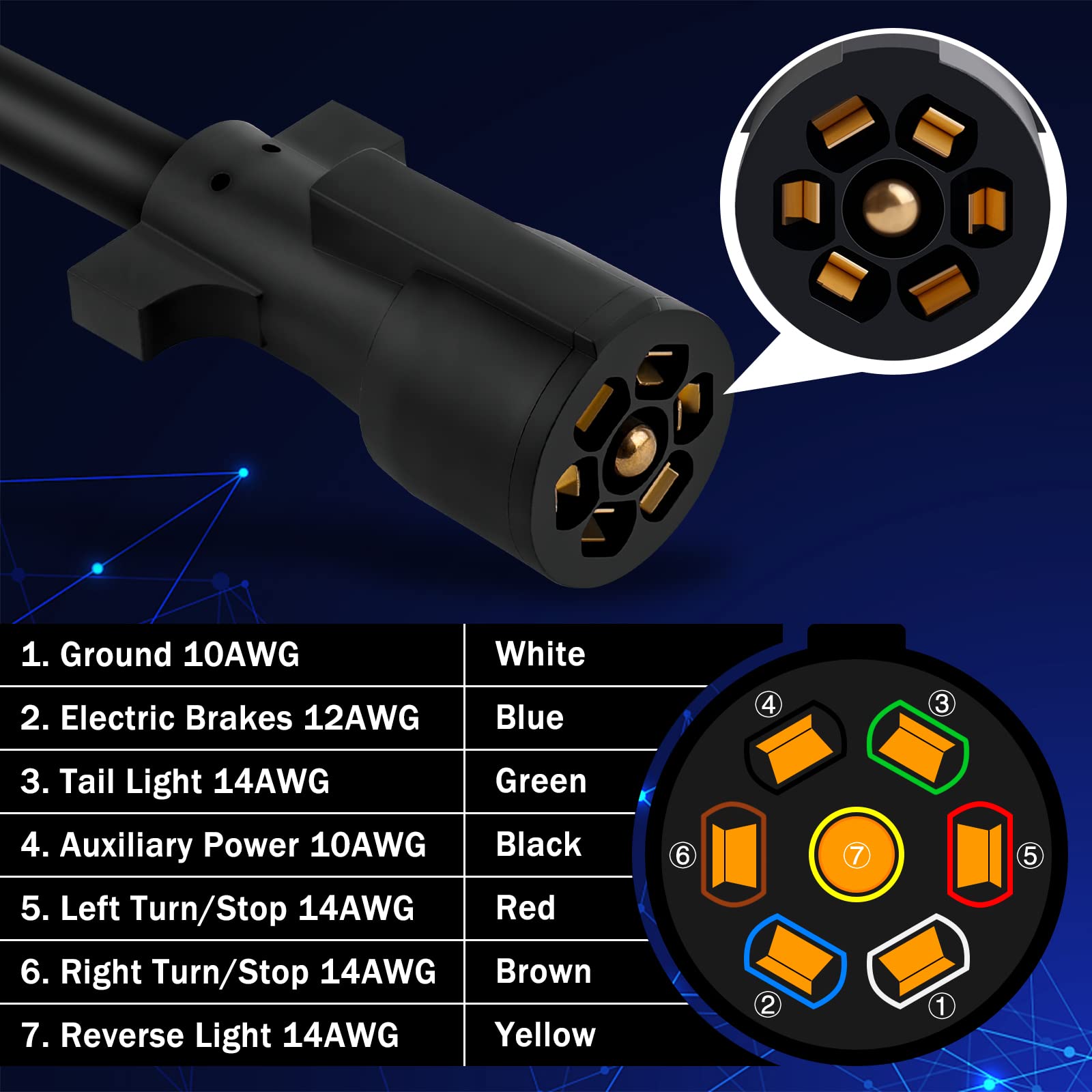

• Seven clearly labeled, color-coded terminals for each function
• Sealed housing to minimize moisture and dirt ingress
• Mounting points for secure, vibration-resistant installation
• Wire entry ports sized for the 15FT harness and additional pigtails

What safety features does the kit include for towing emergencies?

Safety is improved with the 12 V breakaway switch that links the trailer brake battery to the tow vehicle; if a trailer detaches, the switch pulls to activate the brakes. The harness itself uses quality conductors and insulation to reduce heat build-up and preserve electrical continuity for lights and signals.

• Breakaway switch for automatic brake application on disconnection
• Robust insulation to resist abrasion and heat along the 15-foot cord
• Secure connector ends to prevent accidental unplugging while driving
• Designed to maintain turn signals, brake lights, reverse lights, and auxiliary power

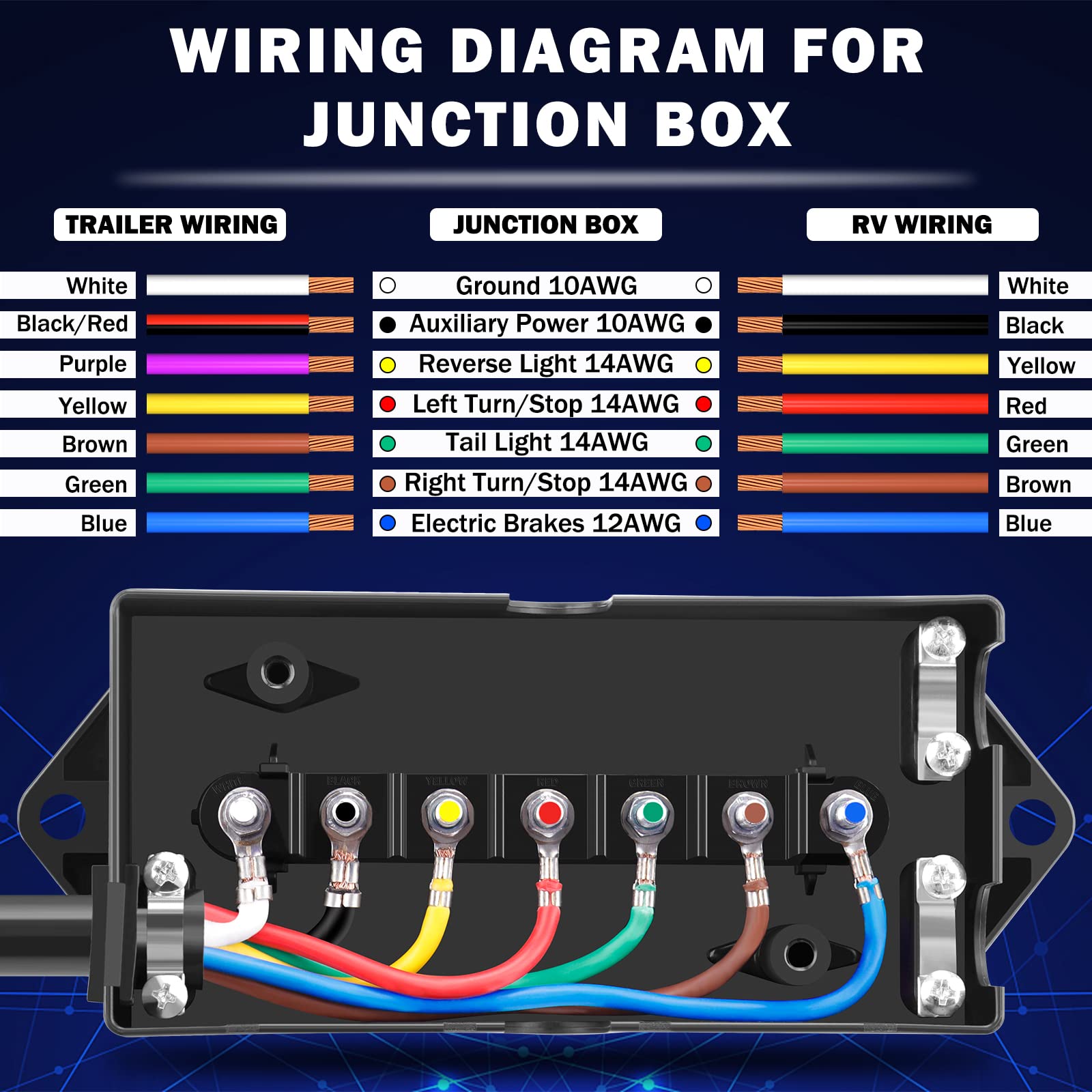

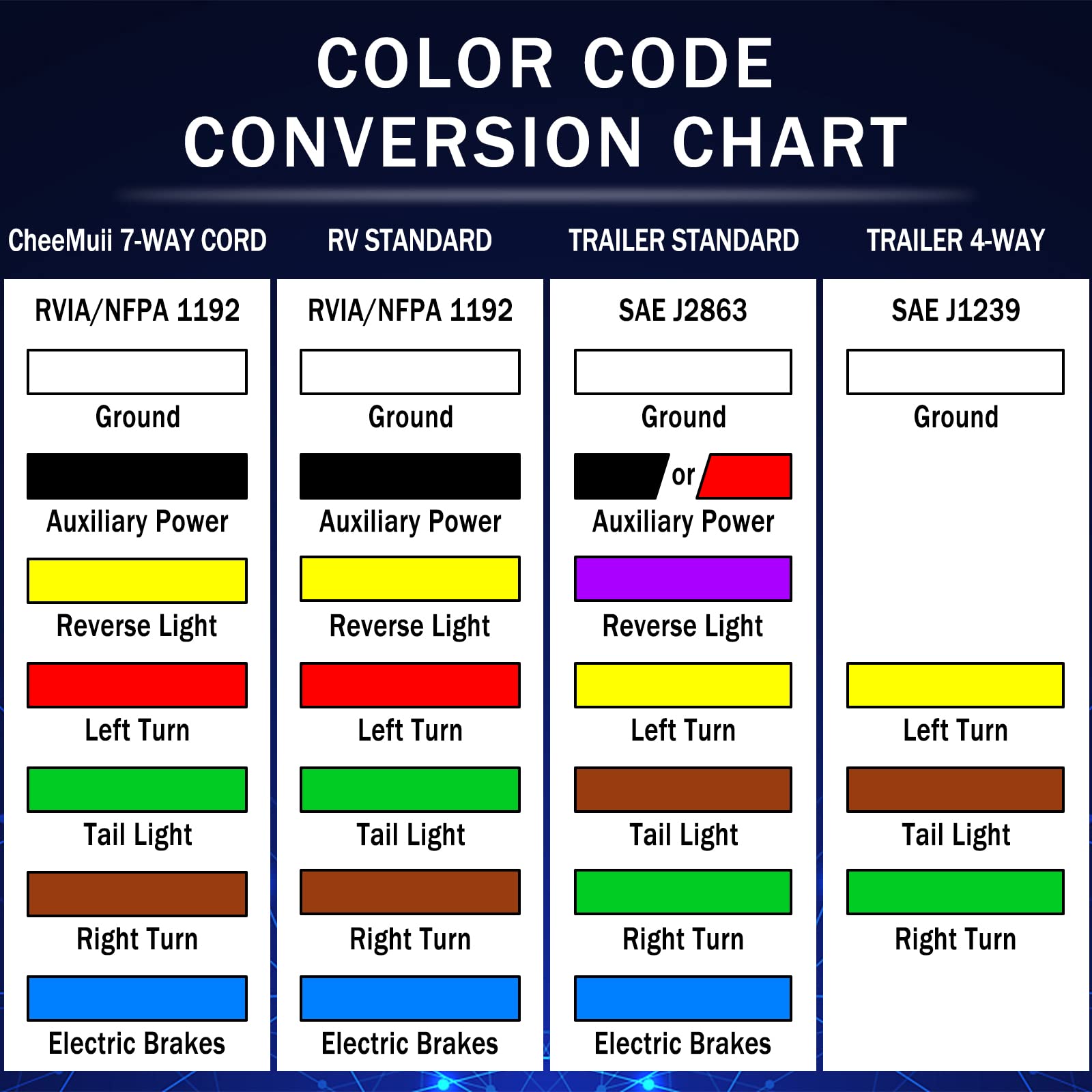

How do I match the CheeMuii wiring colors to my trailer?

CheeMuii uses the common seven-wire color code found on most RVs and trailers, and the kit ships with clear instructions to help you confirm functions before final connections. Because some manufacturers vary, the guide explains how to test circuits and adapt connections to your trailer’s existing setup.

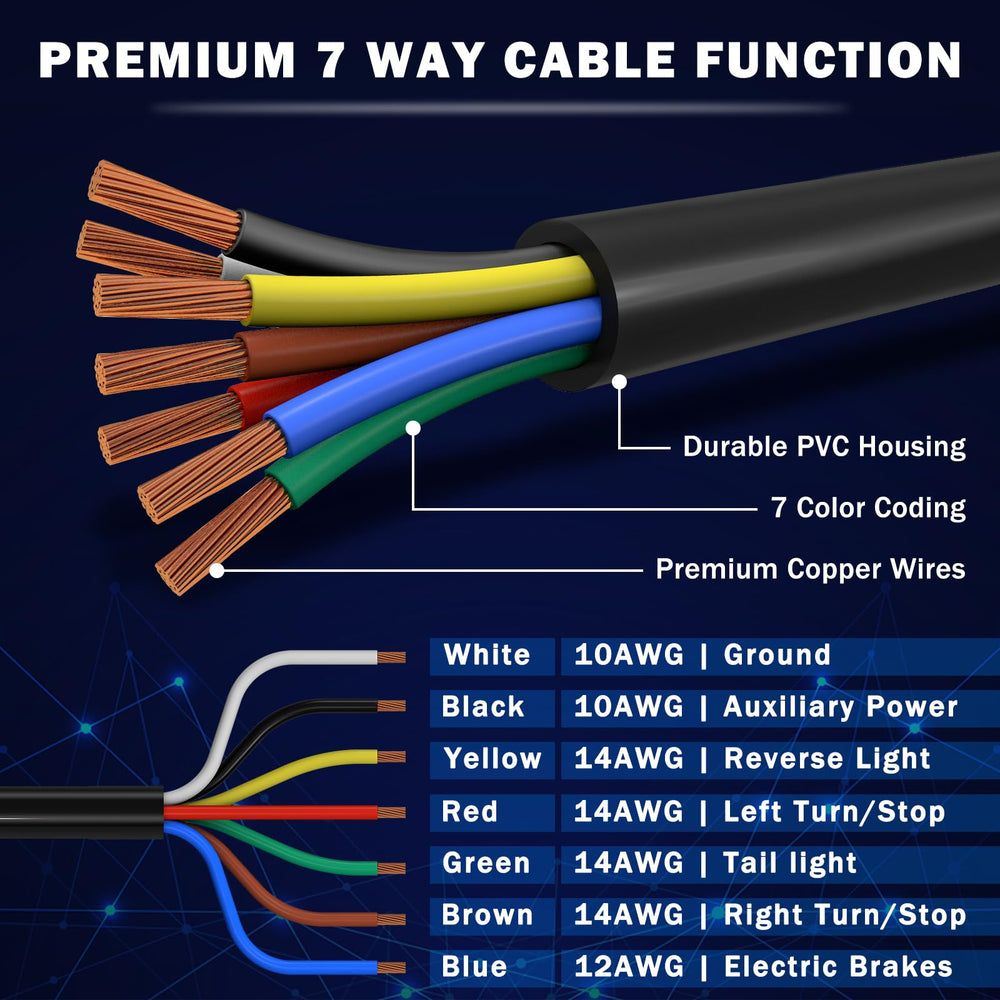

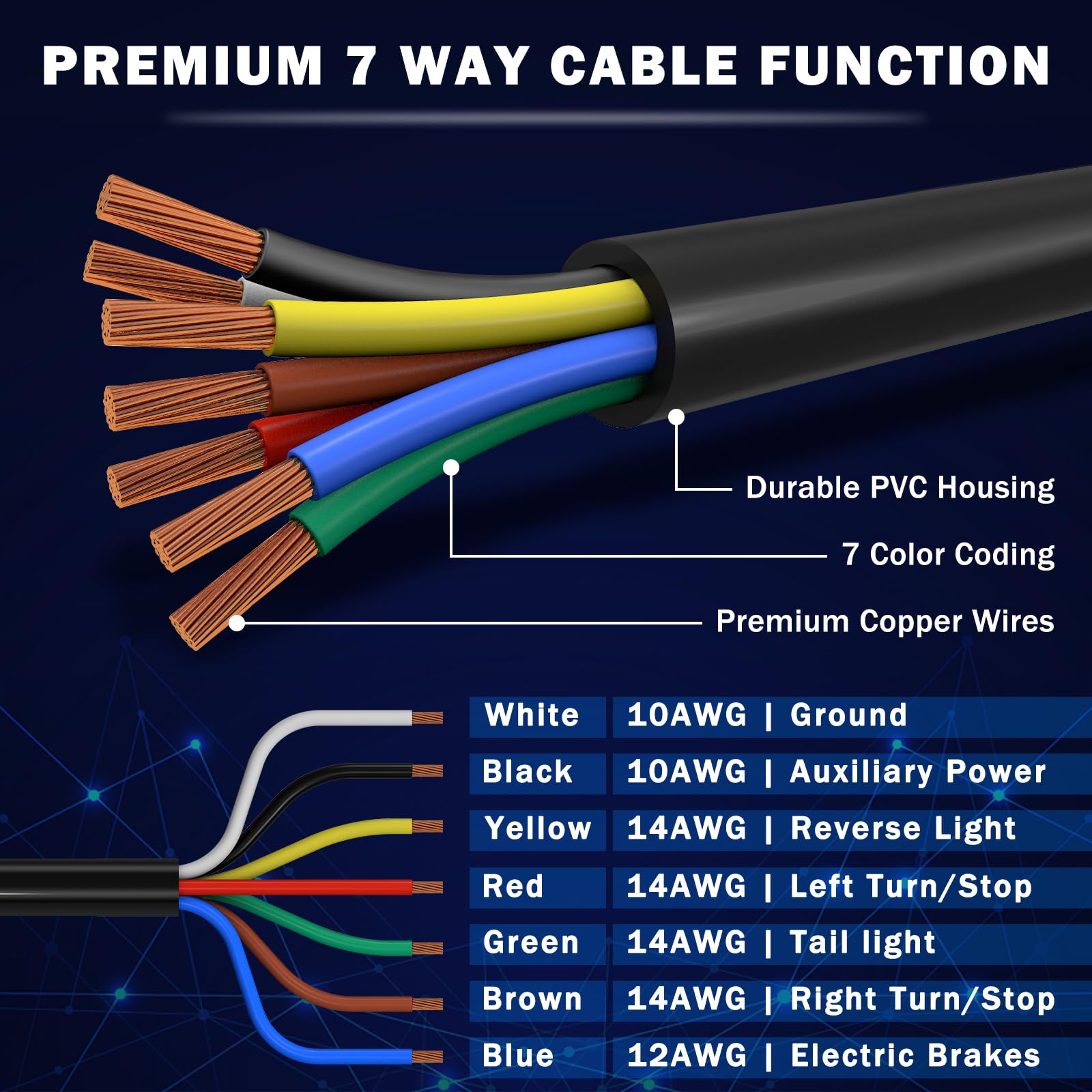

• Color-coded wires correspond to standard trailer functions
• Step-by-step wiring instructions included for verification and testing
• Tips for tracing and matching nonstandard manufacturer wiring
• Recommendations for secure splicing and corrosion protection at terminals

How long is the harness and where can I mount the junction box?

The main power cord measures 15 feet to reach most tow setups without awkward extensions. The junction box can be mounted near the trailer tongue or under a protected area close to the connector, keeping wiring neat and accessible for maintenance.

• 15FT cord length suits common hitch distances
• Compact junction box fits on the tongue, frame, or inside a small compartment
• Mounting hardware points for stable attachment to metal surfaces
• Connector location remains tidy for quick hook-up and inspection

Who this is for: This CheeMuii harness kit is for trailer owners, RV enthusiasts, food truck operators, and DIY mechanics who want a dependable, weather-resistant 7-way connection with a clear wiring layout and a built-in safety breakaway. It’s particularly useful if you prefer a single kit that includes a junction box and breakaway switch for clean installations and fewer roadside wiring issues.
