CHXWJZH Front Brake Master Cylinder Reservoir for Honda ATV 7/8" handlebar – M10 banjo, 14mm bore

A direct-fit 7/8" front brake master cylinder reservoir from CHXWJZH that replaces worn or damaged units on many Honda ATV models to restore reliable front-brake function.

When the original front brake reservoir or master cylinder on your Honda ATV leaks, cracks, or loses pressure, swapping in a properly sized replacement prevents fluid loss and helps recover consistent braking. This CHXWJZH assembly is engineered to match common Honda dimensions and mounting points used across a wide range of FourTrax, Sportrax, Foreman, Rancher, Rincon, Recon and TRX machines, letting you return to safe trail riding with a straightforward parts swap.

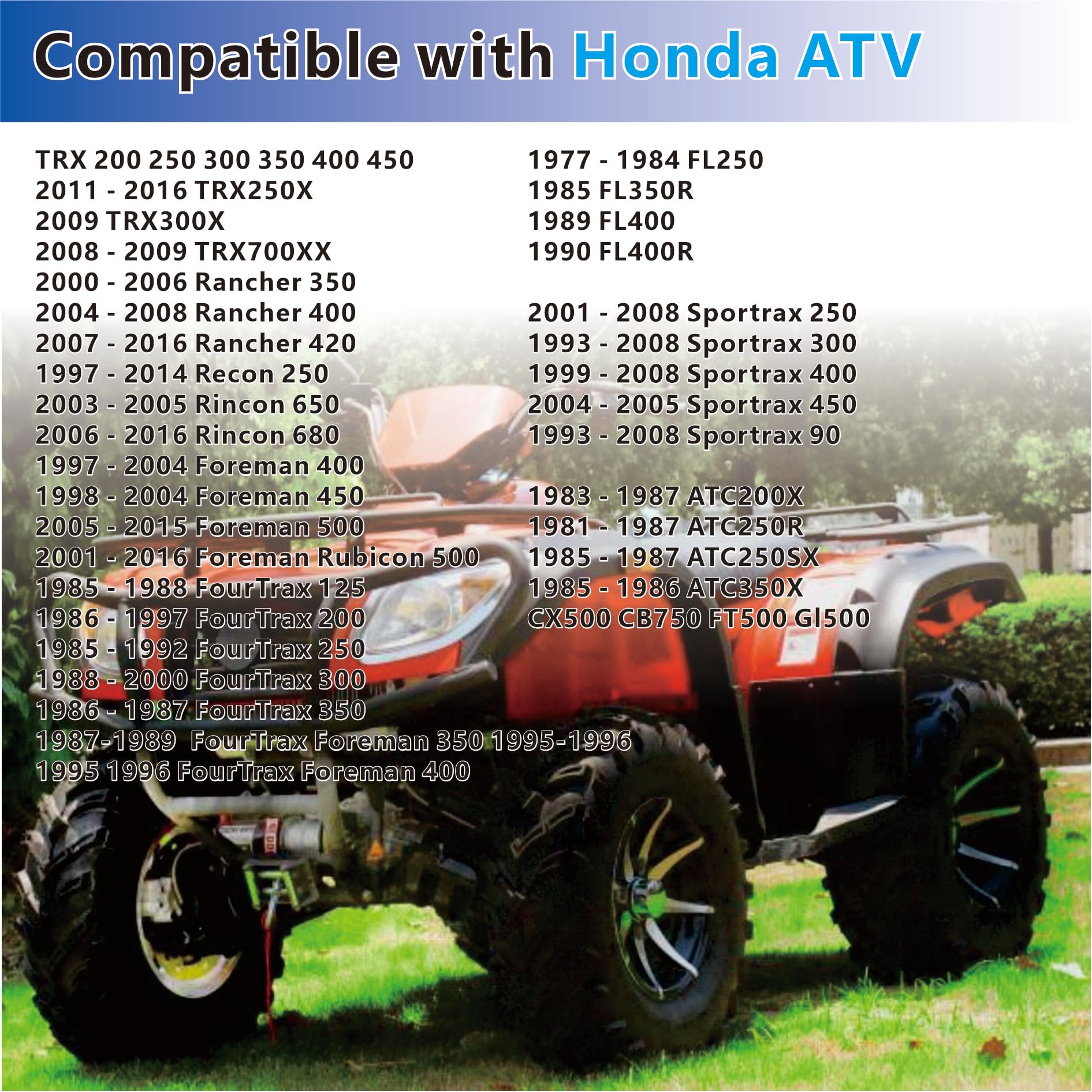

Which Honda models will this master cylinder reservoir fit?

This replacement is designed for numerous Honda ATVs spanning classic and later-model machines. It covers many TRX, Sportrax, FourTrax, Rancher, Foreman, Rincon, Recon and Rubicon variants, plus some older motorcycle applications that share the same mounting pattern.

• TRX series: multiple 200–700cc models including TRX250X (2011–2016) and TRX300X (2009).
• Sportrax/FourTrax/Rancher/Recon: broad fitment from early 1990s through mid-2010s models.
• Foreman/Rincon/Rubicon: compatible with many Foreman 400/450/500 and Rincon 650/680 years listed by Honda.
• Also fits select CB/GL motorcycle models with matching bore and banjo bolt sizing.

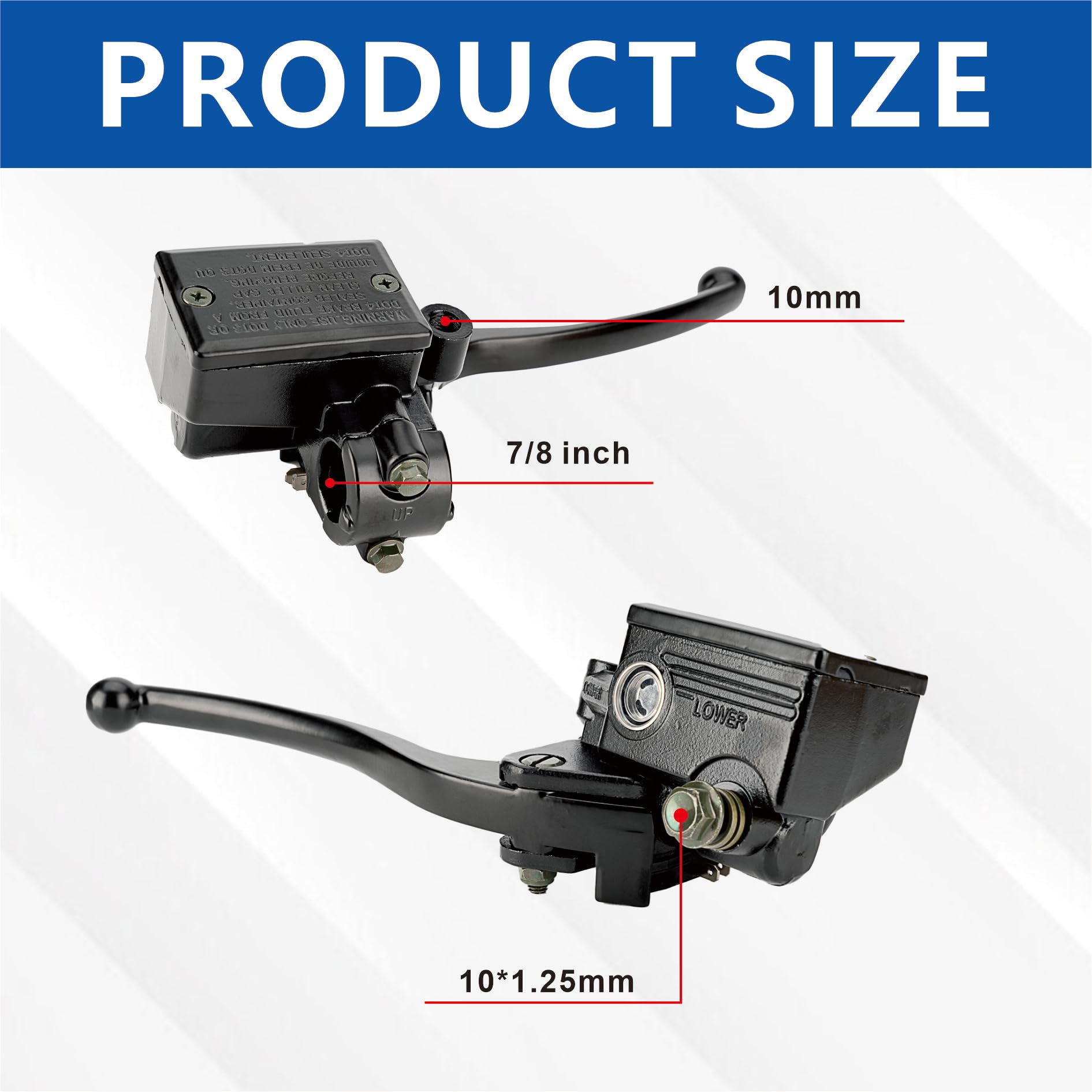

What are the key dimensions and connection details I need to check?

Measure the handlebar master-cylinder hole and banjo bolt thread to confirm compatibility before ordering. This CHXWJZH unit uses common Honda measurements so it usually installs without modification on the listed machines.

• Handlebar/master-cylinder hole size: 7/8" (standard ATV handlebar fitment).
• Mirror hole / banjo bolt thread: M10 × 1.25 for brake line attachment.
• Piston bore diameter: 14 mm to match original hydraulic feel and pressure.
• Designed with matching mounting points to ease bolt-on replacement.

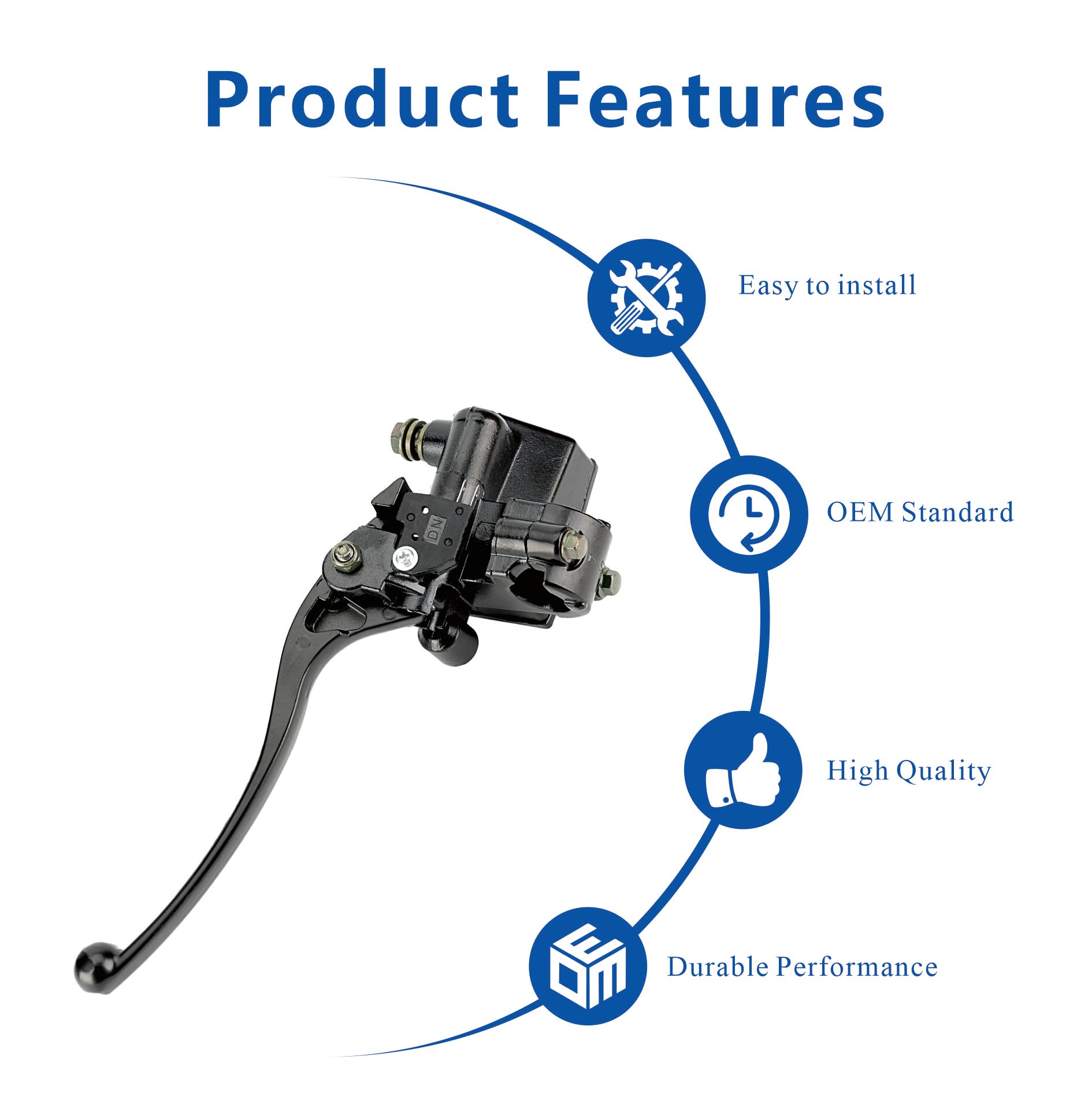

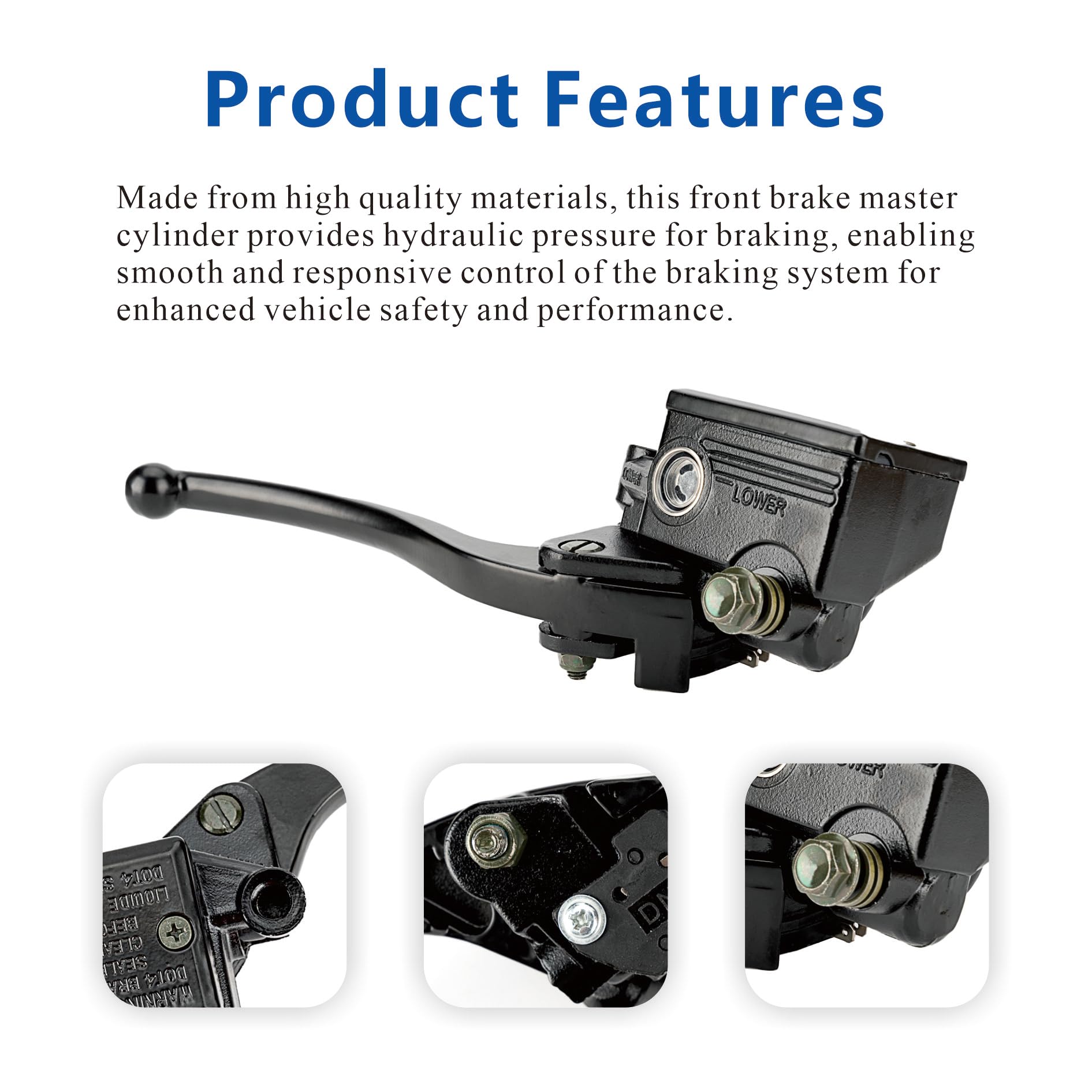

How does installation and performance compare to an original part?

The unit is manufactured with precision dimensions to replicate OEM form and fit so installation is typically a direct swap. Materials are selected for durability and to maintain stable brake pressure, helping deliver the expected braking response when bled and adjusted correctly.

• Precision-crafted components for reliable sealing and long service life.
• Intended for direct replacement—minimal machining or adapters required.
• Follow standard brake-bleeding procedures after installation for consistent performance.
• Manufacturer support offered for one year if defects arise.

What should I expect after I replace the master cylinder reservoir?

After fitting this replacement and properly bleeding the system, you should notice steady braking pressure and no visible fluid leaks from the reservoir or banjo connection. Keep an eye on hose fittings and replace any worn brake lines or seals to ensure the entire circuit remains dependable.

• Restored fluid containment and reduced leak risk at the lever assembly.
• Consistent lever feel when piston bore and hardware match OEM spec.
• Improved safety margin if worn or cracked original reservoir was causing problems.
• One-year product support from the seller for manufacturing issues.

Who is this for: Riders and DIY mechanics who own Honda ATVs listed in the compatibility range, who need a reliable, dimension-matching replacement for a damaged or aged 7/8" front master cylinder reservoir. It’s aimed at people comfortable with basic brake-system service—removal, reinstallation and bleeding—or professionals performing routine repairs on FourTrax, Sportrax, Rancher, Foreman, Rincon, Recon and compatible Honda models.
