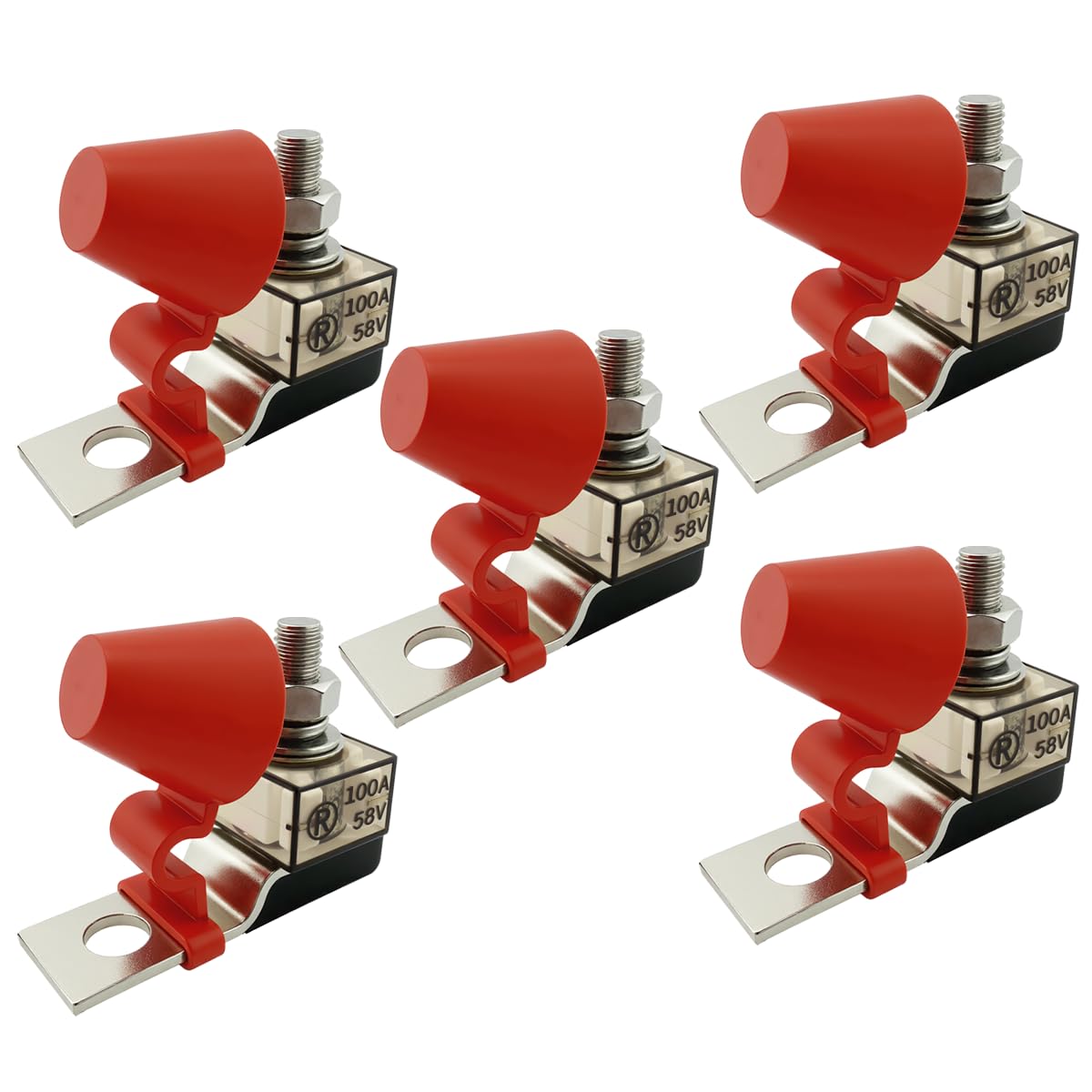

CNWDTLS MRBF 100A Single-Stud M8 Fuse Block 5-Pack — IP66 Waterproof, Ceramic Element for RVs & Charging

CNWDTLS MRBF Fuse Block is a 5-pack of single-stud M8 100A terminal fuses in IP66-rated housings built to protect DC circuits up to 58V.

Designed for heavy-duty DC systems, these bolt-down terminal fuses combine a ceramic fuse element with a PPS thermoplastic holder to deliver long-lasting circuit protection in wet, marine, and mobile environments. The compact single-stud (5/16" / M8) configuration fits most battery and busbar installs, while the IP66 waterproof rating minimizes risk of moisture intrusion in exposed installations such as RVs, cranes, and charging equipment.

How does this fuse block protect my DC system?

The MRBF fuse interrupts excessive current flow before wiring, batteries, or connected equipment can be damaged. Its ceramic fuse body handles heat well, and the robust holder keeps the connection secure under vibration and outdoor conditions.

• 100A current rating for common accessory and inverter circuits

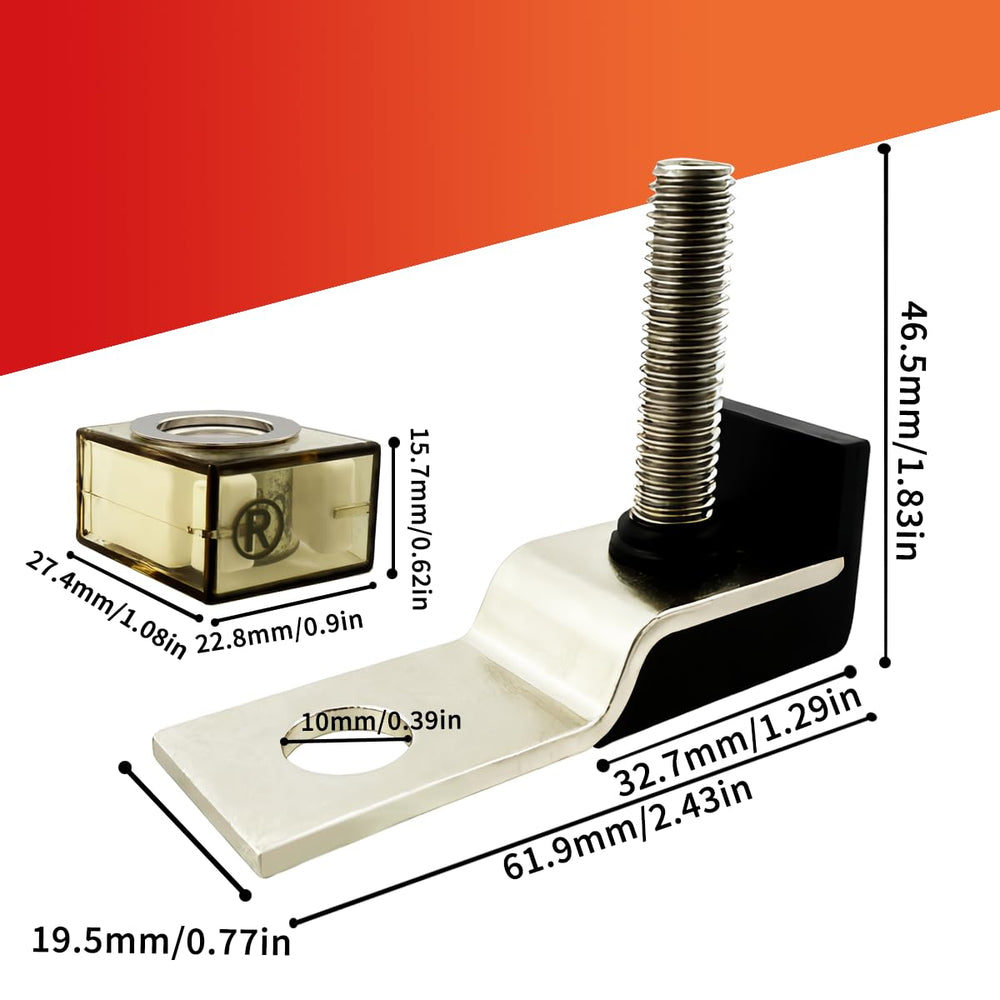

• Ceramic fuse element resists high temperatures
• PPS thermoplastic housing improves mechanical strength
• Bolt-down stud (5/16" / M8) for solid electrical connection

Is it suitable for marine, vehicle, and charging-station use?

The product was engineered for DC power applications where exposure to moisture, salt, or road spray is likely. With an IP66 rating, it resists powerful water jets and dust ingress, making it appropriate for boats, RVs, work vehicles, and outdoor charging installations.

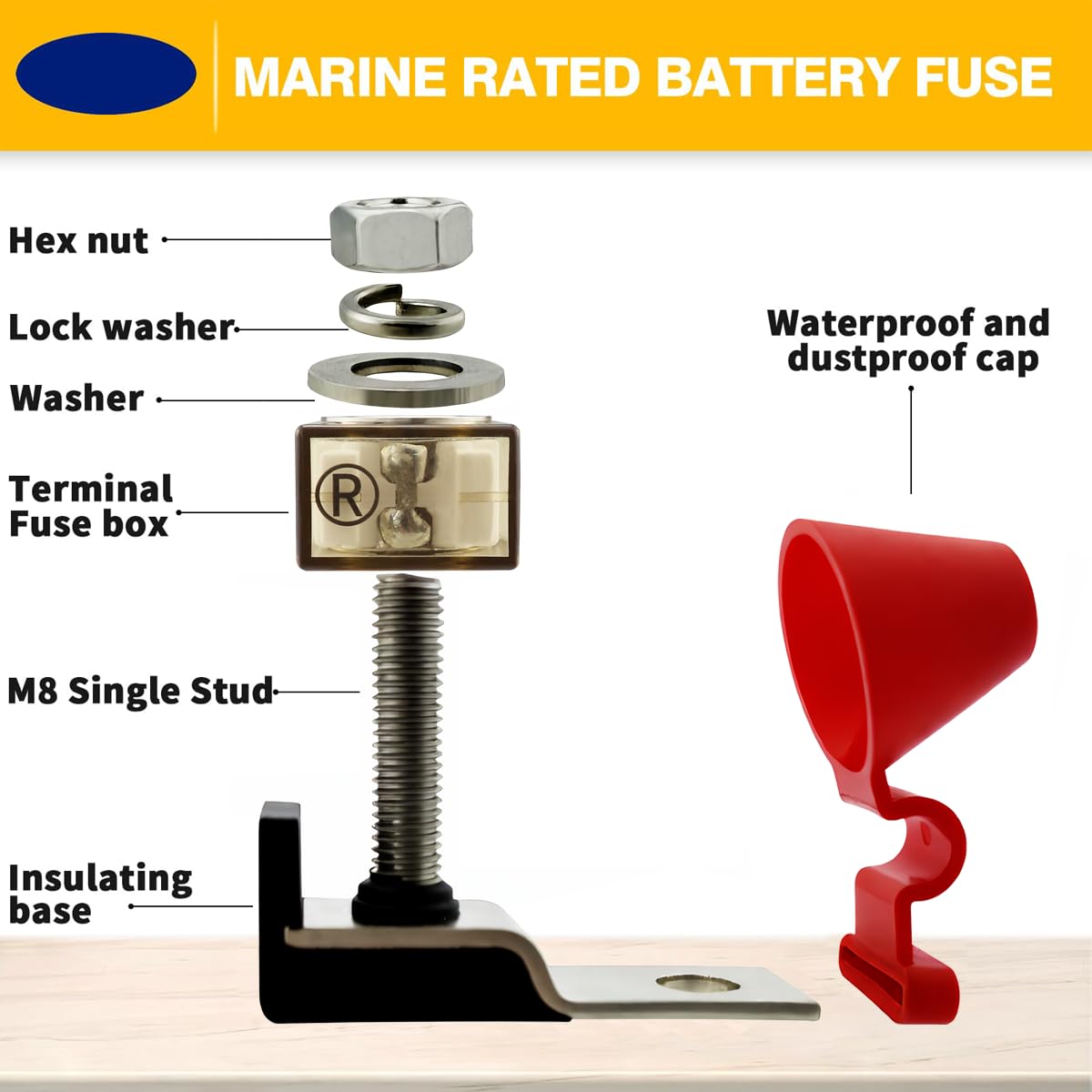

• IP66-rated enclosure protects against heavy spray and dust
• Materials chosen for corrosion and heat resistance in harsh settings
• Commonly used on bow thrusters, windlasses, and inverter feeds
• Suitable for charging piles and mobile power distribution points

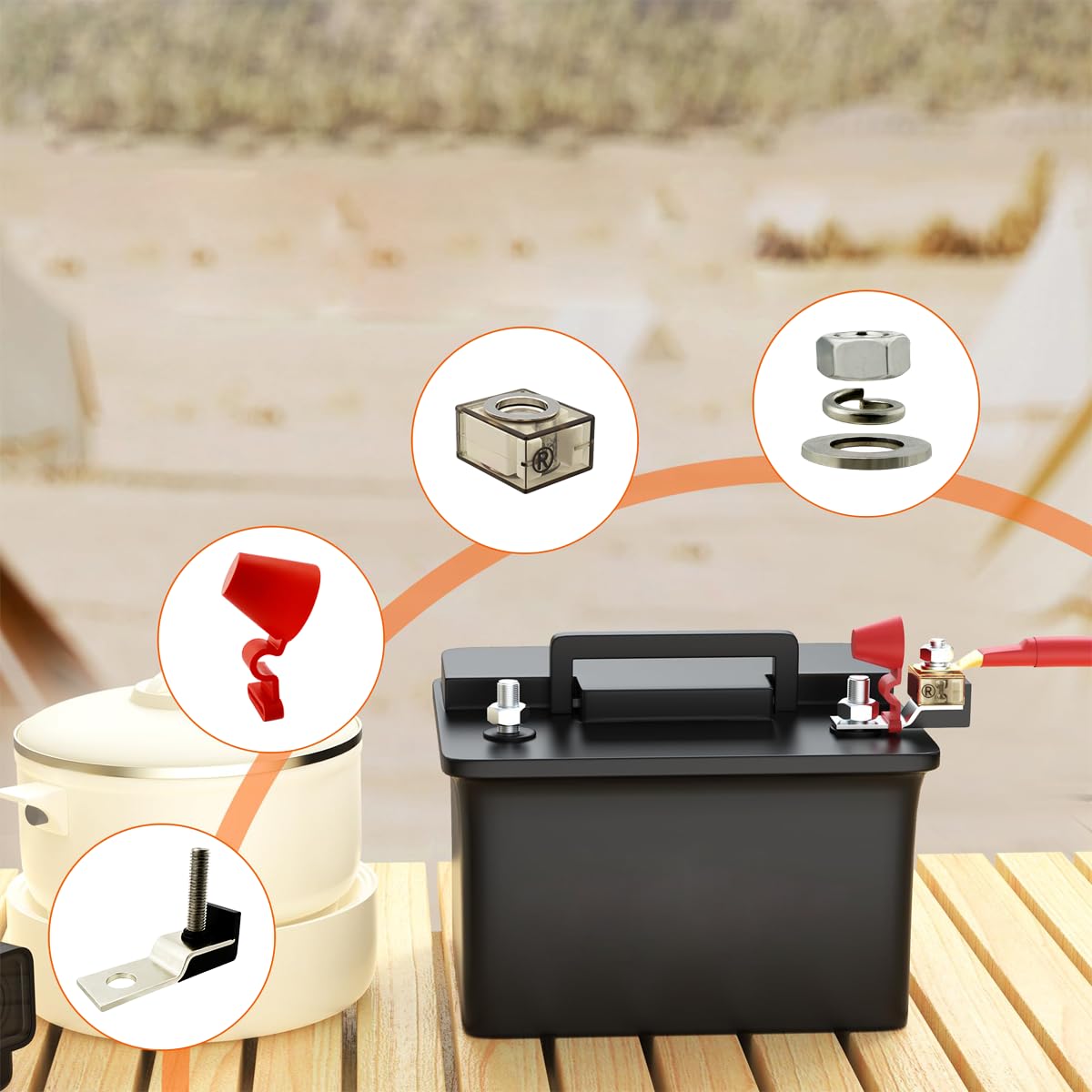

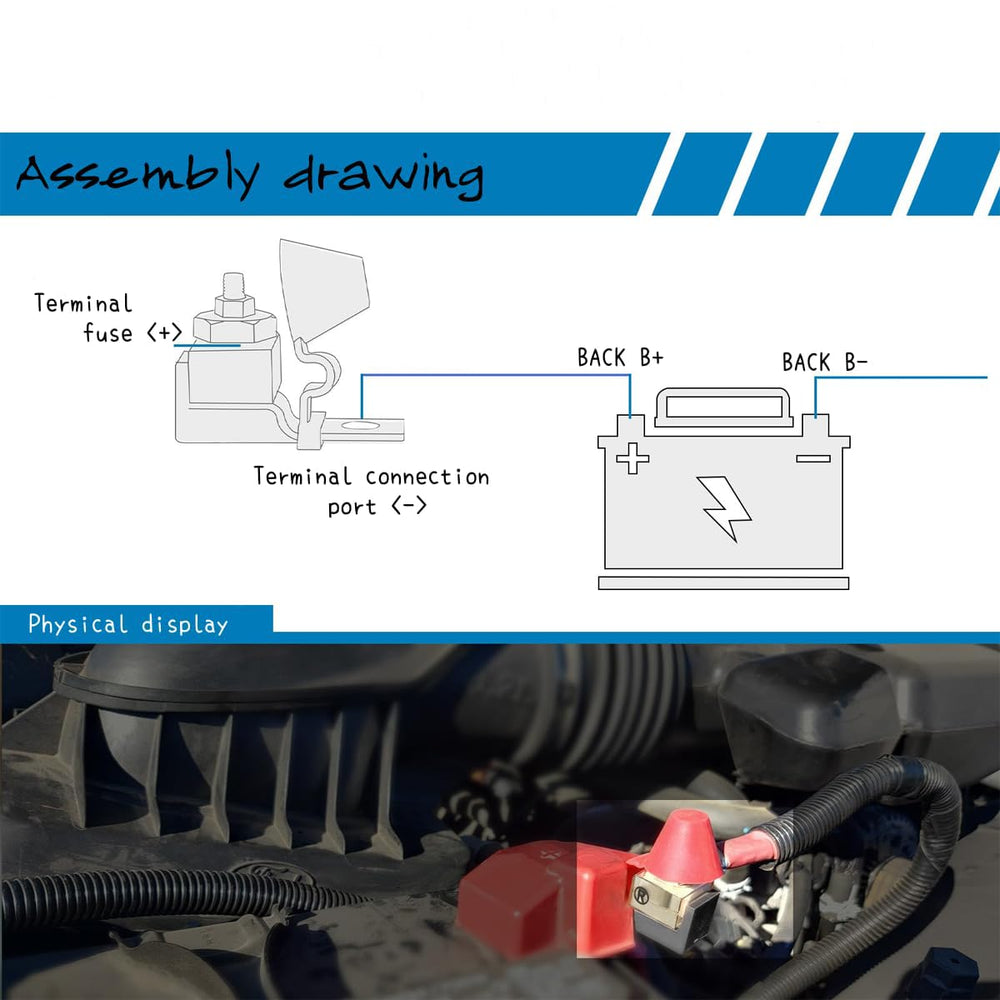

How do I install and wire the M8 terminal fuse?

Installation is straightforward: mount the fuse block to a stable surface, attach cables to the single stud terminals, and secure with nuts. The simple bolt-down design speeds up replacement and maintenance without specialized tools.

• Single 5/16" (M8) stud for positive or negative bus connections
• Accessible nuts for quick fuse swaps and servicing
• Compact footprint fits tight battery compartments and panels
• Pack of five allows multiple circuit protection or spares

What electrical limits and compatibility should I check?

Confirm the circuit voltage and expected current before selecting this fuse block. The MRBF is rated up to 58VDC and 100A; it’s ideal for many 12V and 24V systems but not for higher-voltage installations beyond 58VDC.

• Maximum voltage: 58VDC — verify against system voltage
• Nominal current: 100A — choose a fuse rating matched to wire and device limits
• Stud size: 5/16" (M8) — ensure terminal and lug compatibility
• Pack quantity: 5 units for multiple circuits or replacements

Who is this for? Installers, fleet operators, marine technicians, and DIYers who need reliable, waterproof DC circuit protection will benefit from the CNWDTLS MRBF 100A fuse blocks. They work well where durability, ease of service, and resistance to moisture and vibration are priorities — for example on RV electrical systems, boat thruster circuits, vehicle accessory feeds, charging station panels, and industrial mobile equipment. Always pair the fuse rating with the cable and equipment specifications, and follow safe electrical practices when fitting or replacing fuses.
