CURT 2" Trailer Hitch Ball 10,000 lb GTW — 1-1/4" x 2-5/8" Fine-Thread Shank, Chrome

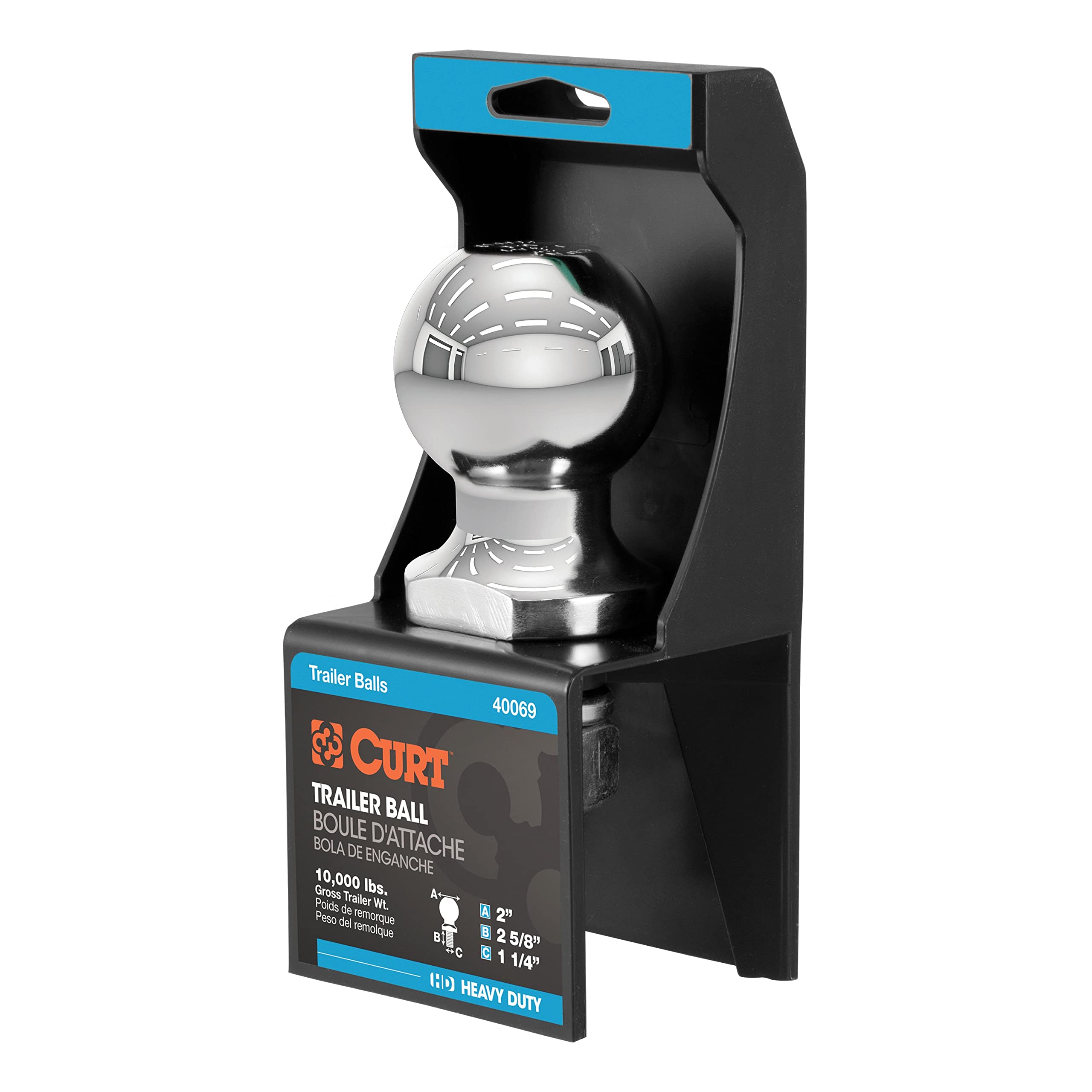

CURT 40069 is a heavy-duty 2" trailer hitch ball rated for up to 10,000 lb GTW with a 1-1/4" diameter by 2-5/8" long fine-threaded shank and corrosion-resistant chrome finish.

This trailer ball is built to deliver a secure connection between your tow vehicle and a 2" coupler, blending hot-forged steel strength with a precise fit and proven testing to U.S. VESC standards. CURT designs this model for common towing tasks — from utility trailers and boats to campers and ATVs — while the fine-threaded shank and included hardware make installation straightforward and reliable when mounted per specifications.

How strong is the CURT 40069 and what limits apply?

The CURT 40069 has a maximum gross trailer weight (GTW) rating of 10,000 lb, reflecting the ball's cold-forged steel construction and quality testing. Always remember towing capacity is governed by the weakest part of the towing system, so the vehicle, hitch, ball mount and trailer coupler must all meet or exceed the intended load.

• 10,000 lb maximum GTW rating for the ball itself.
• Hot-forged steel core for high tensile strength.
• Complying with U.S. VESC V-5 testing standards.
• Do not exceed capacities of vehicle, hitch, or trailer components.

What are the mounting dimensions and installation requirements?

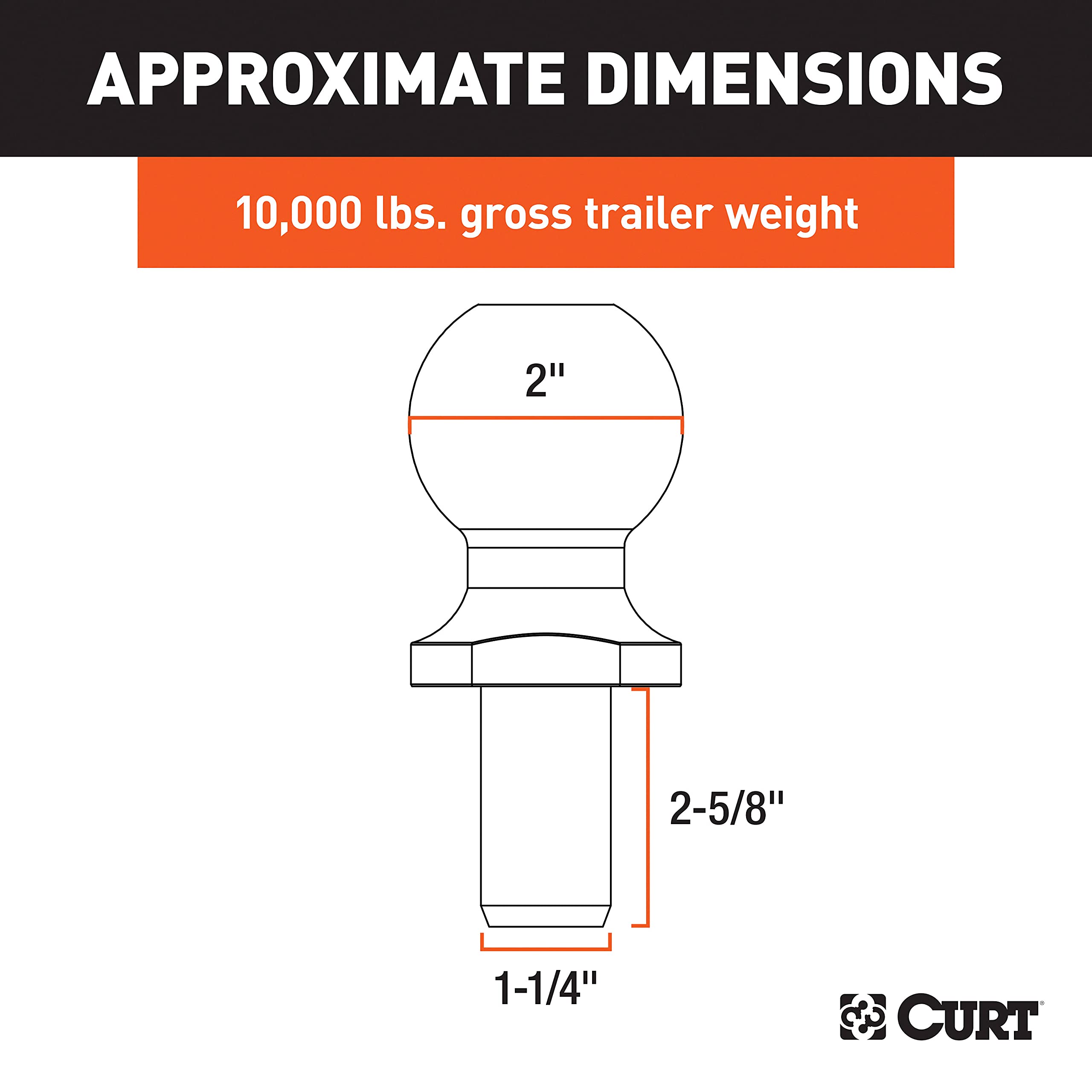

This tow ball uses a 1-1/4" diameter shank with a 2-5/8" thread length and ships with a zinc-plated hex nut and helical lock washer to secure the connection. For proper installation, mount through a platform at least 3/8" thick with a hole no larger than 1/16" beyond the 1-1/4" shank; torque to manufacturer guidance for a firm, safe fit.

• Shank: 1-1/4" diameter x 2-5/8" length (fine thread).
• Minimum platform thickness: 3/8" for mounting surface.
• Recommended hole tolerance: no more than 1/16" oversize.
• Tighten to the specified torque for secure installation.

How does the finish protect the trailer ball and what maintenance is needed?

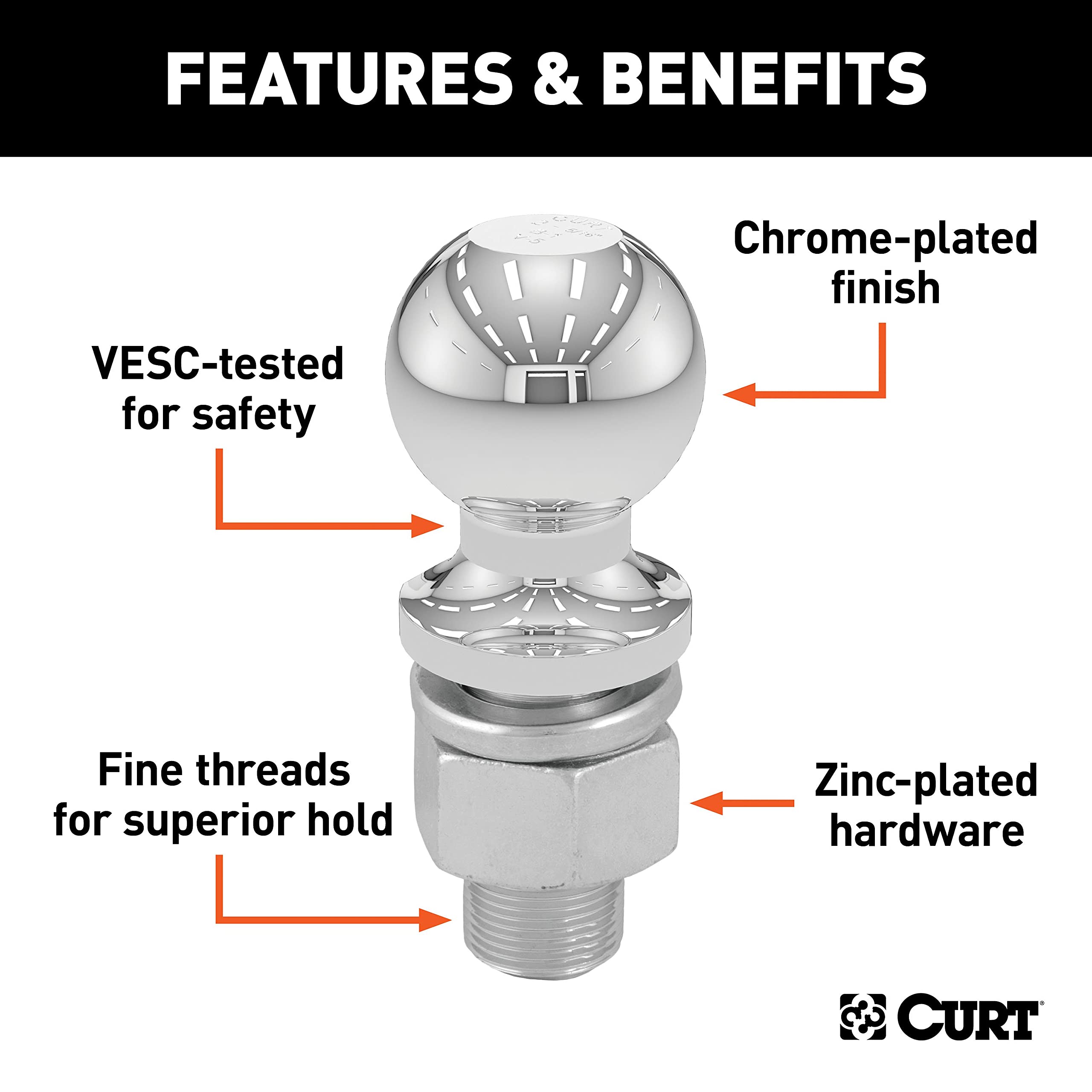

The CURT 40069 features a durable nickel-chrome plating that resists rust and surface wear from road exposure, salt, and scrapes. Regular inspection and light maintenance—cleaning debris and checking tightness—will extend service life and maintain a dependable connection.

• Nickel-chrome finish for corrosion and scratch resistance.
• Wipe clean after wet or salty conditions to reduce corrosion risk.
• Inspect threads, nut, and washer before each towing trip.
• Replace if excessive wear, rust, or deformation appears.

Who is this for: The CURT 40069 is intended for drivers who tow medium to heavy loads with a 2" coupler — including pickup truck and SUV owners hauling boats, campers, ATVs, utility trailers, or livestock trailers — and who need a robust, tested ball that installs cleanly on standard ball mounts. Choose this model when you require a high-strength, fine-threaded shank and a corrosion-resistant finish, and always confirm your vehicle and hitch capacities before towing.
