CURT Adjustable Hitch Shank 2" Receiver — 12" Length, 8-7/8" Rise / 5-5/8" Drop, 15,000 lb GTW

CURT 17120 is a heavy-duty, adjustable replacement shank that lets you set rise or drop for a precise weight distribution hitch fit.

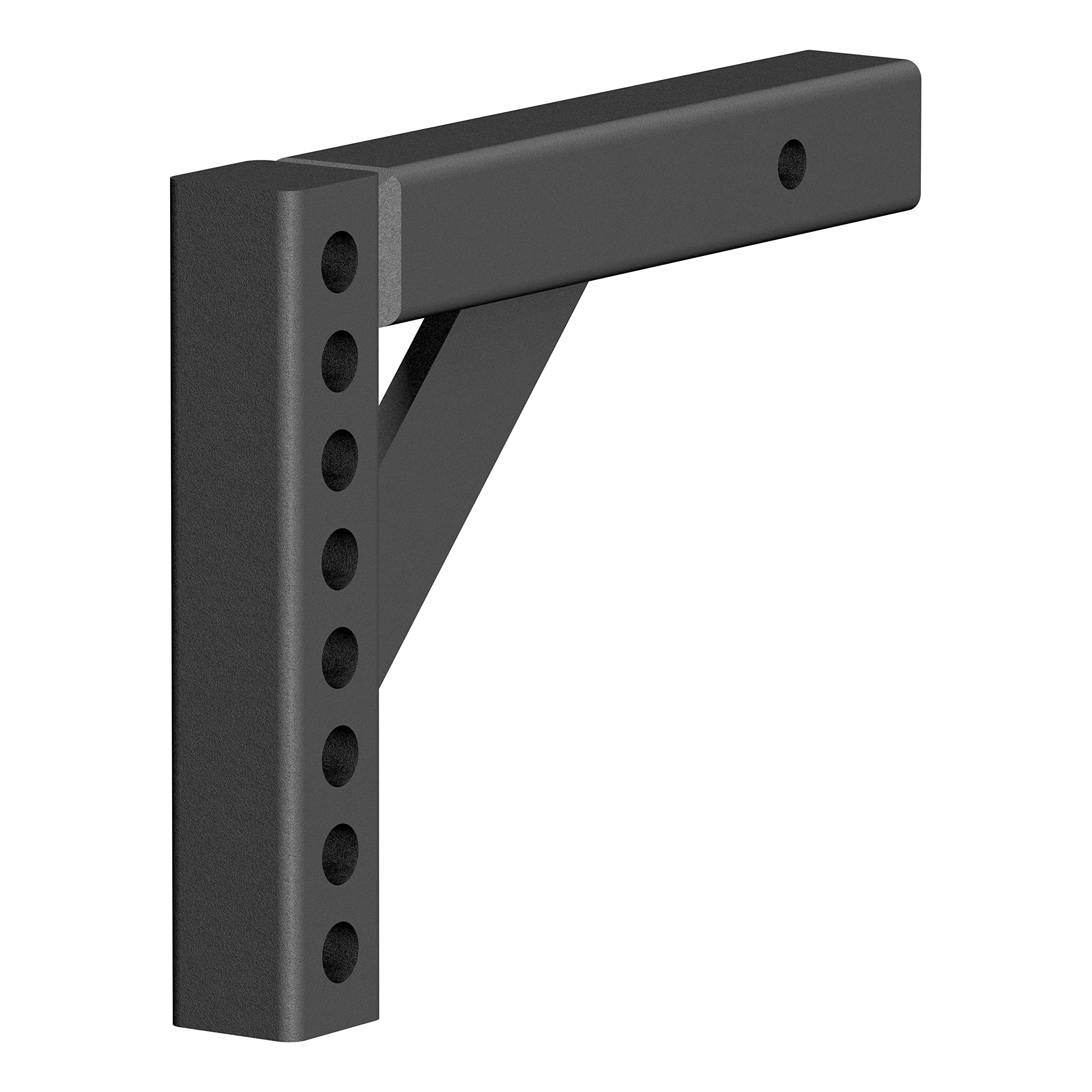

Built to restore or upgrade your weight distribution setup, this CURT replacement shank provides a durable, adjustable connection between a 2" receiver and CURT weight distribution heads. Constructed from solid steel with a carbide black powder-coat, the shank resists corrosion and wear on the road. It accepts standard 2" x 2" receiver openings with a 5/8" hitch pin and is compatible across CURT's class 3, class 4 and Xtra Duty class 5 hitch lines.

How does this shank adjust rise and drop for trailer leveling?

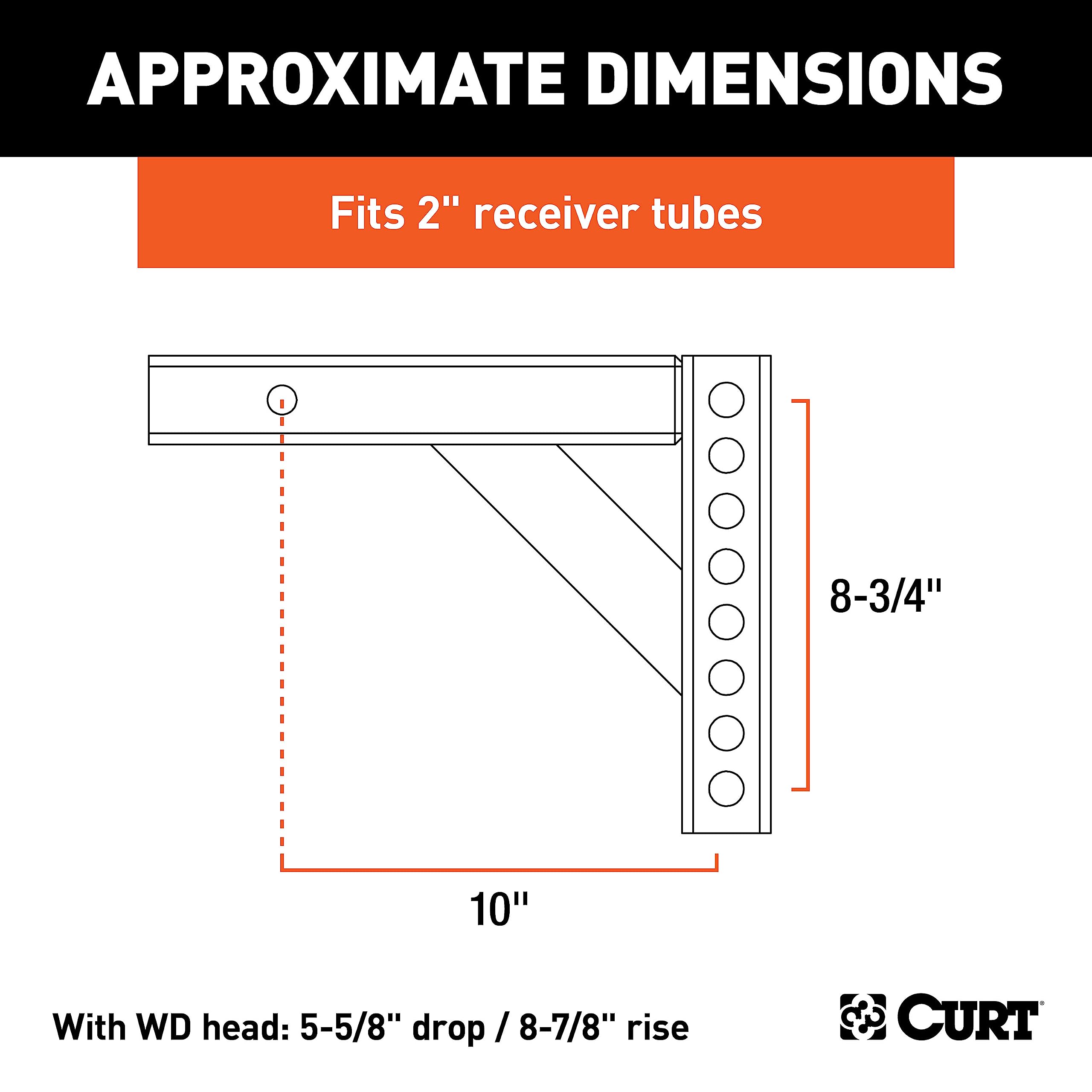

The vertical portion of the 17120 features multiple 3/4" holes spaced 1-1/4" center-to-center so you can move the weight distribution head up or down in precise increments. Flip the shank orientation to switch between a maximum rise of 8-7/8" and a maximum drop of 5-5/8" to match trailer and tow vehicle geometry.

• Maximum rise position: 8-7/8" for raising the trailer tongue
• Maximum drop position: 5-5/8" for lowering the trailer tongue
• Hole spacing: 1-1/4" centers for fine height tuning
• Hole diameter: 3/4" for secure WD head mounting

What receiver and hitch systems is this compatible with?

The shank inserts into any standard 2" x 2" receiver using a 5/8" hitch pin hole, making it suitable for most CURT trailer hitches and many aftermarket receivers. It’s designed specifically to work with all CURT weight distribution heads so you won’t need adapters to pair it with CURT WD systems.

• Receiver size: 2" x 2" receiver tube
• Pin requirement: 5/8" hitch pin hole
• Compatible lines: CURT class 3, class 4, Xtra Duty class 5
• Works with all CURT weight distribution heads

What load ratings and durability features should I expect?

This replacement shank is rated for up to 15,000 lbs gross trailer weight (GTW) and 1,500 lbs tongue weight (TW), aligning with heavy towing needs. The solid-steel construction and carbide black powder-coat finish provide strong resistance to corrosion, abrasion, and road elements for dependable service life.

• Gross trailer weight rating: 15,000 lbs
• Tongue weight rating: 1,500 lbs
• Material: heavy-gauge solid steel for structural strength
• Finish: carbide black powder coat for weather protection

How does installation and adjustment work in practice?

Installation is straightforward: slide the 2" shank into your receiver, align the 5/8" pin hole, and secure with a compatible hitch pin. Adjusting head height only requires removing the head hardware, selecting the appropriate 3/4" hole for the desired height, and reattaching—no special tools beyond standard hand tools are needed.

• Insert into 2" x 2" receiver and secure with 5/8" pin
• Select hole on vertical shank to achieve target level

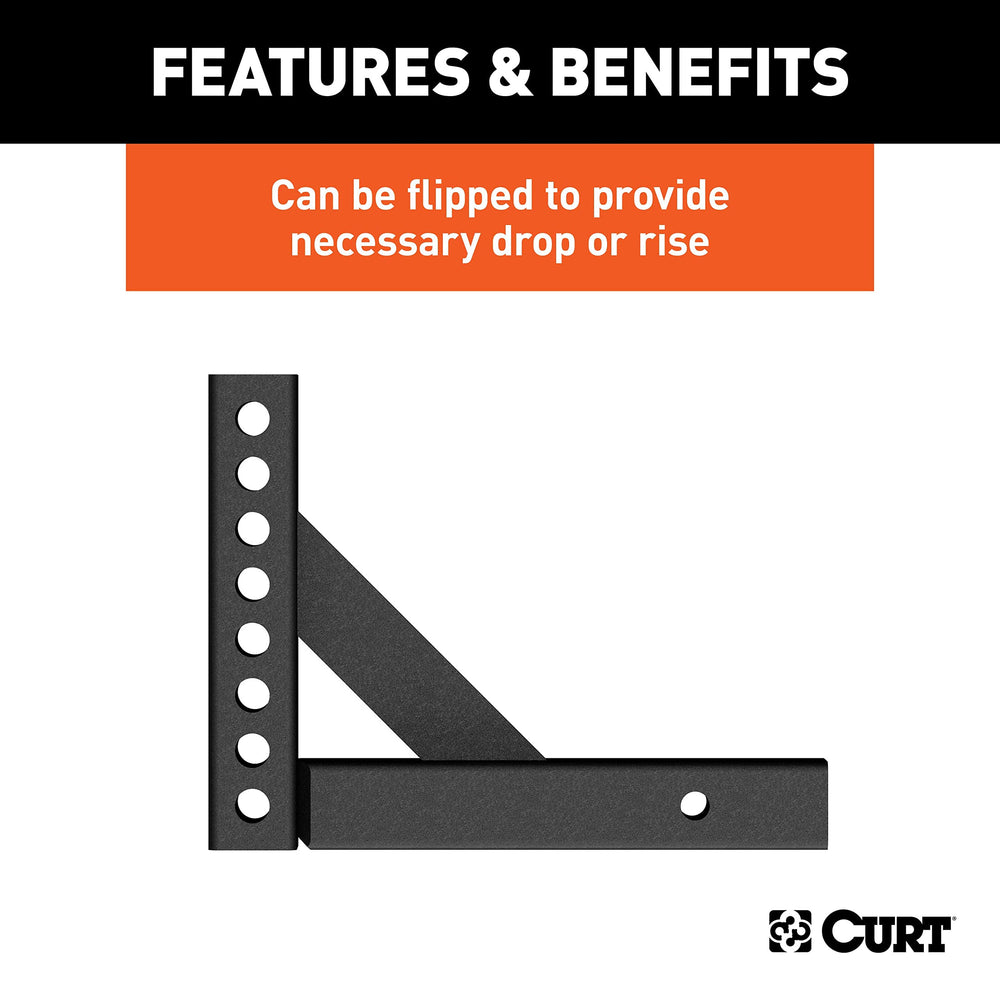

• Flip orientation to switch between rise and drop positions
• Use common hand tools for removal and re-installation

Who this is for: The CURT 17120 replacement shank is aimed at owners of CURT weight distribution systems or tow rigs needing a robust, adjustable shank for heavy-duty towing. It fits RV owners, boat haulers, contractors with equipment trailers, and anyone who requires precise trailer leveling and high load capacity from a proven CURT component.
