CURT Bluetooth Mobile Trailer Brake Controller, 7-Way 1–2 Axles — Plug-and-Play Smartphone Proportional Braking

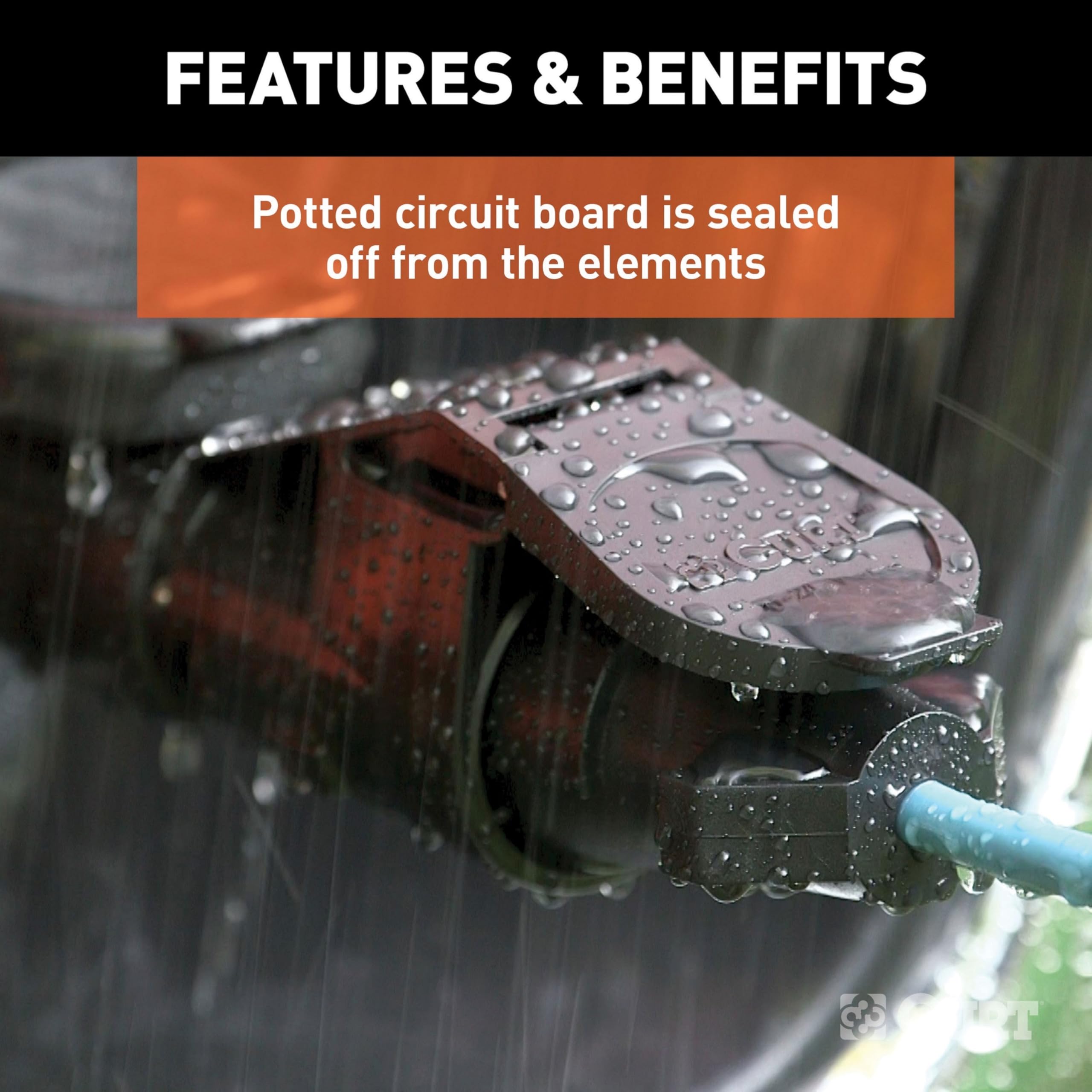

CURT Echo 51180 is a portable Bluetooth trailer brake controller that plugs into a 7-way RV blade socket to give smartphone-based, proportional braking control for 1–2 axles (2–4 brakes). The CURT Echo modernizes towing by moving brake control and monitoring into your phone. Its plug-and-play design installs between the vehicle and trailer 7-way connector so you can move the unit between vehicles without under-dash wiring. Built with a potted enclosure, secure retention strap and tri-axis sensing, Echo balances durability and reliable proportional braking while pairing with the OneControl Auto app on iOS and Android.

How does Echo install and move between vehicles?

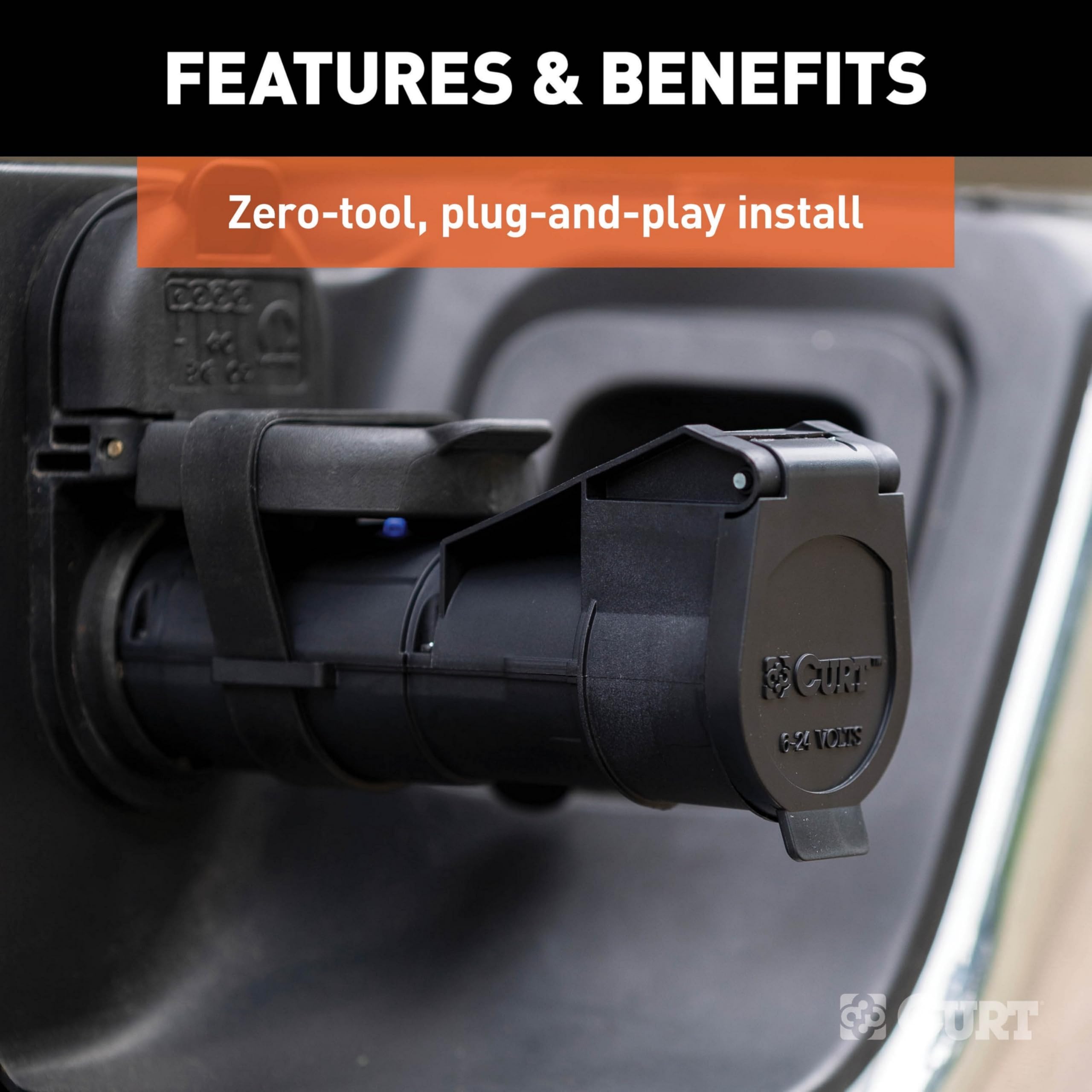

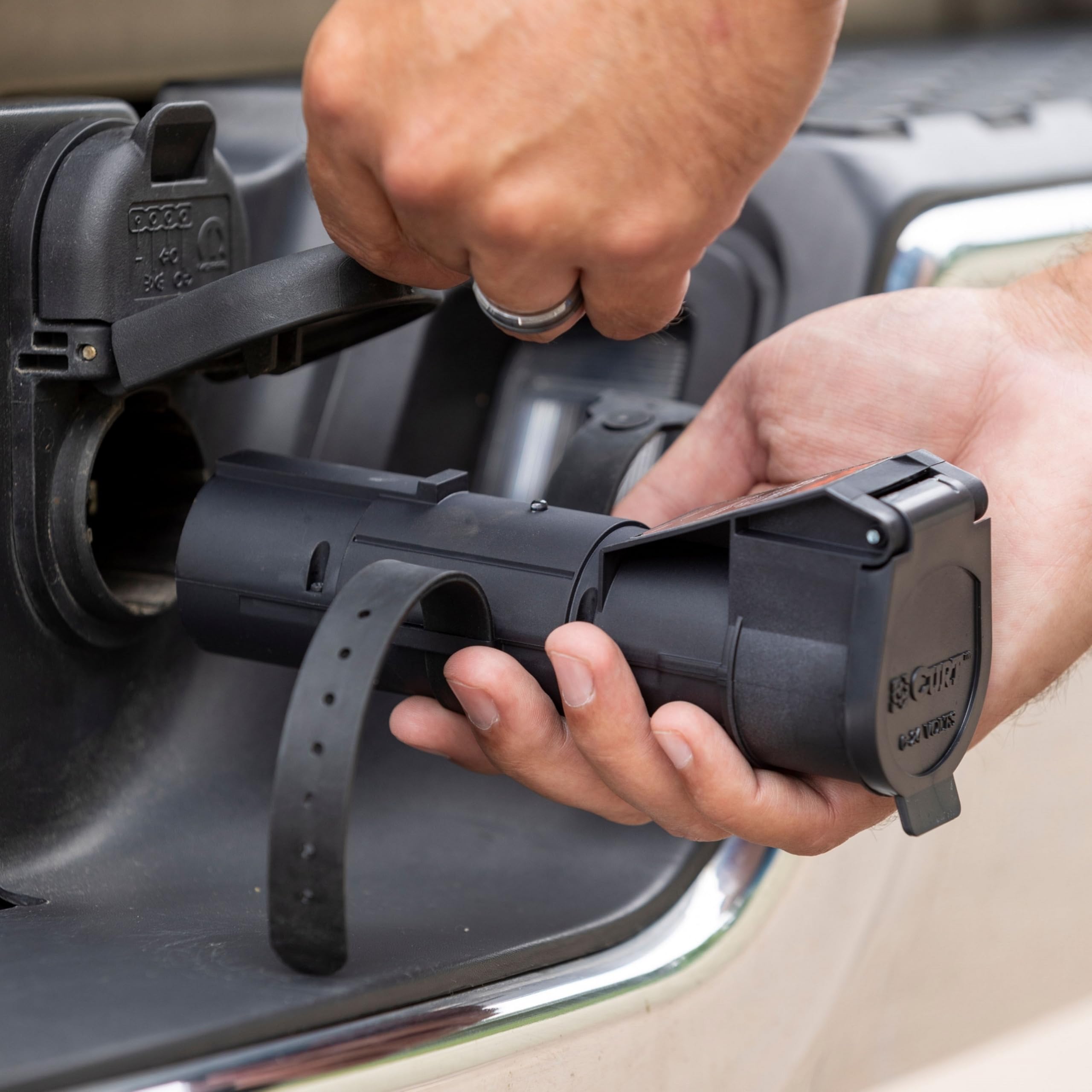

Installation requires no tools when your vehicle's 7-way supplies +12V, ground and turn signals. Echo plugs into the vehicle connector first, pairs with your phone through the OneControl Auto app, then you attach the trailer—the whole process is designed for quick transfer between tow vehicles.

• Plug Echo into any industry-standard 7-way RV blade socket.
• No under-dash wiring needed if the 7-way provides power and ground.

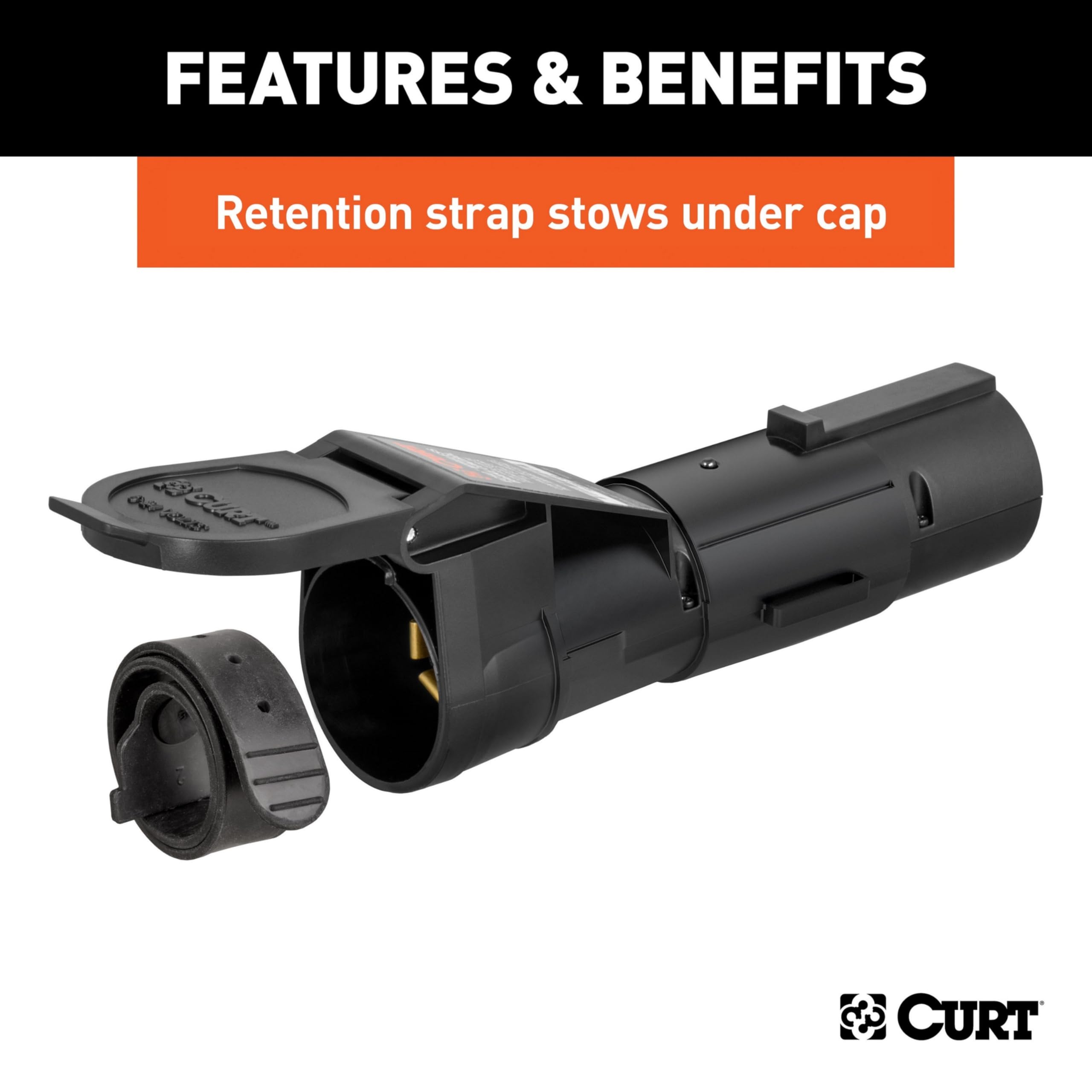

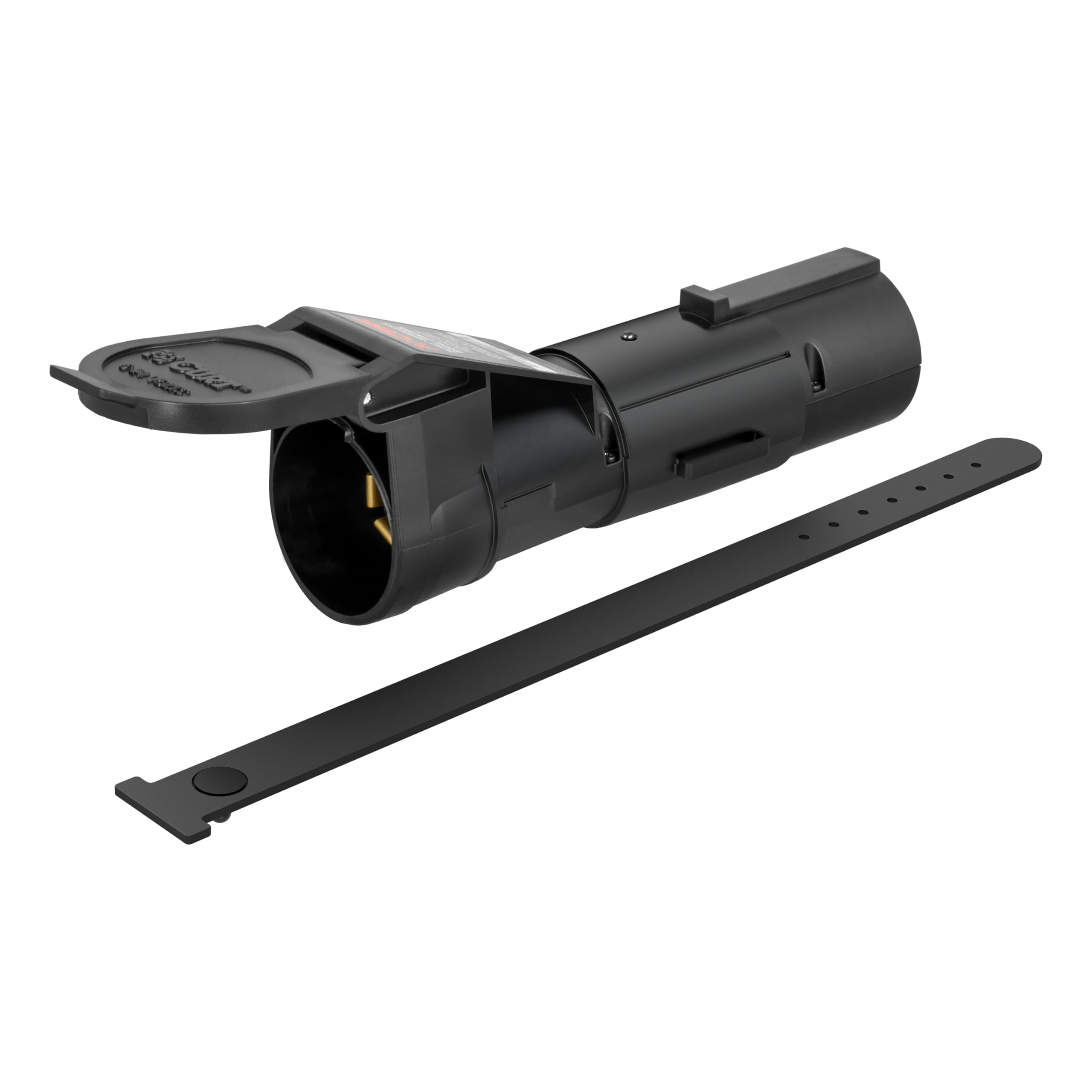

• Safety strap and locking tab secure the connection in the vehicle socket.
• Pair and configure through the OneControl Auto app on iOS 14+ or Android 9+.

What braking performance and compatibility can I expect?

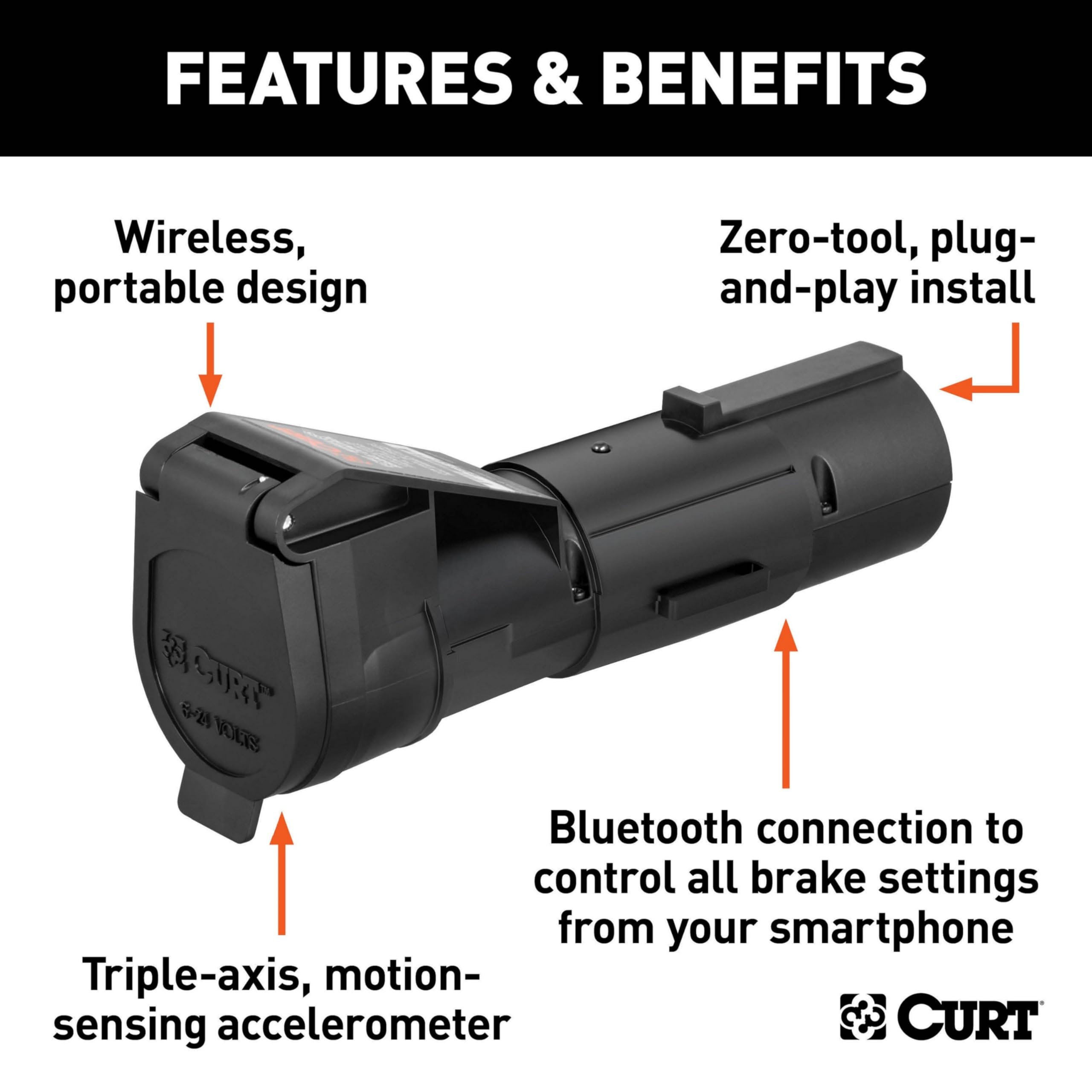

Echo uses a tri-axis accelerometer for proportional braking that adapts on hills and varying loads. It supports trailers with one to two axles (2–4 brakes) and interoperates with vehicles that have ABS or cruise control, while operating from retained settings if Bluetooth drops out.

• Proportional braking for smooth stops using a triple-axis sensor.
• Works with ABS and cruise-control systems; compatible with low-voltage/PWM setups.
• Controls up to two axles (2–4 brakes) with adjustable maximum output and sensitivity.

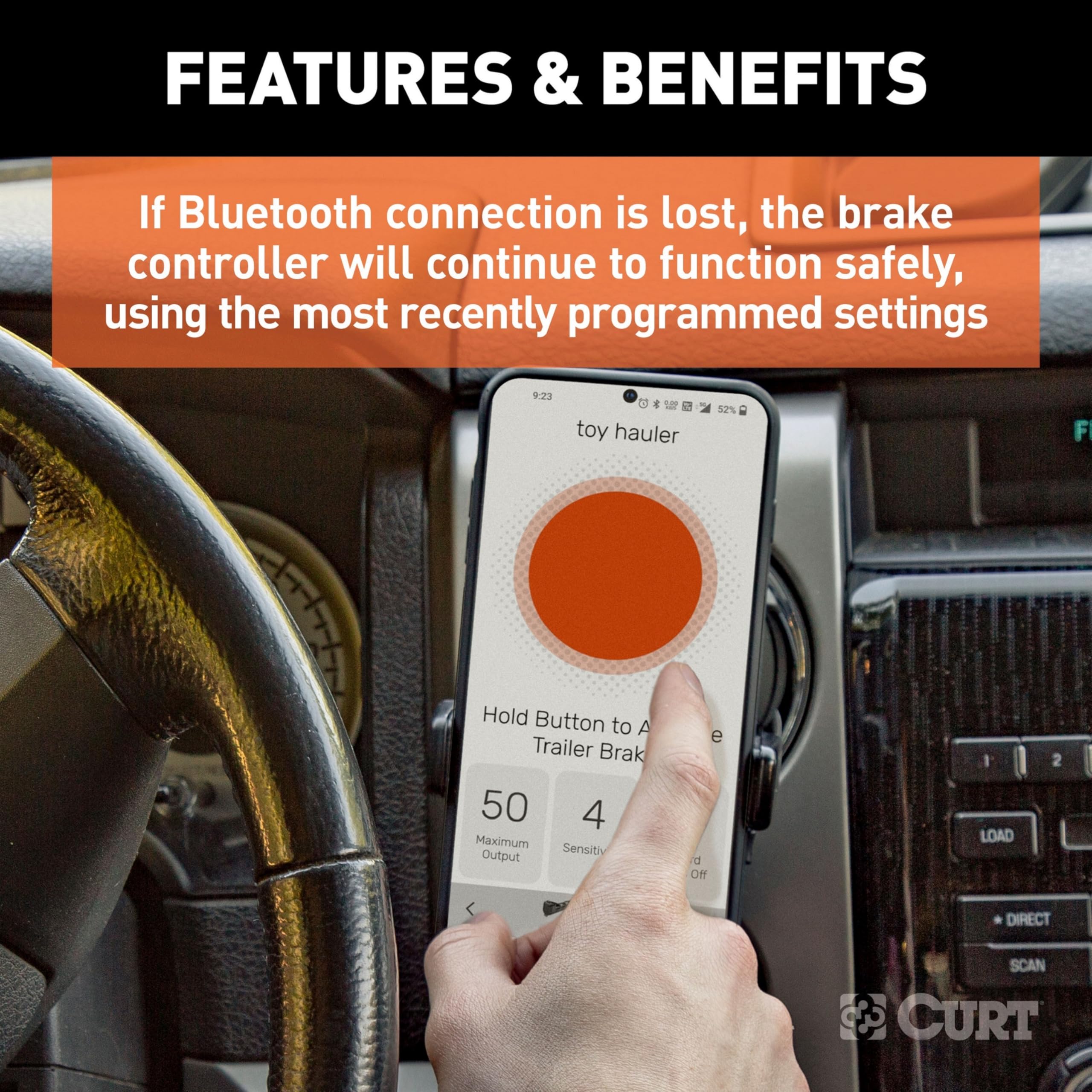

• Continues using last-programmed settings if Bluetooth connection is lost.

How does the smartphone control and app setup work?

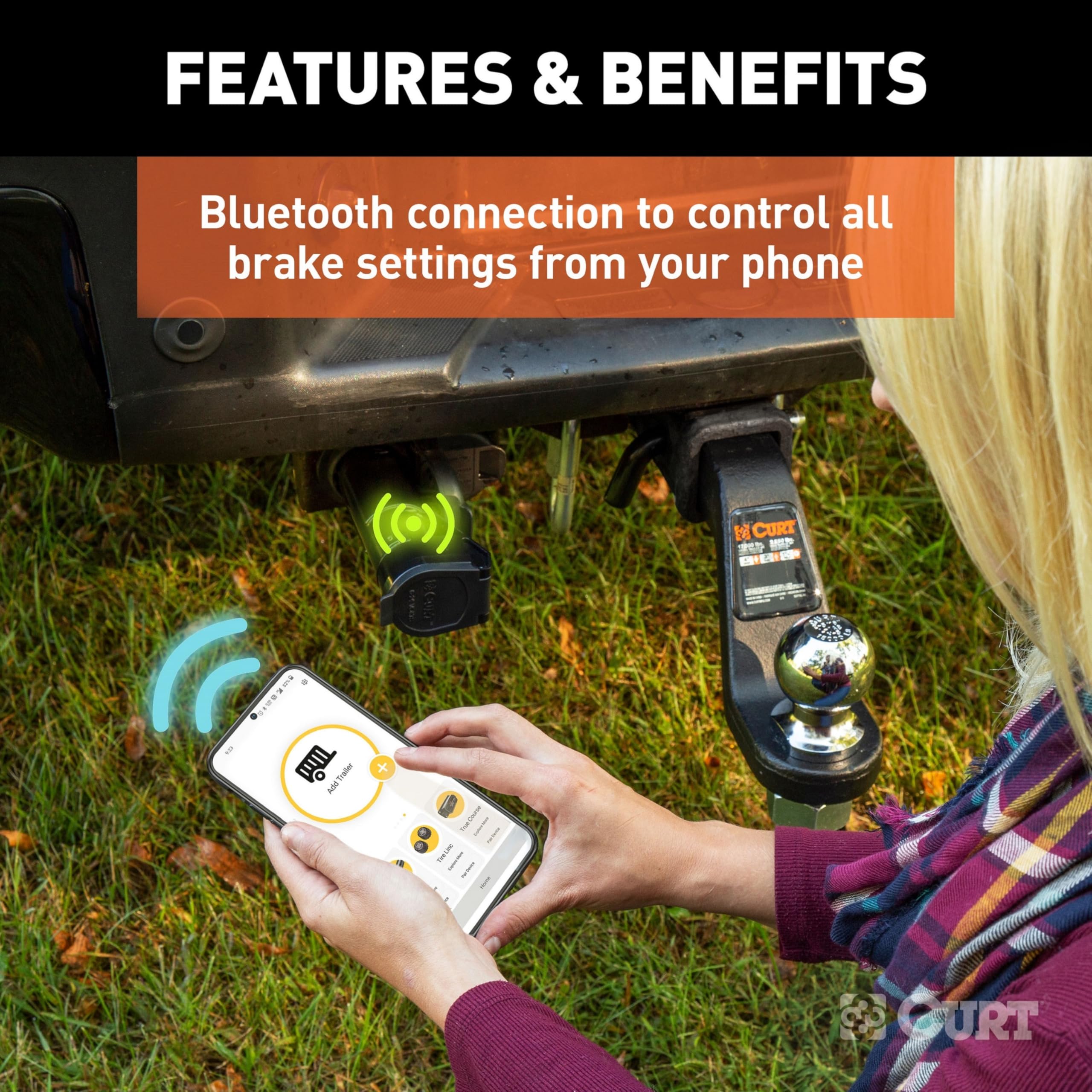

The OneControl Auto app is the control center: pair Echo inside the app, configure multiple vehicle-trailer profiles and use on-screen manual override or presets. Keep the app foregrounded for immediate manual input and follow pairing steps in-app rather than Android/iOS Bluetooth settings for reliable connection.

• Pair Echo from within OneControl Auto (not through phone Bluetooth list).

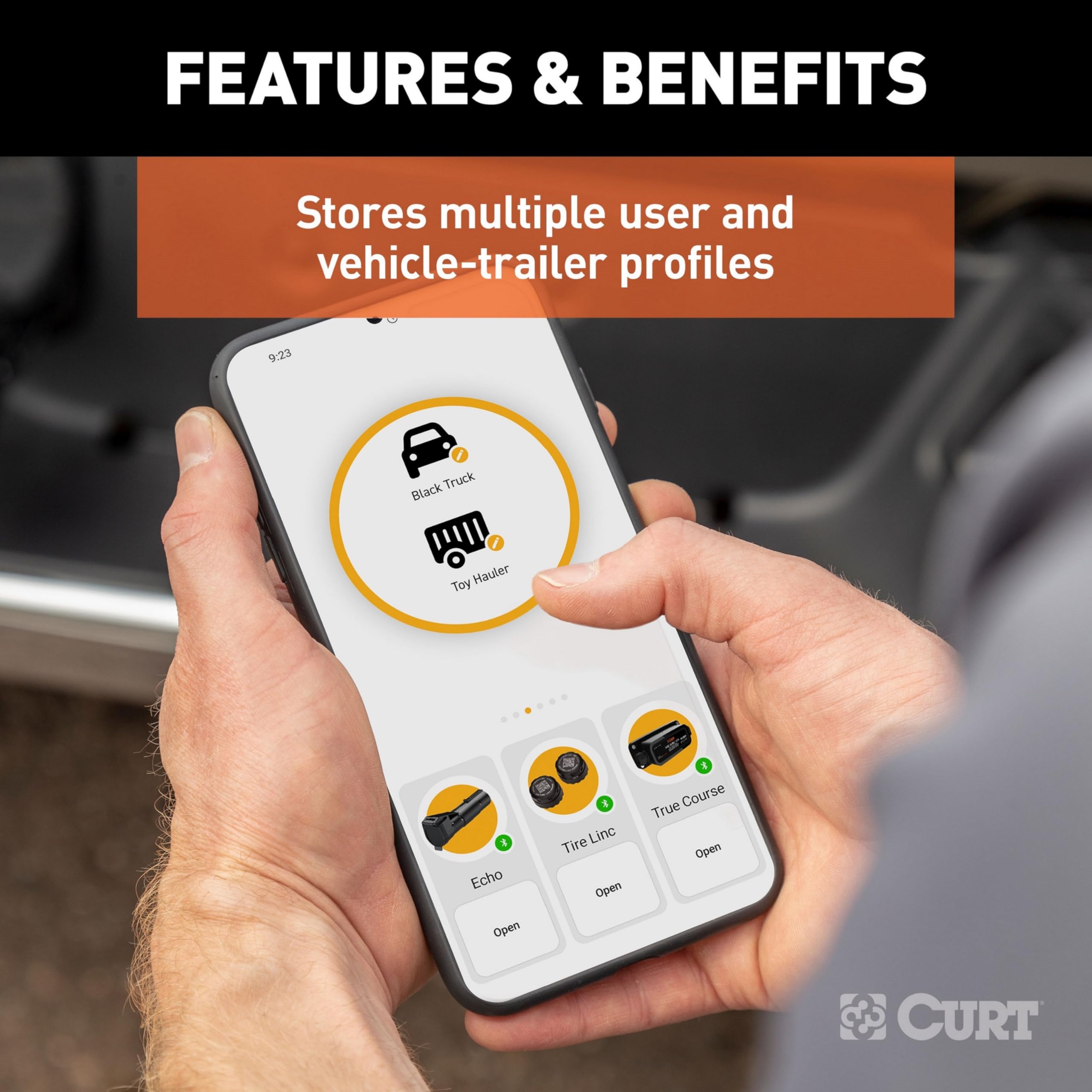

• Create and save multiple vehicle-trailer profiles for different towing setups.
• Manual override, sensitivity and maximum output are adjusted in-app.
• Keep the app open when towing for fastest manual response; follow safety pairing steps.

Who is this for: CURT Echo is ideal for owners who tow with multiple vehicles, fleet users, and anyone who prefers a no-fuss, removable brake controller that leverages a smartphone interface. It suits trailers with one or two axles and drivers who want proportional braking without installing a permanent under-dash unit. If you rely on a factory brake controller, note it will not operate while Echo is installed, and some vehicles require tow/haul mode or trailer detection for 7-way power activation.

FAQ

Q: Will Echo work with my vehicle's ABS or cruise control?

A: Yes — Echo is compatible with ABS and cruise control systems and designed to operate alongside them.

Q: How many trailer brakes can Echo control?

A: Echo supports trailers with one to two axles, controlling 2–4 trailer brakes.
