CURT Universal Electric Trailer Brake Controller Wiring Harness 12‑Gauge Quick‑Plug 24 in with Slit‑Loom

If your tow vehicle lacks a factory brake-controller plug, the CURT 51516 offers a straightforward way to connect a CURT brake controller to your vehicle’s electrical system. This harness pairs a quick-plug end that mates cleanly with CURT controllers with blunt-cut, color-coded wires for splicing into your vehicle harness. Built with heavy-duty 12-gauge conductors and a protective slit-loom sleeve, it balances durability and flexibility for a variety of towing setups.

How does the CURT 51516 make brake-controller installation easier?

The harness eliminates the need to hunt down a vehicle-specific plug by providing a universal splice-in solution. Its quick-plug end snaps directly to compatible CURT controllers while the pigtails let you tie into your vehicle’s wiring where factory plugs are absent.

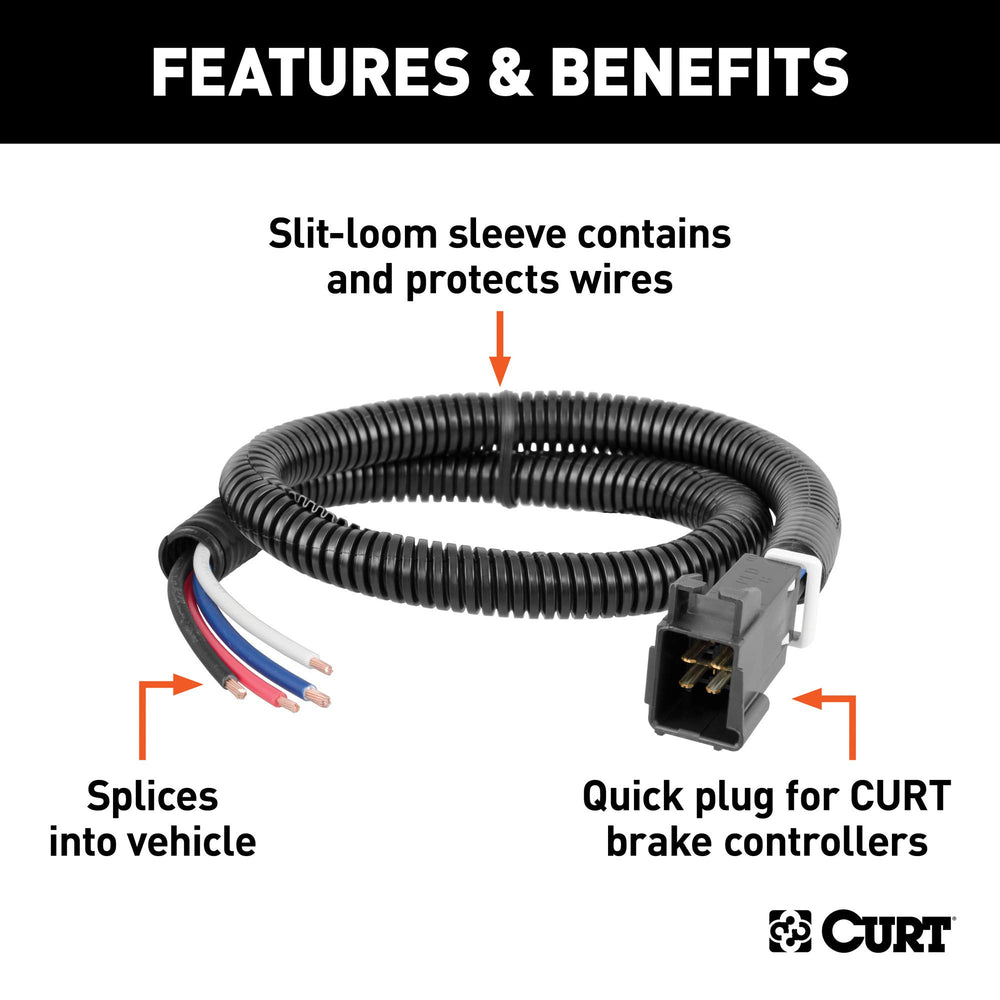

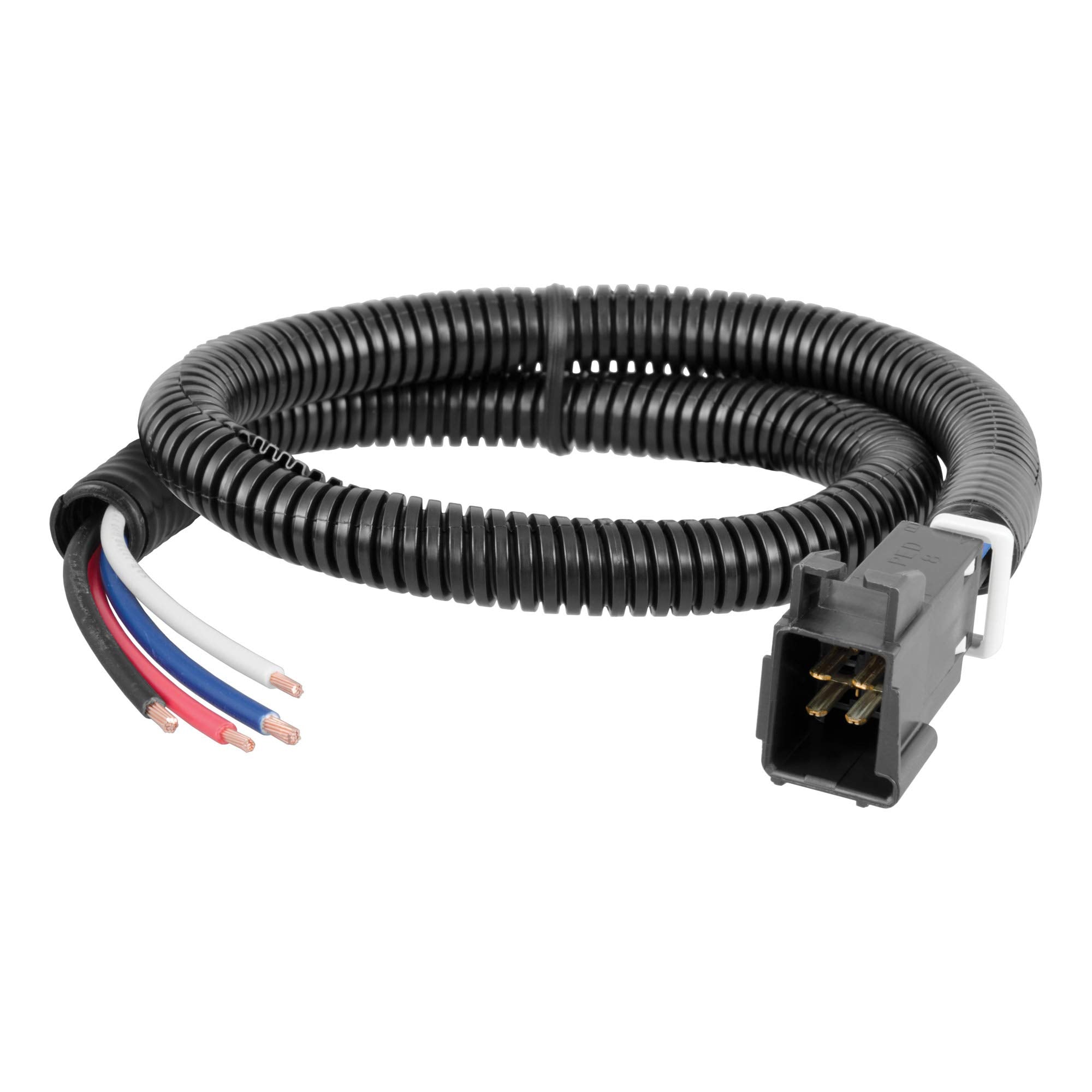

• Quick-plug connector compatible with CURT brake controllers
• Blunt-cut, color-coded wires for simple splicing
• 24-inch harness length for flexible dash placement
• Includes slit-loom sleeve to keep wires bundled and protected

What electrical performance and protection does this harness provide?

CURT engineered the 51516 with 12-gauge wiring to carry consistent current between vehicle, controller and trailer brakes. The heavier gauge lowers voltage drop and resists heat buildup under load, while the slit-loom sleeve protects conductors from abrasion and crushing during installation.

• 12-gauge conductors for reliable power delivery
• Color-coded wiring to match brake controller functions
• Slit-loom sleeve resists abrasion and bundles wires neatly
• Durable insulation for long-term use in vehicle environments

Which vehicles and controllers work with this universal harness?

The 51516 is intended for vehicles that do not have a factory-installed brake-controller plug. It’s compatible with any CURT brake controller that uses a quick-plug connector, and can be adapted into many vehicle wiring systems using basic splicing techniques.

• Universal splice-in design for non-factory-plug vehicles

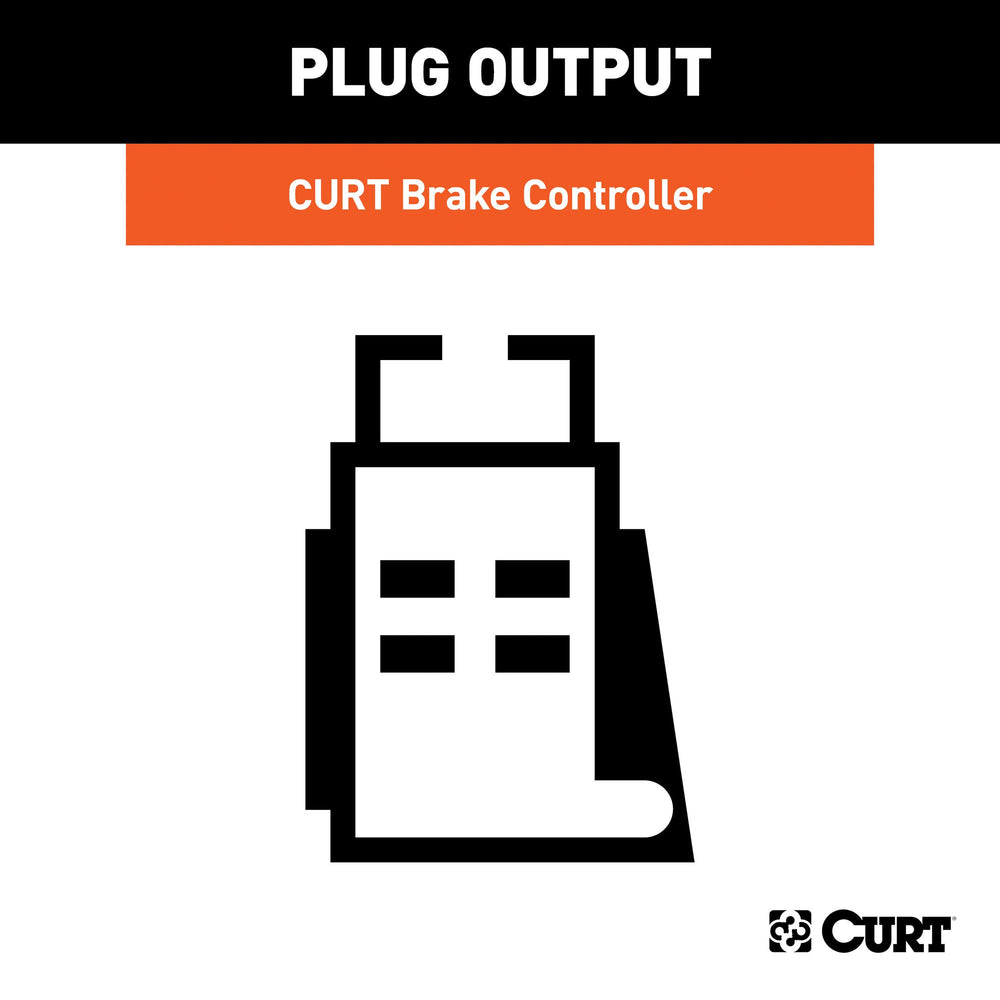

• Mates to CURT controllers with a quick-plug interface
• Works with CURT universal wiring kit #51500 for full installations
• Check vehicle application info for specific fit guidance

What should I expect during installation and setup?

Installation requires basic wiring skills: identify vehicle brake, battery, ground and power circuits, splice the color-coded pigtails accordingly, secure connections, and route the harness into the dash area. The 24-inch lead gives room to position the brake controller in an accessible location for driver adjustments.

• Pigtails require splicing into existing vehicle wires (heat-shrink or solder recommended)
• 24-inch harness provides reach for dash-mounted controllers
• Use included slit-loom to protect routed wiring runs
• Vehicle-specific harnesses are available if a plug-fit option is preferred

Who is this for? The CURT 51516 universal quick-plug harness is aimed at DIY installers, fleet technicians and occasional trailers owners who need a dependable splice-in solution for adding a CURT brake controller to vehicles without a factory connector. It’s a practical choice when you want a robust 12-gauge connection, clear wire identification for straightforward splicing, and wire protection to keep the installation tidy and durable. For vehicle-specific plug fitment, consider CURT’s model-specific harnesses sold separately or consult the CURT application guide to confirm compatibility.
