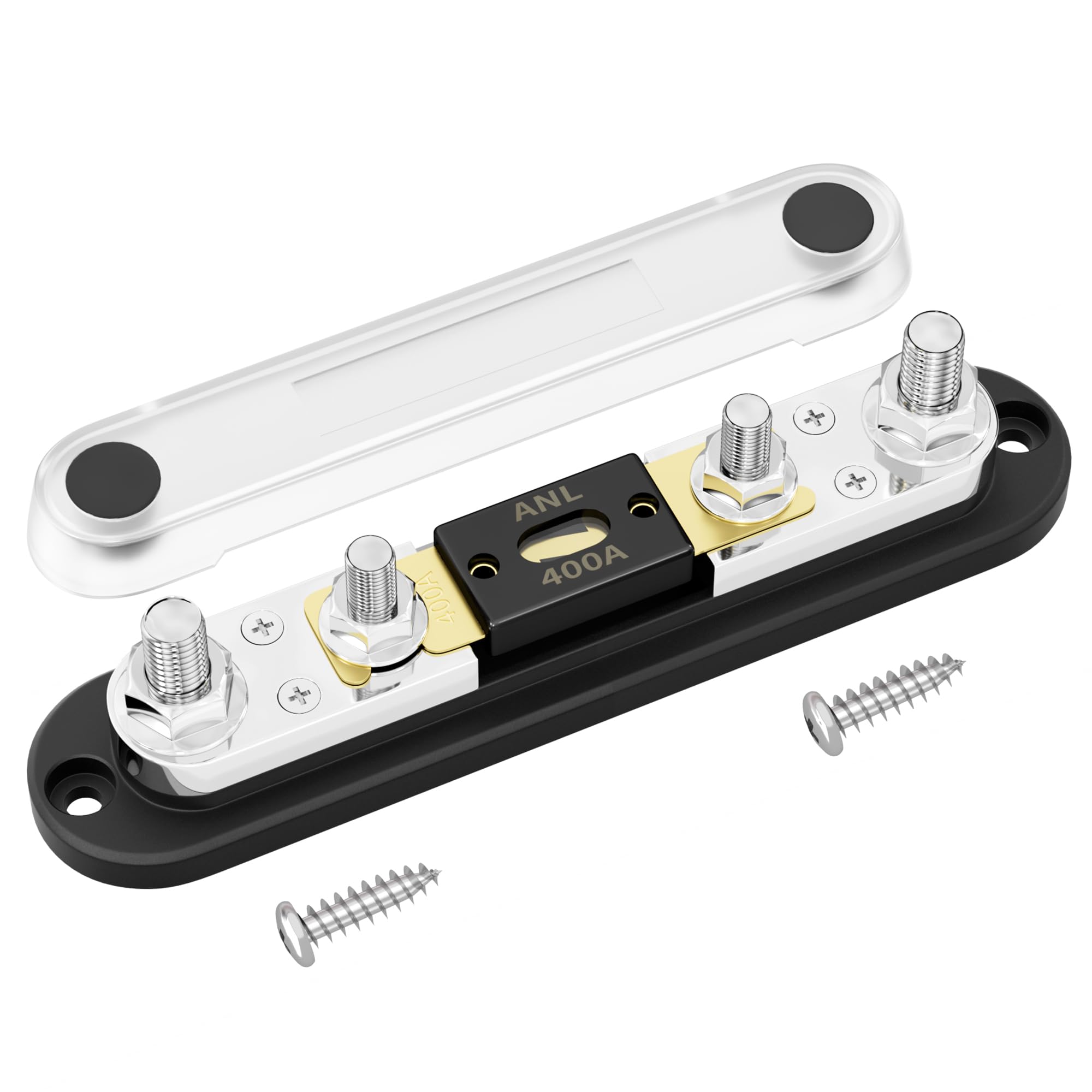

DAIERTEK 400A ANL Fuse Holder Kit with M10 Studs — Clear Cover, High-Temp Nylon Base, Gold-Plated Fuse

The DAIERTEK 400 Amp ANL Fuse Holder Kit is a heavy-duty, plug-in fuse block with M10 stud terminals that accepts ANL fuses up to 400A and is rated for systems up to 750A.

This kit combines a high-temperature nylon fuse base, a clear polycarbonate cover and gold-plated ANL fuse to provide a compact, serviceable overcurrent protection solution for automotive, marine and commercial electrical systems. Designed for easy installation and reliable contact under high current loads, the holder accepts a wide range of ANL fuse sizes and includes the mounting hardware and screws needed for a secure fit.

How does this fuse holder improve safety in high-current systems?

The DAIERTEK fuse holder isolates the conductive path inside a heat-resistant nylon base and a durable polycarbonate lid, reducing the chance of shorts and heat damage. Its nut-and-washer fasteners ensure firm contact between the fuse and wire lugs so connections stay stable under load.

• High-temperature nylon base prevents deformation and electrical leakage.
• Polycarbonate cover provides insulating protection and visual inspection.
• Nut with washer design improves mechanical and electrical contact.
• Gold-plated fuse surfaces help resist corrosion and maintain conductivity.

Which fuse sizes and system amperages does this kit support?

The holder is supplied with a 400A gold-plated ANL fuse but is compatible with common ANL sizes from lower ratings up to larger values. While the block accepts various fuses, the assembly is engineered to perform safely in electrical systems whose total current does not exceed 750A.

• Includes 400A ANL fuse with transparent status window.
• Works with ANL fuses such as 50A, 100A, 200A, 300A, 400A, 500A, etc.
• Maximum continuous system capacity: 750A (do not exceed).

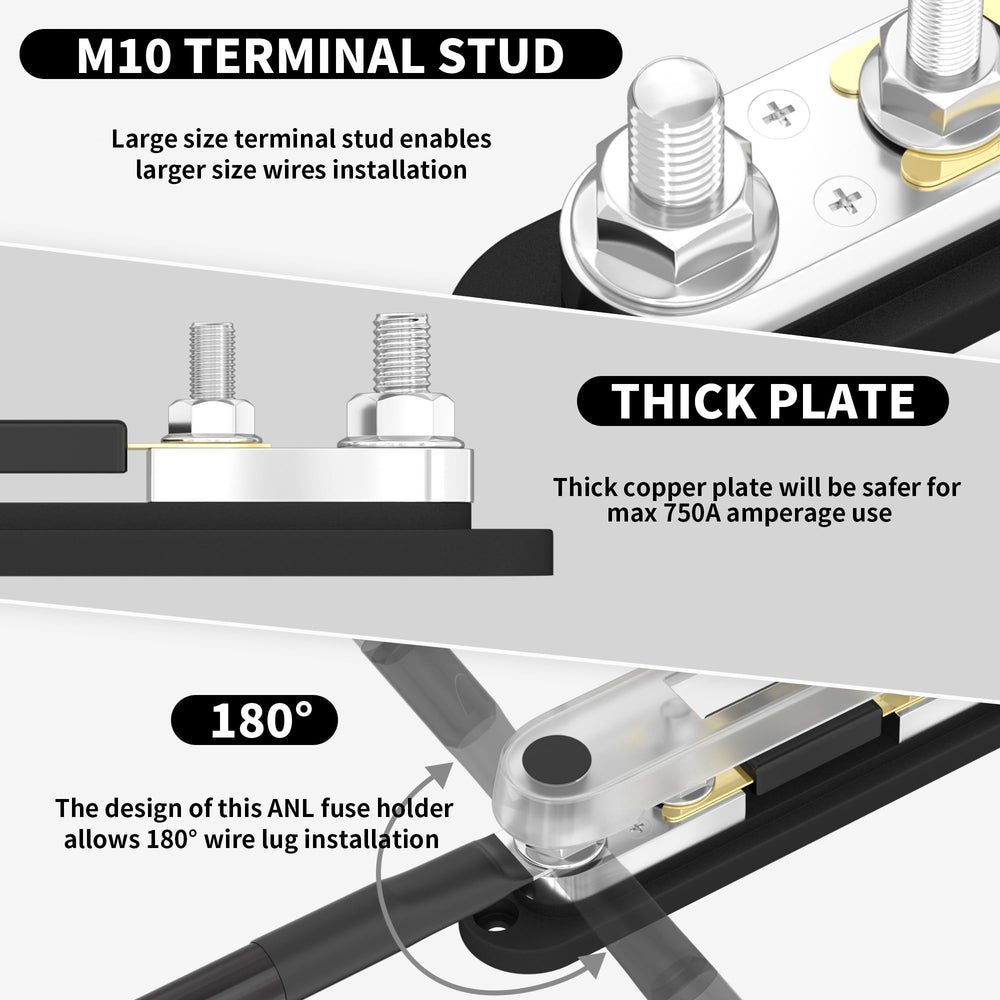

• M10 stud terminals accommodate heavy gauge lugs and cables.

How easy is installation and fuse replacement?

The DAIERTEK ANL holder uses a plug-in fuse design so fuses can be swapped quickly without major disassembly. The kit includes the screws and mounting hardware needed to secure the block to a battery box, bulkhead or mounting plate, and the clear cover lets you confirm fuse status at a glance.

• Plug-in fuse simplifies replacement—no soldering required.
• Included screws and washers for secure mounting.
• Transparent window lets you inspect the fuse element visually.
• M10 stud terminals accept standard ring terminals and lugs.

What materials and finishes help it last in automotive and marine use?

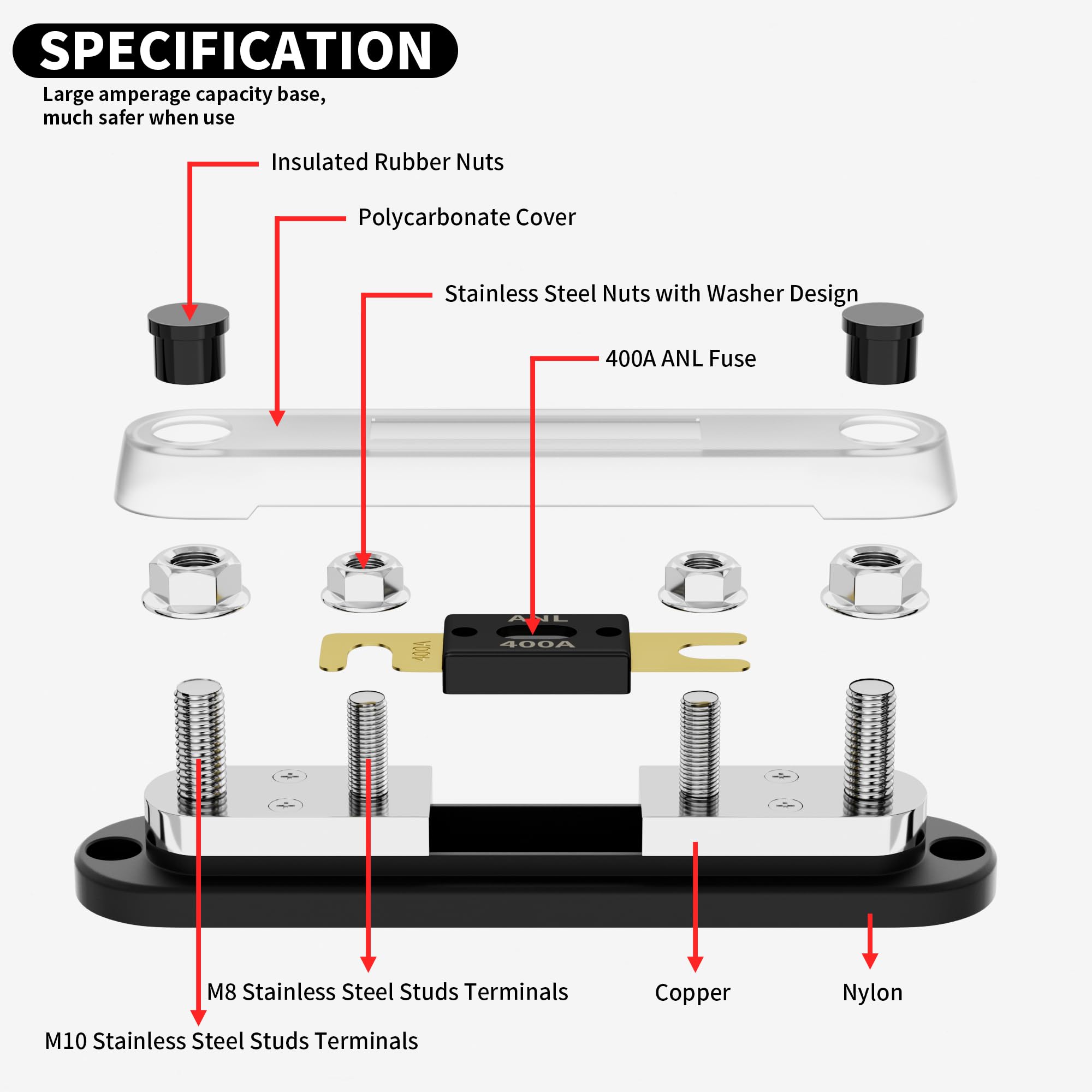

Materials were chosen for electrical insulation and environmental durability: the holder base is high-temp nylon, the cover is polycarbonate, and the supplied fuse is gold plated to resist corrosion and maintain low resistance contacts. Together these reduce failure risk in vibration-prone or humid environments.

• Nylon base resists heat and helps prevent electrical tracking.
• Polycarbonate cover resists impact and allows visual checks.
• Gold plating on fuse surfaces improves conductivity and corrosion resistance.
• Robust hardware secures lugs under vibration and load.

Who is this for: technicians, DIYers and fleet owners who need a compact, serviceable high-current fuse solution for cars, trucks, boats and other vehicles. If you require a durable ANL fuse block that accepts multiple fuse sizes, provides clear visual status, and can be mounted securely with heavy-gauge wiring, the DAIERTEK 400 Amp ANL Fuse Holder Kit is designed for those applications. Always match fuse selection and wiring to your system's rated current and follow electrical best practices when installing.
