Delphi Ignition Control Module DS10059 — OE-style direct-fit with current limiting and over-voltage protection

The Delphi DS10059 Ignition Control Module is an OE-style electronic module that manages spark timing and protects the ignition circuit for consistent engine performance.

This ignition control module from Delphi is built to match original equipment form and function while adding modern protections to guard critical ignition components. It combines a heatsink-friendly layout, internal current limiting and voltage clamping, plus safeguards against short circuits, over-voltage events and electrostatic discharge. The result is a direct-fit module intended for technicians and DIYers who need dependable ignition control without modifying factory wiring or mounting.

How does this module handle heat and mounting stresses?

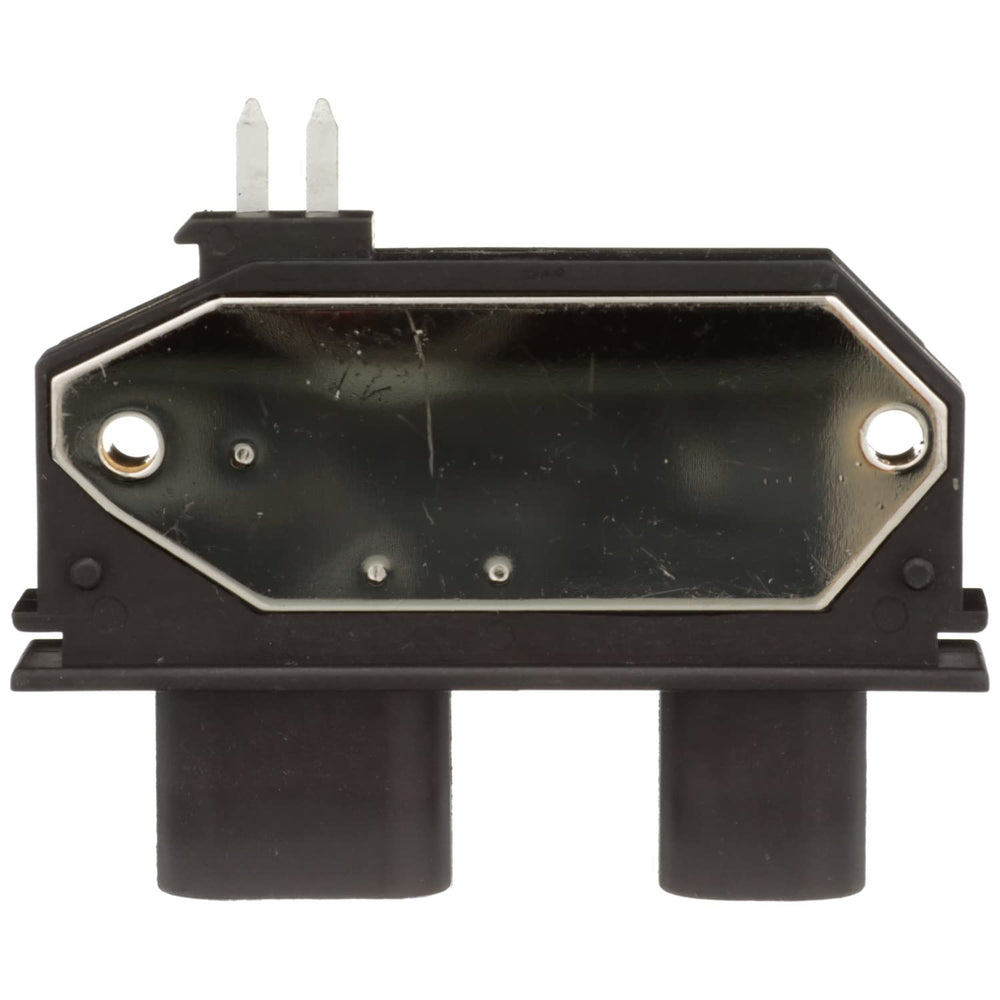

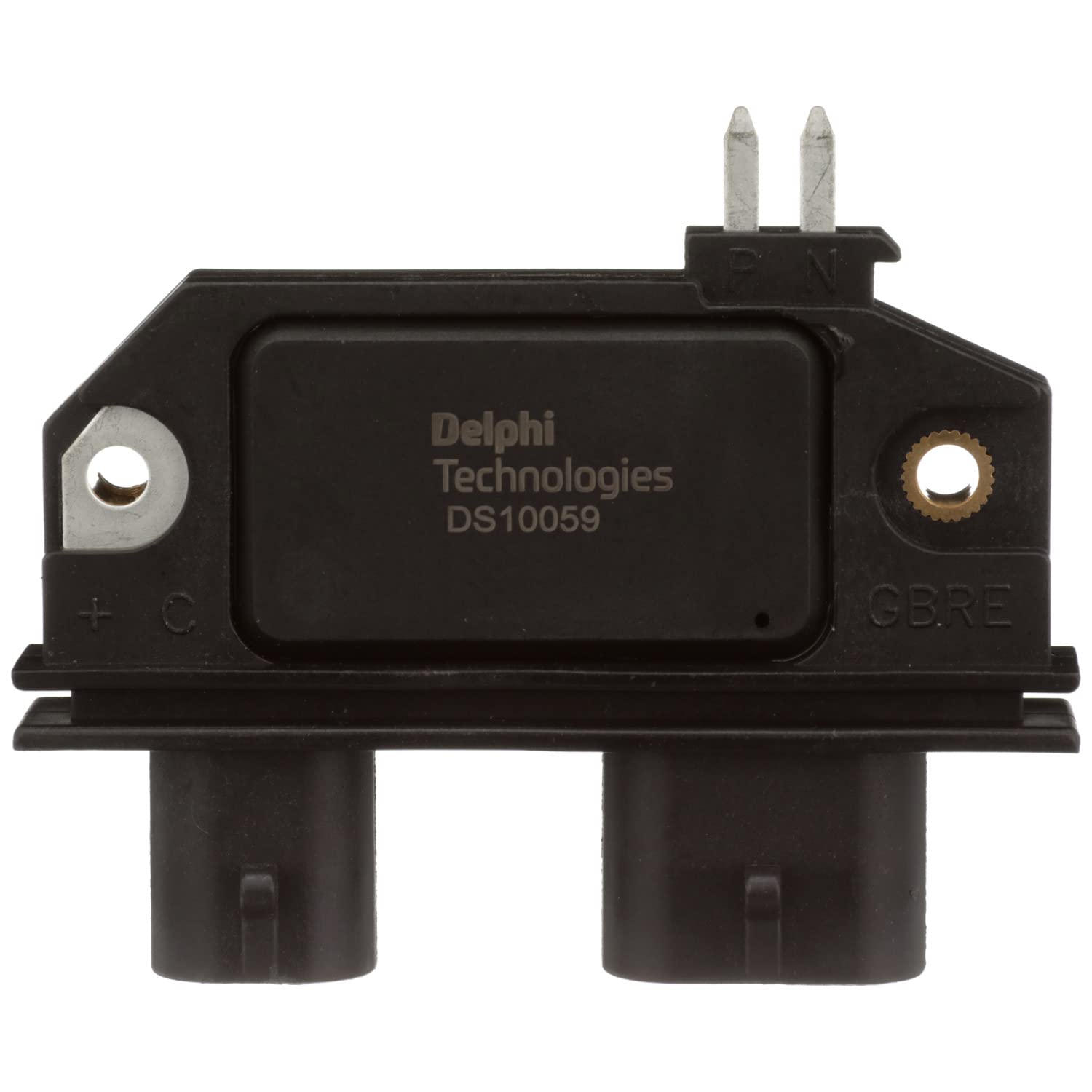

The DS10059 uses a design layout that prioritizes heat transfer to the chassis and surrounding hardware, helping dissipate thermal energy during prolonged operation. Its construction emphasizes durability so it maintains electrical integrity under repeated thermal cycling.

• Original-equipment layout for effective heat conduction to mounting surfaces
• Robust package materials that resist thermal fatigue
• Mounting points sized for factory-fit replacement

What protections are built in to prevent electrical damage?

Delphi equipped this module with multiple protective circuits to reduce the risk of failure from common electrical faults. These safeguards act automatically to limit damage from spikes and transient events typical in vehicle electrical systems.

• Short-circuit protection to limit current during wiring faults
• Over-voltage handling to tolerate transient spikes from charging systems
• Electrostatic discharge (ESD) protection for improved reliability during handling and installation

How does the DS10059 control current and voltage for ignition coils?

Inside the module are circuits that actively limit current and clamp voltage to defined thresholds, helping the ignition coils operate within safe electrical parameters. That control reduces stress on coils and associated wiring, extending component life.

• Internal current limit reduces excessive coil draw under fault conditions
• Precise voltage clamping prevents harmful voltage excursions
• Consistent output characteristics for repeatable spark timing behavior

Will this fit my vehicle and is installation straightforward?

The DS10059 is designed as an OE-style replacement to match factory mounting and electrical connections wherever specified. Installation is typically a direct swap, but always check vehicle fitment and follow vehicle-specific service procedures.

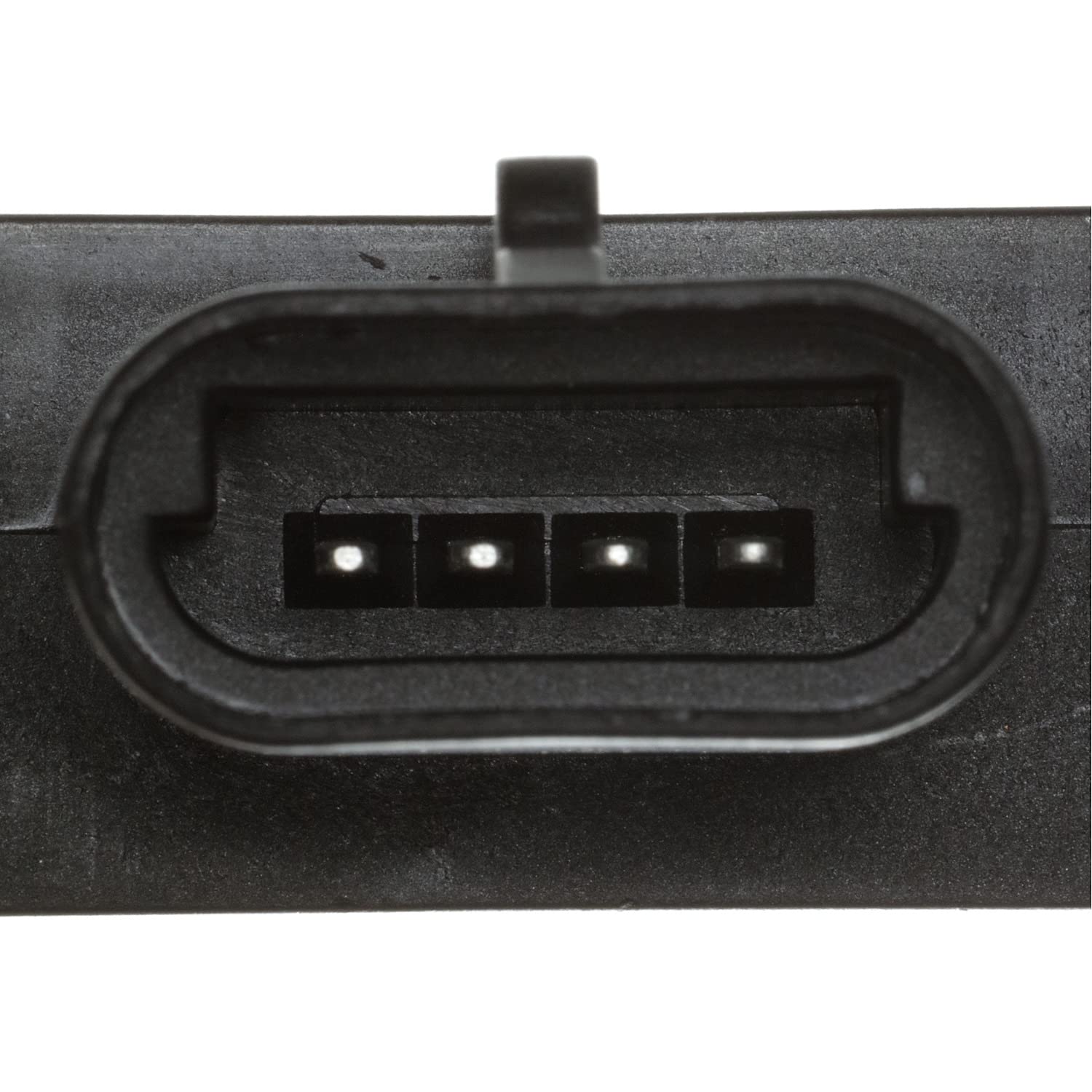

• Designed to mirror original equipment dimensions and terminal layout
• Direct-fit replacement for compatible makes and models—no major wiring changes
• Meant for professional installation or experienced DIYers comfortable with ignition systems

Who is this for: The Delphi DS10059 Ignition Control Module is aimed at mechanics, service shops and knowledgeable DIY vehicle owners who need an OE-style replacement with enhanced electrical protections. It suits applications where maintaining original fit, reliable heat management and protection against short circuits, voltage spikes and ESD are priorities.
