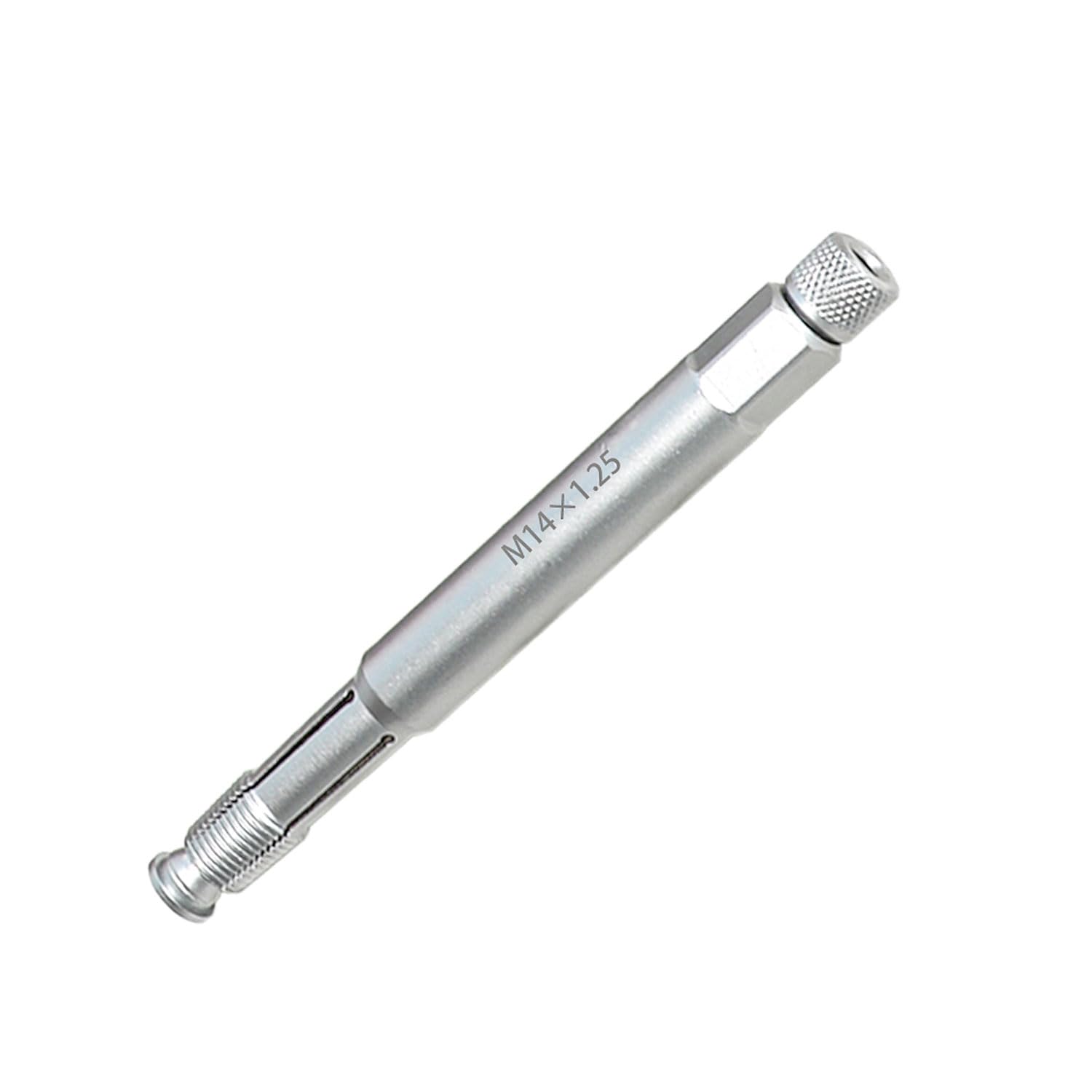

DPTOOL 14mm Spark Plug Thread Repair Tool M14x1.25 – 42CrMo Heavy-Duty Back Tap, Reforms Stripped Threads

DPTOOL's 14mm back tap thread repair tool (M14x1.25) is a durable, heavy-duty chaser designed to restore badly damaged or cross-threaded spark plug holes without removing the cylinder head.

If a spark plug hole has been stripped or cross-threaded, this back tap lets you clean and re-form the existing thread quickly and safely. Built from 42CrMo alloy steel (equivalent to 4140), the tool is hardened and tempered for toughness and fatigue resistance so it withstands repeated use. The design captures metal shavings with grease to prevent debris from falling into the combustion chamber, giving you a practical one-tool solution for many roadside or shop repairs.

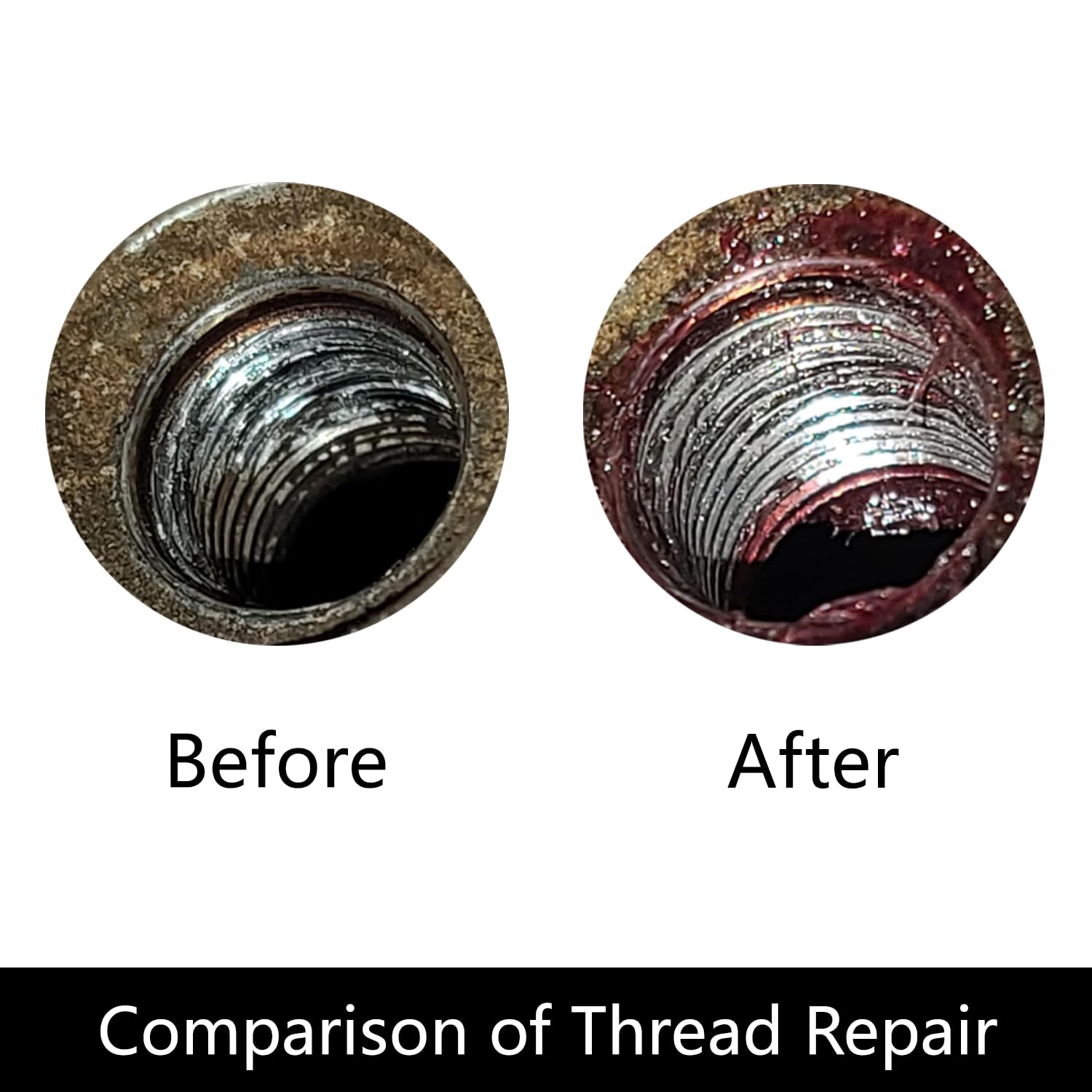

How does this tool restore a stripped spark plug thread?

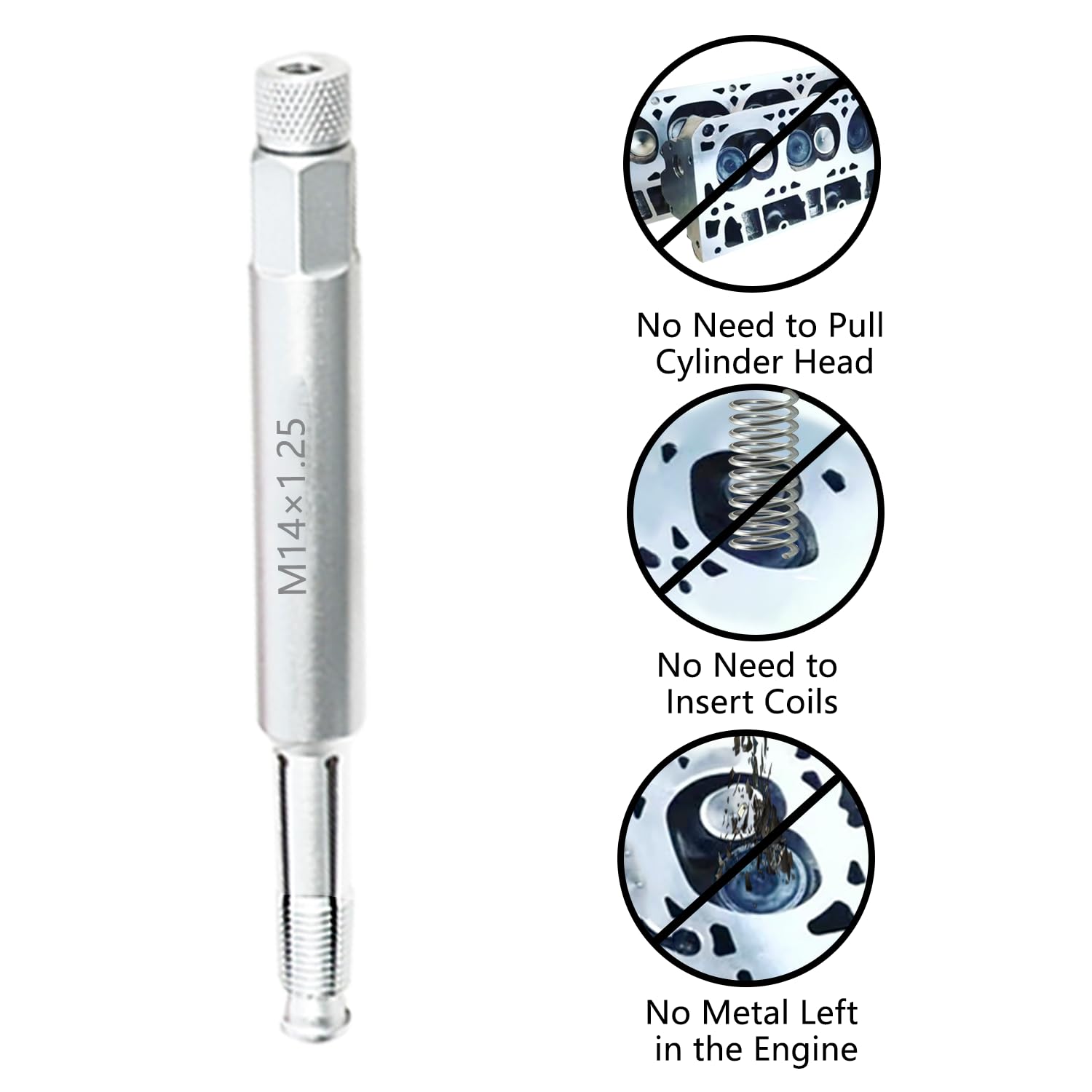

The DPTOOL back tap cuts and reforms the worn or damaged thread profile by expanding through the hole and chasing the original pitch. You advance it slowly, backing out periodically to clear material, then reverse direction to finish the thread form. It doesn’t require removing the cylinder head or installing a coil-insert in most cases, saving time and cost.

• Expands through the spark plug bore to re-establish M14x1.25 pitch
• Chases and reshapes threads rather than removing large sections of metal
• Works in-situ—no head removal for many repairs
• Recommended slow, controlled forward-and-back technique

Will metal shavings fall into the engine when I use it?

When used as instructed, grease traps shavings on the tool so they are withdrawn instead of dropping into the cylinder. The method reduces contamination risk and keeps the combustion chamber cleaner during thread reconditioning.

• Apply grease to the tool before insertion to capture swarf
• Withdraw slowly and inspect the tool to remove trapped material
• Perform multiple short cuts rather than one aggressive pass
• Helps avoid additional cleanup or engine damage from debris

What material and build quality can I expect from DPTOOL's chaser?

This back tap is manufactured from 42CrMo forged steel, comparable to 4140, then hardened and tempered for high impact resistance. The result is a robust tool suited to repeated use on stubborn or corroded threads without becoming brittle or failing prematurely.

• 42CrMo (equivalent to 4140) alloy steel construction
• Heat-treated for high fatigue limit and toughness
• Resists cracking or chipping under normal workshop use
• Engineered as a heavy, precise tool for consistent results

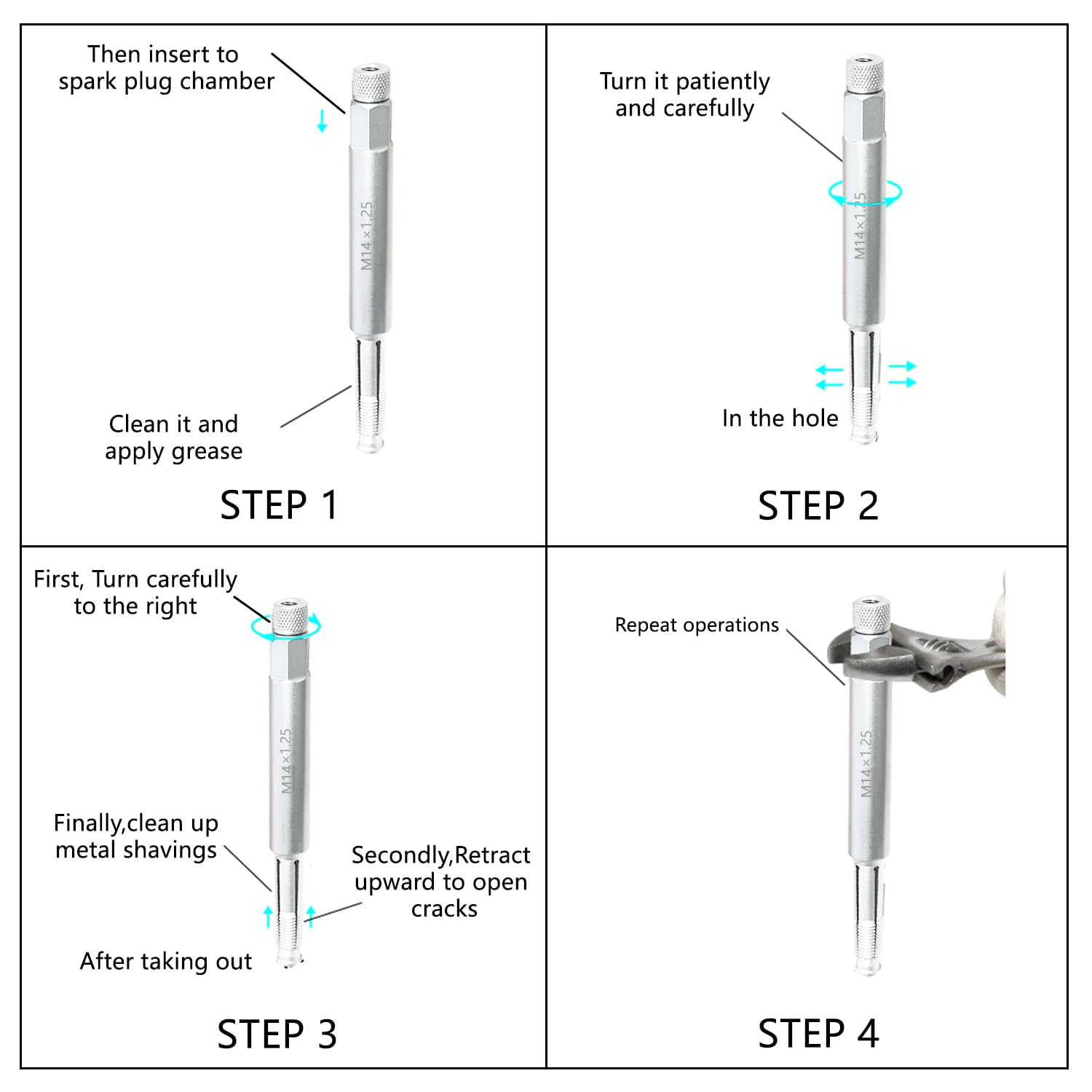

How should I use the tool for best results and safety?

Insert the chaser straight into the spark plug hole, expand and back-thread it 3–5 times, then reverse and repeat while moving side to side when resistance increases. Work slowly, backing out slightly when you encounter a hard spot, then advance again until the thread is cleaned. Follow-up inspection ensures no shavings remain and the thread fit is correct.

• Keep the tool aligned; push straight through the bore
• Turn forward and back incrementally; avoid forcing it
• Use grease to trap and remove metal swarf
• Inspect threads after each pass and clean out captured debris

Who is this for? Professional mechanics, DIY enthusiasts, and mobile technicians who need a fast, reliable way to repair M14x1.25 spark plug holes without expensive inserts or head removal will benefit most. It’s especially useful in emergency repairs, maintenance shops, and vintage or high-mileage engines where threads become worn or cross-threaded. DPTOOL backs the product with a 12-month warranty for parts and workmanship, offering replacements or refunds for qualifying quality issues.
