DPTOOL Double Vanos Timing Tool Kit for BMW M52 M54 M56 - Hardened Steel Alignment & Locking Set

DPTOOL Double Vanos Twin Camshaft Timing Tool Kit is a complete alignment and locking set engineered to hold camshafts, crankshaft, VANOS and chain tensioners in precise timing position for BMW M52, M52TU, M54 and M56 engines.

This professional-grade tool kit gives technicians and experienced DIYers the fixtures needed to set and maintain correct valve timing when performing timing chain, VANOS or head service on compatible BMW engines. Crafted from hardened steel with an anti-corrosion finish, each component is sized to mate directly with the listed engines so you can immobilize the camshafts, index the crankshaft to top dead center and secure the chain tensioner during assembly or disassembly.

How does this kit secure camshaft and crankshaft timing?

The kit contains dedicated locking pins and fixtures that engage factory timing positions so components cannot rotate during service. Using the top dead center pin, camshaft locking fixture and sprocket jig together lets you set the engine exactly as required before removing or installing timing parts.

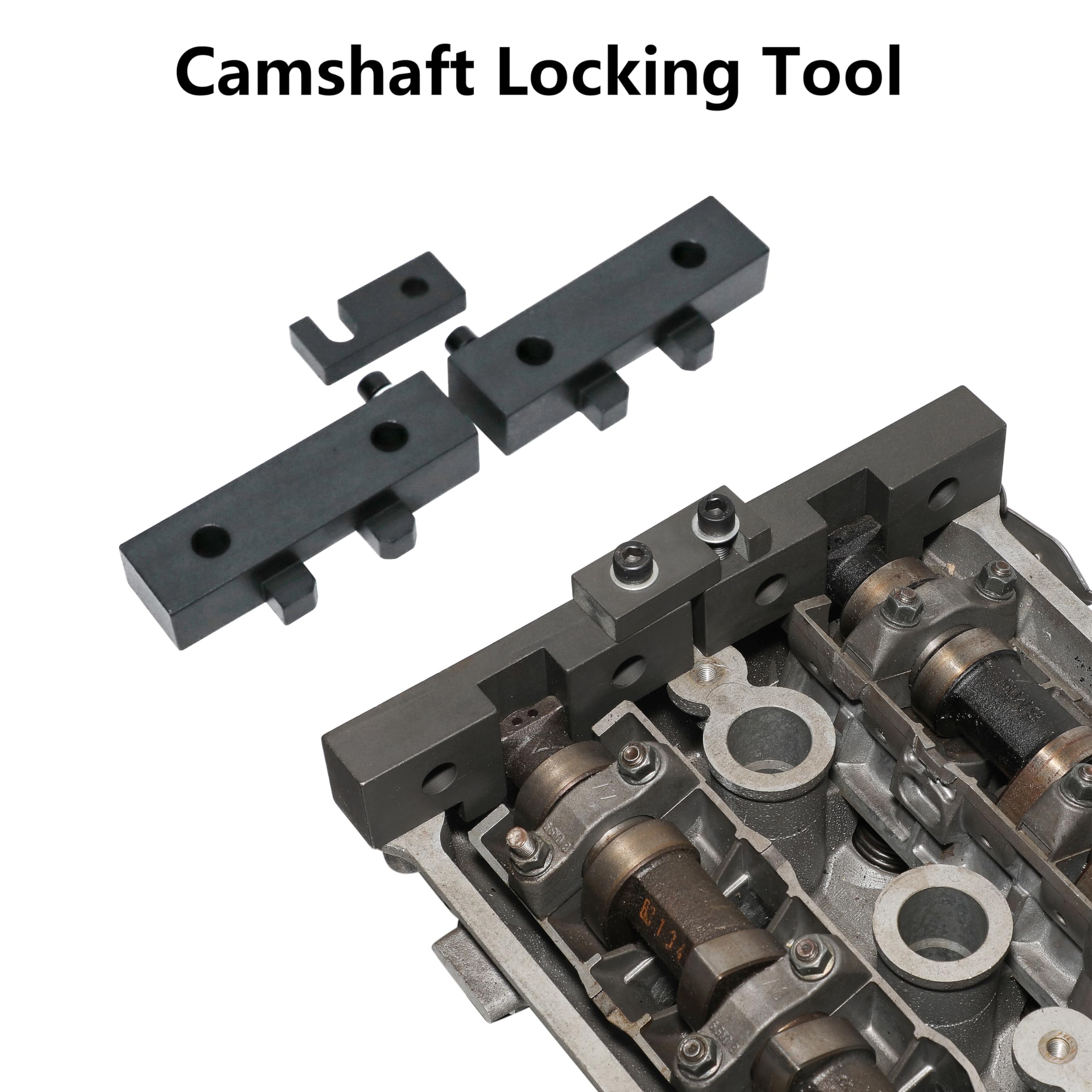

• Camshaft locking fixture holds camshafts in fixed position.
• Top Dead Center pin indexes crankshaft precisely.
• Sprocket assembly jig ensures correct sprocket alignment.

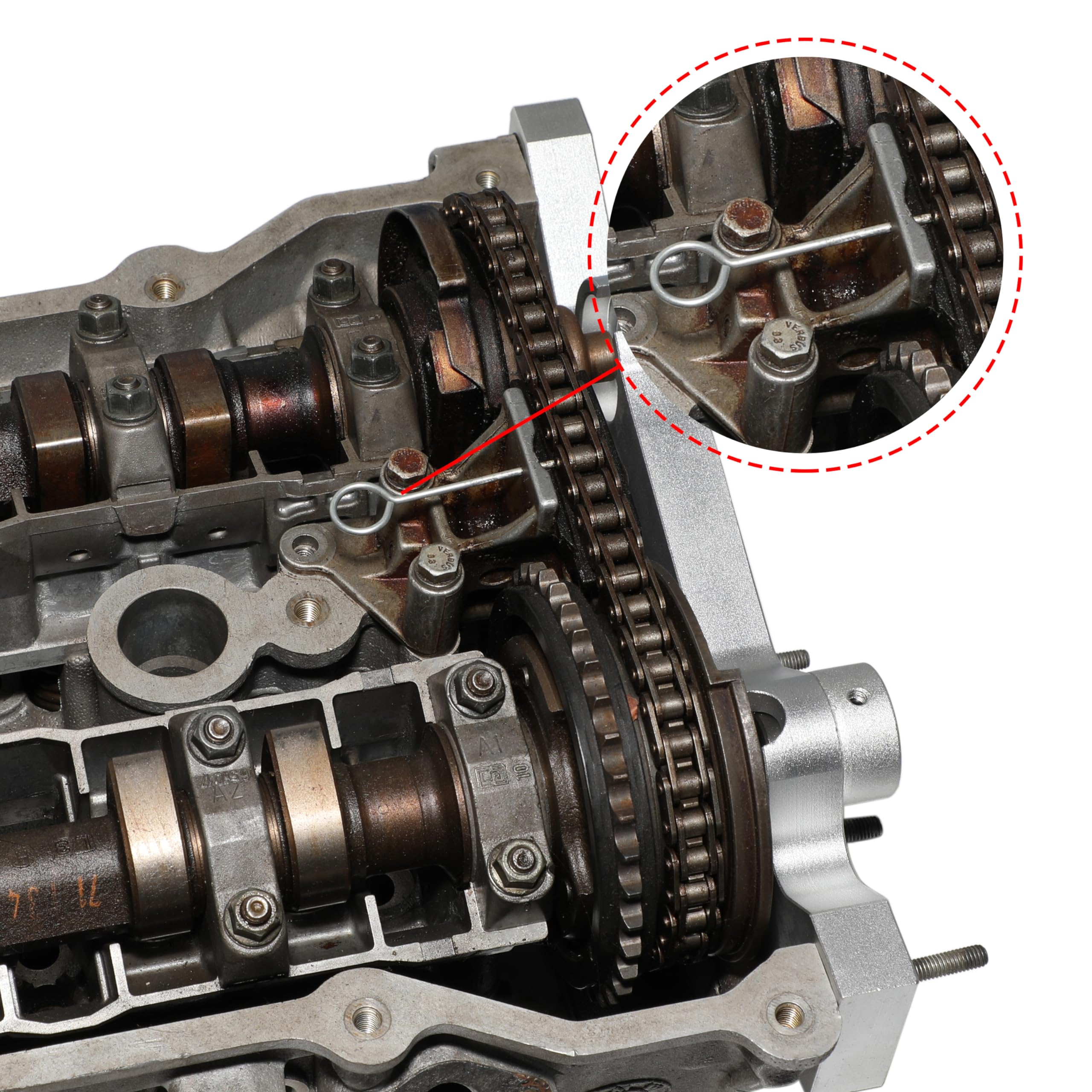

• Rigid chain tensioner and lock pin maintain chain tension safely.

What specific BMW engines and repairs is the kit compatible with?

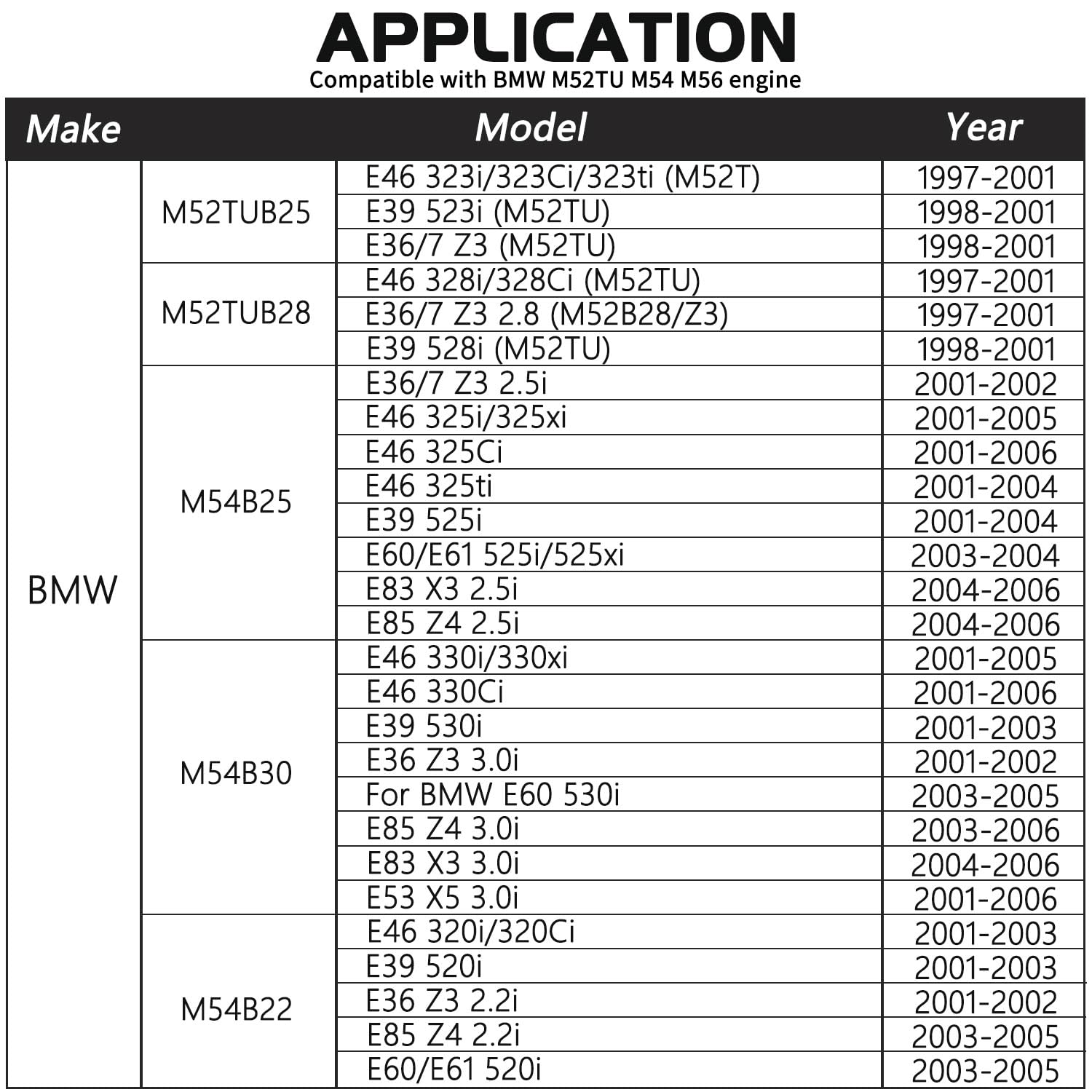

This set is made for BMW M52, M52TU, M54 and M56 engines — models that use dual VANOS systems and timing chains. It’s intended for jobs that require accurate timing retention, such as timing chain replacement, VANOS service, cylinder head removal or any work that risks cam/crank movement.

• Compatible with M52, M52TU, M54 and M56 engine families.
• Useful for VANOS component servicing and timing chain replacements.
• Helps when removing or installing cylinder heads or camshafts.
• Works for both workshop and well-equipped home mechanic use.

What materials and quality controls ensure durability and fit?

DPTOOL manufactures the components from heat-treated heavy-duty steel and applies an anti-oxidation coating to resist corrosion and wear. The set is produced with tight tolerances to match engine factory locations and comes with a 12-month warranty for manufacturing defects.

• High-hardness steel construction for stiffness and longevity.
• Anti-oxidation surface treatment to reduce rust risk.
• Precision-machined to fit specified BMW engine timing points.
• 12-month warranty for peace of mind against defects.

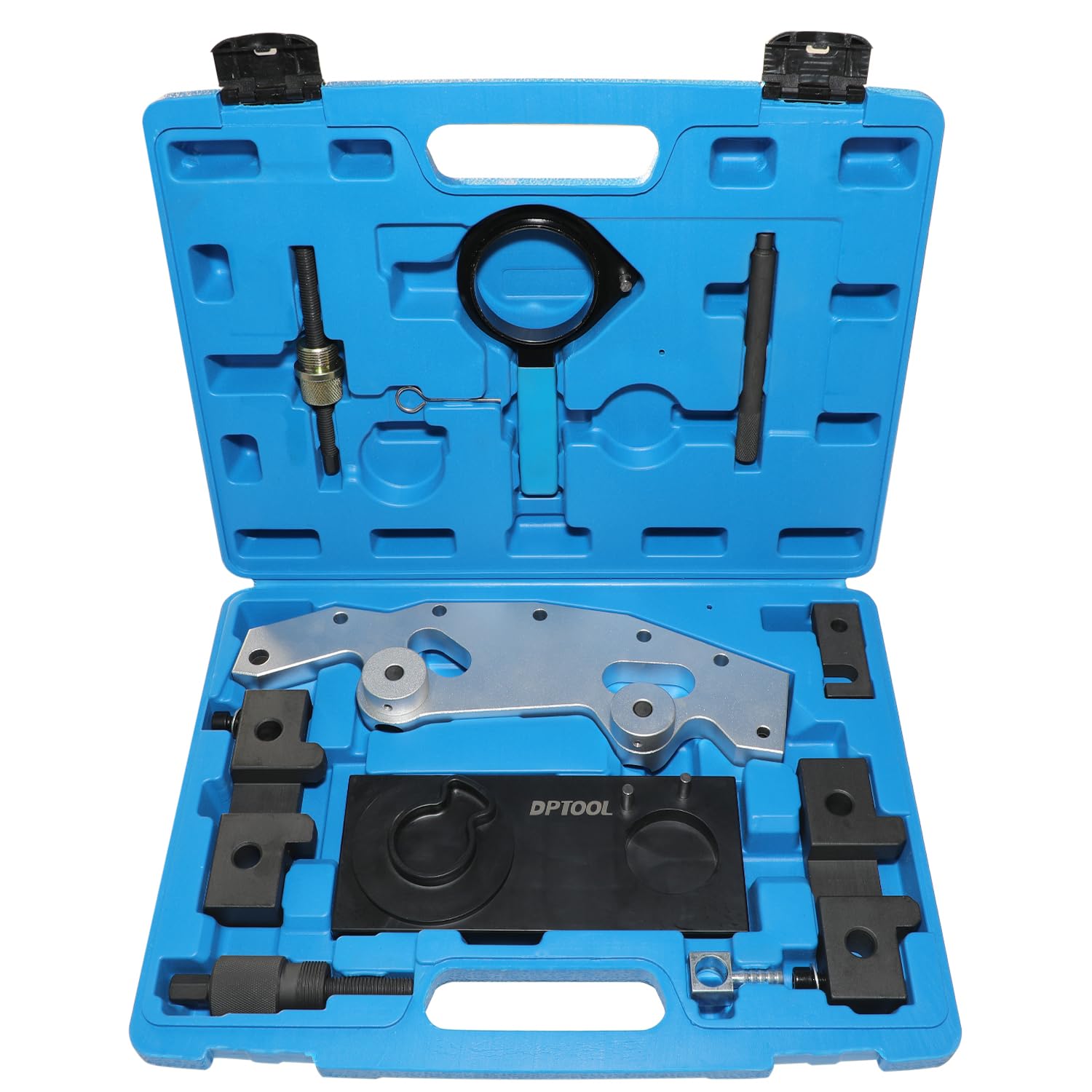

What parts are included and how do they make the job easier?

The kit arrives as a compact set in a case containing alignment jigs and specialized tools that simplify setting the timing. Each piece performs a single role—locking, tensioning or turning—so you can sequence disassembly and reassembly with confidence and fewer alignment checks.

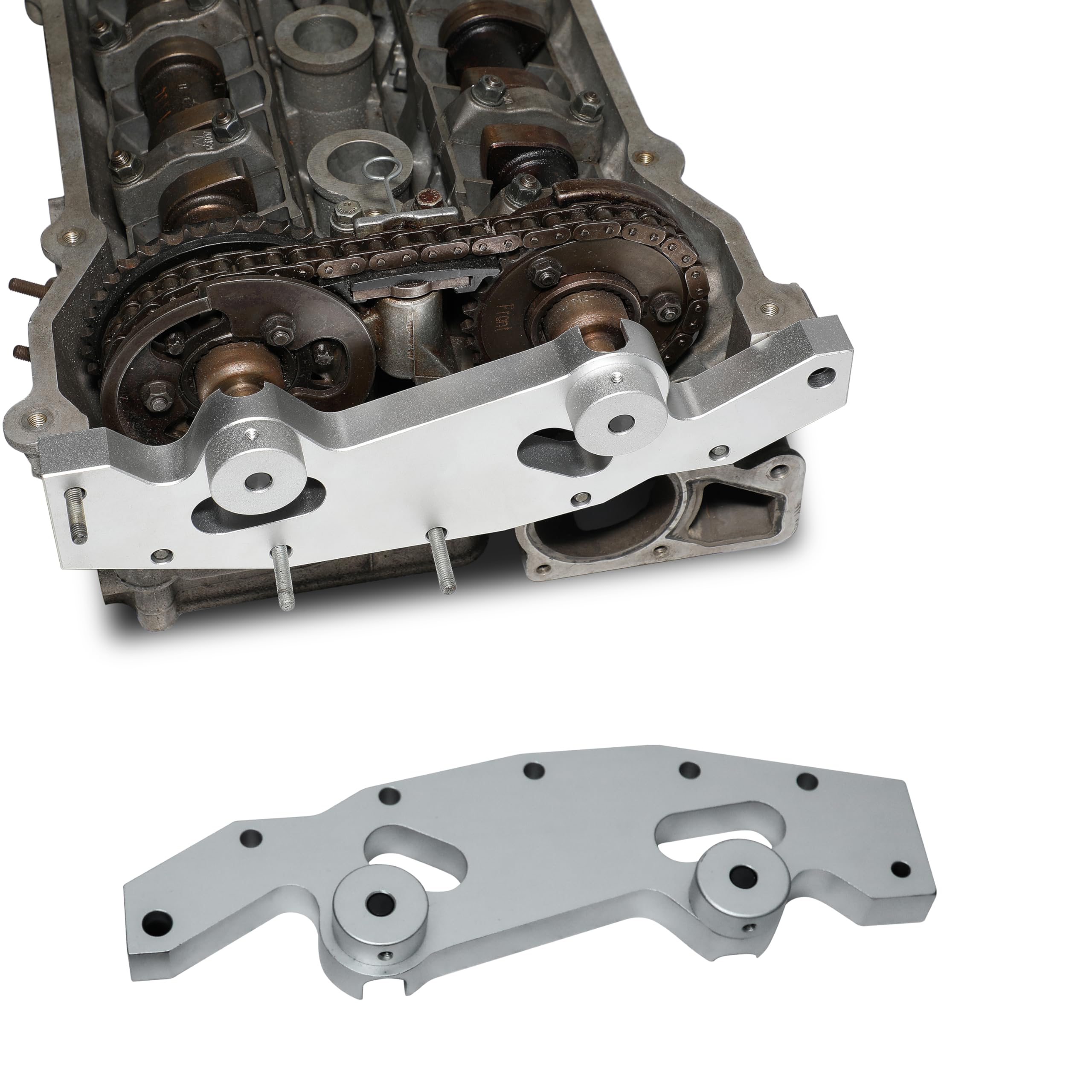

• Alignment jig and sprocket assembly jig for positioning cam sprockets.
• Rigid chain tensioner and chain tensioner lock pin to hold tension safely.

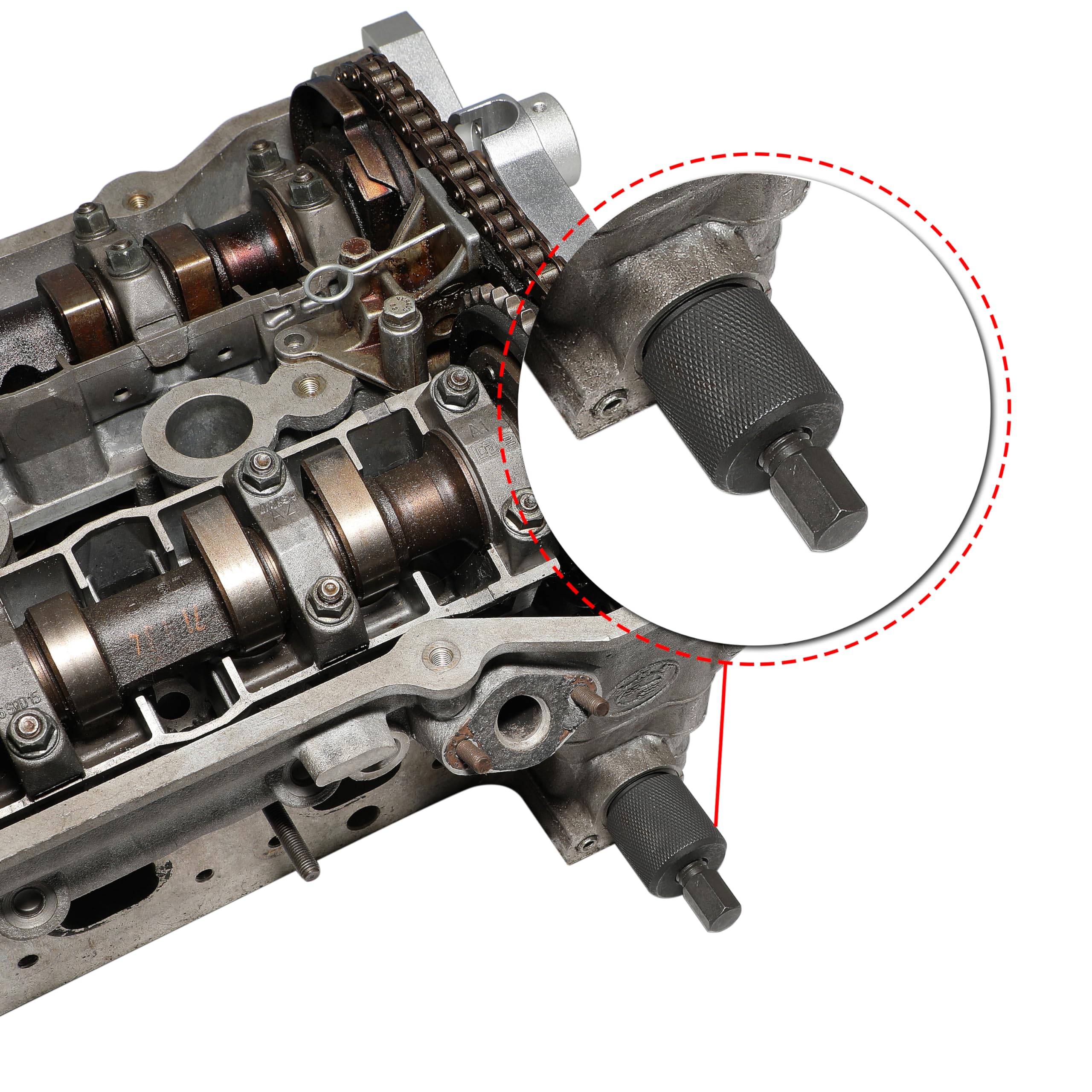

• VANOS compressed-air connector and turning wrench for VANOS manipulation.
• Camshaft locking fixture and top dead center pin to lock critical timing points.
• Durable carrying case keeps tools organized and protected.

Who is this for: The DPTOOL Double Vanos Twin Camshaft Timing Tool Kit is aimed at professional mechanics, independent BMW specialists and experienced enthusiasts who work on M52, M52TU, M54 or M56 engines. If you perform timing chain replacements, VANOS repairs, or cylinder head work and need secure, repeatable timing alignment, this kit gives the fixtures and leverage to complete those procedures safely and accurately.
