DPTOOL Engine Timing Tool Kit for Ford 2.0T/2.3T Jaguar/Land Rover — OEM-equivalent Complete Set in Case

DPTOOL Engine Timing Tool Kit for Ford 2.0T / 2.3T is a complete, OEM-equivalent camshaft and crankshaft locking set built to accurately set and hold timing on Ford and Jaguar/Land Rover 2.0T/2.3T petrol engines.

This professional timing kit contains the full selection of alignment plates, pins and holding tools needed to lock camshafts, position the crankshaft and secure the flywheel while you replace belts, chains or do head work on 2.0L Duratec and 2.0/2.3L EcoBoost engines. Each piece is engineered to match the factory reference numbers and tolerances so workshops and experienced DIYers can reassemble engines to correct timing without guesswork.

Which engines and vehicle models does this kit support?

The DPTOOL kit covers Ford 2.0L Duratec-HE (MI4) petrol and 2.0/2.3L EcoBoost GTDI engines with codes such as TNWA, TNWB, TNBA, TPWA, MGDA and XQDA. It’s also compatible with selected Jaguar/Land Rover 2.0T applications that share those engine architectures.

• Ford Focus, Galaxy, Mondeo, S-MAX (applicable years noted in product details)
• Ford Fusion, Escape, Edge (2.0L EcoBoost 2017–2019)
• Ford Explorer & Mustang (2.3L EcoBoost 2015–2019) and Focus RS (2016–2018)
• Engine codes and OEM equivalents included for shop reference

What tools are included and how do they match OEM references?

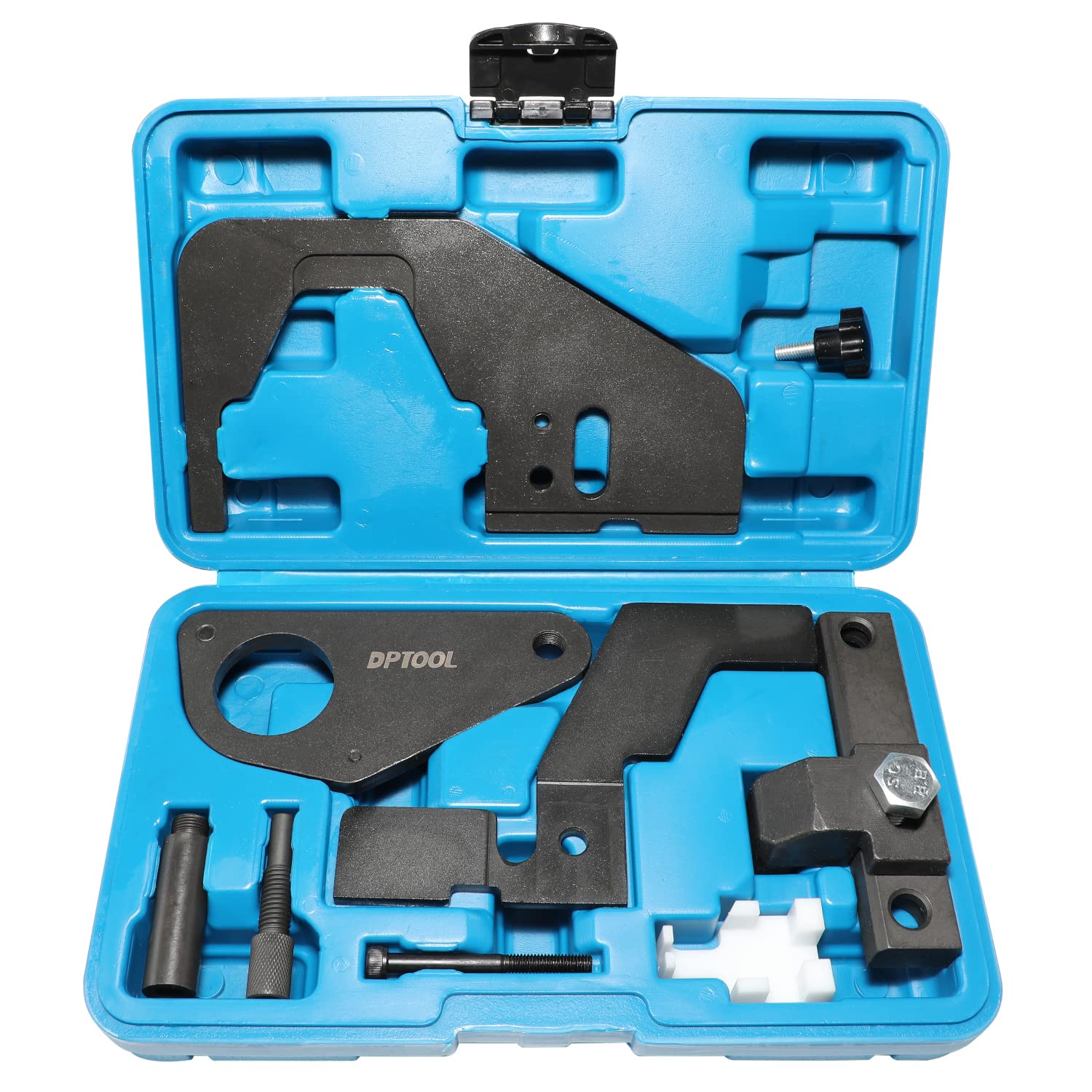

This kit is supplied with every specialized tool needed to lock camshafts and set crank timing, packaged in a durable case with instructions. The components are manufactured to fit like the OEM parts and reference common factory numbers for easy cross-checking.

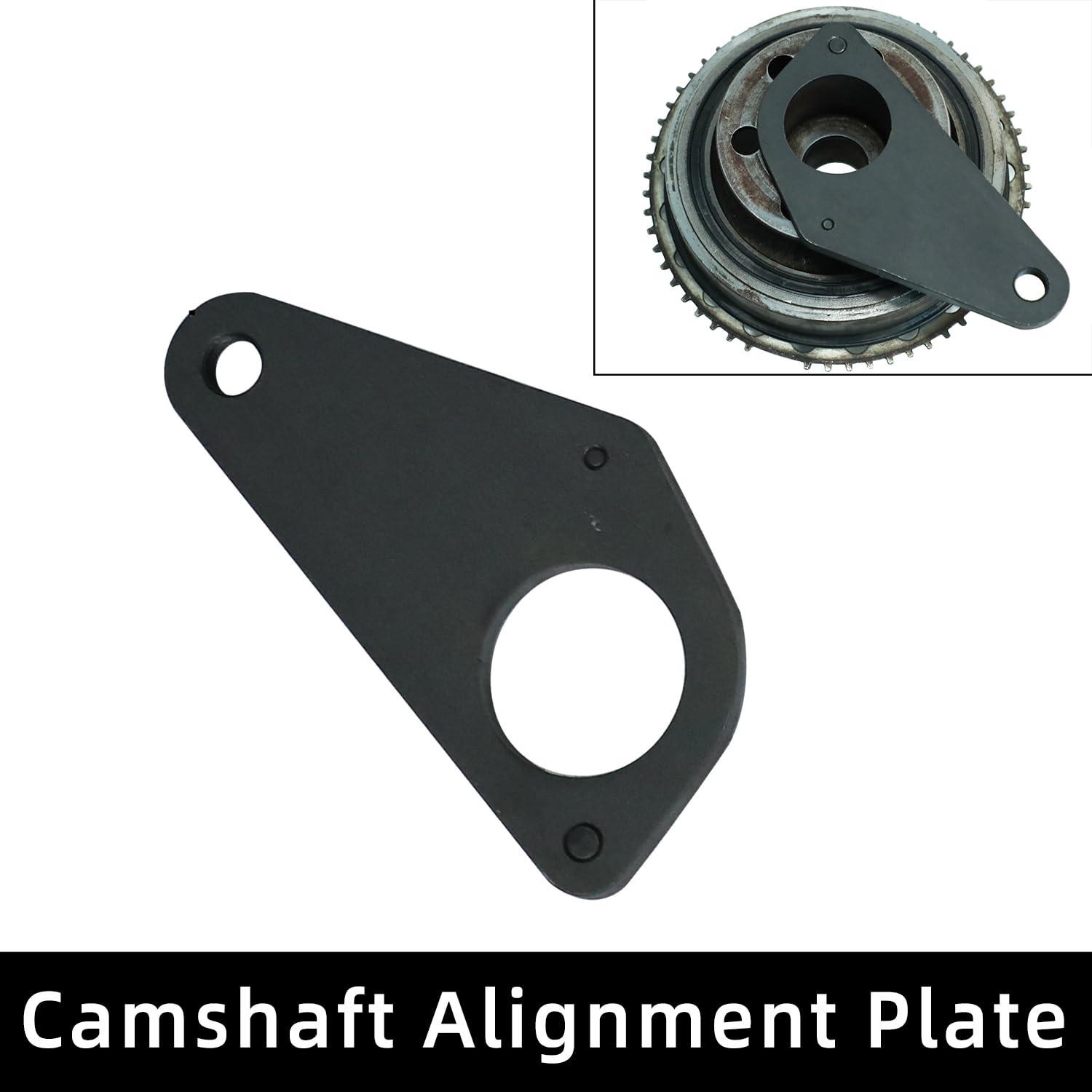

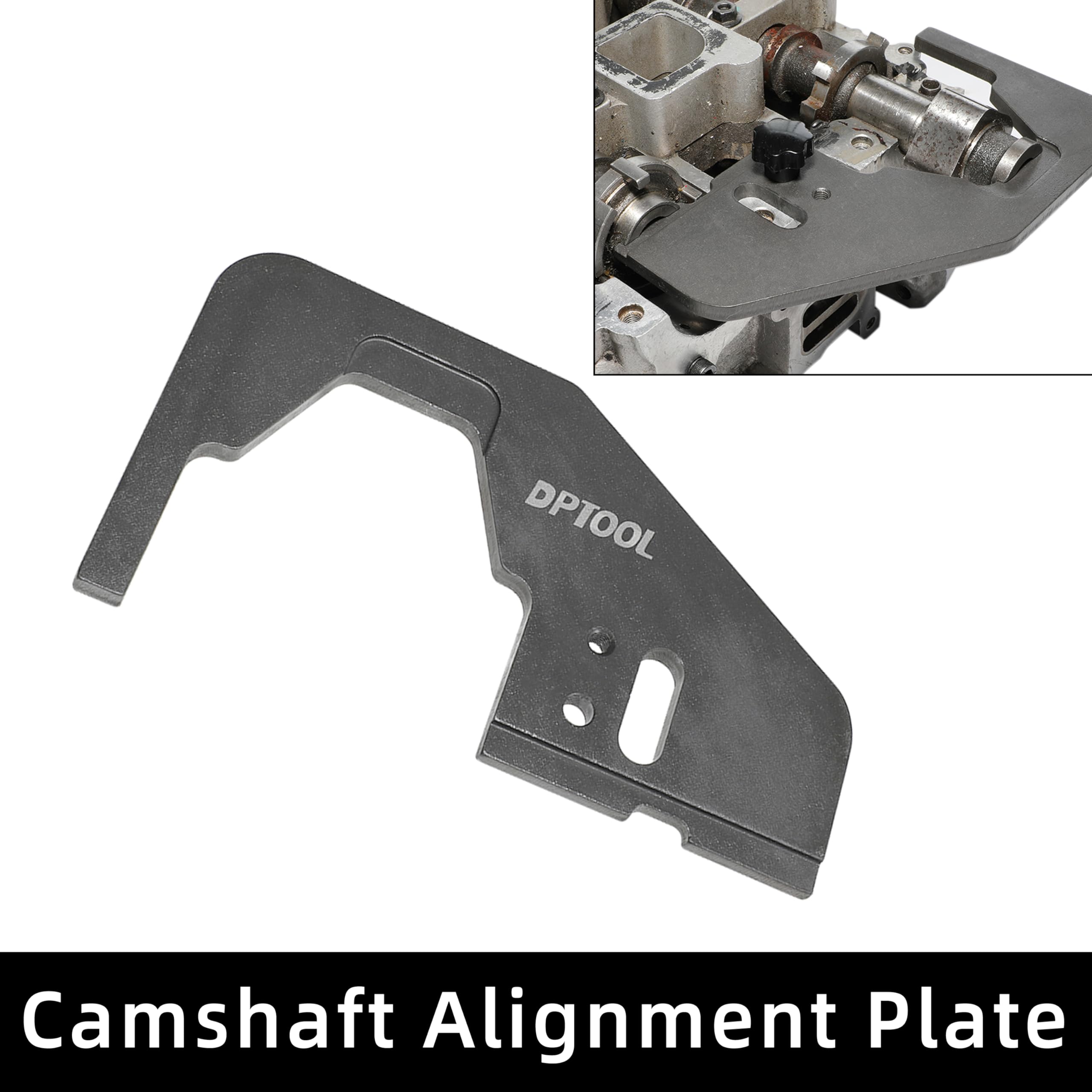

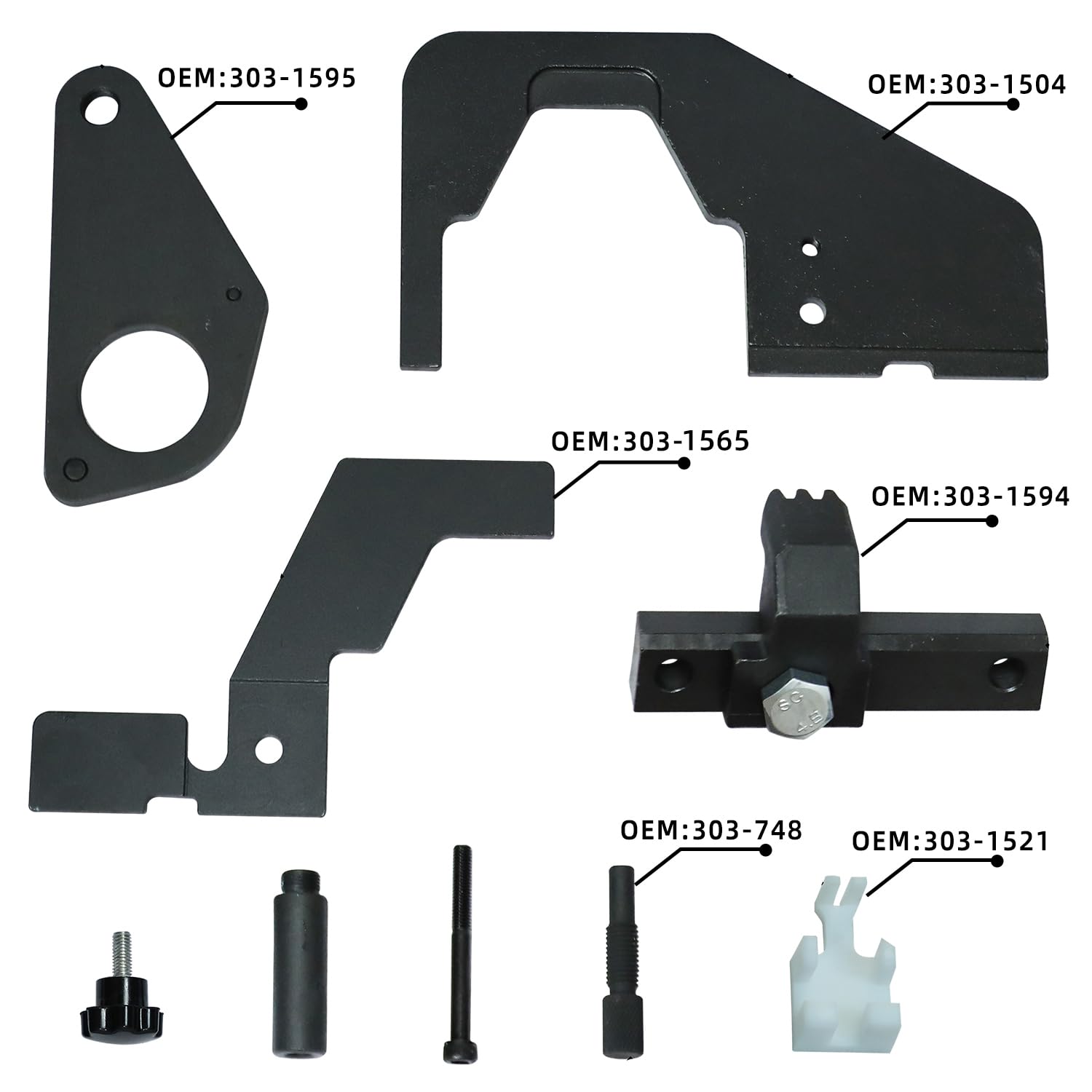

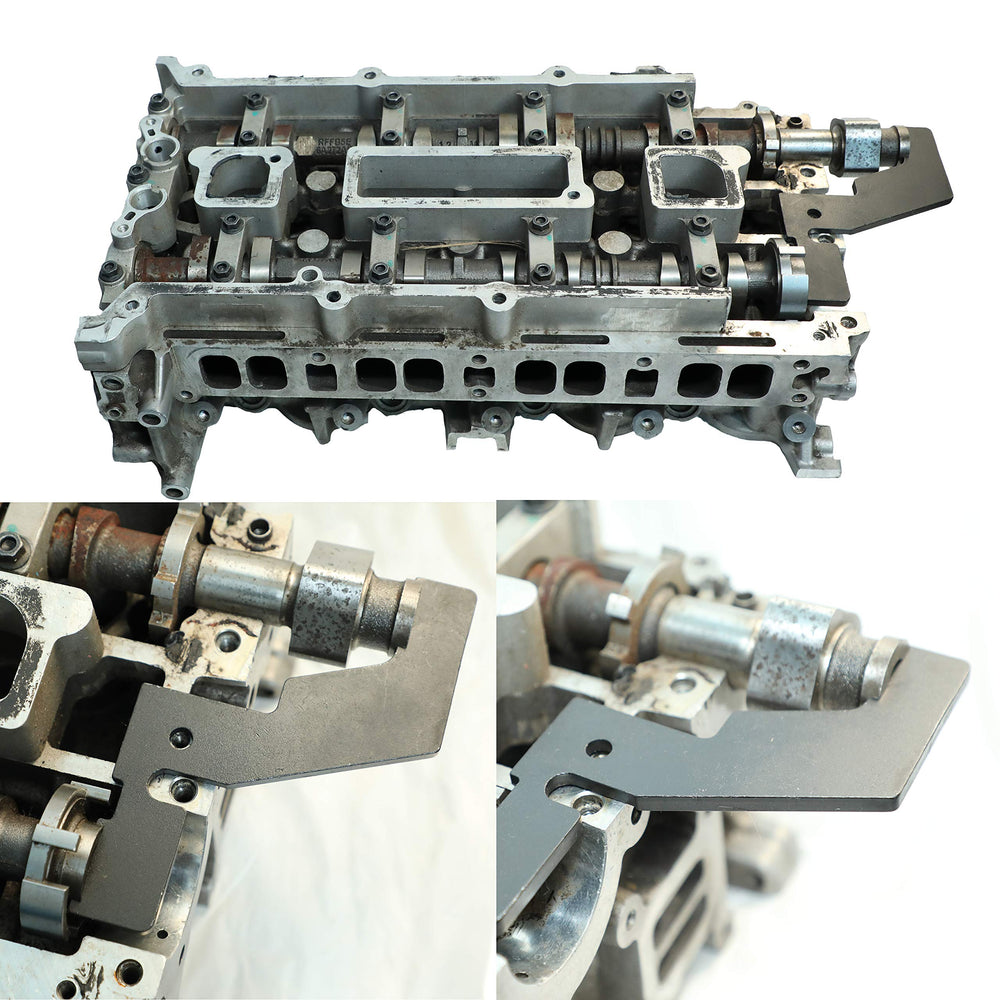

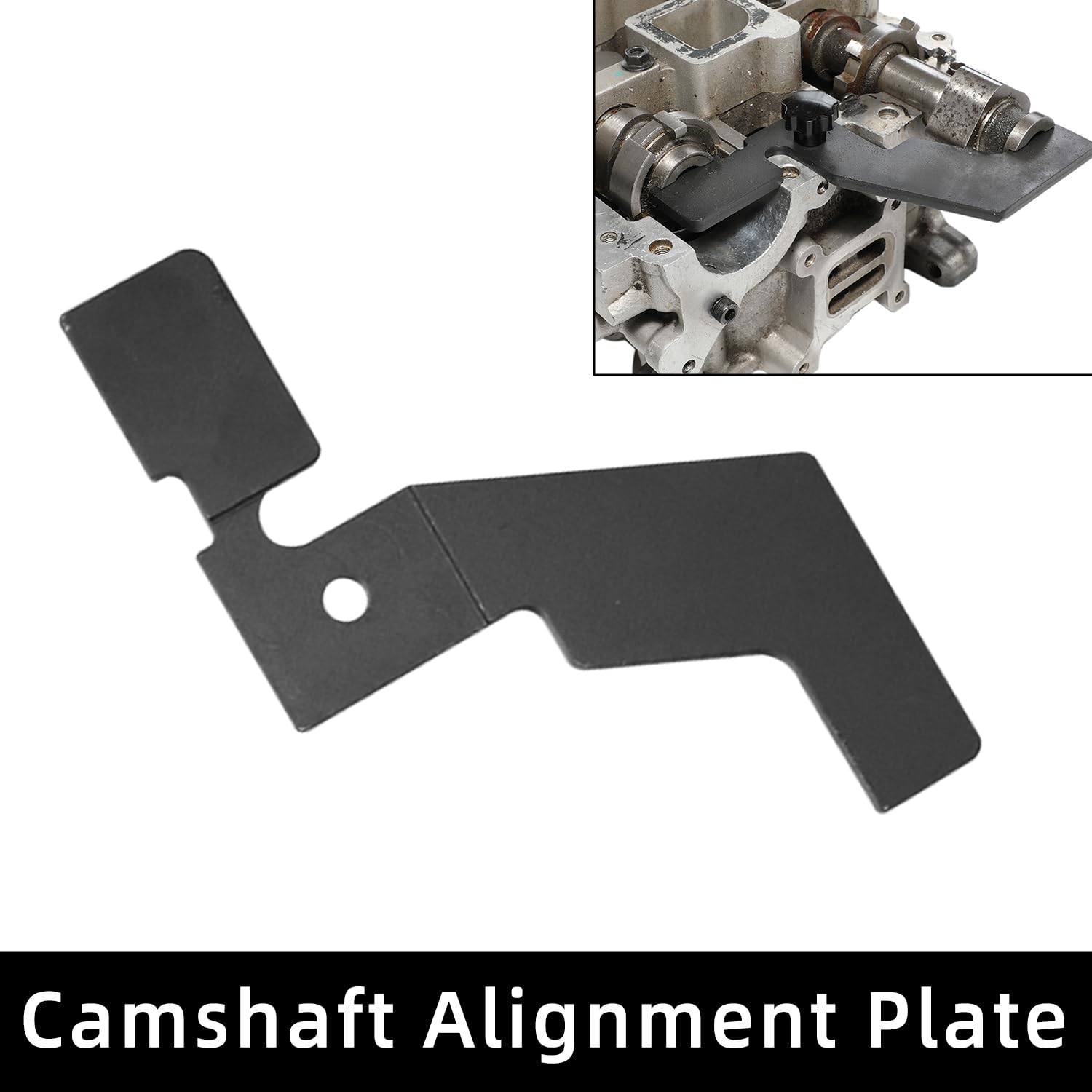

• 303-1565 camshaft alignment tool and 303-1504/303-1600 alignment plates
• 303-748 crankshaft setting pin and 303-1595 crank pulley alignment set
• 303-1594 flywheel holding tool and 303-1521 crank sensor alignment tool
• Screws, carry case and instruction manual for workshop use

How accurate and durable are the components for repeated workshop use?

Every piece undergoes engine testing to ensure fit and repeatability; the steel construction and hardened finishes provide long service life under shop conditions. Surfaces receive a black antioxidant coating to resist corrosion, and dimensions are engineered to meet OEM tolerances.

• Professional-grade steel with high hardness for durability
• Antioxidant exterior coating to prevent rust and wear
• Tested against engines to confirm fit with OEM-equivalent parts
• Designed for repeated use in professional and serious DIY environments

How do I use the kit safely and effectively during timing procedures?

Follow the included instruction manual and vehicle service manual steps: bring the engine to specified alignment marks, fit the matching alignment plate or pin, then secure the flywheel or camshafts with the holding tools before loosening components. Incorrect procedure can damage valves or pistons, so verify engine-specific instructions before starting.

• Set engine to TDC and confirm timing marks per service manual
• Install camshaft plates and crank pin in the order shown in instructions
• Use flywheel holding tool when removing or fitting the crank pulley
• Recheck all alignments after assembly and before first start

Who is this for: The DPTOOL Engine Timing Tool Kit is aimed at professional technicians, independent garages and competent DIY mechanics who work on Ford and related 2.0T/2.3T petrol engines. It is particularly useful for shops performing timing chain or belt replacement, head removal, or any repair requiring precise cam/crank positioning. If you need a reusable, OEM-referenced toolset that reduces assembly errors and speeds up timing procedures, this kit supplies a complete, workshop-ready solution.
