DPTOOL M12x1.25 Spark Plug Thread Repair Back Tap — 12mm Chaser, 42CrMo Alloy, Grease-Shaving Trap

The DPTOOL 12mm back tap is a compact M12x1.25 thread chaser designed to restore damaged spark plug threads without removing the cylinder head.

If a spark plug hole has been cross-threaded or the internal threads have been chewed, this DPTOOL back tap lets you cut and reform the M12x1.25 thread in place. Built from 42CrMo alloy steel (equivalent to 4140), the tool resists wear and impact so you can perform controlled thread repair. It traps metal shavings with grease to avoid dropping debris into the combustion chamber and can be used repeatedly until the thread is clean.

How does this tool repair a badly damaged spark plug hole?

The DPTOOL back tap expands into the damaged thread and progressively reforms the original M12x1.25 profile as you work it in and out. It removes burrs and reshapes the thread roots while holding cuttings in a lubricated channel so fewer metal particles fall into the cylinder.

• Expands inside the damaged bore to chase the original thread pitch
• Use a slow in-and-out motion to gradually remove material
• Grease on the shank captures metal shavings for safer extraction

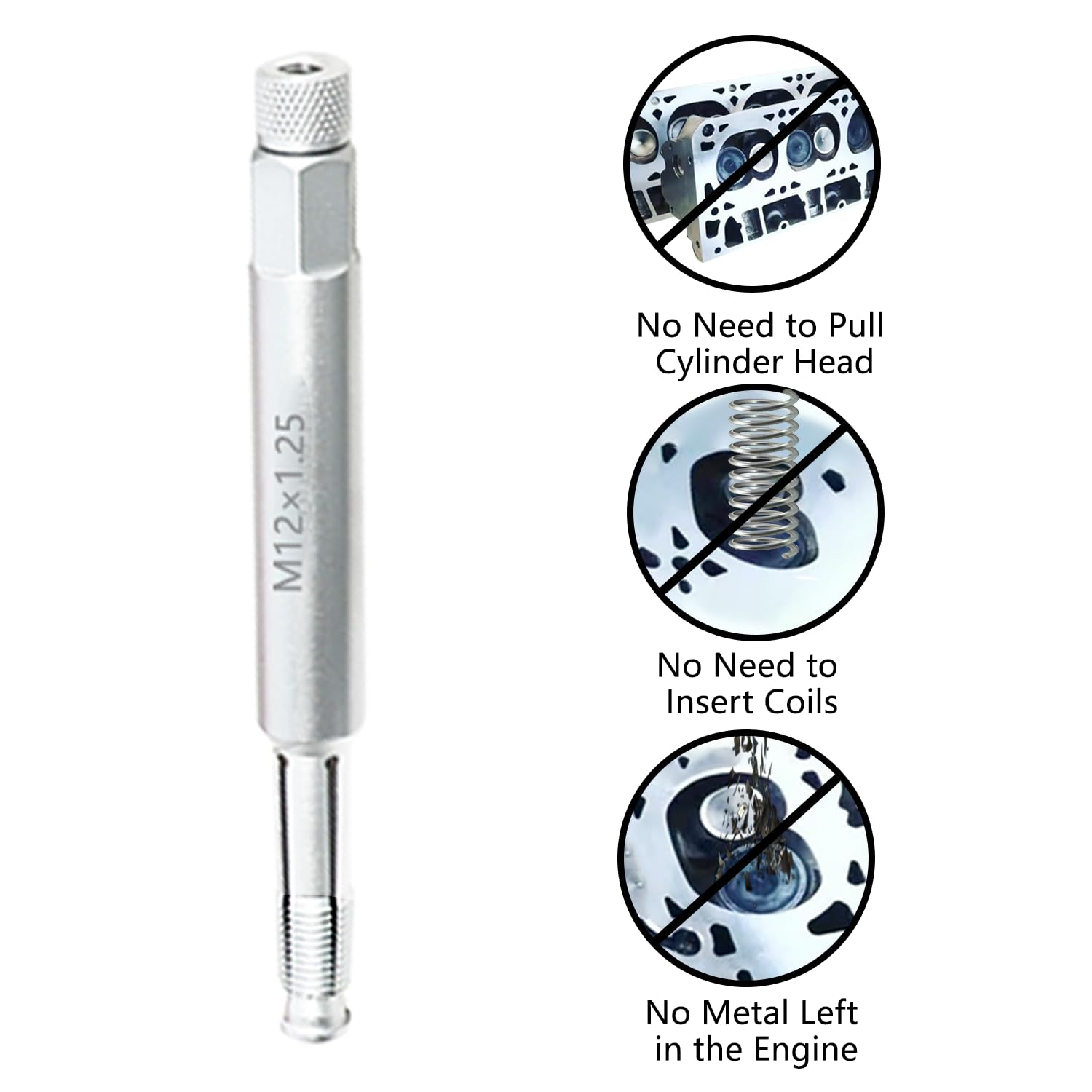

• No need to remove the cylinder head in most cases

What makes the DPTOOL 42CrMo material better for this task?

42CrMo alloy, similar to 4140 steel, combines high strength with good toughness and fatigue resistance after heat treatment. That makes the chaser less likely to chip or deform under the stresses of reforming metal threads.

• Quenched and tempered for impact resistance and durability
• High hardness maintains cutting edges during repeated use
• Less prone to tempering brittleness compared with lower-grade steels

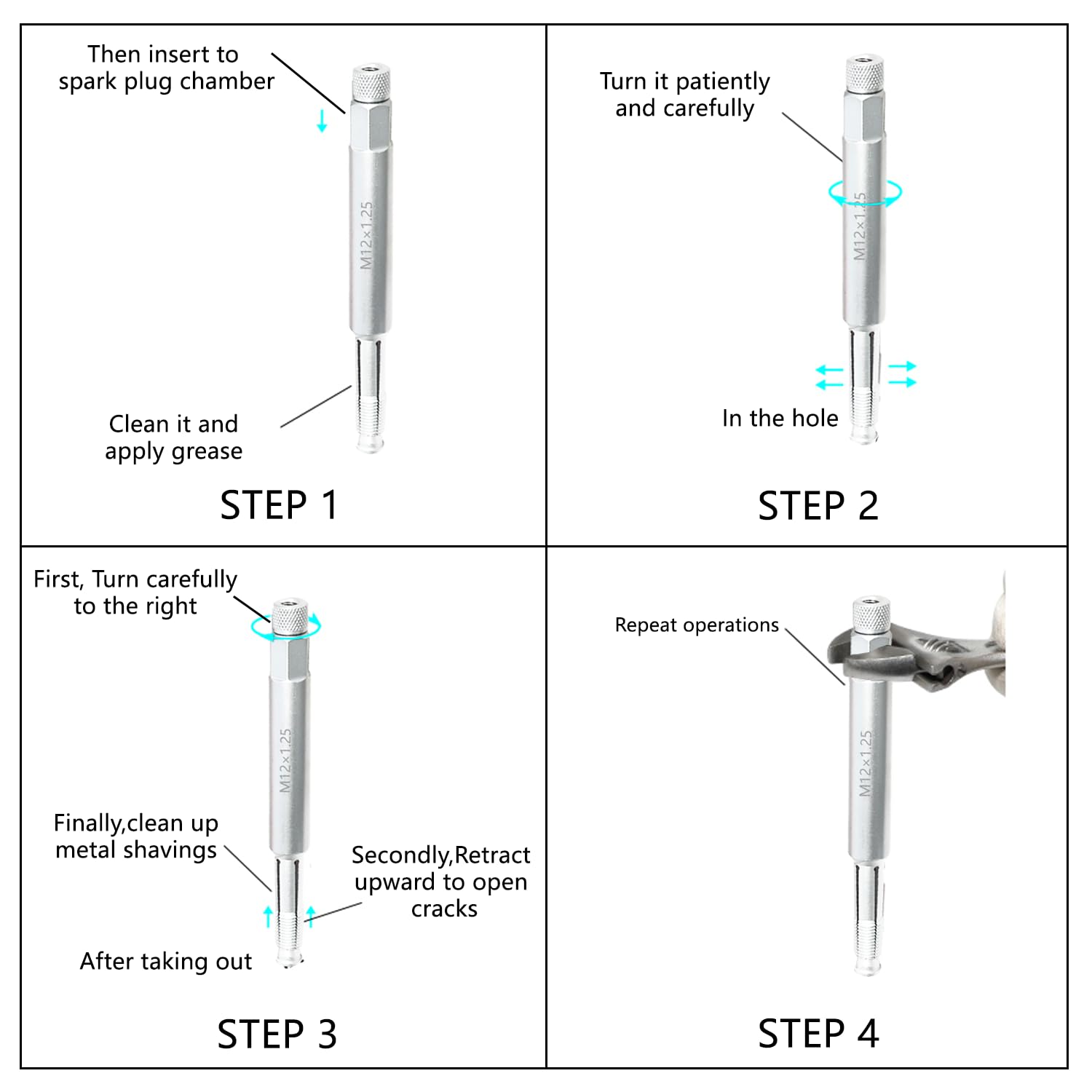

What is the correct technique to use the back tap safely?

Work slowly and deliberately: insert the tool straight, expand, then back-thread 3–5 times. When resistance increases, reverse slightly and then continue; alternating direction loosens material and prevents binding.

• Start straight through the hole and expand the chaser incrementally
• Rotate forward and backward, especially when turning gets tough
• Apply grease to trap shavings and pull debris out with the tool
• Proceed gently when you encounter hard patches to avoid sudden breakage

Will this tool drop metal shavings into the engine?

No—its intended use is to minimize debris falling into the combustion chamber by trapping shavings on a greased threaded section so they come out with the tool. While this greatly reduces contamination risk, always follow recommended cleanliness checks and visual inspection before reinstalling components.

• Grease applied to the threaded shank captures cuttings
• Shavings are removed when the tool is extracted rather than falling in
• Still recommend final cleaning and inspection of the bore before refitting plugs

Who is this for: The DPTOOL 12mm back tap is aimed at mechanics, home DIYers, and restoration specialists who need a reliable, portable way to recover M12x1.25 spark plug threads without pulling cylinder heads. It’s useful for automotive workshops, small engine repair, and anyone maintaining older vehicles where thread inserts aren’t desired. The tool’s robust 42CrMo construction and the included usage tips make it a practical addition to a professional toolkit or a well-stocked home garage. DPTOOL backs the product with a 12-month warranty for quality issues, offering replacement or refund if manufacturing defects arise.
