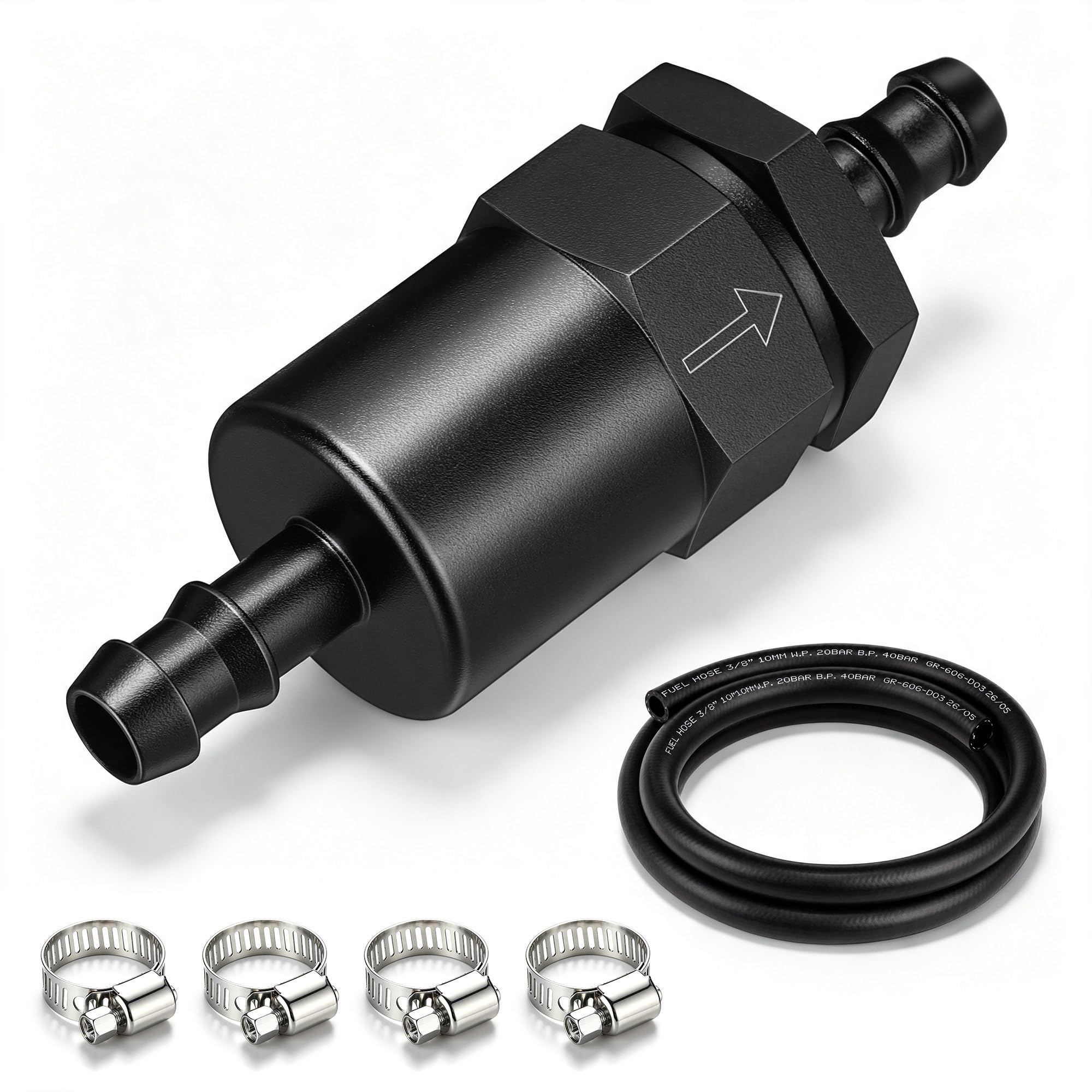

Dreyoo 3/8" Billet Inline Fuel Filter Kit — Black Anodized 30 μM Sintered Bronze + 2ft Hose

The Dreyoo 3/8" Billet Inline Fuel Filter Kit is a compact, reusable inline fuel filter with a 30 μM sintered bronze element, 2 ft of NBR fuel hose and four adjustable clamps for short fuel-line installations.

This all-in-one kit supplies the core parts needed to replace or reroute a short section of fuel line on EFI, carbureted, automotive or marine systems where a 3/8" barb connection is required. The filter body is machined from 6061-T6 billet aluminum with a black anodized finish for corrosion resistance and a tidy appearance, while the removable bronze element allows for periodic cleaning rather than disposable replacement. The included hose is rated for high working pressures and a wide temperature span, making it suitable for many external fuel-line uses when material compatibility is confirmed.

How does the Dreyoo kit protect fuel systems during normal use?

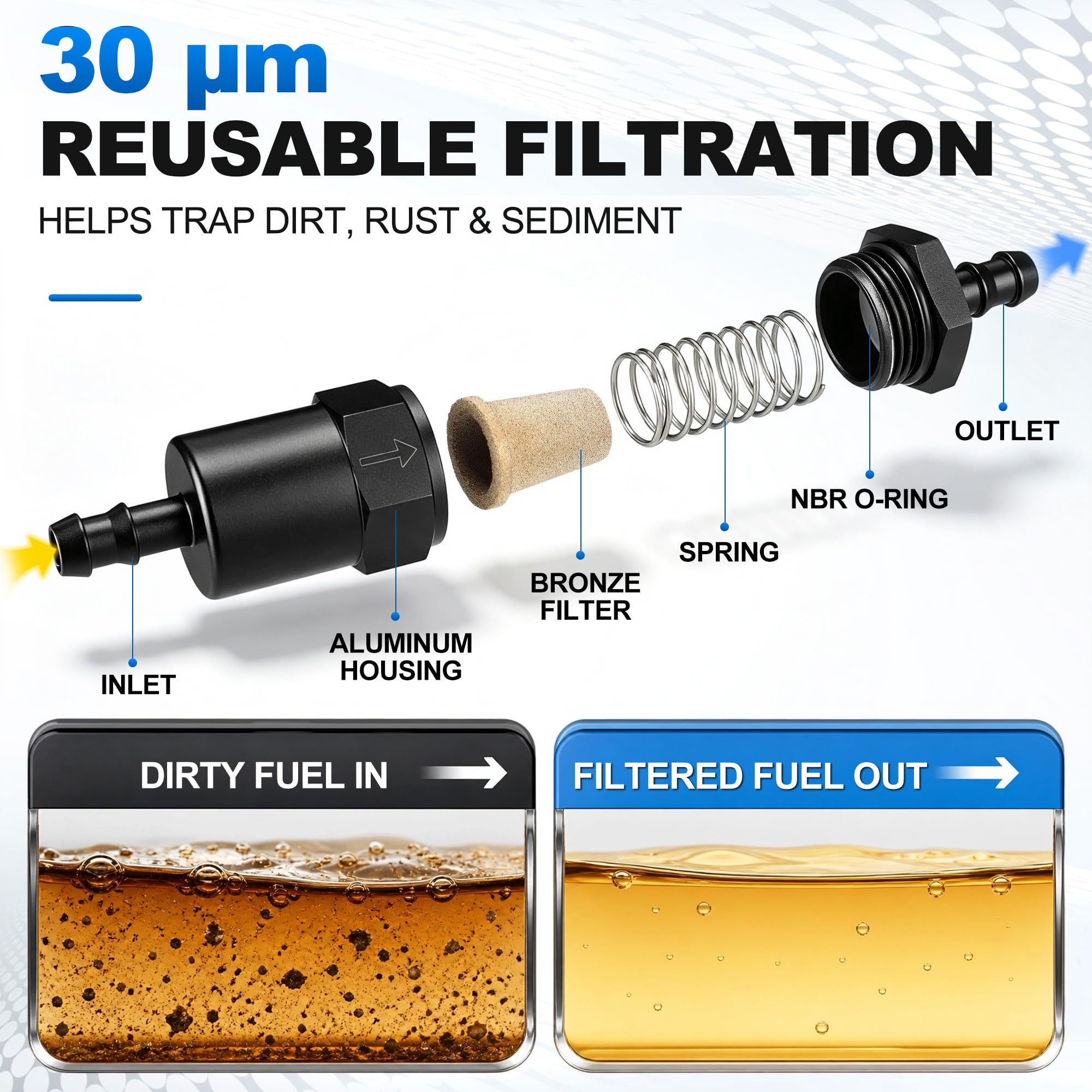

The kit traps contaminants and prevents sediment from reaching injectors or carburetor passages. Its sintered bronze element captures particles down to 30 μM, and the design supports high flow with minimal pressure loss to avoid starving the engine under load.

• Reusable 30 μM sintered bronze filter element for particle capture
• Flow capacity up to 900 LPH with under 1 PSI pressure drop

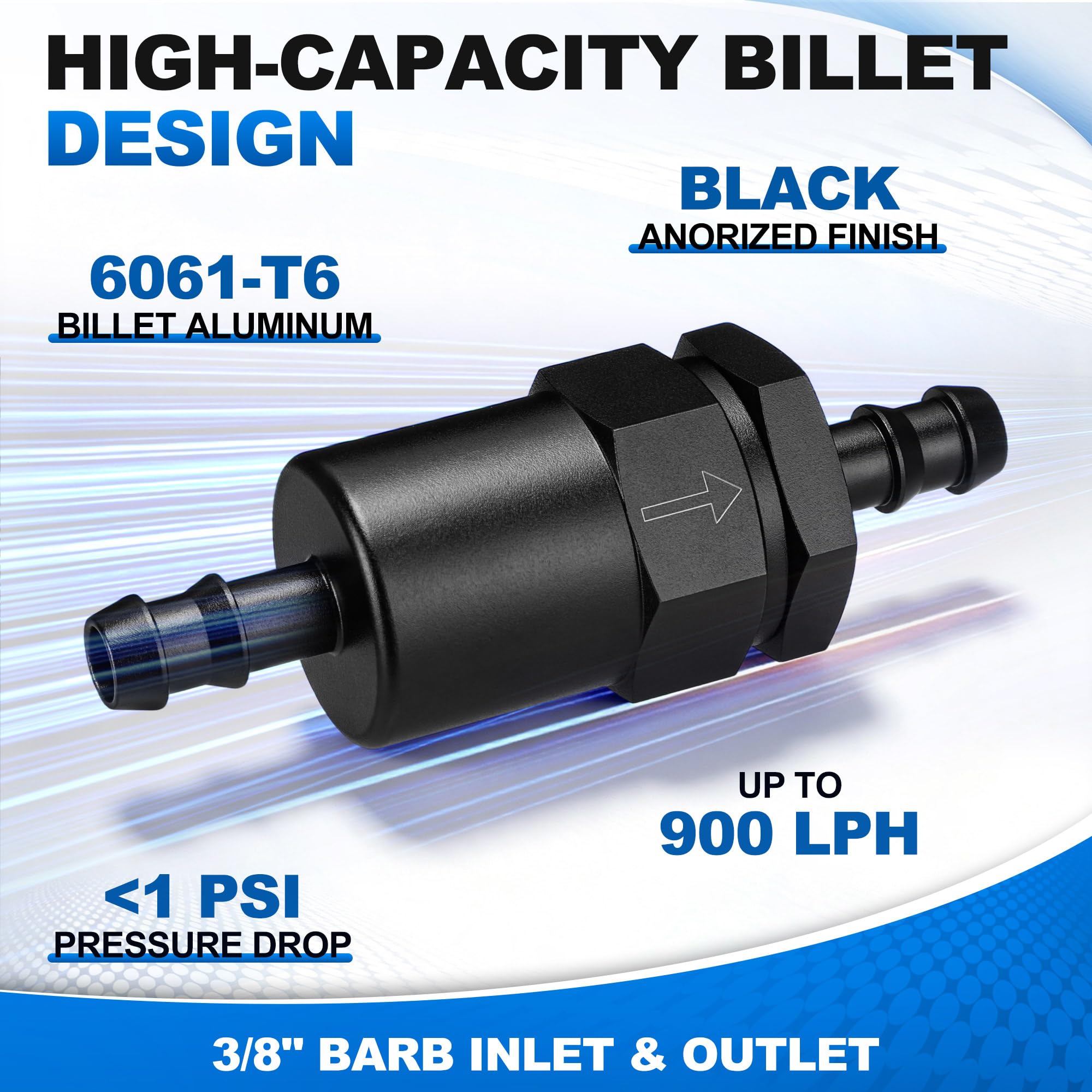

• Billet 6061-T6 aluminum body resists corrosion and handles vibration

What size and performance specs should I confirm before buying?

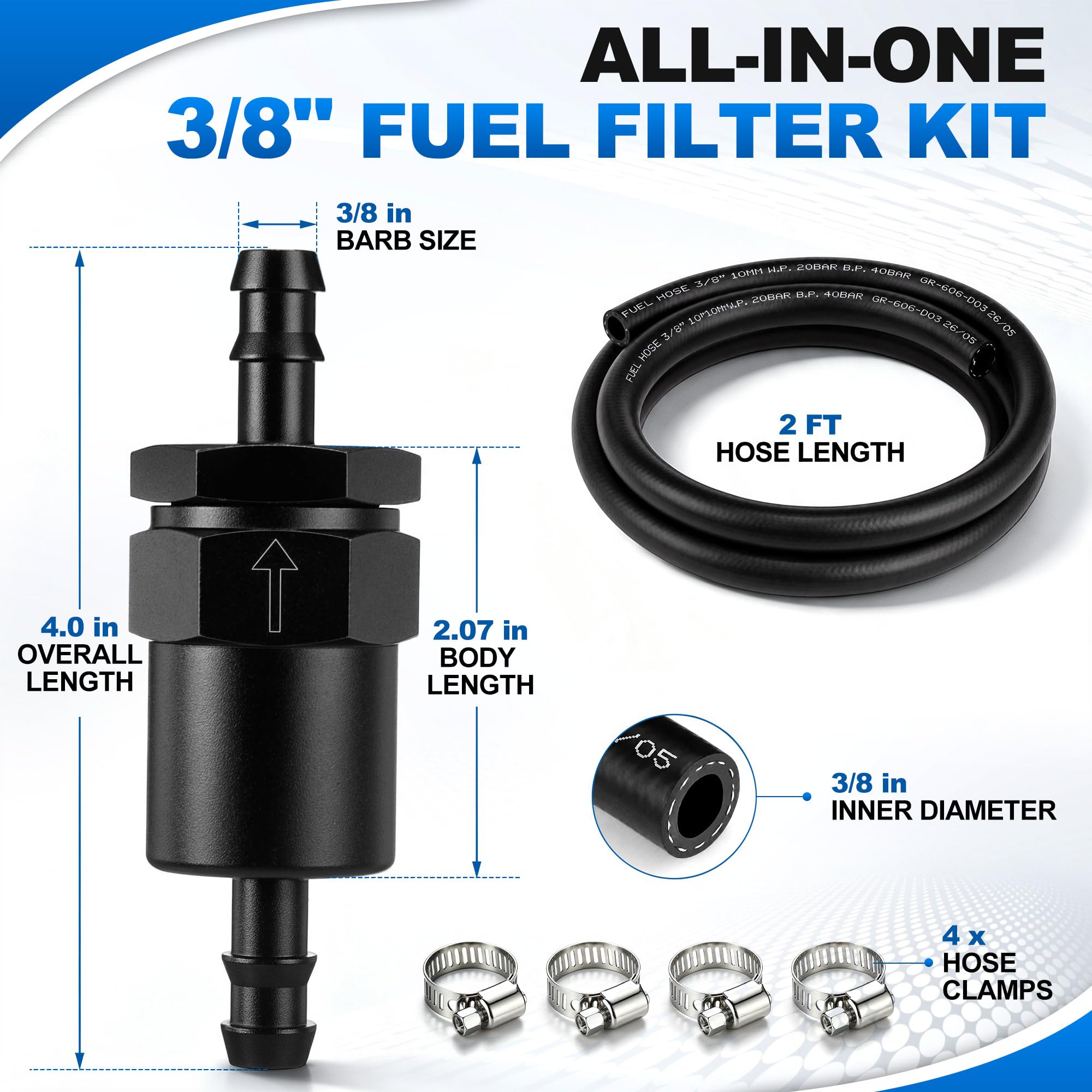

Match the kit to your fuel line inner diameter, expected operating pressure and the environmental temperatures where the hose will run. This kit is built for 3/8" ID lines and external fuel-line use only; verify clearance for the roughly 2.07" filter housing plus barbs.

• Filter inlet/outlet: 3/8" barb — fits 3/8" ID hose
• Hose: 3/8" ID (10 mm), 2 ft length, -40°F to 257°F rating
• Pressure: working 300 PSI, burst 1160 PSI — suitable for many external applications

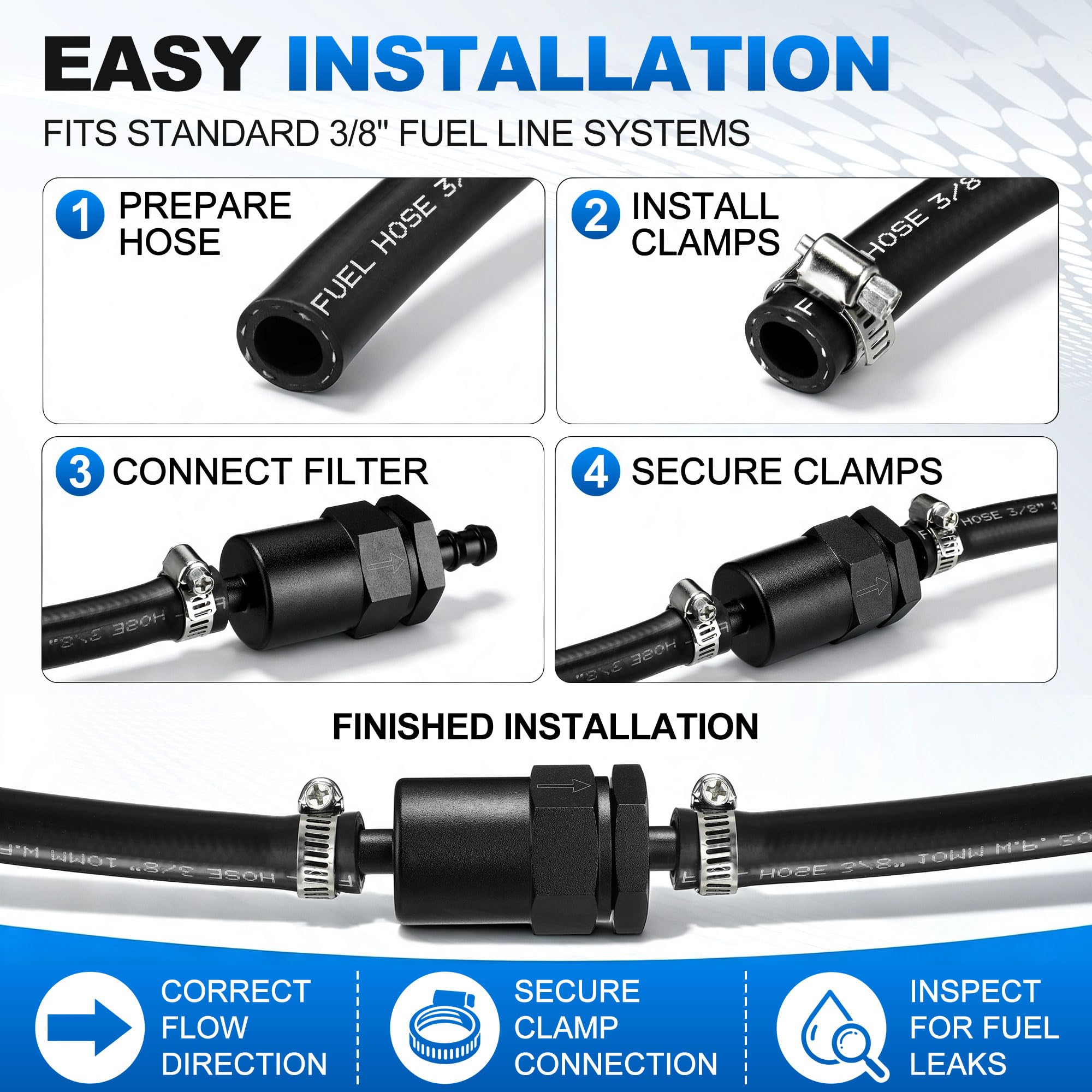

How do I install and maintain the inline filter and hose?

Installation is straightforward for experienced users: cut the fuel line, push hose onto barbs, and tighten clamps. Maintenance involves unscrewing the filter housing to remove, clean, and reinstall the sintered bronze element to restore flow and filtration efficiency.

• Cut line and slide hose over 3/8" barbs; secure with the supplied adjustable clamps
• Cleanable bronze element — remove, rinse, and reinstall during routine checks
• Avoid submersible/in-tank use; professional installation recommended for pressurized systems

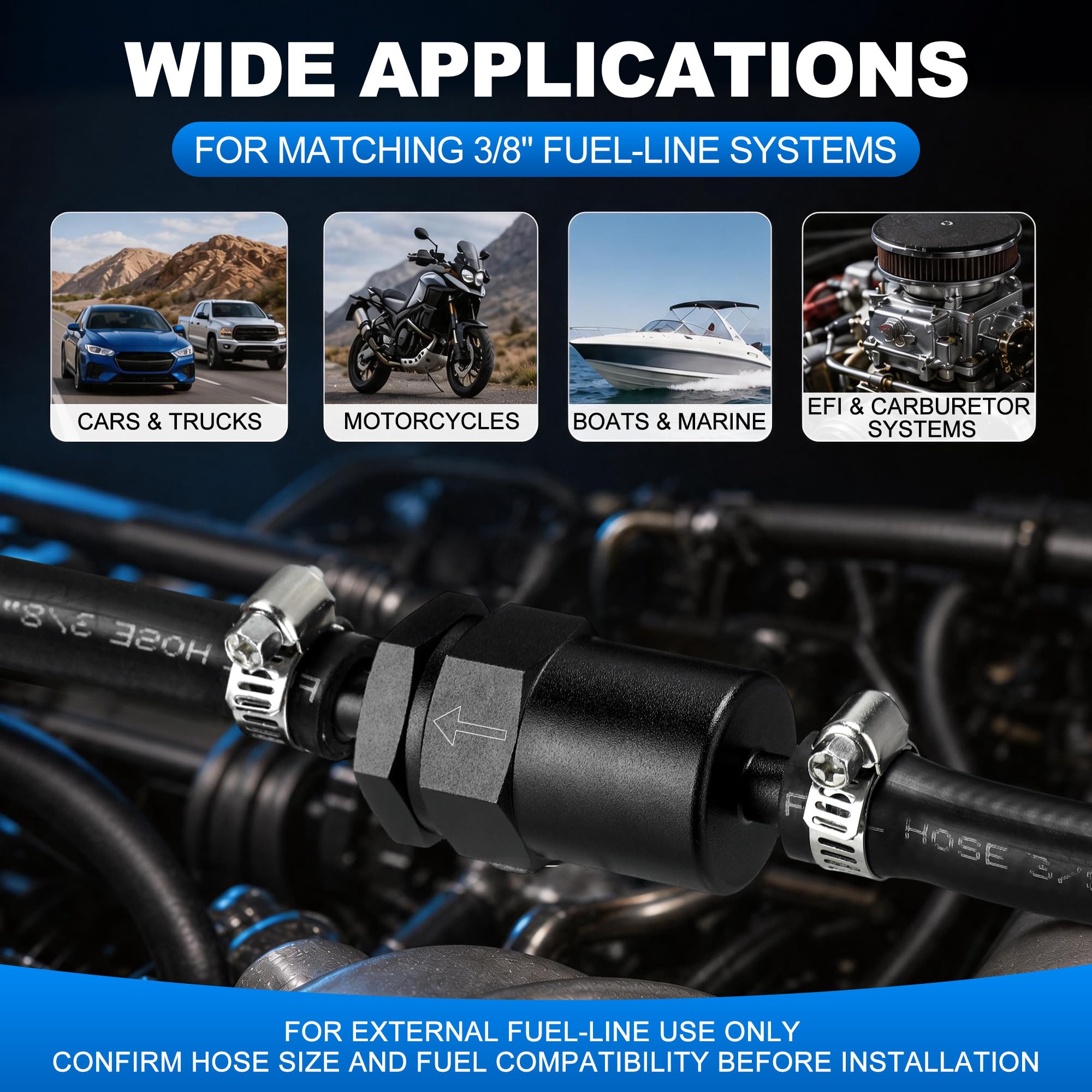

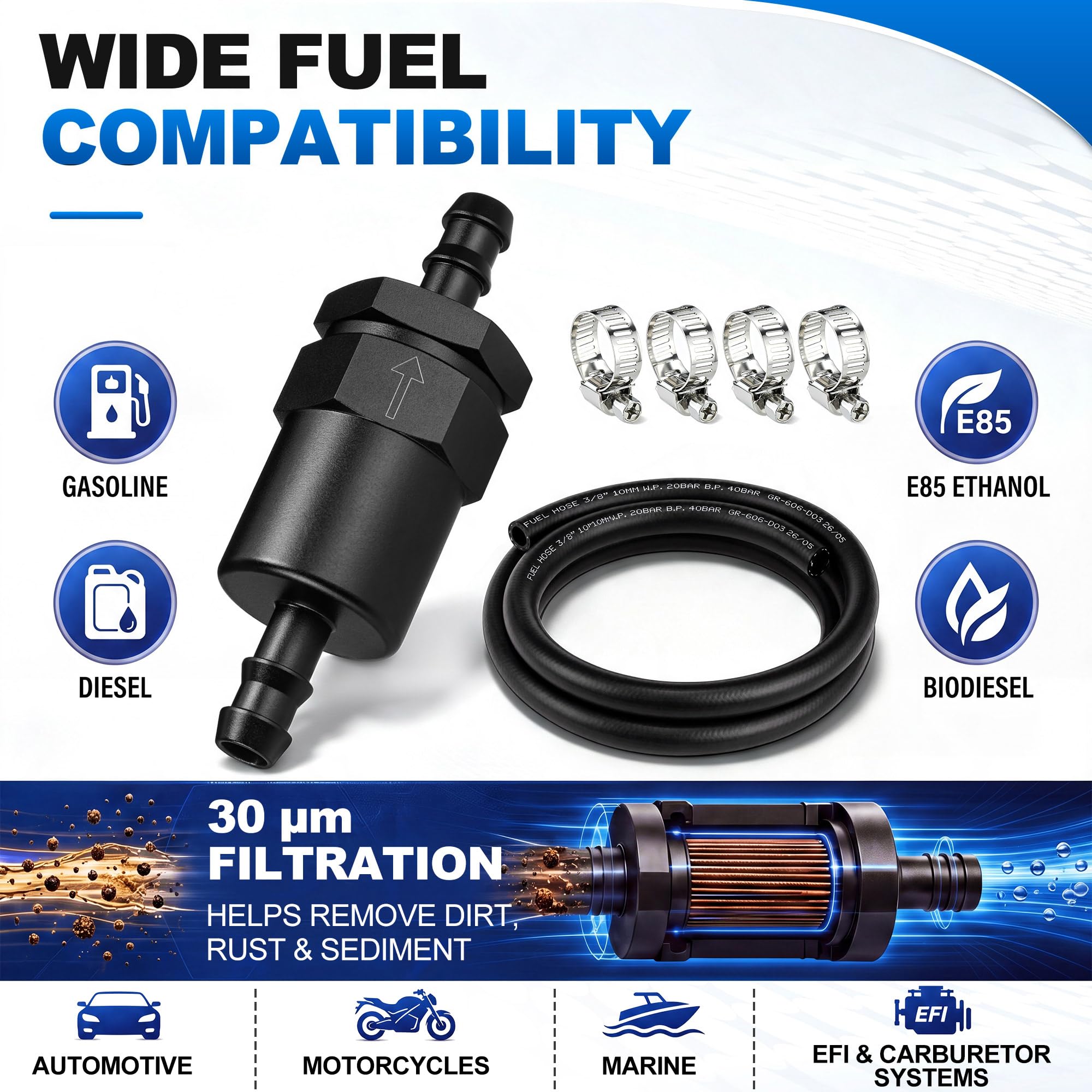

Will this kit work for marine, diesel or performance gasoline applications?

When the hose material and size match your system, the kit is suitable for many external fuel-line uses including gasoline, diesel and some biodiesel blends. Confirm chemical compatibility and system pressure before using in marine or performance setups, and keep the filter accessible for maintenance.

• Intended for external fuel lines in automotive and marine systems when compatible
• NBR hose tolerates a wide temperature range and common fuel types (check compatibility)
• Not designed for in-tank or submerged installations

Who is this for: The Dreyoo 3/8" Billet Inline Fuel Filter Kit is aimed at DIY mechanics, custom fabricators and professional technicians who need a compact, serviceable inline filter and a short run of high-pressure fuel hose. Choose this kit if you require a reusable filtration element, a durable billet aluminum housing in a compact footprint, and a ready-to-install hose and clamps for brief fuel-line repairs, replacements or custom routing. Always confirm dimensional fit, fluid compatibility and system pressure before installing; consider professional installation for pressurized fuel circuits.
