E-Shin HVAC Mode Actuator for Honda CR-V 2007-2011 — 79140-SWA-A01 Main-Mode, direct-fit replacement

The E-Shin 79140-SWA-A01 HVAC air blend door actuator is a direct-fit replacement that controls vent mode selection on 2007–2011 Honda CR-Vs to restore proper airflow direction.

When vents stop switching between floor, panel, and defrost or you hear clicking behind the dash, the mode actuator is often the cause. This aftermarket unit is built to match OEM fit and function for the Main-Mode position on Honda CR-V model years 2007 through 2011, offering a user-replaceable option to regain reliable vent control without replacing the entire HVAC assembly.

How will this actuator affect vent direction and cabin comfort?

Replacing a failing mode actuator returns the HVAC system’s ability to route air to the chosen vents—floor, dash, or defrost. That means your selected ventilation mode will engage reliably and consistently instead of getting stuck or switching unexpectedly.

• Restores correct vent routing between floor, panel, and defrost outlets
• Eliminates intermittent or constant clicking noises from the dash
• Improves passenger comfort by delivering air where you want it
• Compatible with Honda OEM part numbers 79140-SWA-A01 and 604-373

Is this E-Shin part an exact replacement and easy to install?

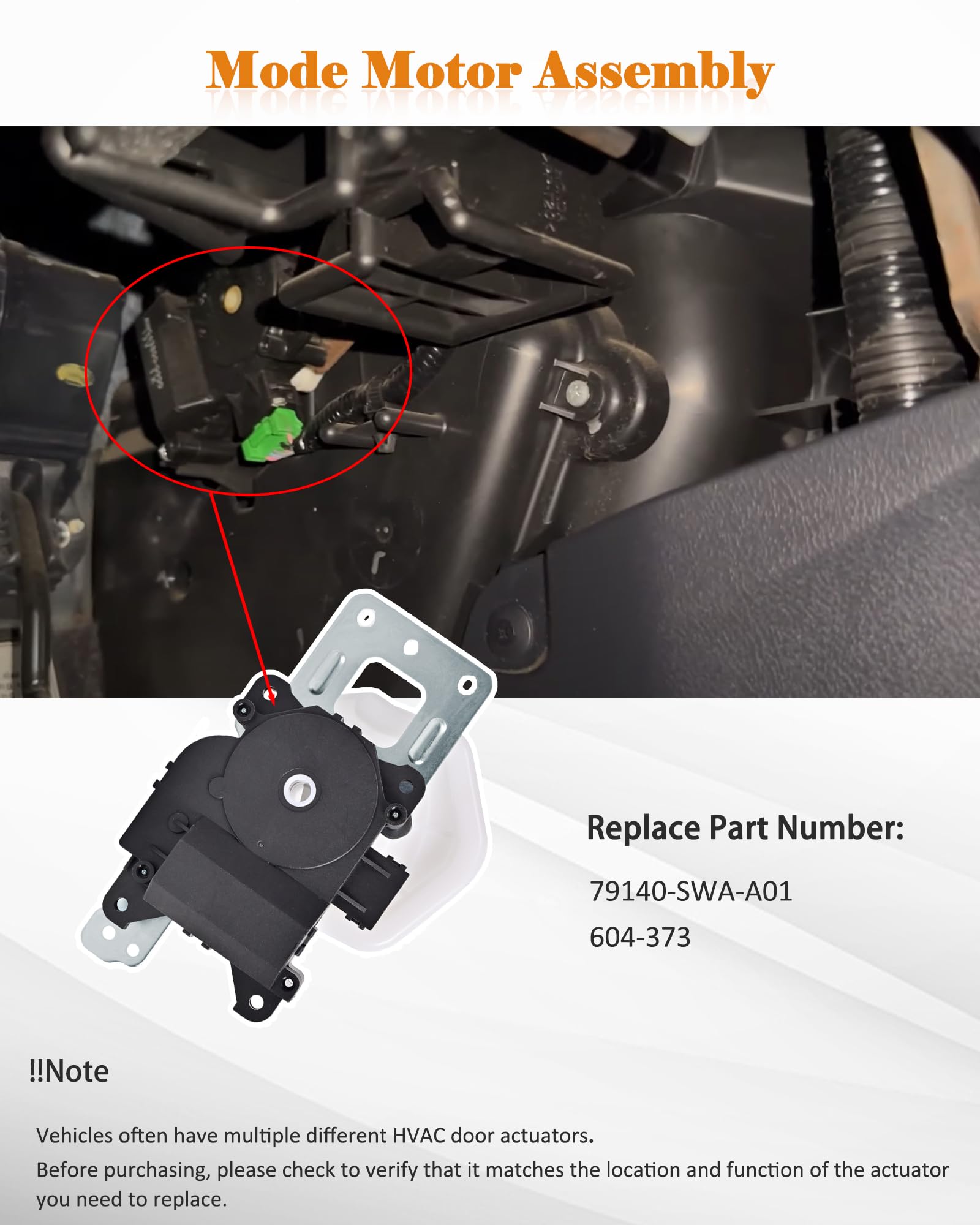

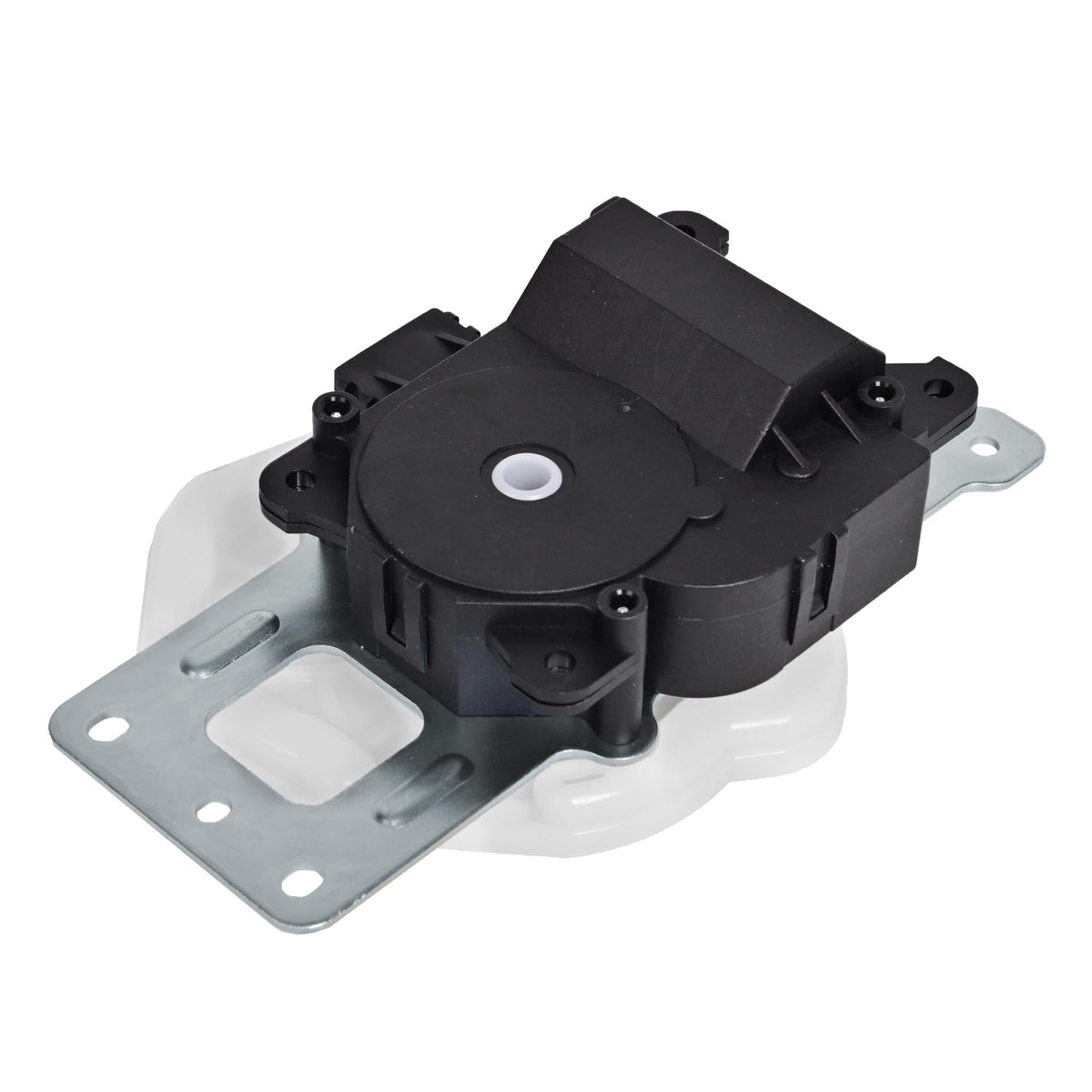

This actuator is manufactured to match the original mounting points, connector type, and gear orientation for Main-Mode applications on specified CR-V years, so it installs like the factory part. Basic hand tools and access behind the glove box or dash panel are typically all that’s required.

• Direct-fit replacement for Main-Mode actuator on 2007–2011 CR-V

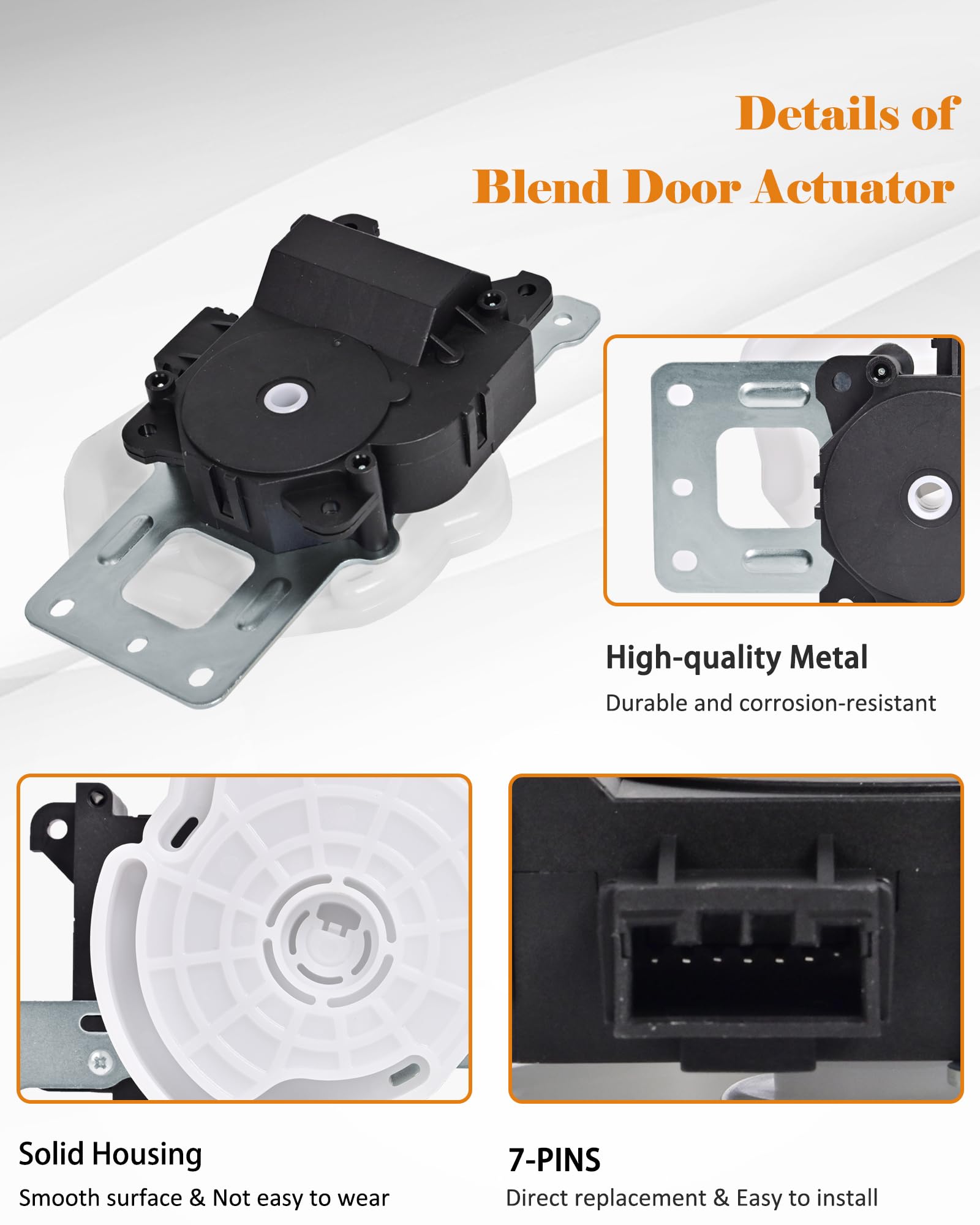

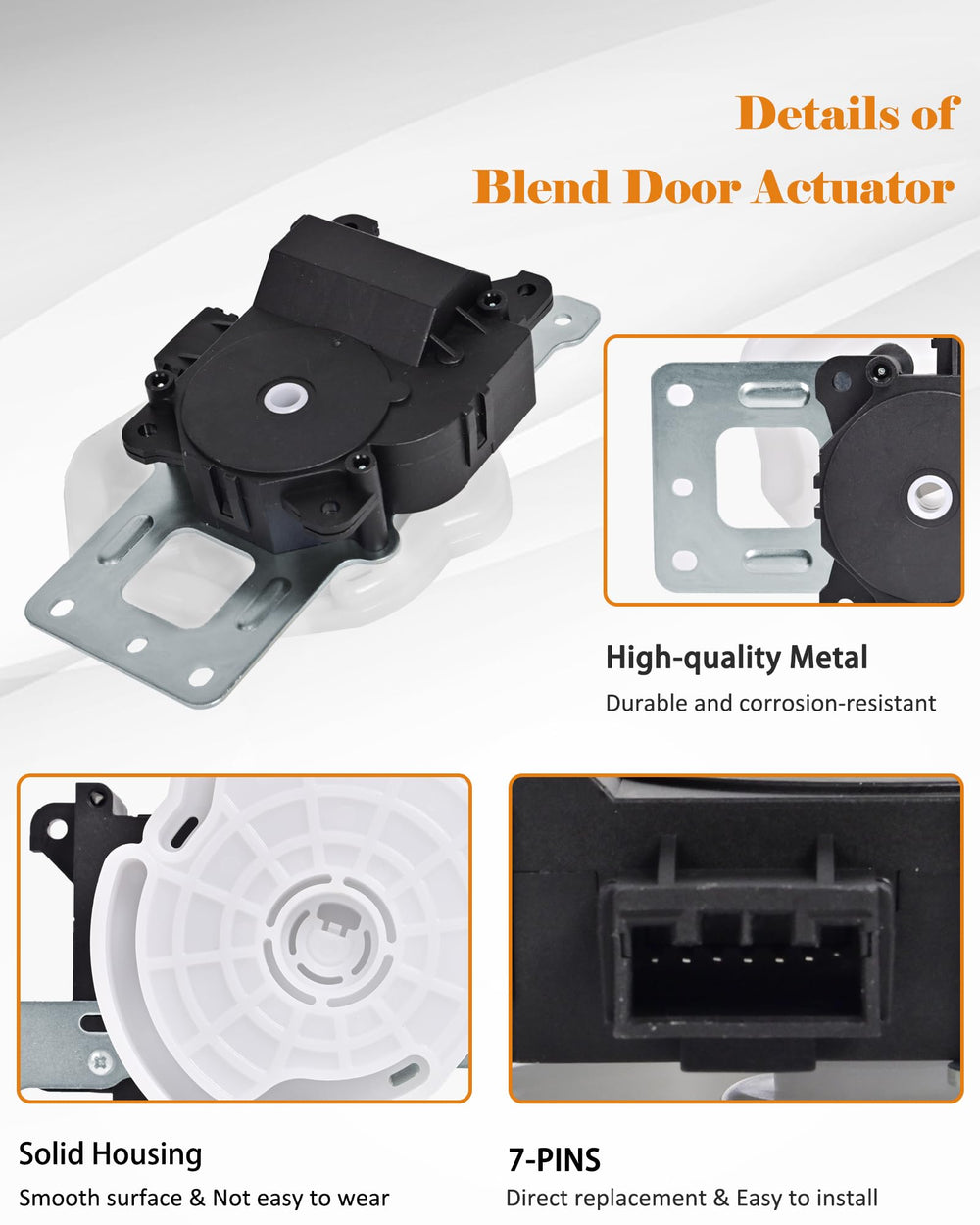

• Same electrical connector and bolt pattern as the OEM part
• Installation usually requires limited disassembly—no special tools
• Please confirm actuator type (MODE vs BLEND vs RECIRCULATION) before ordering

What materials and testing ensure this actuator’s durability?

The unit uses durable ABS housing and a high-performance control chip to resist wear and electrical stress found in HVAC systems. Each actuator is tested to reduce the risk of premature failure and to provide a long service life comparable to OEM components.

• Robust ABS housing for heat and vibration resistance
• High-performance motor and electronic controls to prevent burnout
• Quality testing to verify gear engagement and electrical function
• Backed by a one-year manufacturer warranty for buyer confidence

Which vehicles and part numbers does this actuator fit?

This E-Shin mode actuator replaces Honda part numbers 79140-SWA-A01 and 604-373 and fits Main-Mode applications on Honda CR-Vs from model years 2007 through 2011. It is not the recirculation or blend temperature actuator—verify your vehicle’s failing actuator before purchasing.

• Fitment: 2007, 2008, 2009, 2010, 2011 Honda CR-V — Main Mode
• Replaces: OEM 79140-SWA-A01 and 604-373
• Not compatible with BLEND (temperature) or RECIRCULATION actuators
• Use confirmed fit tools or inspect existing actuator label to be certain

Who is this for: drivers and DIY mechanics who own a 2007–2011 Honda CR-V and need a reliable, affordable Main-Mode actuator replacement to fix incorrect vent routing or dash noises. It’s designed for people who prefer a direct-fit aftermarket part that restores OEM-style function without extensive HVAC repairs. If you’re unsure which actuator your vehicle needs, check the existing part number or consult a technician before ordering to ensure you select MODE rather than BLEND or RECIRCULATION.
