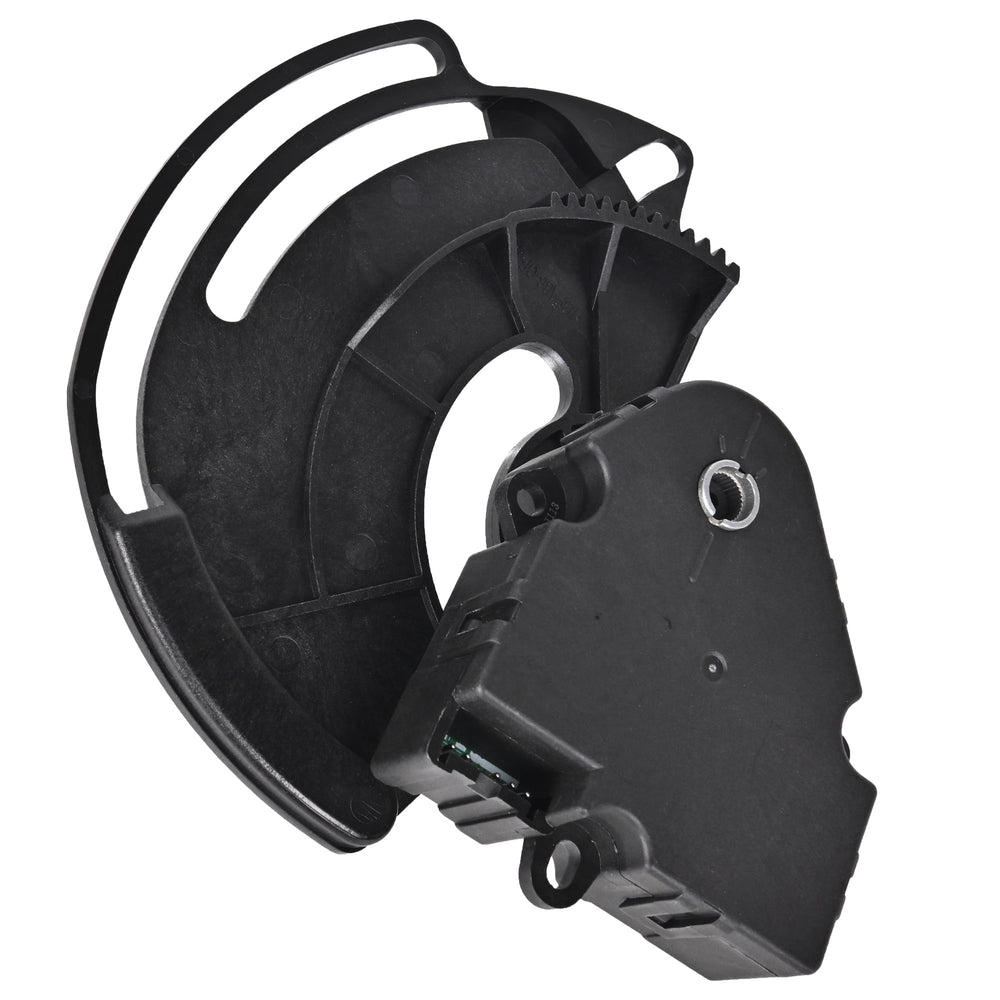

E-Shin HVAC Mode Door Actuator — Direct-Fit for 1999–2002 Chevy/GMC/Cadillac, OEM-Style Replacement

If your vehicle is failing to switch between defrost, floor and dash vents or you hear clicking from the dash when you change modes, the actuators that control the HVAC doors are often the cause. The E-Shin 604-113 actuator is built as a replacement for original part numbers 1572505 and 52473356, offering an affordable way to re-establish reliable airflow control without replacing the entire HVAC unit.

How does this actuator restore proper airflow direction?

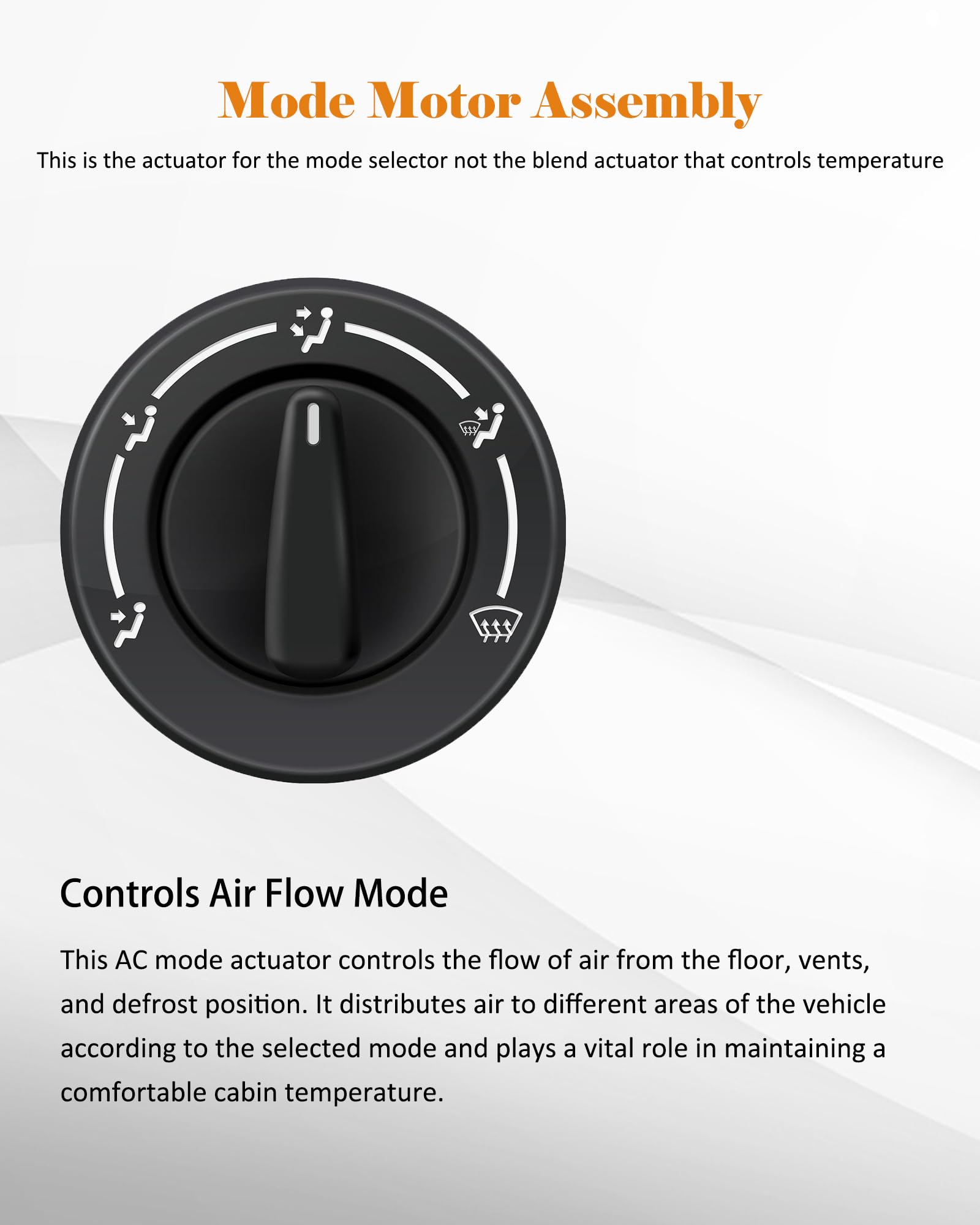

The actuator replaces the mode motor that moves the internal doors directing air to defrost vents, floor outlets or face vents. When the gear or motor in the original fails, airflow gets stuck in a single position; swapping in the E-Shin unit returns smooth, electronic control of the doors.

• Restores motion to blend and mode doors for correct vent selection
• Matches OEM mounting points and electrical connector for straightforward replacement
• Re-establishes reliable motorized gear engagement for accurate positions

Which vehicles will this 604-113 actuator fit?

The unit is designed to fit a range of late-1990s to early-2000s GM trucks and SUVs. Verify compatibility by comparing the listed part numbers or your vehicle’s year/model; note a few V8 exceptions for 2000 Tahoe and 2000 Yukon models.

• Fits Chevy Avalanche, Silverado, Suburban and Tahoe (selected years and models)
• Fits GMC Sierra, Yukon and Yukon XL (selected years and models)
• Fits Cadillac Escalade and Escalade EXT (2002) — replaces part numbers 1572505/52473356

Is installation complicated and what should I expect during replacement?

Installation is typically straightforward for a competent DIYer and requires no special tools beyond common hand tools. The actuator mounts into the HVAC housing and uses the factory connector; after installation the HVAC system may need recalibration so the new motor syncs with the control unit.

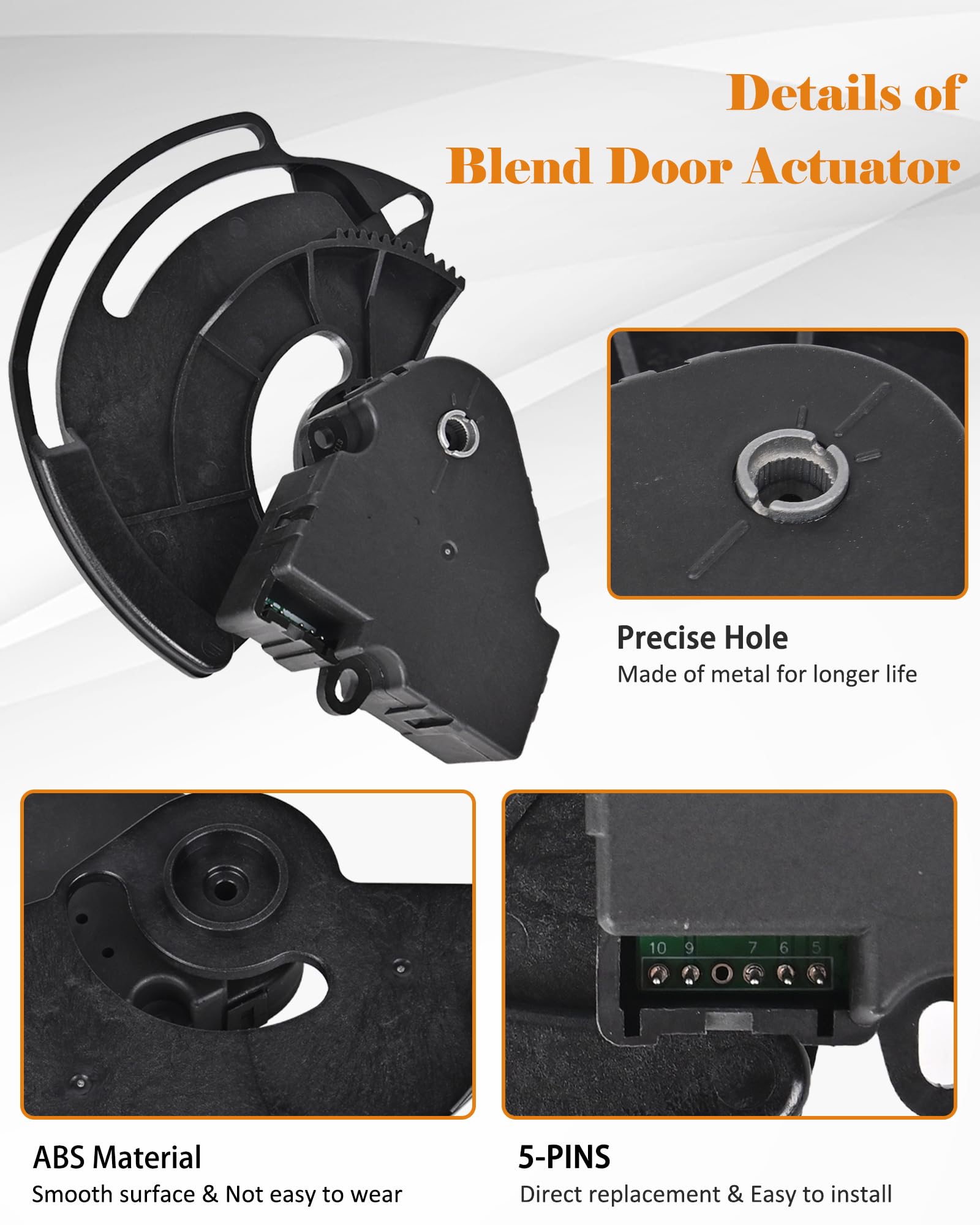

• Direct-fit design uses factory screw locations and electrical plug
• No major HVAC disassembly on most models — usually dash access behind glovebox or lower dash
• Recalibrate the system after install to ensure correct vent positions

What does this part replace and what are the key performance points?

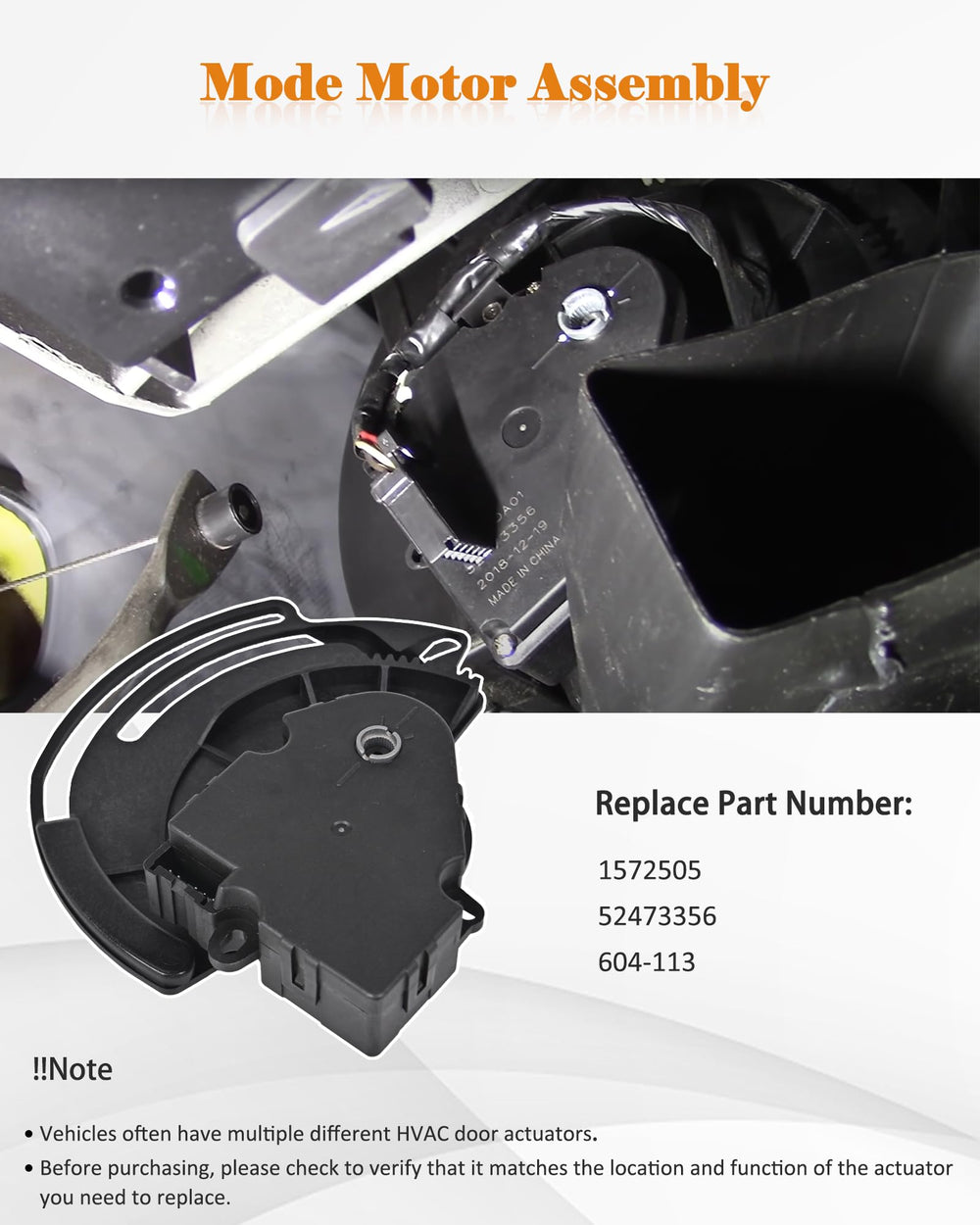

This E-Shin actuator is offered as an aftermarket replacement for OEM part numbers 1572505, 52473356, 604-113 (604113). It functions like the original mode motor to deliver accurate vent selection and consistent operation under normal use.

• Replaces worn or broken gear or motor assemblies to stop clicking and mispositioned vents
• Built to match factory fit and electrical interface for reliable operation
• Use as a cost-effective alternative to a dealer HVAC module repair

Who is this for: This actuator is for owners and technicians working on compatible 1999–2002 GM light trucks and SUVs, or 2002 Cadillac Escalade models, who need a dependable replacement for a failing HVAC mode or blend door motor. It’s suited to DIY mechanics comfortable removing lower dash panels or glovebox components, and to repair shops seeking a direct-fit aftermarket option that restores vent control without replacing the entire HVAC assembly.
