EAPP Main Battery Fusible Link Assembly for Ford F-150 (250A/125A) direct-fit replacement kit with terminal & hardware

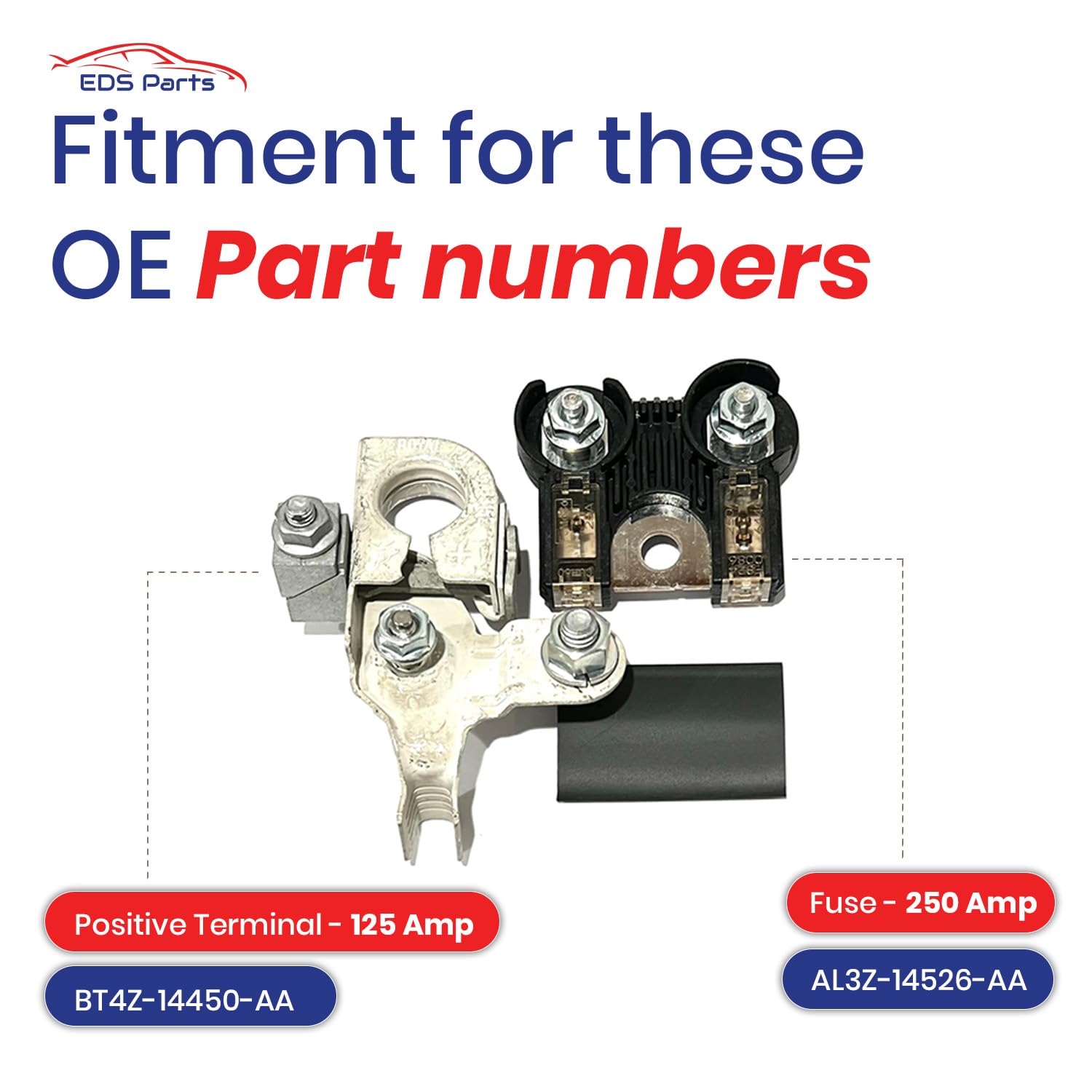

The EAPP EDS AL3Z-14526-AA is a direct-fit replacement main battery fuselink and positive terminal assembly (250A/125A) engineered to restore OEM-style power distribution for Ford F-150 and compatible Ford trucks.

When a truck’s primary fuselink or battery terminal shows wear, corrosion, or has been damaged, it can cause unstable starting, charging issues, or intermittent electrical faults. This EAPP assembly replaces the factory AL3Z-14526-AA fuselink and BT4Z-14450-AA positive terminal with a complete kit that matches original specifications so the vehicle’s main power and protective circuit behave as intended. The product is supplied with the fuselink, terminal, hardware, and shrink tubing for a one-stop installation.

Which vehicles and model years will accept this fuselink and terminal?

This assembly is manufactured to fit a range of Ford trucks that used the AL3Z-14526-AA and BT4Z-14450-AA parts. It is a direct-fit replacement for many F-Series pickups and related models built in the early 2010s.

• Ford F-150 (2011–2014)
• Ford F-250 (2011–2014)
• Lobo and Mark LT models from 2011–2014
• Selected Ford vehicles that originally used AL3Z-14526-AA / BT4Z-14450-AA

How does the dual 250A/125A rating protect my truck’s electrical system?

The fuselink’s dual amperage rating provides primary protection for major circuits while matching the factory intent for staged protection. It guards the starter, alternator feed, and main power distribution points against overloads and short circuits without altering the original electrical architecture.

• 250 amp rating for the primary heavy-current feed
• 125 amp stage for downstream circuit protection
• Prevents damage to wiring and major components during faults
• Maintains factory protection strategy for diagnostics and repairs

What parts and hardware are included, and what tools will I need?

The kit arrives ready for installation with all the mechanical pieces required to attach the fuselink to the battery positive terminal and the vehicle power stud. Basic hand tools are sufficient for most installs, and heat-shrink tubing is supplied to protect exposed connections.

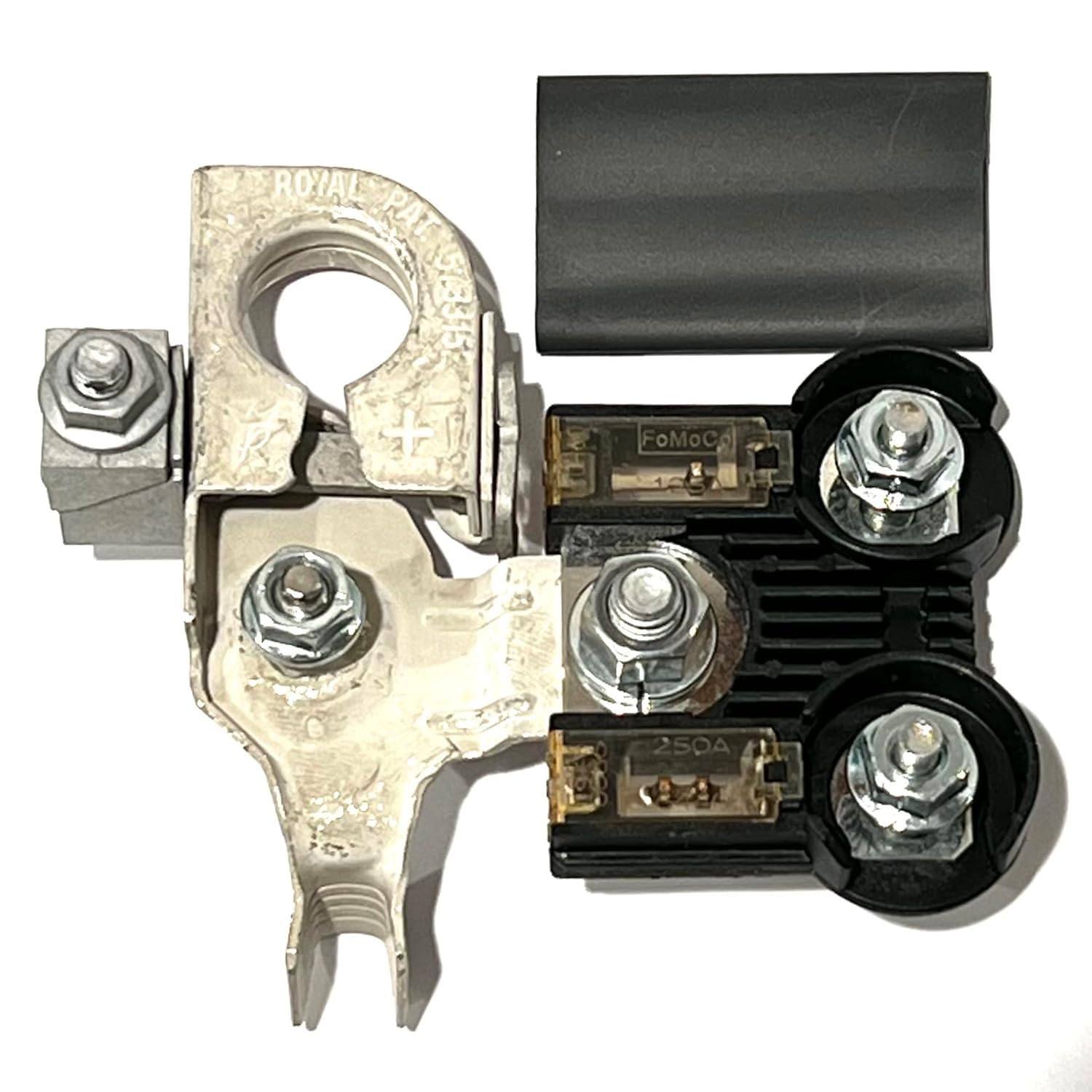

• Replacement fuselink matching AL3Z-14526-AA specifications
• BT4Z-14450-AA style positive battery terminal
• Three 6mm nuts and one 8mm locking nut included
• Heat-shrink tubing for insulating the finished connection
• Recommended tools: ratchet, 6mm and 8mm sockets, wire brush, safety gloves

Is installation suitable for DIYers or should I see a technician?

The assembly is designed for straightforward replacement and many competent DIYers can complete the swap safely, but technicians are recommended if you encounter corrosion, damaged studs, or complex battery configurations. Always disconnect the battery negative first and follow safe battery-handling practices.

• DIY-friendly design with direct-fit terminals and included hardware
• Technician recommended for heavy corrosion or uncertain wiring
• Disconnect negative battery cable before starting work
• Use proper PPE and torque nuts to secure electrical contact

Who is this for: This EAPP assembly is intended for owners, mechanics, and fleet managers who need an OEM-style replacement for a worn or blown main fuselink and battery terminal on compatible Ford trucks (notably F-150 and F-250 from 2011–2014). It is particularly useful when restoring reliable starting and charging performance, performing electrical troubleshooting, or completing routine battery terminal maintenance with an OEM-equivalent, ready-to-install kit.
