EOPOAYI 48V Half-Twist Throttle for E-Bike & Scooter — LED Power Display & Keyed Handlebar Lock

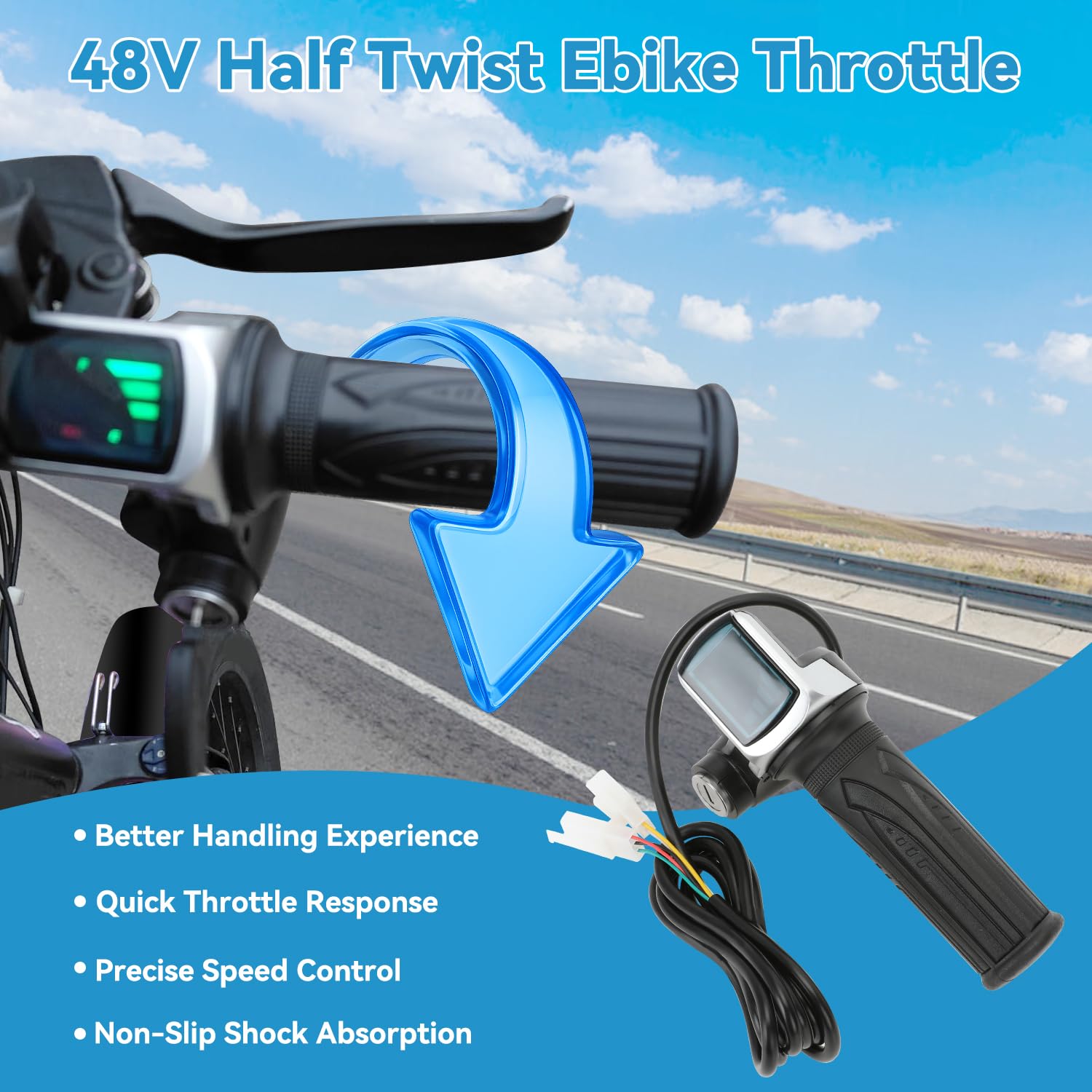

EOPOAYI 48V Half Twist Throttle is a handlebar-mounted throttle with an integrated LED power display and ignition key lock designed for 48V electric bikes, scooters and similar vehicles.

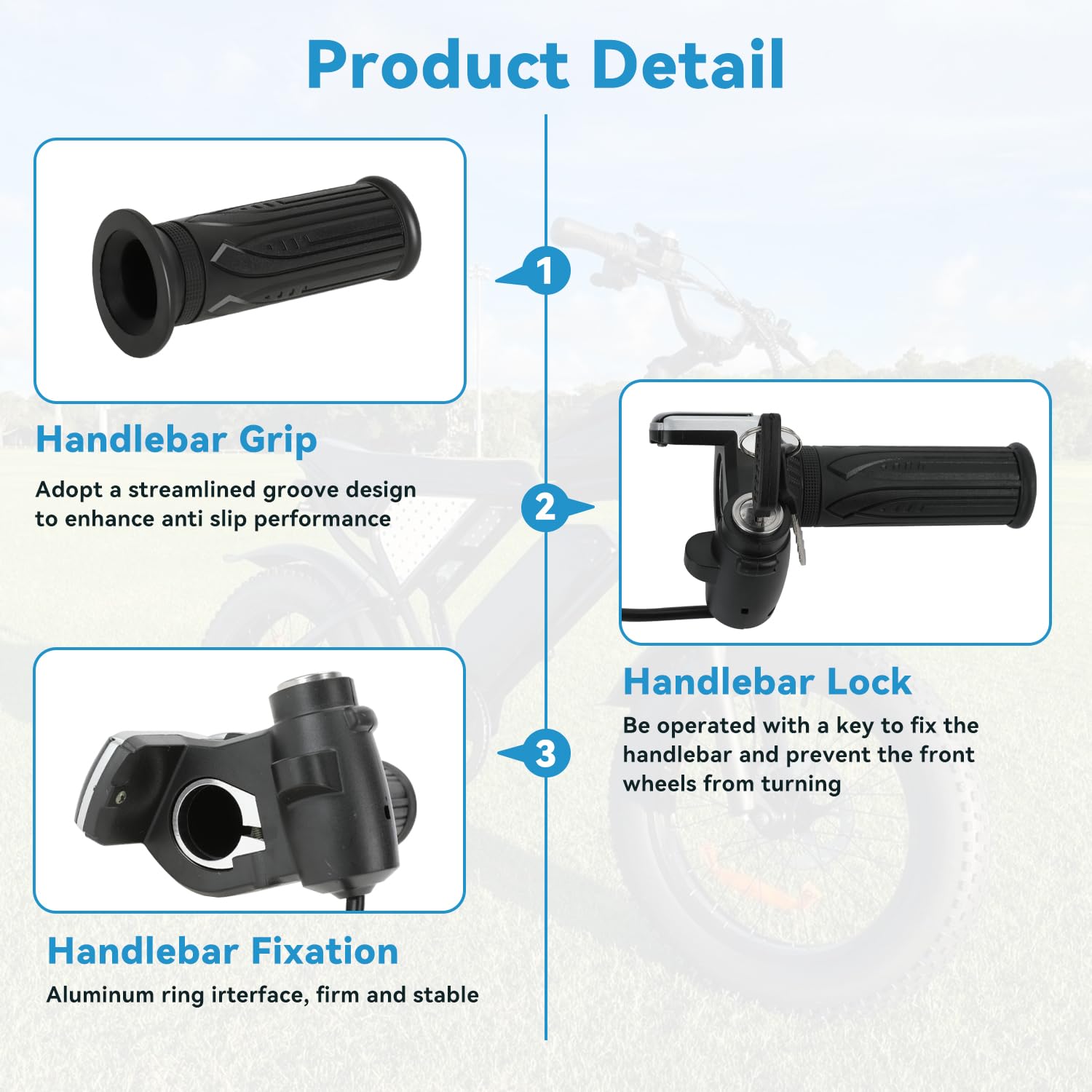

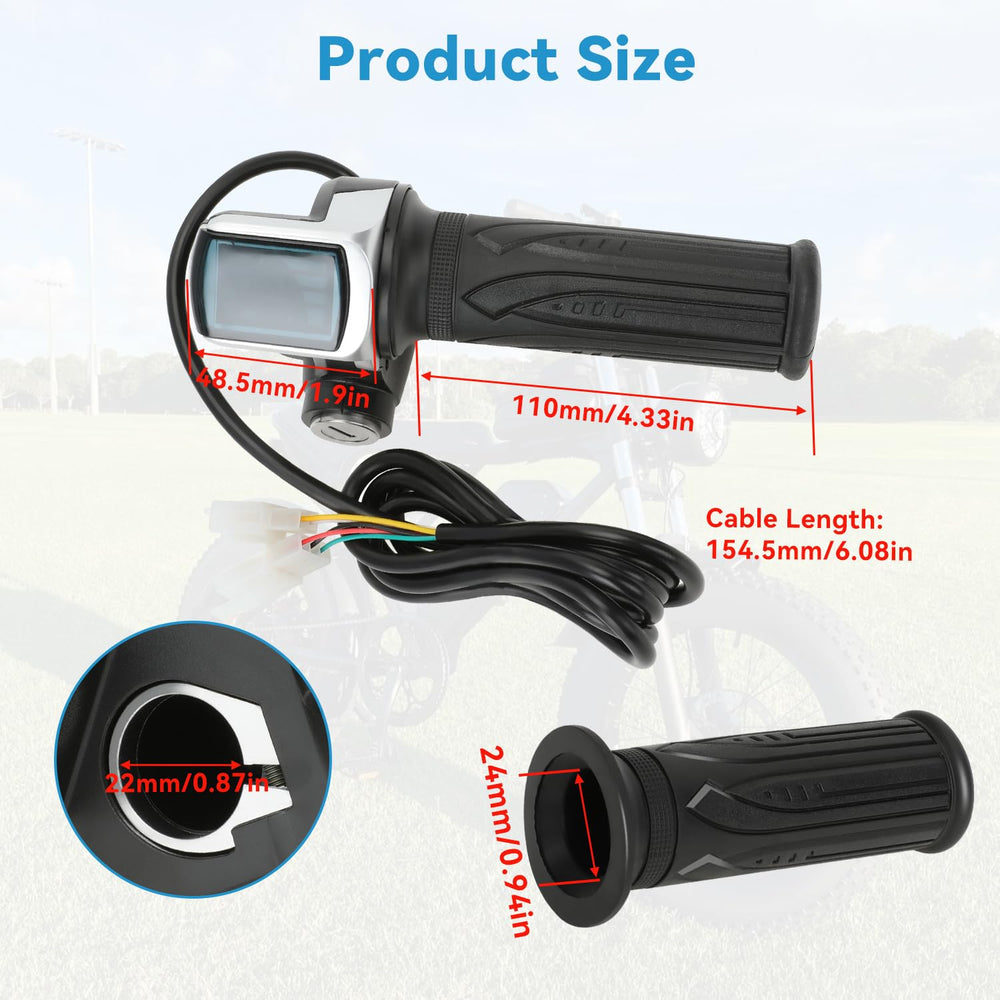

This half-twist throttle combines a compact power meter, a keyed handlebar lock, and a standard three-pin connector to give riders simplified speed control and basic battery feedback on compatible 48V systems. It’s built to fit a 22 mm (7/8") handlebar inner diameter and uses a streamlined grooved grip to reduce slipping and hand fatigue during longer rides. While it provides throttle control on lower-voltage systems (36V or 24V), the LED power display is functional only on 48V setups.

How will this throttle fit my electric bike or scooter?

The EOPOAYI throttle fits handlebars with a 22 mm (7/8") internal diameter and uses a half-twist mechanism rather than a full-twist or thumb style. Compatibility depends primarily on handlebar size and your controller wiring. Some models with proprietary connectors may need soldering or reuse of an original plug.

• Standard 3-pin connector: red (positive), black (negative), green (signal)
• Works mechanically on 48V, 36V, and 24V for throttle response
• LED power readout only active on 48V systems
• May require splicing or reuse of factory connectors for certain brands/models

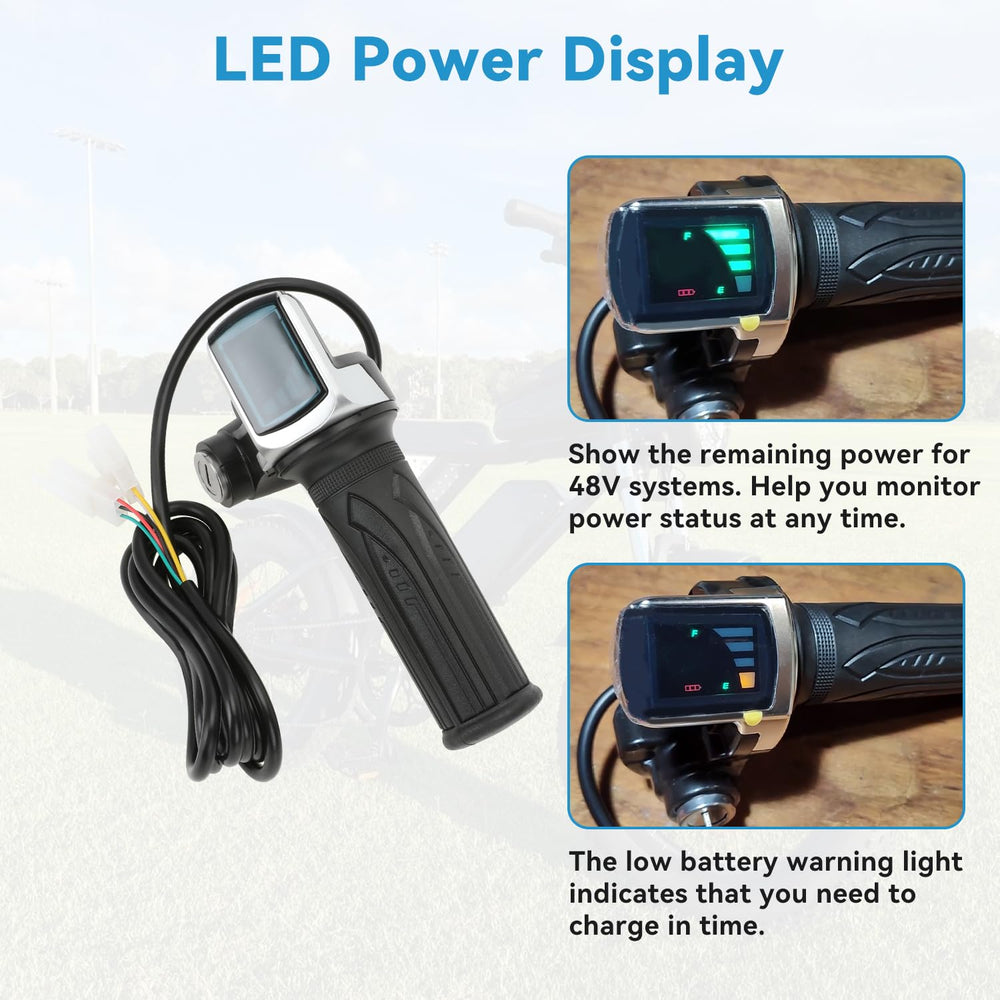

What does the LED power indicator show and how reliable is it?

The built-in LED screen provides an on-handlebar visual of remaining battery level when used with a 48V system, and it includes a low-battery warning light. The indicator helps you monitor charge state at a glance but depends on a compatible controller and correct wiring to display accurate information.

• Displays battery level only with a 48V electrical system
• Low-battery warning light for timely charging reminders
• Indicator won’t function properly if connectors are mismatched or wiring is incorrect
• Continuous display after key removal signals a wiring issue

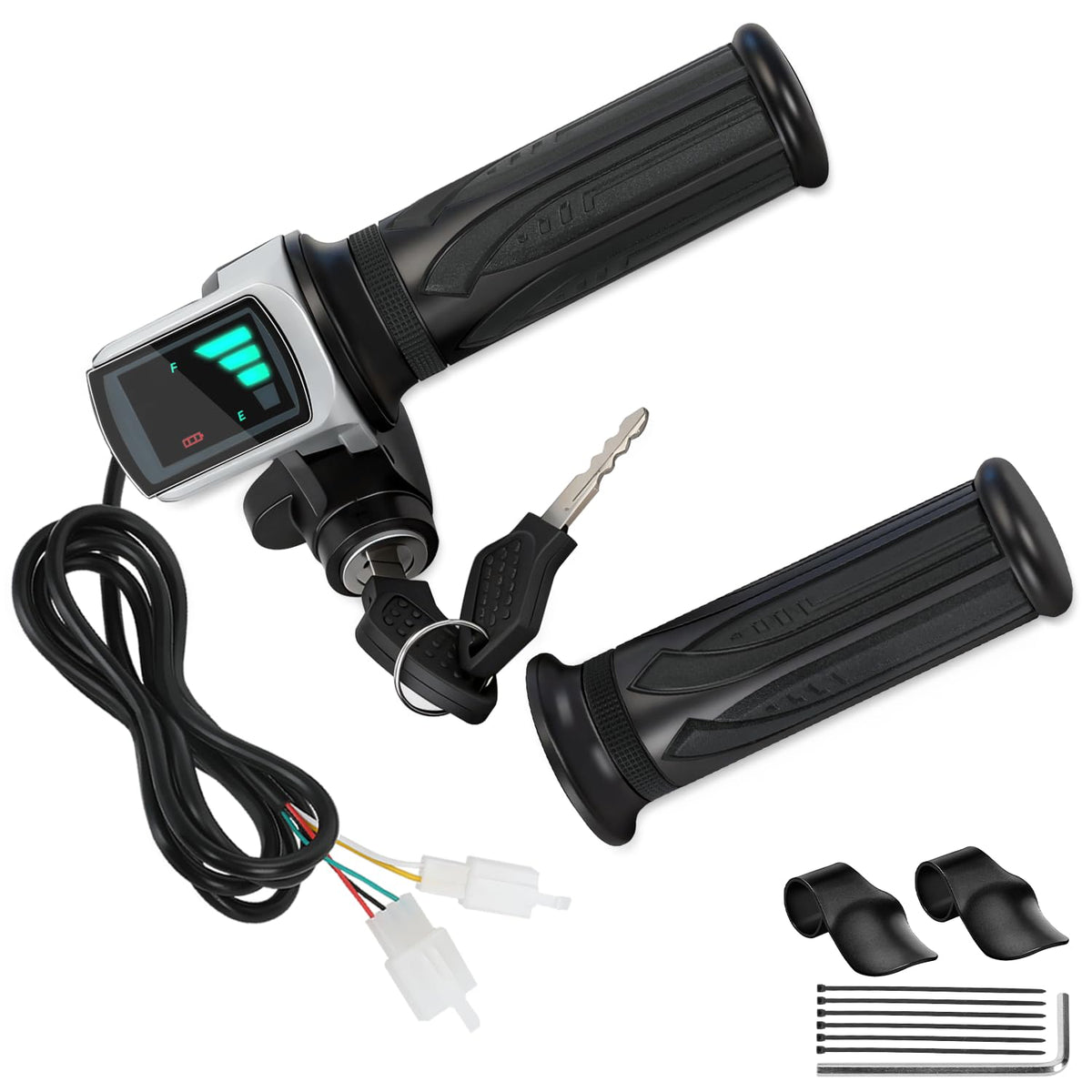

How does the keyed ignition and handlebar lock work?

Insert the key to power the display and allow throttle rotation; turning the key also enables a mechanical handlebar lock to immobilize the front wheel for basic anti-theft protection. It’s an additional convenience and security layer but not a substitute for dedicated locks or alarms.

• Key turns on LED display and enables throttle twist
• Lock fixes handlebar position to deter casual tampering
• If display stays lit after removing key, check wiring for faults
• Simple mechanical protection—use alongside other security measures

What should I know about wiring and installation precautions?

The throttle uses a three-wire standard: red for positive, black for negative, and green for the signal output. Always power off the vehicle before connecting wires and ensure all three lines are connected simultaneously during first power-up to avoid damage to the throttle’s circuit board.

• Turn vehicle power off before wiring
• Connect all three wires together on power-up; do not energize them separately
• Controller must have a display connector if vehicle lacks battery wiring harness
• Some bikes/scooters may require connector modification or soldering

Who is this for: The EOPOAYI 48V Half Twist Throttle suits riders who want a compact throttle with onboard battery feedback and a keyed handlebar lock for their 48V electric bikes, scooters, or similar small electric vehicles. It’s a practical upgrade for users with standard 22 mm handlebars and those comfortable with light electrical work if their vehicle uses nonstandard connectors. Choose this if you want a half-twist grip with improved anti-slip texture, a visible battery indicator (on 48V systems), and a simple keyed lock on your handlebar.
