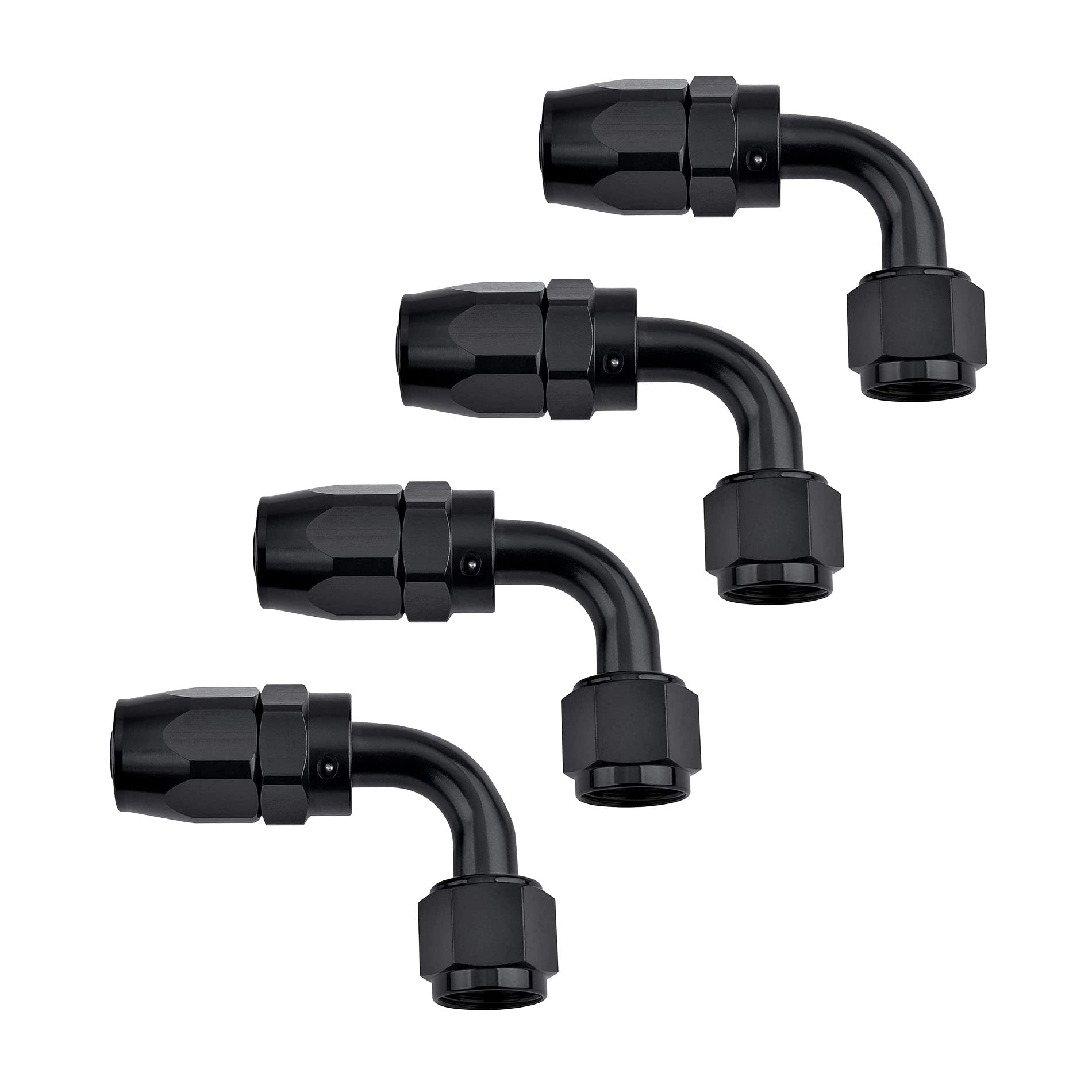

EVIL ENERGY 10AN 90° Hose End Fittings 4pc — 6061-T6 Aluminium Swivel, Reusable

EVIL ENERGY 4PCS 10AN 90° hose end fittings are 6061-T6 aluminum swivel connectors designed for stainless and nylon braided fuel lines, offering a 90-degree AN seal and a reusable 360° swivel for tight installations.

These 10AN 90-degree fittings pair an AN-style 37° cone seal with a 7/8-14 UNF threaded end to mate with compatible components. Machined from 6061-T6 aluminum, the fittings are built for lightweight strength and resistance to corrosion. They accept braided hoses (stainless or nylon) and provide a compact elbow that helps reroute lines in cramped engine bays or custom plumbing runs.

What materials and specifications define these 10AN fittings?

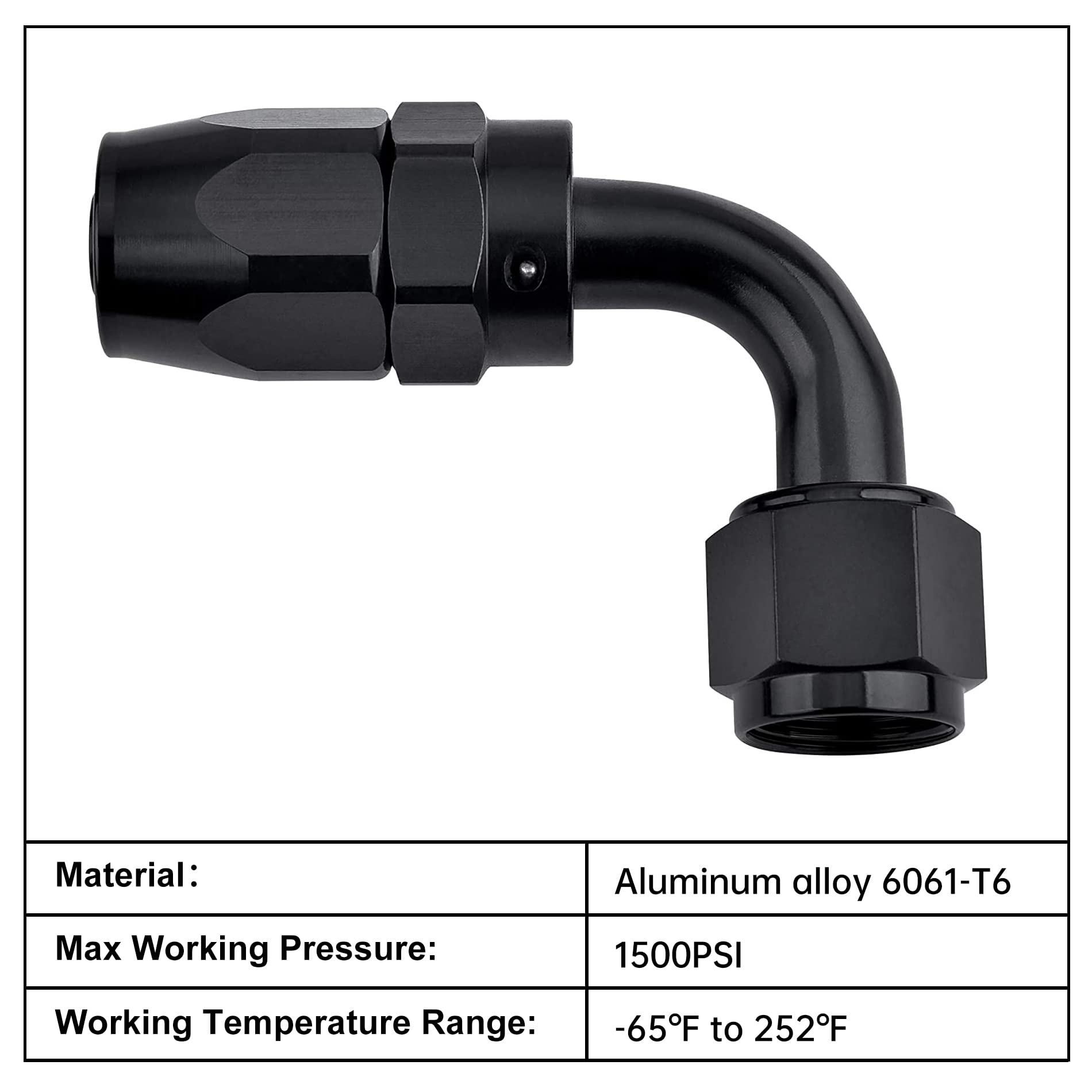

The fittings are constructed from aircraft-grade 6061-T6 aluminum for a balance of strength and weight savings. The AN side seals with a 37° cone while the threaded side is 7/8-14 UNF, matching common 10AN hardware standards.

• Material: 6061-T6 aluminum alloy for corrosion resistance and durability

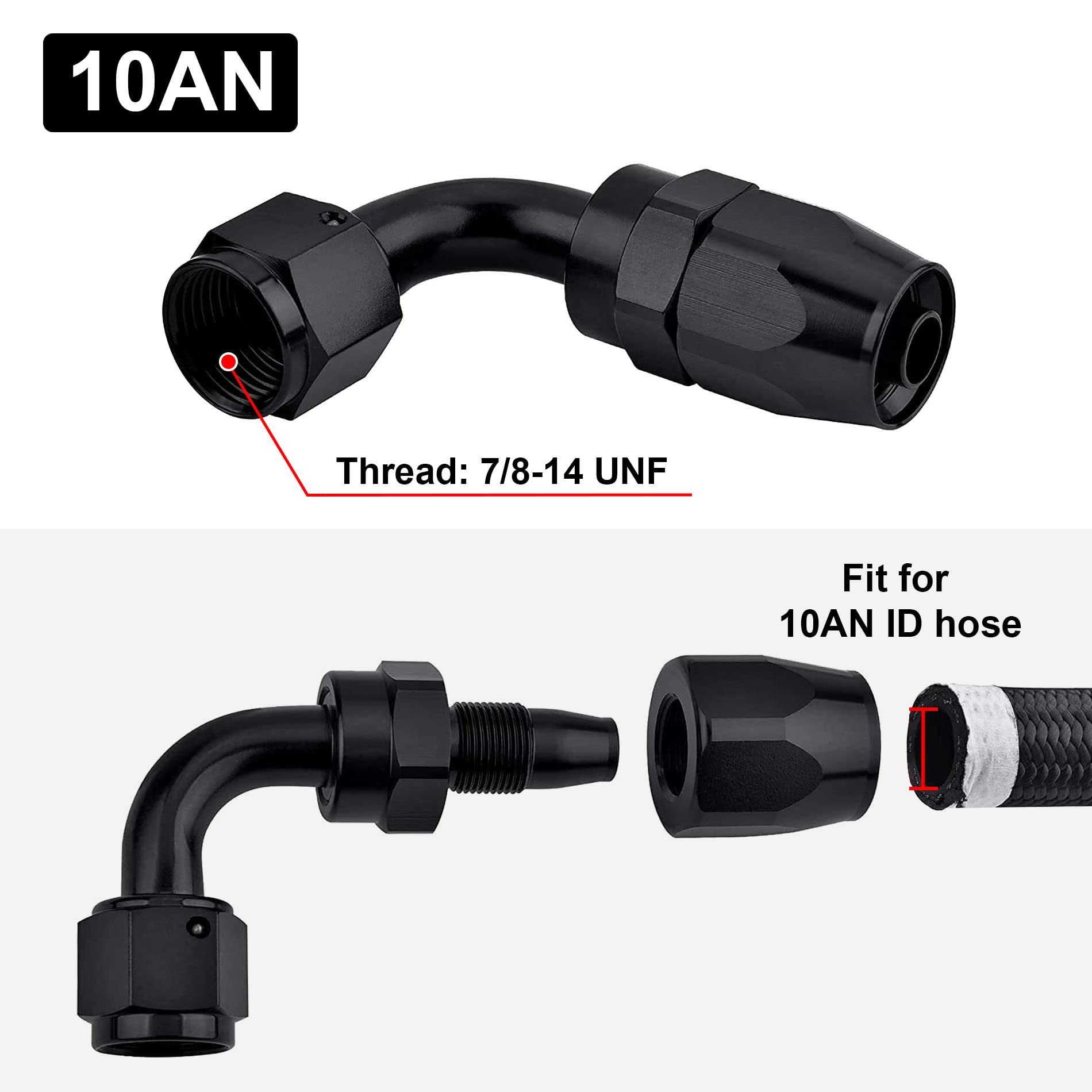

• Thread: 7/8-14 UNF on the non-AN end
• Seal: 37° AN cone angle for reliable metal-to-metal sealing
• Temperature range: -65°F to 252°F (-53°C to 122°C)
• Rated max working pressure: 1,500 PSI

How do these fittings attach to braided fuel hoses?

The fittings are designed specifically for stainless steel braided and nylon braided hoses. The hose end is clamped or assembled to the fitting’s hose face, creating a secure mechanical junction when installed per hose manufacturer's instructions.

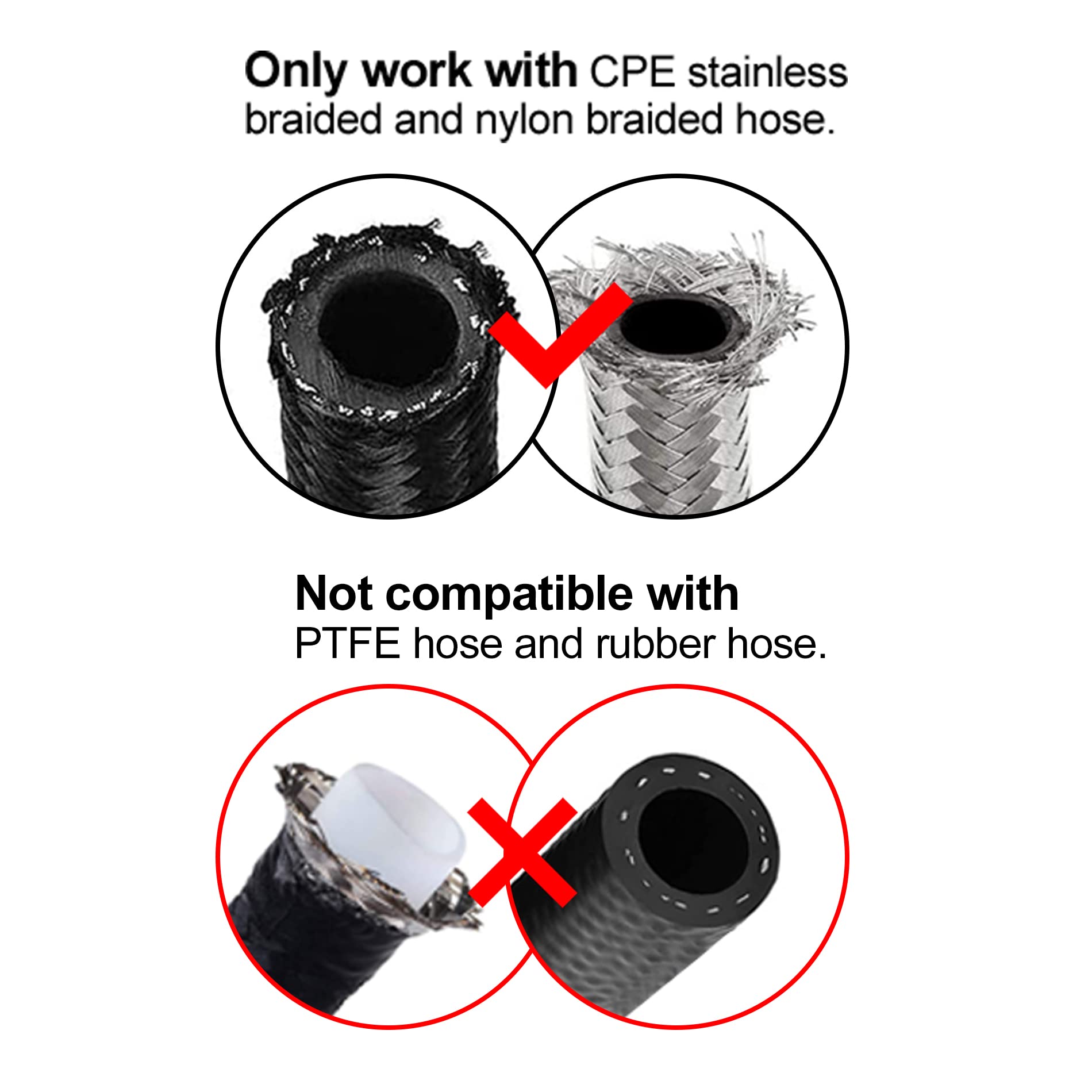

• Works with braided hose types only — stainless or nylon braided constructions
• Requires correct hose size and assembly method for leak-free performance
• Reusable: fittings can be removed and reinstalled when needed
• 360° swivel reduces twist during installation and routing

Why choose a 90-degree swivel fitting for fuel system routing?

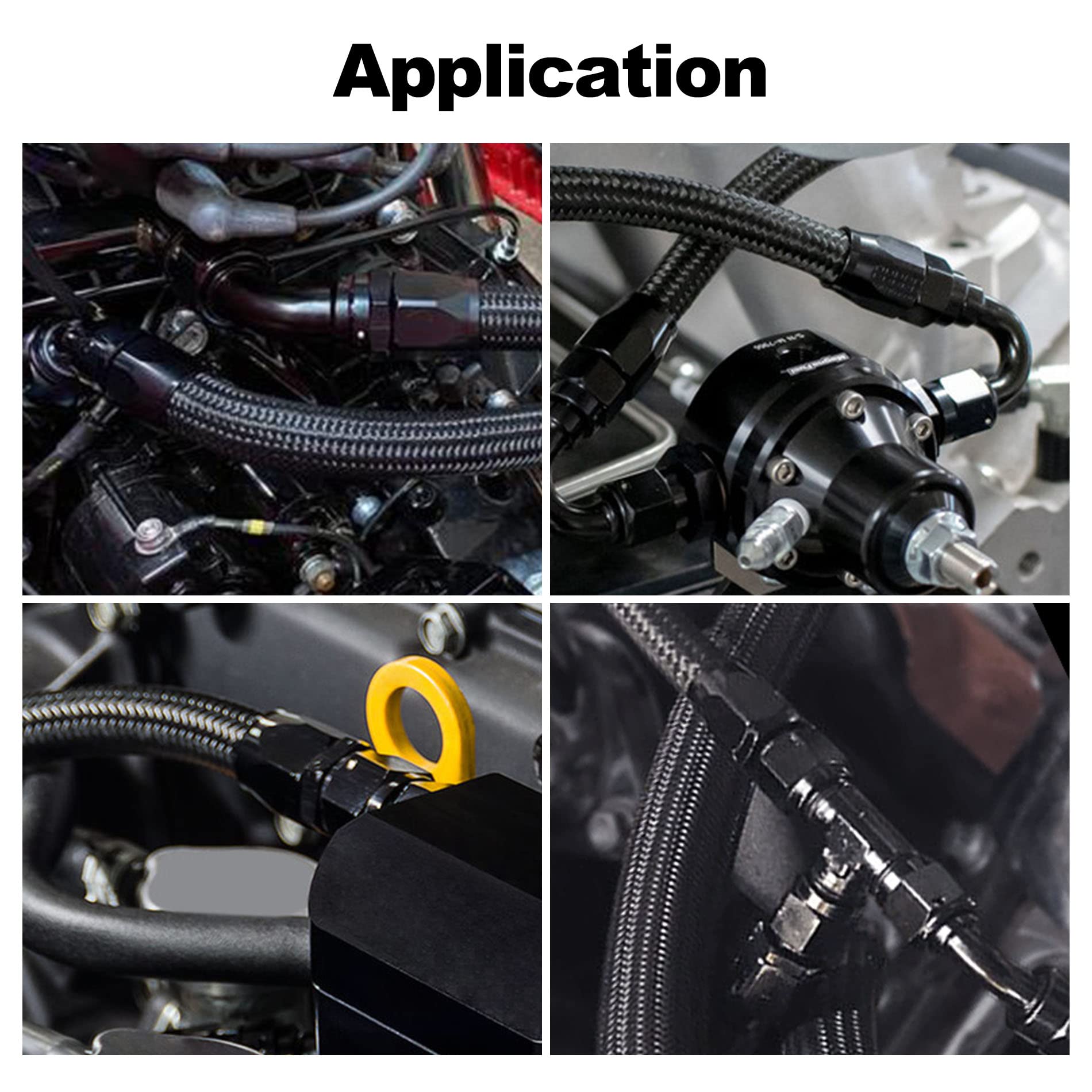

A 90° elbow helps change direction in tight spaces, keeping lines clear of heat sources and moving parts. The integrated swivel reduces stress on hose ends and simplifies alignment, minimizing the need for bending the hose sharply.

• Compact elbow saves space in crowded engine bays
• Swivel action enables precise orientation without twisting the hose
• Reusable design supports maintenance and upgrades
• High pressure rating suitable for many fuel and fluid applications

What operating conditions and limits should I expect?

The fittings handle a broad temperature window and a solid maximum working pressure suitable for many automotive and industrial fluid systems. Always verify compatibility with the specific fluid and system pressure; these fittings are not a substitute for application-specific approvals.

• Operating temperature: -65°F to 252°F (-53°C to 122°C)
• Maximum working pressure: 1,500 PSI (application-dependent)
• Intended for braided hose assemblies only; not for push-on or barbed connections

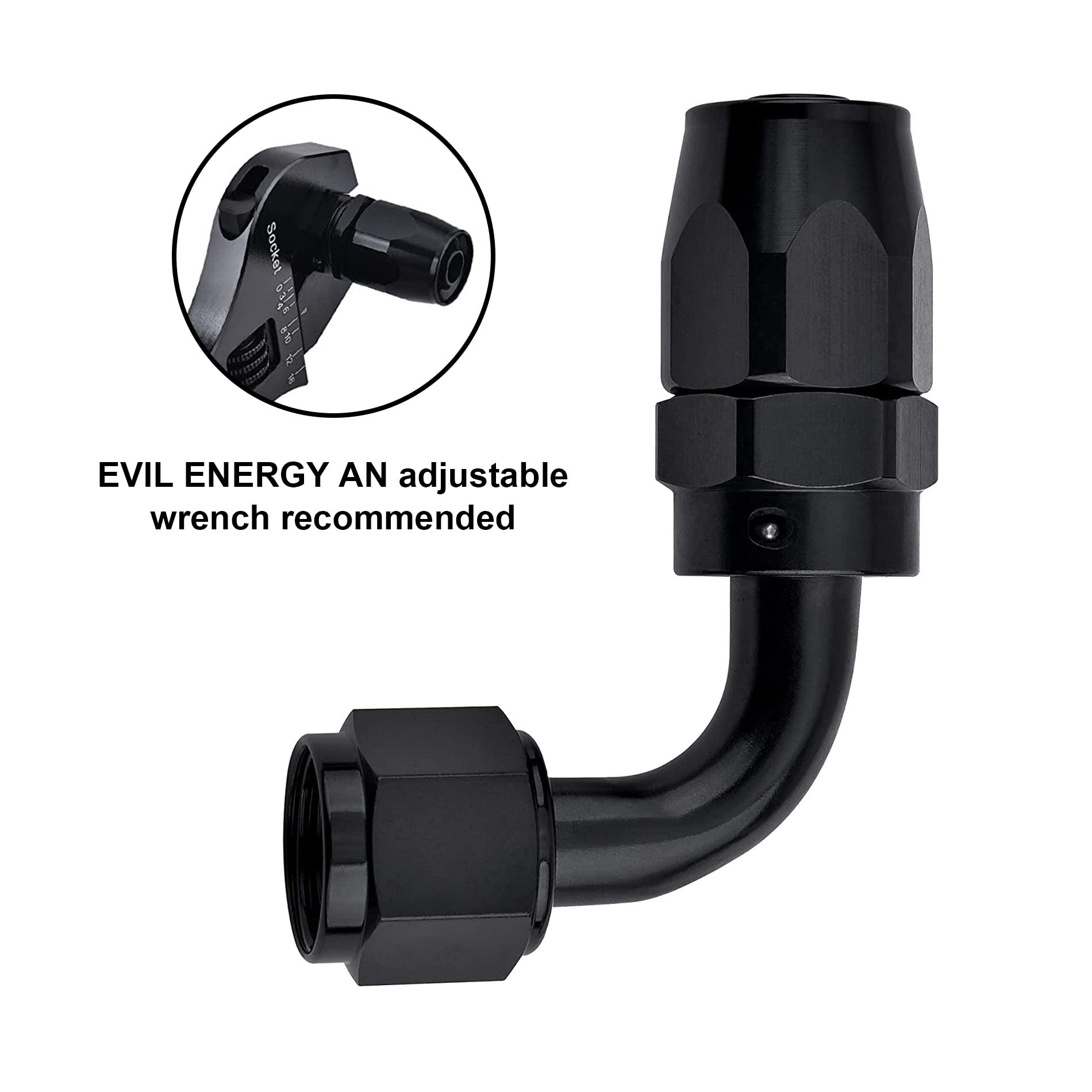

• Machined finish requires correct torque and sealing procedure

Who is this for: These EVIL ENERGY 10AN 90° swivel hose end fittings suit performance vehicle builders, motorsport teams, custom fabricators, and anyone routing braided fuel or fluid lines where space is limited. They’re most useful for people who need durable, reusable AN fittings with a compact elbow and precise alignment during installation. If you’re working with braided hoses and require a lightweight, corrosion-resistant swivel connector rated for moderate pressures, this 4-piece set is tailored for those needs.
