EVIL ENERGY 10AN 90° Swivel Hose End Fitting — Forged 6061-T6 Aluminium, Low-Profile 1,500 PSI

EVIL ENERGY's 10AN 90-degree swivel hose end fitting is a compact, forged 6061-T6 aluminum adapter that provides a sealed 37° threaded connection and 360° swivel for tight installations.

This forged 10AN hose fitting is engineered for braided fuel and fluid lines where space is limited. Its low-profile 90° bend and forged bending section deliver durability and consistent thread sealing while remaining lightweight. The part is compatible only with stainless steel-braided and nylon-braided hoses and is rated for automotive and industrial fluid-routing conditions within its specified pressure and temperature ranges.

How does the 90° swivel design help in cramped engine bays?

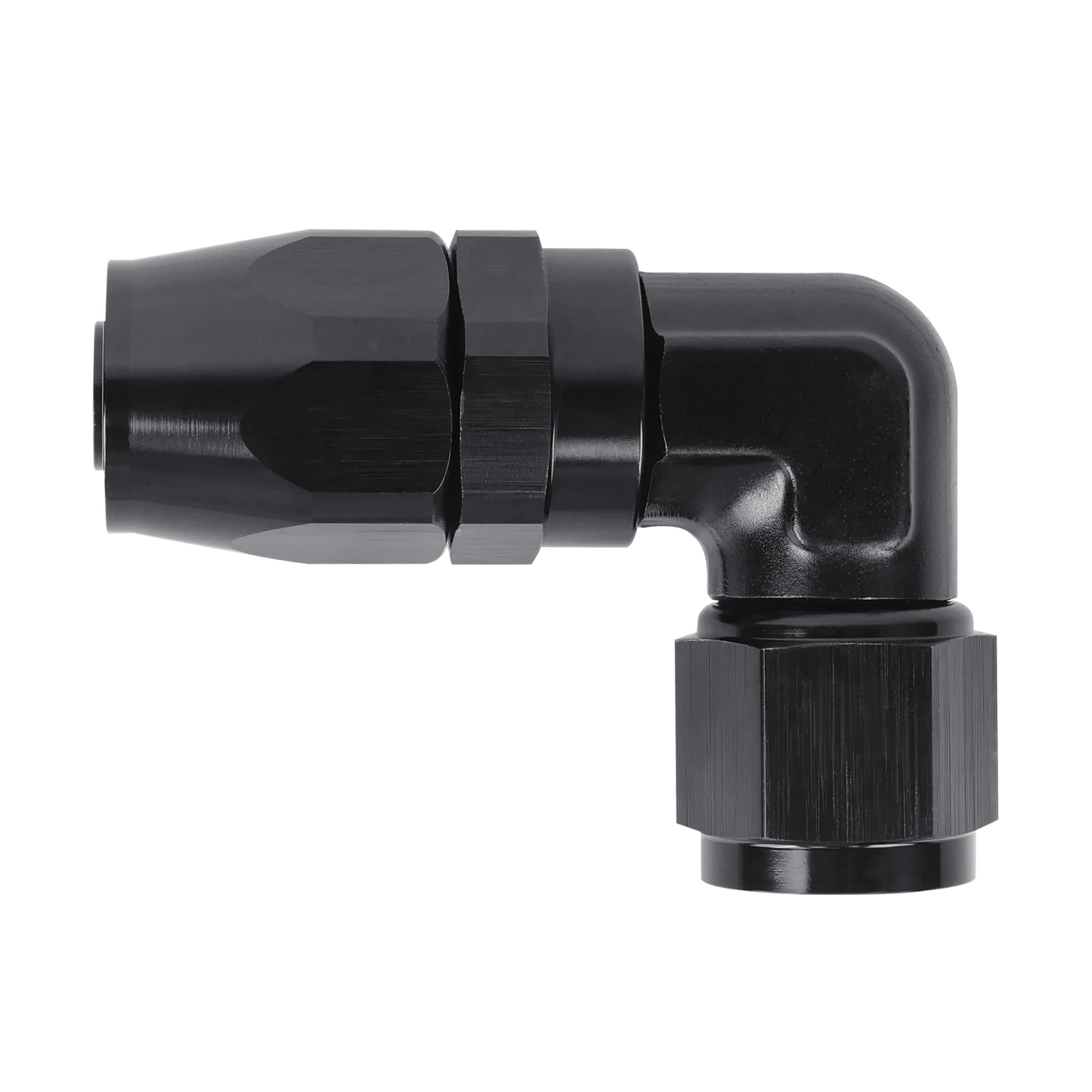

The right-angle swivel lets you route hoses where straight fittings would interfere with nearby components. Because the fitting rotates, you can align the hose without twisting it, reducing stress and improving hose life. Its compact profile is meant to minimize the fitting's footprint inside tight assemblies.

• 90° bend keeps hose close to mounts and walls
• Swivel action allows alignment without hose torsion
• Low-profile head reduces interference with other parts

Is this fitting strong enough for high-pressure fuel or oil lines?

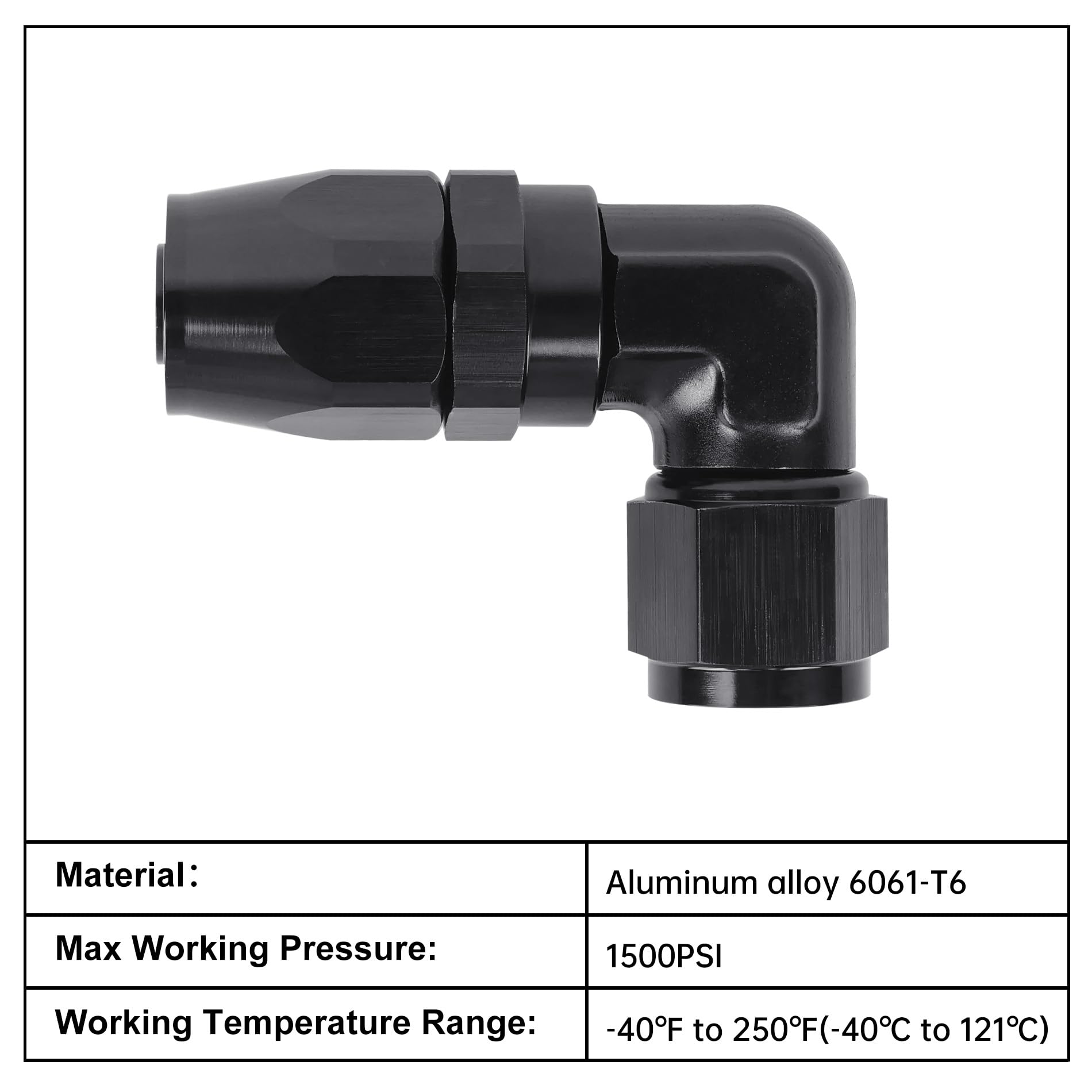

The body is forged from 6061-T6 aluminum and the bending section is produced via forging for added integrity. The fitting's maximum working pressure is 1,500 PSI, suitable for many fuel and fluid transfer applications when paired with compatible hoses. Always verify system requirements and hose ratings before installation.

• Forged 6061-T6 aluminum construction for consistent strength
• Rated maximum working pressure: 1,500 PSI
• Temperature tolerance from -40°F to 250°F (-40°C to 121°C)

Which hoses and thread size are compatible with this 10AN fitting?

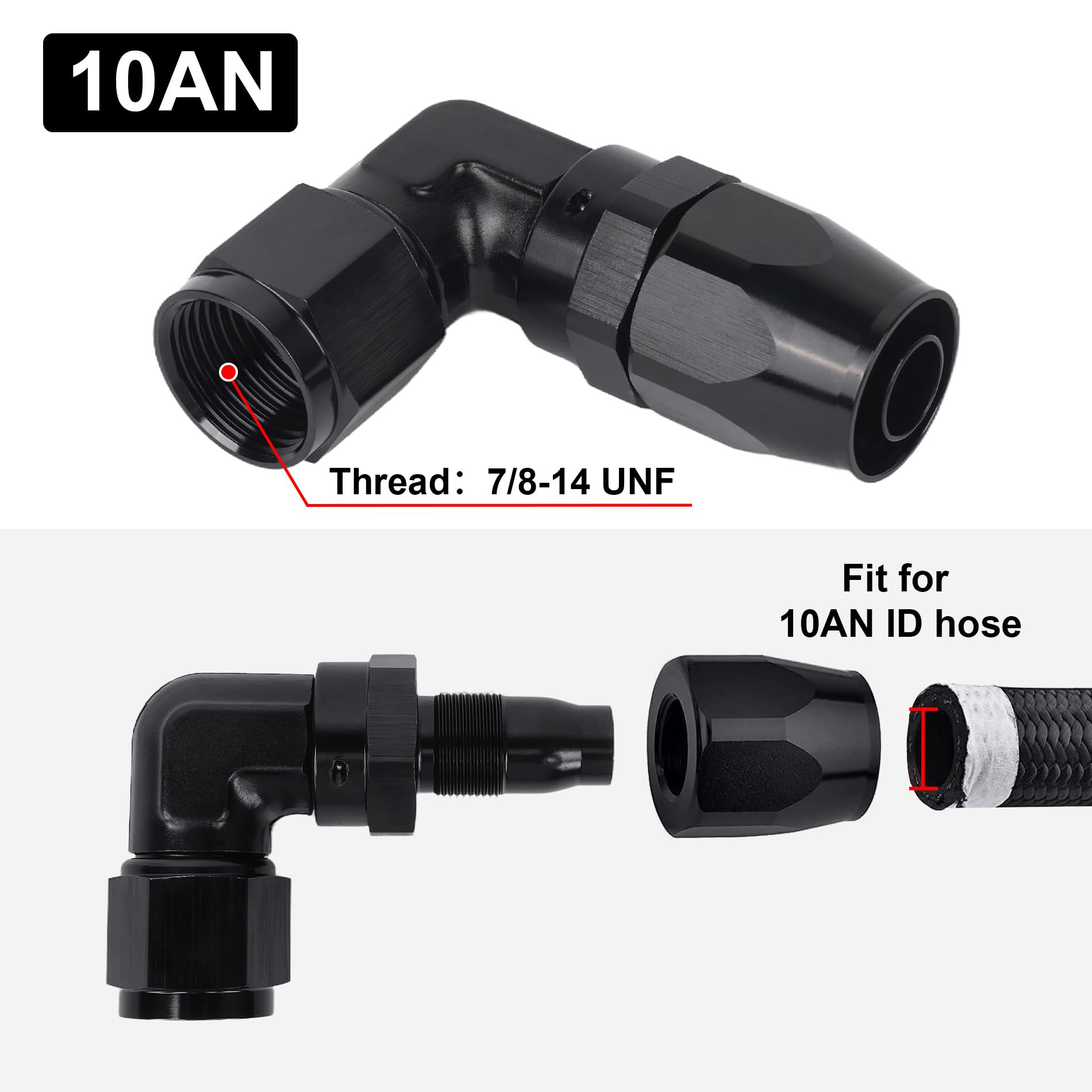

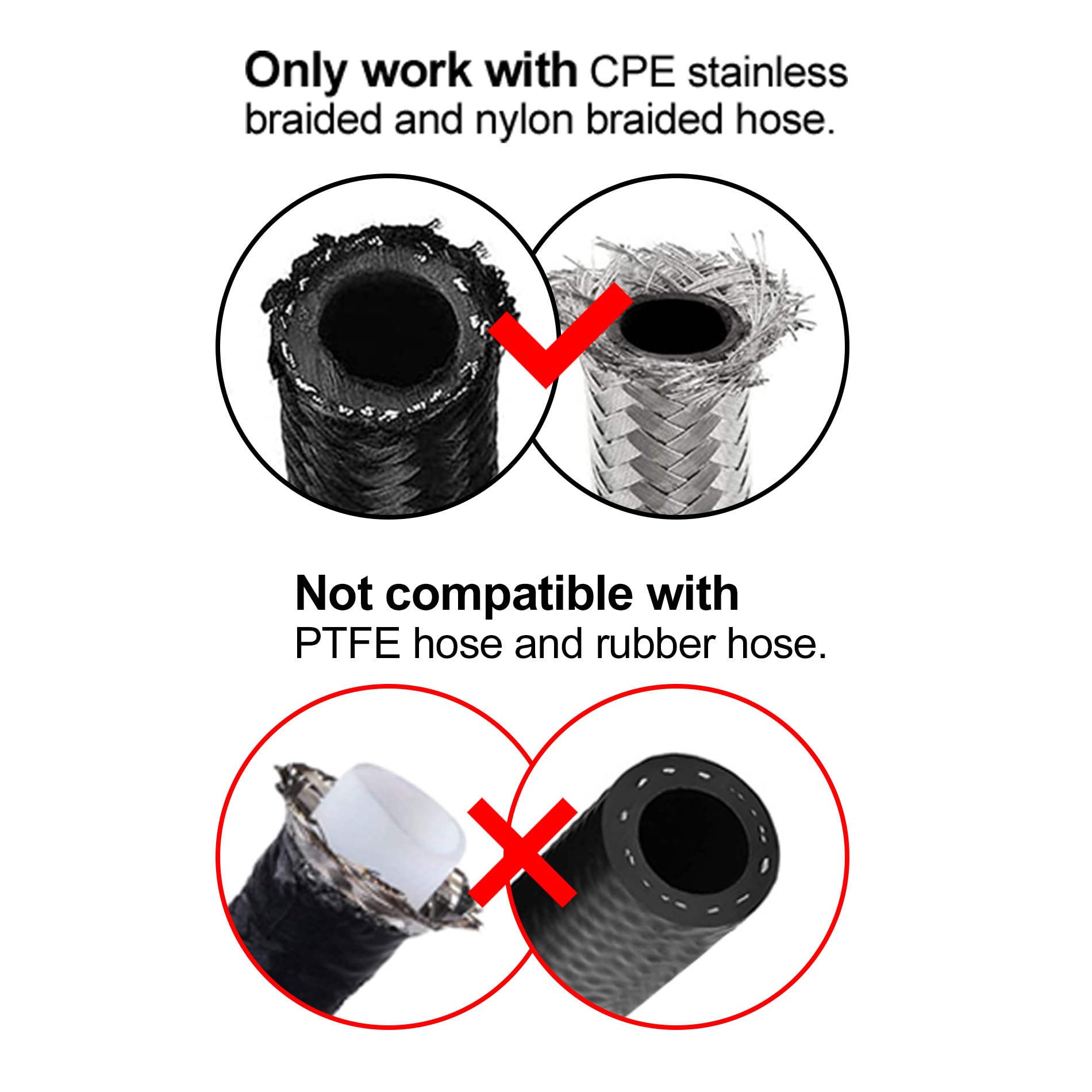

The fitting uses a 10AN thread specification equivalent to 7/8-14 UNF with a 37° sealing surface, the common standard in AN-style hose assemblies. It is designed for use with stainless steel-braided and nylon-braided hoses only; smooth or rubber-only hoses are not recommended. Ensure your hose end and crimp or clamp method match AN standards for a leak-resistant assembly.

• Thread: 10AN (7/8-14 UNF) with 37° sealing angle
• Works with stainless steel and nylon braided hoses
• Not intended for non-braided rubber hoses

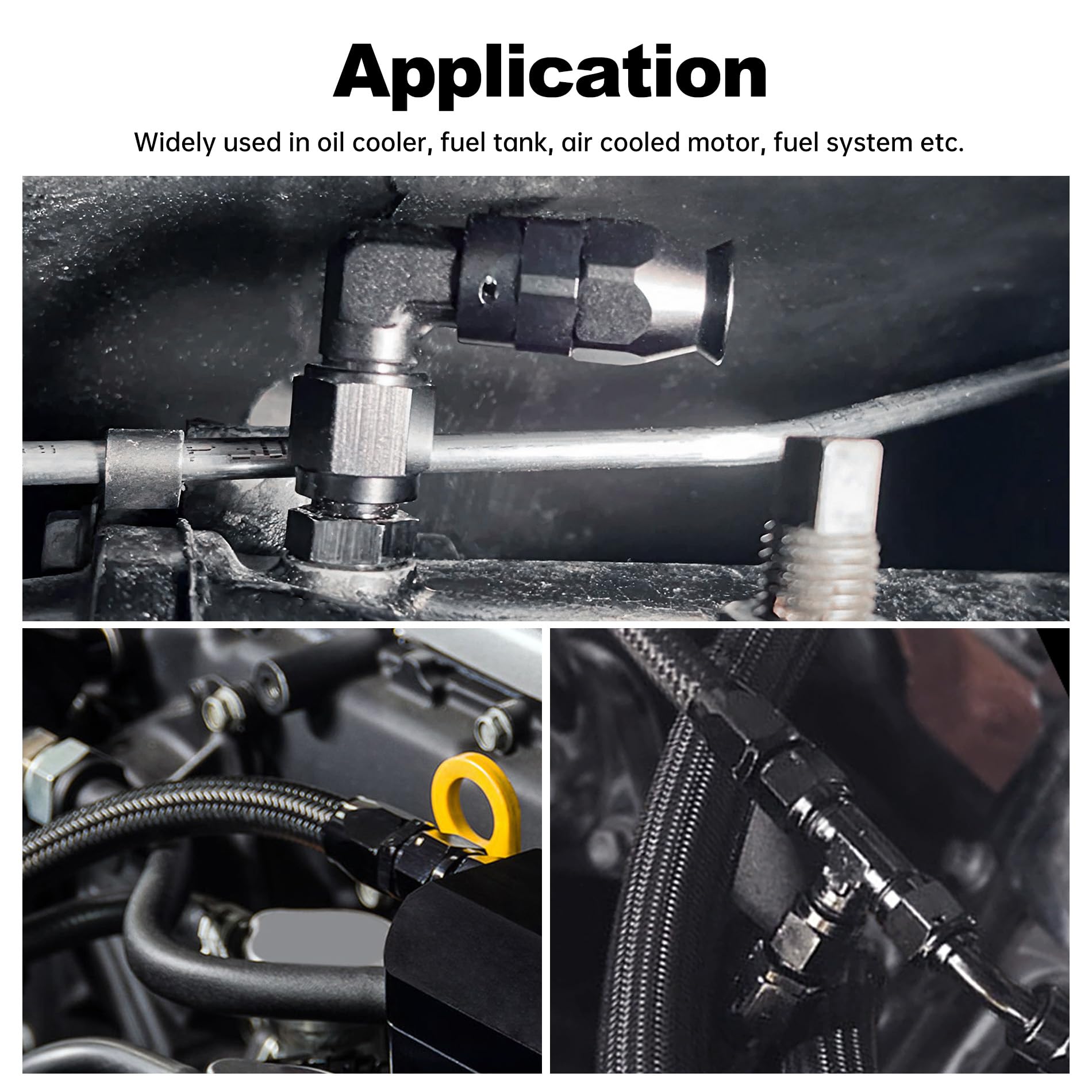

Who is this for: Technicians, fabricators, and performance vehicle owners who need a durable, compact 90° hose end that swivels for precise routing will find this EVIL ENERGY 10AN fitting useful. It's suited to applications where braided hoses are standard and where space constraints or component proximity require a low-profile, rotatable joint. It’s not a universal replacement for all hose types — confirm hose compatibility and system pressure/temperature needs before fitting.
