EVIL ENERGY 10AN Straight Swivel Hose End Fittings — Black 2-Pack, 360° Aluminium 37° AN Seat

EVIL ENERGY 10AN straight swivel hose end fittings are 7/8-14 UNF, 360° rotating aluminum connectors designed to seal braided CPE hoses with a 37° AN seat for high-pressure automotive and industrial lines.

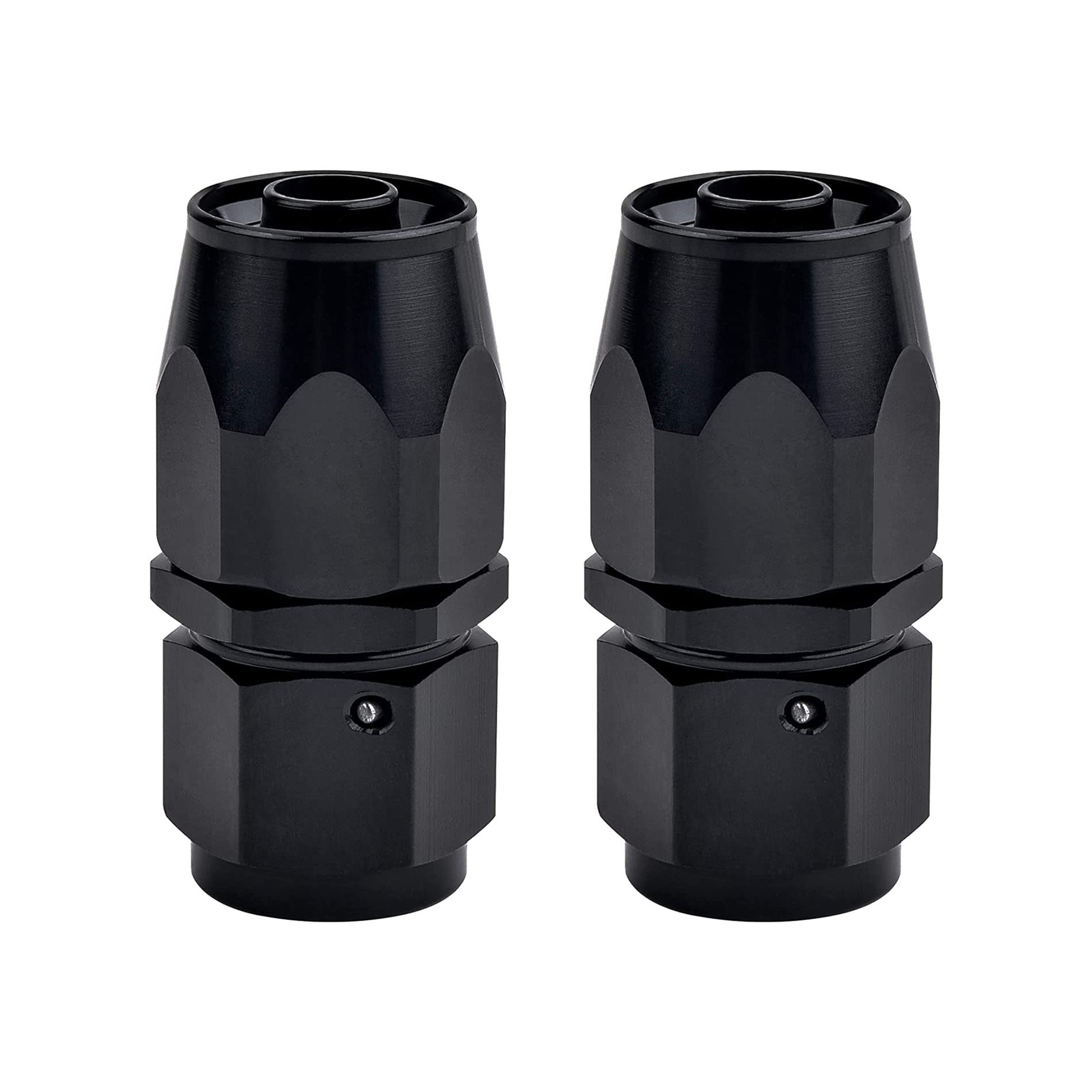

These two black swivel fittings offer a compact, reusable connection for stainless and nylon braided hoses where a secure AN-style seal and rotation during assembly are needed. Machined from 6061-T6 aluminum and anodized black, they balance light weight with corrosion-resistant performance and accept a 10AN (7/8-14 UNF) thread. Rated to 1500 PSI and usable across a wide temperature span, they’re intended for fluid-transfer lines that require AN seating and a full 360° swivel to simplify alignment.

How do these fittings connect to braided hoses?

The fittings use the AN-style 37° seat on the hose end to create a metal-to-metal seal when tightened into a matching AN port. They are designed specifically for hoses with stainless or nylon braid that accept AN-style ends, not for push-on or barbed hose connections.

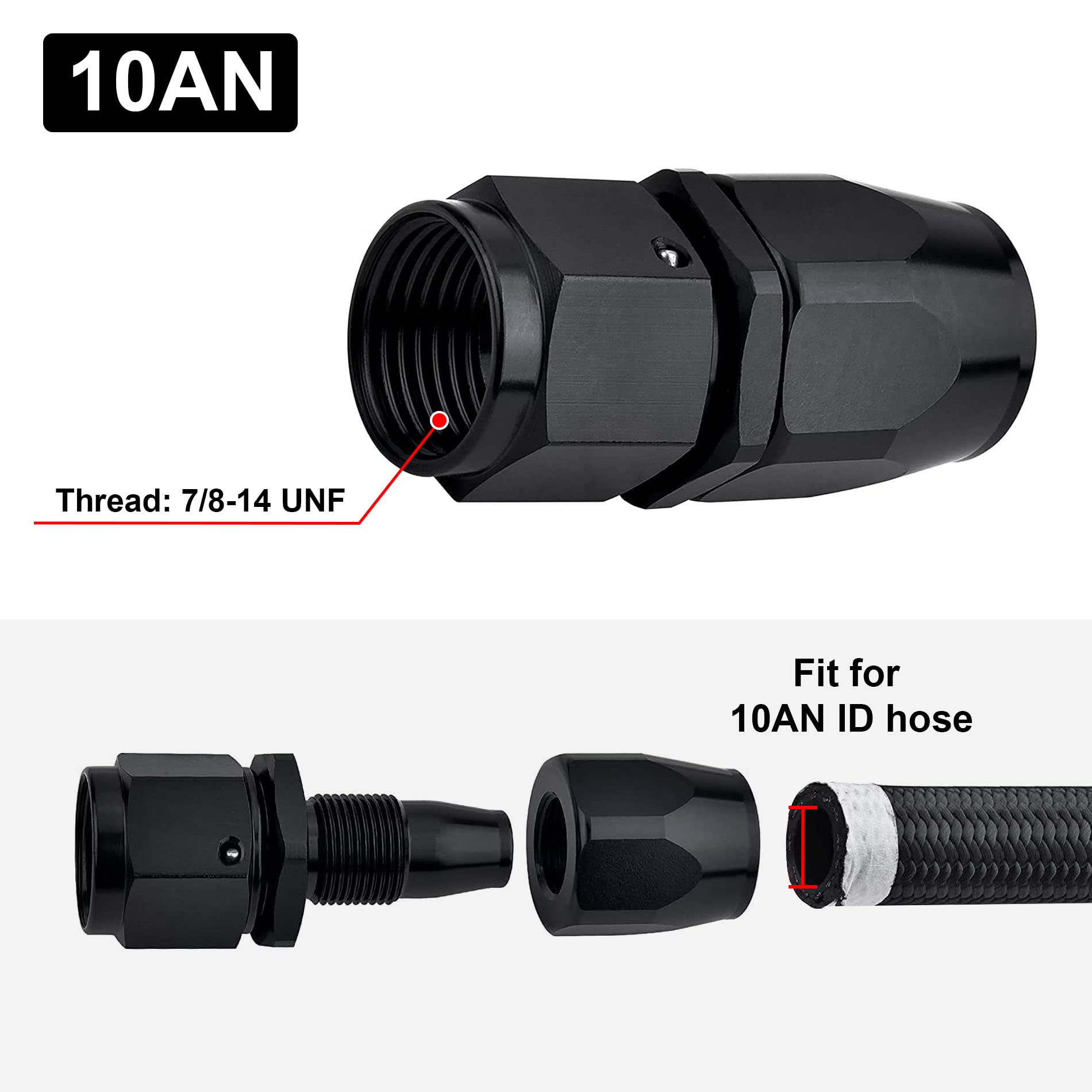

• Thread size: 10AN (7/8-14 UNF) to match AN ports
• Sealing surface: 37° AN-angled seat for reliable sealing

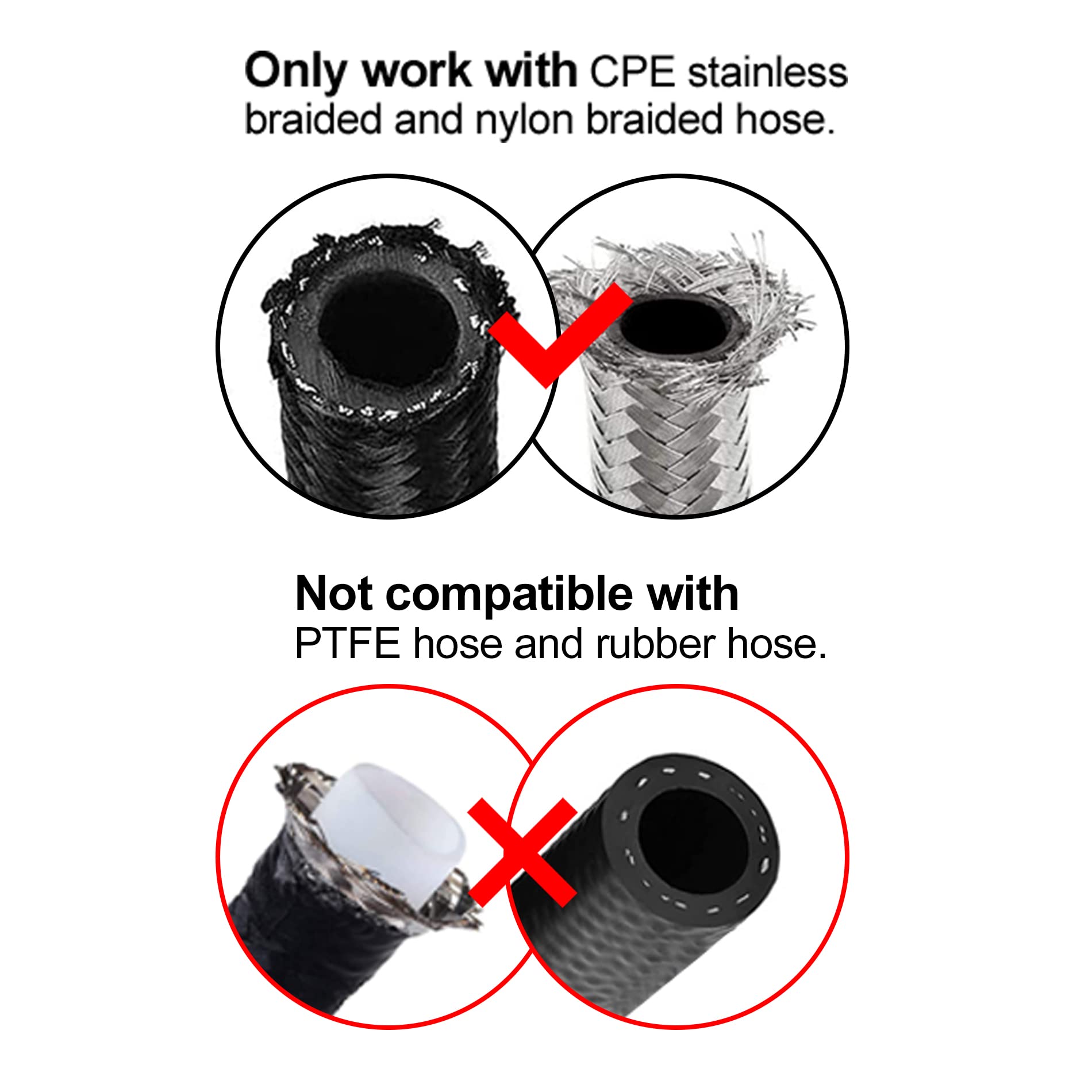

• Compatible hoses: stainless-braided and nylon-braided only
• Not suitable for non-braided or barbed hose ends

What are the mechanical limits and environmental ranges?

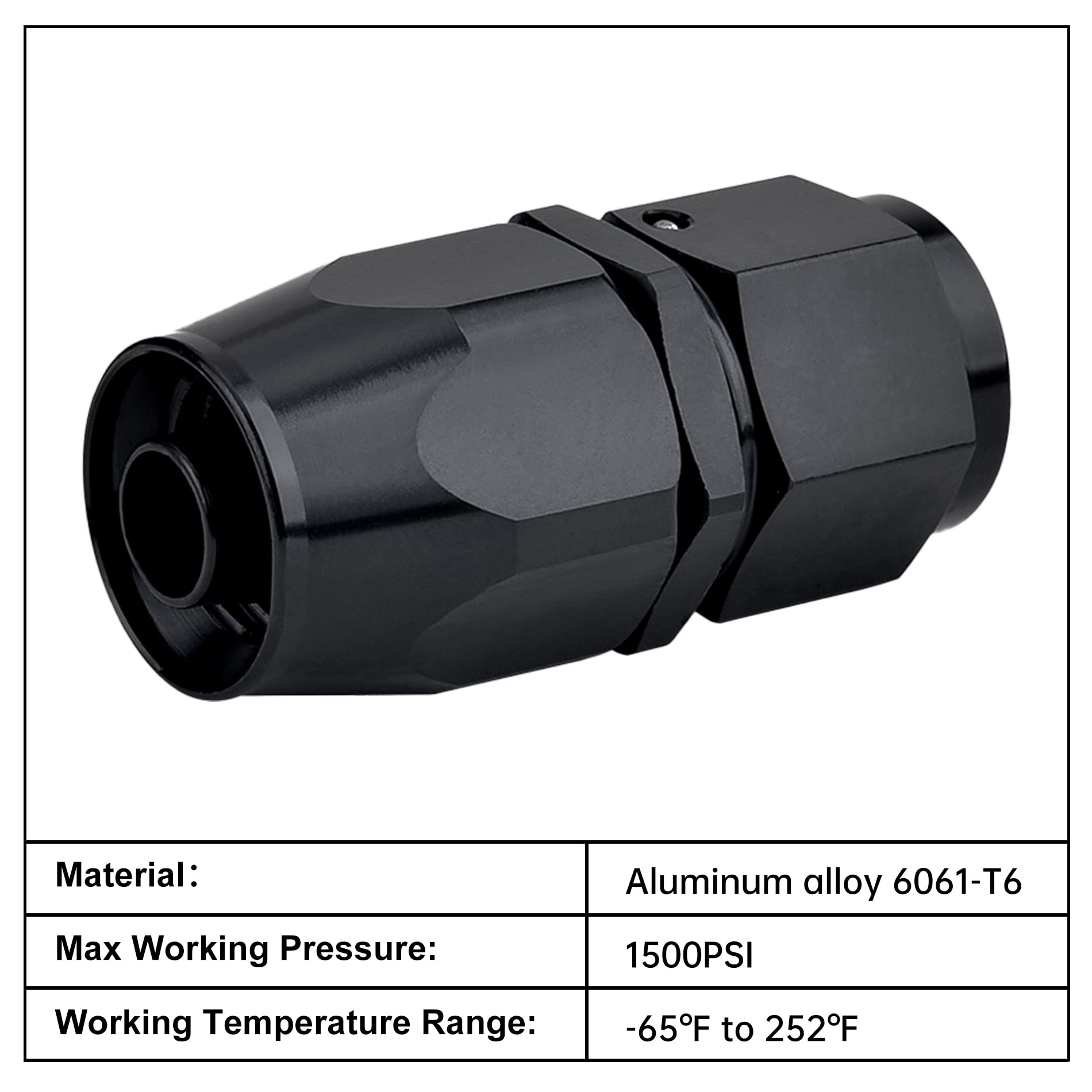

Constructed from 6061-T6 aluminum, each fitting provides a strong, lightweight connection that resists corrosion when anodized. The manufacturer-rated maximum working pressure is 1500 PSI and the usable temperature band covers typical automotive and industrial environments.

• Max working pressure: 1500 PSI
• Temperature range: -65°F to 252°F (-53°C to 122°C)
• Material: aircraft-grade 6061-T6 aluminum
• Finish: black anodized for added surface protection

How does the 360° swivel help during installation and maintenance?

The swivel allows the hose to rotate independently of the threaded port, eliminating hose twist and making alignment in tight spaces much easier. This feature accelerates assembly, reduces stress on hose ends, and enables the fitting to be reused without damaging the braid.

• 360° rotation prevents hose twisting during tightening
• Reusable design for disassembly and rerouting
• Speeds installation in confined engine bays or machinery
• Reduces strain on hose braid and fittings over time

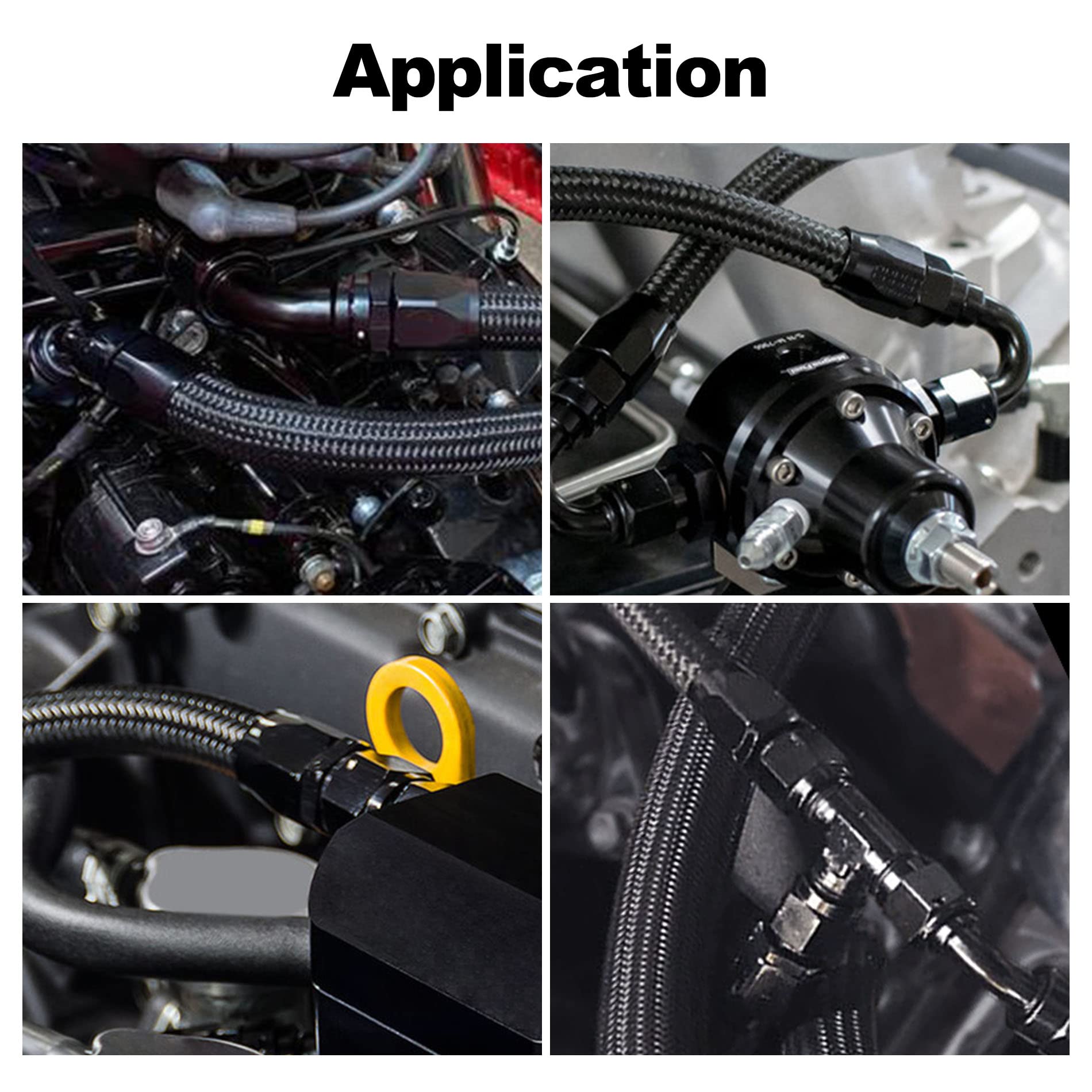

Who is this for? These EVIL ENERGY 10AN straight swivel fittings are aimed at automotive enthusiasts, fabricators, and maintenance technicians who work with AN-style braided hoses for fluid systems—fuel, oil, coolant, or hydraulic lines—where a compact, rotatable AN connection and reliable 37° seating are required. They suit retrofit projects, custom hose assemblies, and repairs where a lightweight aluminum fitting with a high working pressure and broad temperature range is appropriate. Note: verify hose compatibility (stainless or nylon braid) and port thread (7/8-14 UNF) before ordering to ensure correct fit and seal.
