EVIL ENERGY 12AN Straight Swivel Hose End Fitting Black 2pc — 6061‑T6, 360° Swivel, 1,500 PSI

EVIL ENERGY 12AN straight swivel hose end fitting — a black, 6061-T6 aluminum, 2-piece set with a 360° swivel and 37° AN sealing angle for stainless or nylon braided hoses.

This pair of 12AN hose end fittings from EVIL ENERGY serves as a rugged, reusable connection for braided fuel, oil, coolant, and custom plumbing lines. Machined from aircraft-grade 6061-T6 aluminum and finished in a corrosion-resistant black coating, each fitting combines a threaded end and an AN-style 37° sealing face to deliver a compact, leak-resistant joint when used with compatible stainless steel or nylon braided hoses.

What size and thread does this 12AN fitting use?

The threaded portion of the fitting follows the 12AN standard and uses a 1 1/16-12 UNF external thread. The sealing surface is an AN-style 37° cone, designed to mate with matching 12AN female counterparts for a metal-to-metal seal.

• Thread: 1 1/16-12 UNF (12AN)
• Sealing angle: 37° AN cone
• Fits standard 12AN hose ends and adapters

Which hose types and assemblies are compatible with this swivel fitting?

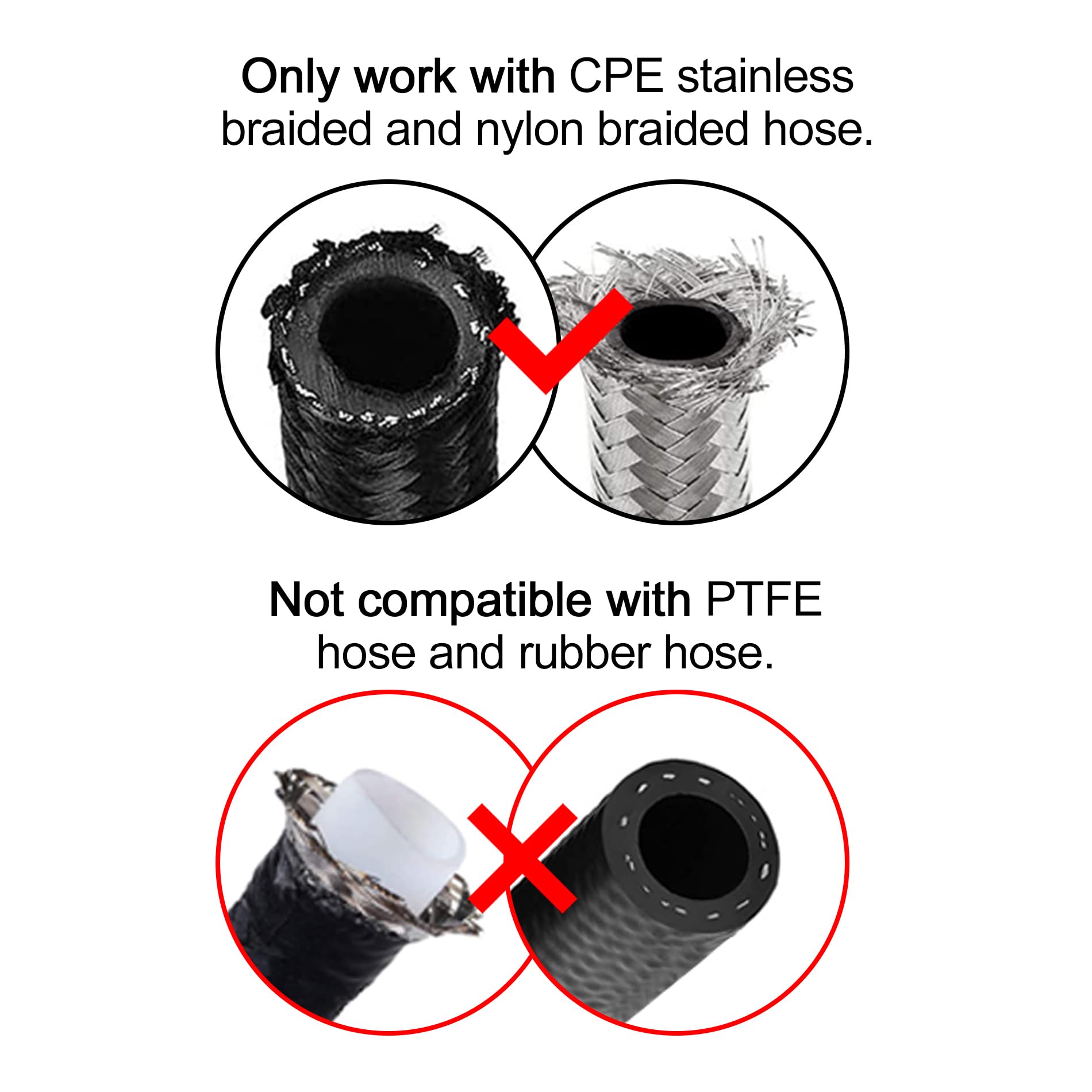

These swivel fittings are intended specifically for use with braided hoses — stainless steel-braided or nylon-braided assemblies. They are not designed for push-on or non-braided soft tubing without appropriate adapters or ferrules.

• Compatible hoses: stainless steel braided, nylon braided
• Not for use with plain rubber or unreinforced lines unless converted
• Reusability: fittings can be disassembled and reused with correct installation

How durable is the EVIL ENERGY 12AN straight swivel under pressure and temperature?

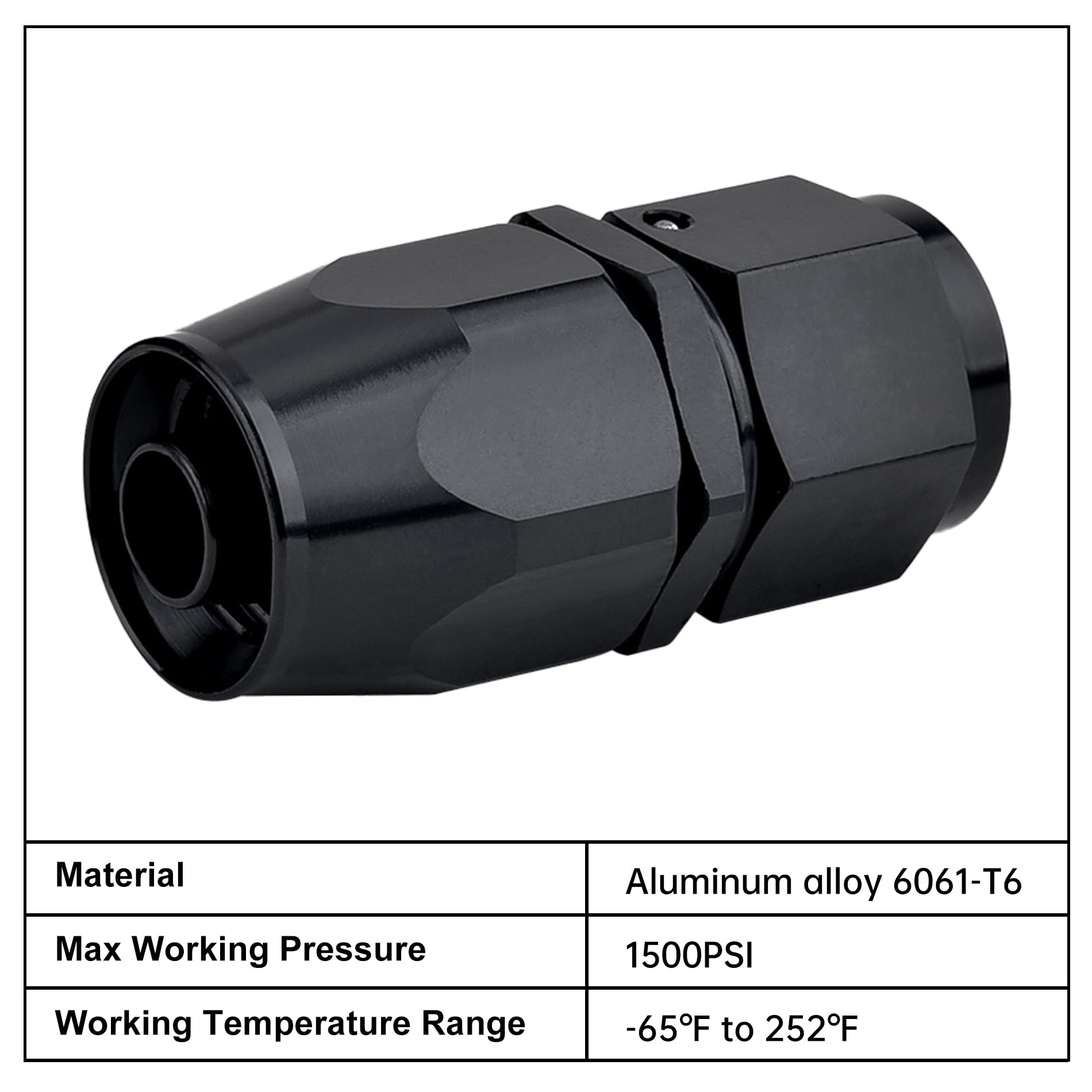

Manufactured from 6061-T6 aluminum, these fittings balance light weight with high strength. The specified maximum working pressure is 1,500 PSI, and they operate across a broad temperature range suitable for many automotive and industrial applications.

• Material: 6061-T6 aluminum alloy for strength and corrosion resistance
• Max working pressure: 1,500 PSI
• Temperature range: -40°F to 248°F (-40°C to 120°C)

How does the swivel feature improve installation and serviceability?

The 360° swivel design allows the hose assembly to rotate independently of the threaded connection, simplifying tight-installation routing and reducing twist in the hose. This makes assembly quicker and lowers the chance of kinks or undue stress on fittings during maintenance.

• 360° swivel reduces hose twist and simplifies alignment
• Faster assembly in confined or awkward spaces
• Reusable and recyclable for long-term serviceability

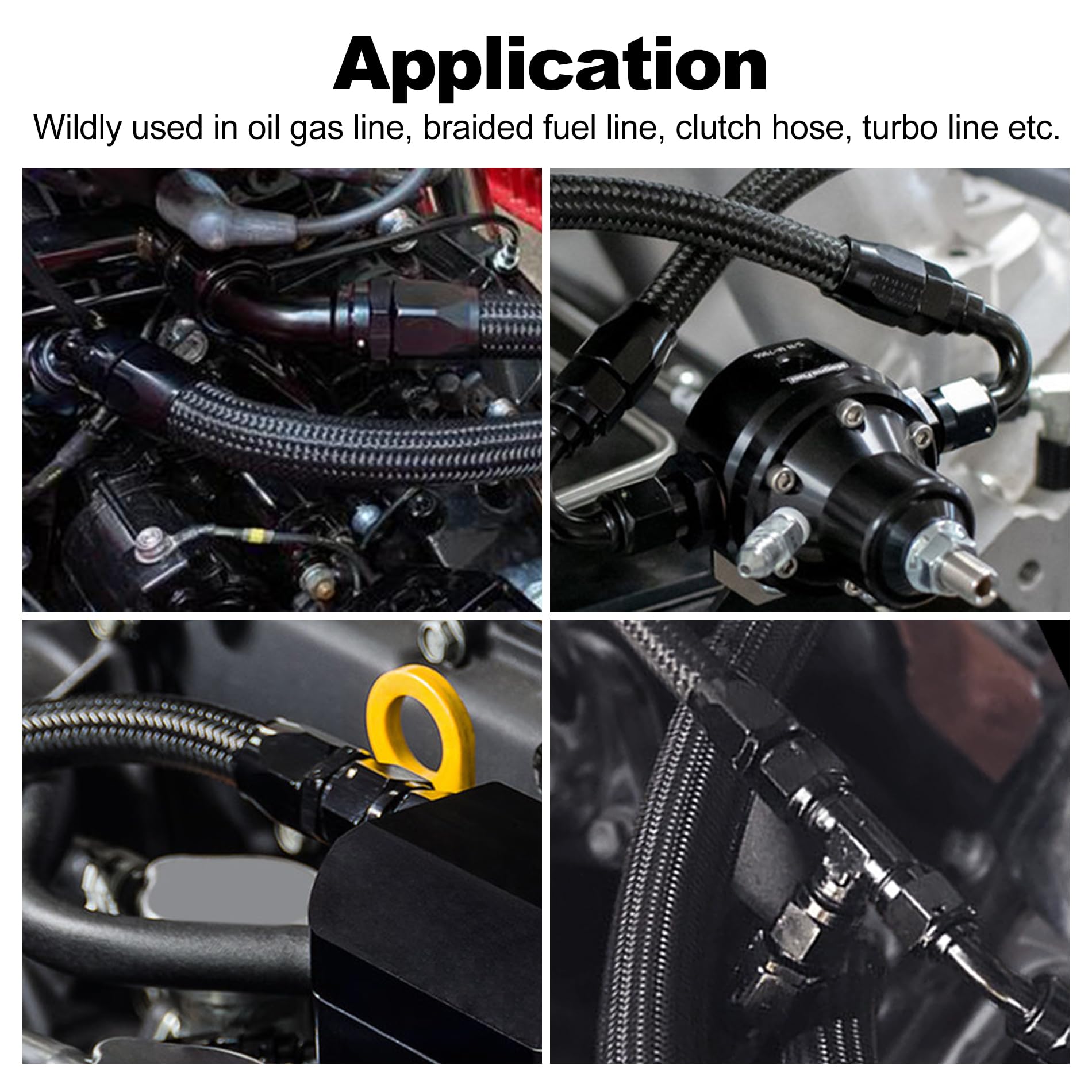

Who is this product for? Installers, tuners, and DIY mechanics who build custom braided hose assemblies or replace worn AN fittings will find this EVIL ENERGY 12AN straight swivel useful. It’s suited for automotive performance plumbing, marine hose runs, or any application requiring a compact AN connection with reliable sealing and a wide operating temperature window. Sold as a two-piece set in black, these fittings are ideal when you need a durable, low-profile connection that’s simple to align and easy to service.
