EVIL ENERGY 5.0" Exhaust Lap-Joint Band Clamp (4 pc) — 304 Stainless Steel, Gasketed 360° Seal

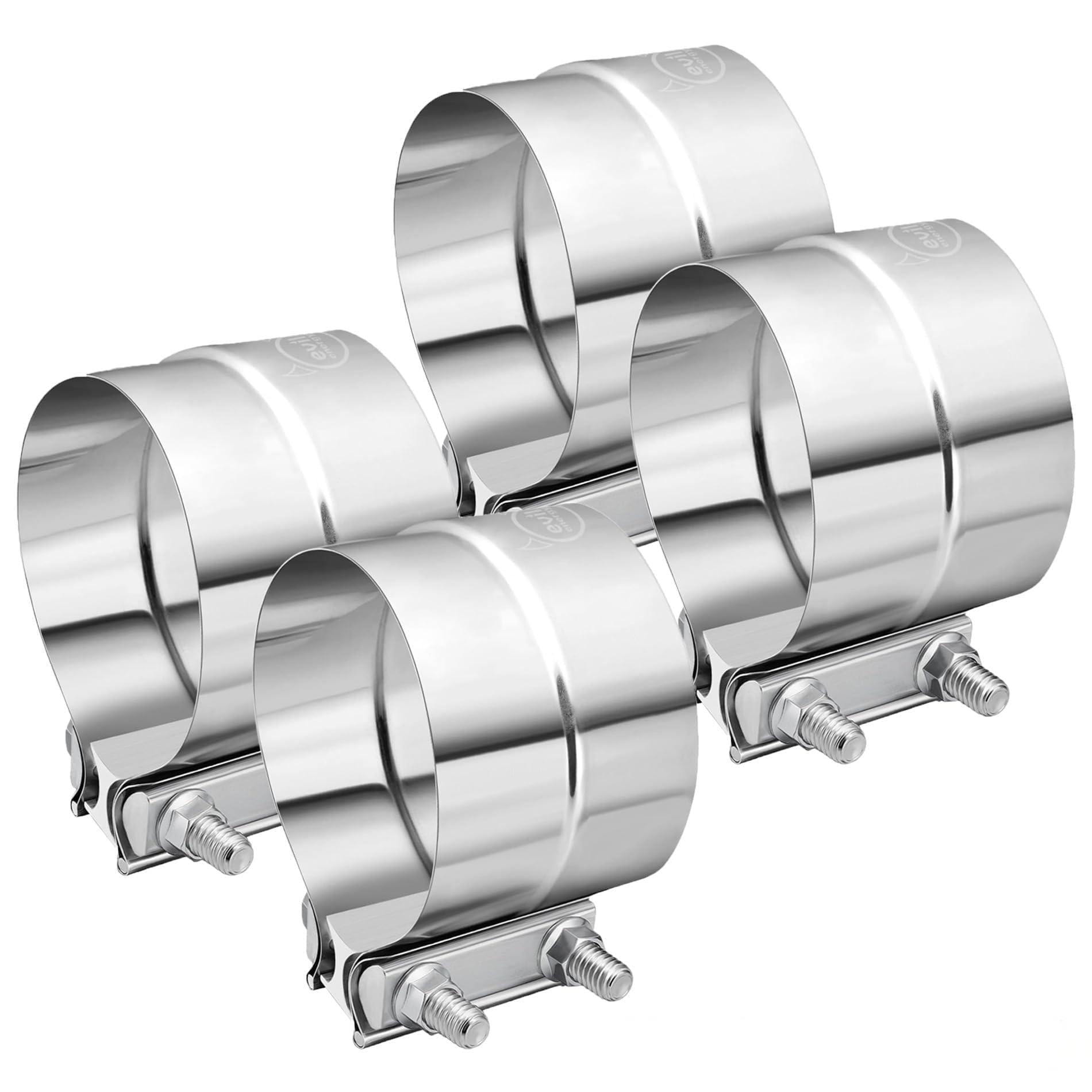

EVIL ENERGY 5.0" lap-joint exhaust clamp is a four-piece stainless-steel band clamp designed to join a 5.0" OD pipe to a 5.0" ID pipe without welding.

If you need a durable, serviceable connection for exhaust pipes, mufflers or catalytic converters, this lap-joint clamp offers a bolt-on alternative to welding. Made from corrosion-resistant 304 stainless steel with a zinc-plated M10 fastener and an aluminum I-block, the kit is sized for a 5.0" outer-diameter to 5.0" inner-diameter fit and includes a gasket for improved sealing. The clamp spreads clamping pressure around the full circumference to minimize distortion and help maintain a tight joint under vibration and thermal cycling.

How does this clamp create a secure seal without welding?

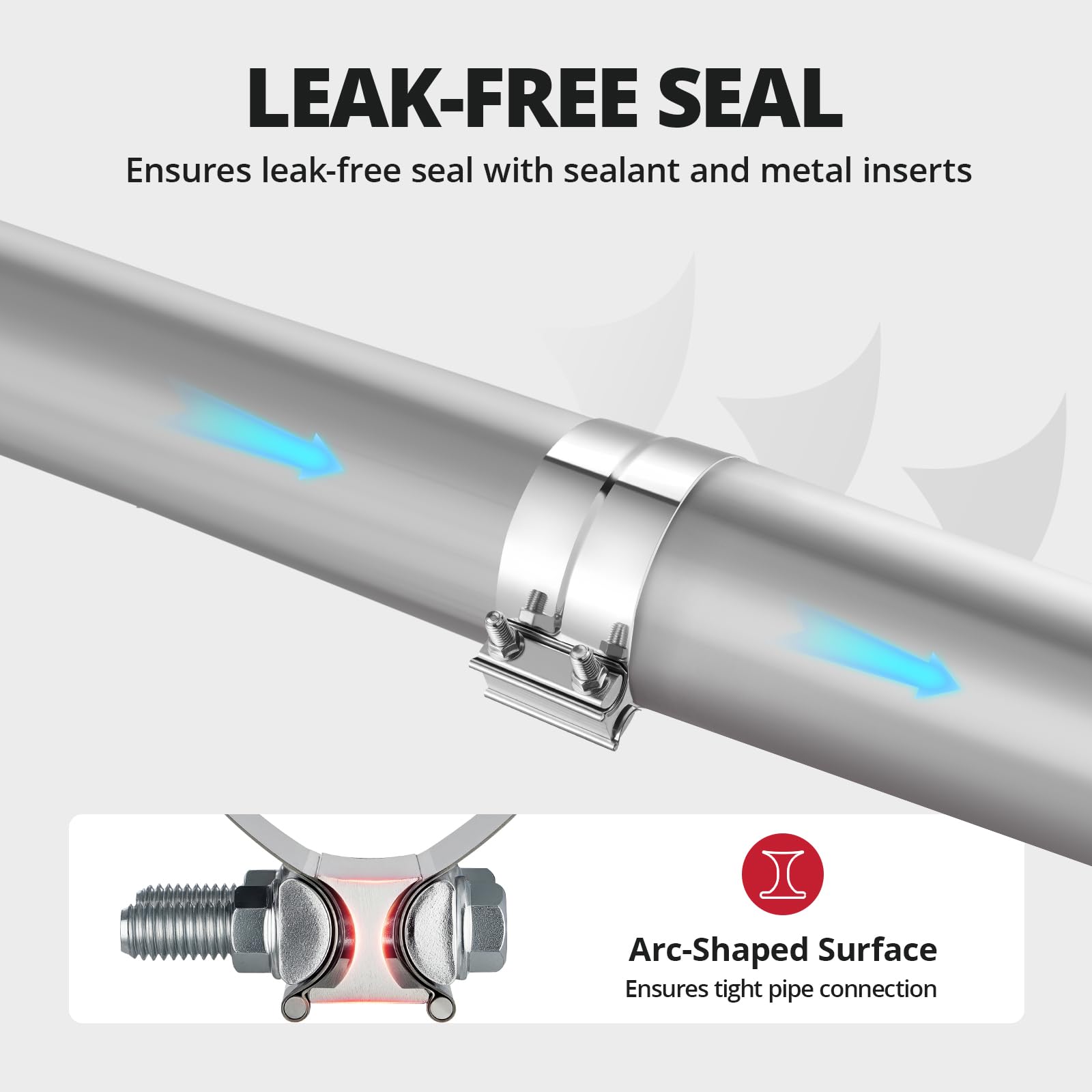

The clamp tightens around the overlapped pipe ends using an I-block and M10 bolt, compressing the included steel gasket to form a mechanical seal. Because the band applies consistent 360° pressure, it reduces point-loading and pipe deformation while maintaining contact across the joint.

• 360° band distributes clamping force evenly.
• Steel gasket enhances gas-tightness at the lap joint.
• Recommended tightening torque: 63 N·m for reliable clamping.
• Removable fastener for easy future service or replacement.

What materials and parts make up the clamp assembly?

The clamp combines corrosion-resistant components chosen for exhaust-system environments: a 304 stainless steel band, a zinc-plated M10 bolt and nut, a steel gasket, and an aluminum-alloy I-block. These materials balance longevity, strength, and cost for automotive and industrial use.

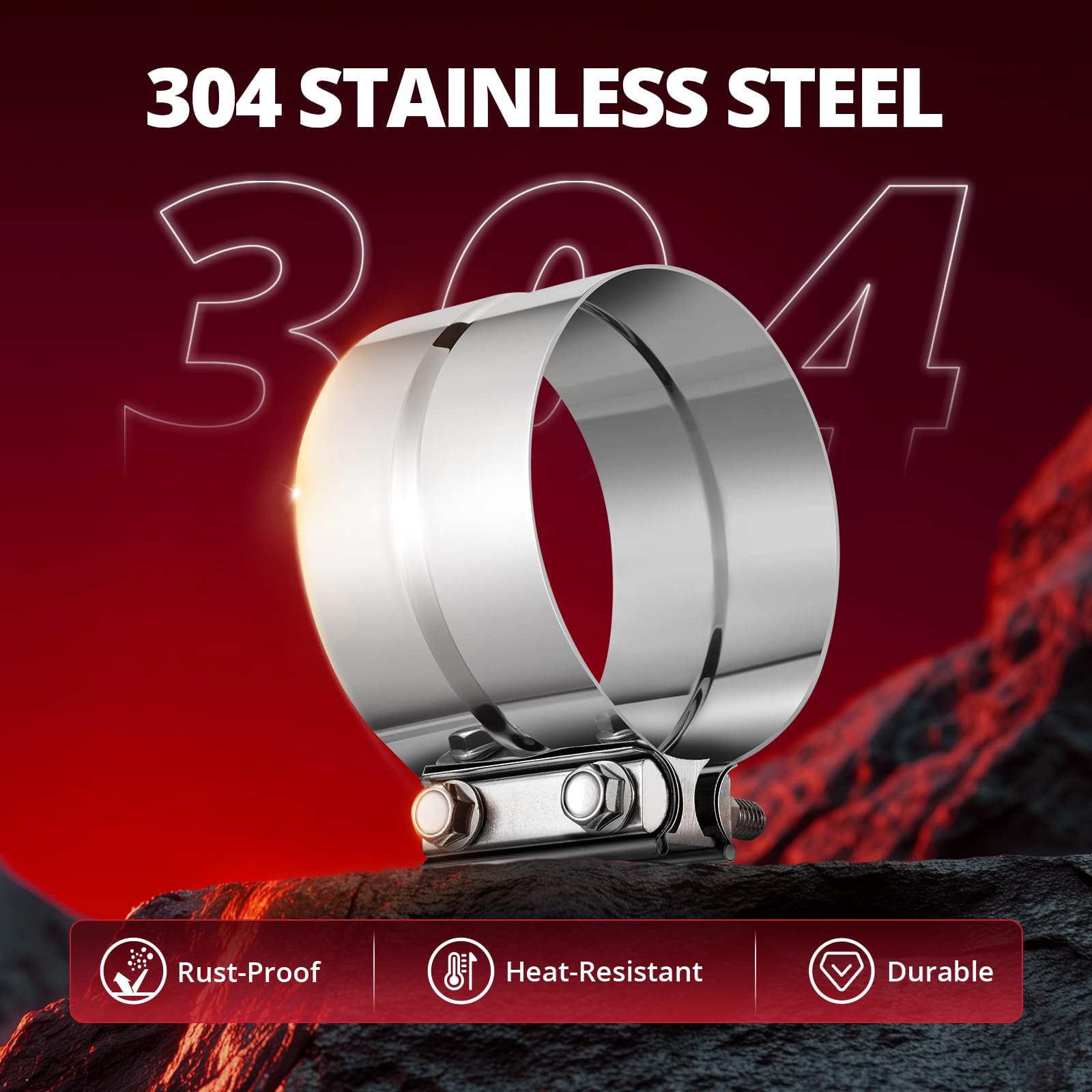

• 304 stainless steel band resists rust and high temperatures.
• Zinc-plated M10 hardware helps prevent galvanic wear.
• Aluminum I-block aligns the band while reducing weight.
• Steel gasket improves sealing between overlapped pipes.

Which pipe sizes and applications are supported?

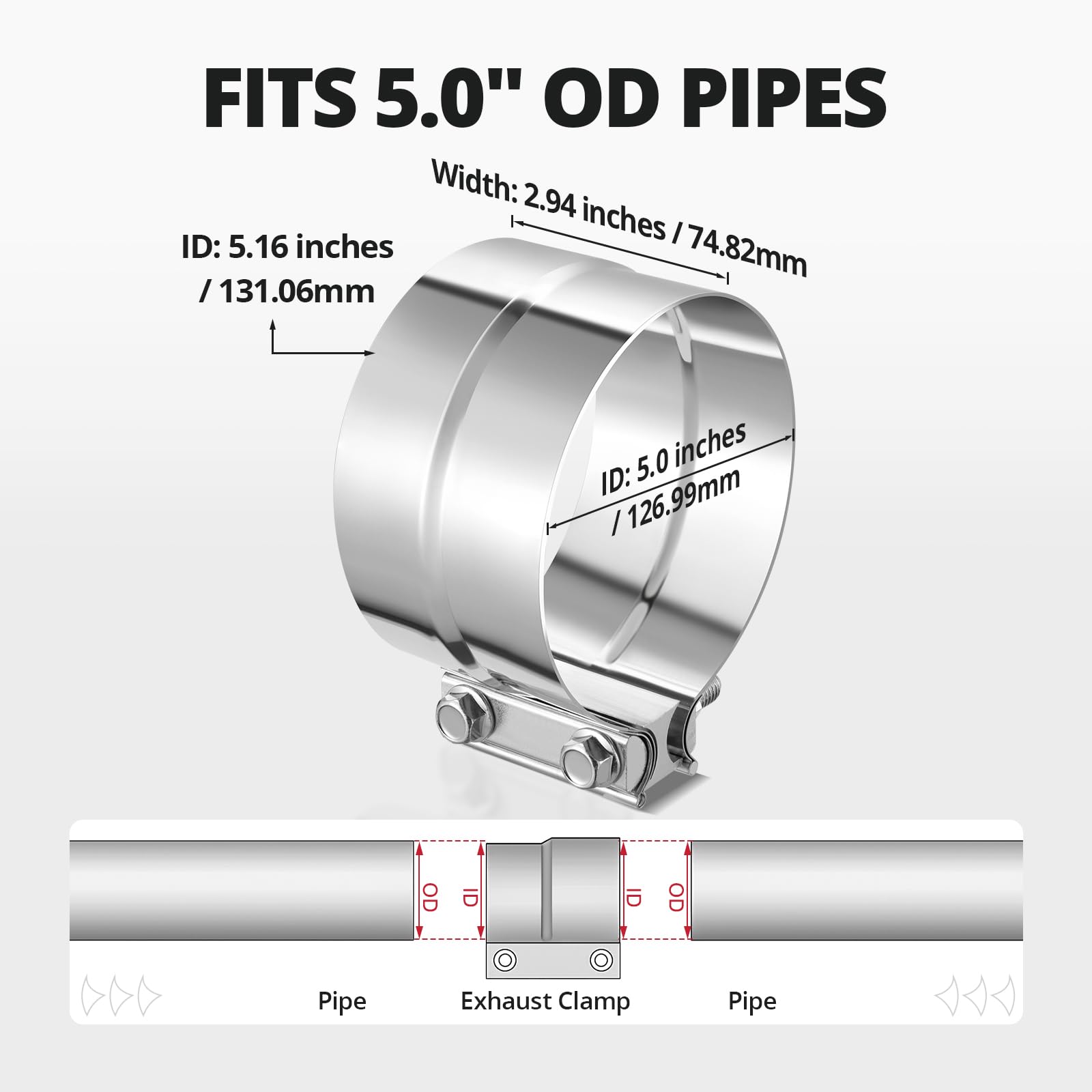

This lap-joint clamp is engineered to connect a 5.0" outside-diameter pipe to a mating 5.0" inside-diameter pipe. It’s commonly used to join sections of exhaust tubing, secure muffler inlets, or attach catalytic converters without welding.

• Specifically sized for 5.0" OD to 5.0" ID pipe connections.
• Suitable for exhaust systems, muffler repairs, and converter flanges.
• Quick installation for field repairs or prototype assemblies.
• Works well where future disassembly or adjustment is expected.

How easy is installation and what tools are needed?

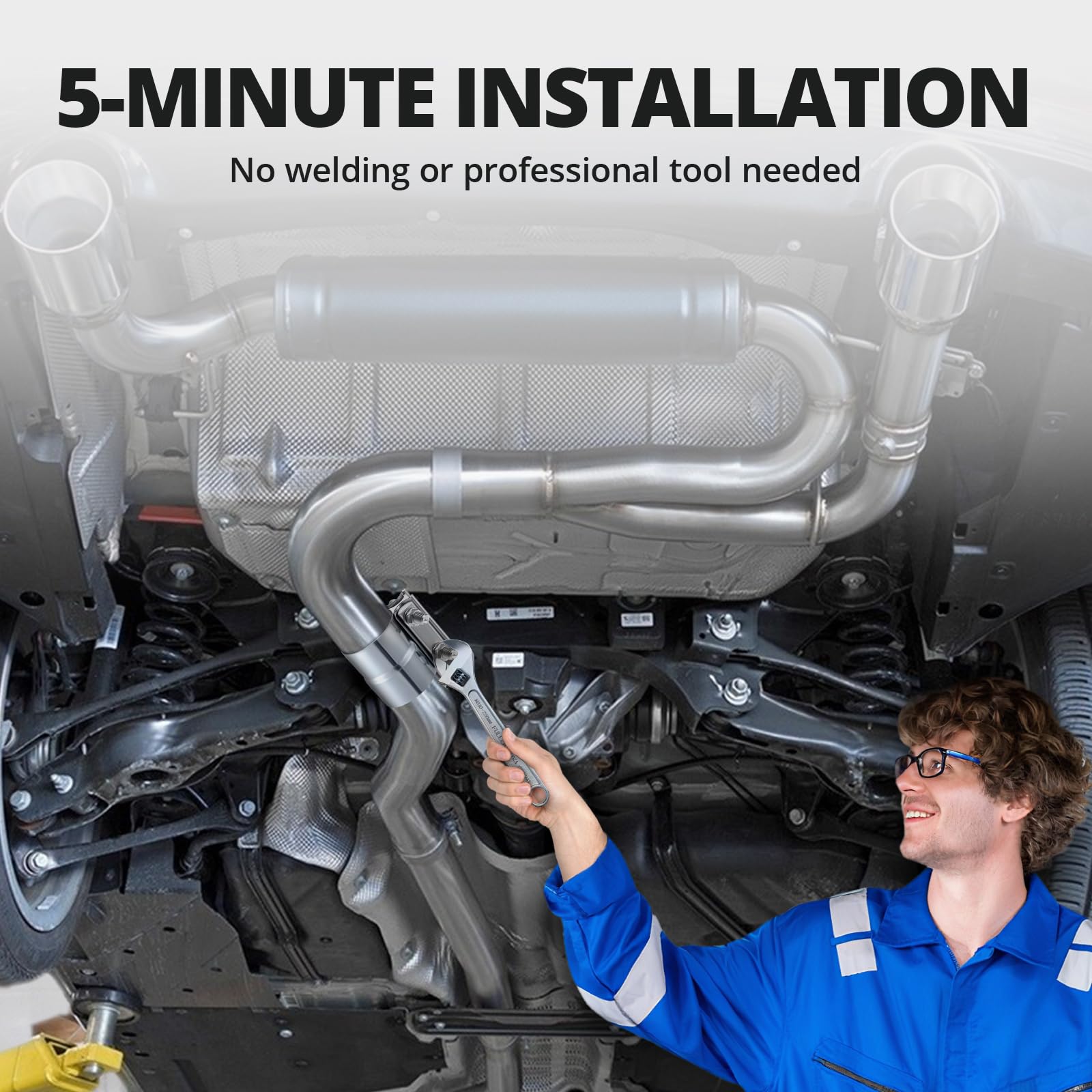

Installation is straightforward and avoids the time and equipment required for welding. Slide the band over the lap joint, set the gasket, position the aluminum I-block, and tighten the M10 bolt to the specified torque for a secure connection.

• No welding—bolt-on installation with common hand tools.
• Use a torque wrench and socket to reach 63 N·m for best results.
• Quick removal by loosening the M10 nut when service is required.
• Ideal for roadside repairs, upgrades, or assembly lines.

Who is this for? This EVIL ENERGY lap-joint clamp is for mechanics, fabricators, and DIY enthusiasts who need a robust, removable way to join 5.0" exhaust components. It’s also useful for shops that prefer bolt-on connections for quicker turnarounds, fleets seeking standardized replacement parts, and builders of custom exhaust systems who want consistent sealing without heat-based joins.
