EVIL ENERGY 8AN 90° Hose End Fitting 2pcs — 3/4-16 UNF Threaded Swivel Aluminium, 1500 PSI

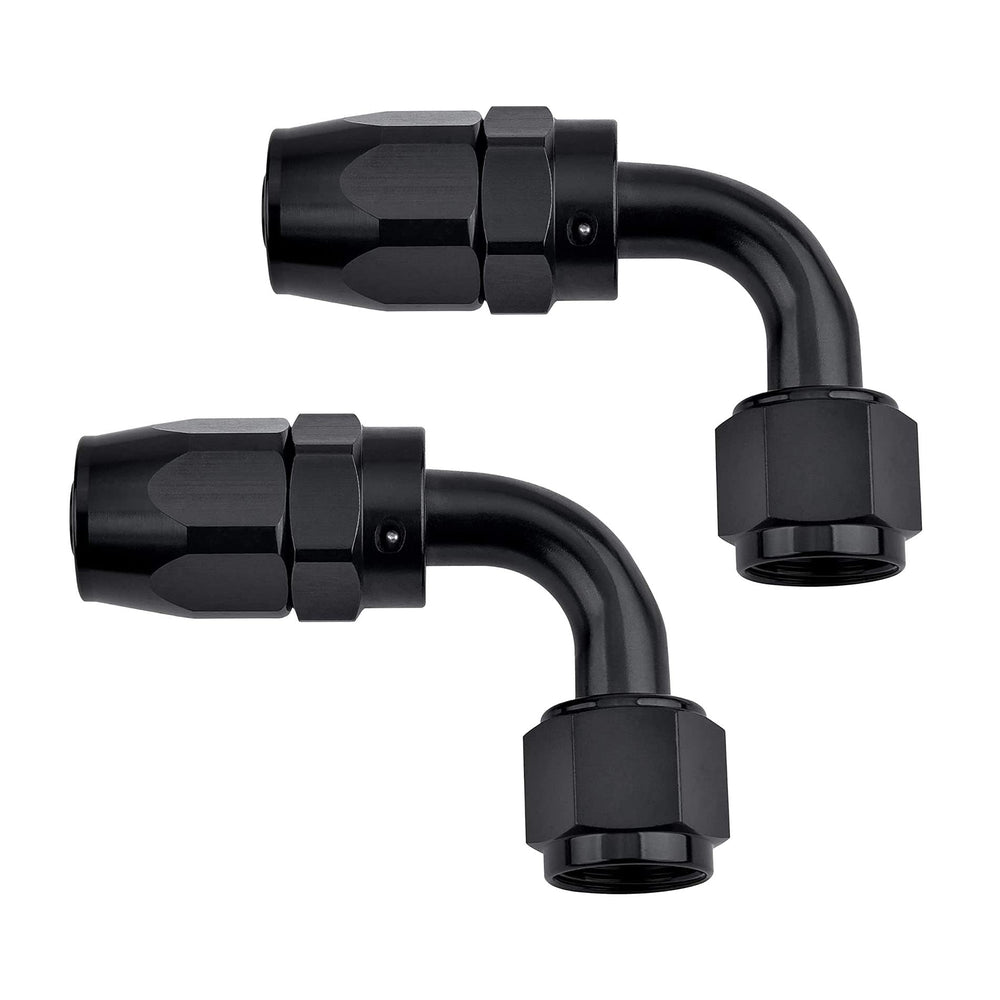

EVIL ENERGY 2PCS 8AN 90 Degree Hose End Fittings are aluminium swivel adapters designed to connect 8AN braided fuel hoses with 3/4-16 UNF threaded ports while providing a compact, reusable 90° routing solution.

These fittings give you a low-profile, durable way to join stainless-steel or nylon braided 8AN fuel lines to threaded components. Machined from 6061-T6 aluminum and sealed with a 37° AN cone, each adapter offers a 360° swivel so you can orient the hose after installation without twisting the line. Rated for typical performance plumbing in automotive and motorsport environments, they balance strength, corrosion resistance and serviceability.

How do these 90° fittings help with space-constrained hose routing?

The compact 90° elbow changes hose direction close to the port, freeing up clearance in tight engine bays or along chassis runs. The swivel collar lets you fine-tune the hose angle after the fitting is tightened, preventing stress on the hose and connectors. That reduces the need for custom-bent hard lines or awkward hose loops.

• Short elbow profile minimizes interference with nearby components
• 360° swivel allows final orientation without rotating threaded port
• Smooth internal bore preserves flow and reduces turbulence

Will these fittings work with my braided fuel hose and threaded port?

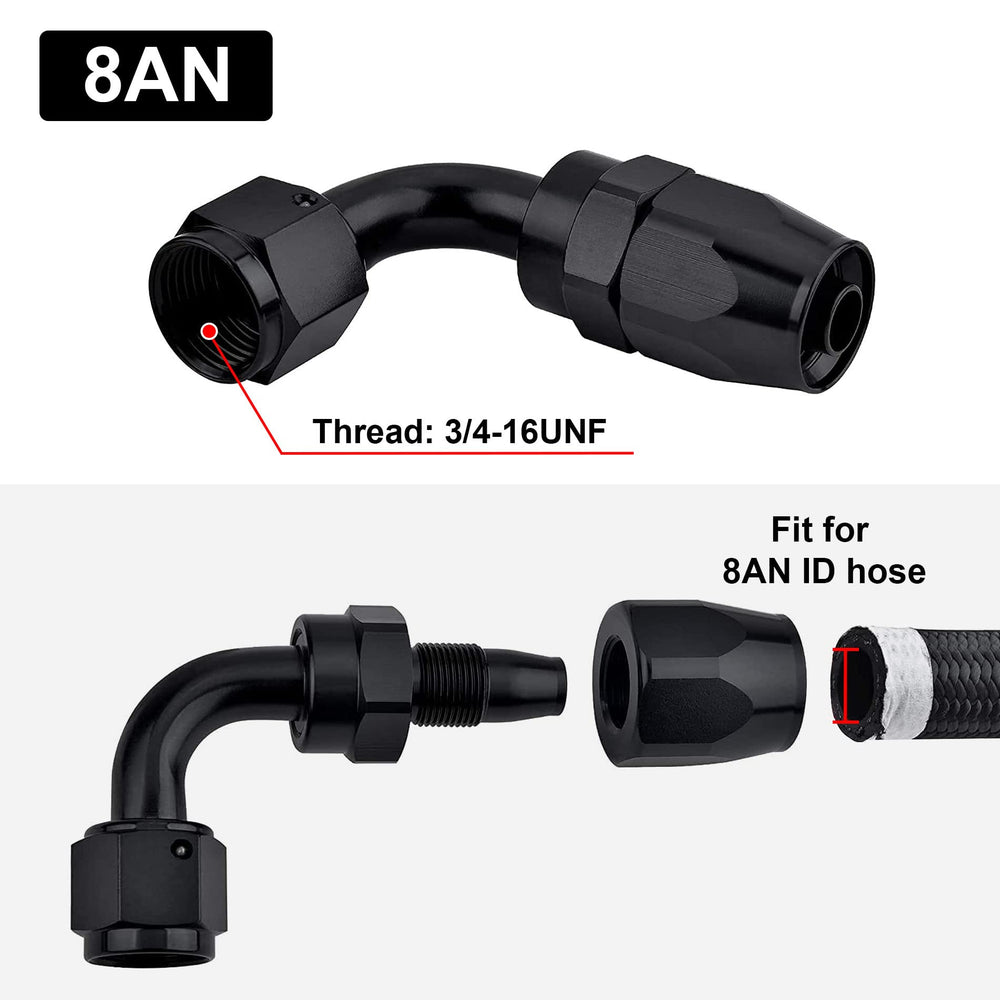

They are specifically made for 8AN braided hoses and accept a 3/4-16 UNF threaded port on the mating side. The AN face uses a 37° cone seal that matches standard AN receptacles and adapters. These fittings are not designed for non-braided soft hoses or fittings with non-AN sealing geometries.

• AN side: 8AN with 37° cone sealing
• Threaded side: 3/4-16 UNF for common fuel-system ports

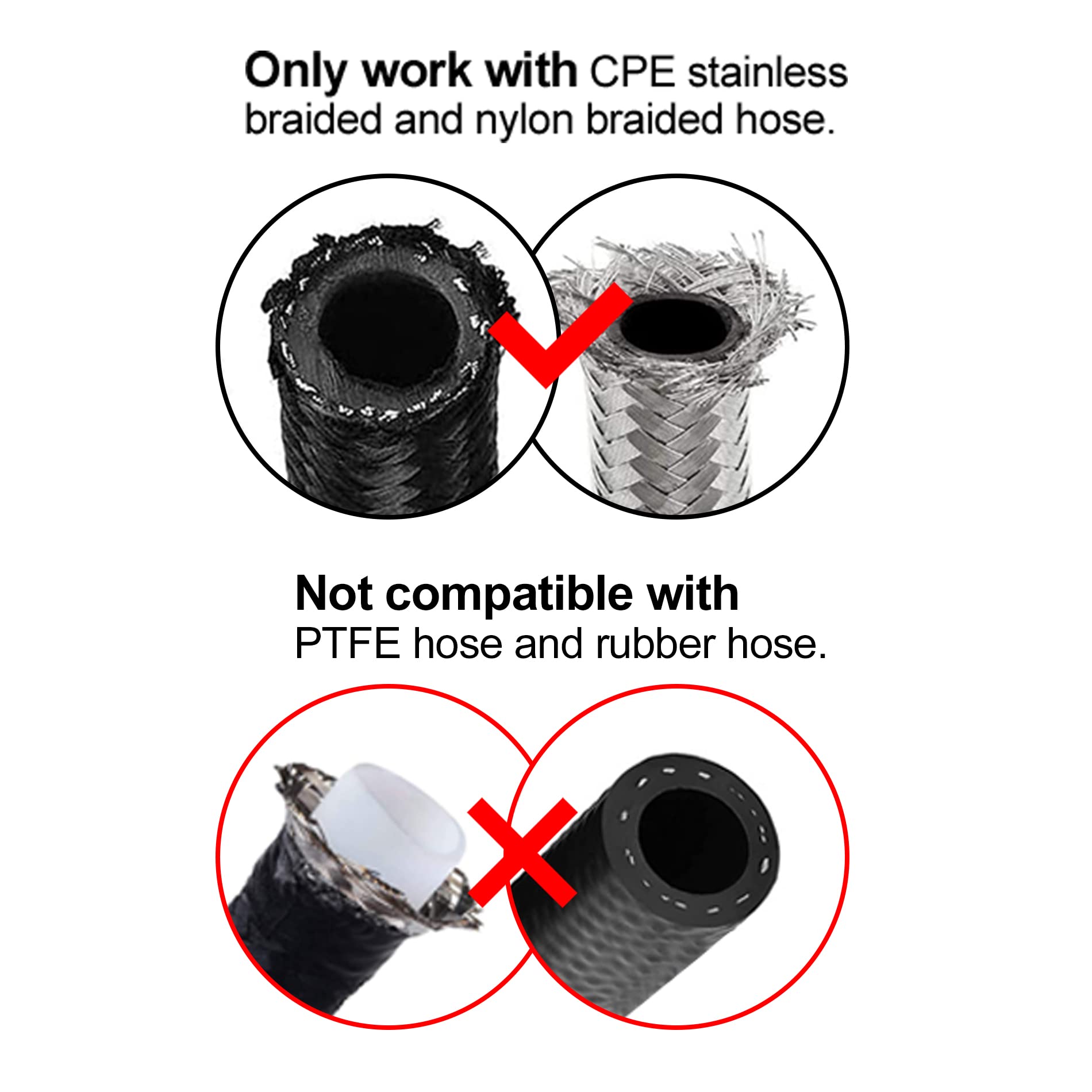

• Compatible with stainless steel and nylon braided hose constructions only

What are the material, strength and temperature limits?

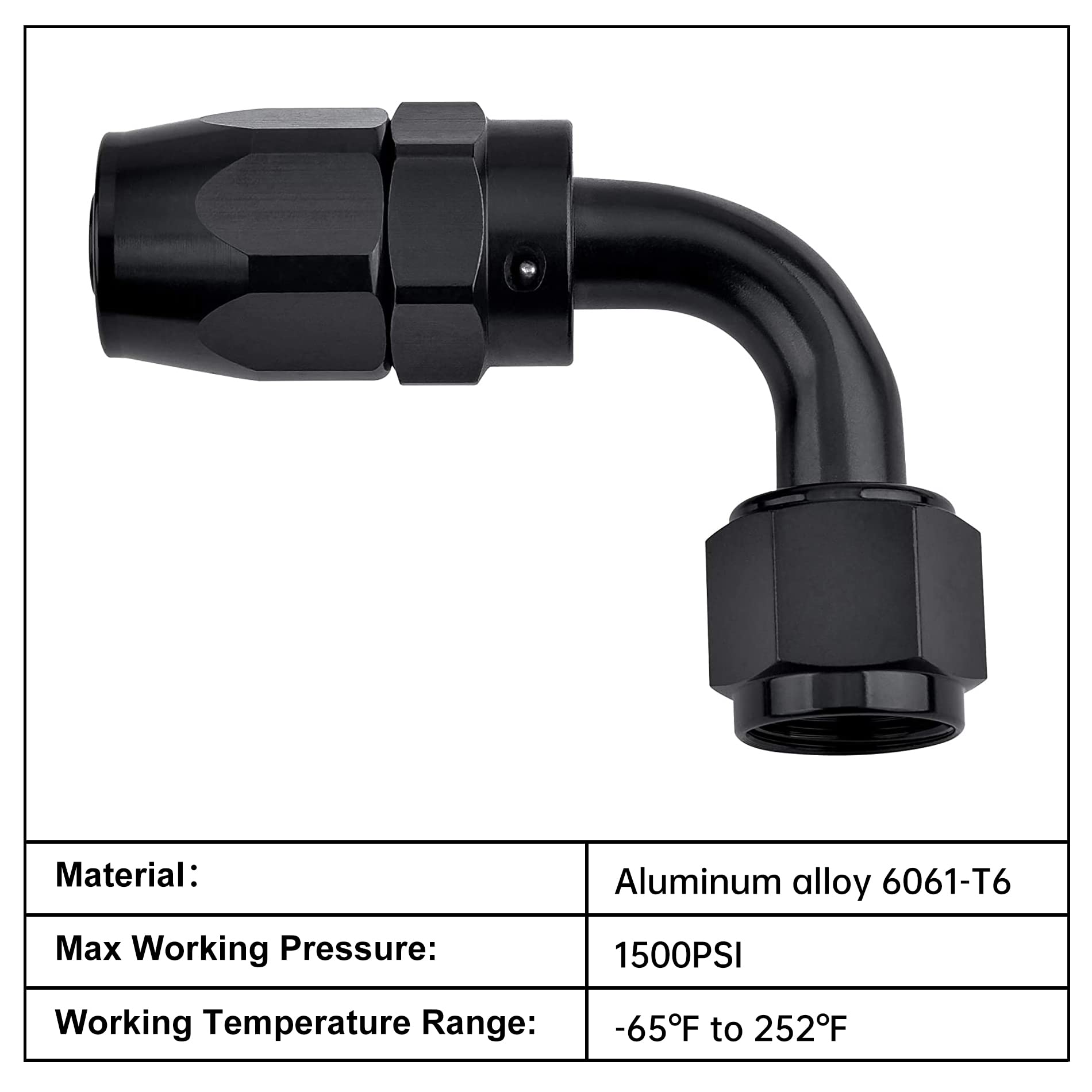

Each adapter is CNC-machined from 6061-T6 aluminum for a strong, lightweight fitting that resists typical workshop corrosion. The rated maximum working pressure is 1,500 PSI, and the usable temperature range spans -65°F to 252°F (-53°C to 122°C), covering most automotive and motorsport fluid conditions. The fittings are reusable and recyclable, making them practical for maintenance or upgrades.

• Material: 6061-T6 aluminum alloy for strength and durability
• Maximum working pressure: 1,500 PSI under recommended conditions
• Operating temperature: -65°F to 252°F (-53°C to 122°C)

How easy are these fittings to install and service?

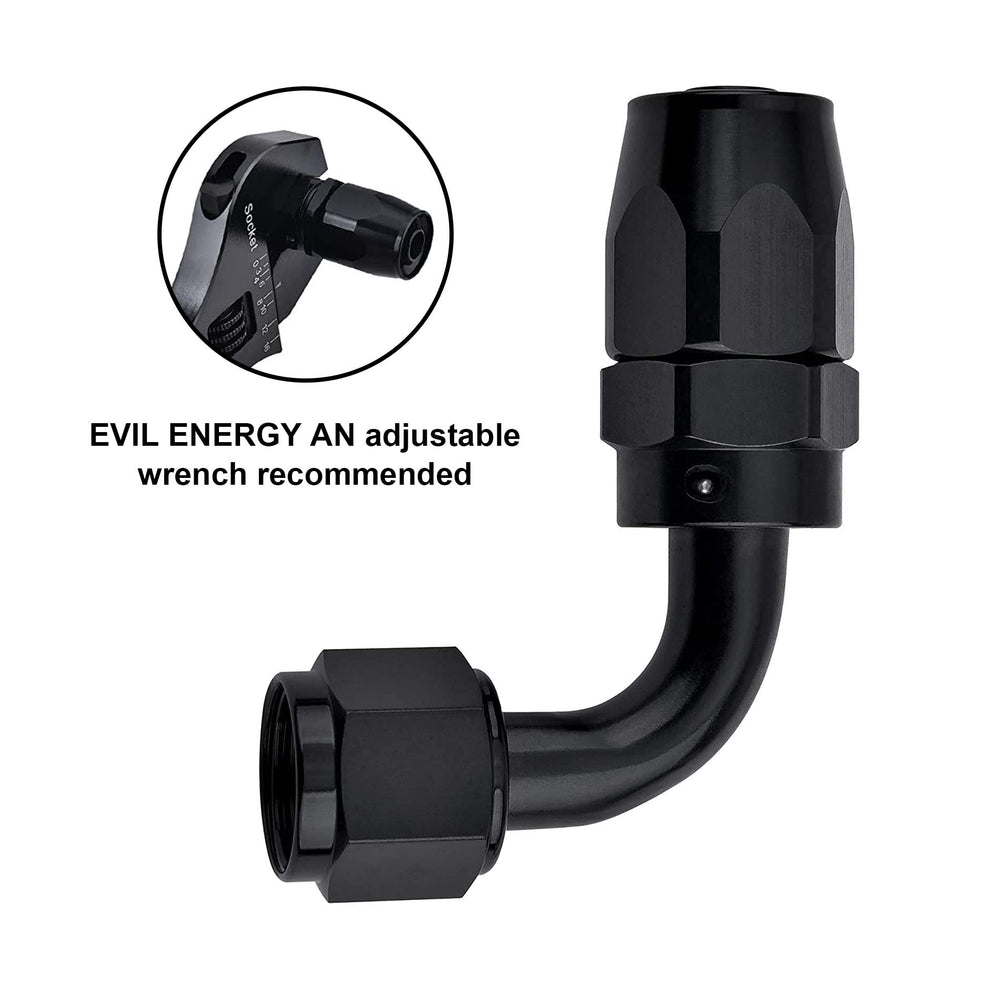

Installation is straightforward: thread the 3/4-16 UNF side into the component, then tighten the AN nut onto the hose assembly. The swivel feature lets you align the hose without disturbing the threaded seal, and the reusable design permits disassembly for inspection or hose replacement. Use proper torque and sealing practices to ensure a leak-free joint.

• 360° swivel for final orientation post-installation
• Reusable construction simplifies maintenance and swaps
• CNC finish helps consistent sealing and repeatable torque settings

Who is this for: These EVIL ENERGY 8AN 90° hose end fittings are suited to car builders, racers, tuners and technicians who need a compact, reliable connection for 8AN braided fuel lines. They work well for retrofit projects, replacement parts on racecars and custom plumbing where tight clearances demand a robust swivel elbow. If your system uses non-braided hoses or requires different thread sizes, choose fittings that match those specifications.
