EVIL ENERGY 8AN 90° PTFE Hose End Fitting — Black 4-Pack, 360° Swivel, 1500 PSI

EVIL ENERGY 8AN 90° PTFE Hose End Fitting is a black, 4-piece aluminum alloy swivel adapter engineered to join 8AN PTFE fuel hose with a 3/4-16UNF thread and a 37° AN seal.

This 4-pack of 90-degree hose end fittings is made for PTFE-lined fuel hose systems where a compact, high-pressure swivel connection is required. Crafted from 6061-T6 aluminum with a 360° swivel and rated to 1500 PSI, these fittings are designed to resist corrosion and simplify routing in tight engine bays. They accept only PTFE hose, use an AN-style 37° sealing surface, and operate across a wide temperature range from -65°F to 252°F.

How do these fittings connect to PTFE hose and threaded components?

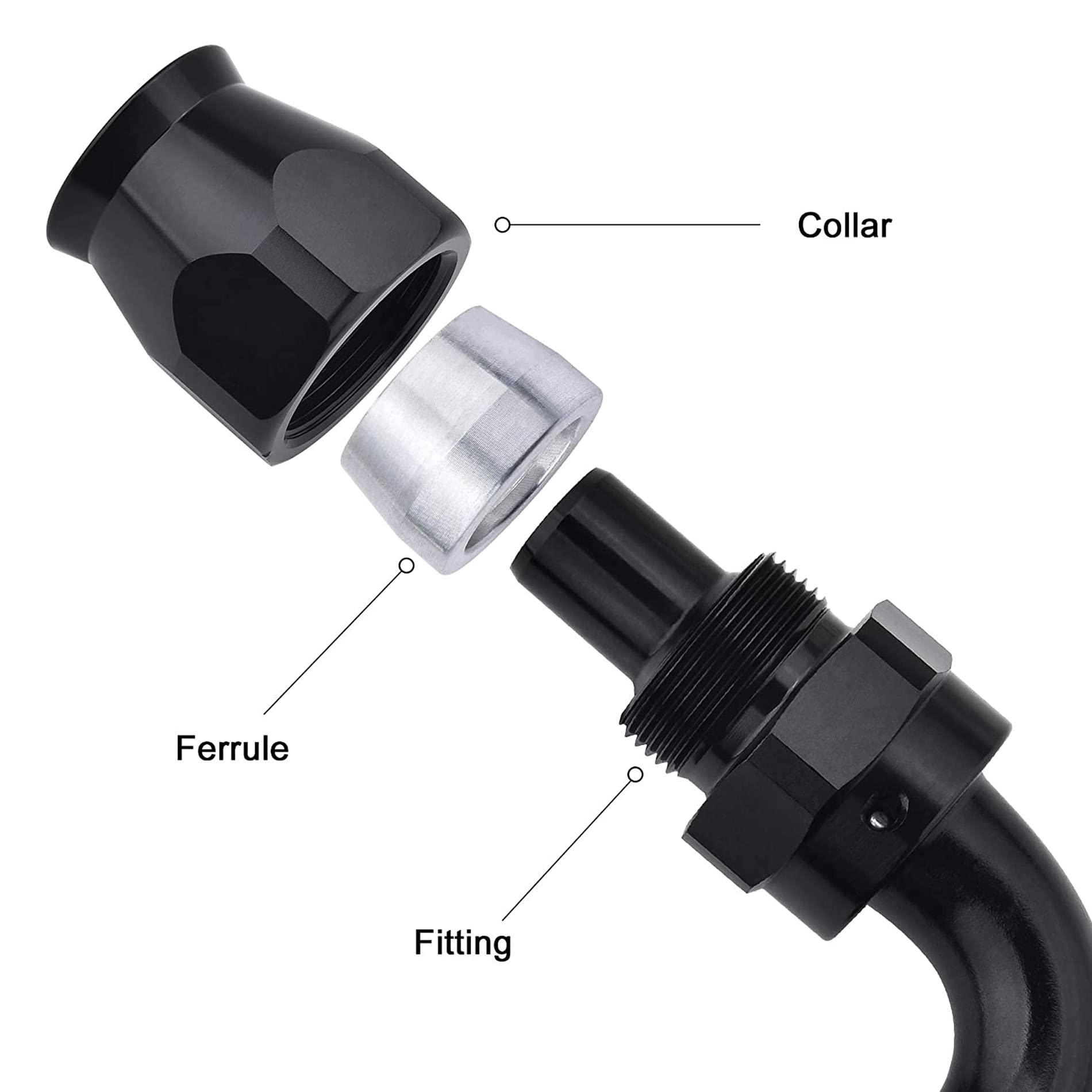

The fittings join to PTFE-lined hose using a compression-style assembly that seats the PTFE liner against the AN 37° sealing surface. The threaded side is a 3/4-16UNF (8AN) male thread that mates with compatible ports or adapters. The 360° swivel body helps align the hose without twisting or stressing the PTFE liner.

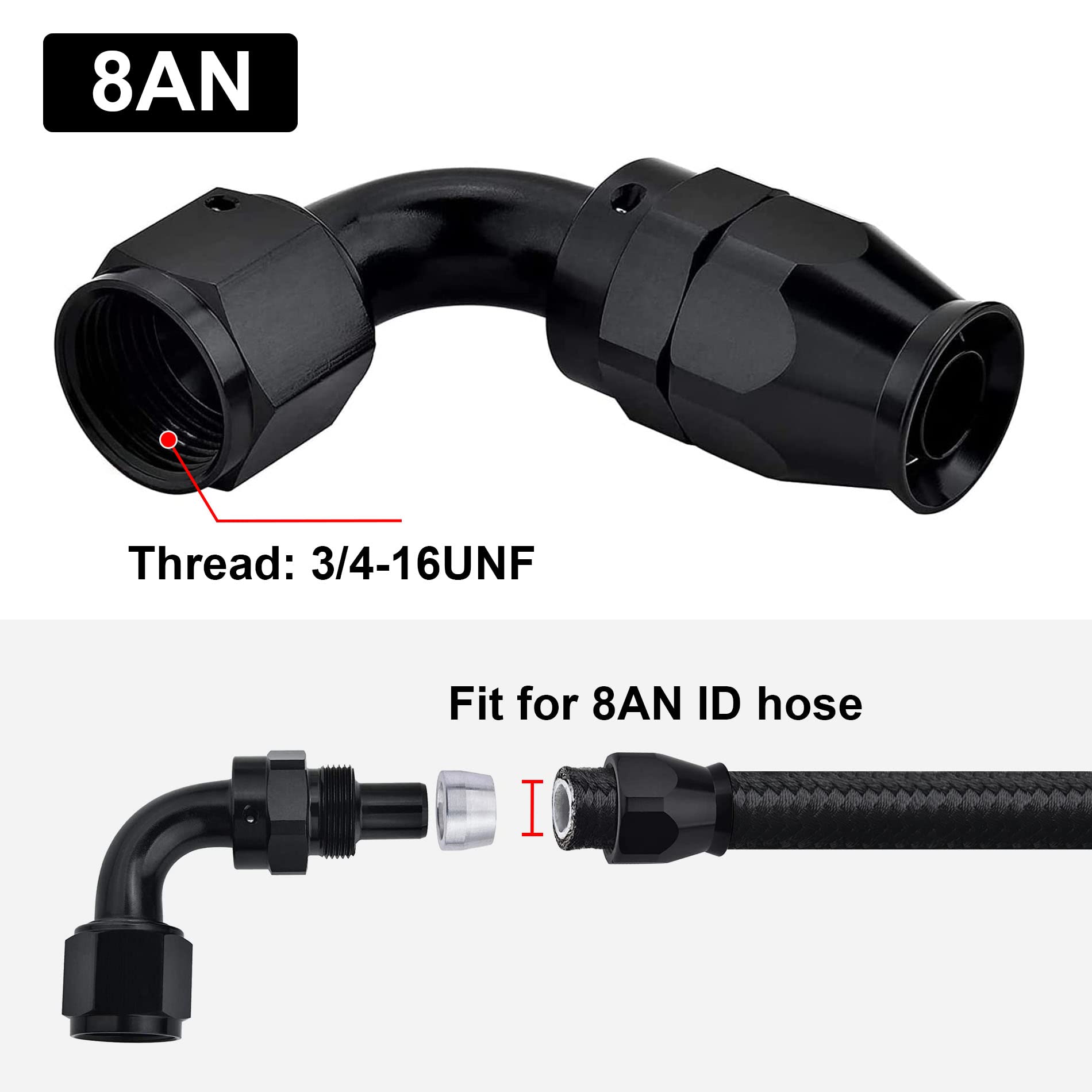

• Thread size: 3/4-16UNF (8AN).
• Sealing surface: 37° AN angle for reliable metal-to-metal seal.
• Swivel: 360° rotation for easier installation and hose routing.

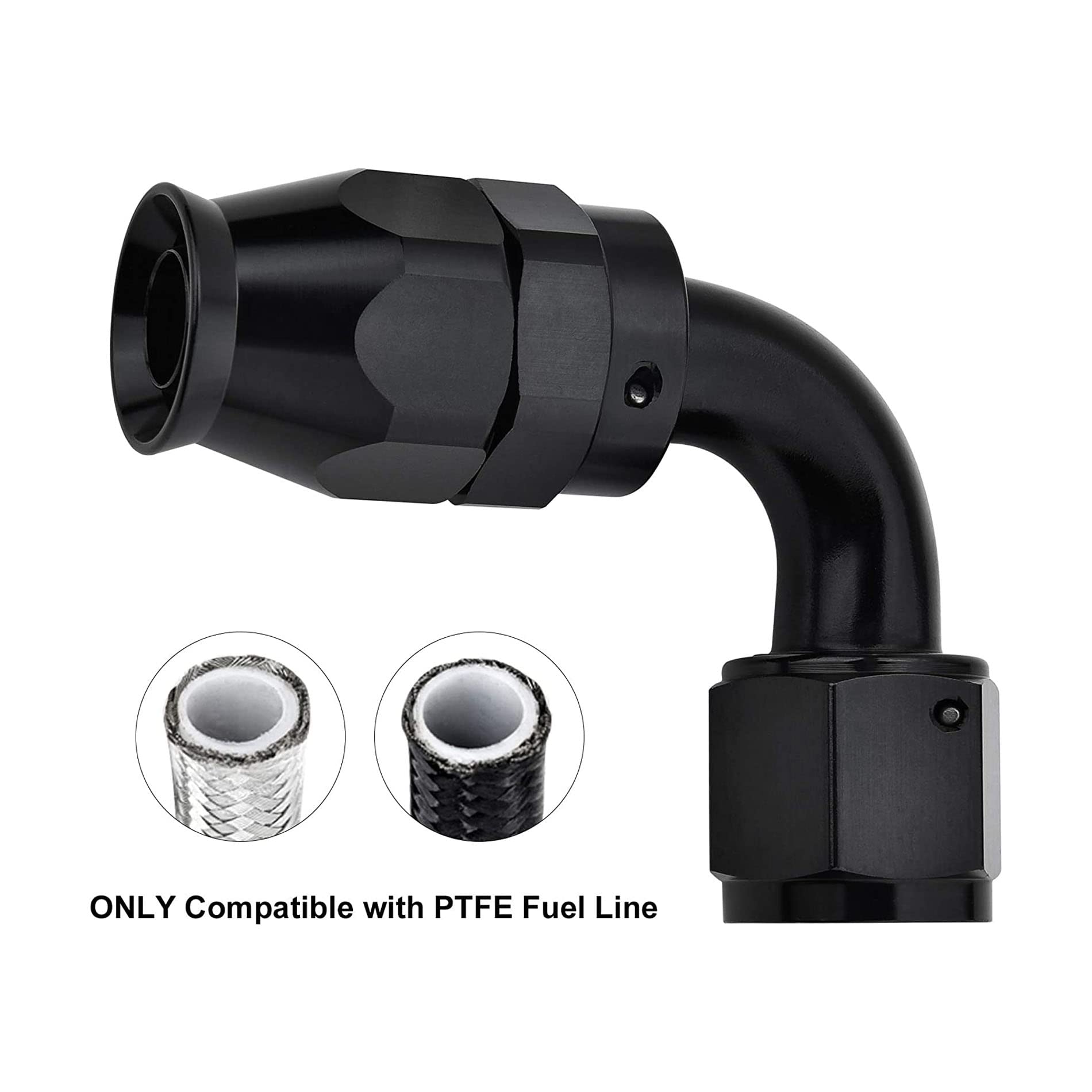

• Compatibility: for PTFE-lined fuel hose only.

What performance and environmental limits should I expect?

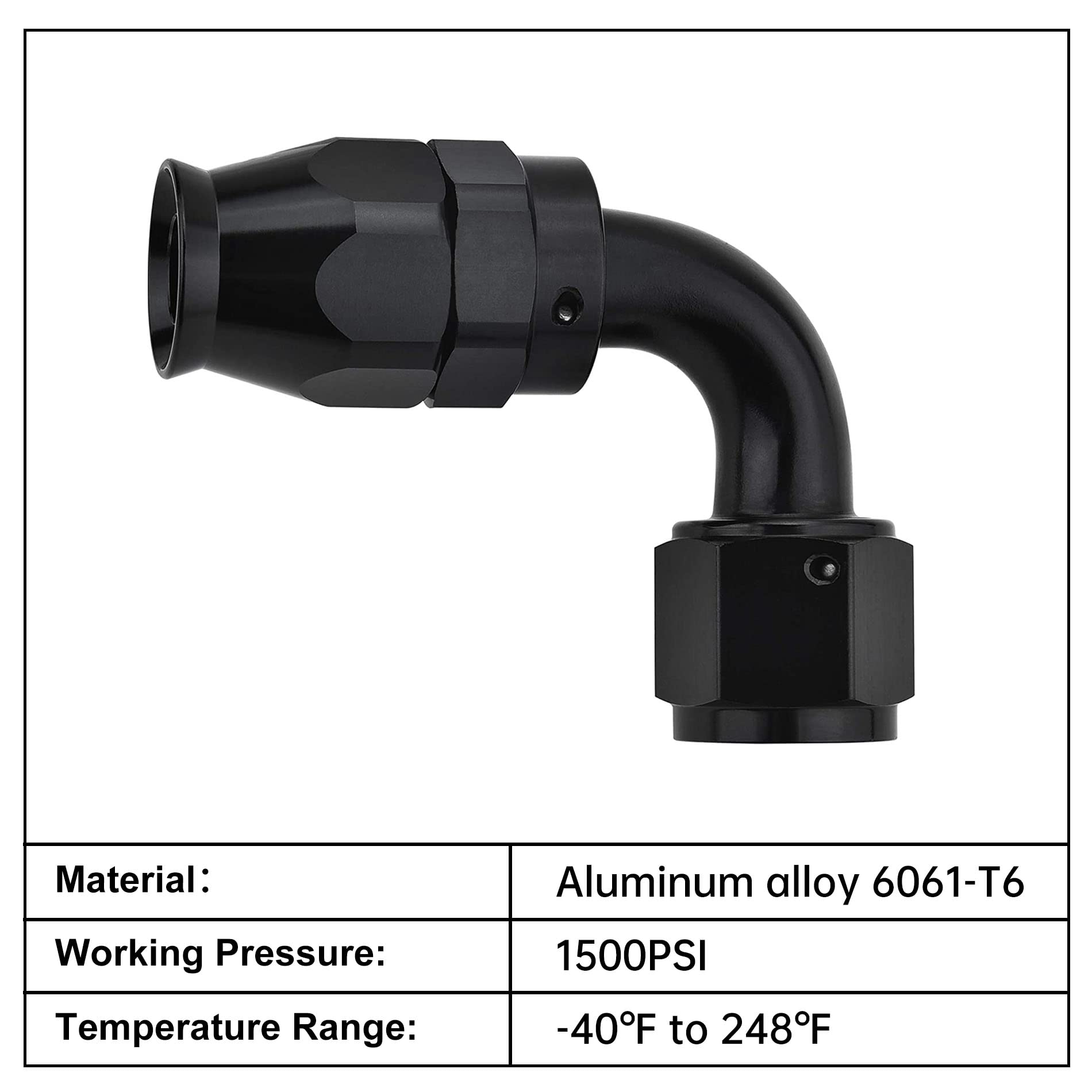

These fittings are rated to 1500 PSI working pressure, suitable for many fuel system and fluid-transfer applications that use PTFE hose. The aluminum alloy construction offers good strength and corrosion resistance, and the operating temperature range covers most automotive and motorsport environments. Avoid using them with non-PTFE hose or fluids that attack aluminum.

• Working pressure: 1500 PSI.
• Temperature range: -65°F to 252°F.
• Material: 6061-T6 aluminum for lightweight durability.
• Not compatible with rubber or non-PTFE hose types.

Why choose a 90° 8AN swivel fitting instead of a straight fitting?

A 90° fitting lets you route PTFE hose close to tight corners and reduces kinking at exit points. The 360° swivel feature prevents the hose from twisting during assembly, which protects the PTFE liner and extends service life. For crowded engine compartments or compact plumbing, the angled connection saves space and simplifies installation.

• Space-saving 90° angle for tight routing.
• Swivel prevents hose torsion and liner stress.
• Black finish reduces glare and matches many engine bay aesthetics.

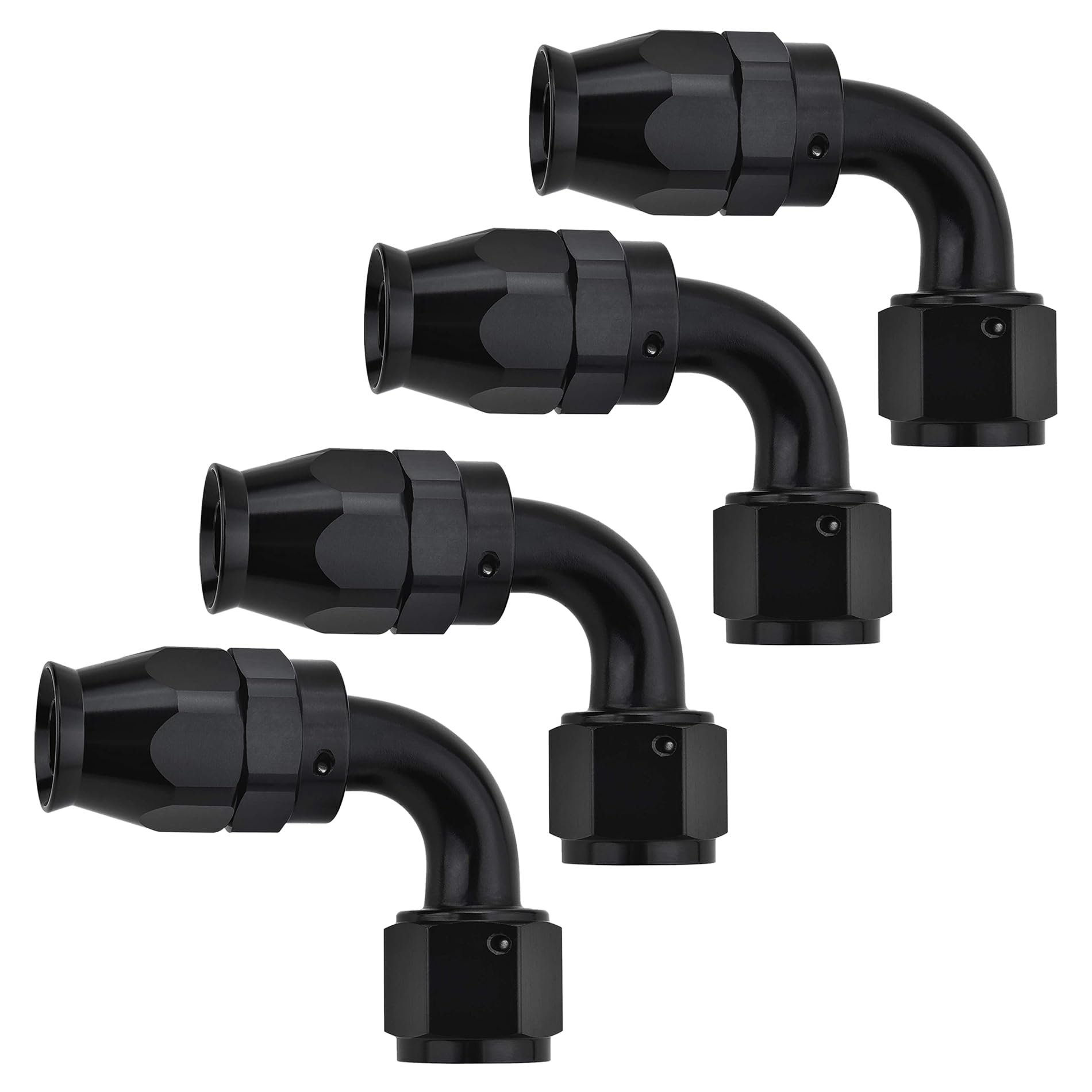

• Pack of 4 for multi-point installations or spares.

Who is this for?

These EVIL ENERGY 8AN 90° PTFE hose end fittings suit mechanics, fabricators, and motorsport enthusiasts installing or upgrading PTFE-lined fuel, oil, or fluid lines where a robust, compact swivel connection is needed. If you require reliable AN-style sealing, a high-pressure rating, and a compact elbow for tight spaces—especially in performance or custom plumbing—this 4-piece set is tailored to that use. Avoid these fittings for non-PTFE hoses or applications requiring exotic alloy compatibility; otherwise they are a practical, corrosion-resistant choice for demanding fuel-system work.
