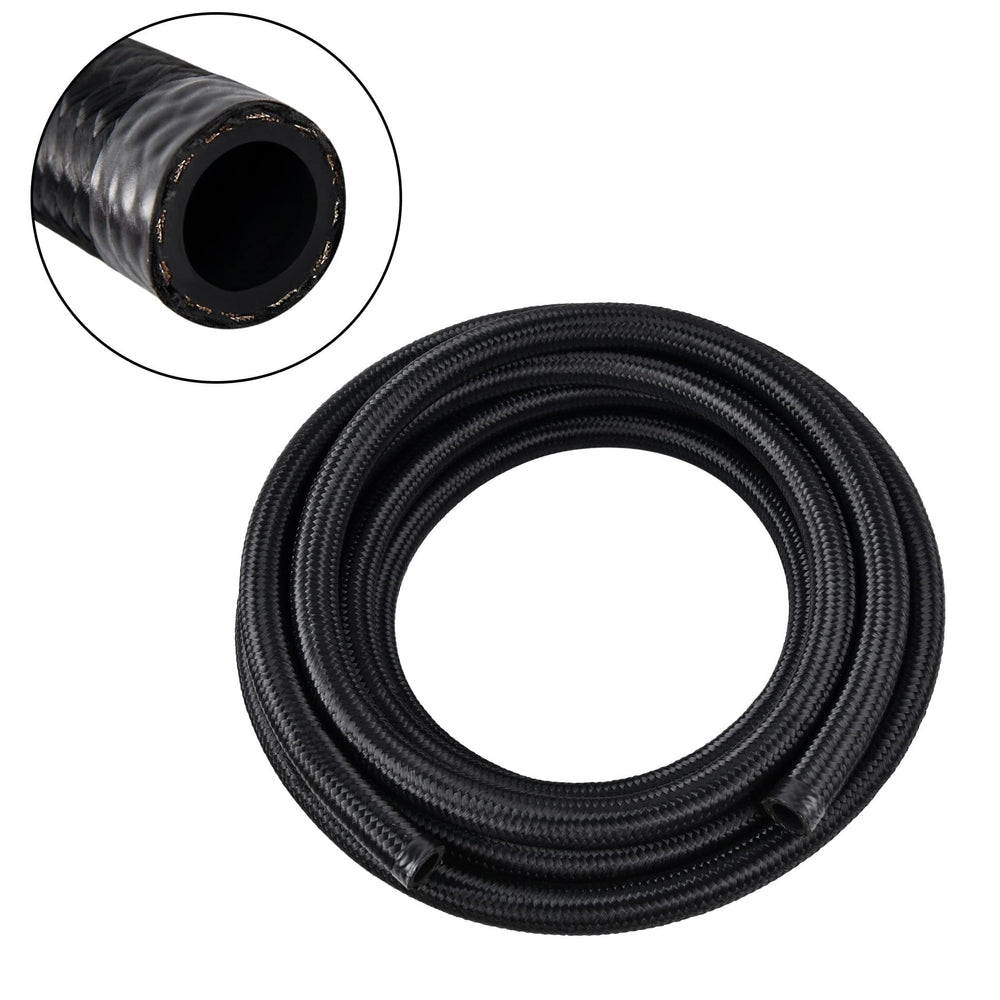

EVIL ENERGY AN6 Nylon-Braided Fuel Hose 5ft Black — CPE Inner, 750 PSI Working

This braided AN6 hose combines a fuel-resistant CPE inner tube, a 304 stainless steel wire reinforcement, and a protective nylon outer braid to deliver a balance of chemical compatibility, pressure tolerance, and abrasion resistance. It’s engineered for automotive and motorsport use as well as industrial and custom plumbing where standard rubber lines won’t hold up. Rated to work from -22°F to 248°F, the hose is supplied in a 5-foot length and sized for 6AN swivel fittings (hose ID 0.31" / OD 0.56").

How much pressure and temperature can this 6AN fuel line handle?

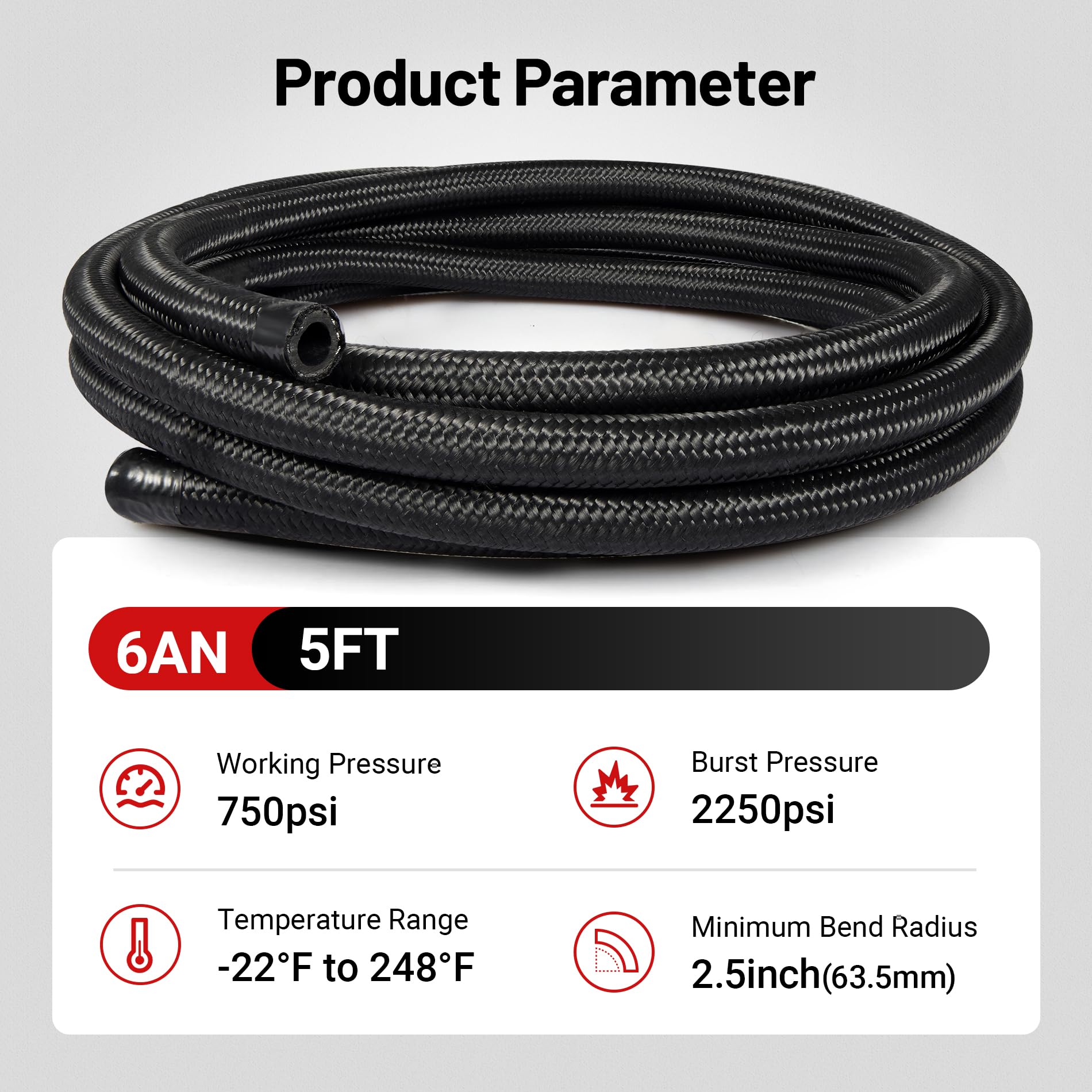

The EVIL ENERGY AN6 braided line is specified for robust operating conditions. It is designed to withstand continuous working pressures up to 750 PSI and bursts at roughly 2,250 PSI, providing a wide safety margin for most automotive and performance applications.

• Maximum working pressure: 750 PSI for continuous service.
• Bursting pressure: approximately 2,250 PSI for safety margin.
• Temperature range: -22°F to 248°F for cold starts and hot engine bays.
• Construction supports high-temperature fluids and transient pressure spikes.

What materials make this hose reliable around fuel, oil, and coolant?

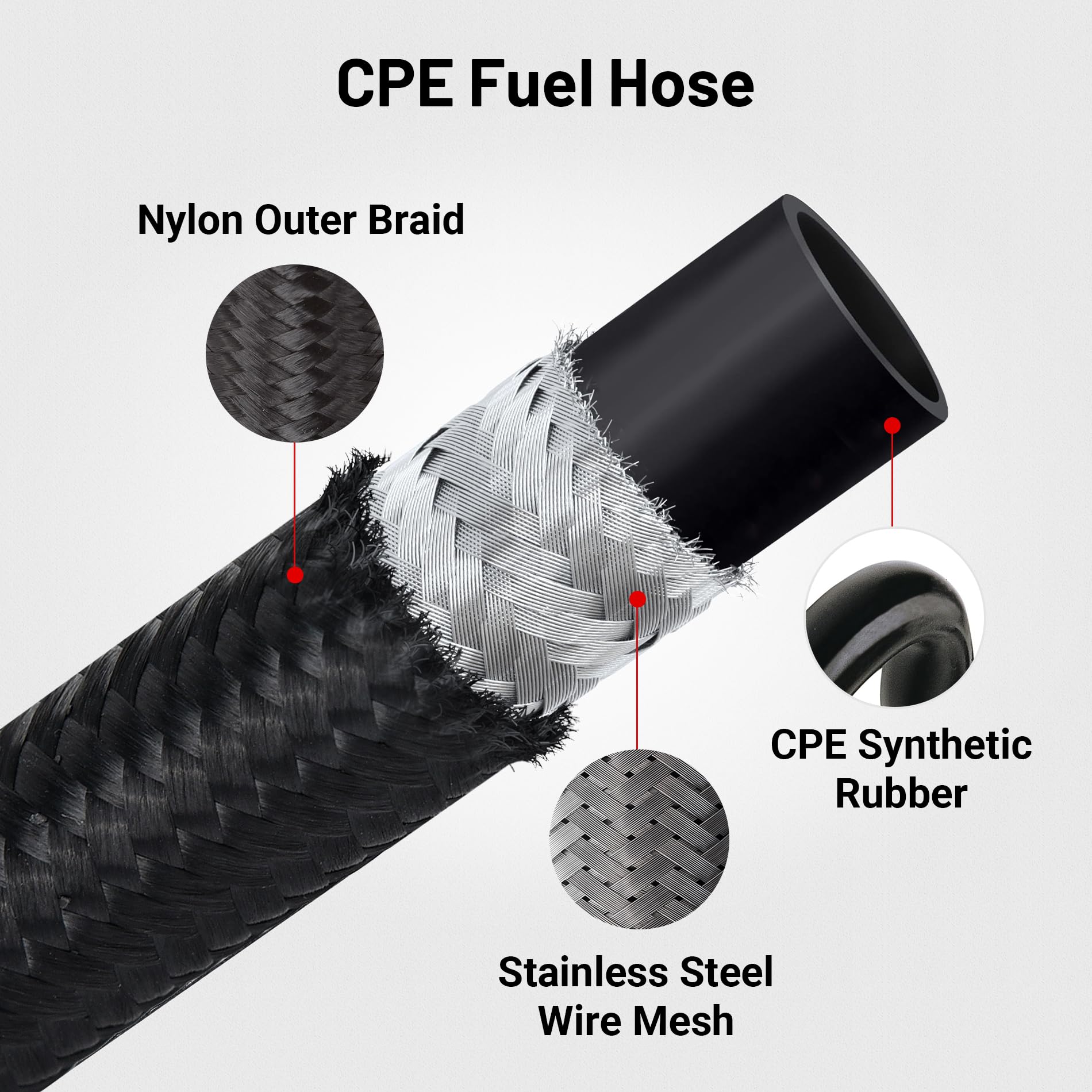

The hose uses a layered construction to resist chemical attack, mechanical wear, and kinking. A CPE (chlorinated polyethylene) inner tube resists fuels and oils, a 304 stainless steel wire braid gives tensile strength and pressure containment, and a nylon outer braid protects against abrasion and UV exposure.

• Inner: CPE rubber for solvent and fuel compatibility.
• Reinforcement: 304 stainless steel wire braid for pressure and strength.
• Outer: nylon braid for abrasion resistance and flexible routing.
• Compatible with diesel, gasoline, race gas, oil, hydraulic fluids, and vacuum lines.

Which applications and fittings are appropriate for this 6AN hose?

This AN6 line is versatile for automotive systems, race prep, and custom fluid-routing projects. It’s intended for use with 6AN swivel hose ends and commonly serves as fuel supply or return lines, oil feed and cooler lines, vacuum and gauge lines, and coolant or turbo cooler hoses on performance builds.

• Fits 6AN swivel hose ends only—ensure matching fittings before installation.
• Ideal for fuel supply/return, oil feed, transmission cooler lines, and vacuum lines.
• Works with gasoline, diesel, transmission fluid, and many hydraulic fluids.
• Common in motorsport, custom installations, and repairs requiring durable routing.

How easy is installation and what are the hose dimensions?

The hose arrives in a 5-foot length with installation instructions included; cutting and assembly require proper AN hose-end tools for a secure seal. Physical dimensions are compact for tight engine bays but large enough for high-flow applications.

• Length: 5 feet (pre-cut, ready to assemble).

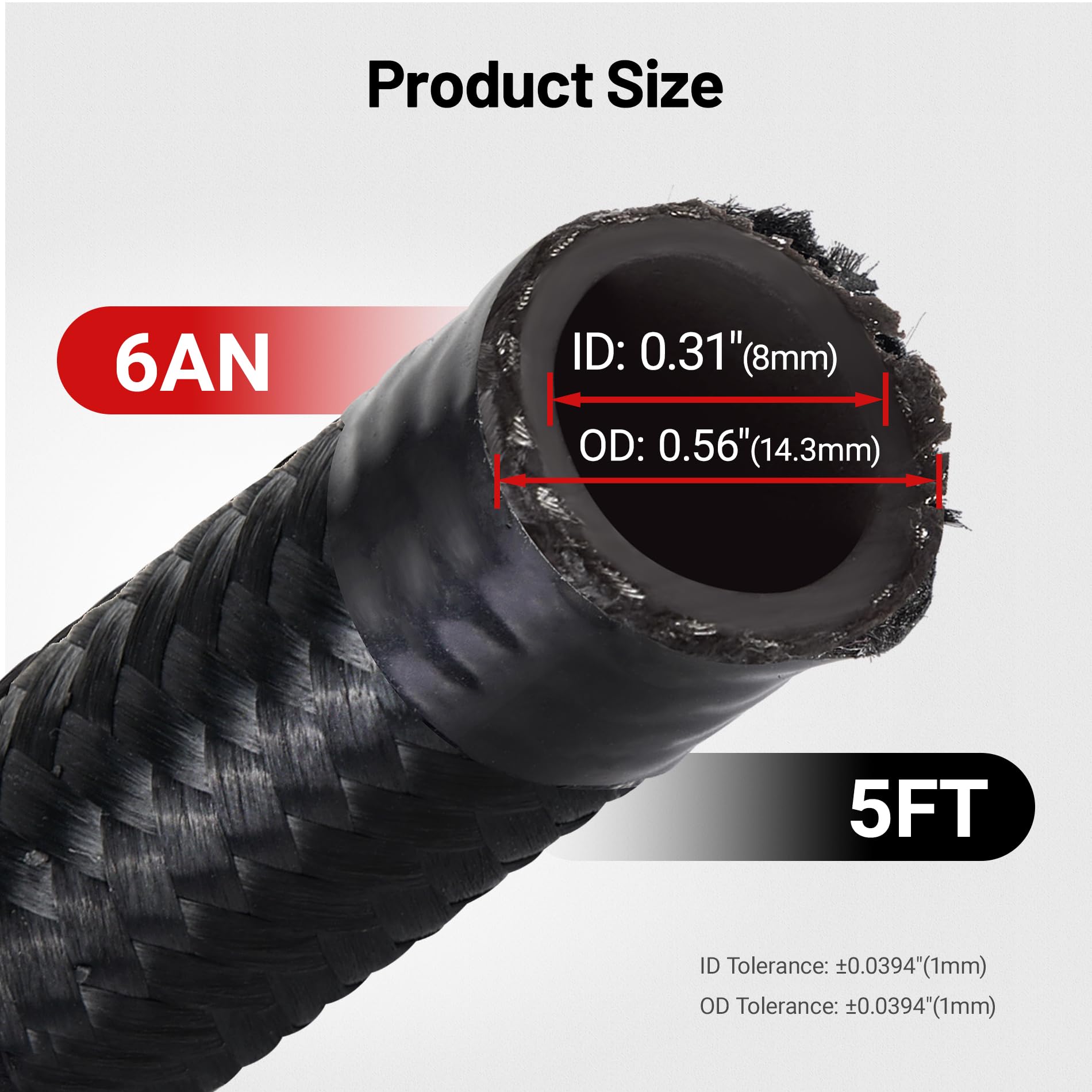

• Inner diameter (ID): 0.31 inch; outer diameter (OD): 0.56 inch.
• Requires 6AN swivel hose ends and appropriate crimp/assembly tools.
• Includes basic installation guidance—professional installation recommended for critical systems.

Who this is for: This EVIL ENERGY 6AN nylon-braided CPE fuel hose suits mechanics, racers, and DIY builders needing a resilient AN6 line that handles fuel, oil, and coolant under elevated pressures and temperatures. Choose this hose if you require a chemically resistant inner tube, stainless wire reinforcement for pressure integrity, and a nylon braid for abrasion protection. If you need different lengths, fittings, or a pre-assembled hose, consider matching AN6 ends or a factory-assembled line for plug-and-play installation.
