EVIL ENERGY Inline Fuel Filter 10 Micron 50mm with 6AN/8AN/10AN Adapters — Aluminium Body, Stainless Steel Mesh

EVIL ENERGY’s 10-micron inline fuel filter is a universal aluminum filter assembly with stainless steel media, AN adapters (6AN/8AN/10AN) and a mounting bracket for easy installation and reliable particle removal.

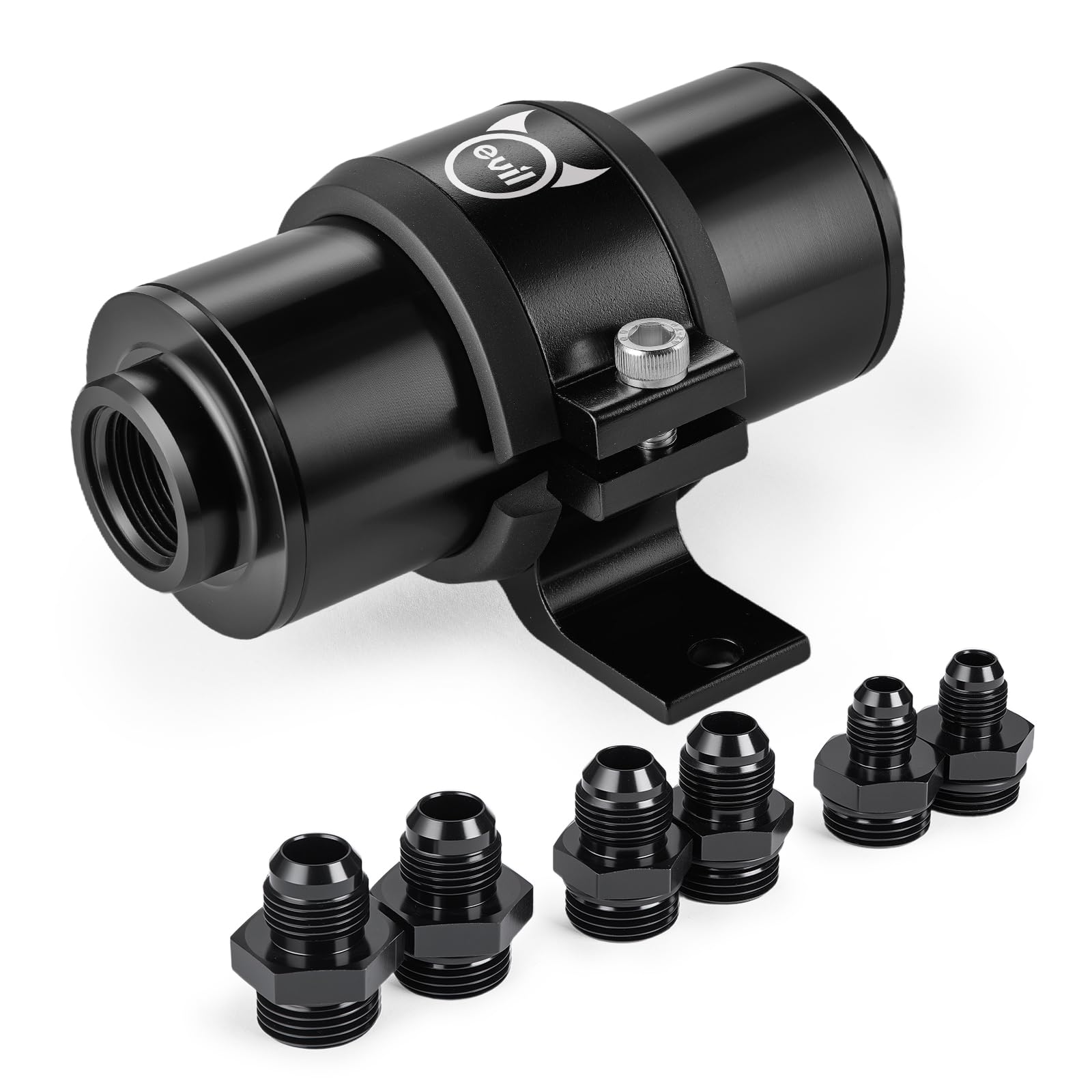

This inline fuel filter is built for hobbyists, racers and DIY mechanics who need a compact, serviceable filtration point between tank and engine. It combines a rugged aluminum shell, a reusable stainless steel element that traps particles down to 10 microns, and three common AN fittings so the filter fits many hose sizes without custom plumbing. The package includes a clamp-style bracket so the unit mounts cleanly in tight engine bays or along chassis rails.

How does this filter fit different fuel lines?

The EVIL ENERGY filter ships with three AN adapters—6AN, 8AN and 10AN—so you can adapt it to common fuel hose and hardline diameters. Adapters screw into the filter inlet and outlet, eliminating the need for separate hose-to-thread connectors.

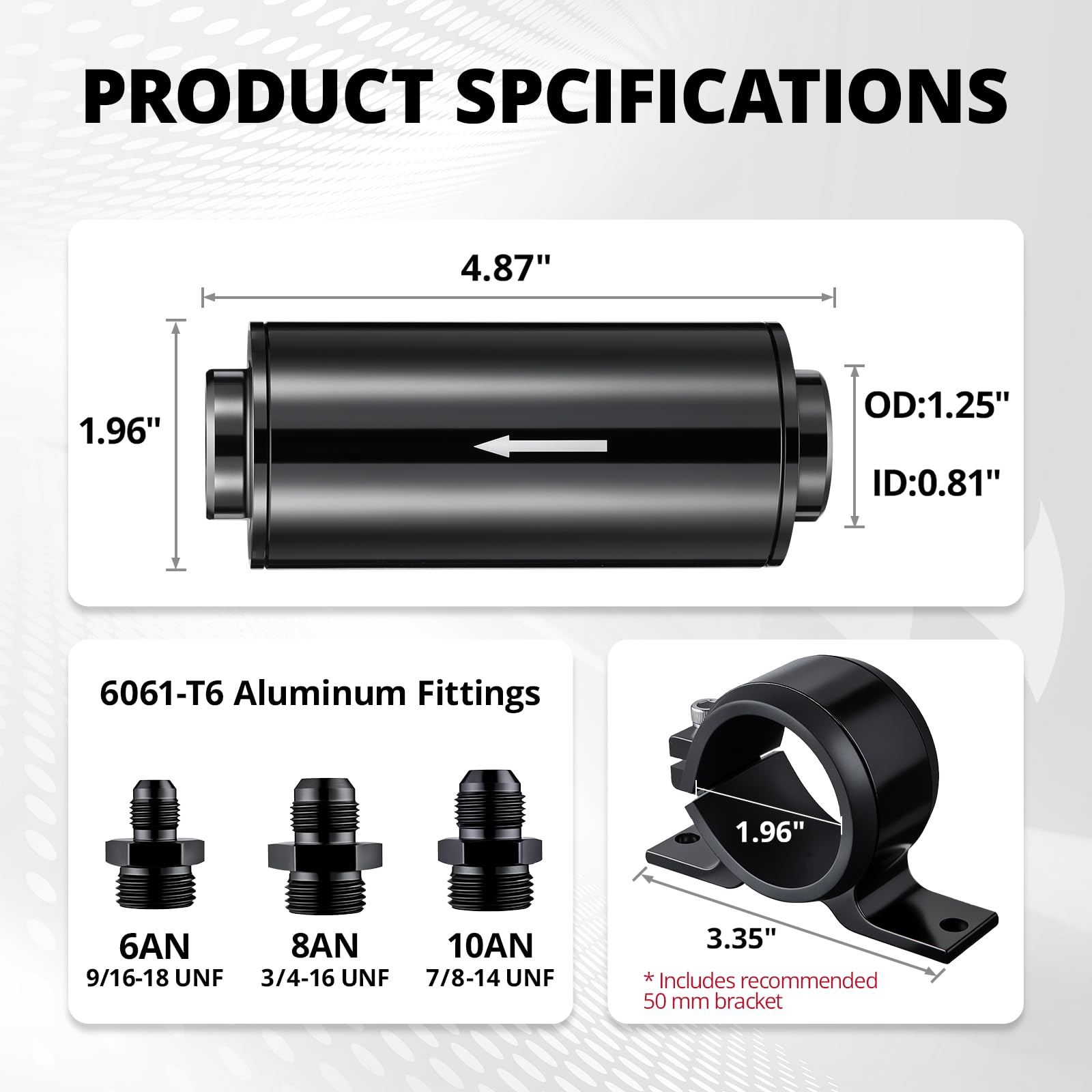

• Includes 6AN, 8AN and 10AN threaded adapters for flexible plumbing options
• 50mm body diameter fits compact installations
• Threaded end caps accept standard AN-style fittings
• O-ring seal on fittings prevents fuel leaks under vibration

What level of contamination does it remove and from which fuels?

The replaceable stainless steel element captures particles down to 10 microns, helping prevent abrasive debris from reaching pumps and injectors. It is suitable for gasoline and diesel applications but is not formulated for ethanol blends like E85.

• 10-micron stainless steel mesh traps dirt, rust and particulate matter
• Compatible with gasoline and diesel fuels (avoid E85)
• Reusable element can be cleaned for extended service life
• Helps protect downstream fuel system components from wear

How do you install and maintain the filter?

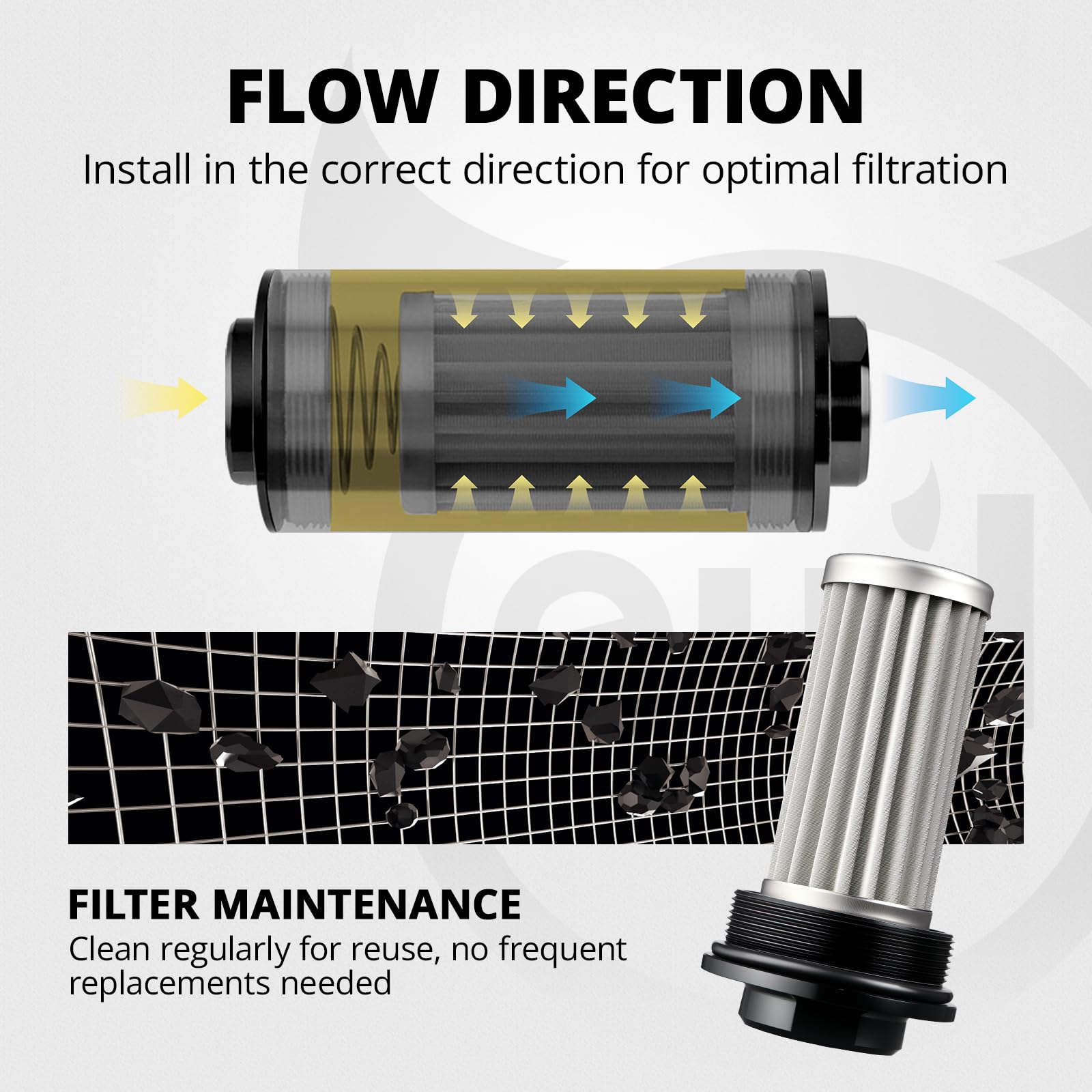

Installation is straightforward: secure the bracket, attach the correct AN adapters, and orient the filter so fuel flows from the spring end toward the opposite cap following the molded arrow. The filter is serviceable—unscrew the end cap, remove the stainless element, rinse or replace it, and reseal using the supplied O-ring.

• Bracket clamp mounts to firewall, frame or rail with common fasteners
• Factory-debugged flow direction: spring-side inlet to opposite outlet
• Removable end cap allows element cleaning or replacement
• O-ring ensures a tight, leak-resistant seal after servicing

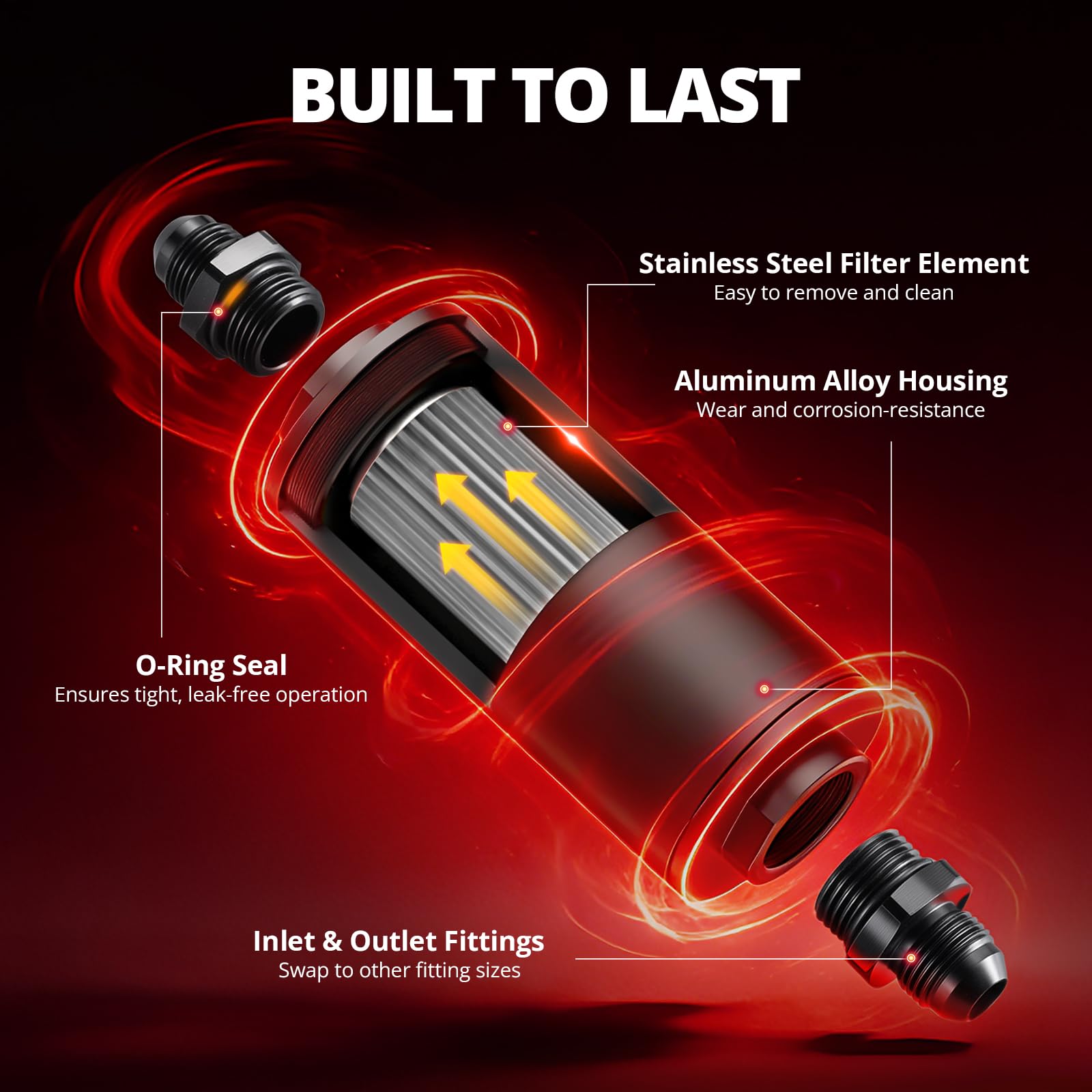

Why choose an aluminum can with stainless steel media?

Aluminum offers a strong but lightweight enclosure that resists corrosion and keeps the filter compact; stainless steel media provides durable filtration that can be cleaned rather than discarded. Together they make a serviceable, long-lasting inline filter that suits track, street and off-road use where contamination control matters.

• Aluminum body balances durability with low weight
• Stainless mesh element resists corrosion and can be washed
• Compact 50mm size preserves fitment flexibility in tight spaces
• Replaceable components reduce recurring parts waste

Who is this for? This EVIL ENERGY 10-micron inline fuel filter is ideal for DIY mechanics, performance vehicle owners and anyone upgrading or repairing fuel systems who needs a compact, adaptable filter point. It’s especially useful where space is limited and a serviceable filter with common AN fittings is preferred. Do not use with ethanol-rich fuels like E85; follow vehicle and fuel system manufacturer recommendations for final compatibility and pressure requirements.
