EVIL ENERGY Inline Fuel Filter 10-Micron Aluminium Black — 50mm Bracket, 1/2" 3/8" 5/16" Barb Adapters

This compact inline filter is built to trap particles down to 10 microns and fit a range of rubber fuel hoses using the included 1/2", 3/8" and 5/16" barb fittings. The housing uses lightweight aluminum with a stainless-steel internal element and a sealing O-ring, and the kit includes a 50mm bracket clamp to secure the filter to the chassis or engine bay. The removable internal element simplifies cleaning or replacement during routine maintenance.

How does this filter protect my fuel system?

The stainless-steel element captures solid contaminants that could harm pumps, injectors, carburetors or valves, reducing premature wear and helping maintain smooth fuel flow. A tight O-ring seal prevents bypass and ensures fuel actually passes through the filter media.

• 10-micron filtration to trap fine particulates
• Stainless-steel element resists corrosion from fuel
• O-ring ensures leak-free connections at fittings and end caps
• Inline design installs between fuel source and engine components

What sizes and fittings are included and how do they fit my hose?

The kit comes with three barb adapters—1/2", 3/8" and 5/16"—so you can match the filter to common rubber fuel-line diameters without extra fittings. The barbed ends create a secure mechanical grip when used with hose clamps to prevent slippage under pressure.

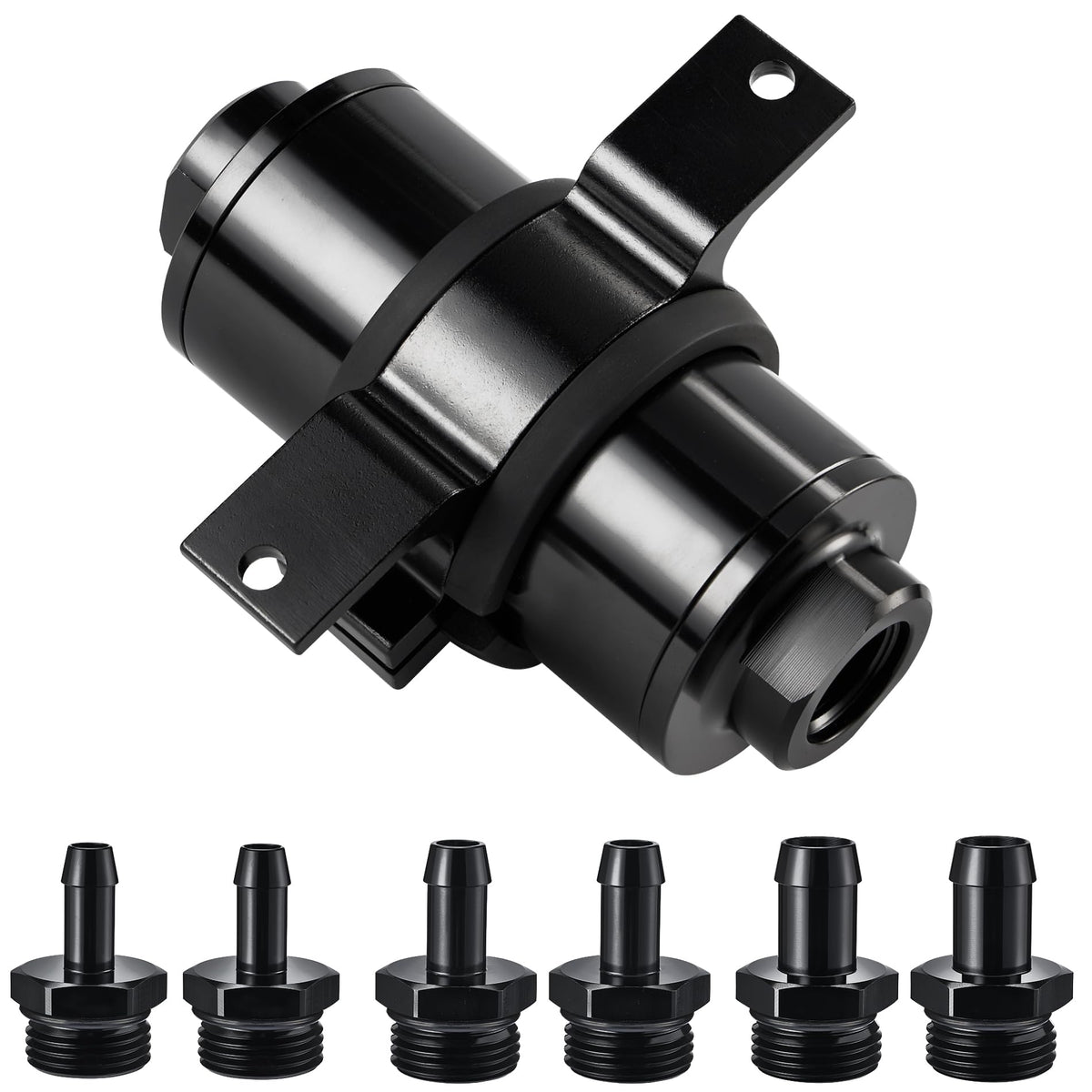

• 1/2", 3/8", and 5/16" barbed adapters included
• Use standard hose clamps over the barbs for a tight hold
• Clear flow direction arrow ensures correct installation orientation
• Universal fit for gasoline and diesel rubber lines

How do I install and service the EVIL ENERGY inline fuel filter?

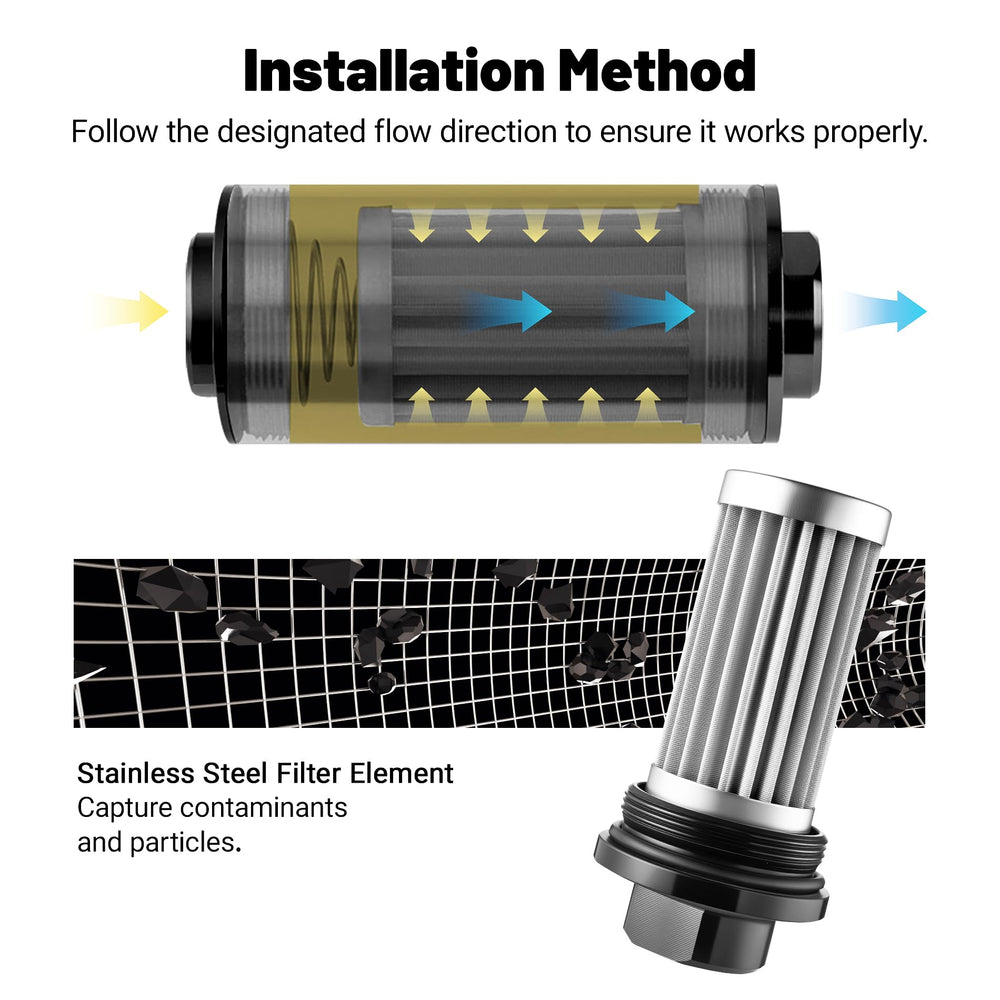

Installation is straightforward: locate a straight section of fuel line, cut, insert the filter with the arrow pointing downstream, and secure hose clamps over the barbs. The removable design lets you open the housing, extract the element, and either clean or replace it, keeping the filter performing well over time.

• Follow the molded arrow: fluid must flow from the spring end outward

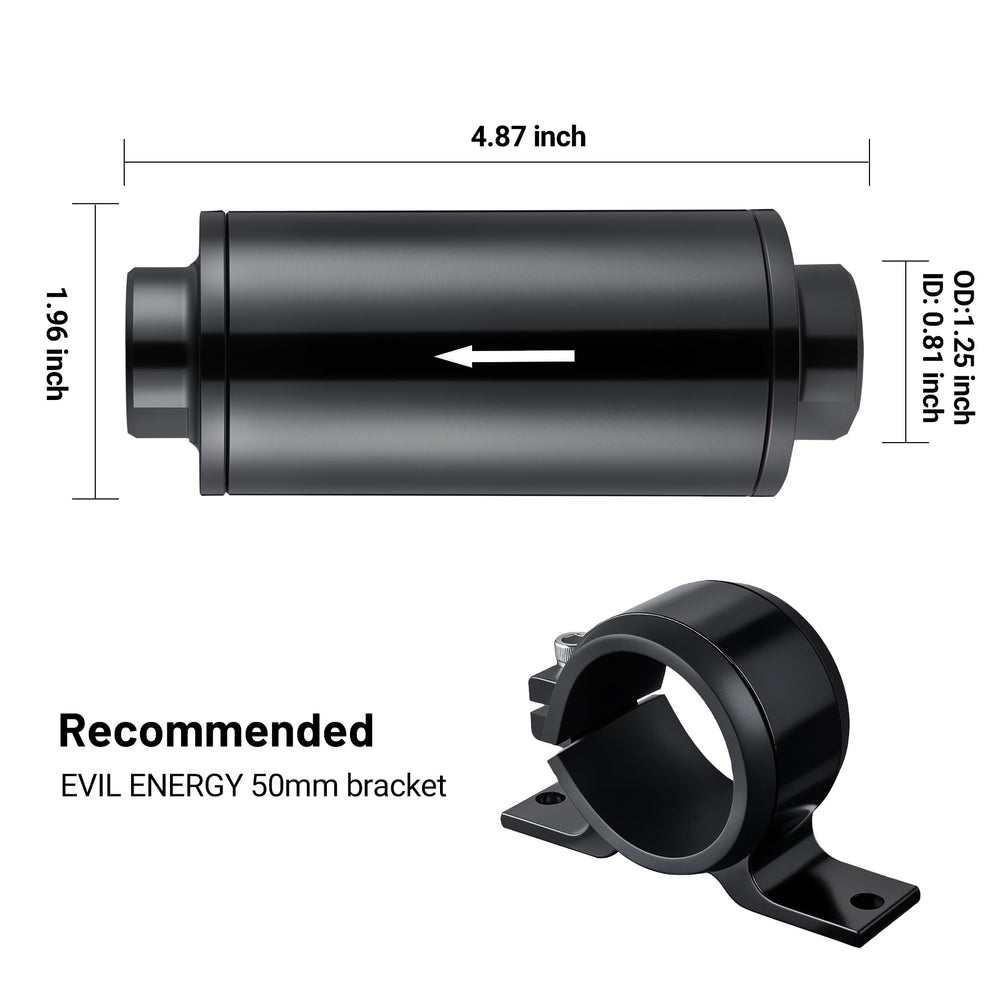

• Mount the aluminum body using the supplied 50mm bracket clamp
• Serviceable element can be rinsed or swapped when clogged
• Re-seal with the supplied O-ring after servicing to avoid leaks

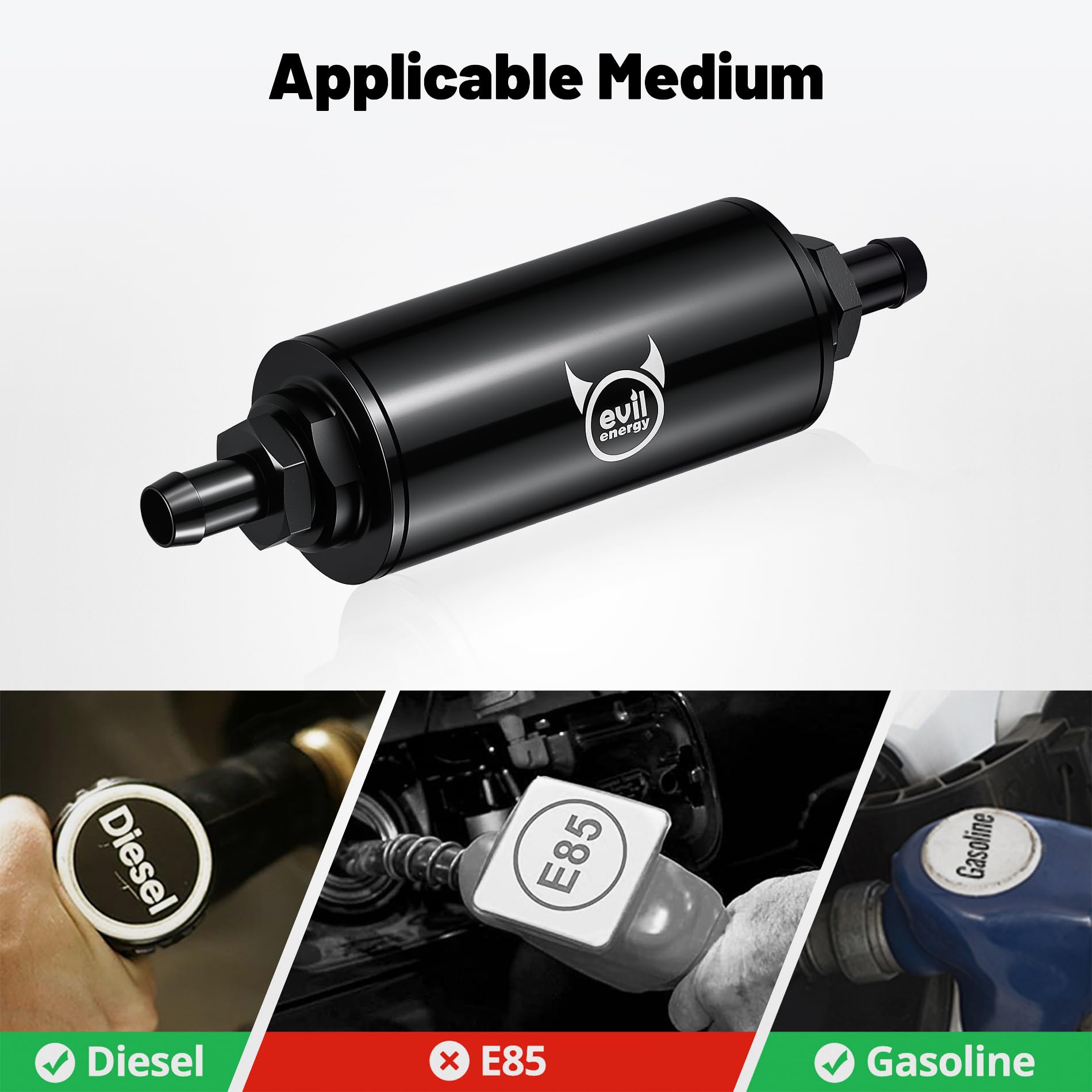

Will this filter work in gasoline and diesel applications?

Yes—materials and design are compatible with both gasoline and diesel fuels; the stainless-steel element and aluminum housing handle common fuel chemistries. Avoid exposure to incompatible solvents or extended immersion in unconventional fluids to preserve seals and finish.

• Suitable for gasoline and diesel fuel systems
• Aluminum housing resists general corrosion in engine environments
• Stainless-steel mesh tolerates regular fuel exposure
• Not intended for fluids outside typical automotive fuels

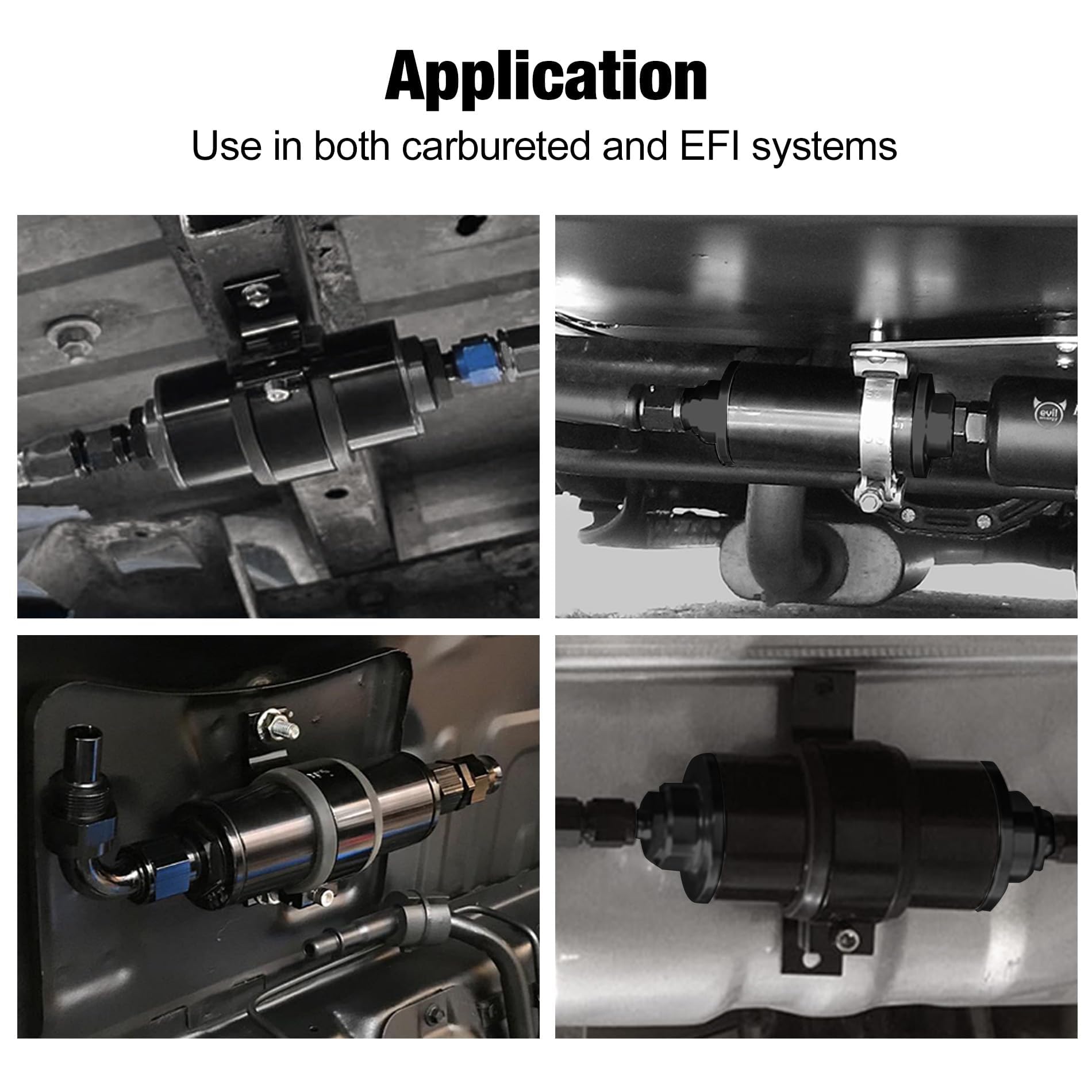

Who is this for: The EVIL ENERGY 10-micron inline filter is ideal for mechanics, DIY vehicle owners and small-engine enthusiasts who need a compact, serviceable filtration solution that adapts to multiple hose sizes. It fits project cars, motorcycles, marine outboards, generators and any application using rubber fuel lines where fine particulate protection and an easy-to-service element are required.
