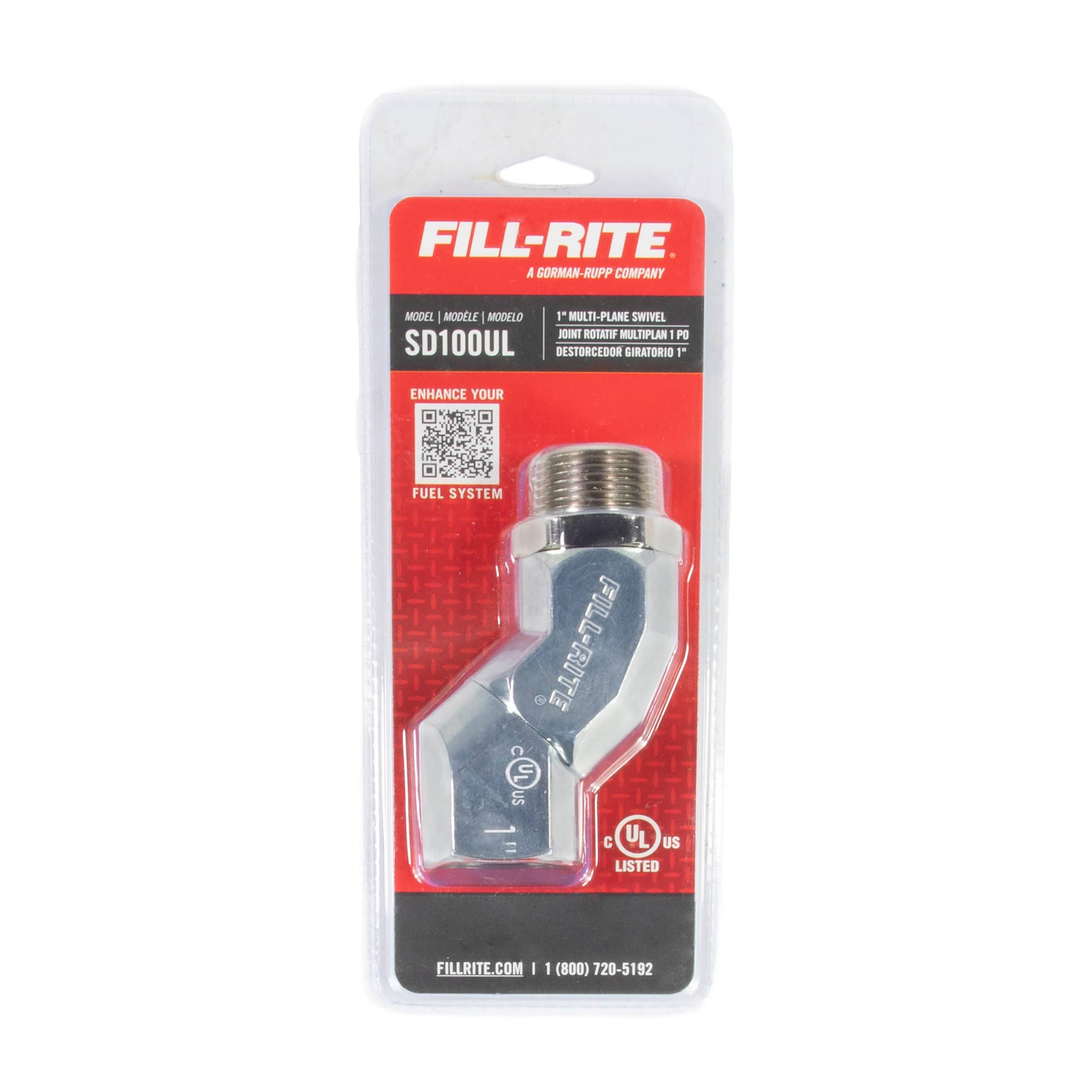

Fill-Rite 1" Multi-Plane Fuel Nozzle Swivel SD100UL — 360° Rotation, Cast-Aluminum, Reduces Hose Wear

The Fill-Rite SD100UL is a heavy-duty 1" multi-plane swivel that lets a fuel nozzle and hose rotate freely to cut hose wear, reduce kinking, and make fueling smoother and safer.

The SD100UL swivel is an inline fitting engineered to relieve torsion and bending stress where the hose meets the nozzle. Built from rugged cast aluminum with a leak-resistant internal seal and UL listing, it installs between standard 1" NPT male and female connections. It’s intended for routine fuel transfer across farm, fleet, industrial, and commercial settings and is compatible with gasoline, diesel, biodiesel up to B20, and ethanol blends up to E15.

How does the SD100UL reduce hose wear and kinking?

By permitting multi-plane rotation, the swivel prevents the hose from absorbing twisting forces during fueling. That rotation distributes motion across the fitting rather than concentrating stress at one point, which prolongs hose life and helps prevent abrupt kinks that impede flow.

• 360° rotation in multiple planes for freedom of movement
• Smooth internal bearing action reduces friction at the connection
• Less repeated bending at the hose nipple means fewer weak spots

Is this swivel durable enough for frequent or demanding use?

The SD100UL uses cast aluminum construction and fuel-rated internal components chosen for strength and corrosion resistance in fueling environments. A leak-resistant sealing design and a 50 PSI working rating make it suitable for normal transfer operations used by professionals.

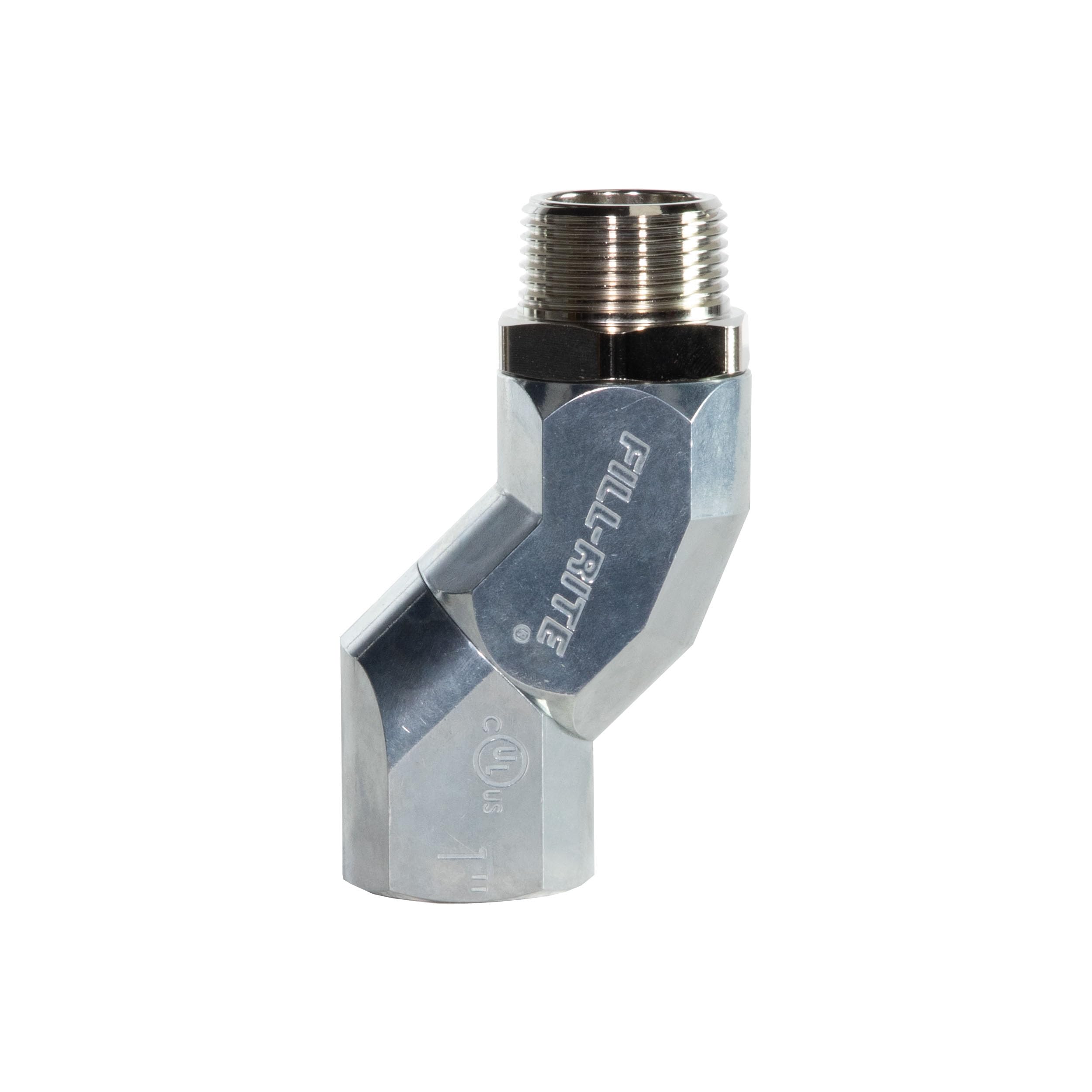

• Cast-aluminum body resists corrosion and impact

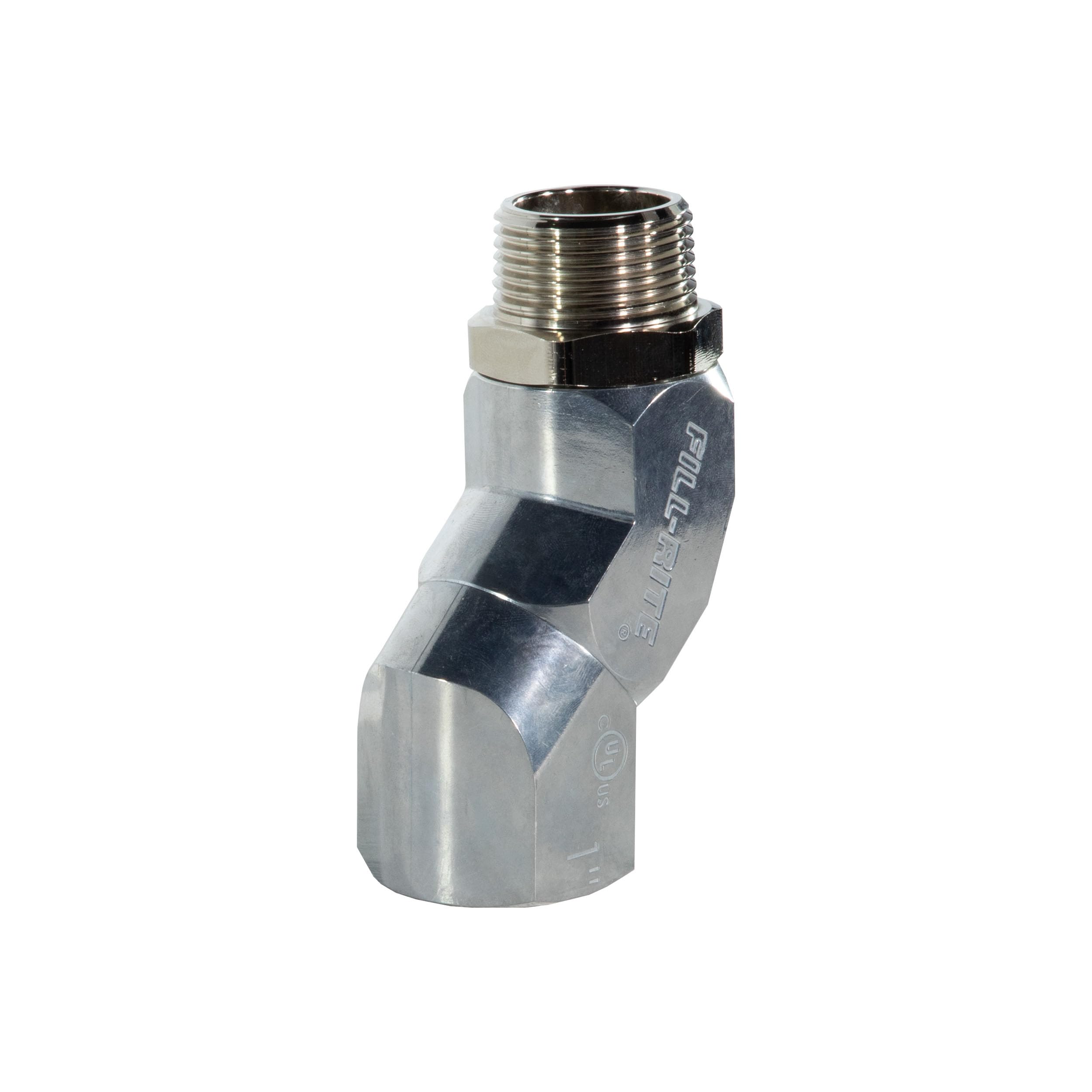

• Internal seals designed for fuel service and leak prevention
• UL listing confirms safety and performance standards

Will it fit my existing nozzle and hose setup?

Yes — the swivel has standard 1" NPT male and female threads to install directly between your hose and a compatible 1" nozzle. Installation is straightforward and requires no special adapters when your system already uses standard 1" NPT connections.

• Standard 1" NPT female and male threads for easy installation
• Compatible with most 1" fuel nozzles and transfer hoses
• Works with gasoline, diesel, B20 biodiesel, and E15 ethanol blends

What safety and application limits should I be aware of?

The swivel is intended for standard liquid fuel transfer and is UL listed for professional use. It is not rated for pressurized dispensing beyond 50 PSI or for handling fuels outside the listed compatibility. Avoid using the swivel with fuels or chemicals that exceed manufacturer compatibility specifications.

• 50 PSI maximum working pressure — suitable for general transfer pumps
• Fuel compatibility: gasoline, diesel, biodiesel up to B20, ethanol up to E15
• Not intended for high-pressure or corrosive chemical transfer outside specs

Who is this for: The Fill-Rite SD100UL is aimed at fleet managers, farmers, service technicians, and facility maintenance teams who need a durable, drop-in solution to reduce hose strain and improve the ergonomics and reliability of routine fueling. It’s a practical upgrade for anyone maintaining fuel transfer systems that use 1" NPT fittings and require a robust swivel to extend hose life and simplify daily operations.

Features summary:

• Durable cast-aluminum construction built in the United States
• Leak-resistant internal sealing and UL listing for safety
• Standard 1" NPT connections and 360° multi-plane rotation
• Compatible with common fuel blends used in commercial fueling
