Fill-Rite 3/4" Automatic Fuel Transfer Nozzle, Green — 3–15 GPM, Cast-Aluminum Auto-Shutoff

Fill-Rite SDN075GAN is a 3/4" automatic shutoff fuel transfer nozzle rated 3–15 GPM, built for gasoline, diesel, B20 biodiesel, E15 and kerosene with a green jacket and 50 PSI rating.

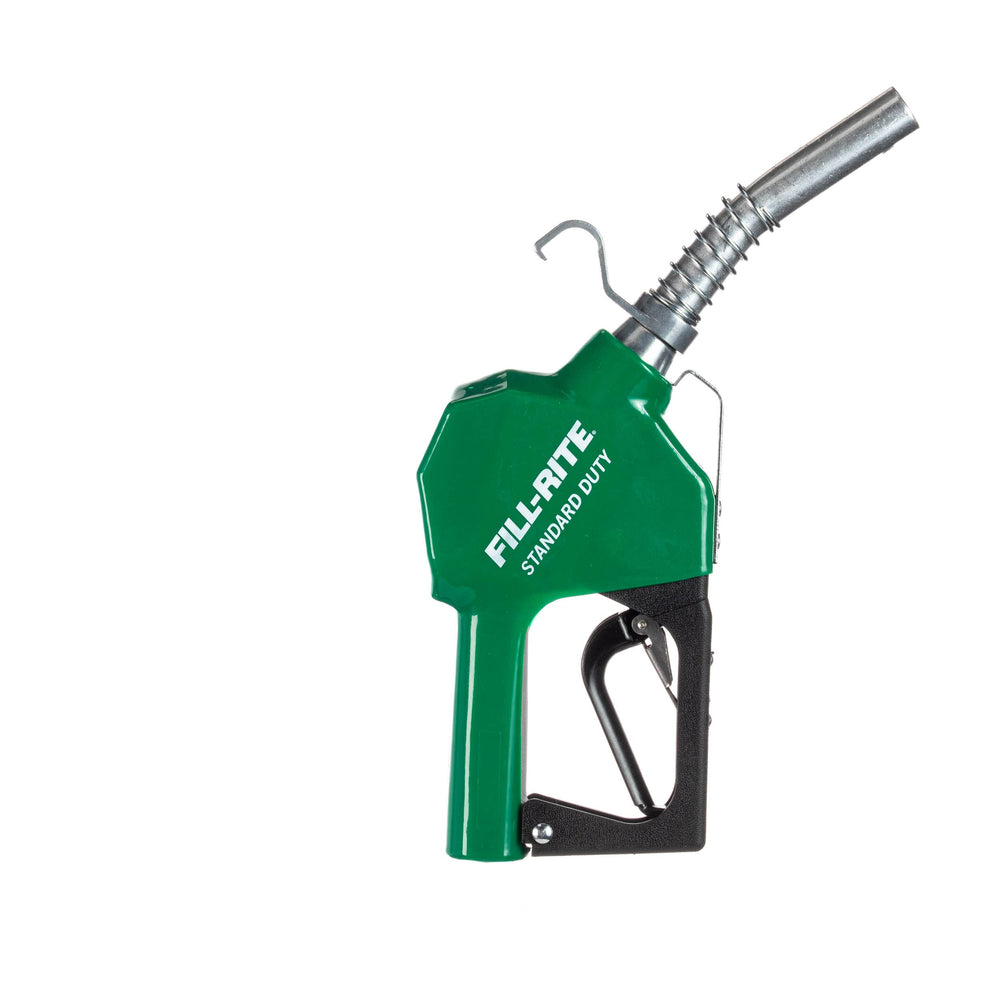

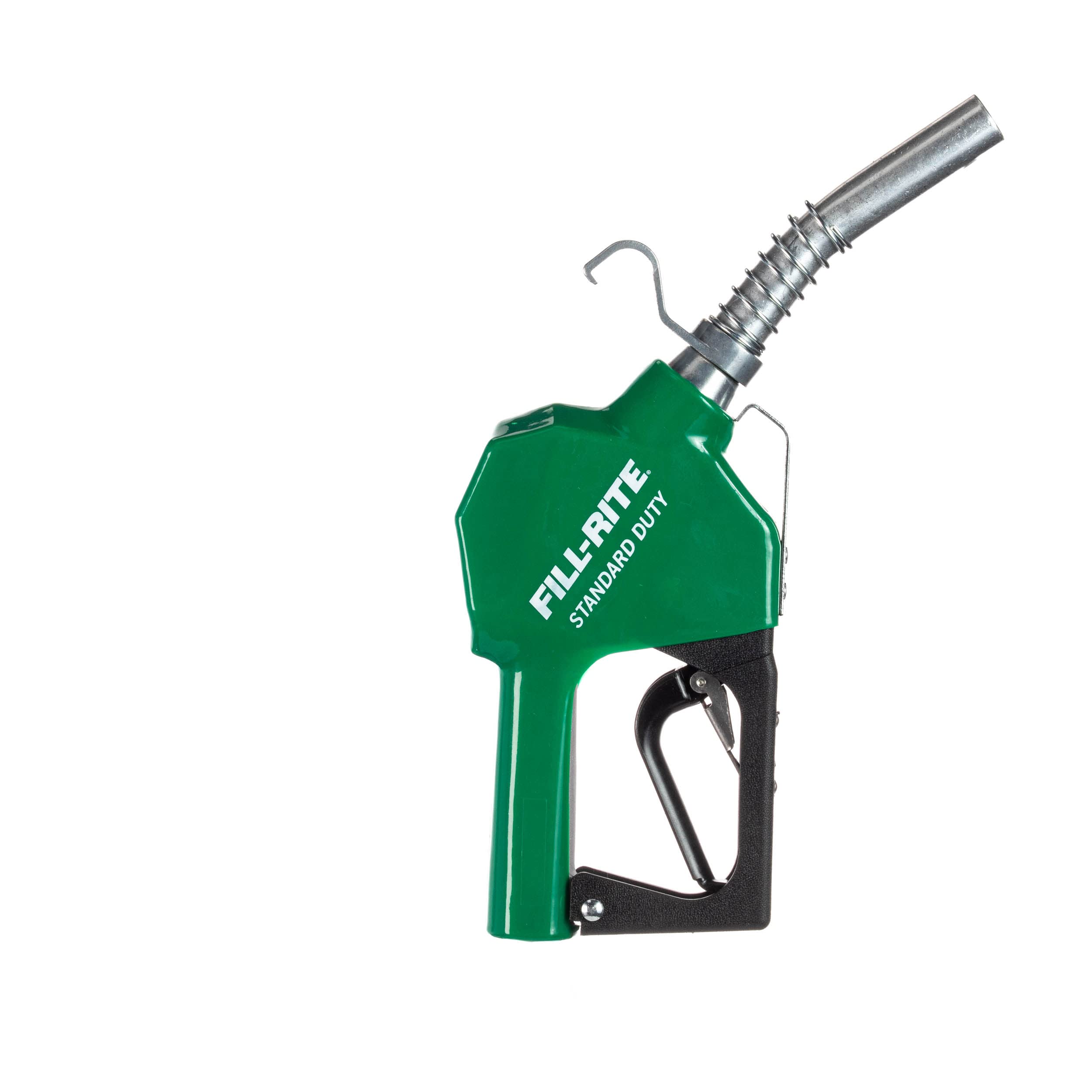

Designed as a value-focused option in Fill-Rite's SD Series, the SDN075GAN combines cast-aluminum construction and an automatic shutoff to give reliable, standard-duty service for vehicle and equipment fueling tasks. With a 15/16" spout size and a spring-loaded spout on automatic models, this nozzle balances durability and usability while supporting multiple fuel types and adjustable flow control.

How does the SDN075GAN prevent overfills and spills?

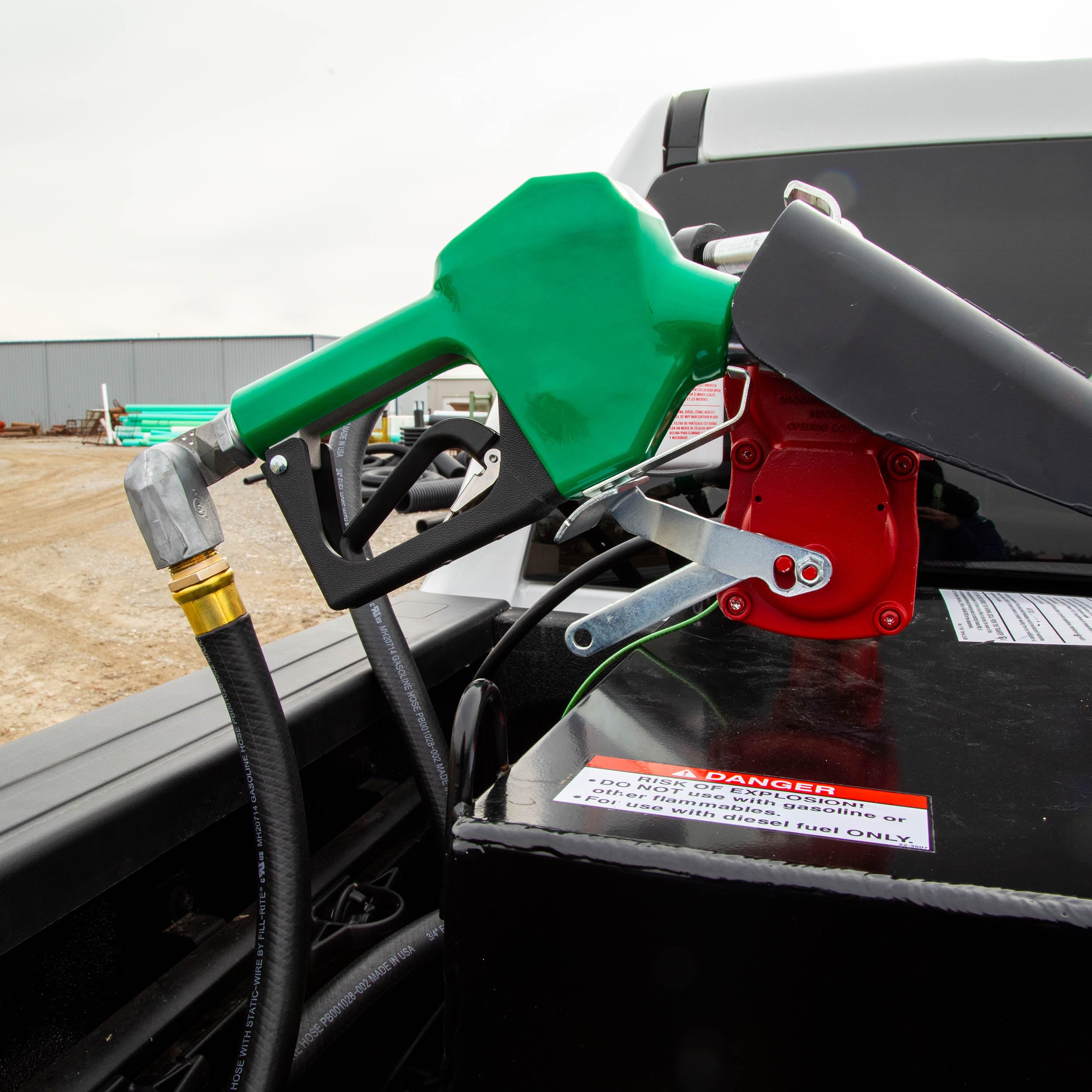

The nozzle's automatic shutoff senses backpressure at the spout and closes the valve to stop fuel flow, reducing the chance of overfilling. That mechanism is paired with a spout spring that helps position the tip correctly for reliable activation every time.

• Automatic shutoff stops flow when tank is full.
• Spout spring stabilizes nozzle placement during filling.
• Cast-aluminum body resists damage from routine handling.

What fuels and flow rates does this nozzle support?

Rated for gasoline, diesel, B20 biodiesel, E15 ethanol blend and kerosene, the SDN075GAN covers common fueling needs for many operations. Its working flow range runs from 3 to 15 GPM, making it suitable for both lower-speed, controlled fills and faster transfer tasks within the nozzle's pressure limits.

• Compatible with gasoline, diesel, B20, E15, and kerosene.
• Working flow range: 3–15 GPM to match various pump sizes.
• Maximum recommended pressure: 50 PSI for safe operation.

Can I adjust the flow or secure the nozzle open for continuous fueling?

The SD Series includes an adjustable latching feature with three latch positions so you can tailor flow to the job and, when needed, lock the nozzle for continuous delivery. Select the latch position that gives the desired flow while maintaining safe automatic shutoff function.

• Three latching positions for variable flow control.
• Latch lets you hold the nozzle open for extended transfers.
• Automatic shutoff still functions to reduce accidental overfills.

What are the construction details and warranty for durability?

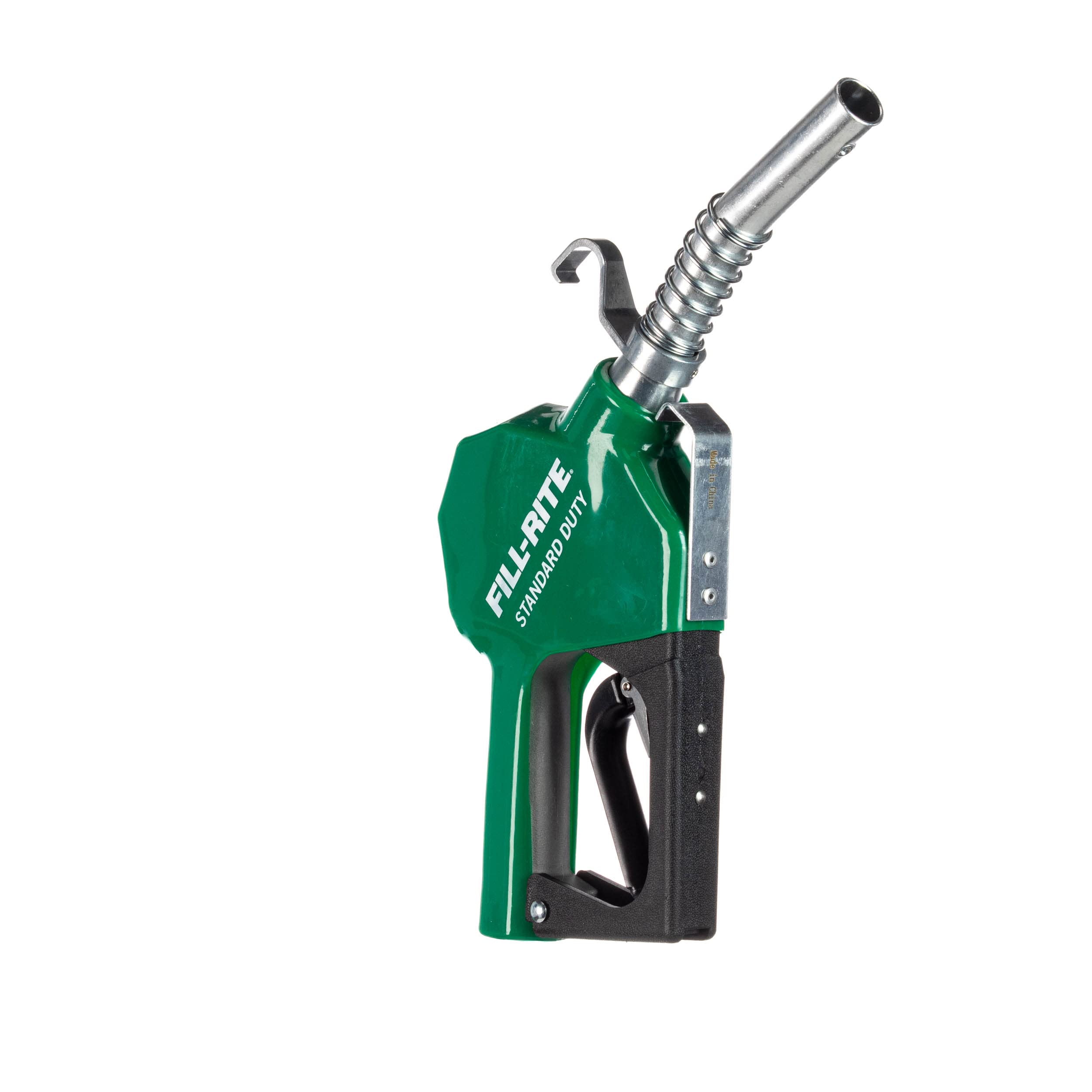

Built with a rugged cast-aluminum body, the SDN075GAN is intended to stand up to regular use in standard-duty fueling applications. Fill-Rite backs the nozzle with a one-year warranty and offers the SD Series in multiple configurations to match different temperature, flow and fluid compatibility needs.

• Rugged cast-aluminum construction for everyday durability.
• One-year manufacturer warranty included.
• Available in other configurations for different environments and fluids.

Who is this for? The Fill-Rite SDN075GAN is aimed at fleet operators, agricultural and construction crews, service shops and small commercial fueling setups that need a dependable, affordable automatic nozzle. Choose this model if you require compatibility with gasoline, diesel blends, biodiesel up to B20, E15 and kerosene, a 3–15 GPM working range, and a green-jacketed 15/16" spout for standard fueling points.
