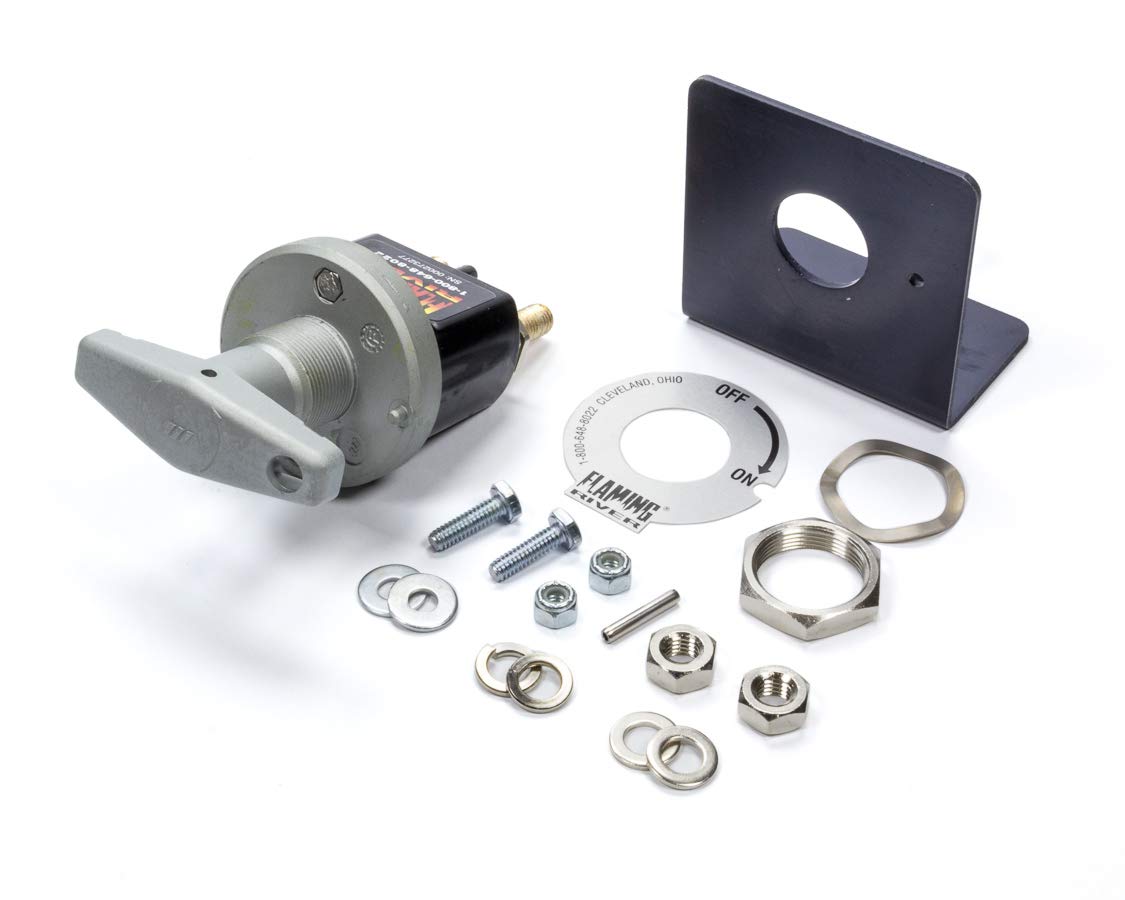

Flaming River FR1044 Big Switch XL Battery Disconnect — Waterproof 250A Continuous, Lock-Out

The Flaming River FR1044 Big Switch XL is a waterproof, heavy-duty battery disconnect (250A continuous, 2500A surge) designed to provide secure power isolation with a lock-out feature for automotive and industrial 12V/24V systems.

The FR1044 Big Switch XL is built for demanding electrical systems that need a reliable way to cut power quickly and safely. Constructed with silver-plated contacts and an oversized terminal area, this compact but rugged switch handles continuous loads up to 250 amps and momentary surges up to 2500 amps. Fully sealed against moisture and contaminants, it’s suitable for installations exposed to harsh environments where corrosion and vibration are concerns.

How does the Big Switch XL protect my vehicle or equipment's electrical system?

The FR1044 isolates batteries and prevents parasitic drain, accidental starts, and provides a clear way to disconnect power during maintenance or storage. Its lock-out capability also adds a theft-deterrent or safety interlock option. Silver-plated contacts reduce resistance and heat buildup for more reliable long-term operation.

• 250A continuous rating reduces overload risk in heavy circuits.
• 2500A 5-second surge rating handles starter and inrush currents.

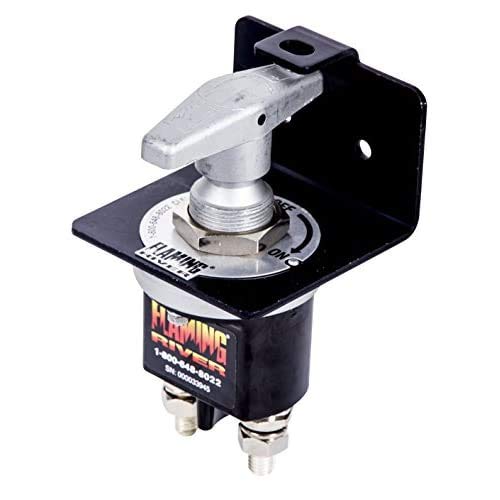

• Silver-plated contacts minimize voltage drop and corrosion.
• Lock-out option prevents unauthorized reconnection.

What are the installation and wiring considerations for this battery disconnect?

Mount the FR1044 where it is protected but accessible for operation and maintenance, ensuring adequate clearance for the larger terminals. Use appropriately sized battery cables and torque hardware to the manufacturer's recommendations to maintain secure, low-resistance connections. Because it’s sealed and waterproof, external exposure is acceptable, but avoid direct contact with high-pressure sprays or extreme debris.

• Requires heavy-gauge cables to match 250A capacity.
• Provide secure mounting and strain relief for battery leads.
• Accessible placement allows quick manual disconnect or lock engagement.
• Suitable for 12V and 24V systems—verify system voltage before wiring.

What materials and durability features make this switch suitable for harsh environments?

The FR1044 uses silver-plated electrical contacts and a fully sealed housing to resist corrosion and moisture intrusion. The robust construction and oversized terminals are designed for repeated use and high-current events without rapid wear. Its waterproof design is intended to withstand severe operating conditions frequently encountered in marine, off-road, and industrial settings.

• Silver-plated contacts for improved conductivity and corrosion resistance.
• Completely sealed housing to block water and contaminants.
• Sturdy terminals sized for large battery cables and high current flow.
• Manufactured to durable standards suitable for heavy-duty use.

How does the lock-out feature work and when should I use it?

The lock-out allows the operator to secure the switch in the off position with a padlock or similar device, preventing reconnection until intentionally released. Use this for long-term equipment storage, during service work to ensure safety, or as a basic theft-deterrent measure. The mechanical simplicity of the lock-out makes it easy to verify the disconnected state at a glance.

• Padlock-ready lock-out secures switch in off position.
• Visible off position helps confirm safe, de-energized circuits.
• Simple mechanical operation—no electronics required for lock function.
• Useful for maintenance, storage, and theft prevention situations.

Who is this for: The Flaming River FR1044 Big Switch XL is aimed at professional mechanics, custom car builders, marine technicians, and owners of heavy-duty off-road or industrial equipment who need a compact, dependable battery disconnect. If you require a high-current, weather-resistant switch with corrosion-resistant contacts and a lock-out option for safety or security, the FR1044 is engineered to meet those needs without complex electronics. Verify that your system is 12V or 24V and prepare appropriately sized wiring and mounting hardware before installation.
