GaiRen 3/4" Heim Joint Rod End Kit (4-Pack) — Chromoly 28,000 lb Rated, RH/LH Threads

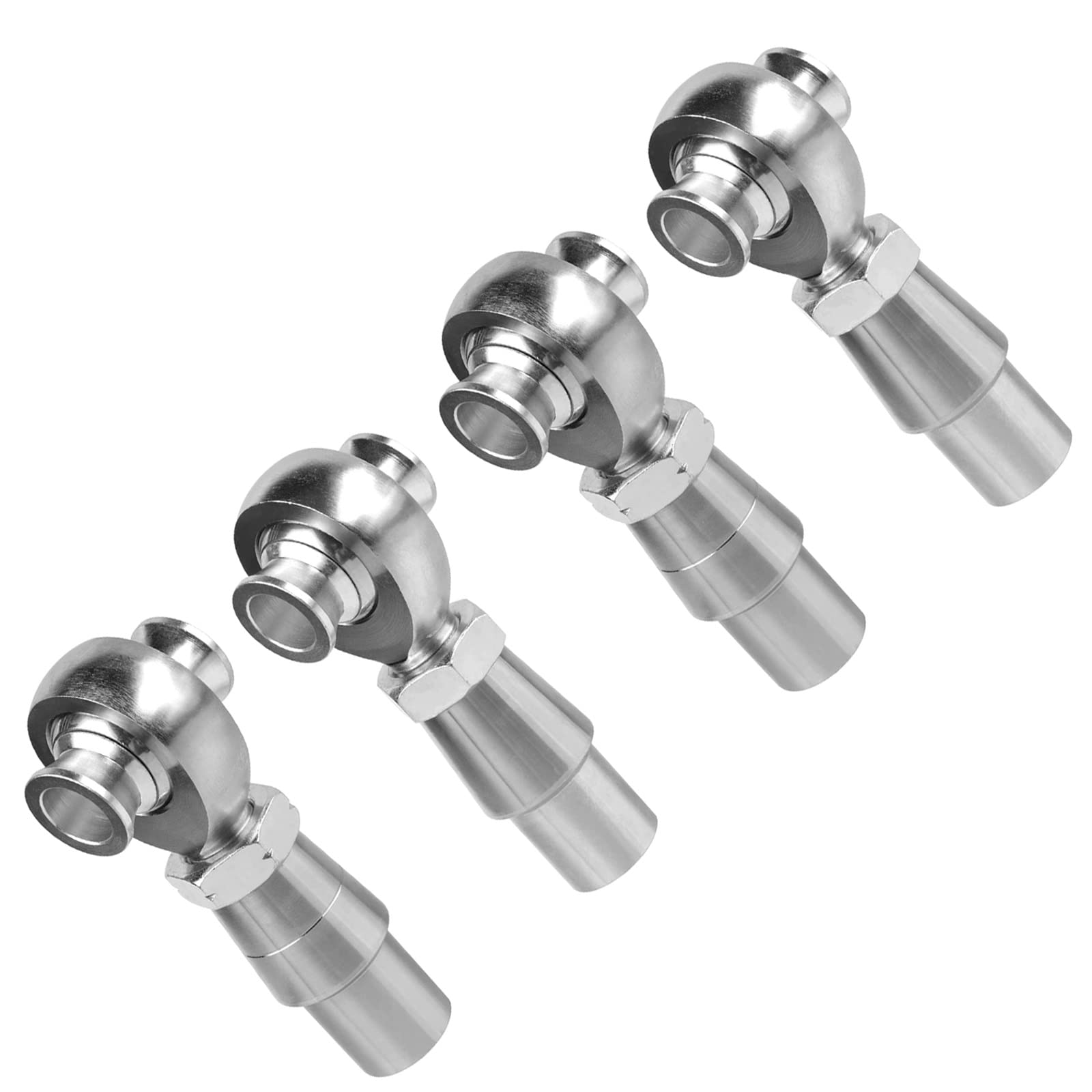

GaiRen 3/4" Heim Joints Rod End Kit is a four-piece chromoly rod-end set (two left-hand, two right-hand) built for heavy-duty steering and suspension links with a 28,000 lb static load rating.

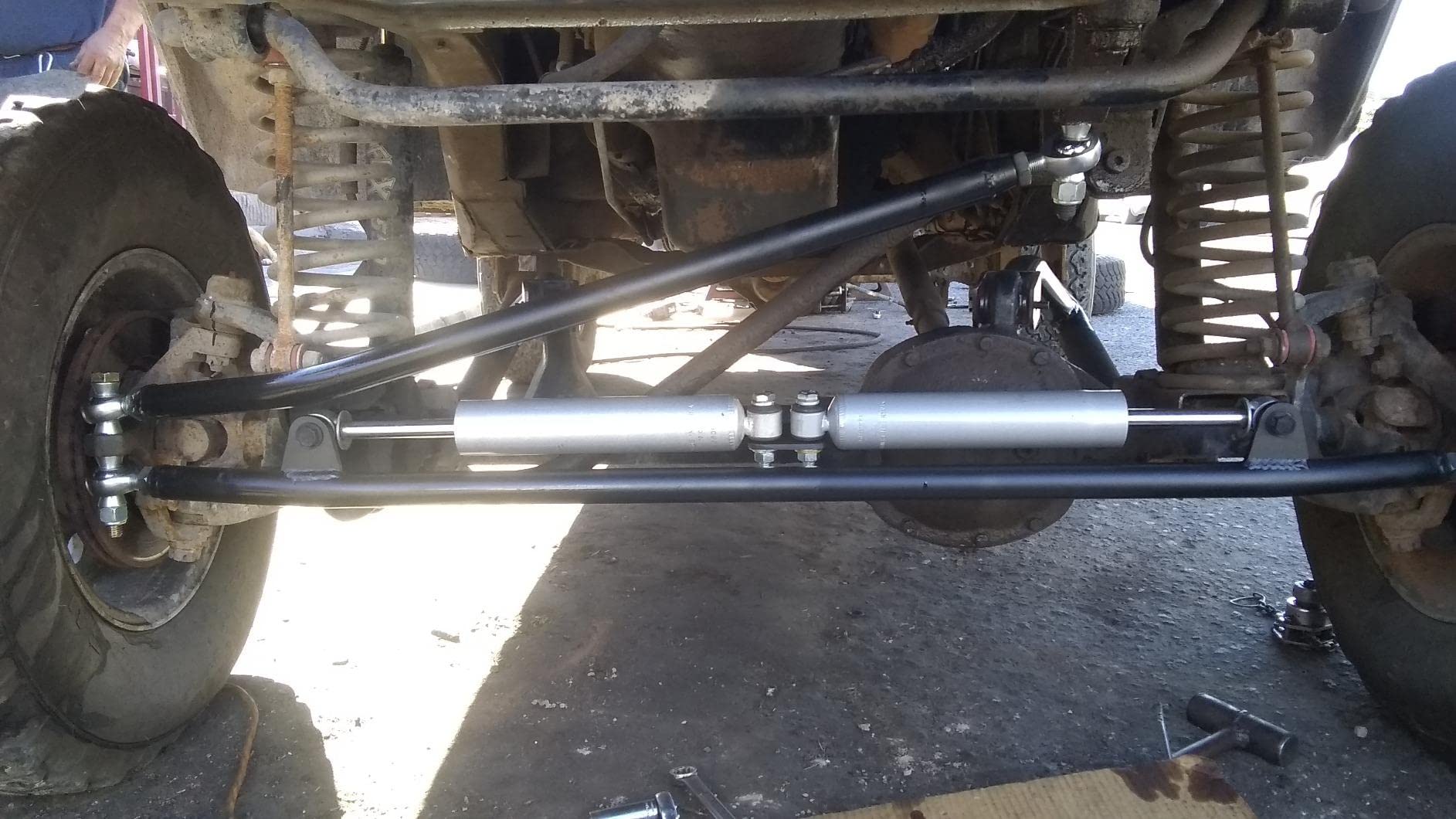

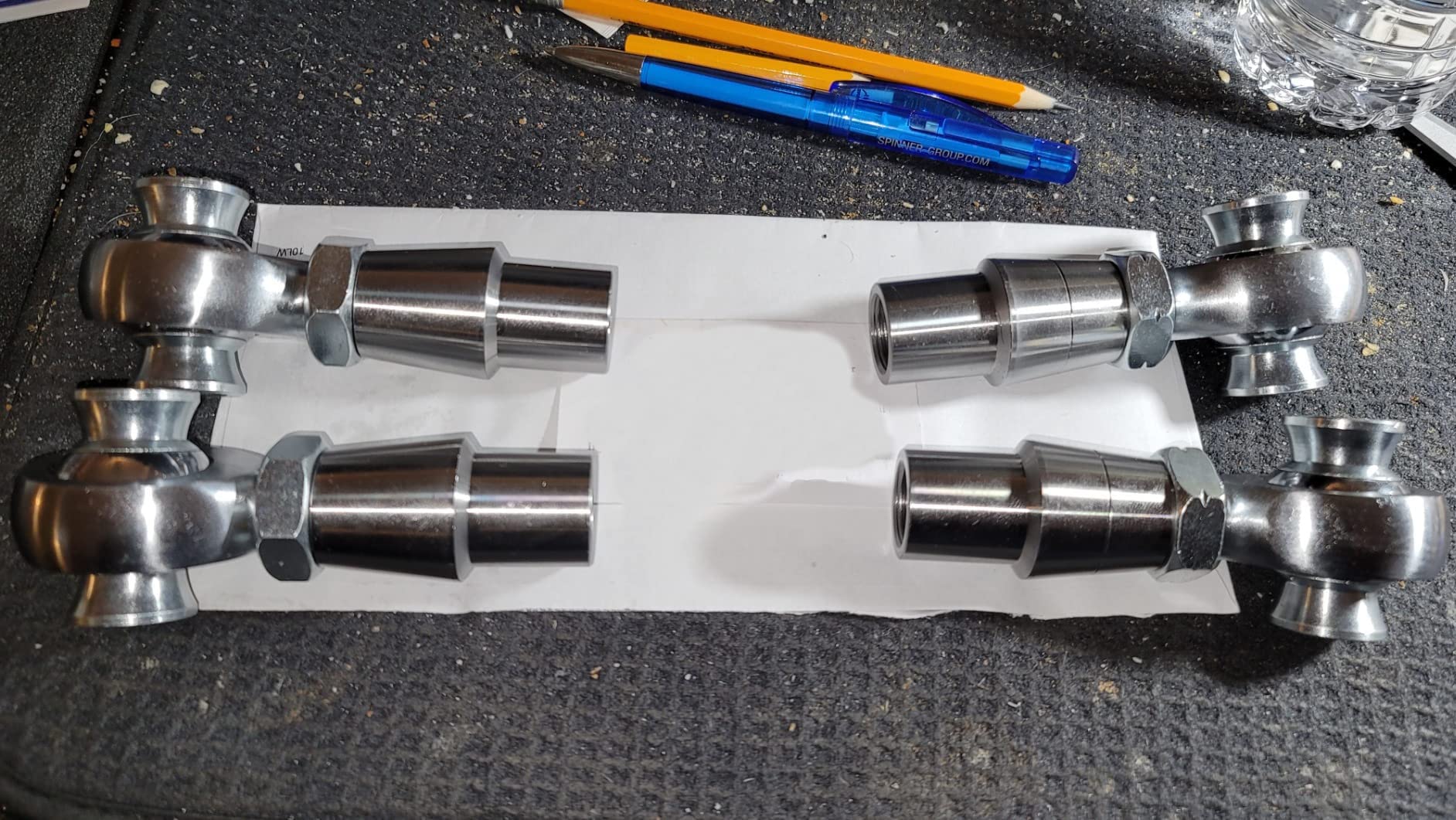

This kit supplies a matched pair of left- and right-hand 3/4" shaft heim joints plus zinc-coated jam nut spacers and a tube adapter, giving you a ready-to-install solution for panhard bars, tie rods, traction bars, and other steering or suspension links. Each rod end is heat-treated and hard chrome plated for corrosion resistance and extended wear life. The 3/4" bore design and compatibility with 1 1/4" OD tubing make these joints suitable where strength and precise alignment are required.

How do these heim joints improve steering and suspension links?

The rod ends reduce binding and allow precise articulation between suspension components and steering links, helping maintain geometry under load. Their spherical bearing design lets connected parts pivot smoothly while retaining high tensile strength.

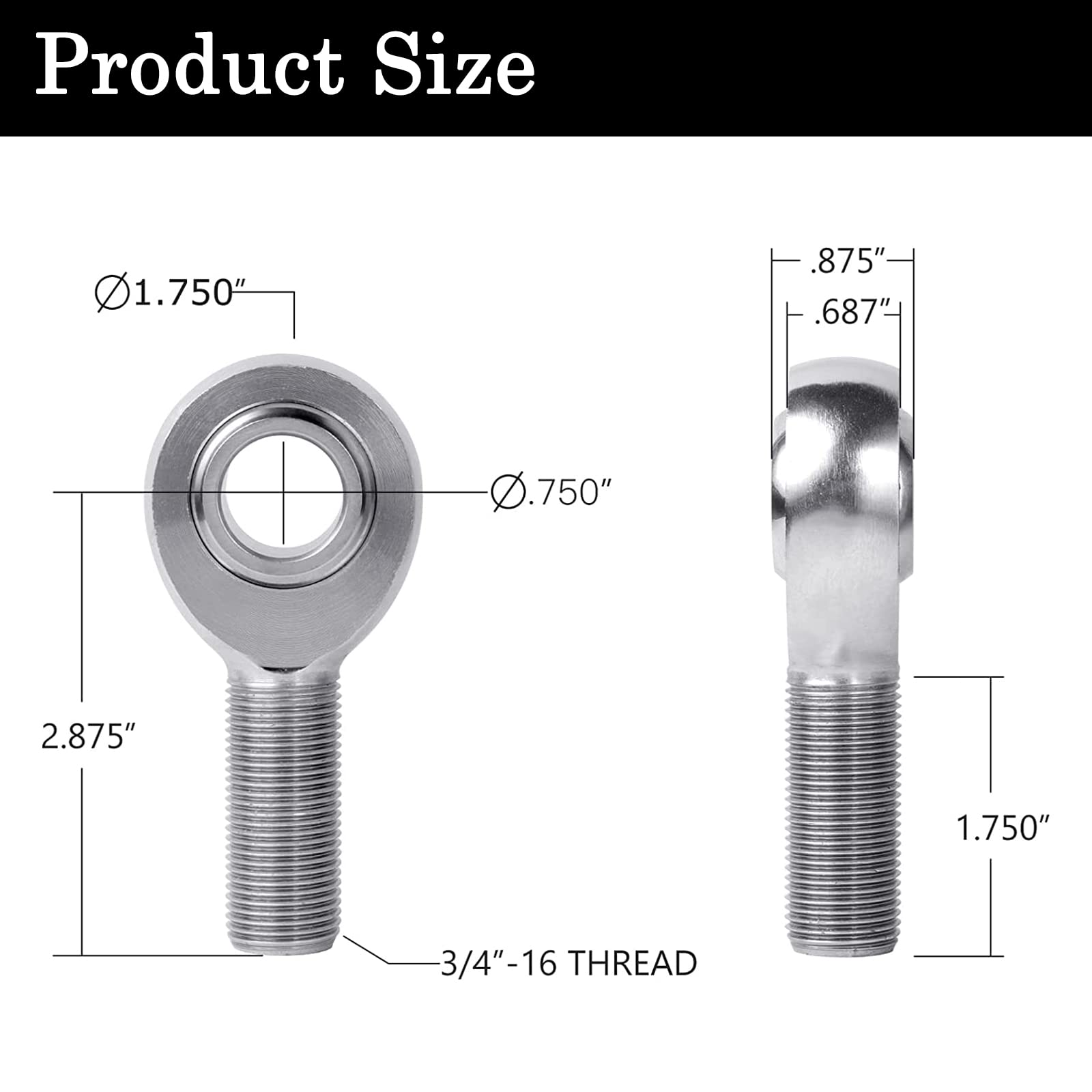

• 3/4" shaft with 16 tpi for robust threaded connections
• 3/4" bore sized for maximum tensile strength in this format
• Hard chrome plating for reduced friction and corrosion resistance
• Includes zinc-coated jam nut spacers for secure installation

What load capacity and durability can I expect from this kit?

Each rod end is engineered for heavy-duty use with a 28,000 lb static load rating, achieved through heat treatment and chromoly construction. The finish and materials are chosen to withstand repeated cycles and exposure to the elements without rapid degradation.

• 750" chromoly construction for high tensile strength
• Heat-treated components to resist deformation under load
• Hard chrome plating to protect against wear and corrosion

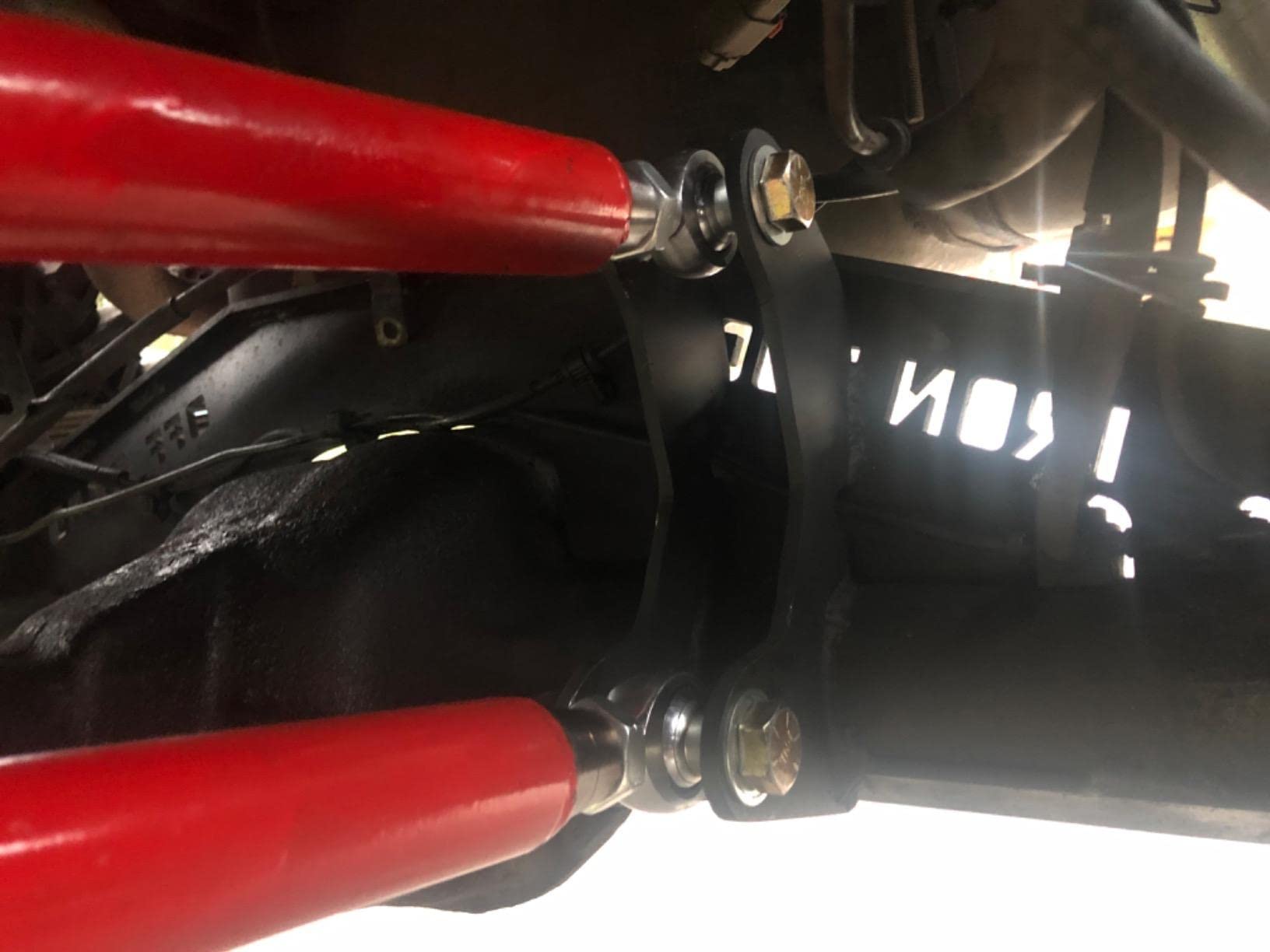

Will these rod ends fit my panhard bar, traction bar, or tie rod application?

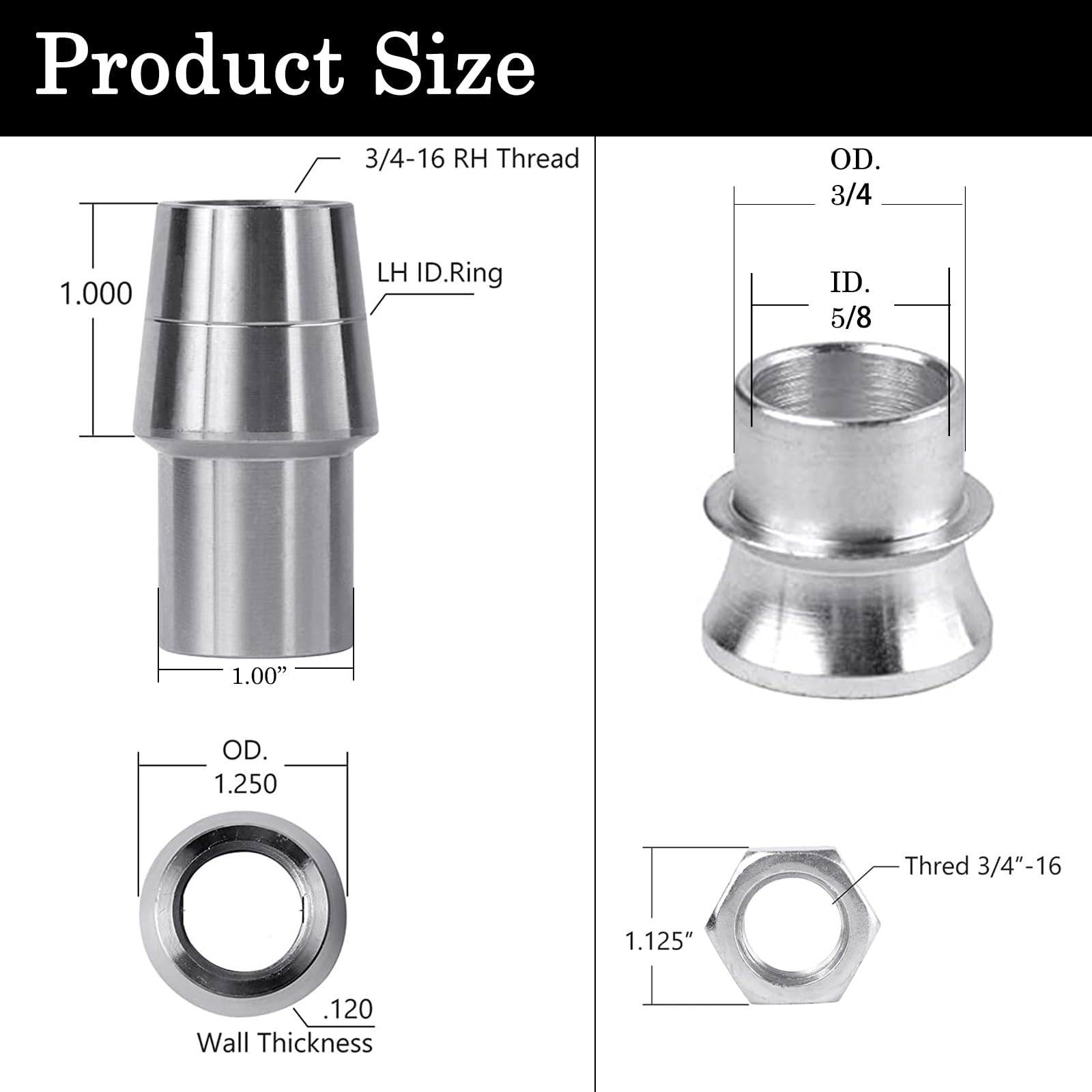

The GaiRen kit was designed for common aftermarket link tubing and track bar setups. It fits 1 1/4" OD tubing with a 0.120" wall (1.01" ID) and a mounting width of 1-7/8", making it compatible with many hot rod, off-road, and custom suspension builds.

• Fits tube size: 1 1/4" OD x 0.120" wall x 1.01" ID
• Mounting width: 1-7/8" for many aftermarket brackets
• Includes tube adapter for cleaner, easier installation

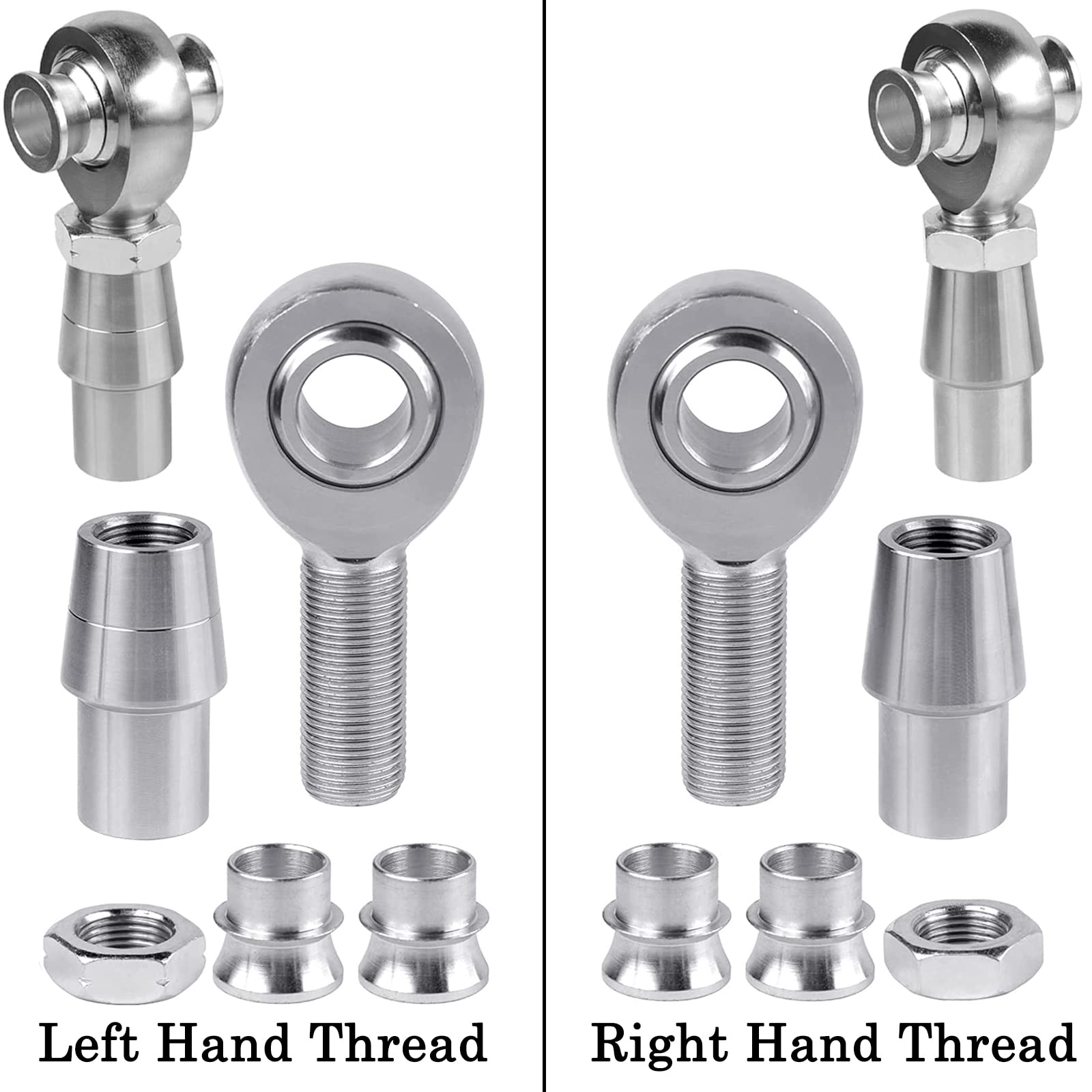

How do left-hand and right-hand threads help during installation?

Supplied RH and LH threaded rod ends let you adjust length and preload without rotating the entire assembly, simplifying alignment and making it easier to set toe, panhard position, or bar tension. Matched threading prevents turning the tube while you fine-tune link length.

• Two RH and two LH threads enable turnbuckle-style adjustments
• Jam nut spacers lock position once alignment is correct
• 16 tpi thread pitch for fine, secure adjustments

Who this is for: Builders, fabricators, and DIY enthusiasts who need robust, adjustable rod ends for steering and suspension links will find this GaiRen kit useful. It suits hot rods, off-road vehicles, traction bar installs, custom tie rods, and any application requiring a compact, high-strength heim joint with left- and right-hand thread options. If you require high static load capacity, corrosion-resistant plating, and compatibility with 1 1/4" tubing finishes and brackets, this four-piece kit is designed for those needs.
