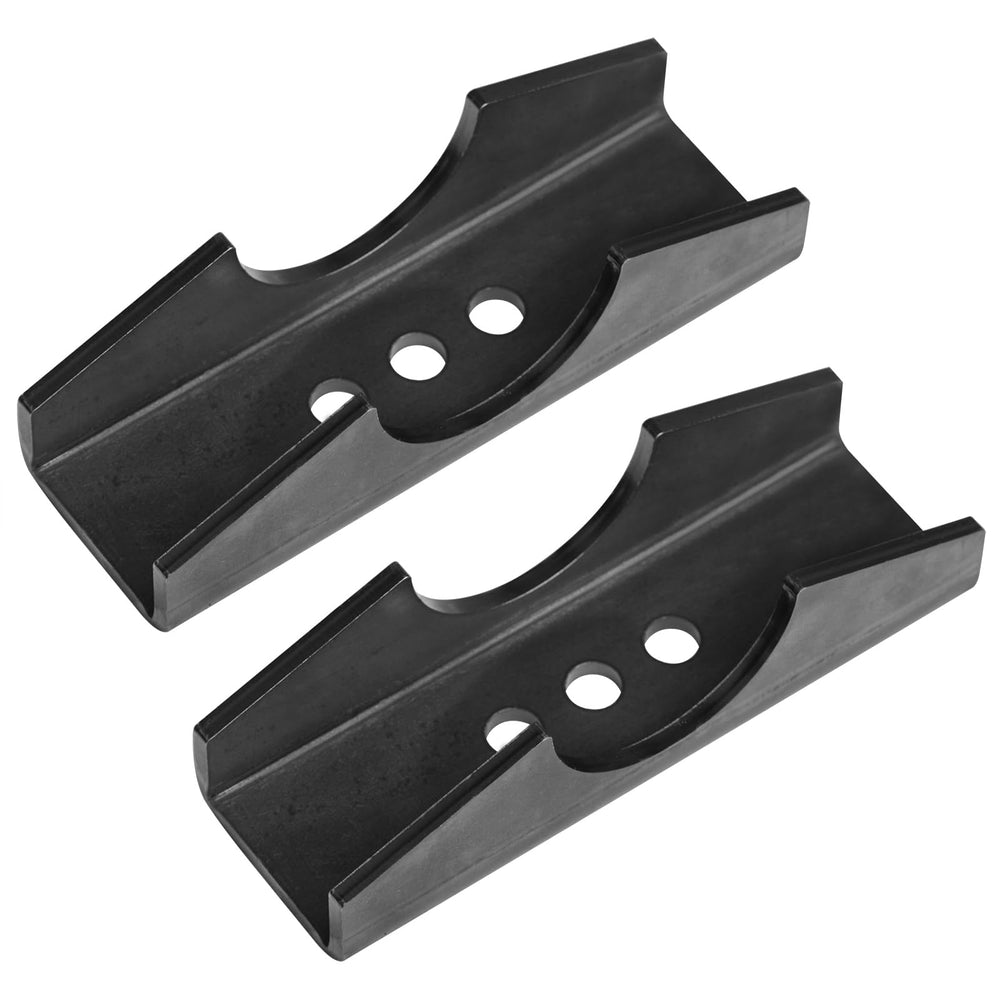

GBGS Axle Spring Perch Seats 2-Pack for 3" OD Round Axles, 8" Long 1/4" Thick Weld-On Anti-Wrap

This pair of heavy-duty perch seats is engineered for custom axle setups, trailer builds, and suspension repairs where a stable spring-to-axle interface matters. Made from low-carbon steel with a plain finish, each perch measures 8" long and 1/4" (5.9 mm) thick to add torsional resistance and avoid premature spring rotation. The three-position adjustable hole pattern lets you fine-tune wheelbase or sag by up to 2" without relocating the entire bracket.

How does the perch reduce axle wrap during acceleration or heavy load?

Axle wrap happens when torque twists the axle relative to the springs; the extended 8" length and thick gauge of these perches spread load and resist twisting forces. Robust weld-on attachment plus the wide contact area keeps the spring seat from rotating under load.

• 8" long body increases leverage against twisting
• 1/4" (5.9 mm) steel thickness for improved stiffness
• Full-length weld surface for secure mounting
• Designed to fit 3" outside-diameter round axles

Will these fit my existing leaf springs and axle dimensions?

They’re sized to accept standard 2-1/2" wide leaf springs and clamp to axles with a 3" outside diameter. Confirm your spring width and axle OD before ordering to ensure a correct fit; the tab spacing and hole pattern are built around those dimensions.

• Compatible with 2-1/2" wide spring packs
• Made for 3" OD round axle tubes
• Weld-on design — requires welding for installation
• Three-position holes for incremental wheelbase changes

How adjustable are the mounting positions and what can I change?

Each perch includes a three-position hole layout that permits up to 2" of effective wheelbase or spring perch adjustment. Use the alternate holes to advance or retreat the spring seating point to tune ride height, compensate for wear, or modify weight distribution.

• Three-position hole pattern for step changes
• Adjustable up to 2" of wheelbase or spring seat movement
• Works without removing the bracket — re-weld in the chosen hole
• Allows quick corrective adjustments during fabrication

What materials and finish should I expect for durability?

The perches are stamped from low-carbon steel and supplied with a plain mill finish. They’re ready for welding and for further corrosion protection by the installer — common options are paint, powder coat, or undercoating after installation.

• Low-carbon steel construction for weldability
• Plain finish — prepared for painting or coating post-install
• 1/4" thickness balances strength and ease of welding
• Sold as a two-pack for left/right axle setups or spares

Who is this for: These GBGS perch seats are aimed at fabricators, trailer builders, off-road vehicle enthusiasts, and repair shops that need a sturdy, weld-on spring seat for 3" round axles. If you install or modify leaf-spring suspensions and require anti-wrap protection with small wheelbase adjustment options, this two-pack provides a practical, serviceable solution that’s ready for custom finishing and welding.
