Generic LED Trailer Tail Lights 6" Oval 6-Pack Red/White — Dual-Function IP67 Waterproof

These six 6-inch oval LED trailer tail lights combine red brake/tail illumination and white reverse LEDs into a waterproof, easy-to-install kit for 12V trailers and trucks.

This kit supplies six matching oval lights, rubber grommets, and three-prong wire connectors so you can replace multiple fixtures at once or outfit a large trailer. Each lamp integrates a dual-ring LED array — a red outer ring for running and brake/turn functions plus a white inner ring for backup — with pearl-shaped reflectors behind each diode for improved nighttime visibility. Built to IP67 standards, they resist water and dust, making them suitable for road and off-road conditions.

How do these lights deliver both tail/brake and reverse functions?

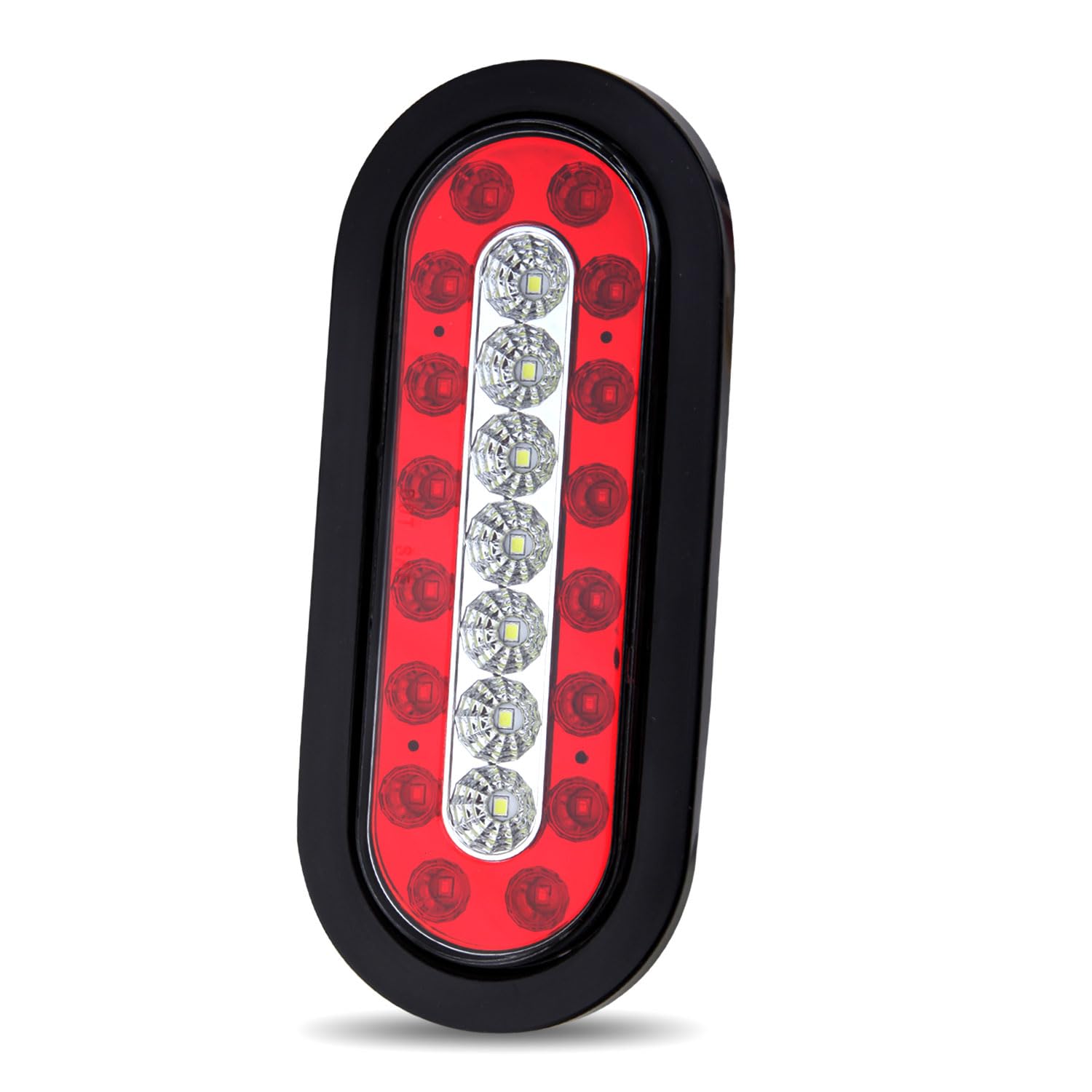

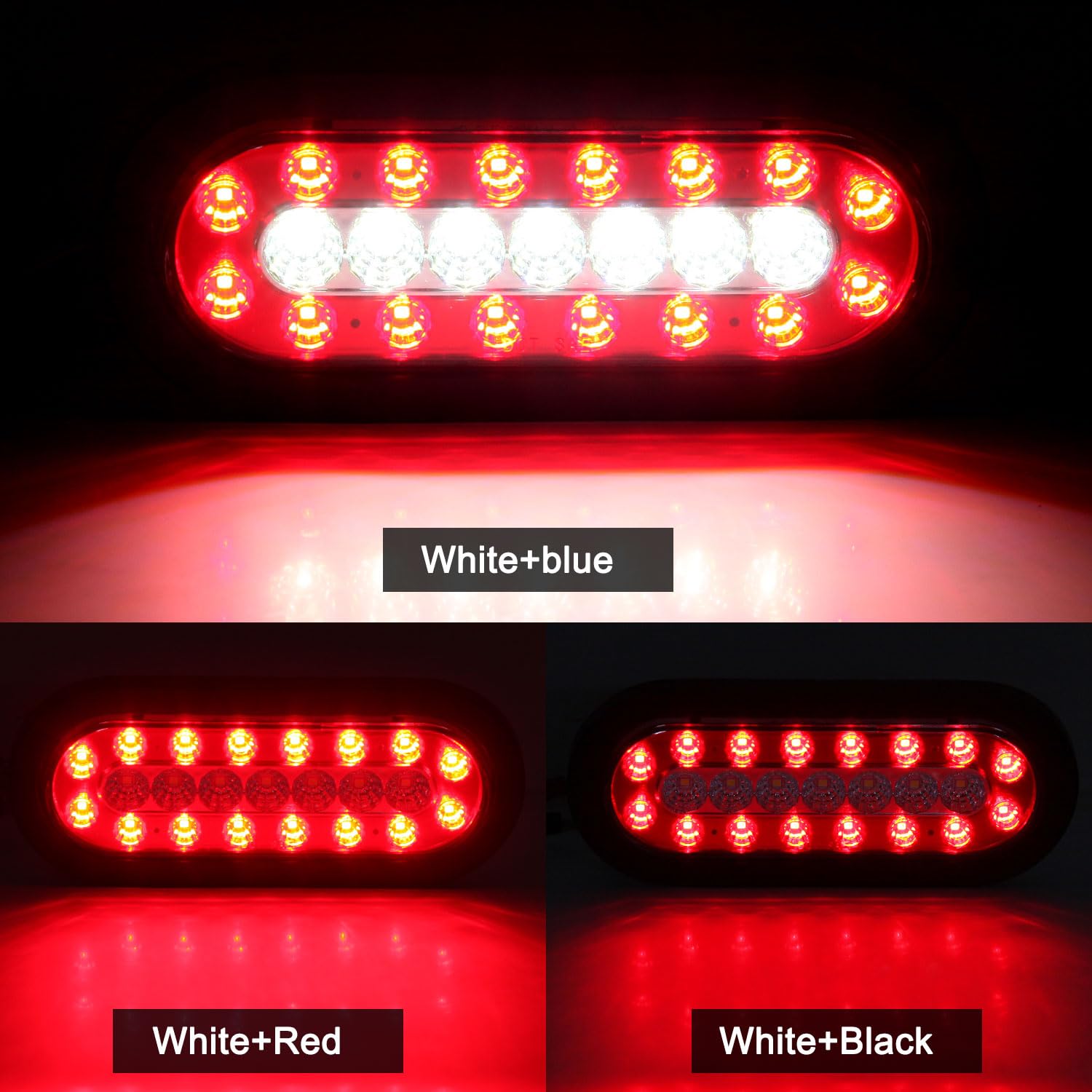

Each oval housing contains two concentric LED rings: the outer red ring changes intensity between low (running) and high (brake/turn) modes, while the inner white ring operates as a reverse light. Separate wires let a vehicle or trailer harness trigger the correct function without cross-wiring.

• 16 red outer LEDs for low/high intensity tail and brake/turn output
• 7 white inner LEDs dedicated to backup illumination
• Four-conductor wiring convention for simple hookup: ground, low, high, reverse
• Pearl-shaped reflectors behind each diode to widen light spread

Are these lights durable and weatherproof enough for heavy use?

The housings are rated IP67, which protects the electronics from dust and temporary submersion. Robust construction and sealed lenses reduce failure from road spray, mud, and rain, so they hold up for trailers, farm equipment, and commercial vehicles.

• IP67 waterproof rating for reliable wet-weather operation
• Rugged sealed lens and gasketed base to prevent ingress
• Corrosion-resistant contacts and sturdy wire connectors

How simple is installation and what hardware is included?

The kit includes six oval rubber grommets and three-prong wire connectors to make swapping lights fast and repeatable. The lights are designed to fit a 6.5-inch mounting hole and list both outer and inner diameters to help you prepare or cut panels accurately.

• Included: 6 lights, 6 rubber grommets, 3-prong connectors

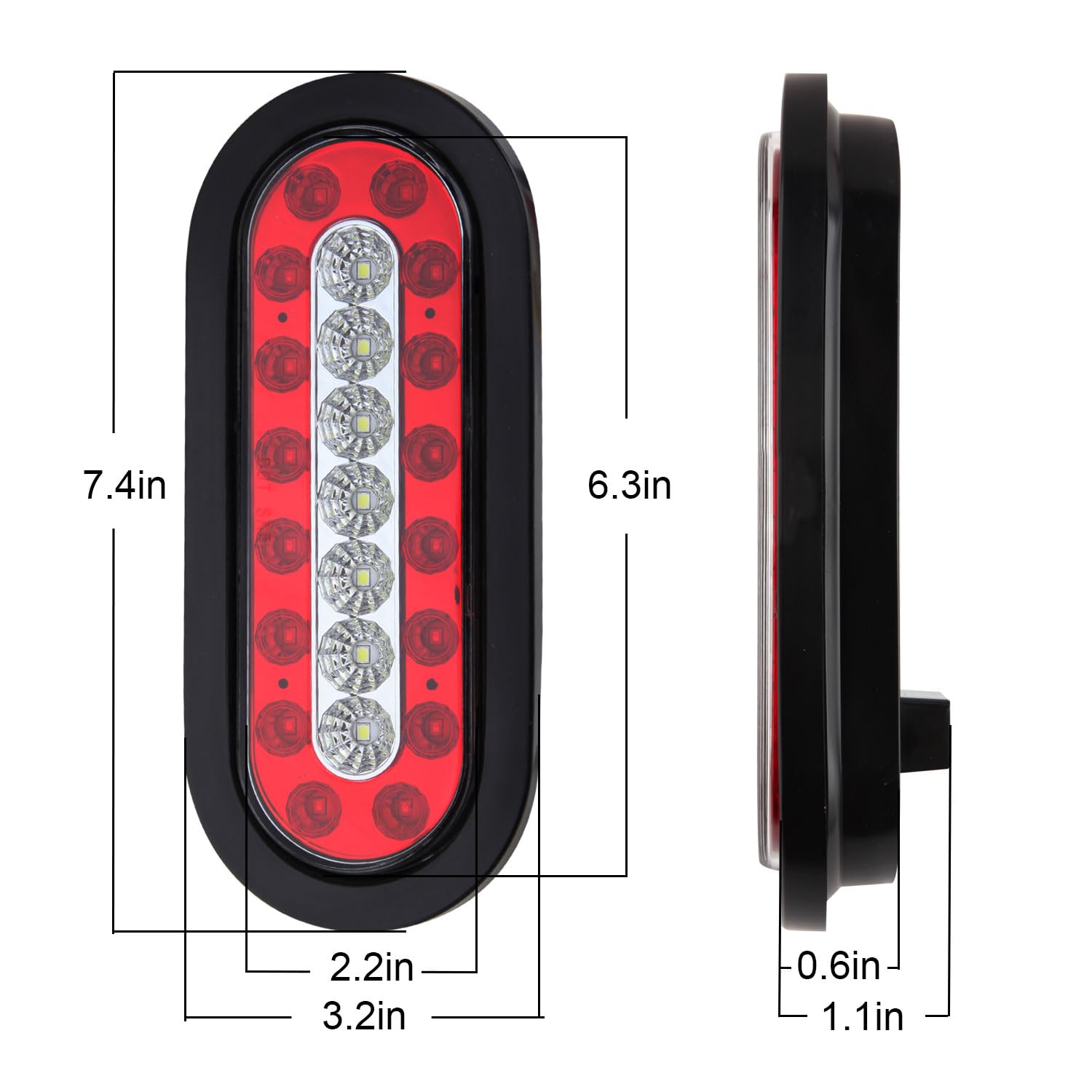

• Mounting: recommended 6.5-inch drilling hole; outer diameter 7.4", inner diameter 6.3"

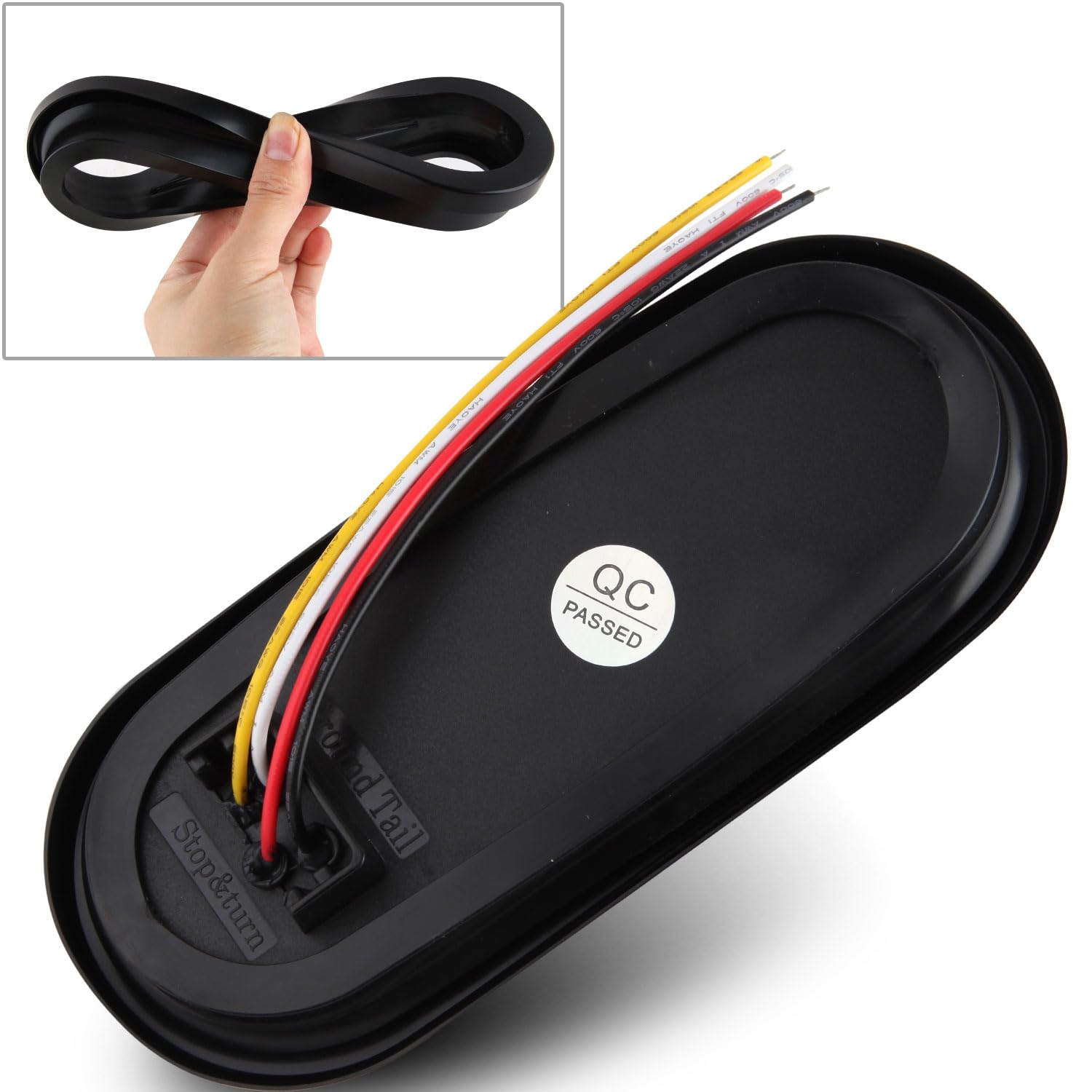

• Wiring: white=ground, red=high (stop/turn), black=low (tail), yellow=reverse

Will these work on my vehicle or trailer type?

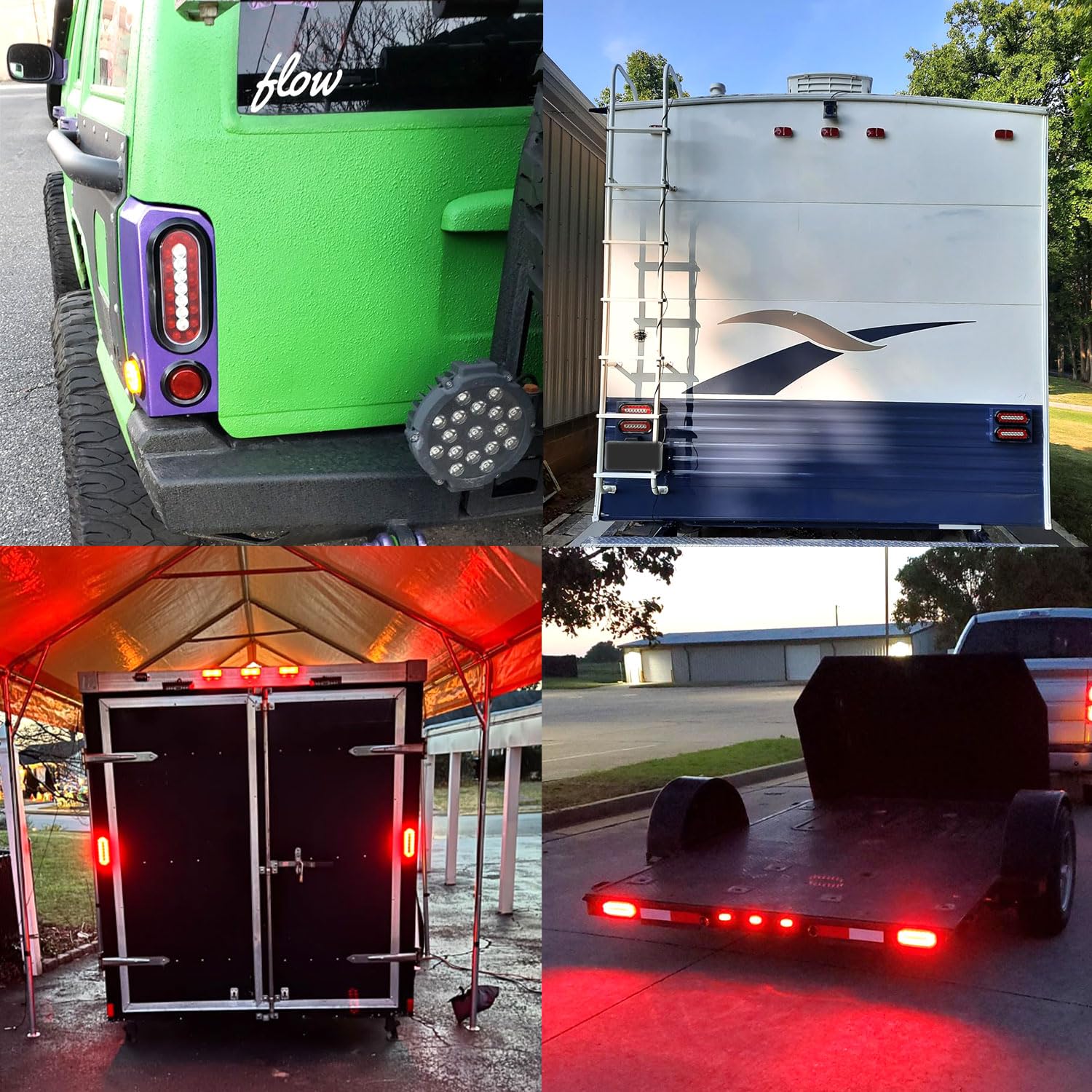

These LEDs are built for standard 12V DC vehicle electrical systems and fit a wide range of trailers and trucks. They are compatible with utility trailers, horse trailers, dump trucks, travel trailers, tractors, semitrailers, and similar 12V platforms.

• Designed for 12V DC systems common on trailers and commercial trucks
• Suitable for agricultural, recreational, and commercial towing applications

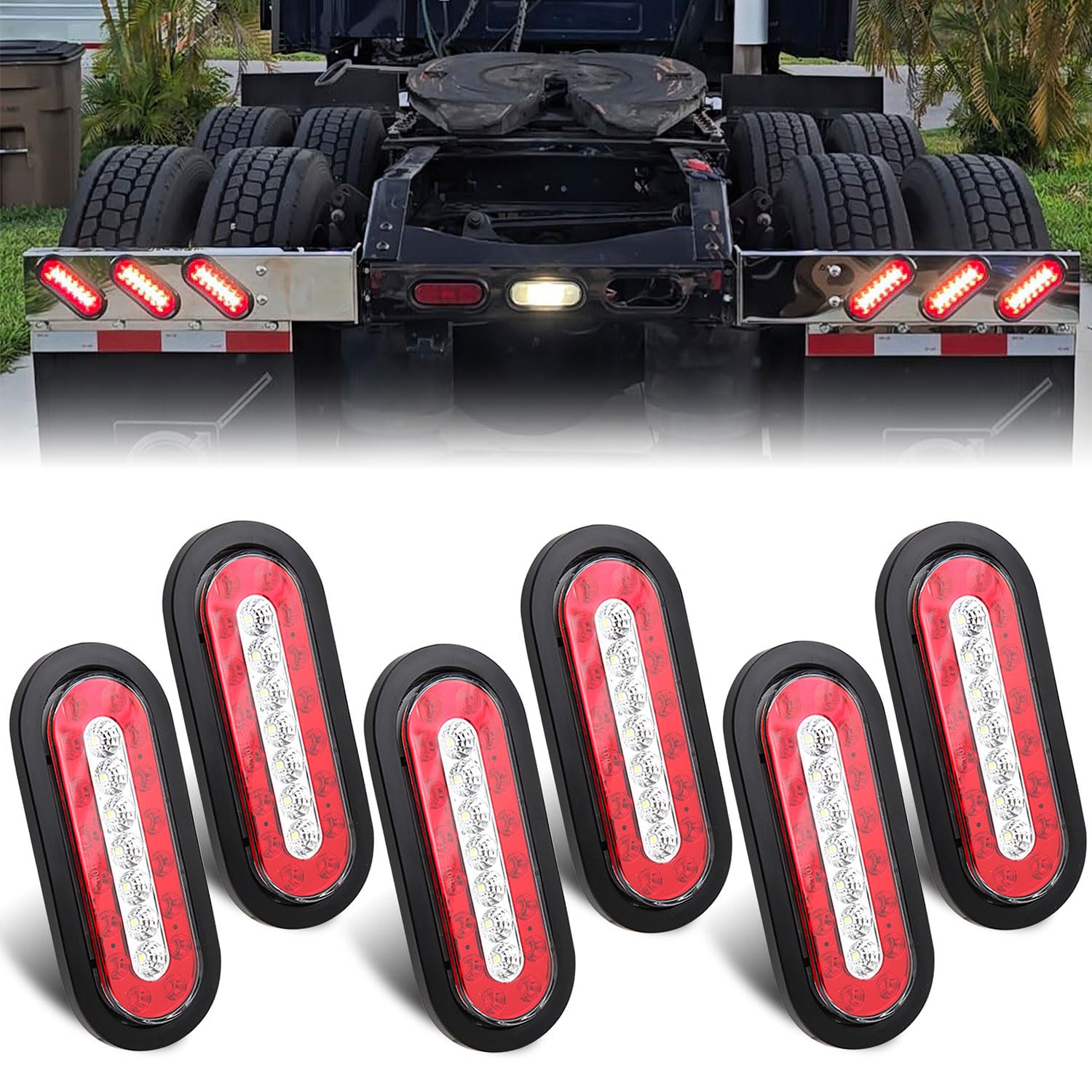

• Sold as a six-piece set for multi-light replacement or large trailers

Who is this for: This six-piece kit is suited to fleet owners, trailer refurbishers, farmers, and recreational vehicle owners who need a reliable, weatherproof set of combination tail and reverse lights. It’s especially helpful when replacing multiple fixtures at once or when upgrading incandescent lamps to longer-lasting LEDs for clearer signaling and backup illumination.
